MTB SLX CS-M7000-11 User manual

(English)
Dealer's Manual
ROAD MTB Trekking
City Touring/
Comfort Bike URBAN SPORT E-BIKE
Cassette Sprocket
SLX
CS-M7000-11
DEORE
CS-M5100-11
CS-M4100-10
CS-LG600-11
CS-LG600-10
CS-HG500-10
DM-MBCS001-04

2
Contents
Contents ...................................................................................2
IMPORTANT NOTICE ..................................................................3
TO ENSURE SAFETY...................................................................4
List of tools to be used............................................................6
Installation/removal ................................................................7
Installing the cassette sprocket.............................................................7
Removing the cassette sprocket ...........................................................8
Sprocket pattern ....................................................................................9
• CS-M7000-11 ............................................................................................................................. 9
• CS-M5100-11 ........................................................................................................................... 10
• CS-LG600-11 ............................................................................................................................ 11
• CS-M4100-10 ........................................................................................................................... 12
• CS-LG600-10 ............................................................................................................................ 13
• CS-HG500-10 ........................................................................................................................... 14

3
IMPORTANT NOTICE
IMPORTANT NOTICE
• This dealer's manual is intended primarily for use by professional bicycle mechanics.
Users who are not professionally trained for bicycle assembly should not attempt to
install the components themselves using the dealer's manuals.
If any part of the information on the manual is unclear to you, do not proceed with the
installation. Instead, contact your place of purchase or a distributor for assistance.
•Make sure to read all manuals included with the product.
•Do not disassemble or modify the product other than as stated in the information
contained in this dealer's manual.
•All manuals and technical documents are accessible online at https://si.shimano.com.
•For consumers who do not have easy access to the internet, please contact a SHIMANO
distributor or any of the SHIMANO offices to obtain a hardcopy of the User's Manual.
•Please observe the appropriate rules and regulations of the country, state or region in
which you conduct your business as a dealer.
For safety, be sure to read this dealer's manual thoroughly before use, and
follow it for correct use.
The following instructions must be observed at all times in order to prevent personal injury
and physical damage to equipment and surroundings.
The instructions are classified according to the degree of danger or damage which may occur
if the product is used incorrectly.
DANGER Failure to follow the instructions will result in death or serious
injury.
WARNING Failure to follow the instructions could result in death or
serious injury.
CAUTION Failure to follow the instructions could cause personal injury or
physical damage to equipment and surroundings.

4
TO ENSURE SAFETY
TO ENSURE SAFETY
WARNING
• Be sure to follow the instructions provided in the manuals when installing the product.
Only use SHIMANO genuine parts. If a component or replacement part is incorrectly
assembled or adjusted, it can lead to component failure and cause the rider to lose
control and crash.
•Wear approved eye protection while performing maintenance tasks such as
replacing components.
Be sure to also inform users of the following:
•Clean the chain and QUICK-LINK with an appropriate chain cleaner regularly. Intervals
between maintenance depend on the use and riding circumstances. Never use alkali
based or acid based solvents such as rust cleaners. If those solvents are used the chain or
QUICK-LINK might break and cause serious injury.
NOTICE
Be sure to also inform users of the following:
•If the chain keeps skipping during use, consult the place of purchase.
•The gears should be periodically washed with a neutral detergent then lubricated. In
addition, cleaning the chain and QUICK-LINK with a neutral detergent and lubricating
them can be an effective way of extending the life of the chain and QUICK-LINK.
•Products are not guaranteed against natural wear and deterioration from normal use
and aging.
•For maximum performance we highly recommend SHIMANO lubricants and maintenance
products.
For installation to the bicycle and maintenance
•The gears should be periodically washed with a neutral detergent. In addition, cleaning
the chain with neutral detergent and lubricating it can be an effective way of extending
the life of the gears and the chain.
•Always use the recommended combination of gears.

5
TO ENSURE SAFETY
•Always be sure to use the sprocket set bearing the same
group marks of gears; never use in combination with a
sprocket bearing a different group mark of gears.
* Depending on the tooth combination, some may not
have a mark.
-
S
H
I
M
A
N
O
H
Y
P
E
R
G
L
I
D
E
C
Group mark
•Always use CS-M7000-11/CS-M5100-11 in combination with HG-X 11-speed chains, or with
CN-LG500. Other chains cannot be used because the dimensions do not match.
•Always use CS-M4100-10/CS-HG500-10 in combination with HG-X 10-speed chains. Other
chains cannot be used because the dimensions do not match.
•Before using CS-LG600 and other LINKGLIDE products, check the combinations listed in
the compatibility information (https://productinfo.shimano.com/#/com). Other products
cannot be used because the specifications do not match.
11-speed specifications: https://productinfo.shimano.com/#/com?cid=C-432&acid=C-435
10-speed specifications: https://productinfo.shimano.com/#/com?cid=C-432&acid=C-436
The actual product may differ from the illustration because this manual is
intended mainly to explain the procedures for using the product.

6
List of tools to be used
List of tools to be used
The following tools are needed for installation/removal, adjustment, and maintenance
purposes.
Tool
TL-LR10 / TL-LR15
TL-SR23 / TL-SR24
Adjustable wrench

7
Installation/removal
Installing the cassette sprocket
Installation/removal
Installing the cassette sprocket
1. Place all of the sprockets on the freewheel body.
Place the sprockets in descending order from the largest sprocket.
Place the sprockets so that the wide convex section of the sprocket is aligned with the
wide groove in the freewheel body.
The marked side of the sprockets must be facing outward.
Wide part
Wide part
TECH TIPS
•There is only one wide groove area on the freewheel body and on each sprocket.
Check when setting the sprockets.
2. Place the lock ring into the freehub body and use a SHIMANO original
tool to tighten.
30 - 50 N·m
Lock ring

8
Installation/removal
Removing the cassette sprocket
Removing the cassette sprocket

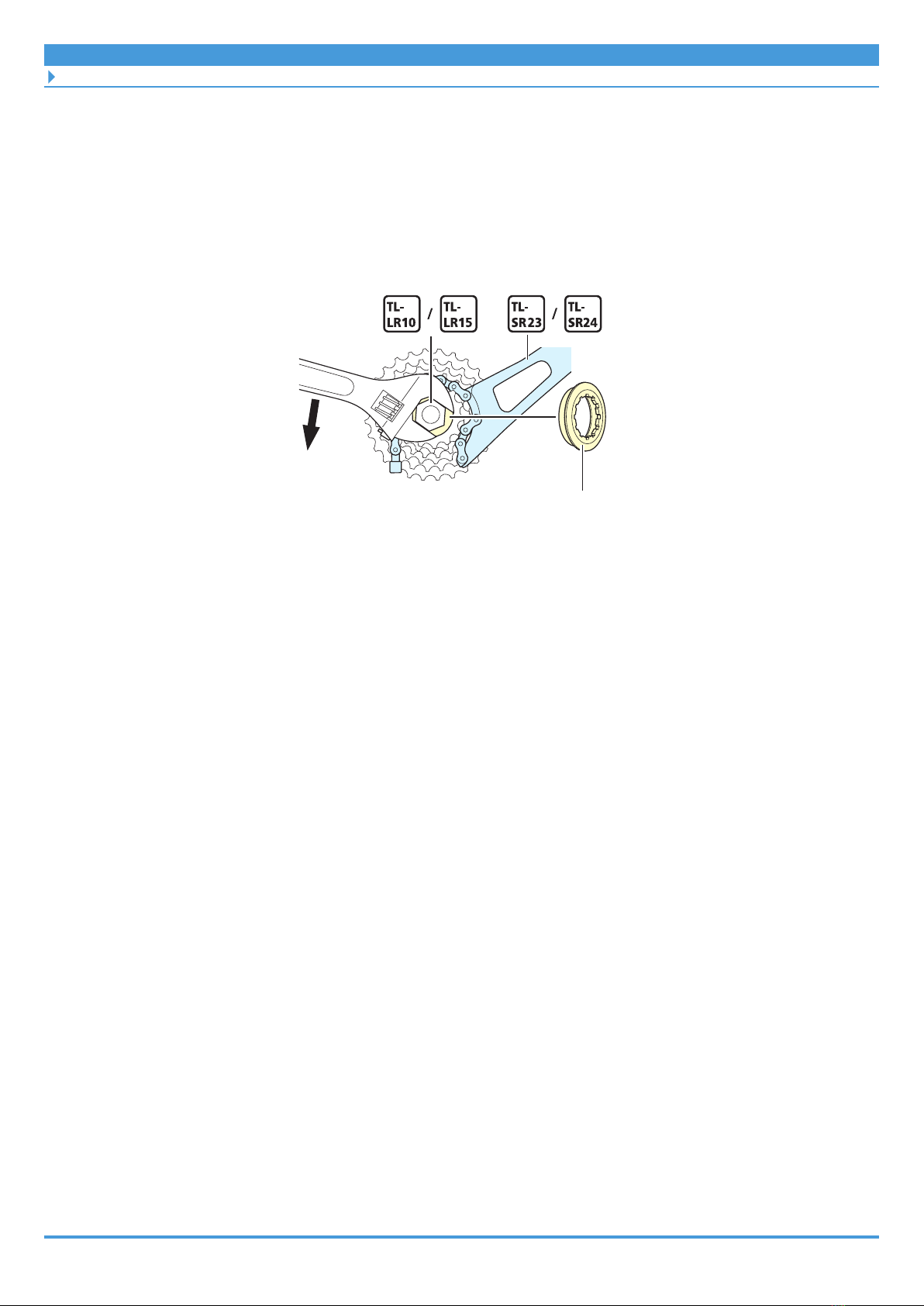

1. Remove the lock ring with a SHIMANO original tool.
Install TL-SR23/TL-SR24 on the sprocket outward from the middle sprocket to secure the
assembly. If the TL-SR23/TL-SR24 is set on a sprocket inward from the middle sprocket, it
will not be stable.
Lock ring
2. Remove the cassette sprocket from the freehub body.

9
Installation/removal
Sprocket pattern
Sprocket pattern

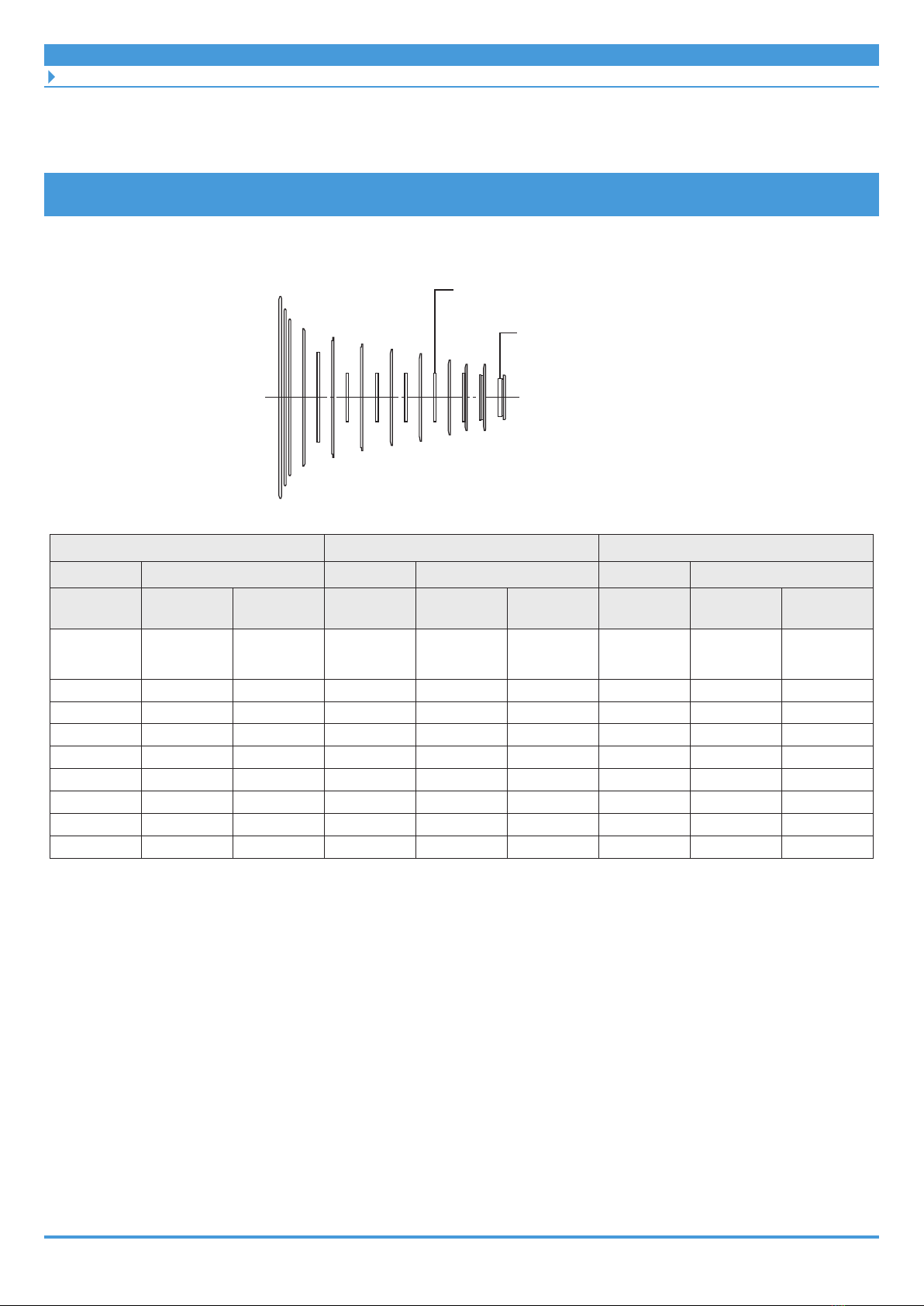

CS-M7000-11
< 11-40T (bs), 11-42T (bt), 11-46T >
Lock ring
Sprocket spacer
11-40T 11-42T 11-46T
Chainrings Chainrings Chainrings
Number of
teeth (1) (2) Number of teeth (1) (2) Number of teeth (1) (2)
40,
35,
31
40T bs,
35T bs,
31T bs
11S 40B,
11S 35B,
11S 31B
42,
37,
32
42T bt,
37T bt,
32T bt bu
11S 42A,
11S 37A,
11S 32B
46,
37,
32
46T bu,
37T2 bu,
32T bt bu
11S 46A,
11S 37B,
11S 32B
27 27T bs 11S 27D 28 28T bt bu 11S 28D 28 28T bt bu 11S 28D
24 24T bs bt bu 11S 24D 24 24T bs bt bu 11S 24D 24 24T bs bt bu 11S 24D
21 21T bs bt bu 11S 21H 21 21T bs bt bu 11S 21H 21 21T bs bt bu 11S 21H
19 19T bs bt bu 11S 19H 19 19T bs bt bu 11S 19H 19 19T bs bt bu 11S 19H
17 17T bs bt bu 11S 17E 17 17T bs bt bu 11S 17E 17 17T bs bt bu 11S 17E
15 15T bs bt bu 11S 15C 15 15T bs bt bu 11S 15C 15 15T bs bt bu 11S 15C
13 13T bs bt bu 11S 13C 13 13T bs bt bu 11S 13C 13 13T bs bt bu 11S 13C
11 11T bs bt bu 11S 11B 11 11T bs bt bu 11S 11B 11 11T bs bt bu 11S 11B
Sprockets will have a gear group marking of either (1) or (2).

10
Installation/removal
Sprocket pattern
CS-M5100-11
Lock ring
Sprocket spacer
< 11-51T > < 11-42T >
Lock ring
Sprocket spacer
11-51T 11-42T
Number of teeth Mark Number of teeth Mark
51,
45,
39,
33,
28
51C,
45G,
39C,
33B,
28G
42,
37,
32,
28,
24
42B,
11S 37A,
11S 32B,
11S 28D,
11S 24D
24 24T bv 21 11S 21H
21 21L 19 11S 19H
18 18G 17 11S 17E
15 15T bj bk bv 15 11S 15C
13 13C 11S 13 11S 13C
11 11B 11S 11 11S 11B

11
Installation/removal
Sprocket pattern

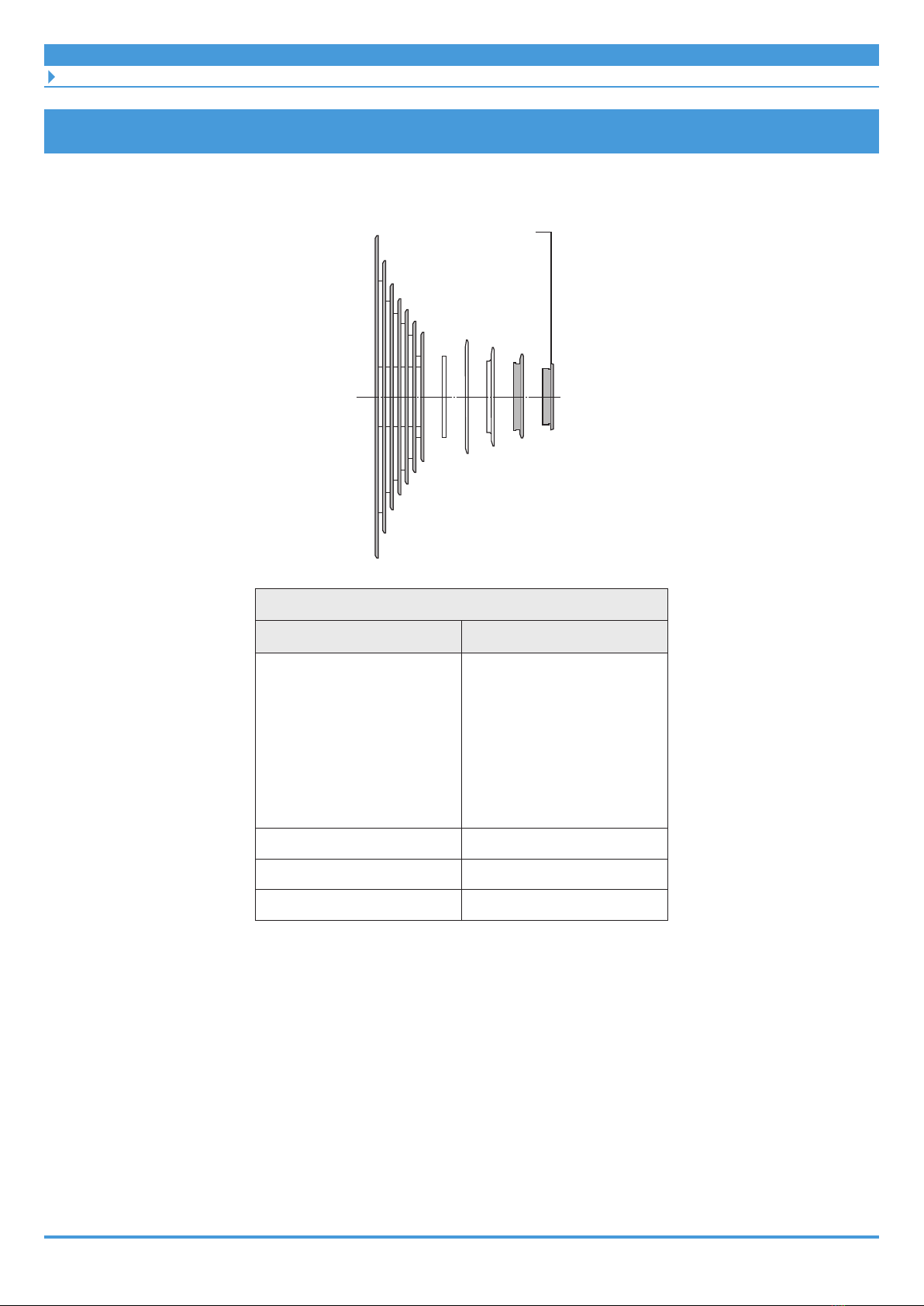

CS-LG600-11
< 11-50T >
Lock ring
11-50T
Number of teeth Mark
50,
43,
36,
30,
26,
23,
20,
17
50T,
43T,
36T,
30T,
26T,
23T,
20T,
17T
15 15T
13 13T
11 11T

12
Installation/removal
Sprocket pattern
CS-M4100-10
< 11-46T >
Lock ring
11-46T 11-42T
Number of teeth Mark Number of teeth Mark
46,
37,
32,
28,
24,
21,
18,
15
46B,
37T bv,
32T2 bv,
28T2 bv,
24T bv,
21T2 bv,
18T2 bv,
15T bj bk bv
42,
37,
32,
28,
24,
21,
18,
15
42C,
37T bv,
32T2 bv,
28T2 bv,
24T bv,
21T2 bv,
18T2 bv,
15T bj bk bv
13 13T bj bk bv 13 13T bj bk bv
11 11T bj bk bv 11 11T bj bk bv

13
Installation/removal
Sprocket pattern
CS-LG600-10
< 11-43T >
Lock ring
11-43T
Number of teeth Mark
43,
36,
30,
26,
23,
20,
17
43T,
36T,
30T,
26T,
23T,
20T,
17T
15 15T
13 13T
11 11T

14
Installation/removal
Sprocket pattern

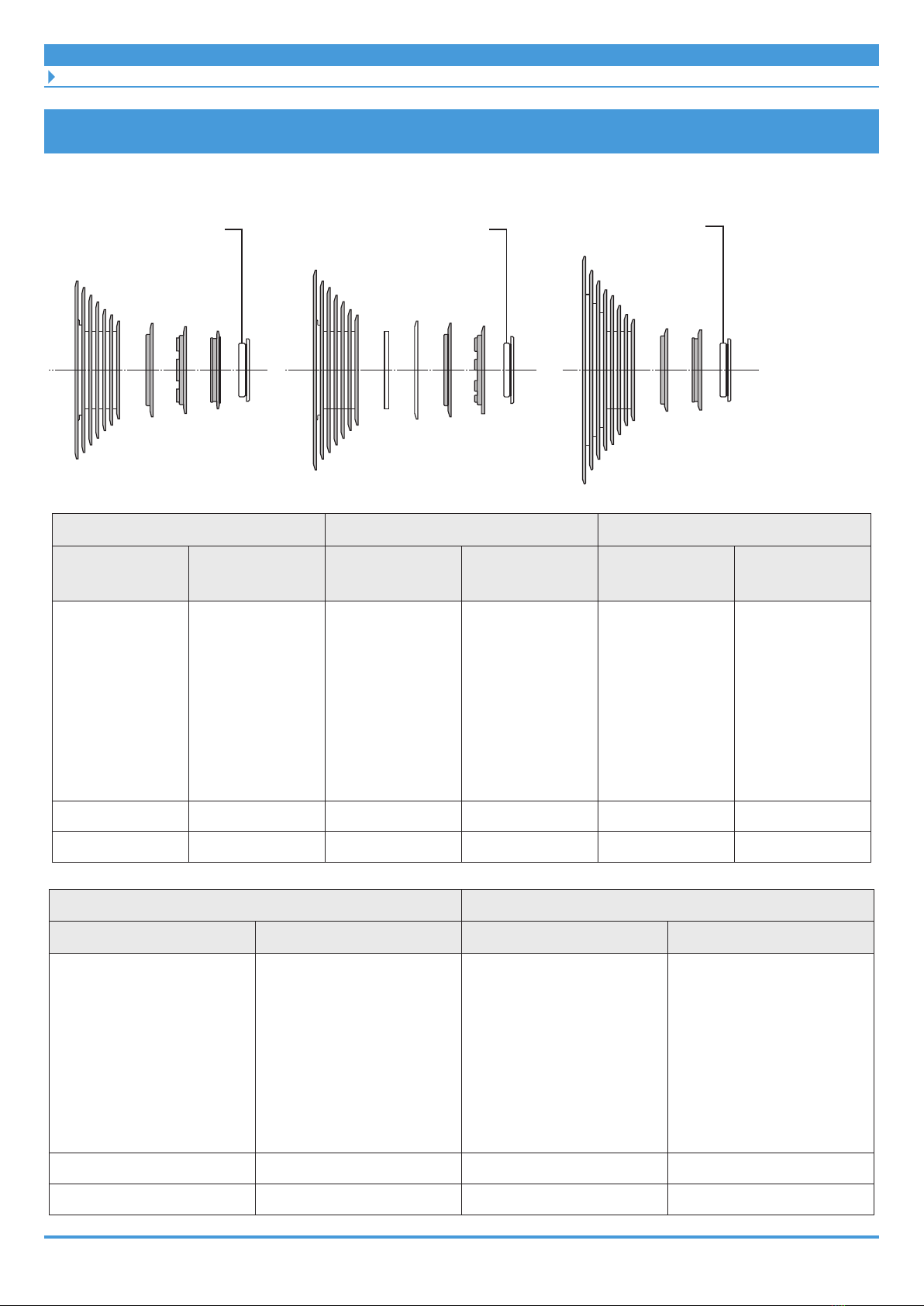

CS-HG500-10
< 12-28T >< 11-25T > < 11-32T(bl), 11-34T(bj), 11-42T(bv) >
Lock ring Lock ring Lock ring
11-25T 12-28T 11-32T(bl)
Number of
teeth
Mark Number of
teeth
Mark Number of
teeth
Mark
25,
23,
21,
19,
17,
15,
14,
13
25T2,
23T,
21T,
19T3,
17T2,
15T,
14T,
13T
28,
25,
23,
21,
19,
17,
15,
14
28T,
25T,
23T,
21T,
19T3,
17T2,
15T,
14T
32,
28,
25,
22,
20,
18,
16,
14
32T bl,
28T bl,
25T bl,
22T bl,
20T bl,
18T bl,
16T bl,
14T bl
12 12T 13 13T 12 12T bl
11 11T 12 12T 11 11T2 bl
11-34T(bj) 11-42T(bv)
Number of teeth Mark Number of teeth Mark
34,
30,
26,
23,
21,
19,
17,
15
34T bj,
30T bj,
26T bj,
23T bj,
21T bj bk,
19T bj bk,
17T bj bk,
15T bj bk bv
46,
37,
32,
28,
24,
21,
18,
15
42T bv,
37T bv,
32T2 bv,
28T2 bv,
24T bv,
21T2 bv,
18T2 bv,
15T bj bk bv
13 13T bj bk bv 13 13T bj bk bv
11 11T bj bk bv 11 11T bj bk bv

Please note: specifications are subject to change for improvement without notice. (English)
