MTBL Baijiu G4 User manual

Baijiu Dispenser G4
MTBL Global Technology Pte Ltd
MTBL-004
other antenna or transmitter.
2. This equipment complies with RF radiation exposure limits set forth for an
uncontrolled environment.
3.This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.
Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1Ed.3., as
described in Laser Notice No.56, dated May 8, 2019." provided on the external
surface of the product or on the outer surface of the packaging
MTBL
5

MTBL Baijiu Dispenser G4
MTBL-004
3.1 Control circuit board: The device includes two function boards,the
main control board and the light board
3.2 Main control circuit board
Select Bluetooth module with low power consumption as MCU and
CMT4502 as module chip. The module antenna is a board antenna with
an antenna gain of 1.5dBi. Modulation frequency: 2402MHz-2480MHz;
Bluetooth version is Bluetooth 5.0.
3.3 The lamp panel consists of 12 1206 encapsulated red and white dual
color LEDs. The red light indicates that the machine is charging, and the
white light indicates that the machine is charging or that the machine is
working.The lamp panel also has a laser light which can place the glass
in the right position
3、Device description
1.1 purpose
MTBL Baijiu Dispenser G4 (hereinafter referred to as the device) is a
low-pressure smart alcohol dispenser developed by our company. This
product works through the Bluetooth connection between the Bluetooth
module of the personal mobile phone terminal and the device , and
control alcohol output through the mobile APP.
1.2 Use Environment
1.2.1
A) Ambient temperature: -10 ~+55 C;
B) Relative humidity: no more than 85%;
C) Atmospheric pressure: 86 kpa~106 kpa;
D) Use environment: indoor
1.2.2 After loading the new bottle of wine, due to the air in the pipeline
and pump body, the first 3 cups and last cup of wine will not be
accurate, so it is necessary to explain to customer.
1.2.3 Sealed silicone cap is a disposable item,so must use new sealed
silicone cap when replacing the new bottle.
1.2.4 This equipment is specially designed for this small-packed MTBL
Bottle,so When removing the original inner lid and flow-limiting beads
of a wine bottle,must use the specially equipped lid opener,No violence
to avoid injuries.
1.4 Technical features
A) Set Integrating wireless communication, pump liquid, liquid metering
and other functions as one;
B) Use lithium batteries with short circuit protection;
C) Use various liquid contact parts that meet food grade specifications;
1、Summary
A) Shape size: 140 x 175 x 172 mm (high)
B) Outlet height from desktop: 60mm
C) Weight of equipment: 860g (excluding wine)
D) Battery specification: 2000mA 18650 lithium battery x 2
E) Adapter: 5V/2A
F) Rated power: 5W
G) Charging port: TYPE-C
H) Standby time: about 1 year
D) LED status indicator, dual color light display, various states are easy
to distinguish;
E) Small size, easy to place, and need only small space;
F) Laser light can specify the location of the cup;
2、technical parameter
1 2

C) When the wine needs to be delivered, the mobile phone turns on
Bluetooth, scans the code with the mobile app, matches with the device,
clicks "free taste" to try the drink, or directly selects the amount of wine
to buy, and then the purchase can be completed
D) When tasting or purchasing wine for free, The glass should be placed
on the spot from the counter-position lamp before clicking the
"Out of Wine" to avoid spilling the wine.
A) When charging the light is red,when fully charged, the lig ht is blue
B) When charging a new bottle，turn on mobile Bluetooth,Use mobile
APP maintenance mode, scan machine QR code, pair mobile phone
with device.After clicking "Open the shield", remove the shield.Then
click on” Change” to pull out the wine bottle, insert the new one and
cover the shield.
5、Instructions

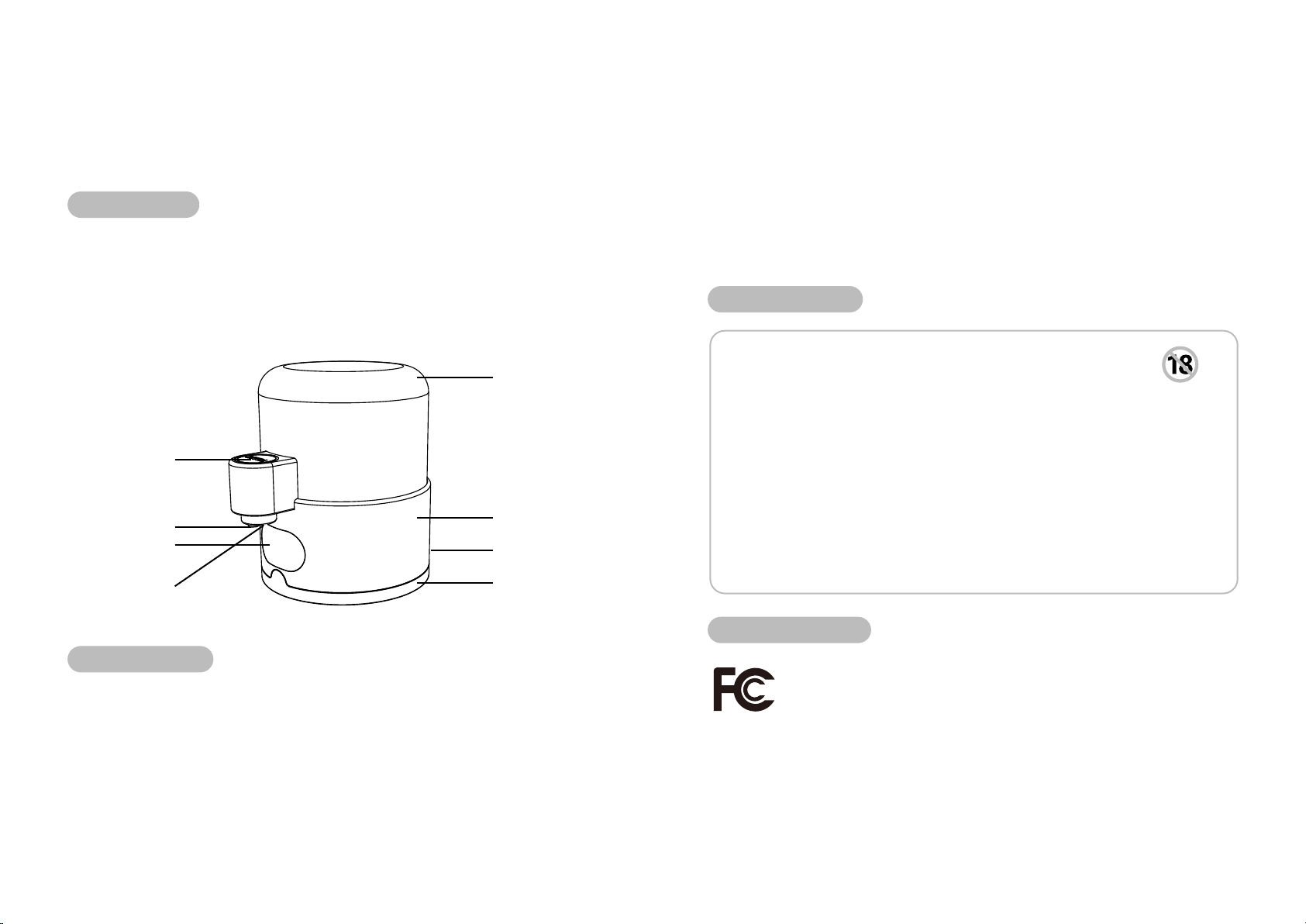

1, plastic transparent cover 2, plastic body 3, type-C charging hole
4, plastic bottom cover 5, alignment light 6, 2-D code sticker
7, wine outlet 8, LOGO light/indicator
3.4 All parts of the device that come into contact with liquids (needles,
bottle stoppers, silicone tubes, water pumps, water flow sensors,
one-way valves) are food-grade safety certified.
4、Part name
①
②
③
④
⑤
⑥
⑦
⑧
(1) Unusable for minors
(2) Alcohol allergy should not use this device
(3) Do not drink excessively, which is harmful to the health. Please
discourage excessive drinkers from continuing to use
(4) If the device is not in use for a long time,Replace new wine bottle
before use
(5) When the device piping needs cleaning,Turn on mobile APP
maintenance mode, Equipment bottles filled with high concentration
liquor ,then press the alcohol outlet button continuously use to flush
pipeline.
6、Special Tips
7、Authentication
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any
FCC ID: 2A6DL-MTBL-004
3 4
