MTU 8V 4000 Lx2 x User manual

Operating Instructions
Gas engine
8V 4000 Lx2 x
MS150103/01E

Engine model kW/cyl. Application group
8V4000L32F 100 kW/cyl. 3A, continuous operation, unrestricted
Table 1: Applicability
© 2015 Copyright MTU Friedrichshafen GmbH
This publication is protected by copyright and may not be used in any way, whether in whole or in part, without the prior
written consent of MTU Friedrichshafen GmbH. This particularly applies to its reproduction, distribution, editing, transla-
tion, microfilming and storage or processing in electronic systems including databases and online services.
All information in this publication was the latest information available at the time of going to print. MTU Friedrichshafen
GmbH reserves the right to change, delete or supplement the information provided as and when required.

Table of Contents
1 Safety
1.1 Important provisions for all products 5
1.2 Personnel and organizational requirements 7
1.3 Transport 8
1.4 Safety regulations for startup and operation 9
1.5 Safety requirements for startup and
operation, special instructions for
applications with gaseous fuel 10
1.6 Safety regulations for maintenance and
repair work 11
1.7 Safety requirements for maintenance and
repair work, special instructions for
applications with gaseous fuel 14
1.8 Fire prevention and environmental
protection, fluids and lubricants, auxiliary
materials 15
1.9 Fire prevention and environmental
protection, fluids and lubricants, auxiliary
materials, special instructions for
applications with gaseous fuel 17
1.10 Standards for safety notices in the text 18
2 Product Summary
2.1 Engine overview 19
2.2 Engine side and cylinder designations 21
2.3 Engine – Main dimensions 22
2.4 Firing order 23
2.5 Technical Data 24
2.5.1 8V 4000 L32F engine data, fuel-optimized (TA-
Luft) 24
2.5.2 8V 4000 L32F engine data, emissions-
optimized (1/2 TA-Luft) 28
2.6 Monitoring, Control and Regulation
Equipment 32
2.6.1 Gas engine phase 3 system – Overview 32
2.6.2 Purpose of the units 34
3 Operation
3.1 Runtimes at partial load 36
3.2 Putting the engine into operation after
extended out-of-service periods (>3 months) 37
3.3 Putting the engine into operation after
scheduled out-of-service-period 38
3.4 Control, starting and stopping sequences 39
3.5 Engine – Start 41
3.6 Operational checks 42
3.7 Emission values – Check 43
3.8 Engine – Shutdown 44
3.9 Emergency engine shutdown 45
3.10 After stopping the engine – Engine remains
ready for operation 47
3.11 After stopping the engine – Putting the
engine out of operation 48
4 Maintenance
4.1 50-hours check 49
4.2 Maintenance task reference table [QL1] 50
5 Troubleshooting
5.1 Fault messages - Key 51
5.2 Fault messages in communication protocol
to genset control system 53
5.3 Fault messages – Engine Control Unit 95
6 Task Description
6.1 Engine 129
6.1.1 Engine – Barring manually 129
6.1.2 Machine room – Check for smell of gas 130
6.2 Crankcase Breather 131
6.2.1 Oil separator – Filter replacement 131
6.3 Ignition System 133
6.3.1 Spark plug – Replacement 133
6.3.2 Spark plug – Removal 134
6.3.3 Spark plug – Installation 135
6.3.4 Spark plug connector – Replacement 137
6.3.5 Spark plug connector – Removal 138
6.3.6 Spark plug connector – Installation 139
6.3.7 Ignition system – Ignition timing check 141
6.4 Valve Drive 142
6.4.1 Valve projection – Measurement 142
6.4.2 Valve clearance – Check and adjustment 145
6.4.3 Valve gear – Lubrication 147
6.4.4 Cylinder head cover ‒ Removal 148
6.4.5 Cylinder head cover ‒ Installation 149
6.5 Gas System 150
6.5.1 Gas supply – Checking gas lines for leaks 150
6.6 Air Filter 151
6.6.1 Air filter – Replacement 151
6.6.2 Air filter – Removal and installation 152
6.7 Lube Oil System, Lube Oil Circuit 153
6.7.1 Engine oil – Level check 153
6.7.2 Engine oil – Change 154
6.7.3 Engine oil – Sample extraction and analysis 155
MS150103/01E 2015-03 | Table of Contents | 3
DCL-ID: 0000028866 - 002

6.8 Oil Filtration / Cooling 156
6.8.1 Engine oil filter – Replacement 156
6.9 Coolant Circuit, General, High-Temperature
Circuit 157
6.9.1 Engine coolant – Level check 157
6.9.2 Engine coolant – Change 158
6.9.3 Engine coolant – Draining 159
6.9.4 Engine coolant – Filling 161
6.9.5 Vent line of engine coolant circuit –
Replacement 162
6.10 Low-Temperature Circuit 163
6.10.1 Mixture coolant level – Check 163
6.10.2 Mixture coolant – Change 164
6.10.3 Mixture coolant – Draining 165
6.10.4 Mixture coolant – Filling 166
6.11 Wiring (General) for Engine/Gearbox/Unit 167
6.11.1 Engine cabling – Check 167
6.11.2 Sensors – Overview 168
6.11.3 Sensors – Removal 172
6.11.4 Sensor – Installation 174
7 Appendix A
7.1 Abbreviations 175
7.2 MTU Onsite Energy contact person / service
partner 177
8 Appendix B
8.1 Special Tools 178
8.2 Index 182
4 | Table of Contents | MS150103/01E 2015-03
DCL-ID: 0000028866 - 002

1 Safety
1.1 Important provisions for all products
Nameplate
The product is identified by nameplate, model designation or serial number and must match with the
information on the title page of this manual.
Nameplate, model designation or serial number can be found on the product.
All EU-certified engines delivered by MTU come with a second nameplate. When operating the machine
in the EU: The second nameplate must be affixed in a prominent position as described in the accompa-
nying specifications.
General information
This product may pose a risk of injury or damage in the following cases:
• Incorrect use
• Operation, maintenance and repair by unqualified personnel
• Modifications or conversions
• Noncompliance with the safety instructions and warning notices
Correct use
The product is intended for use in accordance with its contractually-defined purpose as described in the
relevant technical documents only.
Intended use entails operation:
• Within the permissible operating parameters in accordance with the (→ Technical data)
• With fluids and lubricants approved by the manufacturer in accordance with the (→ Fluids and Lubri-
cants Specifications of the manufacturer)
• With spare parts approved by the manufacturer in accordance with the (→ Spare Parts Catalog/MTU
contact/Service partner)
• In the original as-delivered configuration or in a configuration approved by the manufacturer in writ-
ing (including engine control/parameters)
• In compliance with all safety regulations and in adherence with all warning notices in this manual
• With maintenance work performed in accordance with the (→ Maintenance Schedule) throughout the
useful life of the product
• In compliance with the maintenance and repair instructions contained in this manual, in particular
with regard to the specified tightening torques
• With the exclusive use of technical personnel trained in commissioning, operation, maintenance and
repair
• By contracting only workshops authorized by the manufacturer to carry out repair and overhaul
Any other use is considered improper use. Such improper use increases the risk of injury and damage
when working with the product. The manufacturer shall not be held liable for any damage resulting from
improper, non-intended use.
Modifications or conversions
Unauthorized changes to the product represent a contravention of its intended use and compromise
safety.
Changes or modifications shall only be considered to comply with the intended use when expressly au-
thorized by the manufacturer. The manufacturer shall not be held liable for any damage resulting from
unauthorized changes or modifications.
MS150103/01E 2015-03 | Safety | 5
TIM-ID: 0000040530 - 006

Emission regulations and emission labels
Responsibility for compliance with emission regulations
Modification or removal of any mechanical/electronic components or the installation of additional com-
ponents including the execution of calibration processes that might affect the emission characteristics
of the product are prohibited by emission regulations. Emission control units/systems may only be
maintained, exchanged or repaired if the components used for this purpose are approved by the manu-
facturer.
Noncompliance with these regulations will invalidate the design type approval issued by the emissions
regulation authorities. The manufacturer does not accept any liability for violations of the emission reg-
ulations. The maintenance schedules of the manufacturer must be observed over the entire life cycle of
the product.
Replacing components with emission labels
Emission labels are attached to all MTU engines. These must remain on the engine throughout its op-
erational life.
Engines used exclusively in land-based, military applications other than by US government agencies are
excepted from this proviso.
Please note the following when replacing components with emission labels:
• Appropriate emission labels must be affixed on spare parts.
• Emission labels may not be transferred from old components to new ones.
• Emission labels on old components must be removed and destroyed.
6 | Safety | MS150103/01E 2015-03
TIM-ID: 0000040530 - 006

1.2 Personnel and organizational requirements
Organizational measures of the user/manufacturer
This manual must be issued to all personnel involved in operation, maintenance, repair or transporta-
tion.
Keep this manual handy in the vicinity of the product such that it is accessible to operating, mainte-
nance, repair and transport personnel at all times.
Personnel must receive instruction on product handling and maintenance on the basis of this manual
with a special emphasis on safety requirements and warnings.
This is particularly important in the case of personnel who only occasionally perform work on or around
the product. This personnel must be instructed repeatedly.
Personnel requirements
All work on the product shall be carried out by trained and qualified personnel only:
• Training at the Training Center of the manufacturer
• Qualified personnel specialized in mechanical and plant engineering
The operator must define the responsibilities of the personnel involved in operation, maintenance, re-
pair and transport.
Working clothes and personal protective equipment
Wear proper protective clothing for all work.
When working, always wear the necessary personal protective equipment (e.g. safety footwear, ear pro-
tectors, protective gloves, goggles, breathing protection). Observe the information on personal protec-
tive equipment in the respective activity description.
MS150103/01E 2015-03 | Safety | 7
TIM-ID: 0000040531 - 004

1.3 Transport
Taking the engine's center of gravity into account
For information regarding the center of gravity of the engine, refer to the installation/arrangement
drawing of the engine/genset/system.
Transport
• Lift the engine/genset/system only with the lifting eyes provided.
• Only use transport and lifting devices approved by MTU.
• The engine/genset/system must only be transported in installation position.
• Max. permissible diagonal pull 10°.
• If the engine/genset/system is supplied with special aluminum foil packing, lift it at the lifting eyes
of the trestle or use a means of transportation which is appropriate for the given weight (forklift
truck).
• Prior to transporting the engine/genset/system, it is imperative to install the transport locking de-
vice for the crankshaft.
• Prior to transporting the engine/genset/system, it is imperative to install the transport locks for the
engine mounts.
• Secure the engine/genset/system such as to preclude tipping during transport.
• Secure the engine/system/genset as to preclude slipping and tipping when driving up or down in-
clines and ramps.
Setting the engine down after transport
• Make sure that the consistency and load-bearing capacity of the ground or support surface is ade-
quate.
• Never set an engine/genset/system down on the oil pan unless expressively authorized to do so by
MTU on a case-to-case basis.
• Place the engine/genset/system on a firm, flat surface only.
8 | Safety | MS150103/01E 2015-03
TIM-ID: 0000002614 - 004

1.4 Safety regulations for startup and operation
Safety requirements for startup
Install the product correctly and carry out acceptance in accordance with the manufacturer's specifica-
tions before putting the product into service. All necessary approvals must be granted by the relevant
authorities and all requirements for initial startup must be fulfilled.
When putting the product into operation, always ensure that
• All personnel is clear of the danger zone surrounding moving parts of the machine.
Electrically-actuated linkages may be set in motion when the Engine Control Unit is switched on.
• All maintenance and repair work has been completed.
• All loose parts have been removed from rotating machine components.
• All safety equipment is in place.
• No persons wearing pacemakers or any other technical body aids are present.
• The service room is adequately ventilated.
• Keep clear of the service room during the first operating hours. Hazardous gases may occur as a re-
sult of the combustion of paints or oils.
• The exhaust system is leak-tight and that the gases are vented to atmosphere.
• Protect battery terminals, generator terminals or cables against accidental contact.
• Check that all connections have been correctly allocated (e.g. +/- polarity, direction).
Immediately after putting the product into operation, make sure that all control and display instruments
as well as the monitoring, signaling and alarm systems are working properly.
Safety requirements for operation
The operator must be familiar with the controls and displays.
The operator must be familiar with the consequences of any operations performed.
During operation, the display instruments and monitoring units must be permanently observed with re-
gard to present operating status, violation of limit values and warning or alarm messages.
Malfunctions and emergency stop
The procedures for emergencies, in particular, emergency stop, must be practiced regularly.
The following steps must be taken if a malfunction of the system is detected or reported by the system:
• Inform supervisor(s) in charge.
• Analyze the message.
• Respond to the emergency appropriately, e.g. execute an emergency stop.
Operation
Do not remain in the operating room when the product is running for any longer than absolutely neces-
sary.
Keep a safe distance away from the product if possible. Do not touch the product unless expressly in-
structed to do so following a written procedure.
Do not inhale the exhaust gases of the product.
The following requirements must be fulfilled before the product is started:
• Wear ear protectors.
• Mop up any leaked or spilled fluids and lubricants immediately or soak up with a suitable binder
agent.
Operation of electrical equipment
When electrical equipment is in operation, certain components of these appliances are electrically live.
Observe the safety instructions for these devices.
MS150103/01E 2015-03 | Safety | 9
TIM-ID: 0000040533 - 008

1.5 Safety requirements for startup and operation, special
instructions for applications with gaseous fuel
Safety requirements for startup
Whenever the product is started, always ensure that:
• The operator has fulfilled the requirement to: Check the gas train.
Gas system, requirements
Gas supply shut-off: The incomplete machine does not have its own gas supply shutoff device. This
must be realized by the plant designer to suit site conditions.
The connection to the gas supply network is established by the plant designer in accordance with re-
quirements of the DVGW (DVGW490, G490/I). The plant designer must use certified gas trains for the
fuel supply to the product and connection to the gas supply network. The connection conditions and
dimensions must be coordinated with the manufacturer.
In flow direction, gas trains have:
• a manual shutoff valve
• a gas filter
• two gas shutoff valves
• a pressure regulating device
The gas train must be fitted with an automatic leak check.
The gas shutoff valves are activated via two different paths from the control system, whereby one gas
shutoff valve respectively is activated via one of the paths.
Gas trains must be monitored to detect minimum pressure.
The plant designer must ensure that the gas train is positioned directly in front of the engine, yet a max-
imum of 3 meters before the interface of the engine. The interface is the flange in front of the gas vol-
ume regulator of the product.
In the case of network supply pressures higher than 100 mbar, additional equipment is required on the
gas train.
The gas pressure regulator must be equipped with an approved safety shut-off valve and a safety dis-
charge valve to ensure safety in case of excessive outlet pressure at the pressure regulator. Gas dis-
charge must be routed to a safe area (to atmosphere).
If the gas supply is connected to a vessel or if gases containing oxygen are used, the gas train must be
equipped with a temperature-monitored flame arrester.
10 | Safety | MS150103/01E 2015-03
TIM-ID: 0000040550 - 003

1.6 Safety regulations for maintenance and repair work
Safety regulations prior to maintenance and repair work
Have maintenance or repair work carried out by qualified and authorized personnel only.
Allow the product to cool down to less than 50 °C (risk of explosion for oil vapors, fluids and lubricants,
risk of burning).
Relieve pressure in fluid and lubricant systems and compressed-air lines which are to be opened. Use
suitable collecting vessels of adequate capacity to catch fluids and lubricants.
When changing the oil or working on the fuel system, ensure that the service room is adequately venti-
lated.
Never carry out maintenance and repair work with the product in operation, unless:
• It is expressly permitted to do so following a written procedure.
• The product is running in the low load range and only for as long as absolutely necessary.
Lock-out the product to preclude undesired starting, e.g.
• Start interlock
• With hydraulic starting system: shut off supply line.
Attach “Do not operate” sign in the operating area or to control equipment.
Disconnect the battery. Lock out circuit breakers.
Close the main valve on the compressed-air system and vent the compressed-air line when air starters
are fitted.
Disconnect the control equipment from the product.
Use special tools if they are specified for the relevant work.
Elastomer components (e.g. engine mounts, damping elements, couplings and V-belts) must not be
painted. They may only be installed after painting the engine or must be covered before painting work is
carried out.
The following applies to starters with copper-beryllium alloy pinions:
• Wear a respirator mask (filter class P3). Do not blow out the interior of the flywheel housing or the
starter with compressed air. Clean the flywheel housing inside with a class H dust extraction device.
• Observe the safety data sheet.
Safety regulations during maintenance and repair work
Take special care when removing ventilation or plug screws from the product. Cover the screw or plug
with a rag to prevent fluids escaping under pressure.
Take care when draining hot fluids and lubricants (risk of burning).
Use only proper and calibrated tools. Observe the specified tightening torques during assembly or dis-
assembly.
Carry out work only on assemblies or plants which are properly secured.
Make sure components or assemblies are placed on stable surfaces. Adopt suitable measures to avoid
that components/tools fall down .Use the specified lifting equipment for all components.
Never use lines for climbing.
Keep fuel injection lines and connections clean.
Carry out appropriate cleaning procedures to clean and inspect components requiring special cleanness
(e.g. components carrying oil, fuel, or air).
Always seal connections with caps or covers if a line is removed or opened.
Fit new seals when re-installing lines.
Avoid damaging lines, particularly the fuel lines.
MS150103/01E 2015-03 | Safety | 11
TIM-ID: 0000040535 - 008

Ensure that all retainers and dampers are installed correctly.
Ensure that O-rings are not installed ina slanted/twisted condition.
Ensure that all fuel injection and pressurized oil lines are installed with enough clearance to prevent
contact with other components. Do not place fuel or oil lines near hot components.
Do not touch elastomeric seals (e.g. Viton sealing rings) with your bare hands if they have a carbonized
or resinous appearance.
Note cooling time for components which are heated for installation or removal (risk of burning).
When working high on the engine, always use suitable ladders and work platforms.
Pay particular attention to cleanliness at all times.
Remove any condensate from components which were chilled before assembly.If necessary, coat the
components with a suitable corrosion inhibitor.
Safety regulations after completion of maintenance and repair work
Before barring, make sure that nobody is standing in the danger zone of the product.
Check that all access ports/apertures which have been opened to facilitate working are closed again.
Check that all safety equipment has been installed and that all tools and loose parts have been re-
moved (especially the barring gear).
Ensure that no unattached parts have been left in/on the product (e.g. including rags and cable straps).
Welding work
Welding operations on the product or mounted units are not permitted. Cover the product when welding
in its vicinity.
Before starting welding work:
• Switch off the power supply master switch.
• Disconnect the battery.
• Separate the electrical ground of electronic equipment from the ground of the unit.
No other maintenance or repair work must be carried out in the vicinity of the product while welding is
going on. Risk of explosion or fire due to oil vapors and highly flammable process materials.
Do not use product as ground terminal.
Never position the welding power supply cable adjacent to, or crossing wiring harnesses of the product.
The welding current may otherwise induce an interference voltage in the wiring harnesses which could
conceivably damage the electrical system.
Remove components (e.g. exhaust pipe) from the product before performing necessary welding work .
Hydraulic installation and removal
Check satisfactory function and safe operating condition of tools, jigs and fixtures to be used. Use only
the specified jigs and fixtures for hydraulic removal/installation procedures.
Observe the max. permissible force-on pressure specified for the jig/fixture.
Do not attempt to bend or exert force on HP lines.
Before starting work, pay attention to the following:
• Vent the installation/removal jig, the pumps and the pipework at the relevant designated points.
• During the installation procedure, screw on jig with plunger extended.
• During the removal procedure, screw on jig with plunger retracted.
For a hydraulic installation/removal jig with central expansion pressure supply, screw spindle into shaft
end until correct sealing is established.
During hydraulic installation/removal of components, ensure that no persons are in the direct vicinity of
the component being pressed.
12 | Safety | MS150103/01E 2015-03
TIM-ID: 0000040535 - 008

Working with batteries
Observe the safety instructions of the battery manufacturer when working with batteries.
Gases released from the battery are explosive. Avoid sparks and naked flames.
Do not allow electrolyte to come into contact with skin or clothing.
Wear protective clothing, goggles and protective gloves.
Do not place tools on the battery.
Before connecting the cable to the battery, check the battery polarity. Battery pole reversal may lead to
injury through the sudden discharge of acid or bursting of the battery body.
Working on electrical and electronic assemblies
Always obtain the permission of the person in charge before commencing maintenance and repair work
or switching off any part of the electronic system required to do so.
De-energize the appropriate areas prior to working on assemblies.
Do not damage cabling during removal work. When reconnecting, ensure that cabling cannot be dam-
aged during operation by:
• Contact with sharp edges
• Chafing on components
• Contact with hot surfaces.
Do not secure cables on lines carrying fluids.
Do not use cable straps to secure cables.
Always use connector pliers to tighten union nuts on connectors.
Subject the device as well as the product to a functional testing on completion of all repair work. In
particular, check the function of the engine emergency stop feature.
Store spare parts properly prior to replacement, i.e. protect them against moisture in particular. Pack-
age faulty electronic components or assemblies properly before dispatching for repair:
• Moisture-proof
• Shock-proof
• Wrapped in antistatic foil if necessary.
Working with laser devices
When working with laser equipment, always wear special laser-protection goggles (hazard due to heavi-
ly focused radiation).
Laser devices must be equipped with protective devices in accordance with their class and usage to
ensure safe operation.
For conducting light-beam procedures and measurement work, only the following laser devices may be
used:
• Laser devices of classes 1, 2 or 3A.
• Class 3B laser devices:
– which operate in the visible spectral range (400 nm to 700 nm) only
– which have a maximum output of 5 mW
– which are arranged such as to prevent the beam from harming eyesight.
Measuring component deviations
Workpieces, components and measuring equipment are within specified tolerances at a reference tem-
perature of 20 °C.
MS150103/01E 2015-03 | Safety | 13
TIM-ID: 0000040535 - 008

1.7 Safety requirements for maintenance and repair work, special
instructions for applications with gaseous fuel
Safety requirements before commencing maintenance and repair work
Installation and connection of the gas supply must only be carried out by a specialized company with
staff that has been trained and authorized for this task.
Have all work on gas-bearing components carried out by authorized, specialized companies.
Shut off the gas supply to the product and activate the emergency stop at the interface switchgear cab-
inet or by turning the key switch (if applicable).
Close the manual shutoff valve for the gas supply.
The coolant pumps must keep running-on for a longer period in the case of scheduled shutdowns.
14 | Safety | MS150103/01E 2015-03
TIM-ID: 0000040549 - 003

1.8 Fire prevention and environmental protection, fluids and
lubricants, auxiliary materials
Fire prevention
Rectify any fuel or oil leaks immediately. Oil or fuel on hot components can cause fires – therefore al-
ways keep the product in a clean condition. Do not leave rags saturated with fluids and lubricants on
the product. Do not store combustible materials near the product.
Do not carry out welding work on pipes and components carrying oil or fuel. Before welding, clean with
a nonflammable fluid.
When starting the engine with an external power source, connect the ground cable last and remove it
first. To avoid sparks in the vicinity of the battery, connect the ground cable from the external power
source to the ground cable of the engine or to the ground terminal of the starter.
Always have a suitable extinguishant (fire extinguisher) on hand and familiarize yourself fully with its
handling.
Noise
Noise can lead to an increased risk of accidents if acoustic signals, warning shouts or sounds indicating
danger are drowned.
Wear ear protectors in workplaces with a sound pressure level in excess of 85 dB (A).
Environmental protection and disposal
Dispose of used fluids, lubricants and filters in accordance with local regulations.
Within the EU, batteries can be returned free of charge to the manufacturer where they will be properly
recycled.
Fluids and lubricants, auxiliary materials
The Fluids and Lubricants Specifications will be amended or supplemented as necessary. Prior to opera-
tion, make sure that the latest version is used. The latest version can be found on the website on the
“Technical Info” or “Parts and Service” tabs at http://www.mtu-online.com.
Process materials may also be hazardous or toxic. When using consumables and auxiliary materials as
well as other chemical substances, observe the information contained in the safety data sheet for the
product. The safety data sheet may be obtained from the relevant manufacturer or from MTU.
Take special care when using hot, chilled or caustic materials.
When using flammable materials, avoid all sparks and do not smoke.
Used oil
Used oil contains combustion residues that are harmful to health.
Rub barrier cream into hands.
Wash hands after contact with used oil.
Lead
• Adopt suitable measures to avoid the formation of lead dust.
• Switch on extraction system.
• When working with lead or pastes containing lead, avoid direct contact to the skin and do not inhale
lead vapors.
• Wash hands after contact with lead or lead-containing substances.
MS150103/01E 2015-03 | Safety | 15
TIM-ID: 0000040536 - 008

Compressed air
Observe special safety precautions when working with compressed air:
• Unauthorized use of compressed air, e.g. forcing flammable liquids (hazard class AI, AII and B) out of
containers, risks causing an explosion.
• Wear goggles when blowing dirt off workpieces or blowing away swarf.
• Blowing compressed air into thin-walled containers (e.g. containers made of sheet metal, plastic or
glass) for drying purposes or to check for leaks risks bursting them.
• Pay special attention to the pressure in the compressed air system or pressure vessel.
• Assemblies or products which are to be connected must be designed to withstand this pressure. In-
stall pressure-reducing or safety valves set to the admissible pressure if this is not the case.
• Hose couplings and connections must be securely attached.
• Provide the snout of the air nozzle with a protective disk (e.g. rubber disk).
• First shut off compressed air lines before compressed air device is disconnected from the supply
line, or before device or tool is to be replaced.
• Carry out leak test in accordance with the specifications.
Painting
• Observe the relevant safety data sheet for all materials.
• When carrying out painting work outside the spray stands provided with fume extraction systems,
ensure that the area is well ventilated. Make sure that neighboring work areas are not adversely af-
fected.
• There must be no naked flames in the vicinity.
• No smoking.
• Observe fire-prevention regulations.
• Always wear a mask providing protection against paint and solvent vapors.
Liquid nitrogen
• Observe the relevant safety data sheet for all materials.
• Work with liquid nitrogen may be carried out only by qualified personnel.
• Store liquid nitrogen only in small quantities and always in specified containers without fixed covers.
• Avoid body contact (eyes, hands).
• Wear protective clothing, protective gloves, closed shoes and safety goggles.
• Make sure that working area is well ventilated.
• Avoid knocking or jolting the containers, valves and fittings or workpieces in any way.
Acids/alkaline solutions/urea (AdBlue®, DEF)
• Observe the relevant safety data sheet for all materials.
• When working with acids and alkaline solutions, wear goggles or face mask, gloves and protective
clothing.
• Do not inhale vapors.
• If urea solution is swallowed, rinse out mouth and drink plenty of water.
• Remove any wet clothing immediately.
• After contact with skin, rinse affected parts of the body with plenty of water.
• Rinse eyes immediately with eye drops or clean tap water. Seek medical attention as soon as possi-
ble.
16 | Safety | MS150103/01E 2015-03
TIM-ID: 0000040536 - 008

1.9 Fire prevention and environmental protection, fluids and
lubricants, auxiliary materials, special instructions for
applications with gaseous fuel
Natural gas
Observe the safety data sheet.
Caution: Highly flammable gas, forms an explosive mixture with air/oxygen.
Caution: Weak narcotic gas, risk of suffocation at very high concentration.
All gas-carrying lines must be checked for leaks prior to commissioning and at regular intervals during
operation.
Procedure in the case of accidental release of gaseous fuel:
• If safely feasible: Shut off main gas supply.
• If safely feasible: Carry out emergency stop.
• Cordon off danger zone.
• Ensure sufficient ventilation!
• Do not enter danger zone before measurements with a suitable gas detector have confirmed that gas
concentration is not hazardous.
Biogenic gases from fermentation processes
Observe the safety data sheet.
Caution: Highly flammable gas, forms an explosive mixture with air/oxygen.
Caution: Can be life threatening depending on concentration. Some gases can no longer be detected by
sense of smell in higher concentrations.
Caution: Risk of poisoning due to hazardous byproducts. The absorption of even small quantities of hy-
drogen sulfide or ammonium may be lethal.
Caution: Danger of suffocation. Due to the lack of oxygen, the absorption of methane can occasionally
lead to increased breathing frequency (hyperventilation) and heart rates, low blood pressure, numbness
of the extremities, drowsiness, mental confusion and loss of memory!
Biogenic gases tend to segregate. In low-lying areas of the plant, carbon dioxide enrichment is possible.
All gas-carrying lines must be checked for leaks prior to commissioning and at regular intervals during
operation.
Procedure in the case of accidental release of gaseous fuel:
• If safely feasible: Shut off main gas supply.
• If safely feasible: Carry out emergency stop.
• Cordon off danger zone.
• Ensure sufficient ventilation!
• Do not enter danger zone before measurements with a suitable gas detector have confirmed that gas
concentration is not hazardous.
MS150103/01E 2015-03 | Safety | 17
TIM-ID: 0000040537 - 002

1.10 Standards for safety notices in the text
DANGER In the event of immediate danger.
Consequences: Death, serious or permanent injury!
• Remedial action.
WARNING In the event of a situation involving potential danger.
Consequences: Death, serious or permanent injury!
• Remedial action.
CAUTION In the event of a situation involving potential danger.
Consequences: Minor or moderate injuries!
• Remedial action.
NOTICE In the event of a situation involving potentially adverse effects on the product.
Consequences: Material damage!
• Remedial action.
• Additional product information.
Safety notices
1. This manual with all safety instructions and safety notices must be issued to all personnel involved in
operation, maintenance, repair or transportation.
2. The higher level warning notice is used if several hazards apply at the same time. Warnings related to
personal injury shall be considered to include a warning of potential damage.
18 | Safety | MS150103/01E 2015-03
TIM-ID: 0000040578 - 004

2 Product Summary

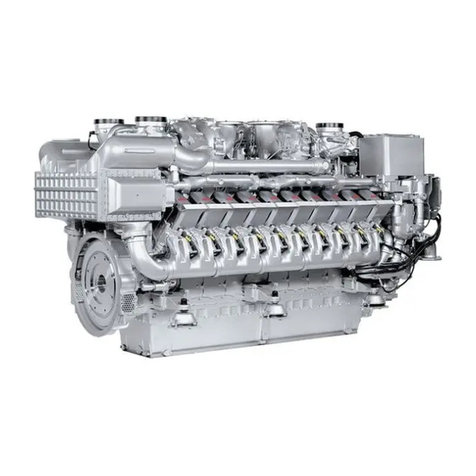

2.1 Engine overview
1 Engine governor/engine
monitoring
2 Air filter/air inlet
3 Mixture cooler
4 Exhaust turbocharger
5 Engine lifting equipment
6 Capacitor discharge igni-
tion system
7 Engine mounting bracket,
free end
8 Oil pan
9 Engine mounting bracket,
driving end
10 Starter
11 Flywheel
KS Driving end
MS150103/01E 2015-03 | Product Summary | 19
TIM-ID: 0000044387 - 002

1 Crankcase breather, oil
separator
2 Exhaust gas outlet connec-
tion
3 Gas control valve
4 Gas inlet connection
5 Throttle
6 Ignition coil
7 Spark plug
8 Cylinder head cover
9 Cylinder head
10 Engine oil filter
11 Engine oil sampling port
12 Oil level switch
13 Engine coolant inlet con-
nection
14 Engine oil heat exchanger
15 Engine coolant outlet con-
nection
KGS Free end
Engine model designation
Key to the engine model designation 8 V 4000 L32 F
8 Number of cylinders
V Cylinder arrangement: V engine
4000 Series
L Application: L = Gas engine
3 Load profile
2 Design index
F Additional feature: F = 50 Hz
Table 2: Engine model designation
20 | Product Summary | MS150103/01E 2015-03
TIM-ID: 0000044387 - 002
