DRQC20AC-TN
DODGE RAM QUAD CAB
VEHICLE SPECIFIC SUBWOOFER ENCLOSURE
OWNER’S MANUAL

MTX.COM
2
THANK YOU
Thank you for making the AWESOME decision to purchase our MTX Audio vehicle specic
subwoofer enclosure designed for the Dodge Ram Quad Cab. Our sub enclosure, with its two 10"
Terminator subwoofers, will belt out the bass and deliver ground pounding audio making you the
party vehicle! With a few basic hand tools in your trusty toolbox, you can have this installed in no
time. So, what are you waiting for? It’s time to get the rumble in your ride! Oh, and congratulations
on your purchase, thanks for your support and most importantly, enjoy the ultimate audio experience
with MTX!
WE’RE HERE TO HELP
We’re here to help with any installation or technical support. Visit mtx.com to chat, call
1-800-225-5689 to speak with an MTX Technical Support representative, or visit
youtube.com/user/MTXAudioUSA to view product videos.
DON’T FORGET TO REGISTER YOUR PRODUCT
Don’t forget to register your new MTX Audio product. Visit mtx.com/productregistration or scan the
QR code to the right.
Model #
Serial #
Dealer’s Name
Date of Purchase
IMPORTANT NOTICE
Whenever working on the vehicle, it is recommended to disconnect the battery prior to starting work.
Failure to do so may lead to a risk of electric shock or equipment damage.
When connecting power and ground wires ensure that the red power wire is fused at the point
where it is connected to the vehicle’s battery. Failure to do so can result in damage to the vehicle if a
short circuit develops between the vehicle connection point and the product.

MTX.COM 3
FEATURES
• Includes two MTX 10" Terminator Subwoofers
• Integrated Amplier Easily Connects to Existing Systems
• Rotationally Molded Design, Finished in Charcoal
• Mounts Under Rear Seat with No Loss of Leg Room
• EBC and Wiring Harness Included
SPECIFICATIONS
• Dual 10" Amplied Subwoofer Enclosure
• RMS Power Handling: 200-Watts
• Peak Power Handling: 400-Watts
• Signal-to-Noise Ratio (1 Watt): > 75dB
• Frequency Response: 10Hz - 78Hz
• Impedance: 4Ω
FIT GUIDE
Quad Cab.................................................................................................................................................2002 - 2018
Crew Cab.................................................................................................................................................2002 - 2018
FIT GUIDE NOTES
Does not t Mega Cab.
REQUIRED TOOLS
• Powered Screwdriver
• #2 Phillips Head Bit
• Wire Cutters
• 15mm Socket
• 13mm Socket
IN THE BOX
• DRQC20AC-TN Amplied Subwoofer Enclosure
• EBC
• Wiring Harness

MTX.COM
4
INSTALLATION
Step 1 - Place enclosure under rear seat, with woofer ring up (do not mount yet). On models that
have the fold out oor do Step 2 rst.
Step 2 - Remove the four (4) bolts and remove metal oor. (Save oor and all the hardware, if you sell
the truck you may want to replace it.)
Step 3 - If externally amplied make speaker connections to the enclosure from the amplier; loosen
terminal knobs (a 13-mm nut driver can be used). Connect speaker wires from amplier to enclosure,
positive to red terminal knob and negative to black terminal knob. Refer to Step 21 for mounting
directions.
Bottom of Seat
Enclosure
Metal Floor

MTX.COM 5
Amplied ThunderForm
Note: When routing power wire we recommend a connection directly to the battery.
Step 4 - Remove driver side threshold trim. Pull up on trim, it will remove easily.
Step 5 - Remove driver side kick panel, grasp center upper edge and pull outward allowing retaining
tab to unsnap.
Step 6 - Using furnished wiring harness route 10ga red power wire starting at pre-amp location.
Route wire under rear seat on driver side, over to threshold and under carpet to the front of vehicle.
Step 7 - Open hood.
Step 8 - Drill a hole through the rewall. Locate a spot low on the rewall on the driver side. You
should always look to nd a clear path. Drill a hole from inside of the vehicle into engine compartment
and insert grommet. Note: To avoid any damage to parts inside engine compartment, drill from inside
of vehicle using a short bit.
Step 9 - Route 10ga red power wire through grommet into the engine compartment.
Step 10 - Route 10ga red power wire through engine compartment safely away from any moving or
hot parts that could damage the wire.
Step 11 - Cut 10ga red power wire to length, connect the supplied fuse holder from the wire kit to the
end of the wire.
Firewall
Drill Hole for
Grommet
Battery

MTX.COM
6
Step 12 - Remove 20 amp fuse from MTX fuse holder. Connect furnished ring terminal to positive
side of battery. Remove bolt from factory battery terminal. Pass bolt through factory battery terminal,
then ring terminal, and into the other side of factory battery terminal and retighten bolt. Note: Always
turn the ignition OFF when connecting or disconnecting battery cables. Failing to do so may damage
electronic components.
Step 13 - Ground amplier to chassis of vehicle; connect the terminal provided to the 10ga black wire
from furnished wiring harness. A good ground is as important as the power connection. The ground
should be as short as possible and the contact point should be free of paint and debris.
Step 14 - Connect remote (Blue) wire to 12-volt switched accessory. To turn on the amplier unit, a
switched 12-volt signal is required. Locate a 12-volt wire that is active when the vehicle key is on and
connect the blue remote wire to it. This may be found in the fuse panel, key-switch or radio harness.
Speaker Wires
Step 15 - In the channel under the passenger side threshold locate the rear speaker wires in the
wiring harness. The colors are; brown / black (positive) and brown / purple (negative). In the channel
under the driver side threshold the colors are; white / black (positive) and white / red (negative). Tap
into wires and route under carpet to the rear seat, over to pre-amp on enclosure. Connect to the
supplied High Level input harness wires and plug into the matching port on the pre-amp.
Although, MTX has made every effort to assure proper wiring colors, MTX is not responsible for any
changes made by the vehicle manufacturer which sometime occur. If wiring colors do not match then
physical verication is required.

MTX.COM 7

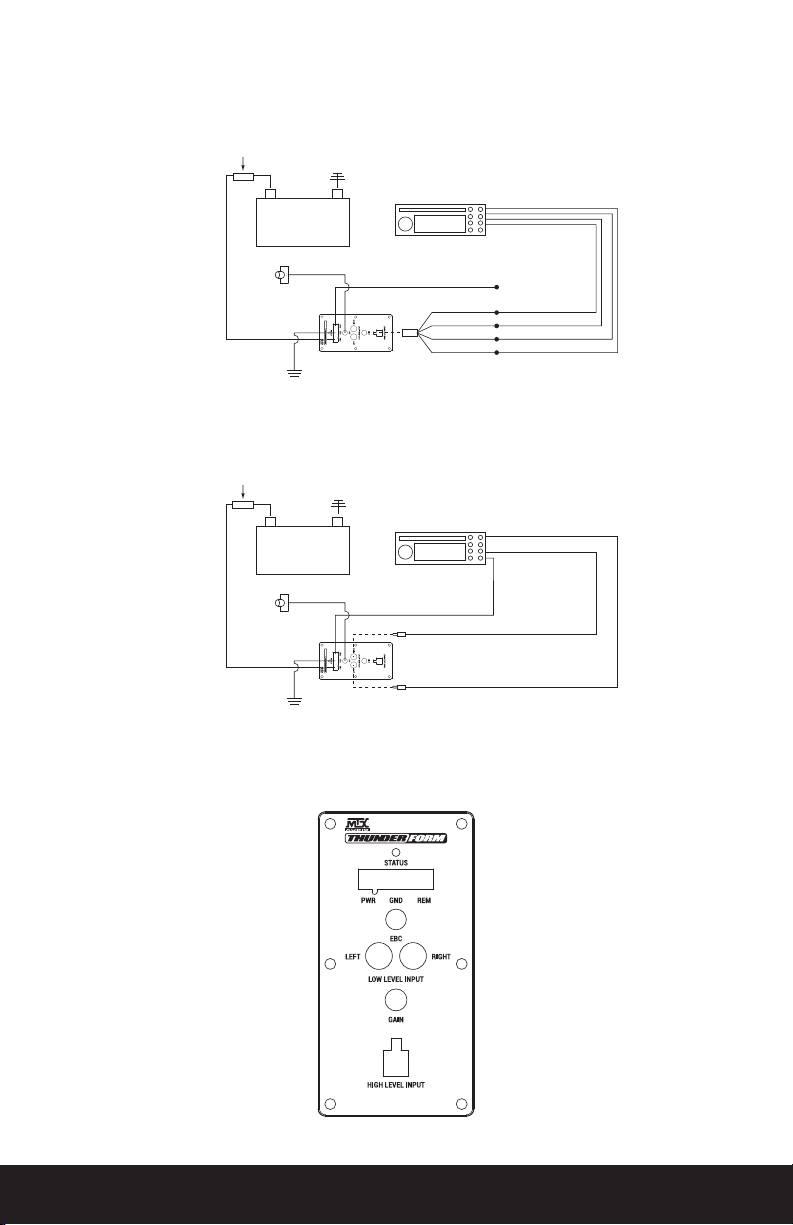

Connection to Enclosure
Conventional Wiring of Factory Radio
Conventional Wiring of Aftermarket Radio
Step 16 - Plug power wire harness into amplier pre-amp.
Green (-)
Green / White (+)
Gray (-)
Gray / White (+)
White / Red (-)
White / Black (+)
Brown / Purple (-)
Brown / Black (+)
Blue Turn On Lead 12V Switched Source
Source Unit
Red Power Wire
Black Ground Wire
Attach Ground Wire Directly to
Vehicle Frame After Clearing
Area of Debris and Paint
_+
20 Amp Fuse
Optional EBC
(Electronic Bass Control)
RCA Interconnects
Blue Turn On Lead
Source Unit with
RCA Outputs
Red Power Wire
Black Ground Wire
Attach Ground Wire Directly to
Vehicle Frame After Clearing
Area of Debris and Paint
_+
20 Amp Fuse
Optional EBC
(Electronic Bass Control)

MTX.COM
8
Step 17 - Replace 20 amp fuse under hood.
Step 18 - When amp turns on, LED will display red during diagnostic mode, and then green, signaling
amp is on and functioning. Amp will only turn on when radio is on.
Step 19 - Adjust gain.
Setting Gain
Turn gain knob on ThunderForm pre-amp to minimum, counter clockwise. Play a favorite song that
contains consistent music and bass. Turn the source unit to maximum listening level. You should
know that some source units will produce distortion or “clip” before the unit reaches maximum
volume. Reduce volume to the loudest listening level before distortion. Turn the gain knob on the
ThunderForm pre-amp clockwise until the speaker starts to distort and reduce gain to loudest
listening level before distortion.
Optional - The EBC, or Electronic Bass Control, allows a remote bass control to be adjusted from the
driver’s seat.
Troubleshooting Tips if Amp Does Not Turn On
• Check all connections at battery and that fuse is installed
• Check speaker wire connections
• Check ground
• Check fuse on pre-amp
Step 20 - Reinstall kick panel and threshold.
Step 21 - Using screws provided, install the enclosure into vehicle as shown below.
These instructions are guidelines only and in no way are intended to replace a professional
installation. As always before screwing or drilling check to make sure you will not damage any wires
or hoses or cause damage to the vehicle.
Warning: Batteries normally produce explosive gases which can cause personal injury. Therefore, do
not allow ames, sparks or lighted substances to come near the battery. When charging or working
near a battery, always shield your face and protect your eyes. Always provide ventilation.

MTX.COM 9
NOTES

MTX.COM
10
NOTES

MTX.COM 11
WARRANTY PERIOD
At MTX Audio we engineer products that will stand up to the test of time. We also realize that from
time to time a problem may occur. That’s why our products carry a 2-year limited warranty that begins
at the time of sale to the end user.
Of course, we’re here to help. If you experience an issue with any of our products within the warranty
period, please contact our customer service technical line at 1-800-CALL-MTX to help troubleshoot
your issue. If, after speaking with our technical experts it is determined that a problem lies with the
product, the technician will provide you with a Return Authorization number and all relevant details
you’ll need to get the product taken care of.
MITEK WARRANTY
MiTek Mobile products (including, but not limited to: MTX, Coustic, Streetwires, Xtant, BassSlammer,
and Thunder Marine) purchased in the USA from an AUTHORIZED MITEK DEALER are guaranteed
against defects in material and workmanship for the period of time specied. The warranty period
begins the day the product is purchased by the end user, and this warranty is limited to the original
retail purchaser of product. Products found to be defective during the warranty period will be
repaired or replaced with equivalent product by MiTek at no charge. This warranty is void if it is
determined that unauthorized parties have attempted repairs or alterations of any nature, and the
warranty does not extend to cosmetics or nish. MiTek disclaims any liability for other incurred or
consequential damages resulting from product defects. MiTek’s total liability will not exceed the
purchase price of the product.

MTX.COM
12
© 2021 MiTek Corporation. All rights reserved. MTX is a trademark of MiTek Corporation. All other trademarks
are property of their respective owners. Designed and Engineered in the U.S.A.
Due to continual product development, all specications are subject to change without notice.
MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A. 1-800-225-5689
MTX006398 RevA 2/21 • 1-10529
