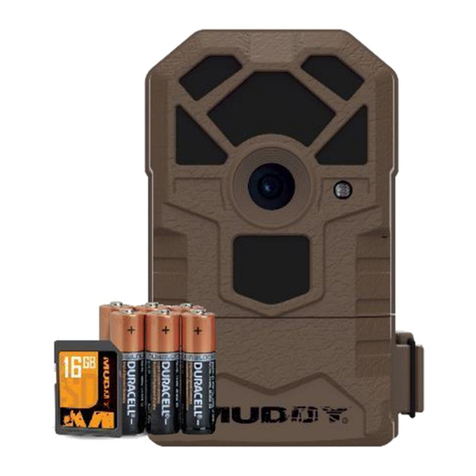

Muddy MTC100K User manual
Muddy MTC100K
Instruction Manual
R2
Page 2
To ensure the product is being utilized to its full potential, we recommend checking
our website for new product updates. If your camera is having an issue, please check
our website to determine you are using the latest rmware or software version.
Notice
TECHNICAL SUPPORT
EMAIL:
Please allow 48 hours for email
response.
GSM, LLC
P.O. Box 535189
Grand Prairie, TX 75053-9504
CUSTOMER SERVICE
CONTACT & HOURS
Toll Free: 877-269-8490
CALL CENTER HOURS
Mon – Fri / 8 AM – 5 PM (CST)
WEBSITE
www.gsmoutdoors.com
Contact Us
Page 3
Contents
About Your Camera 4
Quick Setup Guide 5
Camera Overview 6
Camera Setup 8
Camera Conguration 9
Camera Conguration cont. 11
Viewing and Deleting Images 12
Frequently Asked Questions 13
Camera Care 14
Limited Warranty Information 16
Page 4
About Your Camera
60 Foot Detection and Flash Range
See further with long-distance PIR sensor and LEDs.
0.7 Second Trigger Speed
Never miss a shot with lightning fast 0.7 second trigger speed.
Water Resistant Design
Your camera is safe against the elements with a sturdy
waterproof housing design.
Durable Housing
Be condent in the longevity of your camera with veried durable
housing.
18 IR LEDs
Perfectly illuminate your nighttime photos with 18 IR LED lights.
Page 5
Quick Setup Guide
Insert Batteries and SD Card
Install 8 AA batteries and a class 10 SD card into camera.
Mount Camera
Mount the camera at the desired location using the strap
mount, Python Lock cable, Articulating Ball Joint Mount, or
other desired mounting mechanism. Position the camera so
that it does not face East or West directly as the rising and
setting of the sun can cause false positive triggers.
Activate Camera
Set camera to desired Quick Set (QSET) or to custom
conguration and place in desired vantage point to start
capturing photos of game.
Page 6
Camera Overview
Menu Down Up Enter
Mode Switch
MENU ENTER
Universal
¼ - 20 thread
SD Card
Slot
Battery
Release Switch
Page 7
Python Cable
Lock Hole
Strap
Mounts
Universal
¼ - 20 thread
Page 8
Camera Setup
Battery Installation
To remove batteries from unit, simply open camera, and slide the
battery release switch to the left. Once the battery compartment is
open, insert batteries into camera, being careful to match the orien-
tation marked on your camera. After batteries are inserted, close the
battery compartment and secure the battery release switch.
SD Card Installation
SD card slot is located on the
bottom of the camera, above the
battery compartment. Insert SD
card with the label facing back of
camera. Only minimal resistance
should be felt as card is inserted
and a click when the card is fully
inserted.
Page 9
Camera Conguration
This camera features 4 distinct modes of operation:
QSET 1 | QSET 2 | QSET 3 | CUSTOM |.
Each setting is activated based upon the position of the switch inside the unit.
O
QSET 1
QSET 2
QSET 3
Custom
MENU ENTER
Name Type Quality Timeout
Delay Detail
QSET 1 Photo Medium 30 sec 3 Photos
QSET 2 Photo Medium 30 sec 1 Photo
QSET 3 Video 640 x 360 30 sec 10 sec video
Quick Sets
Once selected, the screen will display the Quick Set (QSET) that has been
chosen and then count down from 9to 0 seconds. When countdown has
been completed camera is ready and in an active state.
See table for breakdown of Quick Set modes.
Page 10
Custom Conguration
The CUSTOM setting on your camera allows you to customize every
setting to t your exact needs. To begin, move the slider to the CUSTOM
position and press the menu button on the camera.
Once inside the custom settings menu, use the Up and Down arrows to
scroll through the dierent settings. To change a setting that is displayed,
press the Enter key and the setting will begin ashing. At this point use
the Up and Down arrows to change the setting. When nished press the
Enter button to save the change or press Menu to cancel change.
When you are nished conguring your camera’s settings, press the
Menu button to return your camera to an active state.
Page 11
OPERATION MODE: The operation mode setting
is accessible immediately after the Time setting.
The screen will be blank with either Video or
Photo displayed on the right side of screen. Press
Enter to change between Photo and Video mode.
OPTIONS: Photo | Video
DATE: This setting is used by the camera to
display the correct date on the Info Bar of the
image.
PHOTO BURST: This setting determines how
many photos are taken each time the camera is
activated.
OPTIONS: 1 photo – 3 photos
Note: This setting is only applicable in photo
mode.
PIR DELAY: This setting is used to determine how
long the camera will wait before reinitializing the
PIR sensor after taking a photo.
OPTIONS: 5 sec | 10 sec | 15 sec | 30 sec |
60 sec
RESOLUTION: This setting will determine the
quality of each image. A higher quality will result in
better photos and take more memory space.
OPTIONS: 4 MP | 8 MP | 14 MP
Note: This setting is only applicable in photo
mode.
VIDEO LENGTH: This setting is used to determine
the length of time, in seconds, of a video recording
OPTIONS: 5 sec | 10 sec | 20 sec
Note: This setting is only applicable in video
mode.
TIME: This setting is used by the camera to display
the correct time on the Info Bar of the image.
Camera Conguration cont.
Page 12
There are a few of methods for viewing and deleting your les.
i. Using an SD Memory Card Reader/Viewer: You will simply need
to remove the SD card from the camera and insert it into the reader
to view the les; you can also delete them from this device.
ii. Using your computer. Your computer would need to have an SD
card slot installed for this to work. Please refer to your computer’s
Owner’s Manual for the proper way of viewing the les.
iii.Obtain a mobile device adapter. This will allow you to plug one
end into the device and the other end insert the SD card. Please
refer to the vendor’s User Manual for the proper way of viewing the
les.
Viewing and Deleting Images
Page 13
Frequently Asked Questions
Q: Will I lose my images and settings if the batteries die?
A: You will lose your settings but not your images. The images are stored on your
external SD memory card so your images will be intact only on your card.
Q: Why is my camera taking pictures with nothing in front of it?
A: This camera is powered by motion activation. This can cause objects, like a tree
branch or moving water, within the camera frame to cause the camera to take a photo.
Q: Is there a warranty that comes with my camera or an extended warranty I can
purchase?
A: Your Muddy Camera comes with a Limited 1-year warranty. Please contact support
at 1.877.269.8490 for more information.
Q: Can I mix batteries together?
A: No, you should never mix batteries. After your camera batteries die, always install
brand new batteries in your camera.
Q: Can I use rechargeable batteries in the camera?
A: Rechargeable batteries can be used but will cause battery percentage to be report-
ed incorrectly.
Page 14
Camera Care
Operating Conditions
This camera is designed to function in 14°F – 104°F (-10°C -
40°C) 20%-85% relative humidity, non-condensing.
Product Care
• When not in use, store camera in a cool, dust-free, environment.
• Handle camera with care
• Camera is weather resistant only. Do not fully submerge camera in
water or other liquid. Doing so will void camera warranty.
• Only use same type of batteries to power camera. Do not mix old
and new batteries.
• Do not touch camera lens directly. Clean only with soft lens cloth.
• Use damp cloth to clean. DO NOT submerge camera.
• Remove batteries when camera is not in use for an extended time.
• Do not open camera housing to access internal parts. Doing so
could damage camera and void warranty.
Notice
Camera is an active electronic device. Attempting to service
internal parts may expose you to dangerous voltages and
other risks.
Page 15
FCC COMPLIANCE
NOTE: This equipment has been tested and found to comply with the limits for
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de-
signed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio or television receptions, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measure:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit dierent from that to which
the
• receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or Modications not expressly approved by the party responsible
could void the user’s authority to operate this device.
Product specications are subject to change. GSM is not responsible for
any photographic or typographical errors.
May be protected by one or more U.S. Patent numbers: 6,735,387 / 6,768,868 /
6,834,162 / 7,149,422 / 7,308,196 / 7,593,632 / 7,710,457 / 8,895,926.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
GSM, LLC
MUD-MTC100
Page 16
Your Muddy Trail Camera is covered by a 365 Day Limited Warranty on parts and
labor from the date of original purchase, and purchases must be made through an
authorized dealer. The warranty covers defects in workmanship and materials. The
warranty does not apply to units which have been damaged or abused intentionally
or unintentionally. A purchase from individuals or unauthorized Internet sites
such as eBay voids the warranty. Tampering with or altering the unit will void the
warranty. Any unauthorized service will void warranty. A copy of your original sales
receipt must be produced for any warranty service and a Return Authorization (RA)
number must be obtained from customer service at 877-269-8490 prior to returning
product. Muddy is not responsible for any lost untraceable packages or those
without a Return Authorization at the time of return.
Limited Warranty Information
