MUJIGAE SD-200H User manual

#560 SE-WOON B/D, JANGSADONG, 159 CHUNGECHUN-RO, JONGRO-KU, SEOUL, KOREA
Tel/ (82)1644-5897, Fax/ (82)2-2278-2276

INTRODUCTION
SAFETY REGULATION
Thank you for your excellent choice. Please keep this operating manual to use the
device properly. Firstly you use the device in safely places and follow the manual
when you transfer to a third party.
The company has the right to changes specifications without previous notice.
1. Description of Symbols
2. Instructions

Information for avoiding
injuries or fatal accidents

Safety instruction to
avoid explosions

Information about the
operating environment

Information about
technical matters

Instruction to avoid injuries
caused by high temperature
For a safety and faultless using of the device you read the following instruction
and follow them.
- Use rated input power.
- Check the power cord for connection.
- Do not use an extension power lead.
- Do not touch the device with wet hands during
operation because it may cause an electric shocks.
- In case of any unexpected sounds, smells or smog is generated
near the device, stop the device and call to supplier immediately.
- Keep the disconnection of power when you clean
the device or maintenance.
- Do not operate with any radiation contaminated samples.
The responsibility is only up to you.
- To avoid any injuries, do not put your hands or other parts of
your body near the device.
- Do not operate the device without the cleaning liquid.
- Keep the device stand up on a level.
- Do not install the device with place slippery.
- To avoid the overheat or fires install the device with
enough places for air circulations.
- Keep away from the direct solar radiation.
- Do not set the device outdoors.
- Do not set the device in wet or dusty places to prevent from
overheat or short circuits or fires.
- The only man who is familiarized with safety instructions
approved by manufacturer open the device for repairs.
- Pay attention not to reach the liquid into the inside of device.
- To use the device long life keep the cleaning.
- Disconnect the power cable when you do not use for hours.
- Do not use the device near the place with potentially explosive atmosphere.
- Do not use inflammable materials with cleaning liquid.
- Do not use the material of acid or alkalinity with
cleaning liquid to avoid the water leak.
- Do not bring any heat-sensitive items near to the device.
- The heat-sensitive items cause a damage or change the shape of items
during operations.(glasses, plastic items)
- Be careful when you open the cover of tub the hot water may come out .

INSTRUCTION
- Timer [6~30min.]
- Frequency : 40KHz
- Temperature[30~85C]
- Stainless body and tub.
Ultrasonic cleaner, Cover, Manual, Fuse( 5Ax2 )
Ultrasonic Cleaner uses for cleaning the various kinds of dirts like finger marks or oils on
the surface located in the irregular narrow spaces at the corner. Built in timer functions
(6~30min.) and heat-on functions(30C~85C) to maximize the efficiency of cleaning.
1. Specifications

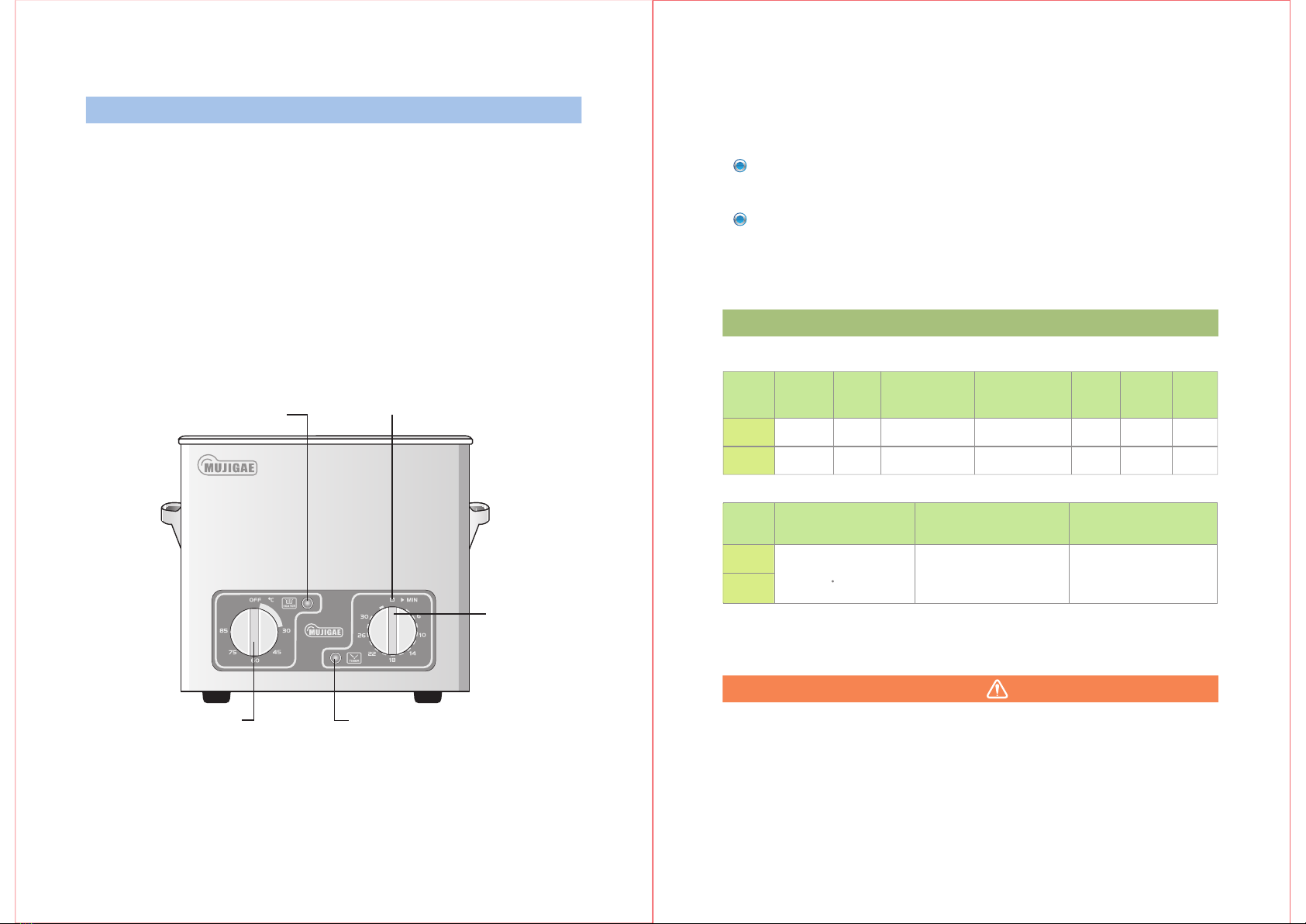

2. Name / Function of parts
3. Parts
SPECIFCATIONS
NOTE
2 kinds of cleaning method allowed for option before installation.
Direct Cleaning : operate the device after you add items and liquid
in the tub at the same time.
Indirect Cleaning : First you add items in the baker with liquid then move to the tub.
(This is normally used for the acid or other corrosive solutions.)
1. Do not impact the device or drop from the high place.
2. Keep max. operation time (30min.)
*Stop for the break time 5min. after 30min.
3. Do not operate the device without the liquid.
4. Do not use highly inflammable/acid liquid.
4. Before Installation
Model
Model Operation MaterialsVoltage
Gross
weight CurrentCapacity
Inside-diameter
( W x L x H )
Outside-diameter
( W x L x H )
Frequency Ultrasonic
output
SD-200H
6~30min
AC220V / 60Hz
(30~85 C)+/- 10%
[SUS-304]
[SUS-430]
40KHz 3.3L 100W 1.41A4.2Kg 240 x 140 x 100 300 x 166 x 250
SD-250H
SD-200H
SD-250H
40KHz 6L 150W 1.56A5.6Kg 290 x 150 x 150 350 x 176 x 300













HOW TO USE
HOW TO KEEP
EMERGENCY
1. Avoid to install the place marked.
2. Connect the power plug with power outlet.
3. Fill warm water 1,500ml(SD-200H) / 3,000ml(SD-250H) in the tub.
- Add a ultrasonic cleaning liquid(16plus, 11un) for better performance.
(Note : It may cause the shape changes for some items like glasses or plastic during heat-mode.)
4. Add the items into the tub.
5. Turn on the Timer for operation.
6. Take out and rinse the remained liquid from the surface of items by using towel.
7. Cover up the cover of tub after operations. (Note : It may cause the shape
changes for some items like glasses or plastic during heat-mode.
1. Eliminate the liquid after the plug off the power.
2. Wash the tub and keep well in dry condition.
(Note : It may cause the shape changes for some items like glasses
or plastic during heat-mode.)
Problems Solutions
No Ultrasonic Operations
No operations / Lamp for
operation is normal working
The circuit board may have damaged
and call A/S center for repairs.
Increasing Liquid Temperature
during operations
Do not operate the device for hours.
(The liquid temperature may go up to 70~80C
when you use over 30min without break time.)
Check the power plug in.
Check the fuse box.
Call A/S center for repair.
