Multi Nautic QP-427 User manual

ALUMINUM
STATIONARY DOCK KIT
QP-427
(# 21111)
Assembly and
Installation
Guide
This booklet will guide you through the steps you need to take to complete this project.
Please read the instructions carefully to ensure that the assembly is carried out correctly
and safely. To do so, please respect the following:
>Make sure that all bolts and nuts are bolted properly.
>Do not modify this dock system beyond the recommendations described in this manual.
The warranty will be void if altered or repaired.
>Wear appropriate protective equipment when assembling the.
>Keep children and pets away while assembling your dock.
>The load capacity of this structure is limited to 4 persons or 800 lbs (363 kg).
Toll-free line : 1-800-585-1237 l [email protected]
Congratulations
on your
new dock!
ASSEMBLE - ENJOY - SHARE

This 4' x 8' QP-427 aluminum dock model meets the demand for lightweight, easy-to-install docks. It is sturdy, modular
and simple to assemble. It can be installed on piles or on wheels and you can quickly adjust its height. Its configuration
can evolve according to your needs and it can easily be expanded by adding sections. Note that this dock structure
cannot be installed with floats or used as a floating dock starter section. Although your QP-427 has many of the features
of the QP-427-D dock (which is 12' long), its width is different, which restricts combinations with it in straight lines.
Junction
Plate
x2
Components included in the box for frame assembly
CHARACTERISTICS OF A STATIONARY DOCK
> This is the ideal option for shallow water. You can install a stationary dock in a maximum of about 4 feet of water
otherwise installation and removal will be difficult.
> The stationary dock is usually installed without anchors and you should not rely on it to hold your boat during a storm,
or to protect it from large waves created by other boats.
> A stationary dock is recommended if bad weather causes waves of up to 3 feet. If this is the case, you will have to moor
the boat away from the dock. Some people choose to install a boat lift or hoist it up a mooring ramp.
> A post dock is not recommended in a body of water that often fluctuates more than 2 feet in a short period of time. A
floating dock would be more appropriate in this case, otherwise you may have to adjust its height several times during
the season.
> Never leave a stationary dock in the water for the winter because of damage caused by spring ice movement and the
weight of snow. When storing, remove the posts and leave your decking in place. They can be stacked flat (upside down
to prevent wood fading from the sun) or vertically on their sides.
INSTALLATION TYPES
Parallel
Adapter
x1
6 ft post
& PVC Cap
2x
> Wrench and ratchet 3/4" and 7/16"
>
Phillips screwdriver
> Cordless drill with #2 square bit,
9/64'', 11/64'' (and optional 1/2’’ for
adaptor) drill bits
> Measuring tape
> Saw
> Level
> Sledgehammer
Corner
Adapter
x1
Base Plate
6 in x 6 in
2x
S.S. Hex bolt
1/2" x 1"
x8
Round head
1/4" x 2"
x2
S.S. Hex bolt
1/2" x 1"
x2
Components included in the box for the installation REQUIRED TOOLS
INCLUDED PARTS QP-427 # 21111
Round head
¼" x ⅝"
x 8
End piece
w/ leg holders
x 2
Aluminum
Side Beam
x 2
Round head
¼" x 1-¼"
x 16
Center piece
x 1
DECKING KITS FOR QP-427TM # 21176
2
The kit includes the premium quality Western Cedar boards,
kiln-dried and sanded, as well as the required screws.
You can purchase the optional pre-cut Western Cedar
Decking Kit to make your assembly even easier.
WOOD
> 15x boards : 5/4" x 6" x 44 7/8" (1" thick actual size)
> 2x boards : 5/4" x 6" x 44 7/8" (1" thick actual size)
with small cuts for leg holders
> 6x boards : 5/4" x 3" x 47 1/2" (1" thick actual size)
for decking strigners
HARDWARE
> 120x #8 x 1 3/4" wood screws
> 8x #10 x 1 3/4" stainless steel screws

Before starting assembly, we strongly
recommend reading the instructions on page 5
as configuration adaptors may be combined with
the structural parts.
Place the parts to be assembled on the floor to
visualize the steps to follow. Combine the
aluminum parts by following the steps illustrated
below. Screw the nuts by hand to start and once
completed, tighten the assembly.
Multinautic QP-427
MAINTENANCE Aluminum requires no special maintenance. However, due to exposure to air and water, a thin greenish layer can
accumulate on its surface. If light scratches appear, you can remove them with a plastic scouring pad, but neither green moss nor
light scratches will affect the strength of the dock.
3
STRUCTURE
48 in. x 8 ft.
1.22 m x 2.44 m
1
2
3
1/4" x 1-1/4"
Bolts
x 16
Insert the 2 End Pieces with Leg Holders into the Side Beams and secure with the 1/4" x 1-1/4"
bolts.
Locate the holes in the Side Beams, in the center of the dock, to attach the Center Piece.
It should be installed, as shown, with the 1/4" x 5/8" bolts.
Install the 1/2" x 1" bolts, with the threads ideally coated with white grease, into the leg holders
at one end of the dock. Insert the posts, but tighten only slightly as you will readjust once in the
water. Install the junction plates at the end opposite to the posts (except for the first dock section
which does not require junction plates).
END
PIECES
CENTER
PIECE
POSTS &
JUNCTION
PLATES
2
1
3
1/4" x 5/8"
Bolts
x 8
Center
Piece
1/2" x 1"
Hexagonal Bolts
x 8
1 in.

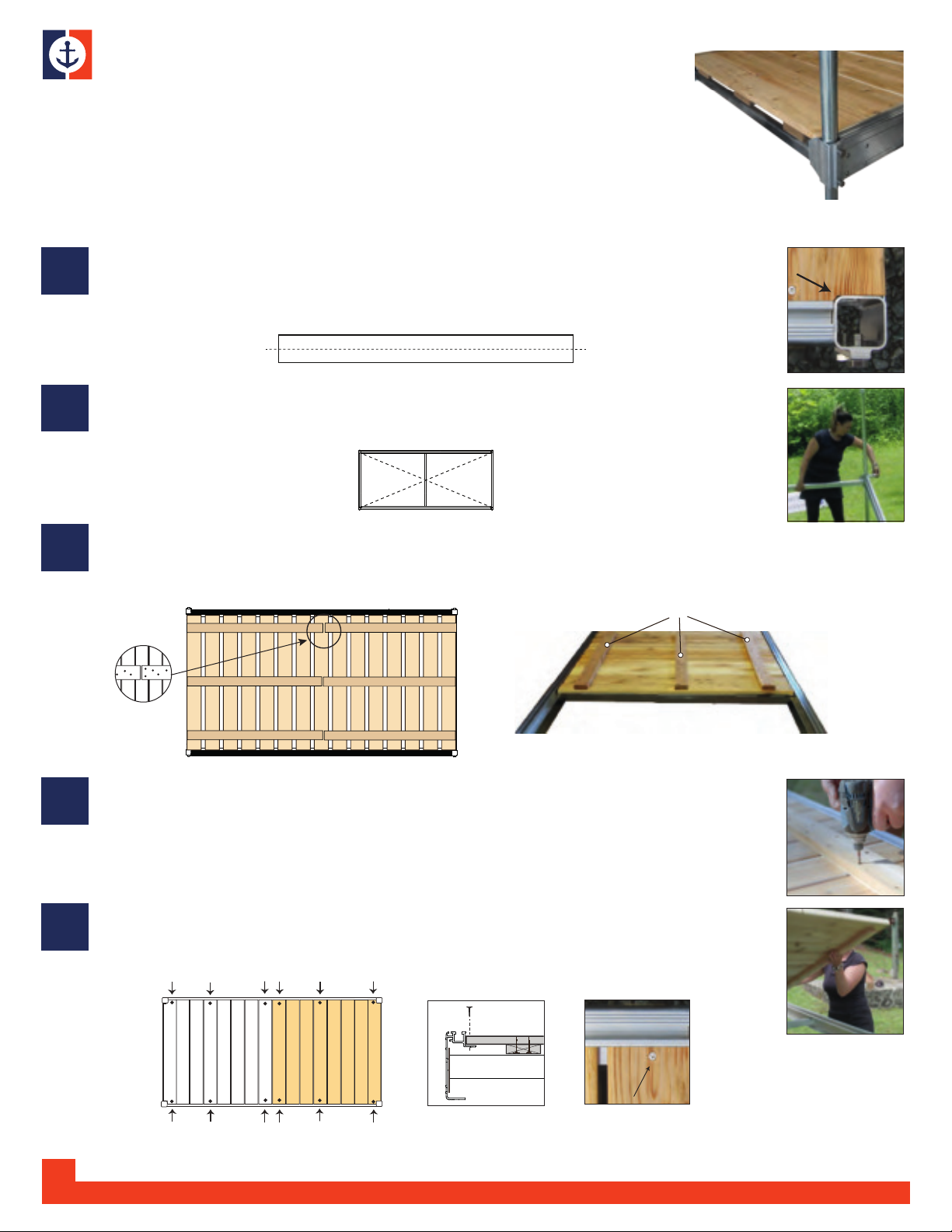

You will assemble the 2 decking panels upside down and then turn them over. This way, you
will not see the screw heads on the finished product. Place the Decking boards (a) on the
frame, with their nice side down, all leaning against the same side. Place 4 decking supports
(b) 2.5" from the sides and the other 2, in the center.
As shown on page 2, Multinautic® offers a pre-configured Cedar Decking Kit.
This decking kit has its own assembly guide.
If you prefer to purchase your own wood for installation, here are the required
components and steps to follow:
> 110 deck screws #8 x 1 ¾”
> 10 (or 11: read Step 4) cedar planks: 5/4 in. (actually one-inch thick) x 6 in. x 8 ft.
For ease of handling, you will assemble the decking in 2 panels.
1
Cut the boards into 44 7/8" (113.3 cm) lengths. Make a small cut in 2 of the boards to fit the
corners (1/4" or approx. 6 mm).
If you are installing more than one section, to save on wood, you can split the boards that
will be used as decking supports to assemble the panels (choose the less nice pieces).
Before screwing these decking supports into the boards (6 screws per board), make sure
that the gaps between the boards are equal (+/- 3/8'' or 9 mm) and that the decking
supports are positioned parallel. For smaller spacing, rather than 16 boards, install 17.
Pre-drill these supports at their ends with a 9/64" drill bit to prevent cracking. When
screwing, make sure that the support is well rested on the board and that no space is
created between the two pieces.
Install the structure at table height, with 4 posts (or any kind of support at one end if you
only have one dock section). Check the squareness by measuring it in an X-shape from
corner to corner. The 2 dimensions should be +/- 1/8 in. (4 mm).
2
3
Once assembled, turn your panels over. Drill a 11/64" hole in the corner of a panel,
through the wood and the aluminum support lip and insert a screw. Do the same at the
other end of the board and repeat in the other 2 corners and in the center of the panel.
Then repeat the steps with the other panel.
4
5
Corner
Cutout
MAINTENANCE Important: your aluminum structures must not come into contact with green ACQ treated wood.
We strongly recommend choosing cedar: it is light, maintenance-free and can be installed as is. Refer to your wood
dealer if you wish to apply a protector.
DECK I N G SU PPORT S
4
DECKING
ab

Plan the installation of your docks according to the possibilities shown in the diagrams beside.
Whether end-to-end (A), "L" shaped (B) or parallel (C), there are many possible combinations.
Note that:
> the Junction Plates (A), for a straight line installation, will be combined with the Leg Holders
with the stainless steel hexagonal bolts;
> the Corner Adapters (B) will use the bolts of a Leg Holder and their own 1/2" bolts with nut.
You will need to drill the Aluminum Side Beam with a 1/2" drill bit to install them. Depending on
your use of the dock, it may be necessary to add a post in this corner;
> the Parallel Adapters (C), which are used to create a platform, will use their own 2" round head
bolts to be connected to the wings of the Leg Holders;
> to create combination "D", you will install the Corner Adapters (B) using their 9/16" x 1" bolts
with nuts and drill the aluminum with a 1/2" drill bit. You will also need additional posts.
Whatever your configuration, the first section will be placed on the ground and the 2 posts will
be located in the water. Note that the first section does not require junction plates.
> The Posts can be inserted into the Leg Holders, high enough so as not to interfere when
moving the dock to its final location; once in the water, adjust them to the right height and tighten
them only slightly. It would be a good idea to coat the threads of the bolts with grease.
> Attach the base plates to the posts, leaving about 6" (15 cm) below the post (a little more if the
lake bottom is muddy or a little less if it is very hard). When you reach the right spot for the dock,
drive the posts to the Base Plates by pressing down with your foot on the Base Plate or by hitting
the Post with a sledgehammer.
> Adjust the height and level of the platform and tighten the top bolts of the Leg Holder. For a
straight line installation, use the bottom bolts to connect the next section on which the junction
plates will be installed. Tighten the 4 bolts of the last section.
> Multinautic® Posts can be cut. Leave at least 16" protruding above the dock for possible
adjustments during the season. Then install the PVC Caps.
> For demanding conditions, you can add reinforcement Braces
(product # 22034 ).
To make installation and removal easier or move the dock as the water level changes, you can add sets of wheels with hubs.
We recommend anchoring a wheeled dock with concrete blocks and chain since the posts will not be driven into the ground
(pair of Anchor Chain Hooks for aluminum docks, product # 22063 ).
JUNCTION PLATES AND LAYOUT ADAPTERS
POSTS AND BASE PLATES
24 in. DOCK WHEEL KITS
Printed in VietNam
C
Stabilize by unscrewing at
least the upper bolt of
the empty Leg Holder
B
Reverse the part
according to the junction
Inside or Outside
Inside Outside
A
C
B
D
A
Reverse the part
for an inclined
start section
To reduce the space between the docks, you
can screw a 2" x 4" board on one side.
2 x
Product # 22000
5
INSTALLATION
With or without extra
post, uses only one bolt
on the leg holder

© Copyrights Multinautic 2021. Reproduction or use of the text or images contained in this guide or on our website without written permission is prohibited.
Multinautic, property of Multi Online Distribution Inc.® 2330, Jean-Adam, St-Sauveur, QC, Canada, J0R 1R2
Multinautic® hereby warrants to the original consumer purchaser only that this product will be free, in normal use, of any defects in materials and workman-
ship for a period of one (1) year from the consumer's original date of purchase directly from Multinautic® or from a Multinautic® authorized reseller. At its
sole option, Multinautic® will repair or replace the defective product and promptly return it to you. In order for this warranty to be valid, the consumer must,
at the time the product is returned, provide proof of purchase in the form of the original purchase receipt directly from Multinautic® or from a Multinau-
tic®-authorized reseller. If Multinautic® elects to replace the defective product, then Multinautic® reserves the right to replace the defective product with
another product of the same model or a model of at least comparable quality and features in Multinautic®'s sole determination. A reimbursement cannot
exceed the amount paid by customer and is limited to the replacement of the defective product.
If you believe this product is defective within the warranty period, call Multinautic®for a Return Authorisation Number (RAN), carefully repack the unit, insure
it and return it with proof of purchase, postage prepaid, to Multinautic® at 2330, Jean-Adam, St-Sauveur, QC, Canada,
J 0 R 1 R 2 . Write the RAN on the shipping
label. Any product sent without RAN will be refused and returned freight collect to sender.
This warranty is not transferable. This warranty does not apply in cases of abuse or misuse of the product, use contrary to Multinautic®'s instructions, an act
of God, negligent use, purchase from a party other than a Multinautic® authorized reseller, unauthorized repair, or modification of the product.
ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED TO THE EXTENT PERMITTED UNDER
APPLICABLE LAWS AND, TO THE EXTENT NOT PERMITTED, ARE HEREBY LIMITED TO THE DURATION AND TERMS OF THIS WARRANTY. MULTINAUTIC® ALSO
HEREBY DISCLAIMS ALL LIABILITY FOR INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES. Some states or provinces do not allow limitations on how long
an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty
gives you specific legal rights, and you may have other rights which vary from state to state or province to province. This warranty does not restrict the rights
of the consumer mandated under applicable laws. THIS WARRANTY SUPERSEDES ALL OTHER WARRANTIES THAT ARE ASSOCIATED WITH THIS PRODUCT.
Discover a whole range of accessories and ramps on Multinautic.com
Limited Warranty
Suggestions of complementary products for your QP-427™ Stationary Dock
Choice of dock ladders
>made of aluminum or steel
>straight or angled
>swinging or detachable
>load capacity
of 250 or 400 lbs
Mooring Accessories
>Aluminum & PVC 30 in. adjustable
Vertical Bumpers
>Aluminum Mooring Cleats for the
track system with "T" Head Bolts
>PVC Bumpers for
dock sides,
dock corners,
dock posts
>Nylon Dock Lines
Installation Accessories
>Diagonal Brace #22034
>Additional Posts (4, 6 or 8 ft.) and Base Plates
for special configurations
>24 in. Dock Wheels with galvanized steel Hubs
Complements for leisure and safety
>Kayak or SUP Storage Racks
>Low Deck for easy access to water, boards and kayaks
>Kayak Launcher for safe and easy onboarding
>Small boat and PWC Mooring Ramp Kits
SHOULD YOU ENCOUNTER ANY DIFFICULTIES WITH THIS PRODUCT, DO NOT RETURN IT TO THE STORE.
PLEASE CONTACT OUR CUSTOMER SERVICE AT 1-800-585-1237 or
[email protected]
