MultiBlast PRO900W User manual

P a g e 1 | 15
Operating Manual MultiBlast PRO900W
Index
Section Description Page
1 Technical Data 2
2 Important Information 3
3 General Description 5
4 Installation 6
5 System Operation 8
6 Maintenance 12
7 Replacement Parts 14
WARNING –Do not operate this equipment without
reading and understanding the contents of this manual.

P a g e 2 | 15
Section 1.0 Technical Data
Technical Data
Model:
Assy No:
Overall Dimensions
900mm Wide
900mm Deep
1860mm High
Working Area
Dimensions
870mm Wide
870mm Deep
830mm High
Work Door Opening
570mm Wide
630mm High
Power Supply
415V / 50Hz
Abrasive Capacity
5-6 kg
Air Connection Size
12.7mm (1/2")
Water Connection Size
19mm (3/4")
Compressed Air Req'd
560 l/m (20cfm) @ 7bar (100psi)
Blast Nozzle Size
6mm (1/4")
Air Jet Size
3mm (1/8")
Cabinet Light
240V 13Watt
Water Capacity
25 Litres

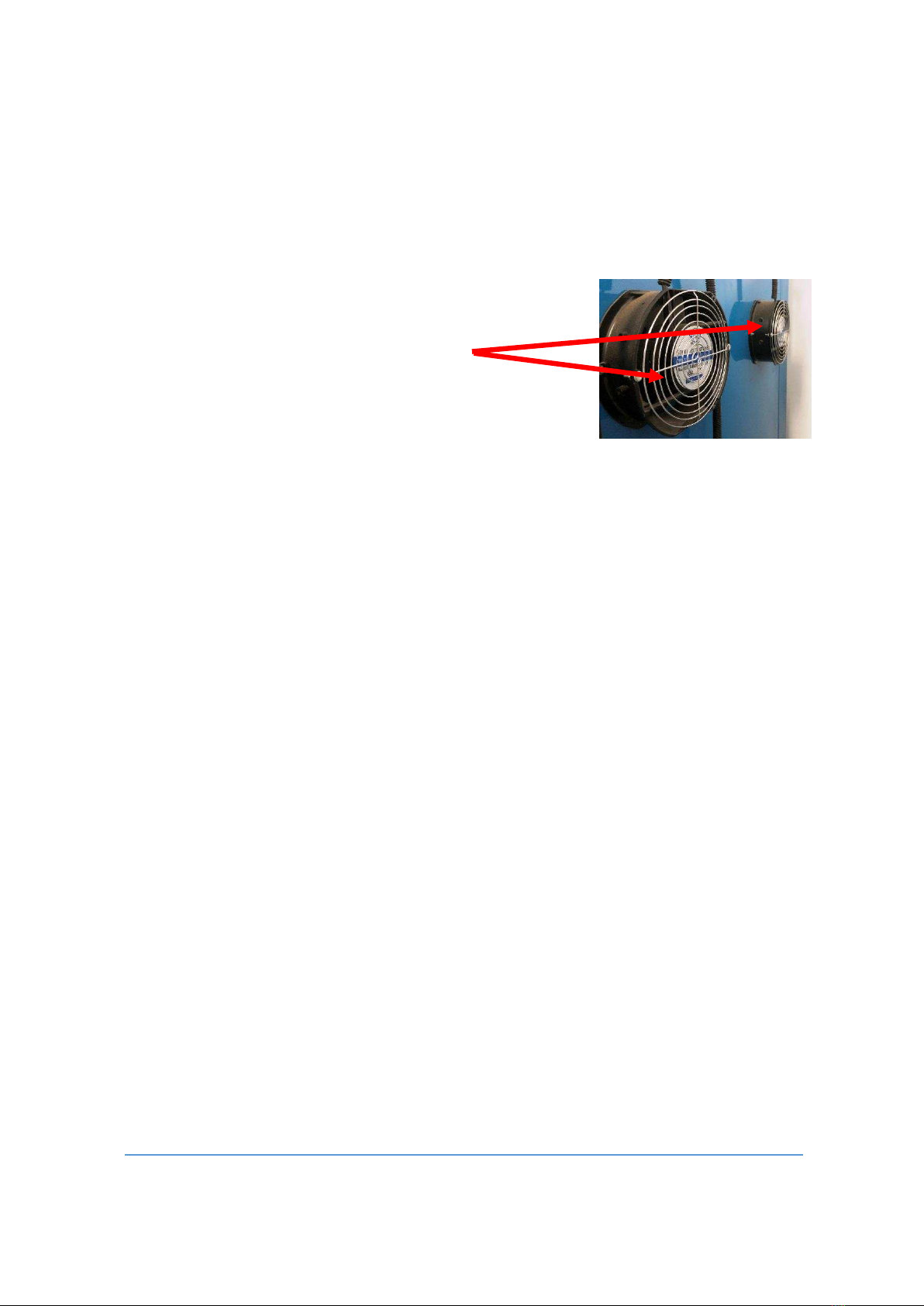

Cabinet Extraction Fan
38Watt x 2 off
Cabinet Window Size
500mm x 300mm
PRO900W
PRO900W
Operating Manual MultiBlast PRO900W

P a g e 3 | 15
Operating Manual MultiBlast PRO900W
Section 2.0 Important Information
2.1 All products and equipment designed and manufactured by MutliBlast Australia are
intended for use by experienced users of abrasive blasting equipment , and its’
associated operations and abrasive blasting media.
2.2 It is the responsibility of the user/purchaser/distributor to:
2.2.1 Determine if the equipment and abrasive media is suitable for the users
intended use and application.
2.2.2 Familiarize themselves with any appropriate laws, regulations and safe
working practices which may apply within the users working
area/environment.
2.2.3 Provide appropriate operator training and a safe working environment,
including operator protective equipment such as, but not limited to, safety
footwear, protective eyewear, hearing protection, and respiratory protection
where applicable.
2.3 No representations are made or intended as to the useful life, maintenance cycles,
efficiency or performance of the reference products or any combination of products.
2.4 Information contained herein must not be used for estimating purposes. Production
rates, labour performance and surface finishes are the sole responsibility of the user.
2.5 Read all instructions carefully prior to operating this equipment, and do not allow it
to be operated by inexperienced, untrained or unauthorised personnel.
2.6 Ensure that the equipment is correctly serviced and maintained as specified in this
manual, and that only genuine MultiBlast replacement parts are utilised. Failure to
use genuine replacement parts may void your warranty.
IMPORTANT –READ THIS INFORMATION CAREFULLY
PRIOR TO OPERATING THE EQUIPMENT.
ALL ABRASIVE BLASTING OPERATIONS ARE
DANGEROUS AND CREATE A HAZARDOUS
ENVIRONMENT.
FAILURE TO COMPLY WITH THIS INFORMATION MAY
CAUSE SERIOUS INJURY OR DEATH.

P a g e 4 | 15
12.7 All pressure vessels (where supplied) are designed, manufactured and certified in
accordance with Australian Standard AS1210. A copy of this certification will be
supplied with this manual if applicable. Do not weld, grind or drill any pressure vessel,
as this will void the certification and warranty, and may weaken the vessel causing a
catastrophic failure.
2.8 This equipment is not designed for use in areas designated as hazardous . Contac t
MultiBlast Australia prior to operating this equipment in a hazardous area.
2.9 All compressed air fittings, connections and hoses must be in good condition, fit for
purpose, correctly sized and fitted, and carefully inspected prior to use.
2.10 Breathing airborne dust from any abrasive media may cause lung disease or other
serious injury. Always wear suitably designed respiratory protection when handling
any abrasive media, and when in the immediate area during any abrasive blasting
operation.
2.11 Static electricity may be generated during any abrasive blasting operation. All
equipment should be well grounded/earthed to prevent electric shock and reduce the
risk of spark generation.
2.12 All Supplied Air Respirators (i.e.: blasting helmets) where used must comply with the
requirements of AS/NZS 1716:2003, and must be supplied with breathing air as
specified in AS/NZS 1715:2009 or higher, at a flow rate between 170l per minute
(6cfm) and 425l per minute (15cfm) at all times.
Operating Manual MultiBlast PRO900W

P a g e 5 | 15
Section 3.0 General Description
3.1 The MultiBlast PRO900W Wet Blast Cabinet is designed to mix abrasive media and
water for abrasive blasting applications within a stainless steel cabinet . A pump is
provided to deliver the abrasive and water mix to the blast gun, where it is mixed
with the incoming compressed air supply.
3.2 A pressure regulator is provided for the incoming compressed air supply, and a foot
operated switch is included for the operator to turn the blasting system on/off.
3.3 A pneumatically operated window wiper system is provided to keep the operators
viewing window clear, and a wash down trigger gun is also included.
Operating Manual MultiBlast PRO900W

P a g e 6 | 15
Section 4.0 Installation
4.1 The cabinet should be placed on a flat, level surface, and positioned considering space
for loading/unloading access, as well as on going servicing and maintenance. It is
recommended that there should be 1200mm clear area on both the work door side of
the cabinet, and the rear of the cabinet.
4.2 Connect a 12.7mm (½”) air supply hose to the compressed air
connection point on the rear of the cabinet. Ensure that the
supply hose is correctly fitted and secured with a correctly sized
hose clamp.
4.3 Connect a 12.7mm (½”) water supply hose to the water
connection point of the rear of the cabinet. Ensure that the
supply hose is correctly fitted and secured with a correctly sized
hose clamp.
4.4 An overflow outlet is located on the cabinet lower hopper at
the rear if the cabinet. A water receptacle should be placed
underneath the overflow to trap any excess water as it flows
out.
WARNING –ALL ELECTRICAL AND PLUMBING
CONNECTIONS MUST BE CARRIED OUT BY SUITABLY
QUALIFIED AND EXPERIENCED TRADESPERSONS. ALL
CONNECTIONS MUST COMPLY WITH LOCAL SITE
REQUIREMENTS AND/OR REGULATIONS.
Compressed air
connection point
Water connection
point
Water overflow
outlet
Operating Manual MultiBlast PRO900W

P a g e 7 | 15
4.5 Connect the cabinet power cable to a correctly sized power outlet, checking that the
plug is fully connected and secured correctly.
4.6 Connect the operator foot switch rubber hose to the connection point in the control
panel located directly above the operator viewing window. The switch hose simply
pushes onto the panel fitting. Then place the foot switch on the floor directly in front
of the cabinet.
Foot switch
connection point
Foot switch
Operating Manual MultiBlast PRO900W

P a g e 8 | 15
Section 5.0 System Operation
5.1 Check that the MultiBlast PRO900W cabinet has been correctly installed as per
Section 4.0 of this manual.
5.2 Turn on the main power supply.
5.3 Turn on the compressed air supply.
The input pressure gauge on the
control panel will display the
incoming air pressure.
5.4 Set the air pressure to the desired blasting pressure, by adjusting the pressure
regulator located on the control panel. Unlock the regulator by pulling the knob
outwards. Increase the pressure by rotating the knob clockwise, and decrease the
pressure by rotating the knob anti-
clockwise. The set pressure will be
displayed on the work pressure
gauge in the control panel
5.5 Turn on the cabinet internal work
light using the switch located in the
control panel
Incoming air
pressure gauge
NOTE –The blasting air pressure will vary depending
on the individual operating conditions and the desired
end result. The recommended air pressure for most
applications is between 0.35Mpa (50psi) and 0.55Mpa
(80psi) –DO NOT EXCEED 0.68Mpa (100psi)
Pressure Regulator
Work Pressure
Gauge
Cabinet Light
Switch
Operating Manual MultiBlast PRO900W

P a g e 9 | 15
5.6 Turn on the water inlet valve located on the rear of the
cabinet, allowing approximately 25 litres of water to flow
into the cabinet hopper, then turn of the water inlet valve.
Discharge of water from the cabinet overflow indicates that
the water level is correct.
5.7 Unlatch and open the cabinet door, and load approximately 5-6kg of abrasive media
(normally glass beads) into the cabinet hopper through the cabinet mesh floor.
5.8 Depressing the foot switch will now start both the air and water supply to the blast
gun.
5.9 Load the component to be blasted into the cabinet through the door opening, place
it on the cabinet mesh floor, close the door and latch it shut using the two door
latches.
Water Inlet Valve
NOTE –If the system has just been filled, or has been
idle for some time (say overnight) it is recommended
that the water and air system be cycled for several
minutes to ensure the abrasive and water are
thoroughly mixed together before blasting operations
commence.
Note –The cabinet is fitted with a
safety door interlock which will
prevent the system from operating
with the door open.
Door Safety
Interlock Switch
Operating Manual MultiBlast PRO900W

P a g e 10 | 15
5.10 The operator now places their hands into the cabinet gloves, grasps the blast gun and
then depresses the foot switch. Blasting operation will now commence.
5.11 The operator now moves the blast gun across the surface of the component until the
desired surface finish is achieved.
5.12 The stop blasting, release the foot switch and both the compressed air supply and
water pump will cease operating.
5.13 Periodically, during operation it will be necessary to operate the window wiper in
order to clear the operator window. The window wiper may be operated either
manually or automatically.
5.14 To operate the window wiper automatically, rotate the flow control valve located of
the window wiper drive assembly. Rotating the control know clockwise will slow the
wiper speed, while rotating the control knob anti-clockwise will increase the wiper
speed.
5.15 To operate the wiper manually, rotate the lever located on the wiper drive assembly
through an arc left to right.
WARNING –MAXIMUM COMPONENT LOAD IN THE
CABINET IS 20KG
Window Wiper
Manual Lever
Window Wiper
Automatic Control
Knob
NOTE –Operating the window wiper while there is
abrasive residue on the window will cause
scratches/wear on the glass. It is recommended that
the window be rinsed with clean water from the wash
down gun prior to operating the window wiper.
Operating Manual MultiBlast PRO900W

P a g e 11 | 15
5.16 It will be necessary to periodically check the abrasive to water mix ratio, which should
normally be 10-15% abrasive to water. To check the ratio, follow this procedure –
5.16.1 Place a small bucket or similar container inside the cabinet, close the door,
and blast into the container until you have collected approximately 1 litre of
water and abrasive mix.
5.16.2 Pour 500ml of the container contents into a 1 litre graduated flask, and leave
to stand for several minutes to allow the abrasive in the water to settle.
5.16.3 Check the level of the settled abrasive in the bottom of the flask. If the ratio is
correct, the abrasive level should read between 50ml and 75ml (10% to 15%
of 500ml)
5.17 Also over a period of time, the abrasive in the water will breakdown, reducing blasting
efficiency. At this time, it will be necessary to drain the cabinet completely and refill
with it with clean water and new abrasive media.
5.18 To drain the cabinet, place a suitable sized container beneath the drain valve located
on the rear of the cabinet pump hopper. Open the drain valve, and allow the system
to drain out.
5.19 Abrasive will have settled in the bottom of the
hopper, so use the wash down gun to wash down
the inside of the cabinet and flush out the pump
hopper.
5.20 Once fully drain and cleaned, refill the system with water and abrasive media as per
Section 5.6 and 5.7.
Cabinet Drain
Valve
Operating Manual MultiBlast PRO900W

P a g e 12 | 15
Section 6.0 Maintenance
6.1 On a daily basis –
6.1.1 Inspect the door seal and replace if damaged or worn
6.1.2 Inspect the operator gloves for wear, holes and/or cuts. Replace if necessary.
6.1.3 Check the condition of the operator viewing window, and replace if the
operators view is obstructed due to wear/scratches.
6.1.4 Check that the door safety interlock is working correctly, and that the system
will not operate with the door open.
6.2 On a monthly basis –
6.2.1 Dismantle and inspect the blast gun assembly. Check the blast nozzle inside
diameter for wear, grooves or cracks, and replace if required.
6.2.2 Check the blast nozzle inside diameter. Replace the nozzle if it has worn more
than 1.5mm from its’ original size. Use a 6mm diameter drill to check the
nozzle for size.
6.2.3 Check the air tip for wear and grooves. Replace the air tip if it has worn more
than 3mm from its’ original size.
6.2.4 Feel along the length of the blast hose between the blast gun and the water
pump. Check for any soft spots which will indicate hose wear. Replace the
hose length as necessary.
Blast nozzle inside
diameter
Use a 6mm drill to
check for nozzle
size
Blast gun air tip
Operating Manual MultiBlast PRO900W

P a g e 13 | 15
6.3 On a yearly basis –
6.3.1 Inspect the cabinet ventilation fans for any build up on the fan impellers, and
dismantle and clean as necessary.
6.3.2 Remove and dismantle the water pump and check for wear on the pump
impeller and housing. Replace items as required.
Cabinet
ventilation fans
Operating Manual MultiBlast PRO900W

P a g e 14 | 15
Section 7.0 Replacement Parts
7.1 Suction Blast Gun Assembly
Ø 'A'
BLAST NOZZLE DIA.
AIR TIP DIA.

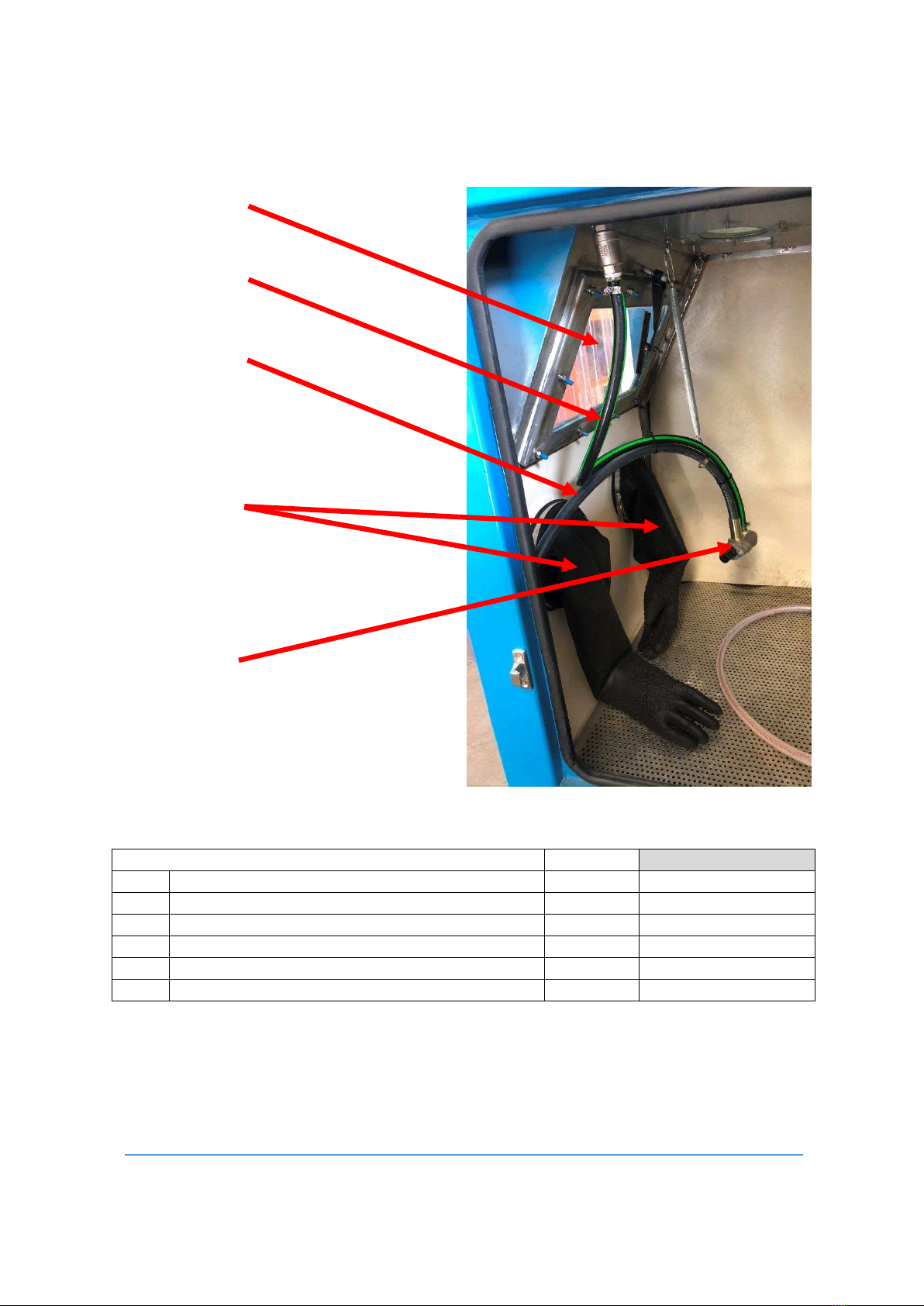

MULTIBLAST
WET
BLAST
SUCTION GUN
ASSY NO.
A900300-1
ITEM
DESCRIPTION
QTY
PART NO.
1
BODY-SUCTION GUN
1
B900306
2
HOLDER-BLAST NOZZLE
1
H900308
3
SCREW-HEX HEAD-6MM X 15MM LONG
1
N/A
4
HOLDER-AIR TIP
1
H900302-1
5
O RING-25MM OD X 2.5MM DIAMETER
2
N/A
6
ADAPTOR-HOSE
1
A900301-2
7
HOSE BARB-1/4" BSP X 1/2" BARB
1
P3-0804
8
BOLT-HEX HEAD-6MM X 15MM
2
N/A
9
WASHER-FLAT-6MM
2
N/A
10
AIR TIP-1/8"
1
T900309-4
11
BLAST NOZZLE-1/4"
1
N900310-14
Operating Manual MultiBlast PRO900W

P a g e 15 | 15
MULTIBLAST
WET
BLAST
CABINET
ASSY NO.
ITEM
DESCRIPTION
QTY
PART NO.
1
CABINET WINDOW - 500mm x 300mm
1
G900520-22
2
AIR HOSE - 13mm
1m
AHPVC13
3
SUCTION BLAST HOSE-13mm
2.2m
ABH13SUCT
4
CABINET GLOVES
1 PR
GLOVE27SBS-200
5
SUCTION BLAST GUN-COMPLETE ASSEMBLY
1
A900300-1
1
2
3
4
5
PRO900W
Operating Manual MultiBlast PRO900W
