INSTALLATION/OPERATION MANUAL
MIRATRON WIRELESS
REMOTE CONTROL RADIO
MAYCO MODEL C30HDG
THIS MANUAL MUST ACCOMPANY
THE EQUIPMENT AT ALL TIMES.
Revision #0 (08/19/09)

PAGE 2 — INSTALLATION OPERATION MANUAL — REV. #0 (08/19/09)
TABLE OF CONTENTS
Warranty............................. 3
Overview ............................ 4
Specifications .................... 5
Care And Handling ............. 6
Receiver Installation ......... 7-8
Cable Installation .............. 9
Wiring Diagram................... 10
Transmitter/Receiver ......... 11-12
Troubleshooting ................. 13

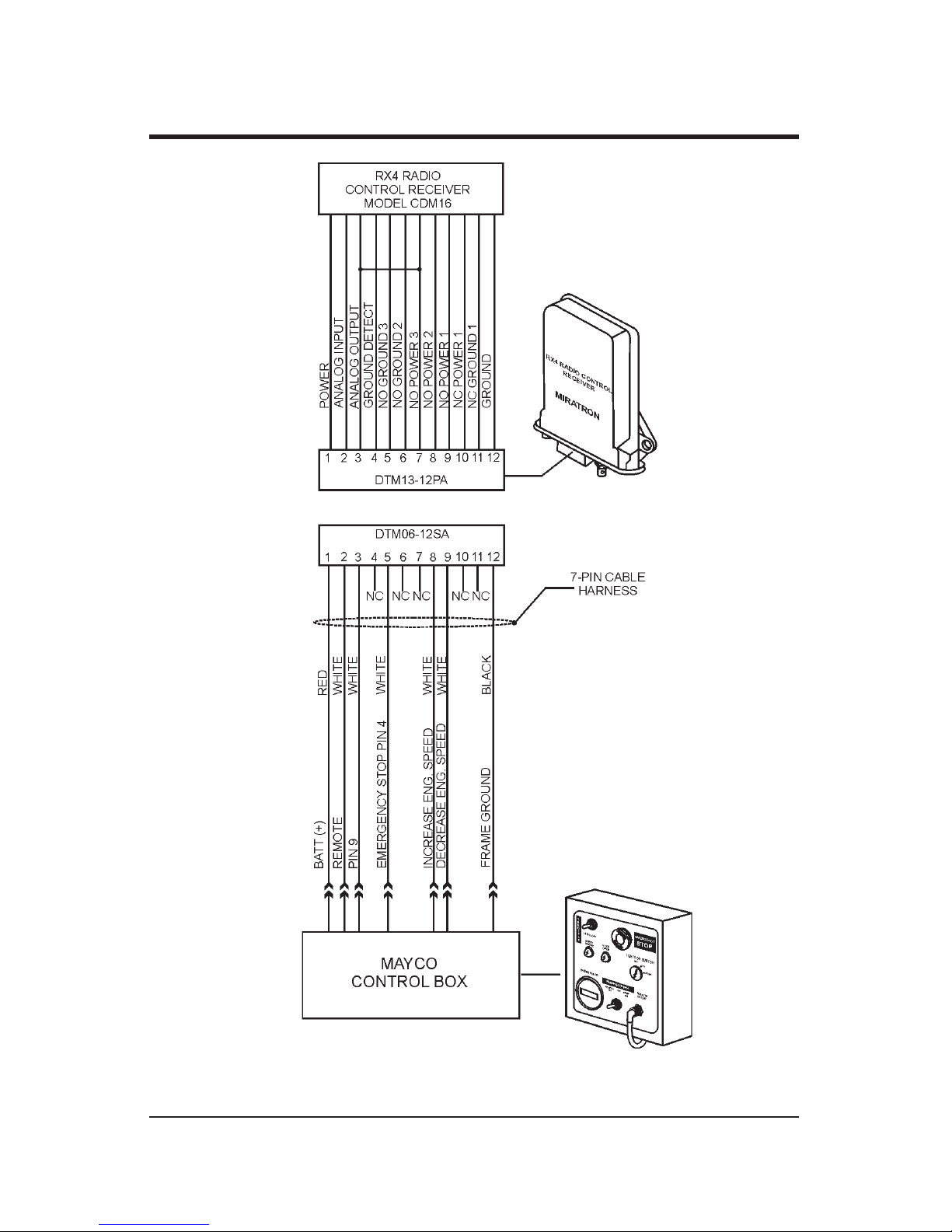

System Wiring Diagram ..... 14

INSTALLATION/OPERATION MANUAL — REV. #0 (08/19/09) — PAGE 3
LIMITED ONE YEAR WARRANTY
Miratron Incorporated, hearafter referred to as Miratron, is providing this
warranty in lieu of all other express or implied warranties, including any
warranty of merchantability or fitness for a particular purpose. This warranty
is buyer’s exclusive remedy for all claims against Miratron. Miratron shall
not be liable for any consequential or incidental damages. Miratron’s total
liability for all contracts, negligence, or other claims shall be limited to the
price paid for its product.
Miratron promises buyer that any Miratron product purchased by buyer shall
be free from all material defects in desgin, material, or manufacturing for a
period of one year from the manufacture date; provided, however, that the
warranty shall not extend to ordinary wear and tear or to normally replaceable
components (e.g., batteries).
During the warranty period, Miratron may repair or replace (in its sole
discretion) any product suffering from a warranty defect and returned
freight prepaid by buyer, with no charge to buyer for any warranty repair or
replacement.
The warranty shall remain in full force and effect for such 1 year period,
provided that the product: (1) was installed, operated, and maintained
properly; (2) has not been abused or misused; and (3) has not been repaired,
altered, or modified outside of Miratron’s authorized facilities. This warranty
provides specific legal rights that may be varied by state law.
Miratron products are not designed for life or safety applications.
Product specification subject to change without notice.
NOTICE
System must be physically disconnected from the
machine prior to welding on the machine. Welding
may cause permanent damage to sensitive electronic
components, and will void this warranty.
WARRANTY

PAGE 4 — INSTALLATION OPERATION MANUAL — REV. #0 (08/19/09)
OVERVIEW
ALWAYS read manual before attempting to operate the
equipment. Failure not to read manual could cause severe
equipment damage and or damage to the receiver and
transmitter.
Make sure work area is safe to operate radio control receiver and
transmitter.
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
If any problems or malfunctions occur using this product, discontinue use
immediately, and refer to the Troubleshooting Guide in this manual. If the
problem persists, call your equipment dealer immediately for parts and or
service.
NOTICE
Disconnect and lock-out all power sources before
making any wiring connections to the receiver.
NOTICE
Improper operation of the transmitter receiver could
cause damage to the equipment. DO NOT allow
unauthorized personnel to operate this equipment
before reading manual.
NOTICE
MIRATRON, Inc. transmitters and receivers are not
intended for life or safety applications, MIRATRON,
Inc. shall not accept resposibility for installation,
application, or safety of machine or systems which
utilize MIRATRON, Inc. transmitters and receivers.

INSTALLATION/OPERATION MANUAL — REV. #0 (08/19/09) — PAGE 5
SPECIFICATIONS
SpecificationsTable 1.
Miratron Model Number:
RX4 Radio Control Receiver CMD16-0135 ~ (MQ P/N EM98215)
General:
Power Requirements 12-24VDC, 500mA max
Radio:
Frequency Standard
Frequecy Control
FCC ID
Receiver Sensitivity
902-928 MHz, FHSS, ISM Band
Direct FM
OUR9XCITE (Standard)
-106 dBM
Transmitter:
Range
Battery Type
Battery Life (Standard)
Battery Life (Extended Range)
LED Indicator
CMD16-0135 ~ (MQ P/N EM98215)
300 ft. (91.44 meters) Line of Sight (Standard)
1.5 Volt “AA” Alkaline (4)
Standby, 80 hrs. — Transmitt, 12-16 hrs.
Standby, 40 hrs. — Transmitt, 6-8 hrs.
Flashing = Battery Good
Double Blink = Battery Low
Enclosure:
Transmitter High Impact Polystyrene
Environmental:
Operating -14° F ~ 158° F (-10°C ~ 70° C)
Storage -40° F ~ 185° F (-40°C ~ 85° C)

PAGE 6 — INSTALLATION OPERATION MANUAL — REV. #0 (08/19/09)
CARE AND HANDLING
Transmitter:
Clean transmitter gently with a damp cloth.DO NOT immerse transmitter
in water, or spray with hose. DO NOT store outside.
DO NOTdrop transmitter or otherwise subject transmitter to physical
shock.
DO NOTexpose transmitter to extreme temperatures.
DO NOTopen transmitter enclosure. Transmitter contains no serviceable
parts.
Receiver:
Remove receiver from machine prior to welding on machine
DO NOTpaint electrical connector.
Use only factory provided antenna and cabling.
DO NOTopen receiver enclosure except to change radio channel or make
adjustments to factory settings.
Use transmitter to test functions.DO NOT apply voltage to circuit board
directly.

INSTALLATION/OPERATION MANUAL — REV. #0 (08/19/09) — PAGE 7
RECEIVER INSTALLATION
Parts:
Make sure all parts are accounted for before performing the installation.
The following parts are included with the kit:
Radio Transmitter
Radio Receiver
Spiral Antenna with associated mounting hardware
Coaxial Antenna Cable
Data /Power Cable (7-wire)
Remote Control Cable
Battery Disconnection
Disconnect the negative terminal of the battery cable from the battery.1.
Ant enna Mounting
Drill a 3/4” hole into the hood on the C30HDG as shown in Figure 1.1.
After hole has been drilled, deburr hole opening.2.
Tilt the engine hood slightly forward to gain access to the antenna hole3.
opening. Support the hood with a block of wood to maintain the desired
access position.
Insert antenna cable thru 3/4” hole opening in hood. Insert BNC end of4.
cable first.
With one hand holding the antenna end of the cable through the antenna5.
hole opening, connect the locking flange, antenna and rubber gasket.
Tighten locking flange securely.
Secure coaxial antenna with pressed on tie-wrap pads (interior). Also6.
apply pressed on tie-wrap pads (exterior) to the control box support
panel (bottom).

PAGE 8 — INSTALLATION OPERATION MANUAL — REV. #0 (08/19/09)
Radio Control Receiver Mounting
Drill two 1/4” holes into the control box support panel on the C30HDG1.
as shown in Figure 1.
After both holes have been drilled, deburr each hole opening.2.
Using a 1/4-20 x 1-1/4 bolt (2), 1/4 lock washer (2), 1/4 flat washer (2)3.
and 1/4 nut (2), mount the radio control receiver onto the control box
support panel as shown in Figure 1.
Connect BNC end of coaxial antenna cable to BNC connector on radio4.
control receiver.
Antenna/Receiver Installation
Figure 1.
RX4RADIOCONTROL
RECEIVER
RX4RADIOCONTROL
RECEIVER
MIRATRON
MIRATRON
RUBBER
GASKET
LOCKING
FLANGE
ANTENNA
COAXIAL
CABLE
ANTENNA
END
CABLE
SERVICE
LOOP
LOCKING
FLANGE
COAXIAL
CABLE
TIE-WRAP
PADS
(INSIDE)
TIE-WRAP
PADS
(
OUTSIDE
)
BNC CONNECTOR
RECEIVER
END
TIGHTEN
STEP 5
STEP 6
RX4RADIOCONTROL
RECEIVER
RX4RADIOCONTROL
RECEIVER
MIRATRON
MIRATRON
DATA
CABLE
RECEIVER INSTALLATION

INSTALLATION/OPERATION MANUAL — REV. #0 (08/19/09) — PAGE 9
CABLE INSTALLATION
Control Box Removal
Using a 7/16 socket remove the mounting bolts (3) that secure the control box1.
to the support bracket.
Once the bolts have been removed, flip the panel downward to gain access to
2.
the connection points.
Data Cable Connections
Wire data cable into control box as shown in Figure 2.1.
Crimp a 16-14 (3/16”) terminal ring onto the RED wire labeled BATT+. Connect2.
this end of the wire to the +12VDC terminal strip, pin 2.
Crimp a #16-14 (3/16”) terminal ring onto the WHITE wire labeled DECREASE.
3.
Connect this end of the wire onto pin 3 on the throttle high low switch.
Crimp a 16-14 (3/16”) terminal ring onto the WHITE wire labeled INCREASE.
4.
Connect this end of the wire to pin 1 of the throttle high low switch.
Crimp a #16-14 (3/16”) terminal ring onto the WHITE wire labeled PIN 9.
5.
Connect this end of the wire to pin 2 on the pumping control switch.
Crimp a #16-14 (5/16”) terminal ring onto the BLACK wire labeled FRAME
6.
GROUND. Connect this end of the wire to engine chassis ground.
Splice the WHITE wire labeled EMERGENCY STOP with the RED or PINK
7.
wire from the engine oil sensor.
Insert connector end of data cable into Miratron receiver.
8.
Remote Control Cable Connections
Connect the remote control cable to the control box as shown in Figure 2 .1.
Splice the WHITE wire labeled REMOTE (data cable) with the BLACK wire2.
from the yellow remote cable
Crimp a #16-14 (3/16”) terminal ring onto the WHITE wire from the yellow remote
3.
cable. Connect this end of the wire to pin 1 on the pumping control switch.
Re-install control box using the existing mounting hardware.
4.
Insert the yellow remote control cable into the 2-pin receptacle labled REMOTE5.
OUTLET on the control box.
Reconnect negative battery cable to battery
6. .

PAGE 10 — INSTALLATION OPERATION MANUAL — REV. #0 (08/19/09)

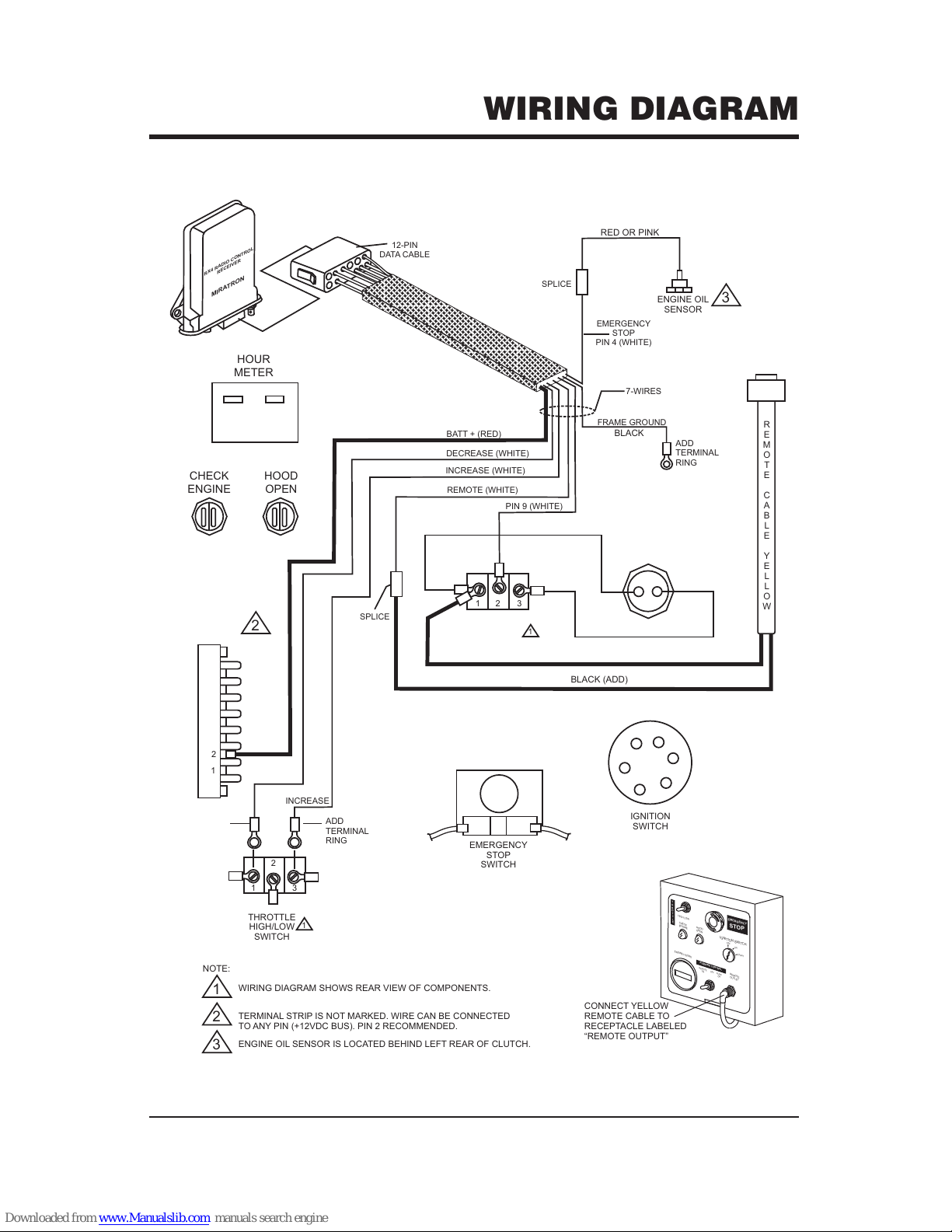

Wiring DiagramFigure 2.
DECREASE
TERMINAL
STRIP
(+12VDC)
BATT +
ADD
TERMINAL
RING
BLACK
WHITE
PUMPING
CONTROL
SWITCH
WHITE (ADD)














































































BLACK (ADD)
ENGINE OIL
SENSOR
EMERGENCY
STOP
PIN 4 (WHITE)
SPLICE
SPLICE
REMOTE (WHITE)
DECREASE (WHITE)
INCREASE (WHITE)
BATT + (RED)
FRAME GROUND
BLACK
PIN 9 (WHITE)
12-PIN
DATA CABLE
HOUR
METER
R
E
M
O
T
E
C
A
B
L
E
Y
E
L
L
O
W
THROTTLE
HIGH/LOW
SWITCH
IGNITION
SWITCH
EMERGENCY
STOP
SWITCH
7-WIRES
CHECK
ENGINE
HOOD
OPEN
ADD
TERMINAL
RING
ADD
TERMINAL
RING
2
1
13
2
132
ENGINEHOURS
REMOTE
ON
PUMP
ON
OFF
IGNITIONSWITCH
OFF
ON
START
REMOTE
OUTLET
HIGHLOW
PUMPINGCONTROL
HOOD
OPEN
CHECK
ENGINE
EMERGENCY
STOP
CONNECT YELLOW
REMOTE CABLE TO
RECEPTACLE LABELED
“REMOTE OUTPUT”
NOTE:
WIRING DIAGRAM SHOWS REAR VIEW OF COMPONENTS.
1
1
1
REDORPINK
INCREASE
RX4 RADIO CONTROL
RECEIVER
MIRATRON
T
H
R
O
T
T
L
E
2
TERMINAL STRIP IS NOT MARKED. WIRE CAN BE CONNECTED
TO ANY PIN (+12VDC BUS). PIN 2 RECOMMENDED.
2
ENGINE OIL SENSOR IS LOCATED BEHIND LEFT REAR OF CLUTCH.
3
3
WIRING DIAGRAM

INSTALLATION/OPERATION MANUAL — REV. #0 (08/19/09) — PAGE 11
TRANSMITTER/RECEIVER
The definitions below describe the controls and functions of the Miratron
Transmitter and Radio Control Receiver.
Transmitter
Power On Switch1. — Place this switch in the ON position to turn on the
transmitter. Be sure to place this switch in the OFF position when the system
is not in use.
Status LED Indicator
2. — Status LED blinks to indicate transmitter is ON
and active. LED will double-blink when battery strength is low.
E-STOP Switch
3. — When activated will cause the engine stop and all
pumping will cease.
Belt Clip4. — If desired the transmitter can be placed on a belt.
Pump ON/OFF Switch
5. — Place this switch in the pump ON position to
begin pumping. Place the switch in the OFF position to stop pumping.
Engine Speed Switch6. — Place this switch upward to increase engine
speed. Place downward to decrease engine speed.
Batteries
7. — Transmitter requires four AA 1.5V alkaline batteries. If
rechargable batteries are to be used, nickel-metal hydride (NiMH) are
recommended.
Receiver (Learn Button)
Transmitter and receiver must be matched as a pair. Perform the procedure
listed below to pair the transmitter and receiver.
Place the ignition switch in the ON position.1.
Verify that the status LED on transmitter blinks (active).2.
Place the pumping control switch on the control box in the REMOTE ON3.
position.
Press and hold the learn button on the RX4 radio control receiver. While
4.
keeping the learn button depressed, toggle the pump ON/OFF switch for
10 seconds.

PAGE 12 — INSTALLATION OPERATION MANUAL — REV. #0 (08/19/09)
TRANSMITTER/RECEIVER
Functional Test
Perform the functional test procedure below to test the remote control radio
system..
Start the engine as outlined on the operator’s manual.1.
Place the transmitter power ON/OFF switch in the ON position.2.
Place the pumping control switch on the control box in the REMOTE ON3.
position.
Toggle the engine speed switch back and forth. Verify that engine speed
4.
increases and decreases.
Toggle pump ON/OFF switch. Verify that pumping starts and stops.
5.
Transmitter/ReceiverFigure 3.
E-STOPPOWER
ON
STATUS
PUMP
ON
ENGINE
INCREASE
OFF DECREASE
PUMP ON/OFF
SWITCH
ENGINE SPEED
SWITCH
TRANSMITTER
MODEL CDM16
BELT CLIP
RX4RADIO CONTROL
RECEIVER
MIRATRON
LEARN
BUTTON
RX4 RADIO
CONTROL RECEIVER
MODEL CDM16
1.5V
A
L
K
A
L
I
N
E
1.5V
A
L
K
A
L
I
N
E
1.5V 1.5V
A
L
K
A
L
I
N
E
A
L
K
A
L
I
N
E
+ +
BATTERY
COMPARTMENT
4 AA 1.5V
ALKALINE
BATTERIES
REQUIRED

INSTALLATION/OPERATION MANUAL — REV. #0 (08/19/09) — PAGE 13
TROUBLESHOOTING
TroubleshootingTable 2.
Symptom Possible Problem Solution
Transmitter does not
function at all
LED status indicator not
flashing.
LED indicator not lit when
power ON/OFF switch is
pressed.
Turn transmitter power
switch ON.
Weak dead battery, replace
batteries.
Check orientation of
batteries.
Make sure transmitter has
be matched (paired) to
receiver.
Receiver is not powered
up.
Transmitter range is poor LED indicator not lit when
power ON/OFF switch is
pressed
LED indicator lit when
switch is pressed
Weak dead battery, replace
batteries.
Check receiver antenna
Maintain line-of-sight
Avoid obstructions
Check for interference
Heavy rain reduces range
Transmitter works (RX LED
in receiver comes on) but
outputs do not operate
Check wiring. Make sure output wires are
not shorted to Ground
Verify load is wired
correctly.

PAGE 14 — INSTALLATION OPERATION MANUAL — REV. #0 (08/19/09)
SYSTEM WIRING DIAGRAM
System Wiring DiagramFigure 4.

INSTALLATION/OPERATION MANUAL — REV. #0 (08/19/09) — PAGE 15
NOTE PAGE

INSTALLATION/OPERATION MANUAL
Your Local Dealer is:
HERE’S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
©
COPYRIGHT 2009, MULTIQUIP INC.
Multiquip Inc, the MQ logo and the Mayco logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks
are the property of their respective owners and used with permission.
This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.
The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in
this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or the information published
in this publication at any time without notice and without incurring any obligations.
UNITED STATES
Multiquip Corporate Office MQ Parts Department
18910 Wilmington Ave.
Carson, CA 90746
Contact: [e-mail]
Tel. [phone]
Fax [phone]
800-427-1244
310-537-3700
Fax: [phone]
Fax: [phone]
Mayco Parts Warranty Department
800-306-2926
310-537-3700
Fax: [phone]
Fax: [phone]
800-421-1244, Ext. 279
310-537-3700, Ext. 279
Fax: [phone]
Service Department Technical Assistance
800-421-1244
310-537-3700
Fax: [phone] Fax: [phone]
MEXICO UNITED KINGDOM
MQ Cipsa Multiquip (UK) Limited Head Office
Carr. Fed. Mexico-Puebla KM 126.5
Momoxpan, Cholula, Puebla 72760 Mexico
Contact: [email protected]
Tel: [phone]
Fax: [phone]
Hanover Mill, Fitzroy Street,
Ashton-under-Lyne,
Lancashire OL7 0TL
Contact: [e-mail]
Tel: [phone]
Fax: [phone]
CANADA
Multiquip
4110 Industriel Boul.
Laval, Quebec, Canada H7L 6V3
Contact: [e-mail]
Tel: [phone]
Tel: [phone]
Fax: [phone]
