mundoclima MVD-22GDN1 User manual

Wall Mounted Split
www.mundoclima.com
Service manual
English
CL23560 to CL23567
M
V
D
DC
2

201806 3
Wall Mounted Split
1 Specifications ............................................................................................. 4
2 Dimensions ................................................................................................ 6
3 Unit Placement .......................................................................................... 7
4 Piping Diagram........................................................................................... 8
5 Wiring Diagram .......................................................................................... 9
6 Capacity Tables......................................................................................... 13
7 Electrical Characteristics........................................................................... 21
8 Sound Levels ............................................................................................ 22
9 Error codes............................................................................................... 24
The 2nd Generation DC Series VRF Indoor Units

The 2nd Generation DC Series VRF Indoor Units
4 201806
1Specifications
Table 1.1: MVD-22(28,36,45)GDN1 specifications
Model MVD-22GDN1 MVD-28GDN1 MVD-36GDN1 MVD-45GDN1
Power supply 1 phase, 220-240V, 50Hz
Cooling1Capacity kW 2.2 2.8 3.6 4.5 kBtu/h 7.5 9.6 12.3 15.4
Power input W 28 28 30 40
Heating2Capacity kW 2.4 3.2 4.0 5.0 kBtu/h 8.2 10.9 13.6 17.1
Power input W 28 28 30 40
Fan motor Model ZKFP-20-8-6 ZKFP-20-8-6 ZKSP-58-8-1 ZKSP-58-8-1
Type DC
Indoor coil
Number of rows 1 2 1 2
Tube pitch × row pitch mm 21×13.37
Fin spacing mm 1.3
Fin type Hydrophilic aluminum
Tube OD and type mm Ф9.53 Inner-groove
Dimensions (L×H×W) mm 585×315×13.37 585×315×26.74 701×315×13.37 701×315×26.74
Number of circuits 2 3 3 5
Air flow rate3m3/h 422/411/402/39
3/380/368/356
417/402/386/37
0/353/338/316
656/628/591/57
3/544/515/488
594/563/535/50
7/478/450/424
Sound pressure level4dB(A) 31/30/30/30/29/
29/29
31/30/30/30/29/
29/29
33/32/32/31/31/
30/30
35/34/33/33/32/
31/31
Sound power level dB(A) 46/45/45/45/44/
44/44
46/45/45/45/44/
44/44
48/47/47/46/46/
45/45
50/49/48/48/47/
46/46
Unit
Net dimensions5(WxHxD) mm 835×280×203 990×315×223
Packed dimensions (WxHxD) mm 935×385×320 1085×420×335
Net/Gross weight kg 8.4/12.1 9.5/13.1 11.4/15.5 12.8/16.9
Refrigerant type R410A
Throttle Type Electronic expansion valve
Design pressure (H/L) MPa 4.4/2.6
Pipe
connections
Liquid/Gas pipe mm Ф6.35/Ф12.7
Drain pipe mm OD Φ16
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured in a semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

201806 5
Table 1.2: MVD-56(71,80,90)GDN1 specifications
Model MVD-56GDN1 MVD-71GDN1 MVD-80GDN1 MVD-90GDN1
Power supply 1 phase, 220-240V, 50Hz
Cooling1Capacity kW 5.6 7.1 8.0 9.0 kBtu/h 19.1 24.2 27.3 30.7
Power input W 45 55 55 82
Heating2Capacity kW 6.3 8.0 9.0 10.0 kBtu/h 21.5 27.3 30.7 34.1
Power input W 45 55 55 82
Fan motor Model ZKSP-58-8-1 ZKSP-60-8-3 ZKSP-60-8-3 ZKSP-60-8-3
Type DC
Indoor coil
Number of rows 2
Tube pitch × row pitch mm 21×13.37
Fin spacing mm 1.3
Fin type Hydrophilic aluminum
Tube OD and type mm Ф9.53 Inner-groove
Dimensions (L×H×W) mm 701×315×26.74 825×399×26.74 825×399×26.74 825×399×26.74
Number of circuits 5
Air flow rate3m3/h 747/713/685/648
/613/578/547
1195/1130/1065/
1005/940/875/80
9
1195/1130/1065/
1005/940/875/80
9
1421/1300/1125/
1067/1005/934/8
67
Sound pressure level4dB(A) 38/37/36/36/35/3
4/34
44/43/42/39/38/3
7/36
44/43/42/39/38/3
7/36
48/46/45/43/41/4
0/38
Sound power level dB(A) 53/52/51/51/50/4
9/49
59/58/57/54/53/5
2/51
59/58/57/54/53/5
2/51
63/61/60/58/56/5
5/53
Unit
Net dimensions5(WxHxD) mm 990×315×223 1194×343×262
Packed dimensions (WxHxD) mm 1085×420×335 1290×375×460
Net/Gross weight kg 12.8/16.9 17.0/22.4
Refrigerant type R410A
Throttle Type Electronic expansion valve
Design pressure (H/L) MPa 4.4/2.6
Pipe
connections
Liquid/Gas pipe mm Ф9.53/Ф15.9
Drain pipe mm OD Φ16
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured in a semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.
The 2nd Generation DC Series VRF Indoor Units

The 2nd Generation DC Series VRF Indoor Units
6 201806
2Dimensions
2.1 Unit Dimensions
Figure 2.1: Wall mounted dimensions (unit: mm)
MVD-22GDN1, MVD-28GDN1
MVD-36GDN1, MVD-45GDN1, MVD-56GDN1
MVD-71GDN1, MVD-80GDN1, MVD-90GDN1

201806 7
3Unit Placement
3.1 Placement Considerations
Unit placement should take account of the following considerations:
Units should not be installed in the following locations:
yWhere exposure to direct radiation from a high-temperature heat source or to interference from a source of
electromagnetic radiation may occur.
yWhere dust or dirt may affect heat exchangers.
yWhere exposure to oil or to corrosive or harmful gases, such as acidic or alkaline gases, may occur.
yWhere exposure to salinity may occur, such as seaside locations.
yWhere highly flammable materials are present.
yWhere exposure to oily air may occur, such as a kitchen.
yWhere exposure to very high humidity may occur, such as a laundry.
Units should be installed in positions where:
yThe ceiling is horizontal and is able to bear the unit’s weight.
yThere are no obstructions that could impede the airflow into and out of the unit.
yThe airflow out of the unit can reach throughout the room.
yThere is sufficient space for access during installation, servicing and maintenance.
yThe refrigerant piping and drain piping can be easily connected to the refrigerant piping and drain piping
systems.
yShort-circuit ventilation (where outlet air returns quickly to a unit’s air inlet) will not occur.

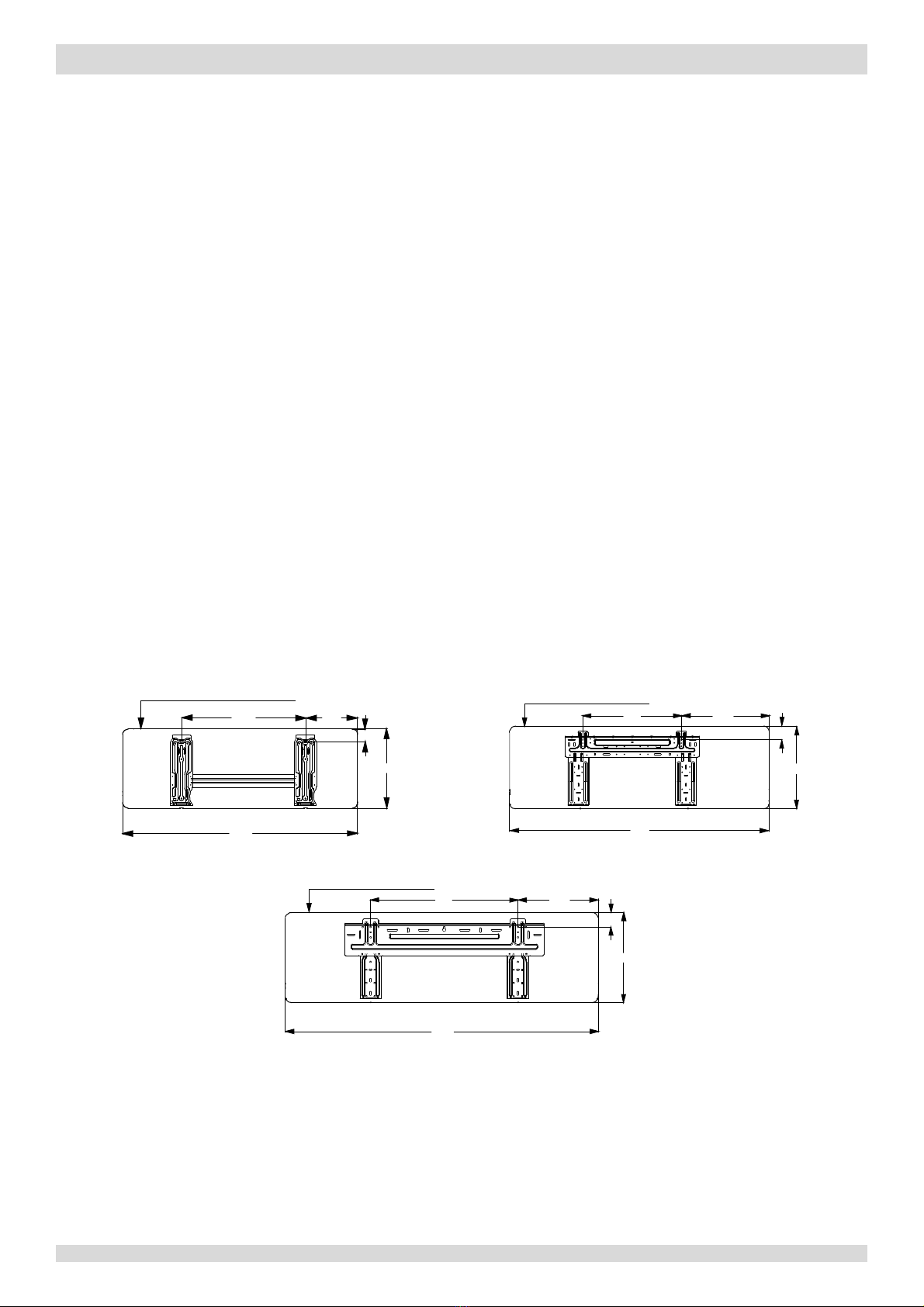

3.2 Space Requirements
Figure 3.1: Wall mounted space requirements (unit: mm)
MVD-22GDN1, MVD-28GDN1 MVD-36GDN1, MVD-45GDN1, MVD-56GDN1
MVD-71GDN1, MVD-80GDN1, MVD-90GDN1
Shape of indoor unit
440
835
280
45
186
Shape of indoor unit
990
53
315
335
375
Shape of indoor unit
561
1194
55
343
307
The 2nd Generation DC Series VRF Indoor Units

The 2nd Generation DC Series VRF Indoor Units
8 201806

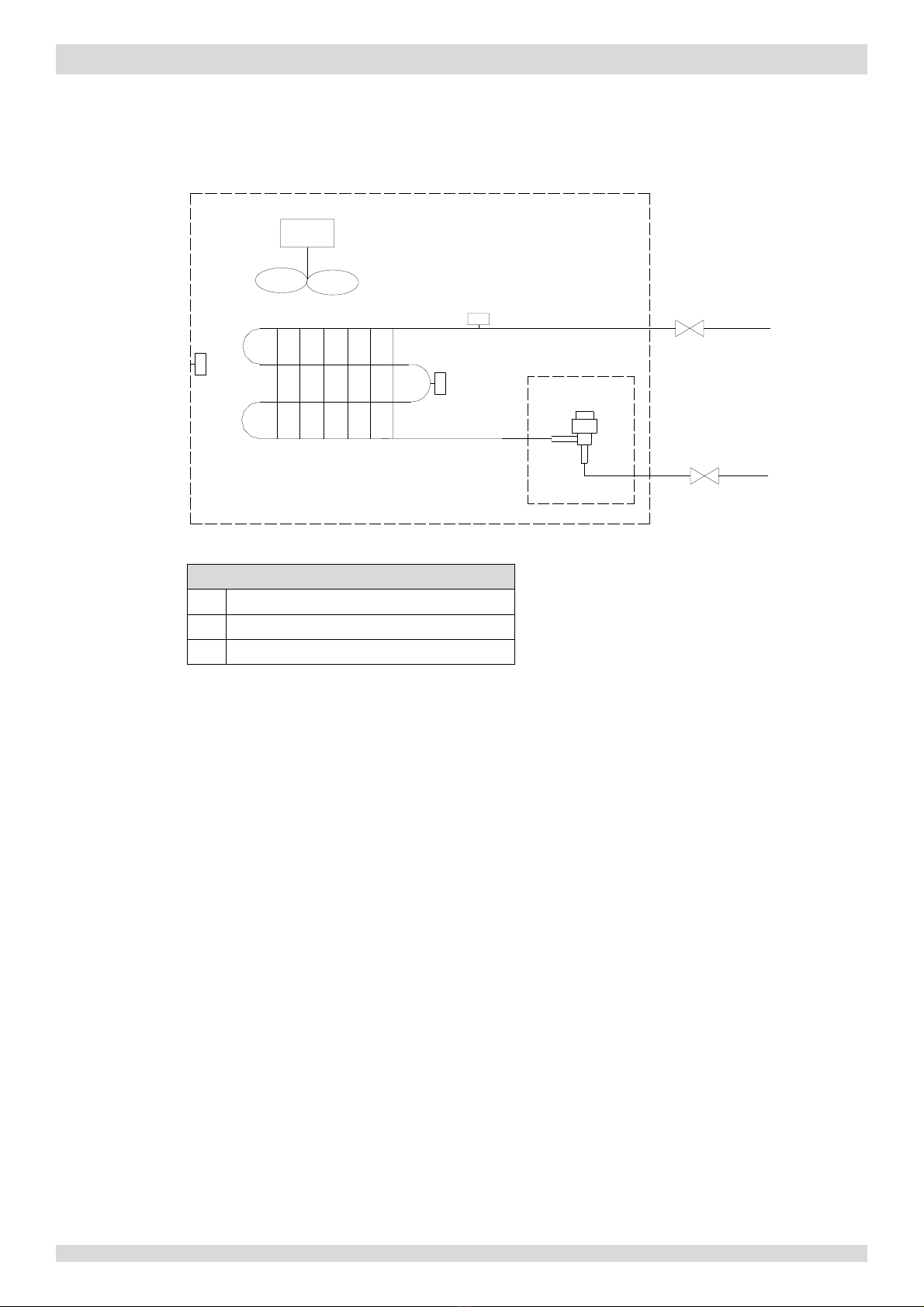

4Piping Diagram
Figure 4.1: Wall mounted piping diagram
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1
Legend
T1 Indoor ambient temperature sensor
T2 Indoor heat exchanger mid-point temperature sensor
T2B Indoor heat exchanger outlet temperature sensor

201806 9
5Wiring Diagram
Figure 5.1: 2.2/2.8kW Wall mounted wiring diagram
The 2nd Generation DC Series VRF Indoor Units
NameCode NameCode NameCode
FM
CS
T1
Id f t
Rt
W
tl l ith
FM
GM
CS
EEV
T2
T2B
XP1-5/XS1-5
T1
I
n
d
oor
f
an mo
t
o
r
Swing motor
Electronic expansion valve
R
oom
t
em
p
. sensor
Mid-pipe temp. sensor
Outlet pipe temp. sensor
W
a
t
er
l
eve
l
sw
it
c
h
Connectors
CN7
CN30
CN22
CN21
(1&
CN13
CN4
CN300
CN1CN2 CN3 SW8
CN6CN9
D1
D2
E
J1


CN19
CN16 CN20
CN11
LN
X2 X1
PQE
CN5

21
6:

21
6:

21
6:

21
6:

21
6:

21
6:

21
6:
CN55
CN12
CN10CN14CN15
CN17
CN24
Wired
controller


The 2nd Generation DC Series VRF Indoor Units
10 201806

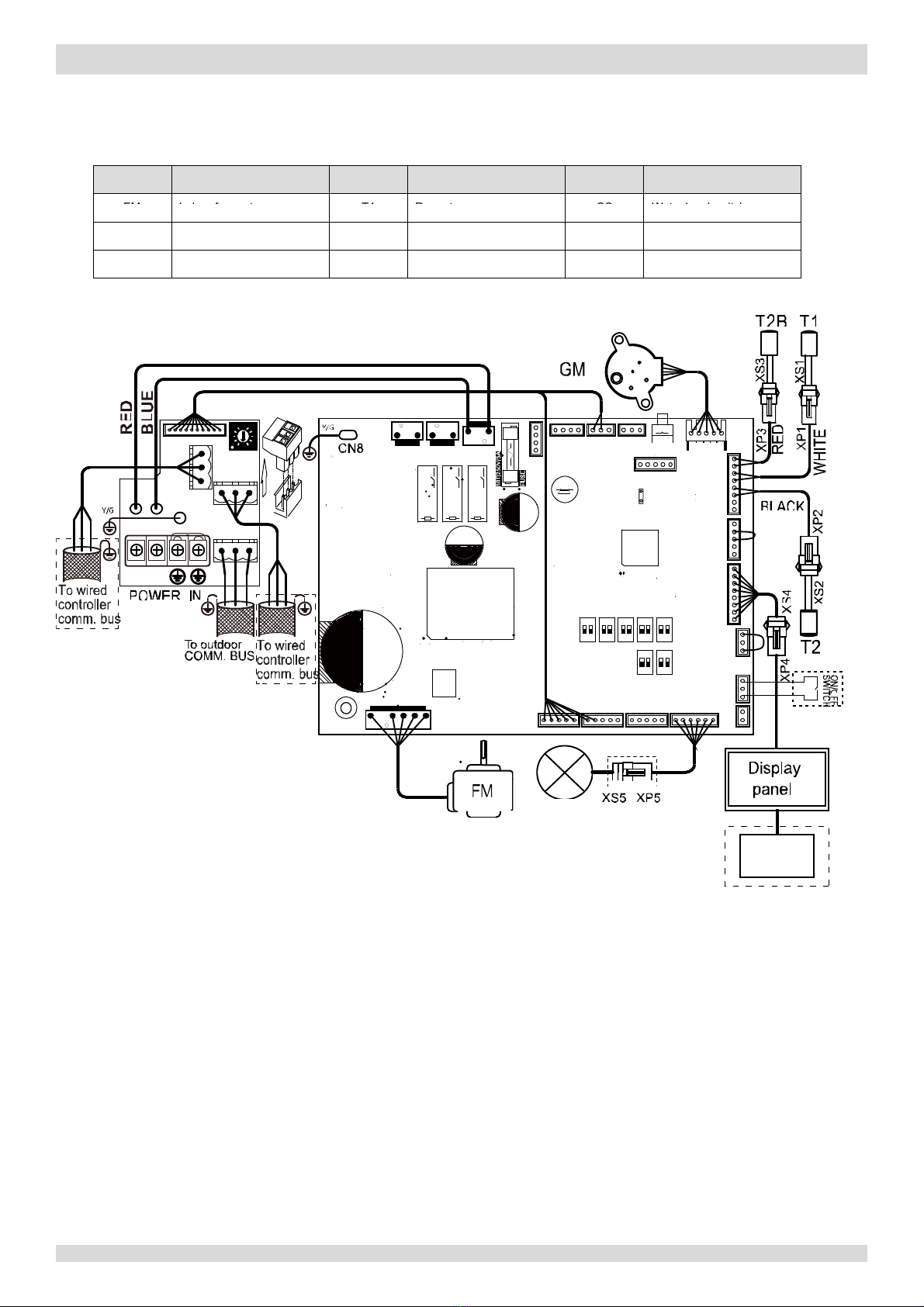

Figure 5.2: 3.6/4.5/5.6kW Wall mounted wiring diagram
NameCode NameCode NameCode
FM
GM
CS
EEV
T2
T2B
XP1-5/XS1-5
T1Indoor fan motor
Swing motor
Electronic expansion valve
Room temp. sensor
Mid-pipe temp. sensor
Outlet pipe temp. sensor
Water level switch
Connectors
CN12 CN5 CN7 CN30
21
6:
21
6:(1&
21
6:
CN20
 

21
6:

21
6:

21
6:

21
6:
CN10
CN13
J1
CN14
CN4 CN300 CN1 CN2 CN3
1
FUSE 50T-250V/5A
SW8
CN55
CN6 CN9
CN17 CN1
1
Wired
controller
LN
X1 PQ X2 E
D1 D2


201806 11

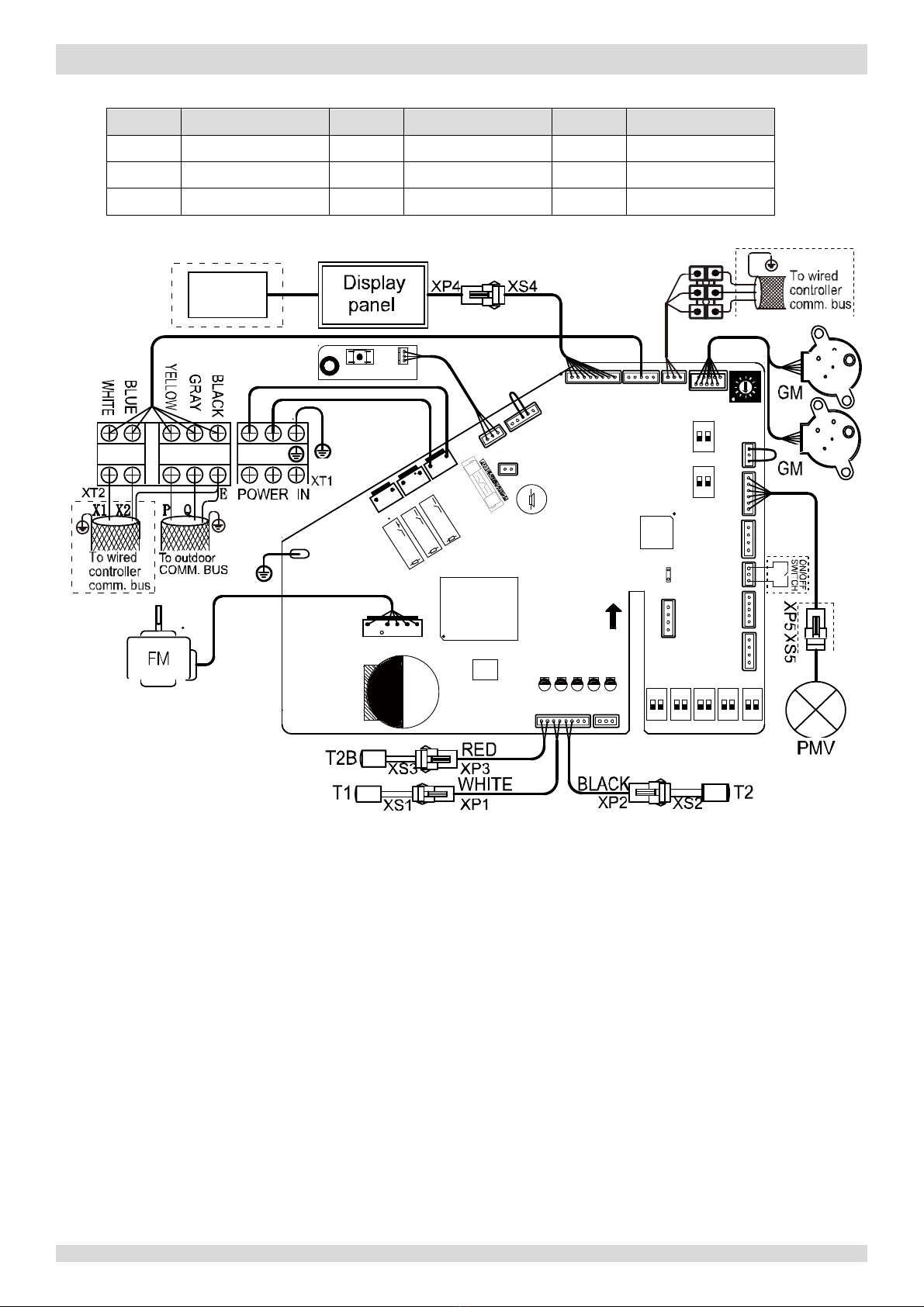

Figure
5.3: 7.1/8.0/9.0kW Wall mounted wiring diagram
The 2nd Generation DC Series VRF Indoor Units
NameCode NameCode NameCode
FM
GM
CS
EEV
T2
T2B
XP1-5/XS1-5
T1Indoor fan motor
Swing motor
Electronic expansion valve
Room temp. sensor
Mid-pipe temp. sensor
Outlet pipe temp. sensor
Water level switch
Connectors
Wired
controller
D1 D2
CN9


21
6:
CN17CN11
SW8 CN18
CN11
16
CN13
L1L2
CN5



21
6:
CN12
CN3CN2CN1CN
16
CN10
CN14
X1
PQ
X2
E
CN7
J1
CN19
CN14
CN55
CN30

21
6:

21
6:

21
6:

21
6:

21
6:
CN24
CN4
CN300
CN6


The 2nd Generation DC Series VRF Indoor Units
12 201806
Caution
All installation, servicing and maintenance must be carried out by competent and suitably qualified, certified and
accredited professionals and in accordance with all applicable legislation.
Units should be grounded in accordance with all applicable legislation. Metal and other conductive components
should be insulated in accordance with all applicable legislation.
Power supply wiring should be securely fastened at the power supply terminals – loose power supply wiring
would represent a fire risk.
After installation, servicing or maintenance, the electric control box cover should be closed. Failing to close the
electric control box cover risks fire or electric shock.
Switch ENC1 (indoor unit capacity setting) is factory-set and its setting should normally not be changed. The only
circumstances in which a switch ENC1 might need to be set in the field is when replacing a main PCB. When
replacing a main PCB, ensure that the capacity setting on switch ENC1 on the new PCB is consistent with the unit
capacity given on the unit’s nameplate.
Notes for installers and service engineers #

201806 13
6Capacity Tables
6.1 Cooling Capacity Table
Table 6.1: Wall mounted cooling capacity
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20 16/23 18/26 19/27 20/28 22/30 24/32
TC SC TC SC TC SC TC SC TC SC TC SC TC SC
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
2.2
10.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.9 1.5
12.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.5
14.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.5
16.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.5
18.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.4
20.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.7 1.4
21.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.7 1.4
23.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.5 1.5 2.7 1.4
25.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.5 1.5 2.6 1.4
27.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.5 1.5 2.6 1.4
29.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.4 1.4 2.5 1.4
31.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.4 1.4 2.5 1.4
33.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.4 1.4 2.4 1.4
35.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.3 1.3 2.4 1.4
37.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.3 1.3 2.3 1.4
39.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
42.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
44.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
46.0 1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
2.8
10.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.7 2.0
12.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.6 2.0
14.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.6 2.0
16.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.5 1.9
18.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.5 1.9
20.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.4 1.9
21.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.4 1.9
23.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.4 1.9
25.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.2 1.9 3.3 1.9
27.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.2 1.9 3.3 1.9
29.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.1 1.8 3.2 1.8
31.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.1 1.8 3.2 1.7
33.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.1 1.8 3.1 1.7
35.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.8 3.1 1.7
37.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.8 3.0 1.7
39.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.9 3.0 1.7
42.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.9 3.0 1.7
44.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.9 3.0 1.7
46.0 1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.9 3.0 1.7
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition. Table continued on next page …
The 2nd Generation DC Series VRF Indoor Units

The 2nd Generation DC Series VRF Indoor Units
14 201806
Table 6.1: Wall mounted cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20 16/23 18/26 19/27 20/28 22/30 24/32
TC SC TC SC TC SC TC SC TC SC TC SC TC SC
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
3.6
10.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.7 2.5
12.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.7 2.5
14.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.6 2.4
16.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.5 2.4
18.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.5 2.4
20.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.4 2.3
21.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.4 2.3
23.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.1 2.3 4.3 2.2
25.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.1 2.3 4.2 2.2
27.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.0 2.2 4.2 2.2
29.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.0 2.2 4.1 2.2
31.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.2 2.6 4.1 2.2
33.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.2 2.6 3.9 2.1
35.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.2 2.6 3.9 2.1
37.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.9 2.1
39.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.8 2.1
42.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.8 2.1
44.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.8 2.1
46.0 2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.8 2.1
4.5
10.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.9 3.0
12.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.9 3.0
14.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.8 3.0
16.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.6 2.9
18.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.7 3.0
20.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.7 3.0
21.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.6 3.0
23.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.5 3.0
25.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.2 3.0 5.4 2.9
27.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.1 3.0 5.2 2.8
29.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.1 2.9 5.2 2.8
31.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.0 2.9 5.1 2.7
33.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 4.9 2.8 5.1 2.7
35.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 4.8 2.8 5.0 2.7
37.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 4.8 2.9 4.9 2.6
39.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.6 2.8 4.7 2.8 4.8 2.6
42.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.6 2.8 4.7 2.8 4.8 2.6
44.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.6 2.8 4.7 2.8 4.8 2.6
46.0 3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.6 2.8 4.7 3.1 4.8 2.6
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition. Table continued on next page …

201806 15
Table 6.1: Wall mounted cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20 16/23 18/26 19/27 20/28 22/30 24/32
TC SC TC SC TC SC TC SC TC SC TC SC TC SC
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
5.6
10.0 3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 7.3 3.5
12.0 3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 7.2 3.5
14.0 3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 7.1 3.5
16.0 3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 7.0 3.4
18.0 3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.8 3.4
20.0 3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.7 3.3
21.0 3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.6 3.3
23.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.6 3.3
25.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.5 3.2
27.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.4 3.5 6.4 3.2
29.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.3 3.5 6.4 3.3
31.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.2 3.4 6.2 3.2
33.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.2 3.4 6.2 3.2
35.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.0 3.3 6.0 3.1
37.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 5.9 3.2 6.0 3.1
39.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.7 3.4 5.8 3.2 6.0 3.1
42.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.7 3.4 5.8 3.2 6.0 3.1
44.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.7 3.4 5.8 3.2 6.0 3.1
46.03.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.7 3.7 5.8 3.2 6.0 3.1
7.1
10.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 9.2 4.6
12.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 9.1 4.5
14.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 9.0 4.5
16.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.9 4.4
18.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.7 4.3
20.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.5 4.2
21.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.4 4.2
23.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.3 4.1
25.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.2 4.1
27.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.1 4.3 8.2 4.1
29.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.5 8.0 4.3 8.1 4.1
31.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.5 7.9 4.3 7.8 4.0
33.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.5 7.8 4.2 7.8 4.0
35.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.5 7.6 4.1 7.7 3.9
37.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.4 4.4 7.5 4.1 7.6 4.0
39.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.2 4.3 7.4 4.1 7.6 4.0
42.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.2 4.3 7.4 4.1 7.6 4.0
44.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.2 4.3 7.4 4.1 7.6 4.0
46.04.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.2 4.3 7.4 4.1 7.6 4.0
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition. Table continued on next page …
The 2nd Generation DC Series VRF Indoor Units

The 2nd Generation DC Series VRF Indoor Units
16 201806
Table 6.1: Wall mounted cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20 16/23 18/26 19/27 20/28 22/30 24/32
TC SC TC SC TC SC TC SC TC SC TC SC TC SC
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
8.0
10.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.4 5.6
12.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.2 5.5
14.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.2 5.5
16.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.0 5.4
18.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.8 5.3
20.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.6 5.2
21.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.4 5.1
23.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.4 5.1
25.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.3 5.0
27.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.1 5.3 9.2 5.1
29.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 9.0 5.3 9.1 5.0
31.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.9 5.2 8.8 4.8
33.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.8 5.2 8.8 4.8
35.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.6 5.1 8.6 4.8
37.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.3 5.4 8.4 5.0 8.6 4.9
39.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
42.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
44.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
46.0 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
9.0
10.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.7 6.0
12.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.5 5.9
14.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.4 5.9
16.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.3 5.8
18.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.0 5.8
20.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 10.8 5.7
21.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 10.6 5.6
23.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 10.5 5.5
25.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 10.4 5.5
27.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.3 5.9 10.4 5.4
29.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.1 5.7 10.3 5.4
31.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.0 5.7 9.9 5.3
33.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 9.9 5.6 9.9 5.3
35.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.5 6.0 9.6 5.5 9.7 5.3
37.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.3 5.8 9.5 5.4 9.6 5.3
39.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.2 5.7 9.4 5.3 9.6 5.3
42.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.2 5.7 9.4 5.3 9.6 5.3
44.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.2 5.7 9.4 5.3 9.6 5.3
46.0 6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.2 5.7 9.4 5.3 9.6 5.3
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.

201806 17
6.2 Heating Capacity Table
Table 6.2: Wall mounted heating capacity
Capacity
(kW)
Outdoor air
temperature (°C)
Indoor air temperature (°C DB)
16 18 20 21 22 24
TC TC TC TC TC TC
WB DB kW kW kW kW kW kW
2.2
-20-19.81.34 1.34 1.34 1.34 1.34 1.34
-19-18.81.44 1.44 1.44 1.44 1.44 1.44
-17-16.71.51 1.51 1.51 1.51 1.51 1.51
-15-14.71.56 1.56 1.56 1.56 1.56 1.56
-13.00 -12.60 1.66 1.66 1.66 1.66 1.66 1.66
-11.00 -10.50 1.68 1.70 1.70 1.70 1.70 1.70
-10.00 -9.50 1.75 1.75 1.75 1.75 1.75 1.75
-9.10 -8.50 1.80 1.80 1.80 1.80 1.80 1.80
-7.60 -7.00 1.82 1.82 1.82 1.82 1.82 1.82
-5.60 -5.00 1.90 1.90 1.90 1.90 1.90 1.90
-3.70 -3.00 1.99 1.99 1.99 1.99 1.99 1.99
-0.70 0.00 2.14 2.14 2.14 2.14 2.14 2.02
2.20 3.00 2.26 2.26 2.26 2.26 2.21 2.02
4.10 5.00 2.33 2.33 2.33 2.33 2.21 2.02
6.00 7.00 2.40 2.40 2.40 2.33 2.21 2.02
7.90 9.00 2.47 2.47 2.40 2.33 2.21 2.02
9.80 11.00 2.54 2.54 2.40 2.33 2.21 2.02
11.80 13.00 2.64 2.59 2.40 2.33 2.21 2.02
13.70 15.00 2.71 2.59 2.40 2.33 2.21 2.02
2.8
-20-19.81.79 1.79 1.79 1.79 1.79 1.79
-19-18.81.92 1.92 1.92 1.92 1.92 1.92
-17-16.72.02 2.02 2.02 2.02 2.02 2.02
-15-14.72.02 2.02 2.02 2.02 2.02 2.02
-13.00 -12.60 2.14 2.14 2.14 2.14 2.14 2.14
-11.00 -10.50 2.24 2.24 2.24 2.24 2.24 2.24
-10.00 -9.50 2.34 2.34 2.34 2.34 2.34 2.34
-9.10 -8.50 2.40 2.40 2.40 2.40 2.40 2.40
-7.60 -7.00 2.43 2.43 2.43 2.43 2.43 2.43
-5.60 -5.00 2.53 2.53 2.53 2.53 2.53 2.53
-3.70 -3.00 2.66 2.66 2.66 2.66 2.66 2.66
-0.70 0.00 2.85 2.85 2.85 2.85 2.85 2.69
2.20 3.00 3.01 3.01 3.01 3.01 2.94 2.69
4.10 5.00 3.10 3.10 3.10 3.10 2.94 2.69
6.00 7.00 3.20 3.20 3.20 3.10 2.94 2.69
7.90 9.00 3.30 3.30 3.20 3.10 2.94 2.69
9.80 11.00 3.39 3.39 3.20 3.10 2.94 2.69
11.80 13.00 3.52 3.46 3.20 3.10 2.94 2.69
13.70 15.00 3.62 3.46 3.20 3.10 2.94 2.69
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition. Table continued on next page …
The 2nd Generation DC Series VRF Indoor Units

The 2nd Generation DC Series VRF Indoor Units
18 201806
Table 6.2: Wall mounted heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C)
Indoor air temperature (°C DB)
16 18 20 21 22 24
TC TC TC TC TC TC
WB DB kW kW kW kW kW kW
3.6
-20-19.82.24 2.24 2.24 2.24 2.24 2.24
-19-18.82.40 2.40 2.40 2.40 2.40 2.40
-17-16.72.52 2.52 2.52 2.52 2.52 2.52
-15-14.72.60 2.60 2.60 2.60 2.60 2.60
-13.00 -12.60 2.68 2.68 2.68 2.68 2.68 2.68
-11.00 -10.50 2.80 2.80 2.80 2.80 2.80 2.80
-10.00 -9.50 2.92 2.92 2.92 2.92 2.92 2.92
-9.10 -8.50 3.00 3.00 3.00 3.00 3.00 3.00
-7.60 -7.00 3.04 3.04 3.04 3.04 3.04 3.04
-5.60 -5.00 3.16 3.16 3.16 3.16 3.16 3.16
-3.70 -3.00 3.32 3.32 3.32 3.32 3.32 3.32
-0.70 0.00 3.56 3.56 3.56 3.56 3.56 3.36
2.20 3.00 3.76 3.76 3.76 3.76 3.68 3.36
4.10 5.00 3.88 3.88 3.88 3.88 3.68 3.36
6.00 7.00 4.00 4.00 4.00 3.88 3.68 3.36
7.90 9.00 4.12 4.12 4.00 3.88 3.68 3.36
9.80 11.00 4.24 4.24 4.00 3.88 3.68 3.36
11.80 13.00 4.40 4.32 4.00 3.88 3.68 3.36
13.70 15.00 4.52 4.32 4.00 3.88 3.68 3.36
4.5
-20-19.82.80 2.80 2.80 2.80 2.80 2.80
-19-18.83.00 3.00 3.00 3.00 3.00 3.00
-17-16.73.15 3.15 3.15 3.15 3.15 3.15
-15-14.73.25 3.25 3.25 3.25 3.25 3.25
-13.00 -12.60 3.35 3.35 3.35 3.35 3.35 3.35
-11.00 -10.50 3.50 3.50 3.50 3.50 3.50 3.50
-10.00 -9.50 3.65 3.65 3.65 3.65 3.65 3.65
-9.10 -8.50 3.75 3.75 3.75 3.75 3.75 3.75
-7.60 -7.00 3.80 3.80 3.80 3.80 3.80 3.80
-5.60 -5.00 3.95 3.95 3.95 3.95 3.95 3.95
-3.70 -3.00 4.15 4.15 4.15 4.15 4.15 4.15
-0.70 0.00 4.45 4.45 4.45 4.45 4.45 4.20
2.20 3.00 4.70 4.70 4.70 4.70 4.60 4.20
4.10 5.00 4.85 4.85 4.85 4.85 4.60 4.20
6.00 7.00 5.00 5.00 5.00 4.85 4.60 4.20
7.90 9.00 5.15 5.15 5.00 4.85 4.60 4.20
9.80 11.00 5.30 5.30 5.00 4.85 4.60 4.20
11.80 13.00 5.50 5.40 5.00 4.85 4.60 4.20
13.70 15.00 5.65 5.40 5.00 4.85 4.60 4.20
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition. Table continued on next page …

201806 19
Table 6.2: Wall mounted heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C)
Indoor air temperature (°C DB)
16 18 20 21 22 24
TC TC TC TC TC TC
WB DB kW kW kW kW kW kW
5.6
-20-19.83.53 3.53 3.53 3.53 3.53 3.53
-19-18.83.78 3.78 3.78 3.78 3.78 3.78
-17-16.73.97 3.97 3.97 3.97 3.97 3.97
-15-14.74.10 4.10 4.10 4.10 4.10 4.10
-13.00 -12.60 4.22 4.22 4.22 4.22 4.22 4.22
-11.00 -10.50 4.41 4.41 4.41 4.41 4.41 4.41
-10.00 -9.50 4.60 4.60 4.60 4.60 4.60 4.60
-9.10 -8.50 4.73 4.73 4.73 4.73 4.73 4.73
-7.60 -7.00 4.79 4.79 4.79 4.79 4.79 4.79
-5.60 -5.00 4.98 4.98 4.98 4.98 4.98 4.98
-3.70 -3.00 5.23 5.23 5.23 5.23 5.23 5.23
-0.70 0.00 5.61 5.61 5.61 5.61 5.61 5.29
2.20 3.00 5.92 5.92 5.92 5.92 5.80 5.29
4.10 5.00 6.11 6.11 6.11 6.11 5.80 5.29
6.00 7.00 6.30 6.30 6.30 6.11 5.80 5.29
7.90 9.00 6.49 6.49 6.30 6.11 5.80 5.29
9.80 11.00 6.68 6.68 6.30 6.11 5.80 5.29
11.80 13.00 6.93 6.80 6.30 6.11 5.80 5.29
13.70 15.00 7.12 6.80 6.30 6.11 5.80 5.29
7.1
-20-19.84.48 4.48 4.48 4.48 4.48 4.48
-19-18.84.80 4.80 4.80 4.80 4.80 4.80
-17-16.75.04 5.04 5.04 5.04 5.04 5.04
-15-14.75.20 5.20 5.20 5.20 5.20 5.20
-13.00 -12.60 5.36 5.36 5.36 5.36 5.36 5.36
-11.00 -10.50 5.60 5.60 5.60 5.60 5.60 5.60
-10.00 -9.50 5.84 5.84 5.84 5.84 5.84 5.84
-9.10 -8.50 6.00 6.00 6.00 6.00 6.00 6.00
-7.60 -7.00 6.08 6.08 6.08 6.08 6.08 6.08
-5.60 -5.00 6.32 6.32 6.32 6.32 6.32 6.32
-3.70 -3.00 6.64 6.64 6.64 6.64 6.64 6.64
-0.70 0.00 7.12 7.12 7.12 7.12 7.12 6.72
2.20 3.00 7.52 7.52 7.52 7.52 7.36 6.72
4.10 5.00 7.76 7.76 7.76 7.76 7.36 6.72
6.00 7.00 8.00 8.00 8.00 7.76 7.36 6.72
7.90 9.00 8.24 8.24 8.00 7.76 7.36 6.72
9.80 11.00 8.48 8.48 8.00 7.76 7.36 6.72
11.80 13.00 8.80 8.64 8.00 7.76 7.36 6.72
13.70 15.00 9.04 8.64 8.00 7.76 7.36 6.72
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition. Table continued on next page …
The 2nd Generation DC Series VRF Indoor Units

The 2nd Generation DC Series VRF Indoor Units
20 201806
Table 6.2: Wall mounted heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C)
Indoor air temperature (°C DB)
16 18 20 21 22 24
TC TC TC TC TC TC
WB DB kW kW kW kW kW kW
8.0
-20-19.85.04 5.04 5.04 5.04 5.04 5.04
-19-18.85.40 5.40 5.40 5.40 5.40 5.40
-17-16.75.67 5.67 5.67 5.67 5.67 5.67
-15-14.75.85 5.85 5.85 5.85 5.85 5.85
-13.00 -12.60 6.03 6.03 6.03 6.03 6.03 6.03
-11.00 -10.50 6.30 6.30 6.30 6.30 6.30 6.30
-10.00 -9.50 6.57 6.57 6.57 6.57 6.57 6.57
-9.10 -8.50 6.75 6.75 6.75 6.75 6.75 6.75
-7.60 -7.00 6.84 6.84 6.84 6.84 6.84 6.84
-5.60 -5.00 7.11 7.11 7.11 7.11 7.11 7.11
-3.70 -3.00 7.47 7.47 7.47 7.47 7.47 7.47
-0.70 0.00 8.01 8.01 8.01 8.01 8.01 7.56
2.20 3.00 8.46 8.46 8.46 8.46 8.28 7.56
4.10 5.00 8.73 8.73 8.73 8.73 8.28 7.56
6.00 7.00 9.00 9.00 9.00 8.73 8.28 7.56
7.90 9.00 9.27 9.27 9.00 8.73 8.28 7.56
9.80 11.00 9.54 9.54 9.00 8.73 8.28 7.56
11.80 13.00 9.90 9.72 9.00 8.73 8.28 7.56
13.70 15.00 10.17 9.72 9.00 8.73 8.28 7.56
9.0
-20-19.85.60 5.04 5.60 5.60 5.60 5.60
-19-18.86.00 5.40 6.00 6.00 6.00 6.00
-17-16.76.30 6.30 6.30 6.30 6.30 6.30
-15-14.76.50 6.50 6.50 6.50 6.50 6.50
-13.00 -12.60 6.70 6.70 6.70 6.70 6.70 6.70
-11.00 -10.50 7.00 7.00 7.00 7.00 7.00 7.00
-10.00 -9.50 7.30 7.30 7.30 7.30 7.30 7.30
-9.10 -8.50 7.50 7.50 7.50 7.50 7.50 7.50
-7.60 -7.00 7.60 7.60 7.60 7.60 7.60 7.60
-5.60 -5.00 7.90 7.90 7.90 7.90 7.90 7.90
-3.70 -3.00 8.30 8.30 8.30 8.30 8.30 8.30
-0.70 0.00 8.90 8.90 8.90 8.90 8.90 8.40
2.20 3.00 9.40 9.40 9.40 9.40 9.20 8.40
4.10 5.00 9.70 9.70 9.70 9.70 9.20 8.40
6.00 7.00 10.00 10.00 10.00 9.70 9.20 8.40
7.90 9.00 10.30 10.30 10.00 9.70 9.20 8.40
9.80 11.00 10.60 10.60 10.00 9.70 9.20 8.40
11.80 13.00 11.00 10.80 10.00 9.70 9.20 8.40
13.70 15.00 11.30 10.80 10.00 9.70 9.20 8.40
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.

201806 21
7Electrical Characteristics
Table 7.1: Wall mounted electrical characteristics
Model
Power supply Indoor fan motors
Hz Volts Min. volts Max. volts MCA MFA Rated motor
output (kW) FLA
MVD-22GDN1 50 220-240 198 264 0.32 15 0.02 0.25
MVD-28GDN1 50 220-240 198 264 0.32 15 0.02 0.25
MVD-36GDN1 50 220-240 198 264 0.45 15 0.058 0.36
MVD-45GDN1 50 220-240 198 264 0.47 15 0.058 0.37
MVD-56GDN1 50 220-240 198 264 0.58 15 0.058 0.46
MVD-71GDN1 50 220-240 198 264 0.90 15 0.06 0.72
MVD-80GDN1 50 220-240 198 264 0.90 15 0.06 0.72
MVD-90GDN1 50 220-240 198 264 1.10 15 0.06 0.88
Abbreviations:
MCA: Minimum Circuit Amps
MFA: Maximum Fuse Amps
FLA: Full Load Amps
The 2nd Generation DC Series VRF Indoor Units
