Munro TRITON-2 User manual

OPERATION AND MAINTENANCE MANUAL
TRITON-2/2PLUS
LIQUID NITROGEN GENERATOR & DISPENSER
PLEASE READ THIS MANUAL CAREFULLYBEFORE OPERATION
44-45 Burnt Mill | Elizabeth Way | Harlow | Essex | CM20 2HU | United Kingdom
Telephone: [phone] | Website: www.munroinstruments.com

CONTENTS
PAGE 3 - UNPACKING AND CONTENTS
PAGE 4 - SPECIFICATION
PAGE 5-6 - INSTALLATION
PAGE 7 - OPERATION
PAGE 8 - ERROR MESSAGES
PAGE 9-11 - DISPENSING
PAGE 12 - OPTIONAL HOSE CONNECTION
PAGE 13 - MAINTENANCE
PAGE 14 - WARRANTY
PAGE 15 - CE CERTIFICATION

UNPACKING AND CONTENTS
When you receive your TRITON-2 liquid nitrogen system please check
the outside packaging for damage and report any problems to your
supplier within 48 hours. Carefully unpack the system and dispose of
the packaging according to local environmental regulations.

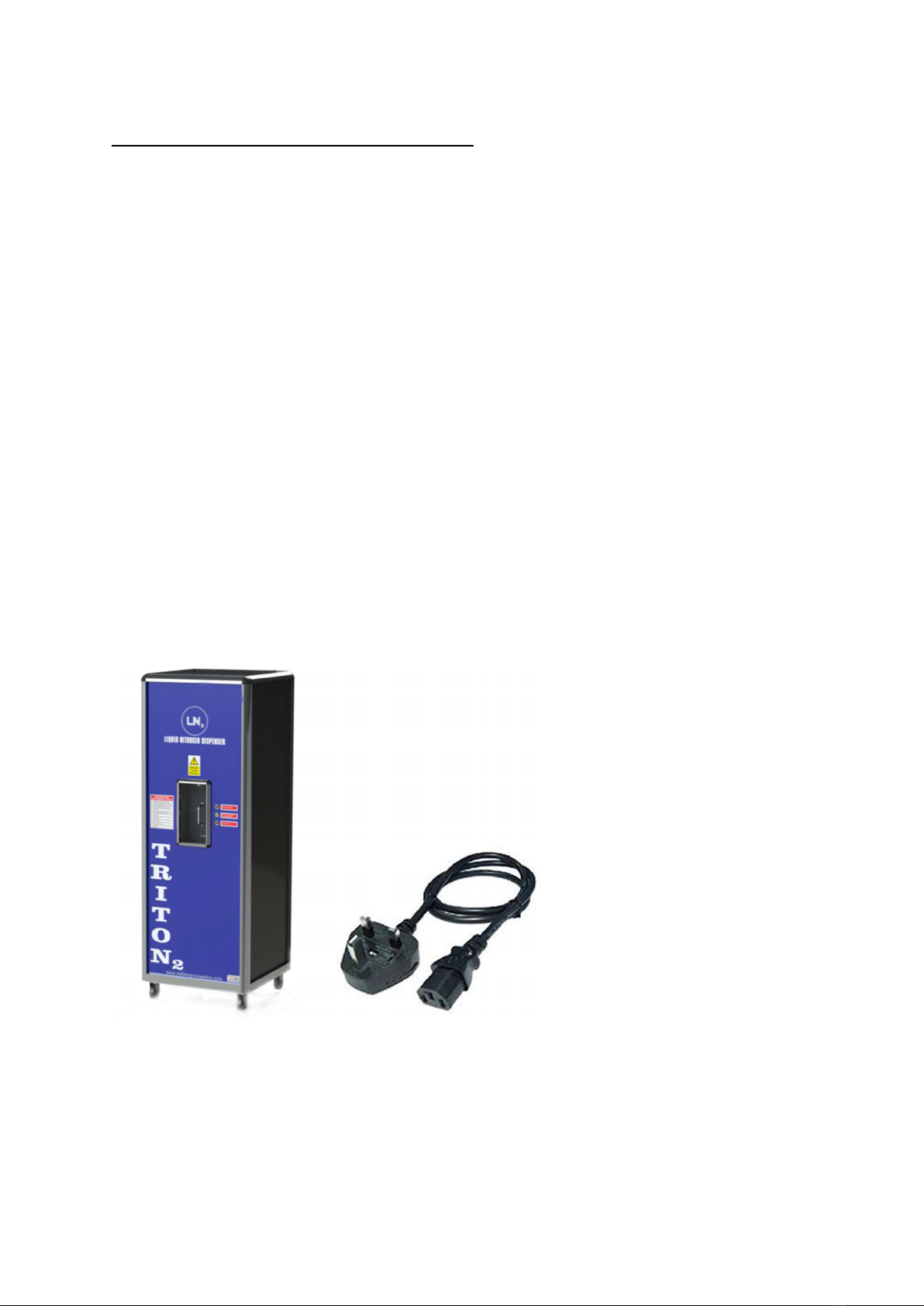

Within the packaging you should receive:-
✓
✓
x 1 Triton-2 liquid nitrogen system
x 1 Mains electrical cable
x 1 Manual ✓
If any additional optional extras were purchased with the system,
these will be packaged and labelled separately.

SPECIFICATION
CAPACITY, UTILITY AND REQUIREMENTS
TECHNICAL SPECIFICATION
MODEL
L/DAY
L/HR
STORAGE
CAPACITY
L
N2
PRESSURE
ELECTRICAL
SUPPLY
POWER
(KW)
Cooling
TRITON-2
*
8
-
10
0.33
-
0.42
35
L
1.5 bar g
**110
-
230V
1.5
Air cooled
*Production rate given at 50Hz, production at 60Hz frequency is 10-12 l/day
**Check rating plate for correct voltage supplied
between +5°c and +32°c (production can be affected by excess
temperature)
20 – 95%
110-230v 1-phase 50/60Hz (1.5kw) – other voltages available
13 amp electrical outlet required (6.5 amp actual)
0.6 m (L) x 0.8 m (W) x 1.7 m (H)
Ambient temperature:
Ambient humidity:
Electrical Input :
TRITON-2 Dimensions -
-TRITON-2 weight 150 kg (on wheels)
Features:
-
Compact
Quiet operation
Easy to Install and use
Built in 35 litre storage
Ready LED – RED / GREEN
Push button dispense
Fault LED
Hose dispense option

INSTALLATION
The TRITON-2 liquid nitrogen generator is an air-cooled system via a
built in closed loop water chiller, and therefore expels some warm air
from the rear of the enclosure. To enable the generator to work
efficiently the ambient temperature should not exceed +32°c, the
generator will go into a temperature alarm if the ambient
temperature becomes too high for the system to operate.
Note: Triton-2 production can be adversely affected by temperature
and it is recommended that the ambient temperature around the
machine be fixed to 20°c if possible.

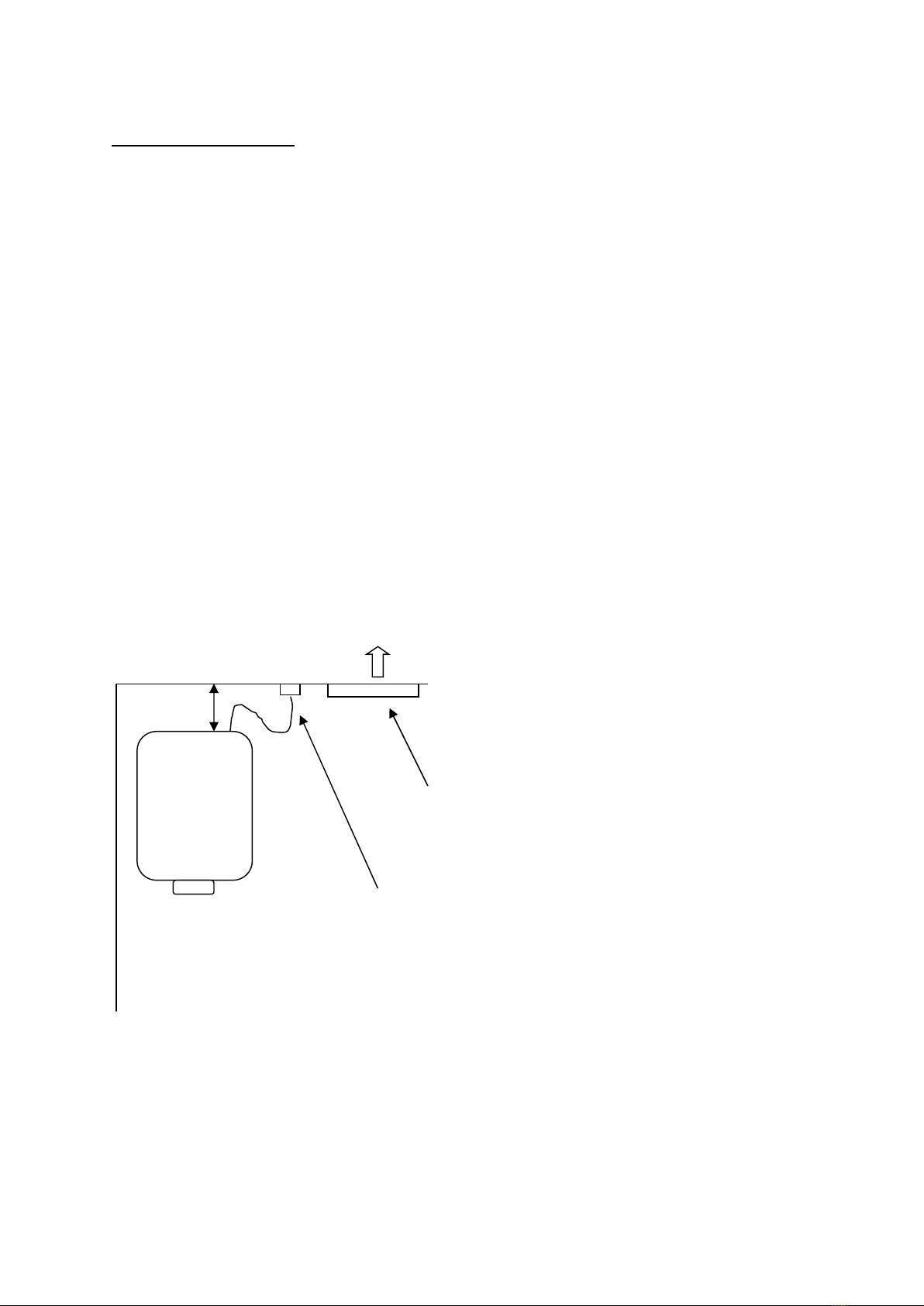

Locate TRITON-2 on a flat and hard surface close to an electrical supply
outlet. Allow a space of at least 150mm at the rear of the generator to
prevent overheating
150mm
150mm
150mm
Ventilation
Electrical
Socket
TRITON-2

CHECKS PRIOR TO START-UP
Water level

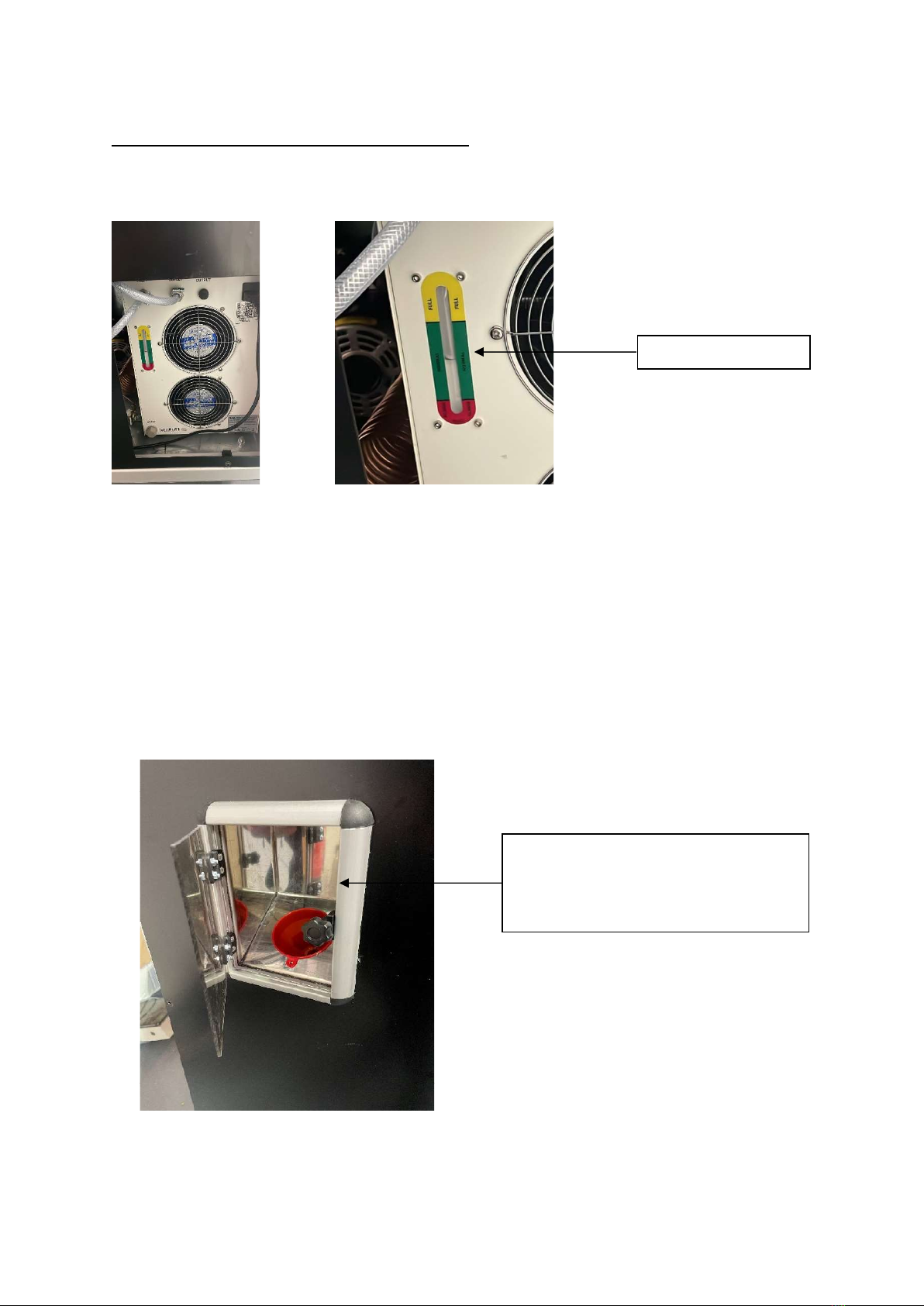

The TRITON-2 water chiller should arrive with an adequate volume of
water inside the chiller. Check the level at the rear of the generator is
shown in the GREEN
If the water level is low then fill using tap water using the water fill
port on the left hand panel of the generator as shown below:-
CHECK WATER
LEVEL
OPEN DOOR AND POUR WATER INTO
THE FUNNEL UNTIL THE LEVEL IS WITHIN
THE GREEN SECTION – DO NOT OVER
FILL

OPERATION
TRITON-2 is an automatic system which once turned on does not
require any user intervention. When the switch on at the rear of the
enclosure the generator is in RUN and will start to produce liquid
nitrogen.

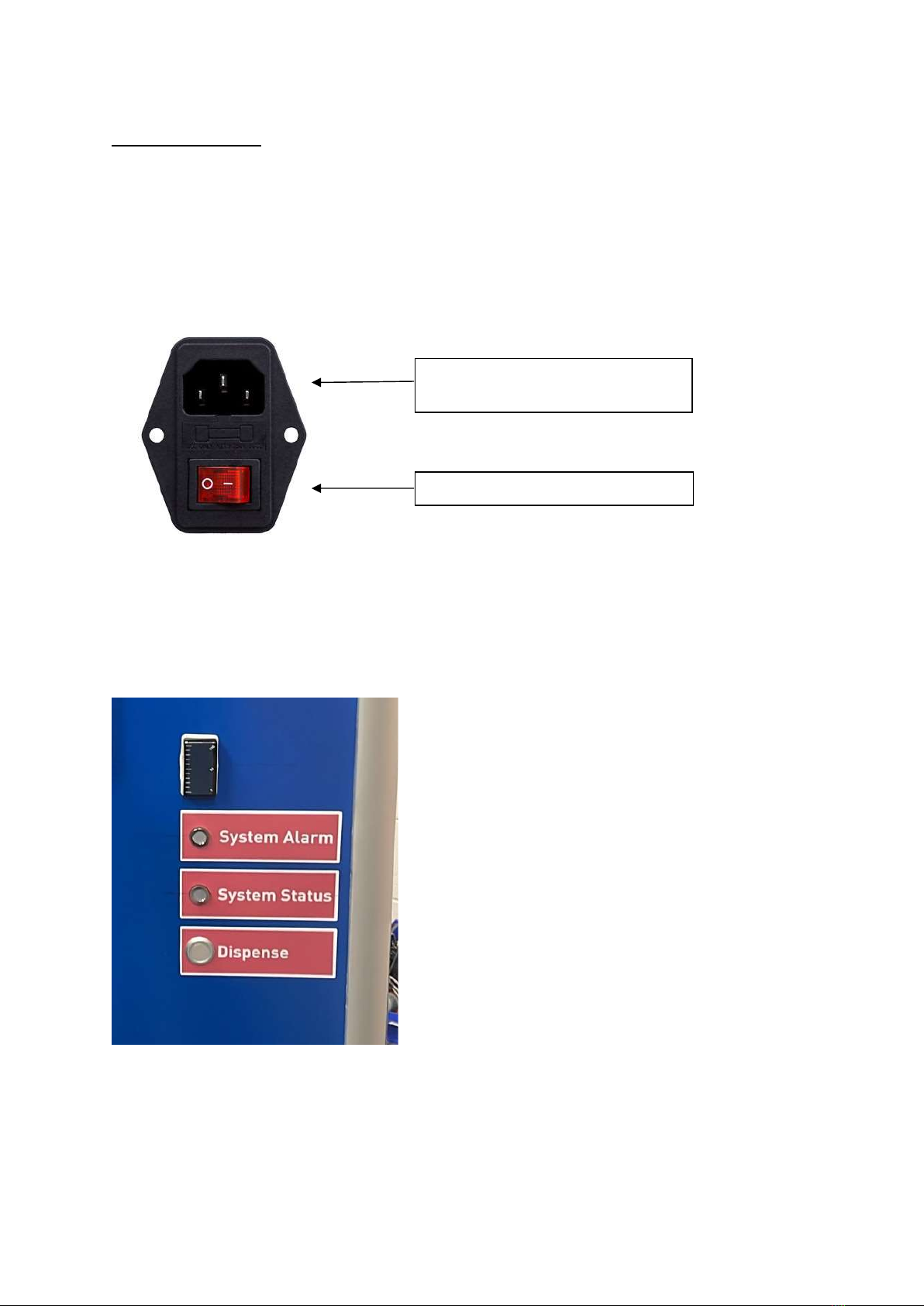

On the front of the generator are 2 LED’s, a level display and 1 push
button, as described below:-
When ‘System Status’ LED is GREEN the LN2 can be dispensed using
the push button.
MAIN CABLE (C
HECK VOLTAGE ON
SERIAL NUMBER PLATE)
ON / OFF SWITCH (RUN / STOP)

SYSTEM STATUS / ERROR DISPLAY

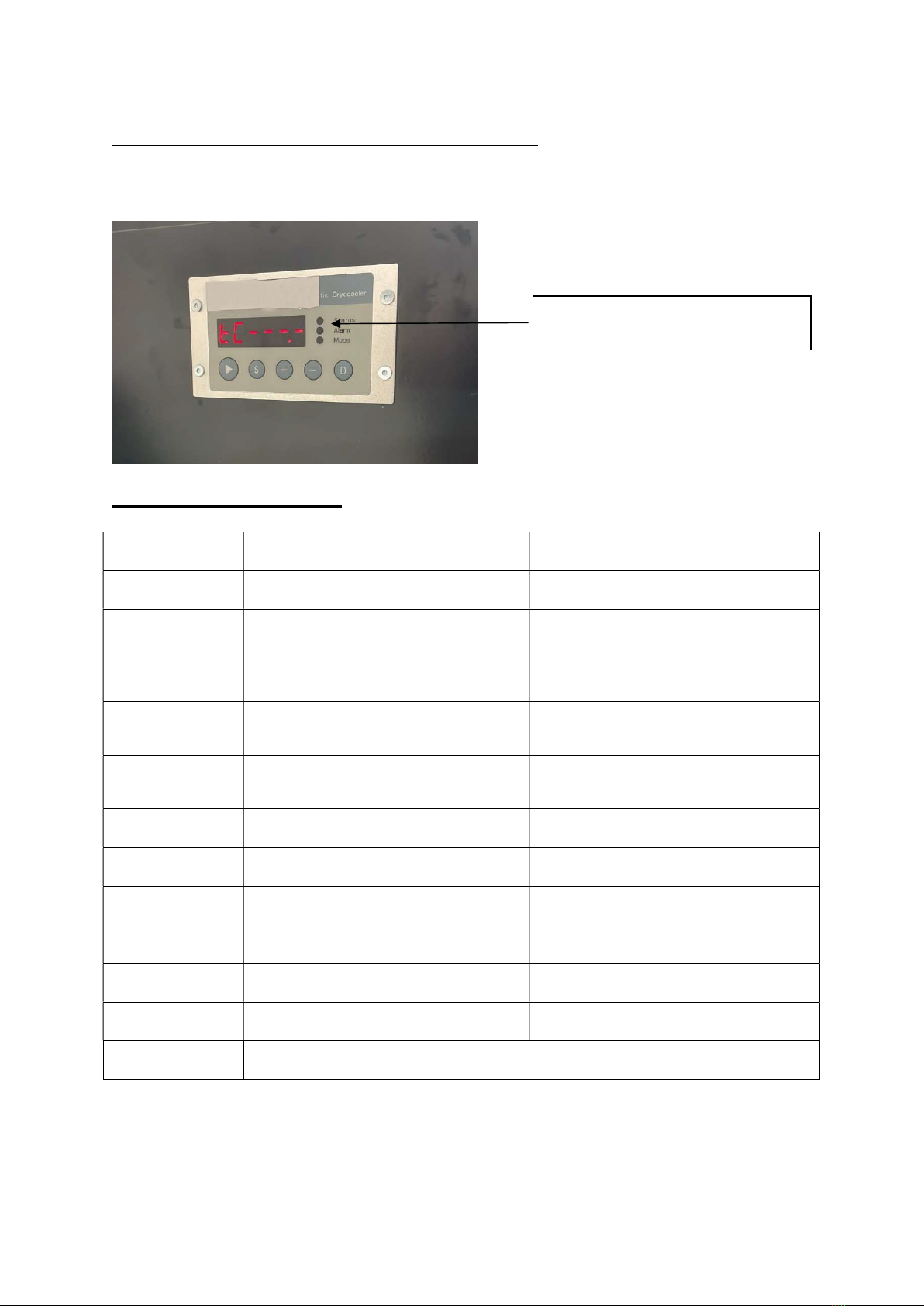

On the rear of the generator there is a display unit as below:-
ERROR MESSAGES
ERR 1
Parameter error Reset factory settings
ERR 2
Controller error Contact us
ERR 3
Over current Check for short circuit on
output wire and motor shell
ERR 4
Overpower Check power setting
ERR 6
Heat rejector over temp Check if cooling of heat
rejector is adequate
ERR 7
Motor over temp Check if cooling of motor temp
is adequate – room temp ok
ERR 8
Controller over temp Enhance controller cooling
ERR 19
Voltage bus error Contact US
ERR 20
Input voltage error Check cable terminals
ERR 22
Coldhead temp sensor failure Check sensor
ERR 23
Heat rejector sensor failure Check sensor
ERR 24
Motor temp sensor failure Check sensor
ERR 25
Controller temp sensor failure Check sensor
ERR 7 is a common fault if the ambient room temperature is above limits.
Status LED solid red
–
STOPPED
Status LED flashing red
-
RUNNING

DISPENSING
In order to dispense liquid nitrogen the SYSTEM STATUS LED must be
GREEN. If the LED is RED there is insufficient storage of liquid
nitrogen (<10% volume) – you must wait for the storage to refill.
WARNING – Liquid nitrogen is extremely hazardous and can cause
severe frost bite, all safety precautions must be taken prior to using
the equipment. The use of cryogenic safety gloves, goggles or visor
must be worn – these can be purchased from Us.
The CRYO-CASE contains – Visor, Gloves, Apron and Footwear
protection

DISPENSING cont.

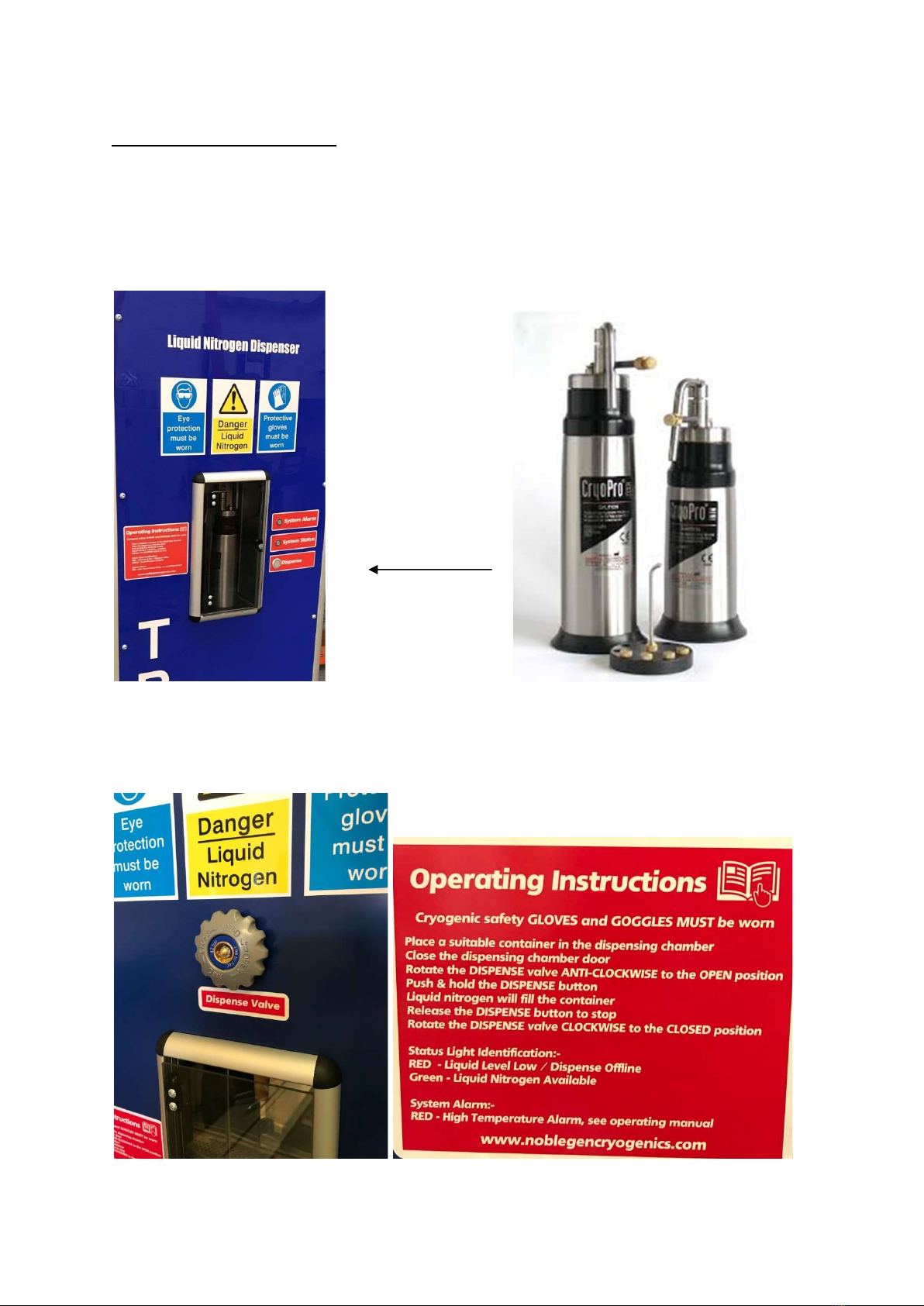

With the safety precautions taken, place a suitable cryogenic flask or
container inside the holder on the front of the generator and close
the clear Perspex door.
Cryogenic flask
A safety dispense valve has been fitted as below, then follow the
instructions as shown on the front of the generator:-

Note: The Dispense system will only operate when the STATUS LED is
illuminated Green.
Once dispensing is complete close the manual dispense valve
STATUS GREEN (>10% VOLUME)
PRESS AND HOLD THE DISPENSE
BUTTON / RELEASE TO STOP –
CHECK LEVEL AND FILL AS
REQUIRED

OPTIONAL HOSE DISPENSE
To fill larger sized cryogenic containers and dewars it is possible to
connect a dispense hose to the generator.

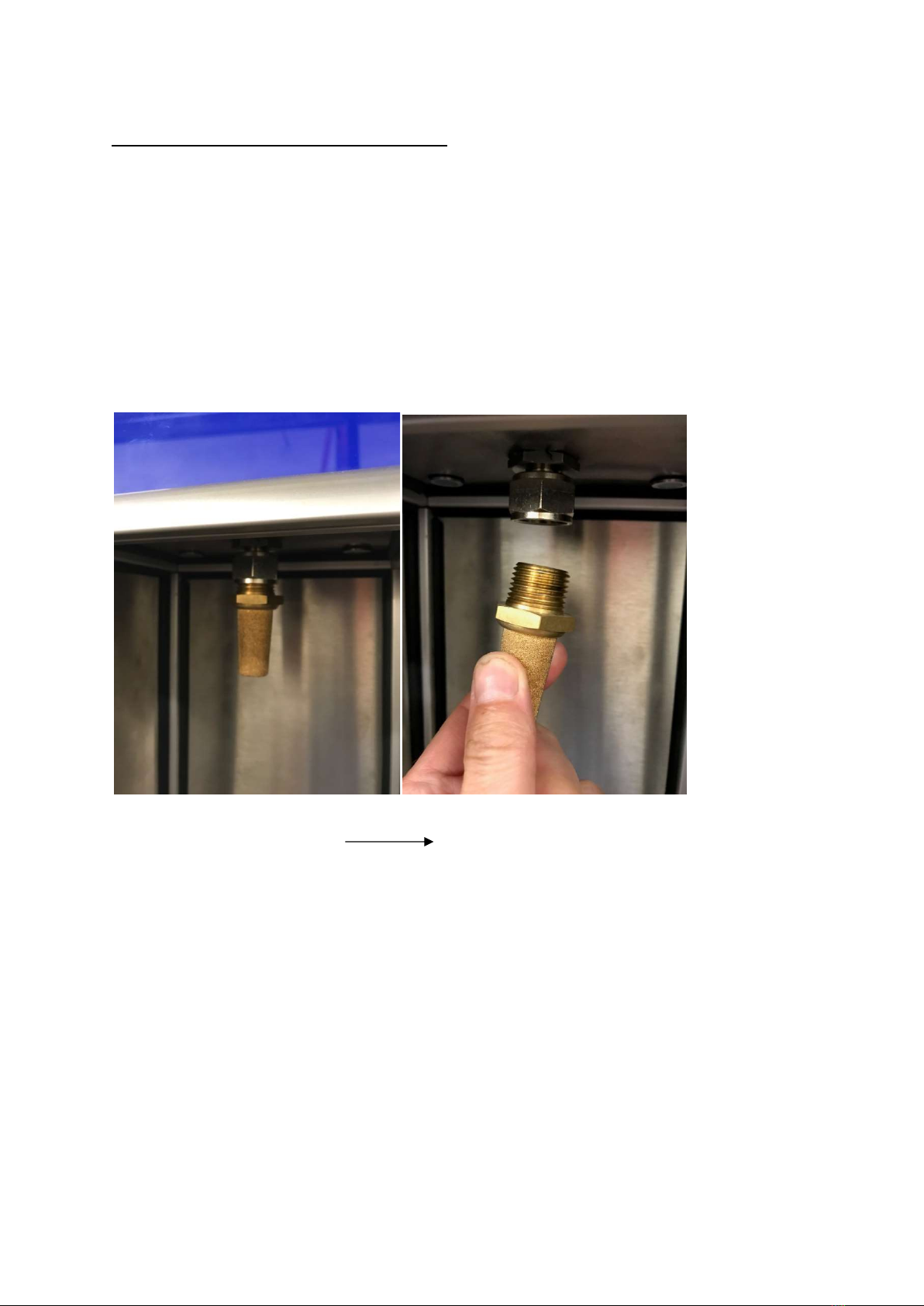

Open the Perspex dispense door and locate the sintered diffuser on
the top of the dispense chamber as shown. Using a spanner gently
release and the remove the diffuser, replace with a suitable
cryogenic hose – connection ½” BSP F.
Sintered diffuser Remove as shown
(Connect suitable hose)
With the hose in place and the STATUS LED GREEN – open the
manual dispense valve, push and hold the DISPENSE button to
dispense the Liquid Nitrogen, release the button to STOP. When
complete , close the manual valve.

MAINTENANCE
In order to ensure your TRITON-2 liquid nitrogen generator works
reliably, efficiently and gives the best purity liquid nitrogen it is
necessary to carry out the following annual servicing on the system.
Basic (year 1 & 2) Service Kit consists of:-
1 x Air inlet Filter (anti-bacterial)
1 x Coalescing Water Filter Element
1 x Exhaust Silencer
1 x Medical Gas Filter Element
4 x Electrical Relays
Major (year 3) Service Kit consists of:-
1 x Air inlet Filter (anti-bacterial)
1 x Coalescing Water Filter Element
1 x Exhaust Silencer
1 x Medical Gas Filter Element
4 x Electrical Relays
1 x Solenoid valve service kit
1 x Air compressor service kit
Please contact your local supplier to purchase the service kit and
.follow the instructions in full
