Murdock MF8 User manual

09/11/18
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
MODEL:
(Must Specify)
OPTIONS
o A0000000-MF8 In-the-wall mounting frame for bi-level,
non-refrigerated fountains
MF8
nPre-drilled mounting holes
nHeavy gage galvanized steel

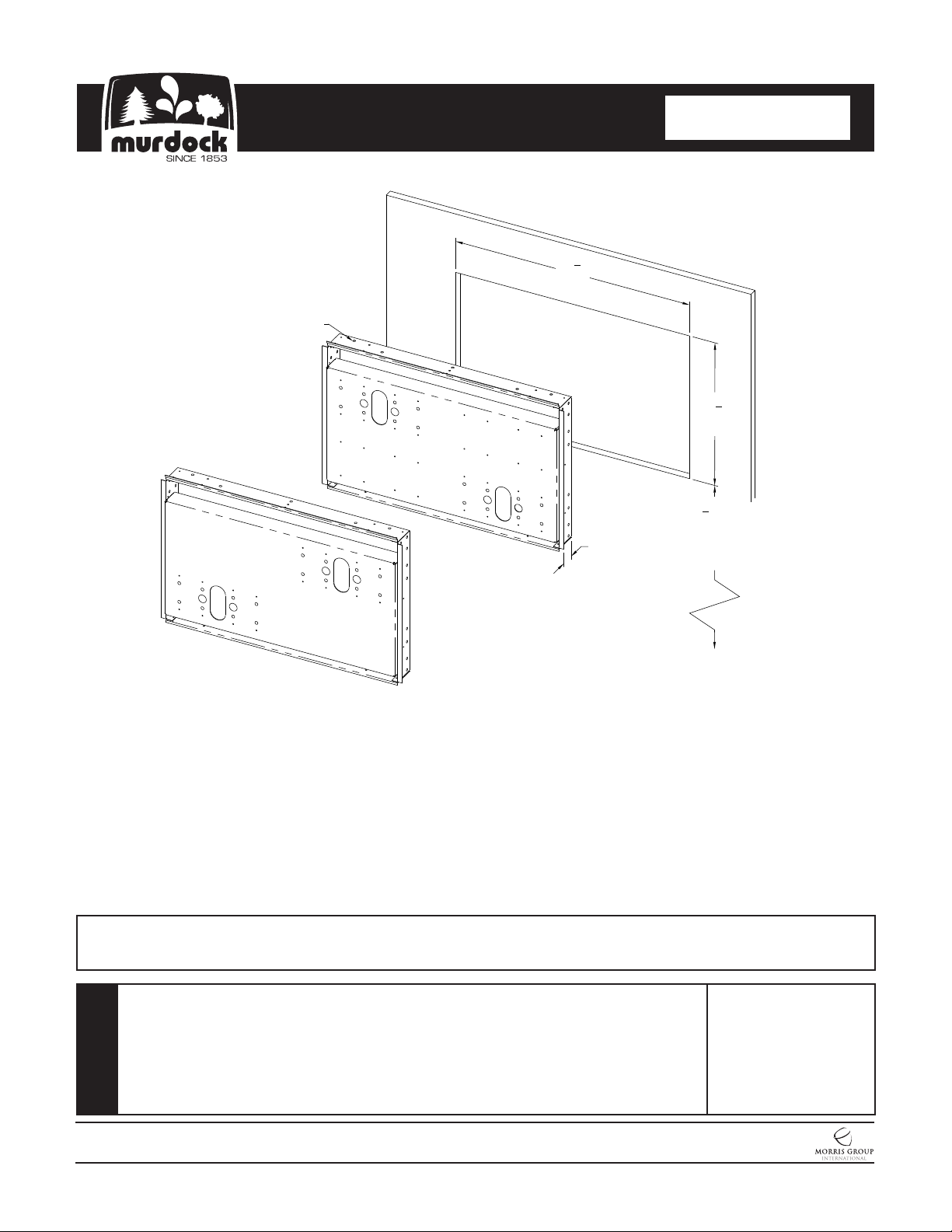

Model A0000000-MF8 is an in-the-wall mounting frame for
bi-level, non-refrigerated fountains. The mounting frame
provides additional support and is manufactured from a
heavy gage galvanized steel and supplied with pre-drilled
mounting holes.
STANDARD FEATURES
OPTION -MF8
SUGGESTED SPECIFICATIONS
MOUNTED FRAME
BI-LEVEL FOUNTAIN
Recyclable
Product
Member of
U.S. Green
Building
Council
Water
Conserving
Product
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Murdock Mfg.™ warrants that its products are free from defects in material or workmanship under normal use and service for a period of one
year from date of shipment. Murdock’s liability under this warranty shall be discharged solely by replacement or repair of defective material,
provided Murdock™ is notified in writing within one year from date of shipment, F.O.B. Industry, California.
Model Number & Options_____________________________________________________________________Quantity_______________
Contact_________________________________________________Title____________________________________________________
Signature
(Approval for
Manufacturing)__________________________________________________________________Date ____________________________
Company_______________________________________________________________________________________________________
SELECTION SUMMARY
& APPROVAL FOR
MANUFACTURING
All dimensions are subject to
manufactures tolerance of plus or
minus ½” nominal and subject to
change without notice. Murdock
assumes no responsibility for use of
void or superseded data. Dimensions
may change with the addition of
optional accessories. Murdock Mfg.™,
Member of Morris Group
International™. Please visit
www.murdockmfg.com for most
current specifications.
09/11/18
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
OPTIONS
MF8
OPTION -MF8
FRAME MOUNT
BI-LEVEL FOUNTAIN
301
4"
[768]
187
8"
[479]
3"
[76]
TYPICAL MTG
HOLES SEE
NOTE 7
*253
4" [654]
FOR 33" [838]
ORIFICE HEIGHT
SEE NOTE 3
GENERAL NOTES:
1. ALL DIMENSIONS ARE IN INCHES [MM].
2. MOUNTING FRAME FOR USE WITH BI-LEVEL FOUNTAINS
*3. VERTICAL FRAME HEIGHT IS SHOWN FOR RECOMMENDED ADA ADULT HEIGHT, PROVIDING
33" [838] ORIFICE DISCHARGE HEIGHT w/ 27" [686] KNEE CLEARANCE. ADJUST DIMENSIONS
AS NECESSARY TO COMPLY WITH FEDERAL, STATE & LOCAL CODES. REFER TO FOUNTAIN
ROUGH-IN FOR MORE DETAILS ON FIXTURE.
4. HOLD ROUGH-IN DIMENSIONS ±1/8" [3].
5. THIS FRAME IS USED WITH SEVERAL FOUNTAIN MODELS. WASTE & SUPPLY HEIGHTS ARE
DETAILED IN THE FOUNTAIN ROUGH-IN DRAWING.
6. FRAME MUST BE INSTALLED SO THE SIDE LIP OF THE FRAME OVER LAPS & BUTTS UP
AGAINST FINISHED WALL.
7. SECURE FOUNTAIN FRAMES TO WALL AND SPACER USING 1/4" LAG SCREW IN Ø5/16" [8].
STANDARD CONFIGERATION
SHOWN HIGHER UNIT ON
THE LEFT
MOUNTING FRAME SHOWN
FOR ACORN FOUNTAINS
WITH -RBL (REVERSED
BI-LEVEL) CONFIGURATION
