Muse M-75 BT User manual

M-75 BT
GB - 1
User Manual
MICRO SYSTEM CD/MP3 WITH BLUETOOTH
Please read the instruction carefully before operating the unit.

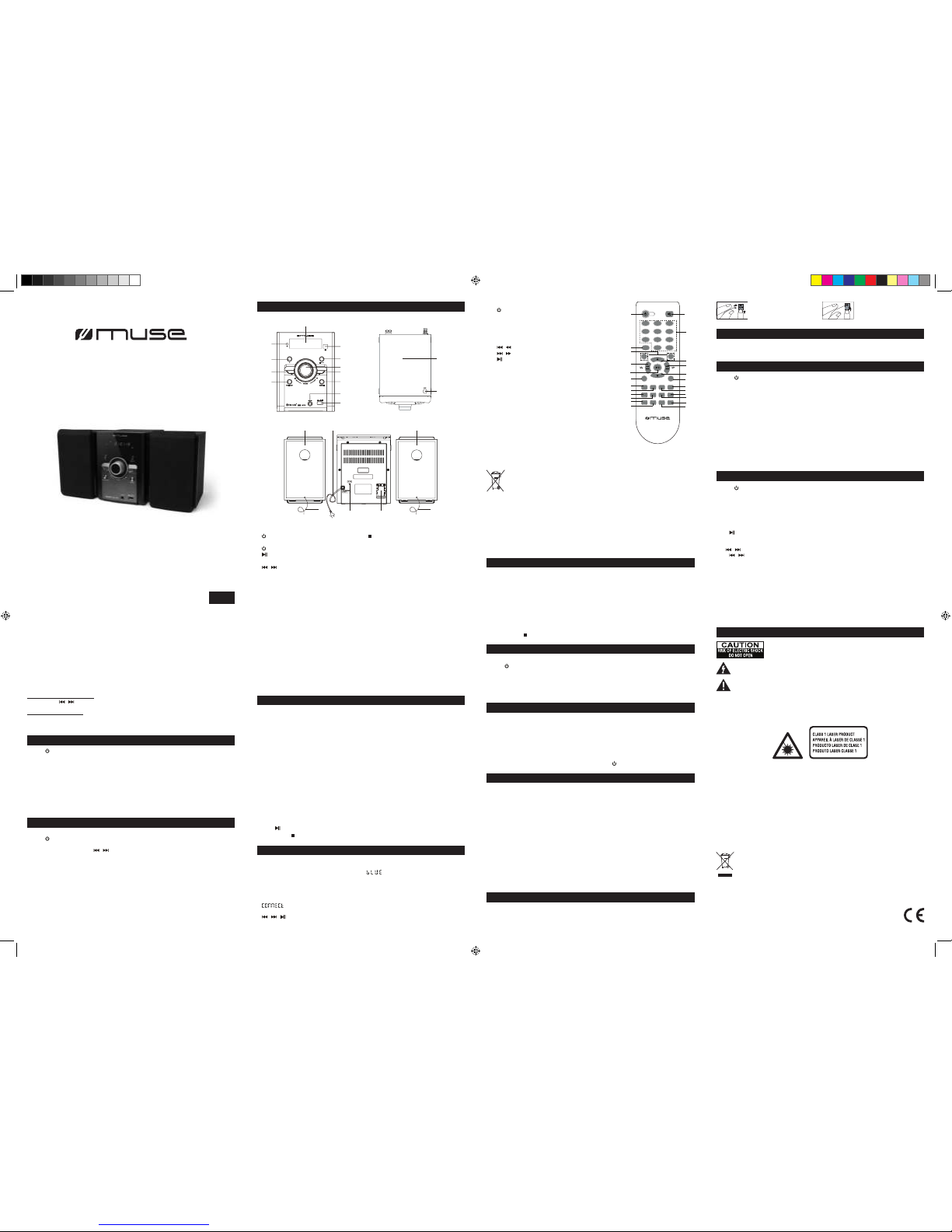

LOCATION OF CONTROLS
English GB - 2 GB - 3
Front view Top view
1. LED display
2. Standby indicator
3. Remote sensor
4. STANDBY button
5. Play/Pause button
6. SOURCE button
7. , buttons: Skip/Search /Tuning
8. VOLUME+/- knob
9. Line in jack (Aux in)
REMOTE CONTROL
R1. STANDBY button
R2. MUTE button
R3. 0-9,10+: number buttons
R4. PROG button: To program playback sequences
R5. ALB-/+ buttons: Folder down /up
R6. VOL-/+ button
R7. / / M- (MEMORY-) button: Skip / search / preset down
R8. / / M+ (MEMORY+) button: Skip / search / preset up
R9. PLAY/PAUSE button
R10. TUN-/+ buttons: Tuning
R11. CD button
R12. USB button
R13. FM button
R14. SOURCE button
R15. INTRO button
R16. REPEAT button:
R17. RANDOM button
R18. AUTO/ STOP button
R19. SLEEP button
R20. EQ button
R21. MEMORY button
R22. ST/MONO button
Installing Battery
Insert 2 “AAA/ UM4” batteries to the remote control prior to use. Make sure to match their polarities
(+/-) to the markings inside the compartment.
Before throwing any batteries away, consult your distributor who may be able to take them
back for specic recycling.
SPEAKER CONNECTION
1. Insert the speaker wires by pushing down the terminal lever of the Left Speaker Terminal and the
Right Speaker Terminal.
2. Connect the speaker to Speaker Terminals, with BLACK wire to BLACK terminals and WHITE/
BLACK wire to WHITE terminals.
Back view
10. USB port
11. / AUTO button: Stop; In FM mode,
Auto scan and memorizing
12. OPEN button: Disc door open
13. Disc compartment
14. FM antenna
15. AC cord
16. Speaker terminals
17. Speaker boxes
18. Speaker wire
NOTES:
- Never recharge the batteries, apply heat to them or take them apart.
- If the remote control is not going to be used for a long time, remove the battery to avoid damage
caused by battery leakage corrosion.
- Attention should be drawn to the environmental aspects of battery disposal.
- Do not throw batteries in re!
- Battery shall not be exposed to excessive heat such as sunshine, re or the like.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
POWER SUPPLY
This set operates on AC 100-240V~ 50/60Hz.
Connect the power cord to a convenient AC wall outlet.
AUDIO CONTROLS
1. Press STANDBY button to turn on the unit.
2. The function (CD/ USB/ FM/ LINE IN/ BLUETOOTH) is selected by pressing SOURCE button
repeatedly, or pressing CD, USB or FM button on remote control respectively.
VOLUME
Turn VOLUME+/- control to adjust the sound to comfortable level. The volume level will be displayed
for a few seconds.
MUTE
To cut off the sound from the speakers temporarily, press MUTE button on remote control. The “MUTE”
icon is shown on the display. Press MUTE button again to cancel Mute mode and restore the sound
from the speakers.
EQ
Press EQ button on remote control to toggle among the different sound effects (FLAT / JAZZ /
CLASSIC /ROC (ROCK) /POP). The selection will show on display for few seconds.
DISC OPERATION
1. Press STANDBY button to turn on the unit.
2. Open the CD door by pushing the CD door OPEN button.
3. Place the CD with label side up inside the CD compartment and close the CD door.
4. Press SOURCE or CD button to select CD function. After a few seconds, the total number of track
and total play time will appear on display. The “CD” icon is displayed. Playback starts automatically.
BASIC OPERATION
Play/pause
Press to pause playback. Press again to resume.
Select a track
- By /
Press / to select a track.
- By number buttons 10+, 0-9
Use the number buttons to input the track number, and it will start playback from the selected track
automatically.
If you want to input the track number bigger than 9, use the 10+, 0-9 button.
GB - 4 GB - 5
Example 1, to select the 10th track:
Method 1: Press 10+ button once, “01-“ will blink on display for 2 seconds and playback starts
automatically.
Method 2: Press 1and then 0. “0 10” will blink on display for 2 seconds and play back star ts
automatically.
Example 2, to select the 25th track:
Method 1: Press 10+ button twice, “02-“ blinks on display, then press 5button when “02-“ is blinking.
After that, “025” will blink on display for 2 seconds and playback starts automatically.
Method 2: Press 2and then 5. “0 25” will blink on display for 2 seconds and play back star ts
automatically.
Fast search backward/forward
Press and hold / to search quickly within a track.
Select a folder (mp3 only)
• Press ALB+ on remote control to select the rst track of next folder of your current disc or USB.
• Press ALB- on remote control to select the rst track of previous folder of your current disc or USB.
USB OPERATION
1. Press STANDBY button to turn on the unit.
2. Connect an USB device to the USB port on unit.
3. Press SOURCE or USB button to select USB mode. After a few seconds, the total number of folder
and track will appear on display. Playback starts automatically.
Notes:
- Do not put anything other than a USB device to the port of this unit. Other objects may damage the
USB mechanism.
- The USB socket must not be connected to the computer directly, for that may damage the unit.
- There are many USB devices in the market. We cannot guarantee to support all different models.
Please try another USB device if your device is not supported.
RADIO
3. Press M-/+ on remote control to select a desired preset location. Press MEMORY again to save the
radio station as the selected preset station.
4. Repeat above steps to preset a maximum of 30 stations.
Auto preset
In FM mode, hold and press AUTO to start automatic preset programming.
Radio frequencies will be browsed and radio stations stored automatically. When all the available radio
stations are stored or all memory locations are full, the auto preset programming function will stop.
Retrieving the preset stations
In radio mode, press M-/+ on remote control to access a preset station.
PLAY MODES (CD/MP3 ONLY)
Intro playback
Press INTRO button on remote control and “INTRO” appears on display. It will start to play the rst 10
seconds of each track. Press INTRO button again to cancel this function and “INTRO” disappears on
display.
Repeat playback
Press REPEAT button on remote control repeatedly to a play mode:
- Repeat One: display shows “REP”.
- Repeat folder: display shows “REP ALB”. (MP3 only)
- Repeat All: display shows “REP ALL”.
To cancel repeat playback, press REPEAT button repeatedly until repeat indicator disappears.
Random playback
Press RANDOM button on remote control and “RND” appears on display. It will play all tracks in
random order. Press RANDOM button again to cancel this function and “RND” disappears on display.
Program playback
1. In stop mode, press PROG button on remote control. The display will show “00 P01” (“000 P01” for
MP3).
2. Use number buttons to input the track number and press PROG button to conform.
3. Repeat above steps to program up to 20 tracks for CD and 99 tracks for MP3.
4. Press to start program playback.
5. Press STOP / to stop the program playback and cancel this function.
BLUETOOTH FUNCTION
This micro system supports Bluetooth audio function. You can play the audio le in your mobile phone
via the micro system.
1. Press SOURCE button to select Bluetooth mode. “ ” is displayed.
2. Turn on the Bluetooth function of your mobile phone. Select the item of searching the Bluetooth
device and enter it. Your mobile phone starts to search for Bluetooth devices within range (10
meters). Select this micro system “M-75 BT” and conrm it, then you are asked to input a 4-digit
password that is 0000. Enter the password and conrm it. (If you have made Bluetooth connectivity
before, a list of the previous search results is d isplayed. Sele ct “M-75 BT” and confirm.) “
” appears when pairing is successful.
3. When pairing is successful, you can control music player of your phone by pressing VOLUME+/-,
, , button on the unit.
Listening to the radio
1. Press STANDBY button to turn on the unit.
2. Press SOURCE or FM button to select FM Radio mode. “FM” appears on display.
3. Tune to a desired station with / on unit or TUN-/+ on remote control.
Note:
- For a better reception in FM, extend the antenna.
- If a stereo broadcast is received, “ST” is displayed. Press ST/MONO button on remote control to
switch between Mono and Stereo mode.
Presetting radio stations
The unit can store up to 30 FM stations in its memory.
Manual preset
1. Tune to a desired station.
2. Press MEMORY button on remote control. “P01” ashes on display.
GB - 6 GB - 7
LISTENING TO LINE IN (AUXILIARY) SOURCE
1. Connect your auxiliary source (e.g. MP3 player) to the Line in jack (Aux in).
2. Press STANDBY button to turn the unit on.
3. Press SOURCE to select LINE IN mode.
4. Start playback from your auxiliary source.
5. Adjust the volume to desired level.
6. To stop playback, disconnect your auxiliary source from the Line in jack, press SOURCE button to
select other source.
SLEEP FUNCTION
In sleep mode, the unit will turn off automatically after a specied time.
You can select duration in minutes before the unit turns off automatically.
1. Press SLEEP button on remote control repeatedly to select 90-80-70-60-50-40-30-20-10- 00.
Release SLEEP button. “SL” icon remains on display.
Notes:
- Sleep time can only be set when the unit is turned ON.
- The sleep function is cancelled when “00” is selected, and “SL” icon disappears.
2. If you want to switch off the radio before sleep ends, press STANDBY button.
MAINTENANCE
Cleaning
WARNING: Disconnect the unit from the mains supply before cleaning.
- Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.
- Using solvents, abrasive or alcohol-based products risks damaging the appliance.
- If an object or liquid enters inside the appliance, unplug it immediately and have it checked by an
authorized engineer.
Notes on disc
* Do not use irregular s hape CDs (example: he art-shaped, oct agonal ones). It ma y result in
malfunctions.
* Do not place more than one disc in the disc compartment.
* Do not try to open the disc compartment during playing.
* Do not touch the lens. Doing so may cause malfunction.
* If there is a scratch, dirt or ngerprints on the disc, it may cause tracking error. Before playing, clean
the disc with a cleaning cloth. Wipe the disc from the center out. Don’t store discs in places with high
temperatures or high humidity, they can become warped. After playing, store the disc in its case.
Important Note
• Before transporting the unit, remove the disc from the disc compartment.
SPECIFICATION
Power supply: AC 100-240V~ 50/60Hz
Power consumption: 20W
Speaker: 8 ohms
MORE INFORMATION
CAUTION: To reduce the risk of electric shock, do not remove the cover (or
back). There are no user serviceable parts inside the unit. Refer all servicing
to qualify personnel.
The lightening ash with arrowhead symbol within the triangle is a warning sign alerting the
user of “dangerous voltage” inside the unit.
The exclamation point within the triangle is a warning sign alerting the user of important
instructions accompanying the product.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION: Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam.
Class 1 laser product.
IMPORTANT!
- The ventilation should not be impeded by covering the ventilation openings with items such as
newspapers, table-cloths, curtains, etc.
- No naked ame sources, such as lighted candles, should be placed on the apparatus.
- The use of apparatus in moderate climates.
- The apparatus should not be exposed to dripping or splashing.
- Ensure a minimum distance of 5cm around the apparatus for sufcient ventilation.
- Do not place objects lled with liquids, such as vases, on the apparatus.
- The marking plate is located on the back of unit.
- Mains plug is used as the disconnect device and it shall remain readily operable. To be completely
disconnected the power input, the mains plug of the apparatus shall be disconnected from the mains
completely. The mains plug should not be obstructed or should be easily accessed during intended use.
- Under the influence of electrical fast transient or/and electrostatic phenomenon, the product may
malfunction and require user to power reset.
- Excessive sound pressure from earphones and headphones can cause hearing loss.
4. Turn off the Bluetooth function of your mobile phone to do disconnection.
5. Press and hold button to reset the unit.
NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
If at any time in the future you should need to dispose of this product please note that
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste
Electrical and Electronic Equipment Directive)
Note: Design and specication are subject to change without notice.
Push Speaker terminal tab down
to insert wire.
Release tab to lock wire in the
terminal.
123
45
8
0
6
97
10+
PROG
STANDBY MUTE
ALB- ALB+
VOL+
TUN- TUN+
VOL-
INTRO REPEAT RANDOM
AUTO/ STOP
CDUSB
FM
SOURCE
SLEEP EQ MEMORY ST/MONO
R1
R4
R8
R11
R15
R16
R19
R12
R10
R5
R2
R3
R9
R13
R18
R17
R14
R22
R21
R20
R6
R6
R7
R10
10
9
6
7
8
11
3
2
1
5
7
4
13
12
17 1715
18 18
14 16
DVM-3249T IB MUSE 001 REV0 GB.in1 1 2013-5-29 13:44:10
