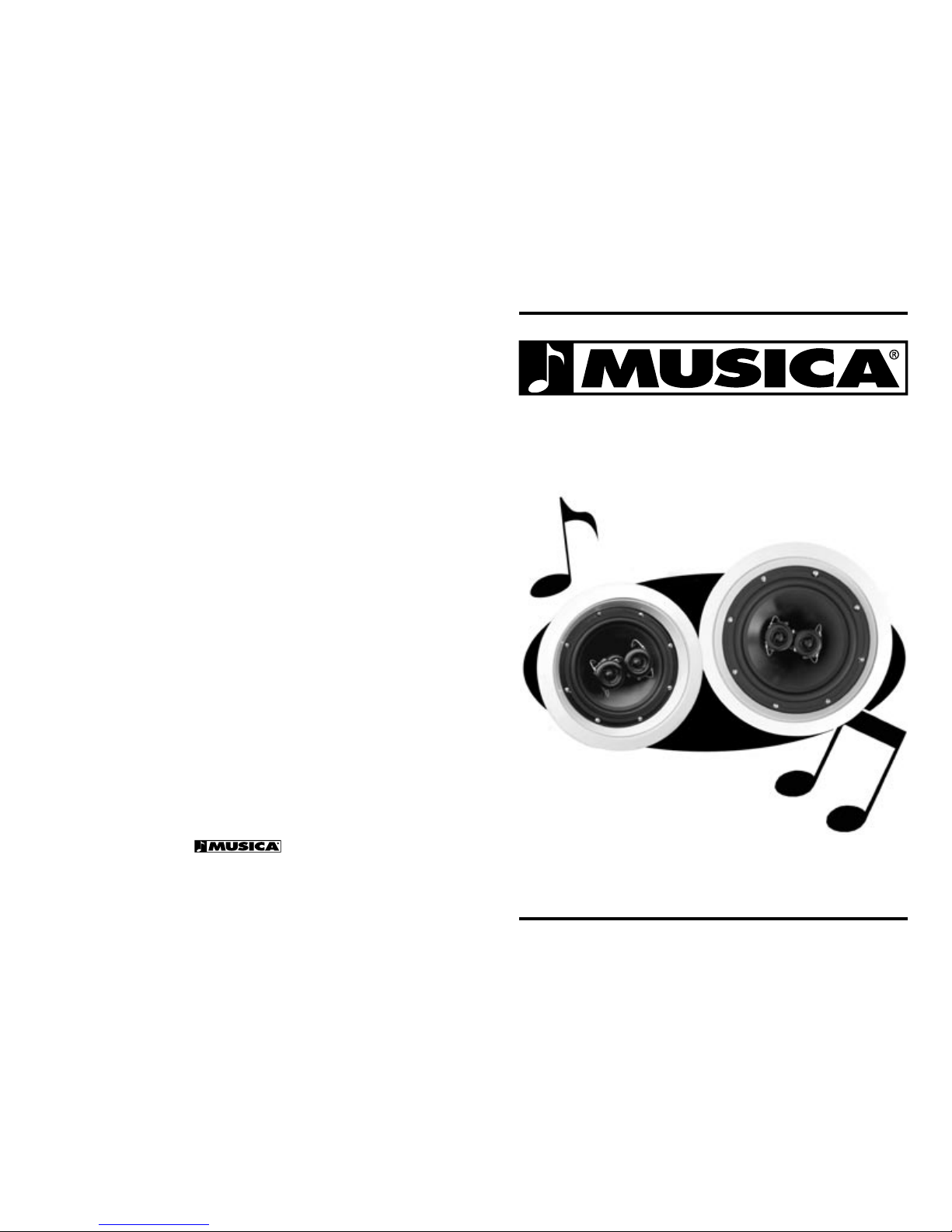

Musica 622C User manual

21A7330
1 Mitek Plaza
Winslow, IL 61089
815-367-3000
800-225-5689
www.MusicaAtHome.com
MUSICA622C / MUSICA822C
OWNER'S MANUAL
IN-CEILING LOUDSPEAKER
SYSTEMS

CONGRATULATIONS
We appreciate your choice of MUSICA In-Ceiling Speakers. Properly installed
and operated, MUSICA In-Ceiling Speakers should provide years of worry-free
listening pleasure. It’s important that you follow each step in this guide carefully
to insure proper installation.
SPECIFICATIONS MUSICA622C MUSICA822C
Frequency Response 64Hz-20kHz 40Hz-20kHz
+/- 3dB +/- 3dB
Impedance 8 ohms nominal/ 8 ohms nominal/
each voice coil each voice coil
Power Handling 35W RMS/ 45W RMS
70W Peak Music 90W Peak Music
Sensitivity (1W/1M) 84dB 84dB
Woofer Diameter 6-1/2" 8"
Tweeter (2) 1/2" Balanced (2) 1/2" Balanced
Dome Dome
Mounting Depth 3-5/16" (84.1mm) 3-3/4" (95.3mm)
Baffle Diameter 9" (228.6mm) 10-3/4" (273.1mm)
Cutout Diameter 7-11/16" (195.3mm) 9-1/2" (241.3mm)
PAINTING YOUR MUSICA IN-CEILING SPEAKERS
MUSICA In-Ceiling Speakers are designed to accept all types of interior and exte-
rior paints. Spray or roller application should provide excellent results. A paint
shield is included with all MUSICA In-Ceiling Speakers to protect the speakers
during the painting process.
MUSICA WARRANTY INFORMATION
All MUSICA In-Ceiling Speakers purchased in the United States from an
authorized MUSICA dealer are guaranteed against defects in material and workman-
ship for a period ten years from the date purchased by the end user, and limited to
the original retail purchaser of the product. Product found to be defective during that
period will be repaired or replaced by MUSICA at no charge. This warranty is void if
it is determined that unauthorized parties have attempted repairs or alterations of any
nature. Warranty does not extend to cosmetics or finish. Before presuming a defect
is present in the product, be certain that all related equipment and wiring is function-
ing properly. MUSICA disclaims any liability for other incurred damages resulting from
product defects. Any expenses incurred in the removal and reinstallation of product is
not covered by this warranty. MUSICA's total liability will not exceed the purchase price
of the product. If a defect is present, your authorized MUSICA dealer may be able to
effect repairs.
Proof of purchase is required when requesting service, so please
retain your sales receipt and take a moment to register your product on line at
www.MusicaAtHome.com.

FEATURES
The MUSICA622C and MUSICA822C In-Ceiling Speakers are designed for use
in small rooms or anywhere that both channels of a stereo signal need to be
reproduced while taking up a minimum amount of space.
Both models utilize a unique dual voice coil woofer design that allows both
channels of a stereo system to drive one cone. This feature coupled with a dual
tweeter system allow this unit to operate as two speakers in one.
This unit is of a water resistant design and therefore can be used in high humidity
areas such as a bathroom or laundry room.
MUSICA502W
5-1/4" Two-Way In-Wall Speaker
Tweeter: 1/2" Polycarbonate
Balanced Dome
Impedance: 8 ohms nominal
Sensitivity: 84dB
Power Handling: 45W RMS/
90W Peak Music
Frequency Response: 53Hz-20kHz
Dim's: 11"H x 7 1/2"W x 2 7/8"D
Mounting Depth: 2 1/2" (63.5mm)
MUSICA625W
6-1/2" Two-Way In-Wall Speaker
Tweeter: 1" Soft Dome Swivel
Impedance: 8 ohms nominal
Sensitivity: 85dB
Power Handling: 55W RMS/
110W Peak Music
Frequency Response: 43Hz-20kHz
Dim's: 12"H x 8 9/16"W x 3 1/4"D
Mounting Depth: 2 7/8" (73.0mm)
MUSICA6C
6-1/2” Center Channel Loudspeaker
Tweeter: 3/4" Dome
Impedance: 8 ohms nominal
Sensitivity: 92dB
Power Handling: 100W RMS/
200W Peak Music
Frequency Response: 60Hz-20kHz
Dim's: 7 1/2”H x 17 5/8”W x 8”D
OTHER PRODUCTS FROM MUSICA
In-Wall Loudspeakers
TECHNICAL ASSISTANCE
For additional technical assistance you can visit our website at
www.MusicaAtHome.com. Otherwise, our technical service representatives can be
reached by phone: [phone] or by E-mail: [e-mail].
MUSICA602W
6 1/2" Two-Way InWall Speaker
Tweeter: 1/2" Polycarbonate
Balanced Dome
Impedance: 8 ohms nominal
Sensitivity: 85dB
Power Handling: 50W RMS/
100W Peak Music
Frequency Response: 43Hz-20kHz
Dim's: 12 1/16"H x 8 5/8"W x 3 3/8"D
Mounting Depth: 3" (76.2mm)
MUSICA6S
6-1/2” Two-Way Home Loudspeaker
Tweeter: 3/4" Dome
Impedance: 8 ohms nominal
Sensitivity: 89dB
Power Handling: 100W RMS/
200W Peak Music
Frequency Response: 55Hz-20kHz
Dim's: 12 3/4”H x 7 1/2”W x 8 1/2”D
Home Loudspeakers
R+
R-
L-
L+

STEP 1
Using a stud finder (available at low cost at most hardware stores) or other accu-
rate method, locate center point between two joists and mark. Using template
provided, trace hole pattern on surface of ceiling
STEP 2
Using a sabre saw, keyhole saw or very sharp utility knife, cut hole in wall, fol-
lowing traced pattern.
STEP 3
Run loudspeaker wires to sound source location. There are several methods you
can use to accomplish wiring, depending on the construction characteristics of the
room or house. You can add a professional touch to your installation by using a
speaker terminal plate at the source location. Leave sufficient amount of wire at
speaker location (8 to 10 inches) to complete connection.
STEP 4
Attach loudspeaker wires to speaker terminals, observing correct polarity, and
position speaker frame up into cutout. Be careful not to pinch wires in the pro-
cess.
STEP 5
Carefully tighten the four mounting screws. This will cause the mounting wings to
rotate out behind the mounting surface and secure the speaker in place.
STEP 6
After the speaker panel is secured tightly, test for sound. When you are satisfied
the speaker is operational, affix grill. As grill is designed for a snug fit, you’ll need
to position one edge into slot first, and press or squeeze around perimeter of grill,
while pushing leading edges into grill slot.
