Musical Fidelity V90-LPS User manual

V90-LPS Phono Stage
Instructions
Introduction
Thank you for purchasing the V90-LPS. We
sincerely hope that it will bring you many years
of outstanding listening pleasure.
Installation Precautions
Your new V90-LPS is designed and built to
provide trouble-free performance, but as with
all electronic devices, it is necessary to
observe a few precautions:
Do not use the V90-LPS near water. The unit
must not be exposed to dripping or splashing
and no objects filled with liquids, such as
vases, must be placed on the unit.
Keep the V90-LPS away from heat such as
radiators. No naked flame sources, such as
lighted candles, should be placed on the unit.
Power Supply Note:
Only use approved Musical Fidelity DC power
supply. The use of other adaptors or supplies
could seriously damage the V90-LPS.
This Hi-fi product has been tested to ensure
that its operation is not adversely affected by
normal background levels of Radio Frequency
Interference (R.F.I.), and that it does not itself
generate excessive amounts of interference.
However, if a problem persists, please contact
your Musical Fidelity agent.
Never open the case of the V90-LPS yourself,
as this will invalidate the guarantee.
Place all connecting cables where they are not
likely to be walked on or trapped by items
placed on them.
The V90-LPS will operate in accordance with
its specifications within the following
environmental range:
Temperature 5 to 45 degrees Celsius
Humidity 10 to 90% non condensing
There are no user adjustments inside. Please
refer all service work to an authorised Musical
Fidelity agent.

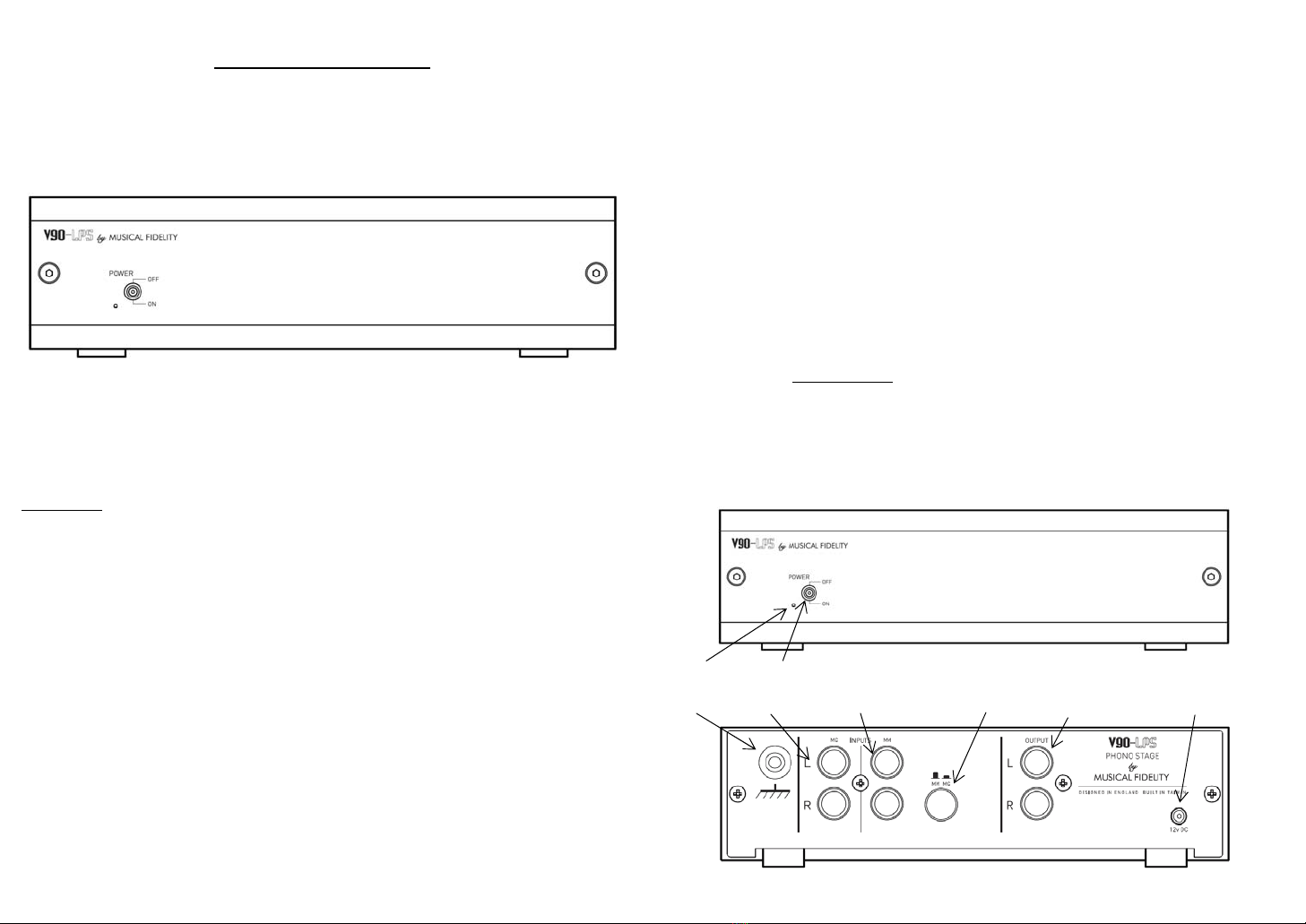

Power LED Power switch
Ground post RCA MC inputs RCA MM inputs MM/MC input selector switch RCA Outputs 12V DC power socket
Connections
All connections must be made before the
mains adaptor is plugged in, and before any
amplifier connected is switched on. Always
switch off the equipment attached to the
V90-LPS before connecting/disconnecting
power, changing leads or inputs.
Inputs
Using good quality RCA leads (not
supplied), connect the left and right
turntable outputs to the correct V90-LPS
INPUT sockets.
Use the phono MM input for moving
magnet cartridges. Make sure MM/MC
switch is OUT.
Use the phono MC input for moving coil
cartridges. Make sure MM/MC switch is IN.
Outputs
Connect the V90-LPS left and right
OUTPUTS to the desired LINE LEVEL (e.g.
AUX) inputs of the amplifier system.
Power
Plug the DC connector lead from the power
supply unit into the V90-LPS power inlet
socket, and plug the adaptor itself into a
convenient wall mains outlet. Switch on the
unit, and the blue LED will light to confirm the
unit is ready for use.
Earthing An earth terminal is provided.
Optimum earthing arrangements differ
according to setup
Connect earth wire from turntable to this
terminal if hum is apparent.
Any particular setup may work perfectly or
even better if this terminal is left disconnected
and there is no harm in doing so.
Use
Turn the volume on amplifier to normal
listening levels, sit back and enjoy the music.
These products have been designed so that it
may be left on indefinitely, but please note that
the mains adapter may become warm to the
touch - this is normal.

Specifications MM MC
Input impedance 47KΩ100Ω
Input sensitivity 3.0mV 400µV for 300mV out
Total harmonic distortion 0.01% 0.01% @1kHz, 300mV out
Signal / noise ratio >80dB >70dB “A” weighted
Input overload margin 15dB 22dB
General RIAA response ±0.25dB
Power requirement 12Vdc 500mA
Connections Moving magnet inputs 1 pair RCA sockets
Moving coil inputs 1 pair RCA sockets
Line level outputs 1 pair RCA sockets
Power input 1.3mm DC power socket
Dimensions Length 102mm 4” including terminals
Width 170mm
6⅔”
Height 47mm
1⅔” including “feet”
Weight Unit alone 600g 1½lbs
Unit packed in carton 1.1Kg 2¼lbs
Accessories DC power supply 12V 500mA 1 off
(supplied) Leaflet V90-LPS Instructions 1 off
Musical Fidelity reserves the right to make improvements which may
result in specification or feature changes without notice. E&OE.
Item disposal information for Europe
DISPOSAL
The crossed out wheeled bin label that appears on the back panel of the
product indicates that the product must not be disposed of as normal household waste.
To prevent possible harm to the environment please separate the product from other
waste to ensure that it can be recycled in an environmentally safe manner. Please
contact your local government office or your retailer for available collection facilities.
DISPOSITION
La poubelle sur roulettes barrées X, qui apparaît en logo sur le panneau
arrière du produit, indique que celui-ci ne doit pas être traité comme un déchet
domestique commun. Afin de protéger l'environnement, ce produit électronique devra
être géré séparément et donc recyclé selon les nouvelles normes Européennes Rohs
concernant les déchets d'appareils électroniques. Prière de contacter les services
concernés gouvernementaux ou votre point de vente pour l'élimination et l'enlèvement
de déchets électroniques équipés de composants électroniques.
DISPOSAL
La etiqueta cruzada hacia fuera del compartimiento que aparece en el panel
trasero del producto indica que el producto no se debe reciclarse como basura normal
de la casa. Para prevenir daños posible al ambiente separe por favor el producto de
otras basura para asegurarse de que puede ser reciclada de una manera
ambientalmente segura. Entre en contacto por favor a su oficina gubernamental local o
a su minorista para las instalaciones disponibles de la colección.
RIFIUTI
L'etichetta del cassonetto barrato riportato sul retro dell'apparecchio indica
che il prodotto non deve essere smaltito tramite la procedura normale di smaltimento dei
rifiuti domestici. Per evitare eventuali danni all'ambiente, separare questo prodotto da
altri rifiuti domestici in modo che possa venire riciclato in base alle procedure di rispetto
ambientale. Per maggiori dettagli sulle aree di raccolta disponibili, contattate l'ufficio
govenativo locale od il rivenditore del prodotto.
FACHGERECHTE ENTSORGUNG:
Das auf der Geräterückseite angebrachte Label deutet darauf hin, dass
das Produkt nicht mit konventionellem Hauskehricht entsorgt werden darf. Um Schäden
und Verschmutzungen an Umwelt und Mensch zu vermeiden, muss das Produkt
fachgerecht entsorgt und von anderem Abfall getrennt werden. Wenden Sie sich bei
Fragen hierzu an Ihren Fachhändler oder an eine öffentliche Informationsstelle.
AFVAL
Het label op de achterzijde van dit apparaat, een afvalbak op wielen met
een kruis doorgehaald, geeft aan dat dit apparaat niet samen met gewoon huishoudafval
mag worden weggegooid. Om mogelijke schade aan onze leefomgeving te voorkomen
dient dit apparaat, gescheiden van gewoon huishoudelijk afval, te worden afgevoerd
zodat het op een milieuvriendelijke manier kan worden gerecycled. Neem voor
beschikbare inzamelplaatsen contact op met uw gemeentelijke reinigingsdienst of met
uw elektronica leverancier.
HÄVITTÄMINEN
Yliruksattua jäteastiaa kuvaava tarra tuotteen takalevyssä kertoo, että
tuotetta ei saa käsitellä normaalina talousjätteenä. Ympäristön suojelemiseksi on tuote
pidettävä erillään muusta jätteestä ja se on kierrätettävä ekologisesti kestävällä tavalla.
Ota yhteyttä laitteen myyjään tai Pirkanmaan Ympäristökeskukseen lähimmän
kierrätyskeskuksen löytämiseksi.
AFSKAFNING
Logoet med en skraldespand med kryds over på bagsiden af apparatet
indikerer at dette produkt ikke må kasseres som normal husholdningsaffald. For at
forebygge mulig skade på miljøet, bedes De separere dette produkt fra andet affald, og
sikre at det bliver genbrugt på en miljørigtig måde. Kontakt venligst de lokale
myndigheder eller din forhandler for oplysning om nærmeste tilgængelige
opsamlingssted for elektronikaffald.
ΔΙΑΔΙΚΑΣΙΑ ΑΠΟΡΡΙΨΗΣ
ΤΟ ΣΗΜΑ ΜΕ ΤΟΝ ΔΙΑΓΕΓΡΑΜΜΕΝΟ ΤΡΟΧΗΛΑΤΟ ΚΑΔΟ
ΑΠΟΡΡΙΜΑΤΩΝ ΣΤΗΝ ΠΙΣΩ ΟΨΗ ΤΟΥ ΜΗΧΑΝΗΜΑΤΟΣ ΔΗΛΩΝΕΙ ΟΤΙ ΤΟ ΠΡΟΙΟΝ
ΑΥΤΟ ΔΕΝ ΠΡΕΠΕΙ ΝΑ ΔΙΑΧΕΙΡΙΣΘΕΙ ΣΑΝ ΣΥΝΗΘΙΣΜΕΝΟ ΟΙΚΙΑΚΟ ΑΠΟΒΛΗΤΟ.
ΠΡΟΣ ΑΠΟΦΥΓΗ ΕΝΔΕΧΟΜΕΝΗΣ ΕΠΙΒΑΡΥΝΣΗΣ ΤΟΥ ΠΕΡΙΒΑΛΛΟΝΤΟΣ,
ΞΕΧΩΡΙΣΤΕ ΤΟ ΠΡΟΙΟΝ ΑΠΟ ΤΑ ΑΛΛΑ ΑΠΟΡΡΙΜΑΤΑ ΩΣΤΕ ΝΑ ΕΞΑΣΦΑΛΙΣΘΕΙ Η
ΑΝΑΚΥΚΛΩΣΗ ΤΟΥ ΜΕ ΤΟΝ ΠΡΕΠΟΝΤΑ ΤΡΟΠΟ.
ΠΑΡΑΚΑΛΟΥΜΕ ΝΑ ΕΠΙΚΟΙΝΩΝΗΣΕΤΕ ΜΕ ΤΗΝ ΤΟΠΙΚΗ ΥΠΗΡΕΣΙΑ
ΑΝΑΚΥΚΛΩΣΗΣ ΗΜΕ ΤΟ ΚΑΤΑΣΤΗΜΑ ΑΓΟΡΑΣ ΓΙΑ ΠΕΡΙΣΣΟΤΕΡΕΣ
ΛΕΠΤΟΜΕΡΕΙΕΣ.
Manual issue 01
Basic problem-solving with an amplifier is similar to troubleshooting other electrical or electronic equipment.
A
lwa
y
s check the most obvious
p
ossible causes first, such as the followin
g
exam
p
les:
Problem Probable Cause Remed
y
No power Power supply not switched on.
Power plug is not fully inserted into
rear socket
Check power supply is plugged in
and switched on
Plug in securely
Wrong connections between input
source and the V90-LPS
Check audio input lead
connections
No sound
Wrong connections between the
V90-LPS output and the following
component
Check audio output lead
connections
Hum
Connecting turntable earth makes
hum worse.
Audio connector plug not fully
pushed in
Turntable earth not connected.
Earth loop within system.
(may not be apparent with other
line level sources)
Insert plug securely and
check leads
Try connecting turntable ground
lead to ground post on V90-LPS.
Disconnect turntable earth
connection. Not all setups require
turntable earth to be connected.
Investigate system for other
hum/earth loops if hum persists.
If none of these actions affect a cure, please contact the dealer, or an authorised Musical Fidelity service agent.
Remember; never open the case of the V90-LPS, as this will invalidate the guarantee.
Units 24-26
Fulton Road
Wembley
HA9 0TF
England
(+)44 208 8900 2866
http://www.musicalfidelity.com/
