Muskoka MFBC27TBL3A-5 User manual

Save these instructions | Conserver ces instructions | Guarde estas instrucciones
Please read this manual before installing and using
your firebox
If the information in this manual is not followed
exactly, an electrical shock or fire may result causing
property damage, personal injury or loss of life
Veuillez lire ce manuel avant l’installation et
l’utilisation de votre foyer
Si les renseignements de ce manuel ne sont
pas exactement suivis, un choc électrique
ou un incendie peut survenir, et causer des
dommages, des blessures ou la perte de vie
Por favor lea las instrucciones de instalación y de
operación antes de usar este caja de fuego
Si no sigue exactamente la información en este manual,
podría resultar en choques eléctricos o incendio
que pueden causar daños a la propiedad, lesiones
personales o la pérdida de la vida.
27" FIREPLACE INSERT FOYER ÉLECTRIQUE 27" HOGAR ELÉCTRICO DE 27"
Español p. 12
Français p. 7
MFBC27TBL3A-5
REV06-25-13

2
THANK YOU FOR PURCHASING A MUSKOKA®ELECTRIC FIREPLACE INSERT.
Important: Read all instructions and warnings carefully before starting installation. Failure
to follow these instructions may result in a possible electric shock, fire hazard and will void
the warranty.
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,
electrical shock, and injury to persons, including the following:
1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided,
use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding,
papers, clothes, and curtains at least 3 feet (0.9 meters) from the front of the heater and keep them
away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever
the heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has
been dropped or damaged in any manner. Return heater to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never
locate heater where it may fall into a bathtub or other water container.
8. Do not run power cord under carpeting. Do not cover power cord with throw rugs, runners, or the
like. Arrange power cord away from traffic area and where it will not be tripped over.
9. To disconnect heater, turn controls to off, then remove plug from outlet.
10. Connect to properly grounded outlets only.
11. Do not insert or allow foreign objects to enter any ventilation or exhaust openings as this may cause
an electric shock or fire, or damage the heater.
12. To prevent a possible fire, do not block firebox air intakes or exhaust in any manner. Do not operate
firebox on soft surfaces, like a bed, where openings may become blocked.
13. A heater has hot and arching or sparking parts inside. Do not use in areas where gasoline, paint, or
flammable liquids are used or stored.
14. Use this heater only as described in this manual. Any other use not recommended by the manufacturer
may cause fire, electrical shock, or injury to persons.
15. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire.
However, if you have to use an extension cord, the cord shall be No.14ga minimum size and rated
not less than 1875 watts.
16.
“SAVE THESE INSTRUCTIONS”

3
USER INSTRUCTIONS
1. Any repairs to this appliance should be carried out by qualified/authorized service personnel only.
2. Under no circumstances should this appliance be modified. Parts having to be removed for servicing
must be replaced with original “OEM” (original equipment manufacturers) parts only.
3. This firebox is to be cleaned with a damp cloth (water) only. IMPORTANT: Always unplug the power
cord before cleaning the unit. Do not use any abrasive cleaners on the unit.
4. Unplug this firebox when not in use.
Grounding Instructions
This heater is for use on 120 volts. The cord has a plug as shown
in figure 1A in the diagram. An adapter as shown in figure 1C is
available for connecting three-blade grounding-type plugs to two-slot
receptacles. The green grounding lug extending from the adapter
must be connected to a permanent ground such as a properly
grounded outlet box. The adapter should not be used if a three-slot
grounded receptacle is available. (Note: Grounding adapter use
prohibited in Canada)
Locating Your Fireplace
When choosing a location for your new fireplace, ensure the general
instructions are followed. Also, for best effect install the fireplace out of direct sunlight.
It is safe to set the fireplace insert close to non-combustibles.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
Ember Bed Installation
1. Remove the 6 screws (3 on each side)
and remove the metal trim piece.
2. Remove the 1 screw that holds the left
side trim to the heat vent.
3. Remove 3 screws from left side trim.
4. Remove the left side trim by sliding
it upward.
5. Insert fingers through slot, grip glass
and carefully slide the glass window
out to the left. Remove plastic covers
on all 4 corners of the glass window.
6. Evenly distribute ember bed glass in
front of diffuser screen.
Note: Be sure to clear away glass that
may have fallen into the window track.
7. Insert glass window and slide to the
right.
8. Slide the left side trim into place.
9. Insert the 10 screws removed in steps
1, 2 and 3.
Mantel Installation
Please refer to the detailed instructions that come with the mantel that you purchased.
Grounding Pin
Cover of Grounded Outlet Box
Adapter
Grounding Lug
Metal Screw
Cover of Grounded Outlet Box
A
B
C
1. 2.
3. 5.4.
6.
8.
7.
9.

4
Specifications
Fireplace Insert dimensions
(w x d x h) 28.3” x 9.4” x 20.1"
72 cm x 23,8 cm x 51 cm
Net Weight 30.9 lbs / 14 kg
Voltage 120 V
Frequency 60 Hz
Watts / Amps. 1400W / 11.6A
Heater Rating 4777 BTU's
Electrical Connection
A 15 Amp, 120 Volt, 60 Hz circuit with a properly grounded outlet is required to operate this appliance.
Preferably, the fireplace insert will be on a dedicated circuit as other appliances on the same circuit
may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. The unit comes
standard with a 6 ft (1.8 m) long 3 wire cord, exiting out the back of the fireplace insert. Plan the
installation to avoid the use of an extension cord. If an extension cord must be used, it must be a minimum
14 ga, 3 wire with grounding type plug and connector and rated not less than 1875 watts. The extension
cord shall not be more than 20 ft (6 m) in length.
WARNING: Electrical outlet wiring must comply with local building codes and other applicable regulations
to reduce the risk of fire, electrical shock and injury to persons.
WARNING: Do not use this fireplace insert if any part of it has been under water. Immediately call a
qualified service technician to inspect the firebox and replace any part of the electrical system which has
been under water.
Service Instructions
For Your Safety
Service must be performed by qualified/authorized service personnel only.
Maintenance Instructions
Unplug the firebox prior to performing any maintenance.
1) At least once yearly vacuum all dust and pet hair from air or heater vents
2) Clean the outside of the glass with a damp cloth. Be sure the cloth is not wet. Wipe with a dry cloth
to remove streaks. Do not use an abrasive cleanser on the glass
Glass Information
1. Under no circumstances should this product be operated with a broken or chipped glass panel.
2. Do not strike or slam the glass.
3. Do not use abrasive cleansers to clean the glass.
4. This product uses tempered glass. Replacement of the glass supplied by the manufacturer should be
done by qualified/authorized service personnel only.
Operating Instructions
The firebox main power “on/off” switch must be switched “on” before any of the control functions, (on
the firebox and/or remote control) will operate. NOTE: The main switch does not have to be turned off
when the firebox is not being used for brief time periods. If however, you are not planning to use your
firebox for extended time periods or going away on vacation, we recommend the main power “on/off”
be switched off.
This firebox insert features conveniently separate controls for the flame effect and heat control.

5
This feature allows you to operate the unit in 2 different ways;
 • Asafullfeaturedreplaceinsertwithbothameeffectandheateroperatingsimultaneously.
 • Asavisualeffectwithameeffectonly.(i.e.noheatingcycle)
NOTE: This firebox insert is not designed to operate in “heat” only mode without a flame effect.

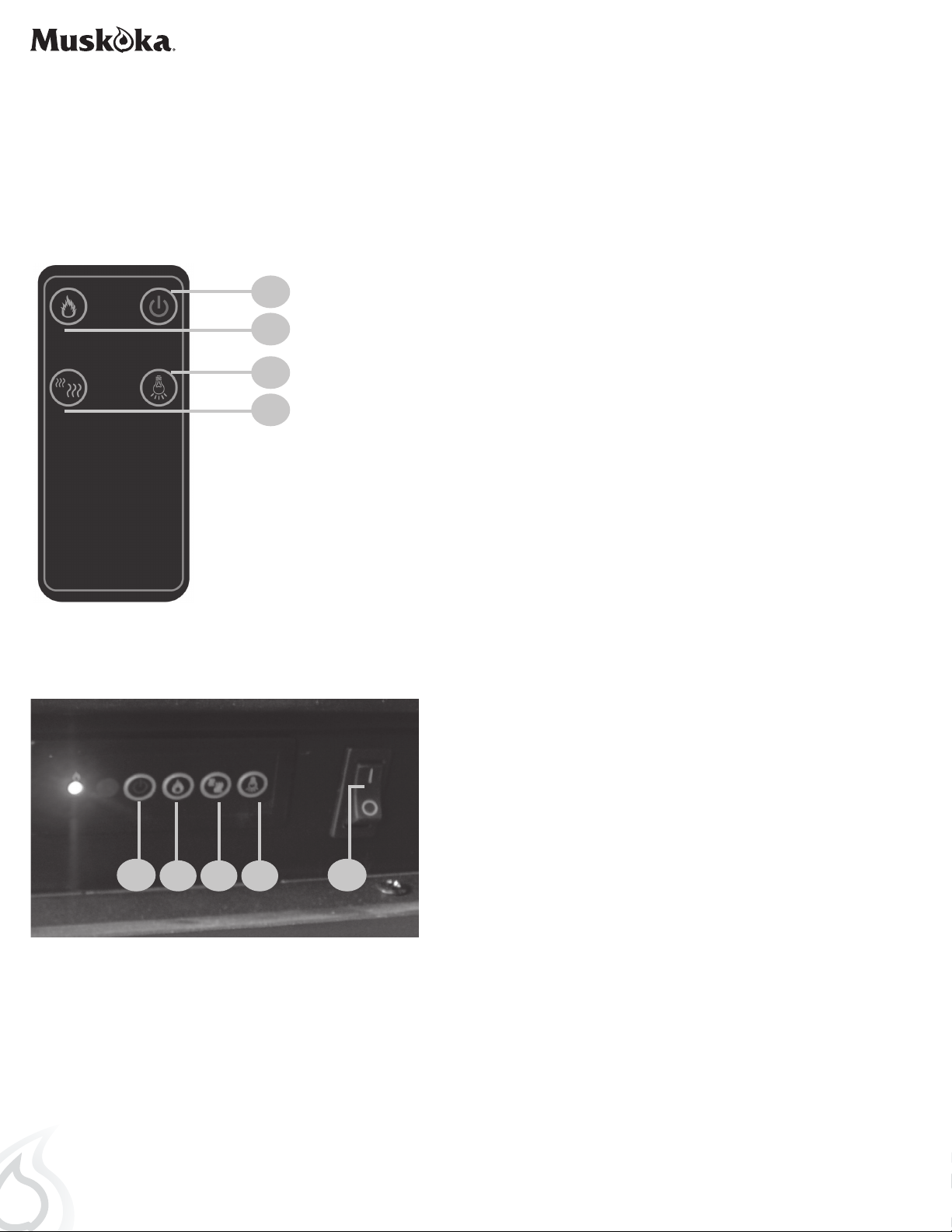

All of the firebox control functions can be accessed in 2 ways:
2. Using the manUal controls located on the firebox
behind the Upper front access panel:
1. ON/OFF: (The master power switch-1a must be "on")
Press the "on/off" button (1b) on the touchpad, the
flame effect (only) will turn on. To turn the firebox
"off" press the "on/off" button again. (NOTE: The
"on/off" button on the firebox does "not" control the
master power "on/off" switch)
2. FLAME EFFECT: (See details above under Remote
Control)
3. HEATING:(See details above under Remote Control)
4. ACCENT LIGHTING:(See details above under Remote
Control)
1a
3 4
2
1b
1. Using the remote control:
1. ON/OFF: (The master power switch must be "on")
Press the "on/off" button on the remote control, the
flame effect (only) will turn on. To turn the firebox
"off" press the "on/off" button again.
2. FLAME EFFECT: Press the flame button to achieve the
desired effect. (no heat)
3. HEATING:Press the heat button "once" for "low"
and/or "twice" for "high" to achieve the desired
level. (NOTE: the flame effect is always active when
the heating cycle is operational) Press the button a
"third" time turns the heating cycle off.
4. ACCENT LIGHTING:Allows you to create mood and
highlight inside your firebox. Low, medium, high, off.
2
3
1
4
