Mutec HVT 300-SIL-DX User manual

01/2022

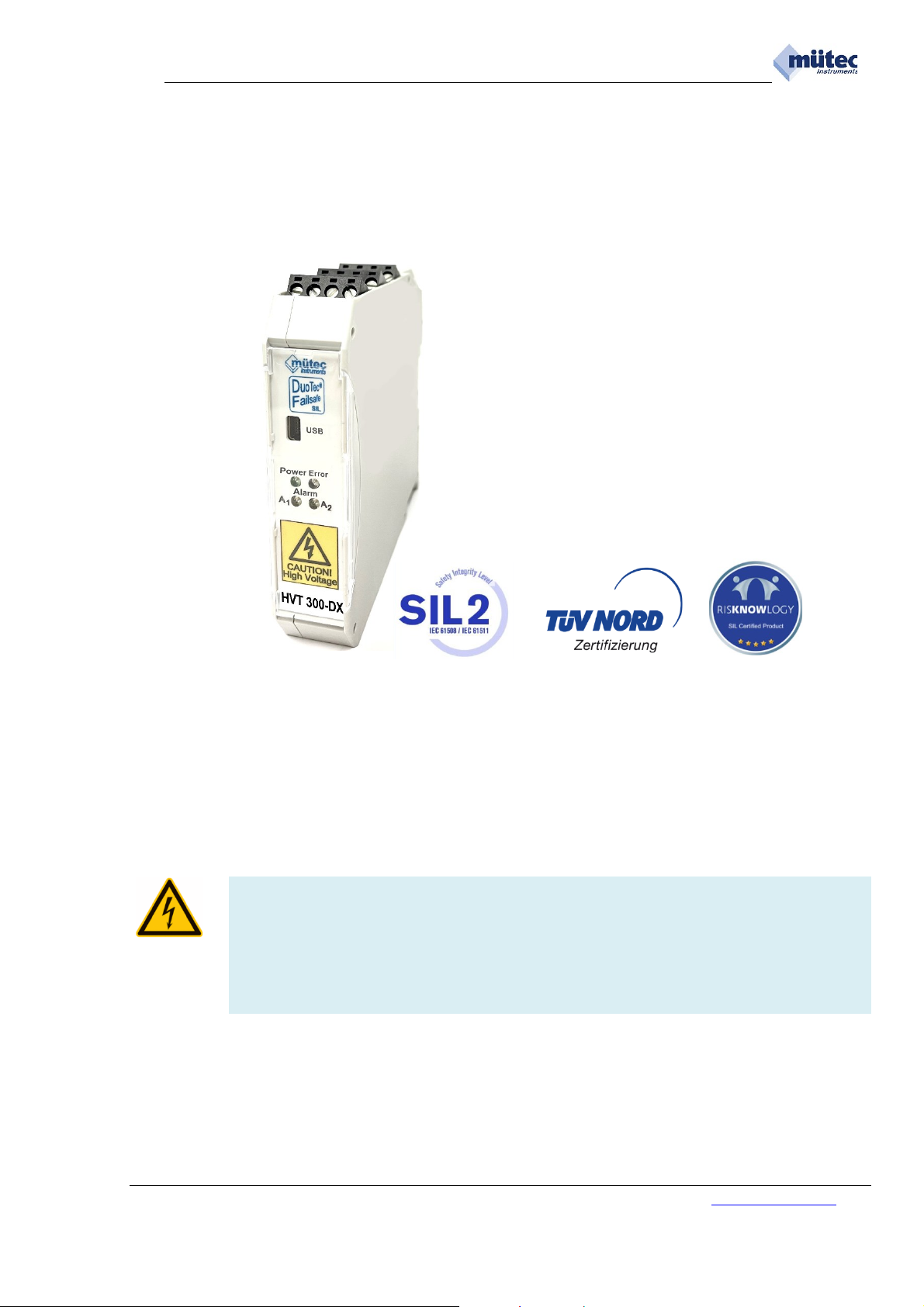

HVT 300-SIL-DX
High Voltage Transmitter for Safety Applications
Features
•Supply via Terminals and DIN-Rail
•USB 2.0 Interface
•RS485 Modbus Connection via TBUS
•Measurement inputs with reinforced insulation
•SIL 2 according to IEC/EN 61508
•Device type B according to IEC/EN 61508
•Safety function indication via mA output + Relays 3/4
•Error indication according to NAMUR NE 43
•LED status: Power, Error and Alarm
Description
The HVT 300-SIL-DX is used e.g. for balance voltage monitoring in chlor-alkali electrolysis
systems or as a voltage converter in test systems for the automotive sector. The redundant
measuring input enables self-monitoring for the reliable detection of an error. The absolute
value of the measured DC voltage is output as a 0 / 4-20 mA signal.
For signaling the safety function, 2 relays and the mA output are available, which can be
interconnected with each other or with the alarm outputs 1 and 2.
WARNING: high voltage / risk of death
The device is electrical equipment with voltage inputs for up to 1000 VDC. It is
designed for use in secure operating environments. The specified safety conditions
must be observed for installation and operation and security policies (including
national security policies), accident prevention regulations and general technical
regulations are observed. Please also note the safety regulations and instructions
for Installation on page 4 and 5.
Mütec Instruments GmbH Tel.: [phone] E-Mail: [email protected]
Bei den Kämpen 26 Fax: [phone] Web: www.muetec.de
D-21220 Seevetal-Ramelsloh

7/2021
2
Manual HVT300-SIL-DX
WINSMART-Support from version 4.0
MODBUS-RTU Communication
Doc-Nr.: 621
Revision: 1.3
Issue date: 01/2022
Manufacturer:
Mütec Instruments GmbH
Bei den Kämpen 26
21220 Seevetal
Deutschland
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Internet: www.muetec.de
Licence-, trademark and copyright notes
Modbus™ is a registered trademark of Modicon Inc.
Windows™ is a registered trademark of Microsoft Corp.
Copyright © Mütec Instruments GmbH All rights reserved
This document is copyright protected. It supports the user in making reliable and efficient use of
the unit. Transmission and duplication of this document as well as utilization and disclosure of
its content are prohibited unless expressly permitted. Any breach or infringement shall result in
liability for damages. The software described in this document is licensed and may only be used
and copied in accordance with the terms of the licence.
All rights reserved.
Disclaimer
We have checked the content of the printed document for compliance with the described
hardware and software. Nevertheless, deviations cannot be excluded and consequently we
cannot assume any guarantee for complete accordance. The data in this printed document are
checked regularly. Corrections and additions are made in the following version in each case.
We would be grateful for any suggestions for improvement.
Technical modifications reserved

7/2021
3
Content
HVT 300-SIL-DX .........................................................................................................................1
1Safety instructions and installation ...........................................................................................4
2Safety Instruction Classifiction..................................................................................................4
3General Instructions .................................................................................................................5
4Technical Data .........................................................................................................................7
4.1 Certificate..........................................................................................................................7
4.2 Analog Input E1 (Terminals T-17/18 and T-21)..................................................................7
4.3 Analog Ouput (Terminals T-11 + T-12)..............................................................................7
4.4 Contact outputs Rel1/Rel2 (Terminals T-1 + T-2 and T-5 + T-6)........................................7
4.5 Contact outputs REL3/REL4 (Terminals T-7 + T-8 and T-9 + T-10)...................................7
4.6 Status LEDs ......................................................................................................................8
4.7 USB Interface (front socket) ..............................................................................................8
4.8 RS485 Interface (T-BUS contacts T-B1 + T-B2)................................................................8
4.9 Supply (Terminals T-3 + T-4 or T-B4 + T-B5) ....................................................................8
4.10 General Data.....................................................................................................................8
4.11 Standards..........................................................................................................................9
4.12 Self-Monitoring..................................................................................................................9
4.13 Installation.........................................................................................................................9
4.13 Electrostatic Discharge......................................................................................................9
4.14 Housing Dimensions .......................................................................................................10
4.15 Block diagram .................................................................................................................10
4.16 Nameplate.......................................................................................................................11
5Variants of Input Connections ................................................................................................11
5.1 Absolute Value Measurement .........................................................................................11
5.2 Redundant Absolute Value Measurement .......................................................................11
6Jumper (Option) .....................................................................................................................12
7Loop resistance mA Output ....................................................................................................12
8Safety Function ......................................................................................................................13
9Safety-Relevant Features.......................................................................................................13
10 Safety-Oriented Applications for SIL 2 ................................................................................14

7/2021
4
1 Safety instructions and installation
Note: Installation, operation and maintenance may only be carried out by qualified specialist personnel.
When installing and operating the device, the applicable safety guidelines (including the national safety
guidelines), accident prevention regulations and general technical regulations must be observed.
Note: The circuits in the device must not be accessed.
Do not repair the device yourself, but replace it with an equivalent device. Repairs may only be carried
out by the manufacturer.
Note: The device is suitable for protection class IP20 if:
•It is installed outside of potentially explosive areas
•The environment is clean and dry
Install the device in a suitable housing with a suitable degree of protection according to IEC 60529 to
protect against mechanical and electrical damage.
The safety-relevant data can be found in the operating instructions or in other certificates (if
necessary).
2 Safety Instruction Classifiction
This manual contains instructions that you have to observe for your personal safety as well
as to avoid material damage. These instructions are highlighted using a triangular warning
sign and shown as follows, depending on the degree of risk.
HAZARD
means that death or severe physical injury will occur if the appropriate
precautionary measures are not taken.
WARNING
means that death or severe physical injury may occur if the appropriate
precautionary measures are not taken.
CAUTION
with a triangular warning sign means that minor physical injury may occur
if the appropriate precautionary measures are not taken.
CAUTION
without a triangular warning sign means that material damage may occur
if the appropriate precautionary measures are not taken.
ATTENTION
means that an undesired result or state may ensue if the corresponding
instruction is not followed.
NOTE
denotes important information about the product, handling of the product
or the respective part of the documentation, is aimed at drawing special
attention to the latter and should be complied with.
In addition to the instructions in this manual, the generally applicable safety and accident
prevention regulations must be observed. If the information contained in this document
should not be sufficient in any specific case, you can obtain more detailed information from
our telephone service. Please read this manual carefully prior to installation and
commissioning.

7/2021
5
3 General Instructions
This device left the plant in flawless condition in terms of its safety features. To preserve this
condition and ensure safe operation of the device, the user has to observe the instructions
and warning notes indicated in this operating manual.
For the sake of clarity the manual does not contain complete detailed information on all
product types and can therefore not take into account every conceivable case with respect
to installation, operation and maintenance.
Should you wish further information or should special problems arise that are not treated in
sufficient detail in the manual, you can obtain the necessary information by telephone.
Moreover, we point out that the content of the manual shall not constitute part of or amend
a previous or existing contract, agreement or legal relationship. All obligations of Mütec
Instruments GmbH shall result from the respective contract of purchase, which also contains
the complete and solely valid warranty terms. These contractual warranty terms shall neither
be extended nor limited by the information contained in the manual.
The content reflects the technical state of the art regarding printing. It is subject to technical
modifications in the course of further development.
WARNING
Flawless and safe operation of this device requires proper transport, proper storage,
installation and assembly as well as careful operation and maintenance. The device may
only be used for the purposes specified in this operating manual.
DISCLAIMER
All modifications to the device fall within the responsibility of the user unless expressly
specified otherwise in the operating manual.
VALIDITY
The data sheet is only valid for the HVT300 described and the hardware / firmware version
specified in the technical data
QUALIFIED PERSONNEL
Qualified personnel are persons who, due to their training, experience and instruction as
well as their knowledge of relevant standards, regulations, accident prevention regulations
and operating conditions, have been authorized by the person responsible for the safety of
the system to carry out the necessary planning and activities and thereby recognize and
recognize possible dangers can avoid.
REQUIREMENTS
The qualified personnel must have knowledge of the following topics:
•Handling and knowledge of and about security products
•Applicable EMC regulations
•Applicable regulations for work safety and accident prevention
•Installation or assembly of the safety product
•Commissioning, monitoring and maintenance of the security product
•Knowledge of devices / systems in accordance with the standards of safety
technology for electrical circuits
•Training or instruction in accordance with the standards of safety technology in the
care and use of appropriate safety equipment

7/2021
6
SAFETY INSTRUCTIONS
The safety regulations of electrical engineering and the trade association must be observed
and adhered to. Failure to observe the safety regulations can result in death, severe physical
injury or extensive property damage.
DIRECT / INDIRECT TOUCHING
Protection against direct and indirect contact in accordance with VDE 0100 Part 410 must
be guaranteed for all components connected to the system. In the event of an error, there
must be no dangerous carry-over of voltage (single-fault security).
ASSEMBLY, COMMISSIONING, MODIFICATION
Assembly, commissioning, modification and retrofitting may only be carried out by qualified
personnel. Before starting work, the device must be disconnected from the power supply.
The wiring must be carried out and checked according to the intended use. Reliable function
is only guaranteed if the device is installed in a dust- and moisture-proof switch cabinet or a
housing (min. IP54). Separate cable routing for the high voltage on the one hand and all
other circuits on the other is recommended
SWAPPING AND REVERSING THE CONNECTIONS
Take measures to prevent mix-ups, polarity reversal or manipulation of the connections
DEVICE IN OPERATION
During operation, the input section of the HVT300 is under dangerously high voltage. Do not
remove any protective cover (blind cap between the terminal blocks) or cables on the
terminals during operation. Suitable / effective protective circuits must be provided for
inductive loads on the relay circuits. The protective circuit with suppressor diodes or varistors
must always be in parallel with the load.
BROKEN DEVICE
The device may be damaged after an error. Correct and safe operation is then no longer
guaranteed and the device should therefore be replaced. Only the manufacturer or a person
authorized by the manufacturer may open the housing and repair the device. Otherwise any
guarantee will be lost.
DECOMMISSIONING AND DISPOSAL
The device must be disposed of in accordance with environmental regulations. It must be
ensured that a defective device cannot be used again.
ELECTROSTATIC DISCHARGE
Potentially electrostatic components may be destroyed by voltage that is far below the limits
of human perception. Such voltage occurs even when you touch a component or electrical
connections of a component and are not electrostatically discharged. The damage that
occurs to a component because of overvoltage usually cannot be detected immediately and
does not become noticeable until after a longer operating period.
The device contains components that can be damaged or destroyed by electrostatic
discharge. When handling the device, observe the necessary safety measures against
electrostatic discharge (ESD) in accordance with EN 61340-5-1 and EN 61340-5-2.

7/2021
7
4 Technical Data
4.1 Certificate
Functional Safety SIL 2 according to IEC 61508
4.2 Analog Input E1 (Terminals T-17/18 and T-21)
Analog Input E2 (Terminals T-19 and T-22)
For the measuring inputs a filter of 1st order (0.1 –99.9 s) can be parameterized! Galvanic isolation to all circuit
parts and supply.
Inputs E1 and E2
Measurement range: 0 .... +/- 1000 VDC (continuously configurable)
Overloadability: max. 1200 VDC (permanent)
Input resistance: 6 M, 12 M(optional)
Accuracy
Typical: < 0,1 % vom Endwert
Maximum: < 0,05 % vom Endwert
4.3 Analog Ouput (Terminals T-11 + T-12)
For the analog outputs a filter of 1st order (0.1 –9.9 s) can be parameterized!
Enhanced galvanic isolation to all circuit elements and power supply!
Constant current
Max. range: 0...22 / 22...0 mA
Standard range: 0/4-20 mA
Load: max. 500 Ωat 22 mA
Accuracy: 0,02 % of final value
Load effect: < 0,005 %
Rise time: min. 250 ms, max. 250 ms + 9,9 s + 99,9 s
4.4 Contact outputs Rel1/Rel2 (Terminals T-1 + T-2 and T-5 + T-6)
Configuration: WINSMART -Software
Contact: normally open
Alarm delay: freely configurable between 0 ... 9,9 s
Switching hysteresis: freely configurable between 0 ... 99,9 %
Operating mode: open or closed current principle
Alarm function: Signal monitoring and indication of maintenance requirement
Switching power: max. 62,5 VA / max. 30 W
Switching voltage: max. 125 V AC or 110 V DC
Switching current: max. 1 A
Min. contact voltage: 10 mVDC
Min. contact current: 10 µA
Contact material: AG Pd + 10 µAu
Relay type: according to IEC 947-5-1 / EN60947
4.5 SIL2 contact outputs REL3/REL4 (Terminals T-7 + T-8 and T-9 + T-10)
Operating mode: closed current
Alarm function: safety function activated
Contact position: closed in good condition
Switching power: max. 62,5 VA / max. 30 W
Switching voltage: max. 125 V AC or 110 V DC
Switching current: max. 1 A
Min. contact voltage: 10 mV DC
Min. contact current: 10 µA
Contact material: AG Pd + 10 µAu
Relay type: according to IEC 947-5-1 / EN60947
The safety function is activated by relays Rel3 and Rel4, which operate on the closed current principle and whose
setting cannot be parameterized. The relay contacts, which are closed when in good condition, offer the possibility
of series connection with the relay contacts of other devices for collective alarm monitoring. A further series
connection with REL1, REL2 or the analogue output and the contacts of REL3 and REL4 is also possible.

7/2021
8
4.6 Status LEDs
Power: green LED Supply
Error/SIL2-Alarm: red LED Safety function activated
Alarm (REL1, REL2): yellow LEDs Limit alarm
4.7 USB Interface (front socket)
Galvanic isolation to all other circuit elements and power supply!
USB type: USB 2.0
4.8 RS485 Interface (T-BUS contacts T-B1 + T-B2)
Galvanic isolation to all other circuit elements and power supply!
RS485: half duplex, without scheduling
Baud rate: 9600 bps
Device address: 1-248
4.9 Supply (Terminals T-3 + T-4 or T-B4 + T-B5)
Supply 24 VDC (min. 20 VDC, max. 30 VDC)
Power consumption 1,4 W (at 24VDC and 4 mA Output)
1,9 W (at 24VDC, 20 mA Output and 4 relays online)
PE grounding T-BUS contact: T-B3; additional PE connection by ME-MAX PCB contact
when mounted on a grounded DIN-Rail.
4.10 General Data
Environmental
Operation: -10 °C … +60 °C
Storage/Transport: -20 °C … +70 °C
Perm. Humidity: 10 % … 95 % r. H. without condensation
Max. operating altitude: ≤ 2000m above mean sea level
Temperature coefficient
Maximum: < 0,01 %/K
Typical: < 0,005 %/K
Galvanic isolation
3 port isolation: Input / output / supply
Input / Output: 4,3 kV AC test voltage
Input / Supply: 4,3 kV AC test voltage
Overvoltage category: CAT II: 1000 V AC/DC pollution level 1 according to IEC 61010-1
Electrical connection
T-1 …T-12 (4-pole): screwed connector / grey / 5,0 mm2
T-17 … T-23 (3-pole): screwed connector / grey / 7,5 mm2
T-B1 …T-B5 (5-pole): TBUS connector / 4,0 mm2
Wire: 0,2 mm2 / 2,5 mm2(min/max)
Braid: 0,2 mm2 / 2,5 mm2(min/max)
Conductor cross-section: AWG/kcmil = 14/24 (min/max)
Stripping length: 7 mm
Connection: pluggable screw
Tightening torque: 0,5 … 0,6 Nm
PCB
Material: FR4
CTI range: PLC Group 1 (>400 V to 599 V)
Housing
Material: Polyamide –light grey
Protection class: IP20
Flammabillity class/UL 94: V0
Weight: 250 g
Form of construction: terminal box for mounting rails
Housing mounting type: 35 mm DIN-rail
Assembly/installation: arbitrary

7/2021
9
4.11 Standards
EMCProduct Family Standard EN 61326-1
Emission: Class A
Immunity: Industry area
LVD Low Voltage Directive IEC 61010-1
4.12 Self-Monitoring
Measuring input: 1 monitoring measurement circuit with adjustable tolerance
Analog output: 1 monitoring measurement circuit with adjustable tolerance
Supply voltage: 2 monitoring measurement circuit
Reference voltage: redundant and monitored
EPROM memory: cycling tests to ensure relative integrity
µP-Controller: self monitoring / DuoTec®-Technology
Relay (REL1 … REL4): indirect contact monitoring
4.13 Installation
The ME-MAX housing can be combined with a 5-pin TBUS connector / DIN rail connector. The RS485 interface
and the supply voltage can be easily wired through the TBUS connector that is snapped into the DIN rail. The TBUS
connection is self-establishing in the grid of the devices involved. This makes time-consuming pre-configuration or
reworking the TBUS connection on site obsolete.
Technical Data:
5-pole connector in
3.81mm pitch
8A maximum contact load
Gold plating ensures high
contact quality.
Designed for mounting to
NS 35/7.5 or NS 35/15 DIN
rails
Important note:
The device may only be
attached to or removed
from the TBUS-Connection
when power is switched off!
Attach the housing to a 35
mm DIN-rail according to
EN 60715. For installation,
mount the snap-lock to the
DIN-rail and lock it. For
dismounting, use a screw-
driver to unlock the snap-
lock.
4.13 Electrostatic Discharge
Electrostatically sensitive assemblies can be destroyed by voltages that are far below the human perception limit.
These voltages occur when you touch a component or electrical connections of a module without being
electrostatically discharged. The damage that occurs to a module due to an overvoltage can usually not be
recognized immediately, but only becomes noticeable after a long period of operation. The device contains
components that can be damaged or destroyed by electrostatic discharge. When handling the device, observe
the necessary safety measures against electrostatic discharge (ESD) in accordance with EN 61340-5-1 and EN
61340-5-2.
Fig. 1
TBUS-Connection
TBUS-Connector with DIN-rail
Mounting and dismounting of a
DIN-rail housing

7/2021
10
4.14 Housing Dimensions
4.15 Block diagram
Fig. 2
Fig. 3

7/2021
11

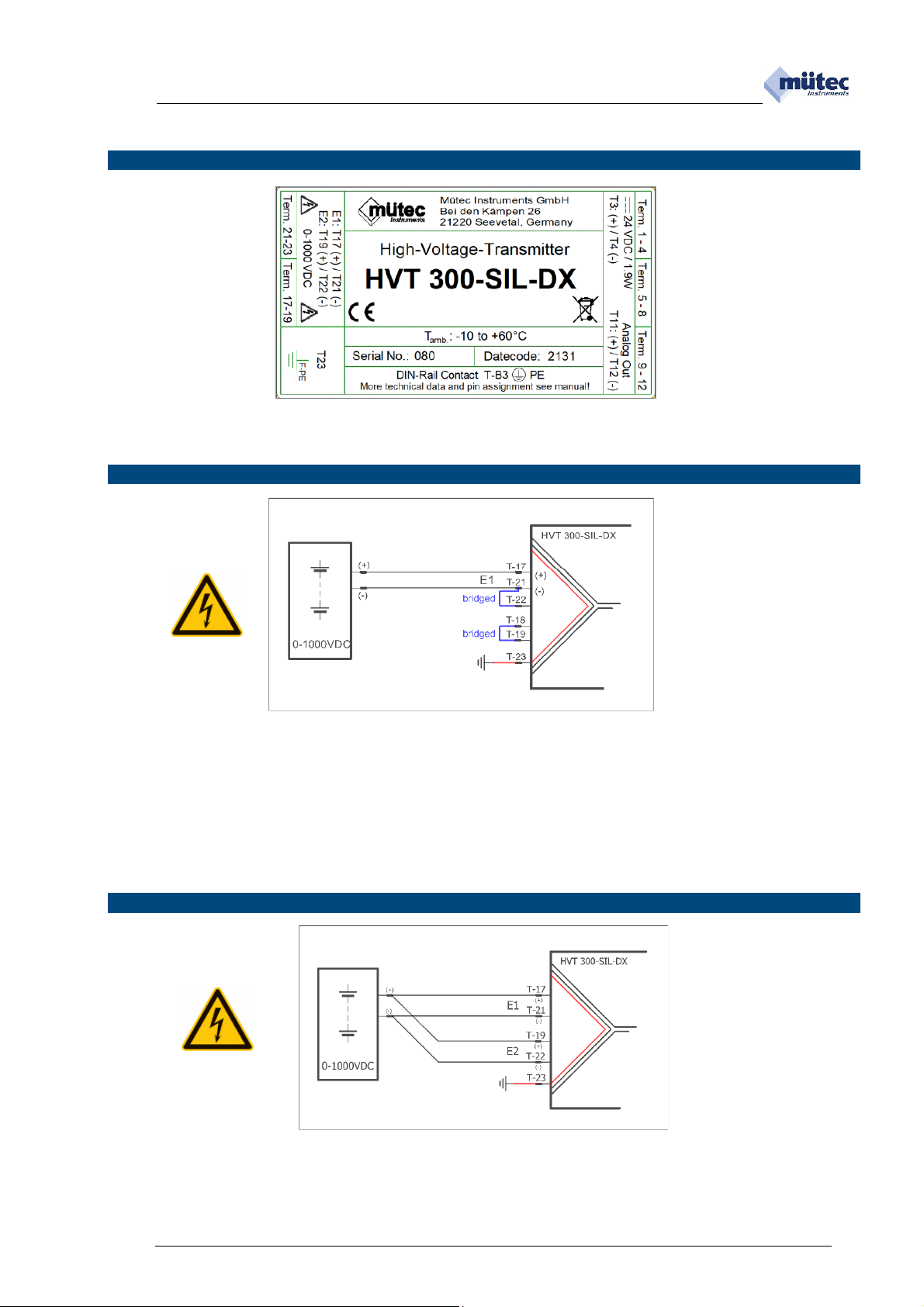

4.16 Nameplate
5 Variants of Input Connections
5.1 Absolute Value Measurement
The absolute value measurement with only one measuring input is a possibility of
interconnection with the signal source (e.g. 0-1000 VDC) and the transmitter, if the
terminals T-18 and T-19 are bridged
However, it does not meet the requirements of the IEC 61508 standard according to SIL2.
A line break in the measuring circuit would be detected by the transmitter with 0 VDC, since
the connection to the Measurement input E1 is interrupted. However, the maximum voltage
value in the signal source could still be 1000 VDC and mean a massive danger or danger to
life!
5.2 Redundant Absolute Value Measurement
A line break monitoring is available for all 4 input lines, if the measurement signal has a
value > 0 V. The transmitter then detects the line break and triggers the safety function. A
series connection of the mA output with the REL3 or REL4 contact (NO) ensures that with
the triggering of the safety function, the mA value is always 0 mA.
Fig. 4
Fig. 5
Fig. 6

7/2021
12
6 Jumper (Option)
Jumper JP1 und JP2:
Depending on the position of the jumper JP1 for the contact of the relay REL-1, this is
made available as a break or make contact at the terminals T-1 and T-2. Depending on
the position of the jumper JP2 for the contact of the relay REL-2, this is provided as a
break or make contact on the terminals T-6 and T-15.
Der Zugang zu den Jumpern erfolgt über entsprechend gekennzeichnete Ausbrüche auf
der rechten Seite des Hutschienengehäuses.
7 Loop resistance mA Output
Analog output (AA) data for constant current: max. 22 mA at a load ≤ 500 Ω
The maximum load for the analog output is the sum of the forward and return lines and the
input resistance (shunt) of the following module:
RLoad, max = 2x RLine + RShunt ≤ 500 Ω
The following applies to the line resistance:
RLine = l x ϱ x A-1 [Ω] ϱ = 0,0178 [Ω mm2m-1]
A= 0,25 x d2x π[mm2]
Maximum line length (distance):
l = 0,5 (500 Ω - RShunt) x ϱ-1 x A [m]
Wire length depending on the wire cross section and the shunt resistor:
RShunt
[Ω]
Ldiameter
[mm]
Lcross-section
[mm2]
LLength
[m]
LLength
[km]
100
0,6
0,283
3179
3,18
0,7
0,385
4325
4,33
0,8
0,502
5640
5,64
0,9
0,636
7146
7,15
1,0
0,785
8820
8,82
RShunt
[Ω]
Ldiameter
[mm]
Lcross-section
[mm2]
LLength
[m]
LLength
[km]
200
0,6
0,283
2385
2,39
0,7
0,385
3244
3,24
0,8
0,502
4230
4,23
0,9
0,636
5360
5,36
1,0
0,785
6615
6,62
RShunt
[Ω]
LDurchmesser
[mm]
LQuerschnitt
[mm2]
LLänge
[m]
LLänge
[km]
300
0,6
0,283
1590
1,59
0,7
0,385
2163
2,16
0,8
0,502
2820
2,82
0,9
0,636
3573
3,57
1,0
0,785
4410
4,41

7/2021
13

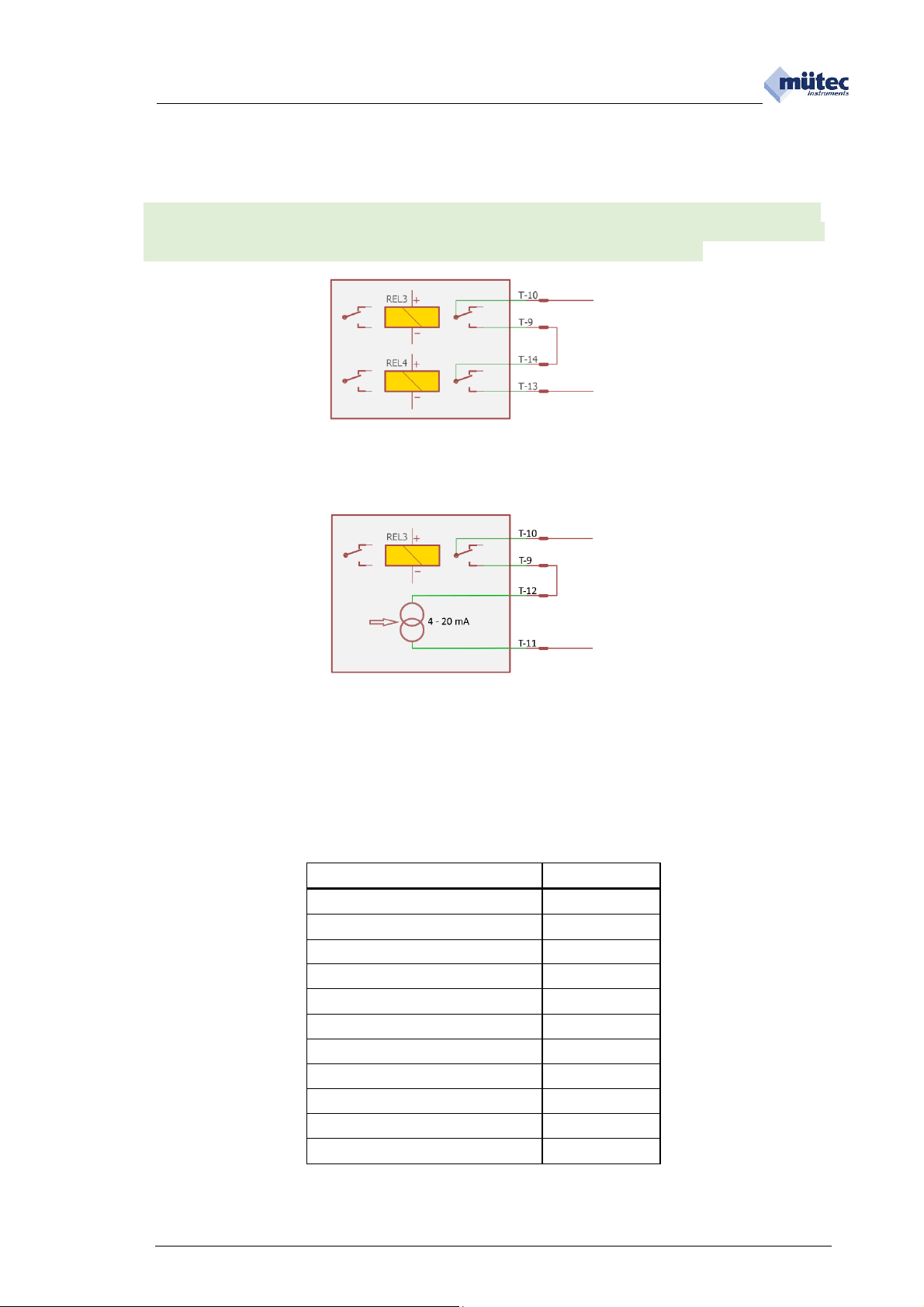

8 Safety Function
The safety function is a function that is carried out by a safety-related E / E / PE system, a
safety-related system of other technology or external risk reduction facilities. The goal is to
achieve or maintain a safe system state in case of a a dangerous incident.
The signaling of the safety function with REL3 + REL4 is fixed in the device and cannot be
changed. The relays are operated according to the closed-circuit principle, so that in the good
state (safety function is not activated) the contacts on T-9/10 and T-13/14 are always closed.
The safety-related mA output can also be integrated for reporting the safety function, as
shown in Figure 9. This enables the highest availability of the safety function. The permissible
deviation from the setpoint between 0.2% and 5.0% can be parameterized for the analog
output as well as for the input signal. Any exceeding of these limit values is recognized as an
error and signaled externally with an analog value of 0 mA.
9 Safety-Relevant Features
Properties
FMEDA
Category
SIL 2
Device type
Type B
HFT
0
SFF
95 %
DC
89 %
Safe failure rate
331 FIT
Safe detected failure rate
0 FIT
Safe undetected failure rate
331 FIT
Dangerous failure rate
362 FIT
Dangerous detected failure rate
325 FIT
Dangerous undetected failure rate
37 FIT
Fig. 7
Fig. 8

7/2021
14
10 Safety-Oriented Applications for SIL 2
Safety integrity requirements (see Technical Report 123.493-10 –rev. 1.0)
Error rates:
Type B-Gerät (according to EN 61508-2), Safety Integrity Level (SIL) 2
λsd
λsu
λdd
λdu
SFF
0
331
325
37
95%
λsu includes errors that do not lead to error triggering!
SFF = Safe Failure Fraction
FIT = Failure in Time (1 FIT = 1 Failure / 109h)
PFDAVG values of the MSK 200-SIL-DX:
The beta factor is 2% and was derived from IEC / EN 61508-6, Appendix D.
T [Proof]
1 Year
5 Years
10 Years
20 Years
PFDAVG
1,8E-4
8E-4
1,6E-3
3E-3
% SIL 2
1,8%
8%
16 %
30%
PFDAVG = Average probability of failure on demand
T [Proof] = Detection test interval
The calculated PFDAVG values are within the permissible range for SIL 2 in accordance with Table 2 of IEC /
EN 61508-1 and meet the requirement not to cover more than 16 % of the permissible range after 10 years.
PFSAVG for 1 year: 1,4E-3
PFSAVG = Average probability of safe failure
Failure limit:
The operating mode with a low request rate is used as a basis. The proportion of the MSK 200-SIL-DX
at the PFDAVG value of the entire safety chain should not exceed 30%.
Signal source
35 %
MSK 200-SIL-DX
30 %
Signal processing (PLS)
35 %
Conditions:
•The failure rates of the components used are constant over the period of use.
•The spread of errors by the device in the system is not considered.
•The repair time (= exchange) should be less than 72 hours.
•The average temperature at which the device is to be used is + 40 ° C.
Normal industrial conditions are assumed.
The specified error rates refer to an ambient temperature of + 40 ° C.
For an ambient temperature of + 60 ° C, the error rates must be a factor of
2.5 be multiplied. This factor is based on experience.
Verification test:
Take the right steps to avoid misuse. By simulating the values <3.6 mA and >22 mA, it can be verified
whether the subsequent devices in the signal chain can also process the signal outside the measuring range.
In the event of an error, the device must be replaced with an equivalent one. Then restore the full function of
the safety circuit. Finally, check normal operation.
