MuxLab 500554 User manual

Bluetooth Audio to Dante Interface
User Manual
500554
© MuxLab Inc. 2023 1 94-001007-A/SE-001007-A

Bluetooth Audio to Dante Interface
Table of Contents
1. Safety Precautions....................................................................................................................................................3
2. Introduction................................................................................................................................................................4
3. Features.......................................................................................................................................................................4
4. Package Contents...................................................................................................................................................4
5. Specifications............................................................................................................................................................5
6. Product Overview....................................................................................................................................................5
7. Operation....................................................................................................................................................................6
7.1. Power On.............................................................................................................................................................6
7.2. Pairing and Connect......................................................................................................................................6
7.3. Routing Configuration....................................................................................................................................6
7.4. Bluetooth Name Modification....................................................................................................................7

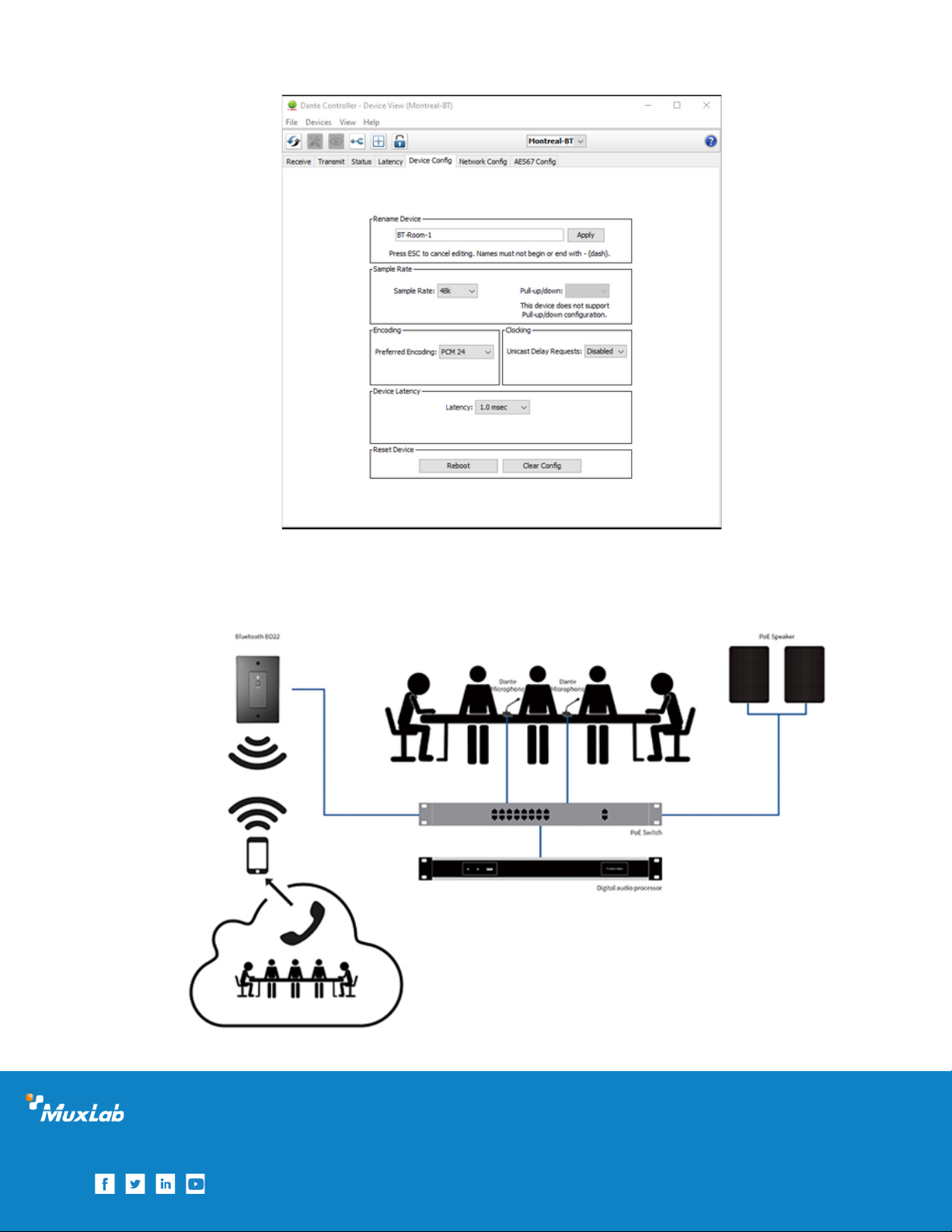

8. Application Diagram...............................................................................................................................................8
© MuxLab Inc. 2023 2 94-001007-A/SE-001007-A

Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury.
Do not dismantle the housing or modify the module. It may result in electrical shock or
burns.
Do not open or remove the housing of the device as you may be exposed to dangerous
voltage or other hazards.
To prevent fire or shock hazard, do not expose the unit to rain, moisture and do not install
this product near water. Keep the product away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an
object or liquid falls or spills on the housing, unplug the module immediately.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
Using supplies or parts not meeting the product specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
Install the device in a place with adequate ventilation to avoid damage caused by
overheat.
Unplug the power when left unused for a long period of time.
Information on disposal of devices: do not burn or mix with general household waste,
please treat them as normal electrical waste.
1. Safety Precautions
To ensure the best performance from the product, please read all instructions carefully before
using the device. Save this manual for future reference.
Copyright Notice
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated
without the express permission of MuxLab Inc. Product specifications and information in this
document are for reference only, and the content may be updated from time to time without
prior notice.
© MuxLab Inc. 2023 3 94-001007-A/SE-001007-A
Bluetooth Audio to Dante Interface

Simple and intuitive Bluetooth pairing
Bluetooth 5.0 for longer range and more stable connections
Compatible with most Apple smartphones, iPads and Android tablets
Power supply and audio transmission integrated in one cable
Designed to be compatible with standard single gang US wall boxes with Decora
faceplates.
Shows the connection status through LED indicator light.
Supports PoE (IEEE802.3af)
3. Features
2. Introduction
The Bluetooth Audio to Dante Interface (Model 500554) is a two-way audio transmission
panel for Bluetooth and Dante. It connects to mobile phones, iPad, and other devices through
Bluetooth interface, and converts the received audio signal into digital signal transmission
through Dante network. Power, control, and audio data are transmitted by only one network
cable, and there is no need to worry about ground loops or other audio issues. The Bluetooth
Audio to Dante Interface is designed to be compatible with standard single gang US wall
boxes with Decora faceplates.
© MuxLab Inc. 2023 4 94-001007-A/SE-001007-A
One (1) Bluetooth Audio to Dante Interface
One (1) User manual (available via download)
4. Package Contents
Notes ： Confirm that the product and accessories are all included. If not, please contact the
supplier from which you purchased the unit.
Bluetooth Audio to Dante Interface

Bluetooth interface
Dante interface
Frequency response
Floor noise
THD
Operating temperature
Sampling rate
Operating humidity
Dimensions (LxWxH)
Power consumption
© MuxLab Inc. 2023 5 94-001007-A/SE-001007-A
5. Specifications
Bluetooth 5.0, Stereo I/O
Typical range is 15 - 23 m (50 - 75 ft) max
RJ45 interface, stereo input/output
20Hz-20kHz
48kHz 24bit
<0.005%
Specification
0℃ ~ +40℃
-90dB
5~95%
123.5mm × 79mm × 35mm
2W
156g
Form Factor 1 Gang US
Warranty
Order Information
2 years
500554 Bluetooth Audio to Dante Interface (UPC: 627699005545)
Bluetooth range
Net Weight
6. Product Overview
1
3
2
Press the button to enable Bluetooth pairing mode.
No
Connect to PoE switch
4
Name Function Description
Indicates that the Bluetooth connection is successful
Red Indicator
Bluetooth pairing button
RJ45 Network Interface
Indicates Bluetooth disconnected
Blue Indicator
Bluetooth Audio to Dante Interface
