MW HDR-15 Series User manual

Installation Manual
Type：HDR DIN rail power supply（Series：HDR-15, HDR-30, HDR-60, HDR-100）
HDR-15-5 INPUT: 100-240VAC 0.5A 50/60Hz OUTPUT: 5V 2.4A
HDR-15-12 INPUT: 100-240VAC 0.5A 50/60Hz OUTPUT: 12V 1.25A
HDR-15-15 INPUT: 100-240VAC 0.5A 50/60Hz OUTPUT: 15V 1.0A
HDR-15-24 INPUT: 100-240VAC 0.5A 50/60Hz OUTPUT: 24V 0.63A
HDR-15-48 INPUT: 100-240VAC 0.5A 50/60Hz OUTPUT: 48V 0.32A
HDR-30-5 INPUT: 100-240VAC 0.88A 50/60Hz OUTPUT: 5V 3.0A
HDR-30-12 INPUT: 100-240VAC 0.88A 50/60Hz OUTPUT: 12V 2.0A
HDR-30-15 INPUT: 100-240VAC 0.88A 50/60Hz OUTPUT: 15V 2.0A
HDR-30-24 INPUT: 100-240VAC 0.88A 50/60Hz OUTPUT: 24V 1.5A
HDR-30-48 INPUT: 100-240VAC 0.88A 50/60Hz OUTPUT: 48V 0.75A
HDR-60-5 INPUT: 100-240VAC 1.8A 50/60Hz OUTPUT: 5V 6.5A
HDR-60-12 INPUT: 100-240VAC 1.8A 50/60Hz OUTPUT: 12V 4.5A
HDR-60-15 INPUT: 100-240VAC 1.8A 50/60Hz OUTPUT: 15V 4.0A
HDR-60-24 INPUT: 100-240VAC 1.8A 50/60Hz OUTPUT: 24V 2.5A
HDR-60-48 INPUT: 100-240VAC 1.8A 50/60Hz OUTPUT: 48V 1.25A
HDR-100-12 INPUT: 100-240VAC 3.0A 50/60Hz OUTPUT: 12V 7.1A
HDR-100-15 INPUT: 100-240VAC 3.0A 50/60Hz OUTPUT: 15V 6.13A
HDR-100-24 INPUT: 100-240VAC 3.0A 50/60Hz OUTPUT: 24V 3.83A
HDR-100-48 INPUT: 100-240VAC 3.0A 50/60Hz OUTPUT: 48V 1.92A
HDR-100-12N INPUT: 100-240VAC 3.0A 50/60Hz OUTPUT: 12V 7.5A
HDR-100-15N INPUT: 100-240VAC 3.0A 50/60Hz OUTPUT: 15V 6.5A
HDR-100-24N INPUT: 100-240VAC 3.0A 50/60Hz OUTPUT: 24V 4.2A
HDR-100-48N INPUT: 100-240VAC 3.0A 50/60Hz OUTPUT: 48V 2.1A
Introduction
HDR is a DIN rail power supply series with ultra slim appearance and full range AC input (100-240Vac). The series
conforms to EN6100-3-2, the norm the European Union regulates for harmonic current. With plastic housing, it can
effectively prevent user from electric hazards. Like other Mean Well’s DIN series, they can be mounted on a TS35
Standard DIN rail.
Installation
（1）Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit
in use to prevent it from overheating. Also a 10-15 cm clearance must be kept when the adjacent device is a
heat source.

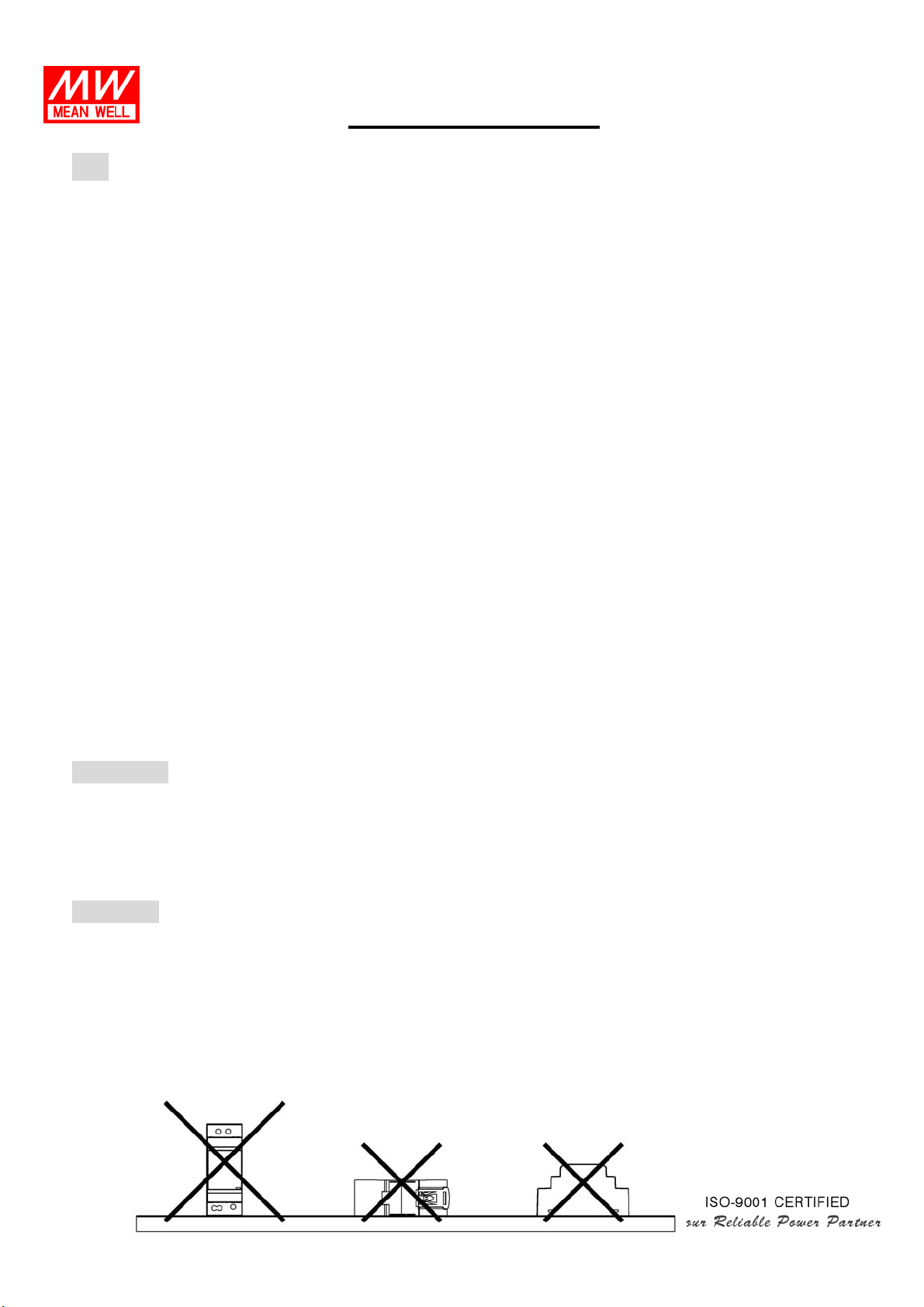

（2）The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on
the top. Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, is not
allowed.

Installation Manual
3
12
4

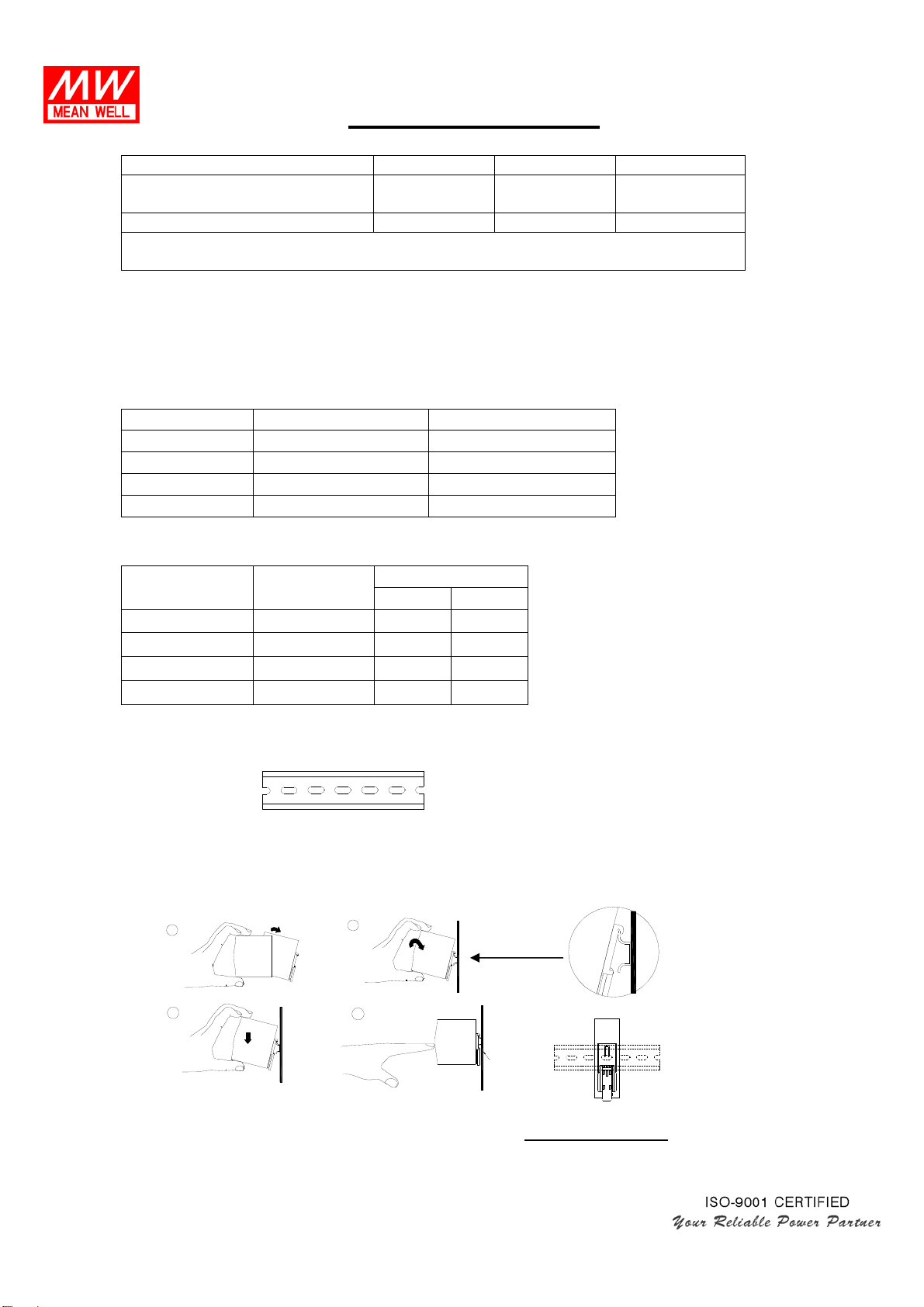

（3）Use copper wire only, and recommended wires are shown as below.
AWG 18 16 14
Rated Current of Equipment
(Amp) 7 10 15
Cross-section of Lead(mm2) 0.8 1.3 2.1
Note：Current each wire carries should be de-rated to 80% of the current suggested
above when using 4-6 wires connected to the unit.
Make sure that all strands of each stranded wire enter the terminal connection and the screw terminals are
securely fixed to prevent poor contact. If the power supply possesses multi-output terminals, please make
sure each contact is connected to wires to prevent too much current stress on a single contact.
（4）Use wires that can withstand temperatures of at least 80°C, such as UL1007.
（5）Recommended wire strapping length is 6mm (0.236”).
（6）Recommended screwdriver is 3mm, slotted type.
（7）The recommended torque setting for terminals is shown as below.
Model I/P O/P
HDR-15 5 kgf-cm (4.4 Lb-in) 5 kgf-cm (4.4 Lb-in)
HDR-30 3.4 kgf-cm (3.0 Lb-in) 5 kgf-cm (4.4 Lb-in)
HDR-60 3.4 kgf-cm (3.0 Lb-in) 5 kgf-cm (4.4 Lb-in)
HDR-100 3.4 kgf-cm (3.0 Lb-in) 5 kgf-cm (4.4 Lb-in)
（8）Suggested fuse and maximum number of the HDR that can be connected to a circuit breaker at 230V are shown
as below.
Model Fuse
Circuit breaker
C16 D16
HDR-15 T2A/L250V 32 51
HDR-30 T3.15A/H250V 12 24
HDR-60 T3.15A/H250V 7 14
HDR-100 T3.15A/H250V 7 8
（9）Mounting Instruction：
Mount as shown in figure only, with input terminals down, or else sufficient cooling will not be possible.
Admissible DIN rail：TS35/7.5 or TS35/15
For rail fastening：
（a）Tilt the unit slightly rearwards.
（b）Fit the unit over top hat rail.
（c）Slide it downward until it hits the stop.
（d）Press against the bottom for locking.
（e）Shake the unit slightly to check the locking action.
（10）For other information about the products, please refer to www.meanwell.com for details.
"Click"

Installation Manual
Warning / Caution !!
“CAUTION：FOR USE IN A CONTROLLED ENVIRONMENT. REFER TO MANUAL FOR ENVIRONMENTAL CONDITION”
ATTENTION: A UTILISER DANS UN ENVIRONNEMENT CONTROLE. REFEREZ VOUS AU MANUEL POUR
LES CONDITIONS D’ENVIRONNEMENT.
（1）Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do
not remove the case of the power supply by yourself!
（2）Risk of electric arcs and electric shock (danger to life). Connecting both the primary and the secondary sides
together is not allowed.
（3）Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection!
（4）Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
（5）Only install the unit in a pollution degree 2 environment (Note.1).
（6）Please do not install the unit in places with high moisture or near the water.
（7）The maximum operating temperature is 50°C for the HDR-15/30; 45°C for the HDR-60/100, 40°C for the
HDR-100N, please do not install the unit in places with high ambient temperature or near fire source.
（8）Output current and output wattage must not exceed the rated value on its specification.
（9）Disconnect system from supply voltage:
Before commencing any installation, maintenance or modification work: Disconnect your system from
supply voltage. Make sure that inadvertent connection in circuit will be impossible!
Note.1: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become
conductive due to occasional condensation. Generally refer to dry, well-ventilated locations, such as
control cabinets.
