  9. MW SDR-75-12 User manual

MW SDR-75-12 User manual

Installation Manual
Type:SDR DIN rail power supply
(Series:SDR-75, SDR-120, SDR-240, SDR-480, SDR-480P, SDR-960)
SDR-75-12 INPUT: 100-240VAC 1.55A 50/60Hz OUTPUT: 12V 6.3A
SDR-75-24 INPUT: 100-240VAC 1.55A 50/60Hz OUTPUT: 24V 3.2A
SDR-75-48 INPUT: 100-240VAC 1.55A 50/60Hz OUTPUT: 48V 1.6A
SDR-120-12 INPUT: 100-240VAC 1.4A 50/60Hz OUTPUT: 12V 10A
SDR-120-24 INPUT: 100-240VAC 1.4A 50/60Hz OUTPUT: 24V 5A
SDR-120-48 INPUT: 100-240VAC 1.4A 50/60Hz OUTPUT: 48V 2.5A
SDR-240-24 INPUT: 100-240VAC 2.6A 50/60Hz OUTPUT: 24V 10A
SDR-240-48 INPUT: 100-240VAC 2.6A 50/60Hz OUTPUT: 48V 5A
SDR-480-24 INPUT: 100-240VAC 5A 50/60Hz OUTPUT: 24V 20A
SDR-480-48 INPUT: 100-240VAC 5A 50/60Hz OUTPUT: 48V 10A
SDR-480P-24 INPUT: 100-240VAC 5A 50/60Hz OUTPUT: 24V 20A
SDR-480P-48 INPUT: 100-240VAC 5A 50/60Hz OUTPUT: 48V 10A
SDR-960-24 INPUT: 200-240VAC 6A 50/60Hz OUTPUT: 24V 40A
SDR-960-48 INPUT: 200-240VAC 6A 50/60Hz OUTPUT: 48V 20A
Introduction
SDR is a DIN rail power supply series with a 150% peak load capability (3 seconds) and high efficiency of up to 94%.
Like other Mean Well’s DIN series, they can be mounted on a TS35 Standard DIN rail.
Installation
(1)Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit
in use to prevent it from overheating. Also a 10-15 cm clearance must be kept when the adjacent device is a
heat source.
(2)The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on
the top. Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, is not
allowed.
Installation Manual
3
1
2
4
(3)Use copper wire only, and recommended wires are shown as below.
AWG
18
16
14
12
10
Rated Current of
Equipment (Amp)
6A
6-10A
13-16A
16-25A
25-32A
Cross-section of
Lead(mm2)
0.75
1.00
1.5
2.5
4
Note: 1. Current each wire carries should be de-rated to 80% of the current suggested
above when using 5 or more wires connected to the unit.
2. The maximum allowable wire cross-sectional area for the terminal of the
SDR-75 is 12AWG/2.5 mm2 .
Make sure that all strands of each stranded wire enter the terminal connection and the screw terminals are
securely fixed to prevent poor contact. If the power supply possesses multi-output terminals, please make
sure each contact is connected to wires to prevent too much current stress on a single contact.
(4)Use wires that can withstand temperatures of at least 80°C, such as UL1007.
(5)Recommended wire strapping length is 5mm (0.197”).
(6)Recommended screwdriver is 4mm, slotted type.
(7)The recommended torque setting for terminals is shown as below.
Model
I/P
O/P
SDR-75
4 kgf-cm (3.5 Lb-in)
4 kgf-cm (3.5 Lb-in)
SDR-120
6.3 kgf-cm (5.5 Lb-in)
8 kgf-cm (7 Lb-in)
SDR-240/480/480P
5 kgf-cm (4.4 Lb-in)
8 kgf-cm (7 Lb-in)
SDR-960
10 kgf-cm (9 Lb-in)
8 kgf-cm (7 Lb-in)
(8)Suggested fuse and maximum number of the SDR PSUs that can be connected to a circuit breaker at 230V are
shown as below.
Model
Fuse
Circuit breaker
C16
D16
SDR-75
T3.15A/L250V
10
12
SDR-120
T4A/L250V
7
14
SDR-240
T5A/L250V
4
8
SDR-480
T8A/L250V
4
4
SDR-480P
T8A/L250V
4
4
SDR-960
F10A/H250V
2
2
(9)Mounting Instruction:
Mount as shown in figure only, with input terminals down, or else sufficient cooling will not be possible.
Admissible DIN rail:TS35/7.5 or TS35/15
For rail fastening:
(a)Tilt the unit slightly rearwards.
(b)Fit the unit over top hat rail.
(c)Slide it downward until it hits the stop.
(d)Press against the bottom for locking.
(e)Shake the unit slightly to check the locking action.
"Click"
Installation Manual

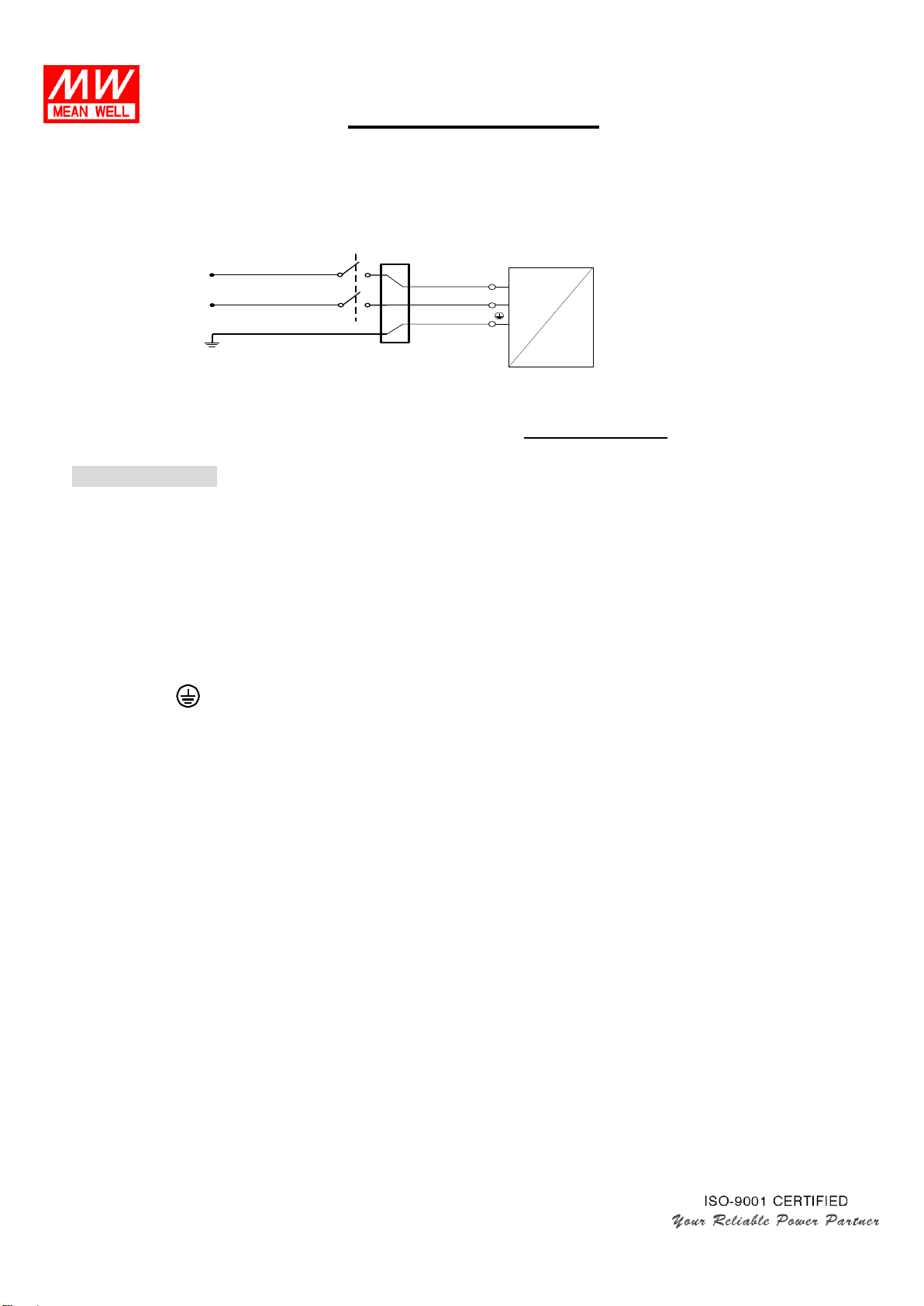

(10)For SDR-960, if it is necessary for your system to meet EN61204-3 Radiation class B. Then, attaching a ferrite
core clamp filter to the AC cable, as close as possible to the AC source, can fulfil the radiated emissions
requirements. The wiring is shown below. There are compatible models including ZCAT2235-1030A by TDK,
ZCAT12V-BK by TDK and KCF-130-B by KING CORE.
(11)For other information about the products, please refer to www.meanwell.com for details.
Warning / Caution !!
(1)Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do
not remove the case of the power supply by yourself!
(2)Risk of electric arcs and electric shock (danger to life). Connecting both the primary and the secondary sides
together is not allowed.
(3)Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection!
(4)Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
(5)Only install the unit in a pollution degree 2 environment (Note.1).
(6)Please do not install the unit in places with high moisture or near the water.
(7)The maximum operating temperature is 50°C for SDR-960 series and 60°C for SDR-75/120/240/480/480P
series, please do not install the unit in places with high ambient temperature or near fire source.
(8)The FG ( ) must be connected to PE (Protective Earth).
(9)Output current and output wattage must not exceed the rated value on its specification.
(10)SDR-960 is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
(11)Disconnect system from supply voltage:
Before commencing any installation, maintenance or modification work: Disconnect your system from
supply voltage. Make sure that inadvertent connection in circuit will be impossible!
(12)For continued protection against risk of fire, replace only with same type and rating of fuse.
Pour ne pas compromettre la protection contre les risqué d’incendie, remplacer par un fusible de même
type et de memes caractéristiques nominales.
Note.1: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become
conductive due to occasional condensation. Generally refer to dry, well-ventilated locations, such as
control cabinets.
AC/N
AC/L
FG
AC
DC
CB
LIVE
NEUTRAL
PE
Clamp Filter
Installation Manual
Manufacturer:
MEAN WELL ENTERPRISES Co., LTD.
No.28, Wuquan 3rd Rd., Wugu Dist.,
New Taipei City 24891, Taiwan
Tel: +886-2-2299-6100
Web: www.meanwell.com
Branch Office:
China
MEAN WELL (GUANGZHOU)
ENTERPRISES Co., LTD.
2F, A Building, Yuean lndustry Park,
Huangcun,Dongpu Yown, Tianhe
District, Gungzhou, China
Post Code:510660
Tel: +86-20-2887-1200
Web: www.meanwell.com.cn
U.S.A.
MEAN WELL USA, INC.
44030 Fremont Blvd., Fremont,
CA 94538, U.S.A.
Tel: +1-510-683-8886
Web: www.meanwellusa.com
Europe
MEAN WELL EUROPE B.V.
Langs de Werf 8, 1185XT
Amstelveen, The Netherlands
Tel: +31-20-758-6000
Web: www.meanwell.eu
