MX HEALTH NEB04 User manual

1
SUPER QUIET
PORTABLE
NEBULISER
USER MANUAL
MODEL: NEB04
Nebulise Any Time /
Any Place
Baery / USB
Powered
Superne
Atomising Parcles
HEALTH
User Manual.indd 1 2020/03/30 16:17

2
TABLE OF CONTENTS
Introducon ..........................................3
Intended use .........................................4
Safety precauons .....................................5
Classicaon and explanaon of symbols ..................6
Package contents and overview ..........................7
How to operate with baeries ...........................9
How to operate with adapter ............................11
Cleaning and disinfecon ...............................12
Troubleshoong .......................................15
Specicaons .........................................16
INTRODUCTION
User Manual.indd 2 2020/03/30 16:17

3
The mx™ Portable Nebuliser is a hand held device designed to assist with the
treatment of respiratory condions. The device uses Acve Vibrang Mesh
Technology, which works by converng medicaon prescribed by a medical
physician into an aerosol of microscopic droplets that can be inhaled into the
lungs.
The device is compact, portable, lightweight, and comes in a handy carry
bag making it ideal to use at home or to use whilst travelling. The nebuliser
can be powered via two AA baeries (not included), or via a USB connecon
(included) which can be plugged into an electrical connecon via a simple
plug.
The nebuliser is super quiet and is fully operaonal from any angle.
INTRODUCTION
User Manual.indd 3 2020/03/30 16:17

4
INTENDED USE
Medical purpose
The mx™ Portable Nebuliser is a hand
held device designed to assist with the
treatment of respiratory condions.
The device uses Acve Vibrang Mesh
Technology, which works by converng
medicaon prescribed by a medical
physician into an aerosol of microscopic
droplets that can be inhaled into the
lungs.
Intended paents
This device can be used by paents of
all ages.
It should not be used on paents
who are unconscious, not breathing
spontaneously or suering from a
pulmonary edema.
Recommended operaon environment
This device is ideal for home use or
whilst travelling.
Temperature range:
10°C to 40°C
Humidity: 30 to 85 % RH
Durable period
Main unit 24 months
Medicaon cup 12 months
Precauons for use Warnings and cauons described in the
manual should be observed properly.
SAFETY PRECAUTIONS
Should the desired results not be achieved with correct nebulising of the paent,
please consult your healthcare professional.
User Manual.indd 4 2020/03/30 16:17

5
READ ALL WARNINGS AND INSTRUCTIONS BEFORE YOU USE THIS DEVICE.
As with any medical device, this product may become unusable due to an electrical
outage, baery depleon or mechanical impacon. We recommend that you have
spare baeries and a backup device available.
When you use electrical products, always follow basic safety precauons.
As with any electrical device take parcular care around children.
WARNINGS
Only use this device for medicaons prescribed by your doctor.
• The nebuliser is only intended for respiratory therapy and any other
applicaon of this device is improper and dangerous. The manufacturer
cannot be held liable for any damage caused by improper or incorrect
use.
• Do not share your nebuliser with others. It is intended to be used by
a single user only. If more than one person uses it, there is a risk of
spreading infecous illness.
• Clean all parts of your nebuliser before use, aer each use and aer
extended storage.
• Adult supervision is required when this device is used by children and
individuals who require special assistance.
• Never operate this device if any of the parts are not working properly or
have been damaged.
• Be sure the device has been properly cleaned before use to avoid possible
contaminaon.
• Do not plug in or unplug the Adapter from the electrical outlet with wet
hands.
CAUTIONS
• Do not aempt to clean the nebuliser or accessories with any foreign
objects.
• Avoid dropping the device otherwise it may not funcon normally.
• Keep the device away from direct sunlight, excessive heat or cold to avoid
damaging the baeries.
• Do not aempt to open, repair or modify this device.
• Do not drop any liquids on the main unit or on the Adapter, if you drop
liquids on it, wipe o immediately.
• Follow local laws and recycling plans regarding disposal or recycling of
components, baeries and packaging.
INTENDED USE
SAFETY PRECAUTIONS
User Manual.indd 5 2020/03/30 16:17

6
CLASSIFICATION AND EXPLANATION OF SYMBOLS
Symbols Meaning
Warning / Cauon / Note
Class II equipment
Type BF equipment
Consult instrucons for use
ON / OFF Buon
DC Power source (Direct Current)
Operang temperature limits : 10°to 40°
Storage and delivery temperature limits : -20°to 70°
Operang humidity limits: 30 to 85% R.H.
Storage and delivery humidity limits: 20 to 80% R.H.
Manufacturer
Date of manufacture
Serial number
Batch code
Disposal of Electrical & Electronic Equipment
(WEEE): Do not treat this product as a household
waste.
This device complies with the requirements of the
Medical Devices Direcve
EC REP Authorized representave in the European
Community


- 0473
10°C
40°C
-20°C
70°C
30%
85%
20%
80%
LOT
SN
User Manual.indd 6 2020/03/30 16:17

7

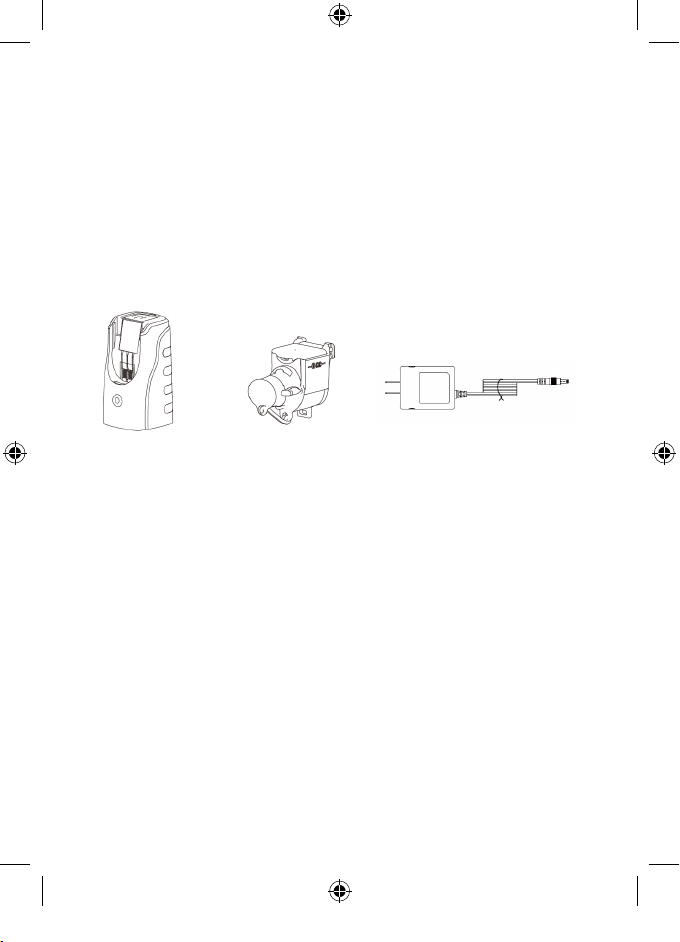

PACKAGE CONTENTS
Check before use
The following items should be included in the box. Please check all parts for
visible damage. Replace any damaged parts before you use this device.
In case of missing parts, malfuncon or damage, please contact the
store, or nearest dealer where you made your purchase.
CLASSIFICATION AND EXPLANATION OF SYMBOLS
Nebuliser unit Medicaon cup
(with cover)
Power adapter
(The adapter might dier
from that shown above.)
Please choose DC
5V/1A adapter, and
the connecon jack
should match a plug
with outer diameter
of 3.5mm, interior
diameter of 1.35mm,
9.5mm in length and
posive polarity.
User Manual.indd 7 2020/03/30 16:17

8
Medicaon Cup Cap
Medicaon Cup
Mesh
Mouthpiece
ON / OFF Buon
Press ON / OFF Buon
to turn on the power.
Electrode
Medicaon Cup Release Buon
Power Indicator•
Press Release Buon to remove the
medicaon cup.
Light indicaons
Green light on: During operaon
Orange light ash: Low power / Malfuncon
No light: Malfuncon
Baery Cover
Power Cable Jack
Power Cable Jack Cover
Boom view (Model no. NEB04)
Main Unit
OVERVIEW
User Manual.indd 8 2020/03/30 16:17

9
HOW TO OPERATE WITH BATTERIES
This device can operate on two baeries
Baery Cover
Clean all parts of your portable nebuliser before use,
aer each use and aer extended storage.
1. Insert the baeries
- Turn the unit upside down,
- Push back and pull up the
baery cover to open it.
- Insert two baeries
according to the baery
polarity indicated inside the
baery compartment.
- Put down and push forward
the baery cover to lock it.
2. Set up the medicaon cup
- Align the three ribs on the
back of the medicaon cup
with three trenches of
the main unit to insert the
medicaon cup into the main
unit.
Do not use old and new baeries together or mixing
baeries using diering cell chemistries.
3. Fill the saline / medicaon
Make sure that indicator light is
 obeforeaddingthesaline/ 
 medicaon.
- Open the medicaon cup cap.
- Fill the medicaon cup with
saline and or medicaon.
DO NOT EXCEED THE LIMIT.
(Max. of 6ml).
- Close the medicaon cup cap
properly.
User Manual.indd 9 2020/03/30 16:17

10
Baery life and baery replacement
1. Baery life is usually dependant on the capacity and condion of the
baeries.
Ingeneral,thisdevicecanoperateabout4dayswithtwobrandnew 
 baeriesbasedontheusageof20minutesaday.
2. When the power indicator turns orange (means low power), please
replace both baeries with new ones.
4. Inhalaon
- Place the mouthpiece
between your teeth, with
your lips rmly sealed around
the mouthpiece.
- Press ON/OFF buon on the
top to turn on the device
(light Indicator turns green).
- Breathe in and out slowly
through your mouth unl
aerosol formaon stops.
5. End of Inhalaon
- Press ON/OFF buon to turn
it o.
- Remove the baeries from
the main unit.
ON / OFF Buon

1. Tilt the device slightly, while the soluon is almost
exhausted to make sure that the residual soluon contacts
the mesh and is sprayed completely.
2. If high-viscosity soluon is used, nebulisaon may be
reduced.
3. If excessive soluon is accumulated on the mesh,
nebulisaon may stop. In this case, turn o the power and
absorb the soluon with gauze or a lint-free towel.
User Manual.indd 10 2020/03/30 16:17

11
HOW TO OPERATE WITH ADAPTER
1. Please choose DC 5V/1A adapter (not included), and the
connecon jack should match a plug with outer diameter of
3.5mm, interior diameter of 1.35mm, 9.5mm in length and
posive polarity.
2. The adapter does not charge baeries. Please remove the
baeries before using the adapter.
3. As with all electronic devices, it is recommended to keep
the product unplugged when not in use.
1. Set up the medicaon cup.
- Align the three ribs on the
back of the medicaon cup
with three trenches of the main
unit to insert the medicaon
cup into the main unit.
2. Add medicaon / saline
- Open the medicaon cup cap.
- Fill the medicaon cup with
prescribed medicine / saline.
DO NOT EXCEED THE LIMIT.
(Max. of 6ml).
- Close the medicaon cup cap
properly.
3. Connect with adapter.
- Plug the cable into the power
adapter jack on the main unit.
- Plug the adapter into a
standard electrical outlet.
*The adapter may dier from that shown here.
User Manual.indd 11 2020/03/30 16:17

12
CLEANING AND DISINFECTION
Aer every use: Clean the medicaon cup with dislled water aer each
inhalaon.
1. Pour out the residual soluons from the medicaon cup.
2. Pour some dislled water into the medicaon cup.
3. Turn on the device to nebulise the dislled water for 1 to 2 minutes to
clean the nebuliser.
4. Remove baeries or disconnect the adapter from the main unit.
5. Remove the medicaon cup from the nebuliser unit.
If the device is not cleaned and disinfected correctly and
frequently as indicated, microorganisms may remain in the unit
and cause risk of infecon.
4. Inhalaon
- Place the mouthpiece
between your teeth, with
your lips rmly sealed around
the mouthpiece.
- Press ON/OFF buon on the
top to turn on the device
(light Indicator turns green).
- Breathe in and out slowly
through your mouth unl
aerosol formaon stops.
5. End of Inhalaon
- Press ON/OFF buon to turn
it o.
- Remove the baeries from
the main unit.
ON / OFF Buon

User Manual.indd 12 2020/03/30 16:17

13
6. Wash and rinse the medicaon cup with dislled water.
7. Shake o excess water and allow parts to be fully air dried on a clean,
dry towel.
8. Use gauze or clean towel to wipe o stains on the main unit if necessary.
9. Make sure that all cleaned parts are completely dry before you store them
or use them next me.
Daily disinfecons: It is important to disinfect the medicaon cup on a daily
basis.
1. Disinfecon using boiled water
- Rinse the medicaon cup with dislled water.
- Bring a saucepan of DISTILLED water to the boil.
  NOTE:DoNOTboilmedicaoninthecupdirectly
- Carefully immerse the medicaon cup in the boiled water for a maximum
of ten (10) minutes.
- Carefully remove the medicaon cup from the boiled water and shake o
excess water.
- Allow parts to cool down and fully air dry on a clean, dry towel, out
of reach of children.
- Make sure that all cleaned parts are completely dry before you store
them or use them again.
2. Disinfecon using alcohol
- Rinse the medicaon cup with dislled water.
- Immerse the medicaon cup in 75% ethyl alcohol for 1 minute.
- Rinse the medicaon cup with dislled water again, shake o excess
water and allow parts to be fully air dry on a clean, dry towel.
- Make sure that all cleaned parts are completely dry before you store
or use them again.
1. Keep the baery compartment dry all the mes.
2. Do NOT poke the nebuliser with nger, coon swab or any
objects.
3. Do NOT clean parts in a dishwasher.
4. Do NOT use a microwave to dry any parts.
User Manual.indd 13 2020/03/30 16:17

14
The following items are able to be disinfected using boiled water or alcohol
Parts below are NOT to be disinfected using boiled water or alcohol
CARRYING AND STORING
Put on the mouthpiece cover, store the device and medicaon cup in a dry
and clean environment.
Alcohol is highly ammable.
Do not use alcohol in close vicinity of open re or smoke.
Power adapter
(The adapter might dier from that shown above.)
Nebuliser unit
Do NOT rinse or immerse the main unit in any liquid.
1. Do NOT leave or carry the device containing residual liquid in
the medicaon cup.
2. Remove the baeries if device is not in use for long periods.
Failure to do so could result in damage due to baery leakage.
3. Do NOT expose the device to direct sunlight, high
humidity, or extreme heat or cold temperatures.
4. Keep this device away from re, high electromagnec elds
and out of the reach of children.
Medicaon cup (with cover)
User Manual.indd 14 2020/03/30 16:17

15
TROUBLESHOOTING
If any trouble occurs while you are using the device, please check the
following lists rst.
Low atomisaon
Low baery power Replace the baeries or use
the power adapter
Stains on the electrode cause
a faulty connecon
Use alcohol to clean
electrodes
The mesh holes are clogged
Refer to cleaning and
disinfecon procedure to clean
the medicaon cup
The mesh is broken Replace the medicaon cup
Aer switching on, the
power indicator is not on
and no mist comes out.
The baeries are inserted in
the wrong direcon
Follow (+) and (-) marks on
the baery cover and re-insert
the baeries in the correct
direcon
Baeries are at Replace the baeries or use
the power adapter
Faulty connecon between
baery and main unit
Check and reconnect the
power adapter to the nebuliser
unit
Aer switching on, the
power indicator is on,
but no atomisaon.
The medicaon cup is not
installed properly
Refer to set up the
medicaon procedure to
re-install the medicaon cup.
The mesh holes are clogged
Refer to cleaning and
disinfecon procedure to clean
the medicaon cup
The mesh is broken Replace the medicaon cup
Power indicator is
constantly orange Low baery power Replace the baeries or use the power adapter
Power indicator is ashing
orange
Faulty connecon of
electrode and main unit
Use alcohol to clean
electrodes and re-install the
medicaon cup
The mesh is broken Replace the medicaon cup
1. If the device does not nebulise normally aer taking the
above-menoned procedure, please contact the store where
you purchased the device or the nearest dealer.
2. Never operate this device if any of the parts are not working
properly or have been damaged.
User Manual.indd 15 2020/03/30 16:17

16
SPECIFICATIONS
WEEE (Direcve on Wasted Electrical and Electronic Equipment
This marking shown on the product indicates that it should not be disposed of with other household wastes at
the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product for details of where and
how they can take this equipment for safe recycling.
Product mx™ Portable (Mesh) Nebuliser
Model NEB04
Method of operaon Acve Vibrang Mesh Technology
Power supply AA Baery x 2 and Power Adapter
Power consumpon <1.5W**
Vibrang frequency Approx. 117 kHz +/- 15%
Nebulisaon rate U0.25 ml/min
Parcle size MMAD < 5um**
Capacity of medicaon cup 2 - 8 ml
Dimension Approx. 77 X 414 X 73 mm
Weight Approx. 80g (Baery excluded)
Baery life Up to 90 minutes if used connuously. 4 days if
used 20 minutes a day
Operang temperature and humidity 10 ~ 40°C, 30 ~ 85 % RH, 800 ~ 1060hPa
Storage and delivery condion -20~ 70°C, 20 ~ 75 % RH, 800~1060hPa
Expected service life Main unit: 24 months

DATE OF PUBLICATION - April 2020
Applicant:
2 Sunrock Close, Sunnyrock,
Germiston
Gauteng, 1401
www.medinox.co.za
™
User Manual.indd 16 2020/03/30 16:17
