INSTRUCTION MANUAL
WRIST MEASUREMENT BLOOD PRESSURE MONITOR
MODEL: MX-CP2396
READ THIS MANUAL BEFORE OPERATING
MODEL: M
X
-CP2396
0197

2
NAME OF EACH PART
Battery cover
Memory
position
Systolic pressure
Power ON/OFF
button
Memory button
Diastolic
p
ressure
Pulse
Date
Hour

3
BEFORE USE THE BLOOD PRESSURE MONITOR
•Please read kindly these instructions and keeping for a later use.
•After unpacking, verifies that the apparatus is not damaged. In case of doubt it
does not use it; contact with the service of technical assistance.
•The packing material (plastic bags, etc.) does not have to be left within reach of
the children, since they are a potential source of danger.
•The manufacturer declines any responsibility by damages derived from an
inadequate, incorrect or imprudent use of the apparatus.
•This apparatus has been only designed for domestic use. In case of professional
use, inadequate use or breach of the instructions, the manufacturer declines any
responsibility; it does not accept any responsibility and the guarantee will lack
validity.
•Please do not use the cuff other than supplied by the manufacturer, otherwise it
may bring biocompatible hazard and might result in measurement error.
•No component can be maintained by user in the monitor. The circuit diagrams,
component part, list, descriptions, calibration instructions, or other information with
will assist the user´s appropriately qualified technical personnel to repair those
parts of equipment with are designated reparably can be supplied.
WARNING
THIS PRODUCT CAN NOT BE USED ON INFANTS

4
SYMBOLS SHOW IN THE DISPLAY
Symbol Condition/cause
M D Month and day
This symbol appears when the pulse is located .
The display shows this indication when have a irregular
heartbeat.
This symbol appears when the battery are low, and must be
replaced.
Inflate the wrist cuff
The pressure in cuff is instable, or much remnant air in cuff
mmHg Pressure in mercury millimetres
Memory position
♥

5
NOTICE BEFORE MEASUREMENT
•Avoid eating, smoking, and intensive activity 30 minutes before measuring.
•Please sit down while measuring. During measurement, please make sure the cuff
stays at the same height as the heart. Either above or below the position, the
accuracy will be affected.
•If it’s inconvenient for you to sit down, then you can try lying down measurement:
lie on your back. Naturally place arm and hand straight, with palm upside. Keep
the cuff at the same level as heart.
•During measurement, do not speak or move body and arm.
•During measurement, keep you comfortable, steady and quiet.
•Measuring at the same arm each time because the blood pressure in different arm
may change more than 40mmHg.
•Between each measurement, you need 3min to let blood circulation of the arm
recover.
•The cuff size is suitable for adult’s arm.
•The man with arrhythmia is not acceptable for this blood pressure monitor.
•Please avoid strong magnetism interfere, such as mobile telephone, microwave
oven, etc.
•If you do not use the BPM for a long time, please take out the battery.
•Please wear the cuff on the left wrist
•Please do not share the cuff with other infective person to avoid cross-infection.

6
BATTERY LOADING
To insert or change the batteries follow the next steps:
1. Open battery cover at the left of the machine.
2. Load two “AAA” size batteries. Please pay
attention to the polarity.
3. Close the battery cover.
Notes:
•When replace the batteries the date and the hour will erase.
•The batteries contain polluting materials of environment, for that reason
once exhausted the batteries, does not throw them to the sweepings,
disposed in adapted for their recycled one.
•If it does not use the apparatus for a long period of time, extracts the
batteries and keep in a dry place.
•Does not use 1.2 V rechargeable batteries.
When is necessary to change the batteries?
When the screen shows the symbol it indicates that the batteries are
exhausted and must be replaced by other new ones.

7
WRIST CUFF CONNECTING
1. Be sure to place the wrist cuff on bare skin of left
wrist, and place monitor on the centre of wrist.
2. Place wrist cuff 1-2 cm above wrist joint.
3. Wrist cuff connecting should make wrist feel no
much tension. Don’t connect too tense
(otherwise the measurement will be not precise.
4. If the cuff is too long, fix the over plus cuff on the
Nylon fibulae of cuff.
5. Keep up right position on the same level of heart.
6. To avoid arm moving, place the plastic box of
the monitor under the arm is recommended.
Note:
•When the cuff is dirty, detach it from the
equipment, wash the cuff by hand with proper
detergent and rinse it in the enough cold water,
dry in air. Never iron it.
•This product can’t be used on infants and can’t
be used on other uses than blood pressure
measurement.

8
CORRECT POSTURE TO USE A BLOOD PRESSURE MONITOR
The position of pressure monitor in relation to the heart is extremely important
to be able to obtain a correct measurement.
If the pressure monitor is placed above or under the height of the heart the
values of the measurement can more decrease or increase respectively, of
significant form with respect to the real value.
•Always to measure the blood pressure on
seated position.
•Place his left elbow on a table or similar surface.
•Place the arm in such a way that pressure
monitor is to the height of the heart, the hand will
have to be open (to see illustration).
•Relax the arm and you place it of such form that
can see its internal side.
•If You it wishes it can use the protective case to
support the arm.

9

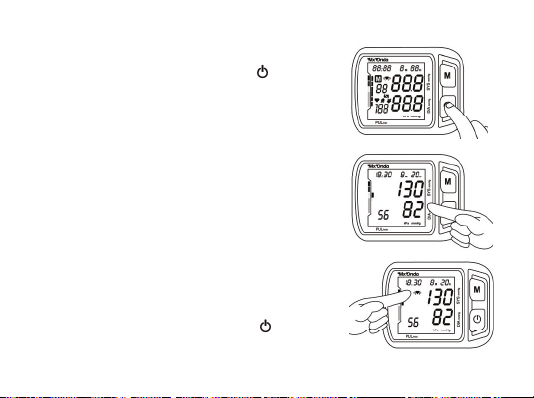

MEASURING PROCESS
a. After applying the cuff and your body is in a
comfortable position, press the “ ” button. A
beep is heard and all display characters are
shown for self-test.
b. If the monitor has stored results, the LCD will
momentarily display the most recent one.
c. Then the monitor inflates the cuff until sufficient
pressure has built up for a measurement. Then
the monitor slowly releases air from the cuff and
carries out the measurement. Finally the blood
pressure and pulse rate will be calculated and
displayed on the LCD screen. The blood
pressure classification indicator and irregular
heartbeat symbol (if any) will blink on the
screen. The result will be automatically stored in
the monitor.
d. After measurement, the monitor will turn off
automatically after 1 minute of no operation.
Alternatively, you can press the “ ” button to
turn off the monitor manually.

10
e. During measurement, you can press the “ON/OFF” button to turn off the
monitor manually.
Note:After the measurement, if you make a new measurement in the same
person will have to wait for of 5 minutes. This time varies on each person
READING MEMORY RESULTS
Under the clock-displaying mode, press “M” button
and enter the mode of reading results. LCD will
show the how many results it has, then the last
result will be displayed, which is 01 for memory
number. Continuously press “M” button, the
memory number will increase by 1.
In the example the systolic pressure is 130 mmHg,
your diastolic pressure is 82 mmHg, the heart rate
is 56 beat/minute, according to WHO standard,
your blood pressure level is Normal BP.
Keep on pressing “M” button after the last memory
of result, the machine will power off. Under the
memory displaying mode, it will be automatically
power off after two minutes of none use.
You can also press the button “ ” to turn off the monitor manually.

11
Deleting measurements from the memory
When any result is displaying, keeping on pressing button “M” for three
seconds, all results will be deleted after three “beep”. Press the button “M” or
“ ”, the monitor will turn off.
CLOCK ADJUSTING
a. When the machine is turned off, press “ ” and
“M” buttons at same time, the number of month
will glitter on LCD.Press “ ” button continuously,
the numbers of month, date, hour, and minute
will glitter in sequence. While the number is
glittering, press “M” button and the
corresponding number will increase by 1. Hold
on pressuring “M” button the number will
increase fast.
b. After pressuring “ ” button the fifth time,
numbers on LCD will not glitter, then you exit the
time adjusting mode.
Note: When you change
the batteries, you have to
readjust the date and time.

12
ASSESSING HIGH BLOOD PRESSURE FOR ADULTS
The follow standards for assessing high blood pressure (without regard to age
or gender) have been established as a guide line. Please note that other risk
factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into
consideration and may affect these figures. Consult with your physician for
accurate assessment.
CLASSIFICATION OF BLOOD PRESSURE FOR ADULTS

13
ABNORMALITY & TROUBLESHOOTING (1)
Abnormality Reason Checkout
LCD shows battery
symbol Batteries low Change new batteries.
Shows abnormal result
Cuff not tightened properly or
its position is incorrect.
Tighten cuff correctly and
refer to “Wrist cuff
connecting”
The arm is moved during
measuring or BPM is moved.
Stay calm, arm remains
steady. Do not move BPM.
Irregular heartbeat
You can test again for light
irregular heartbeat patients.
It is inappropriate for serious
irregular heartbeat patients
to use this machine.
Speaking, frightened nervous or
is excited during measurement.
Do not speak and take deep
breath 2~3 times to relax
yourself.
Wrong position Adjust position; refer to
“Correct posture”
Some interference in inflation or
wrong operation during
measuring.
Refer to the inflation step in
“Measuring process”

14
ABNORMALITY & TROUBLESHOOTING (2)
CLEANING AND MAINTENANCE
•Clean the plastic surface of the unit with a humid cloth and dries it with
another dry one. It does not use abrasive alcohol nor products and it does
not allow that the unit between in contact with volatile agents like gasoline,
disolvents, etc.
•Clean the cuff with a dry cloth.
•If it does not think to use the time apparatus for a long period, extracts the
batteries and keep it in a fresh place.
•Does not mix the old and new batteries, nor of different types
•When it does not use the apparatus places it in protective case.
•The cuff integrity is maintained after 1.000 open-close cycles of the closure.
Abnormality Reason Checkout
LCD shows “EE”
Insufficient inflaction Measure again.
Some interference in inflation or
wrong operation during
measuring.
Measure again.
BPM no response
when you press
button, BPM hang.
Incorrect operation
Take out batteries for a
while, and then reinstall
batteries.

15
•It is recommended the performance should be checked every 2 years or
after repair. Please contact the service centre.
•Does not expose east apparatus to extreme temperatures, exposed to the
direct solar light, is in places with excess of dust, humidity or next to
equipment that generates heat.
•It is recommended the cuff should be disinfected 2 times every week if
needed (for example, in hospital or in Clinique). Wipe the inner side (the
side contacts skin) of the cuff by a soft cloth squeezed after moistened with
Ethyl alcohol (75-90%), then dry the cuff by airing.
•Clean the cuff after the usage of every 200 times is recommended
•The monitor can maintain the safety and performance characteristics for a
minimum of 10.000 measurements or three years.
Waste electrical products must not be disposed of with household
waste.
This equipment should be taken to your local recycling centre for
safe treatment.
This product complies with European Directives RoHS (2002/95/CE),
on the restriction of use of certain dangerous substances in electrical
and electronic appliances, transposed to the Spanish legislation by
means of Real Decree 208/2005.

16
SPECIFICATION
Measuring method Oscillometric
Measuring range 0 – 300 mmHg (pressure)
40 – 180 pulses/min (pulse)
Measuring accuracy ± 3 mmHg (pressure)
Power source Batteries 2 x 1.5 V SIZE AAA)
Power consumption 1,2 W
Battery life Approx. 270 times
Pressurisation Automatic air pump
Deflation Automatic
Operating environment +10°C a +40°C, < 85% RH
Storage environment -20°C a +50°C, < 85% RH
Wrist circumference range 140 – 195 mm
Wrist cuff size 300 x 70 (L, W)
Unit size 85 x 66 x 30 mm (L, W, H)
Weight 128 gr.
All components belonging to the pressure measuring system, including
accessories: pump, valve, sensor.
“MX, MX ONDA” and his logos, are trademarks of MX ONDA, S.A.

17
EXPLANATION OF SYMBOLS ON UNIT
Symbol for” THE OPERATION GUIDE MUST BE READ” (The sign
background colour: blue. The sign graphical symbol: white)
Symbol for “WARNING”
Symbol for “TYPE BF APPLIED PARTS” (The cuff is type BF applied
part)
Symbol for “KEEP DRY”

18
ELECTROMAGNETIC COMPATIBILITY INFORMATION
Table 1: For all ME EQUIPMENT and ME SYSTEMS
Guidance and manufacture’s declaration - electromagnetic emissions
The MX-CP2396 is intended for use in the electromagnetic environment specified
below.
The customer or the user of the MX-CP2396 should assure that it is used in such
an environment.
Emissions test Compliance Electromagnetic environment -
guidance
RF emissions CISPR 11 Group 1
The MX-CP2396 uses RF energy
only for its internal function.
Therefore, its RF emissions are very
low and are not likely to cause any
interference in nearby electronic
equipment.
RF emissions CISPR 11 Class B The MX-CP2396 is suitable for use in
all establishments other than
domestic and those directly
connected to the public low-voltage
power supply network that supplies
buildings used for domestic purposes.
Harmonic emissions
IEC 61000-3-2 Not applicable
Voltage fluctuations/
flicker emissions IEC
61000-3-3
Not applicable

19
Table 2: For all ME EQUIPMENT and ME SYSTEMS
Guidance and manufacturer’s declaration - electromagnetic immunity
The MX-CP2396 is intended for use in the electromagnetic environment specified
below. The customer or the user of the MX-CP2396 should assure that it is used
in such an environment.
IMMUNITY
test
IEC 60601test
level Compliance level
Electromagnetic
environment -
guidance
Electrostatic
discharge
(ESD) IEC
61000-4-2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30 %.
Power
frequency
(50/60 Hz)
magnetic
Field IEC
61000-4-8
3 A/m 3 A/m Power frequency
magnetic fields should
be at levels characteristic
of a typical location in a
typical commercial or
hospital environment.

20
Pd 2.1=
Pd 3.2=
Table 3: For ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
Guidance and manufacturer’s declaration - electromagnetic immunity
The MX-CP2396 is intended for use in the electromagnetic environment specified
below. The customer or the user of the MX-CP2396 should assure that it is used in
such an environment.
IMMUNITY
test
IEC 60601
test level
Compliance
level Electromagnetic environment - guidance
Radiated
RF
IEC 61000-
4-3
3 V/m 80
MHz to
2.5 GHz
3 V/m
Portable and mobile RF communications
equipment should be used no closer to any
part of the MX-CP2396, including cables,
than the recommended separation distance
calculated from the equation applicable to
the frequency of the transmitter.
Recommended separation distance =
80 MHz to 800 MHz
800 MHz to 2,5 GHz
Where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in meters (m).
