MXL DX-2 User manual

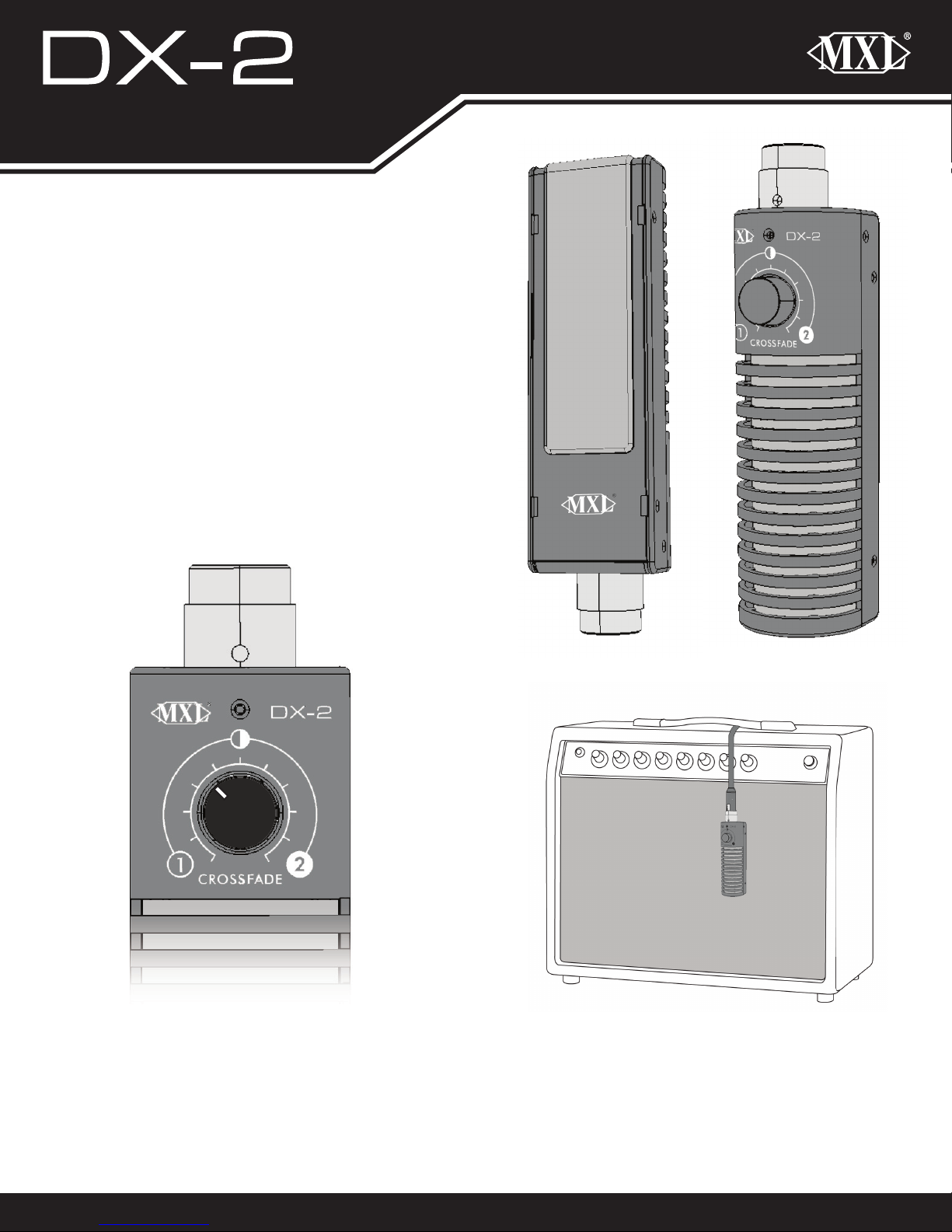

FRONT
BACK
Thank you for your purchase of the DX-2 Dual
Capsule Variable Dynamic Instrument Microphone. Please
take a moment to familiarize yourself with proper operation and
orientation of the DX-2 Microphone.
The broad flat side is the FRONT of the microphone,
and the curved side is the BACK of the microphone. For optimal
sound pickup, the FRONT (flat side) of the microphone should
always be pointed toward the sound source.
The MXL DX-2 Microphone is the first of it’s kind to
feature a CROSSFADE variable control knob. Adjusting this
knob will blend tonal pickup between two distinctly different
sounding capsules. CAPSULE 1’s super cardioid large capsule
design will capture the warmth and fullness of your instrument,
while CAPSULE 2’s cardioid smaller capsule offers superb mid-
range and high-end detail.
With the CROSSFADE variable control knob turned
fully to the bottom-left 7 o’clock position, only CAPSULE 1
will be completely engaged. At the vertical 12 o’clock position,
CAPSULE 1 and CAPSULE 2 are both equally engaged. Turning
the knob further clockwise will continue blending CAPSULE 1
with CAPSULE 2, until the knob reaches the rightmost 5 o’clock
position, at which point, only CAPSULE 2 will be fully engaged.
The sturdy XLR connector allows the
DX-2 to hang directly in front of guitar cabinets,
eliminating the need for a mic stand. (TIP: Try
looping the mic cable around the amp handle
so the mic maintains its position once optimal
placement has been determined.)
QUICKSTART GUIDE
DUAL CAPSULE
VARIABLE DYNAMIC
INSTRUMENT MICROPHONE
replacement (at our option) of the microphone, and does
not cover incidental damages due to use of this unit, nor
damage caused by accidental misuse of this product.
For more information, product manuals and more, visit
www.mxlmics.com/support.
Warranty
Care
MXL microphones are guaranteed against defects in
materials and workmanship for one year from the date
of purchase. If you encounter any problem with this unit,
promptly contact the company from which you purchased
it for assistance. The original dated sales receipt will be
necessary for any warranty claim. Do not send any unit
directly to us without prior authorization from our service
department. Warranty coverage is limited to repair or
Dust and foreign material can degrade the performance of
any microphone over time. We recommend that you always
store the unit in its zipper pouch when not in use.
Type Dual Capsule Dynamic Microphone
Frequency Range 50 Hz- 14kHz
Polar Pattern Super Cardioid, Cardioid
Sensitivity -52 dB re 1 V/Pa, -54 dB re 1 V/Pa
5dB steps @1kHz
0
90
180
270
5dB steps @1kHz
0
90
180
270
072816a
PRODUCT SPECIFICATIONS
CAPSULE 1
Frequency Chart
Frequency Chart
Polar Pattern
Polar Pattern
CAPSULE 2
Impedance 400 ohms/600 ohms
Size 43mm x 156mm/ 1.73 in. x 6.14 in
Weight 0.45lbs/204 g
Metal Finish Dark Metallic Grey and Black
