Mylna sport Abilica HT Treadmill 6.0 User manual

1
HT Treadmill 6.0

2
INNHOLD/INNEHÅLL/CONTENTS
DELETEGNING/EXPLODED MAP
3
DELELISTE/DELLISTA/PARTS LIST
4
MONTERING/ASSEMBLY
7
VIKTIG INFORMASJON
11

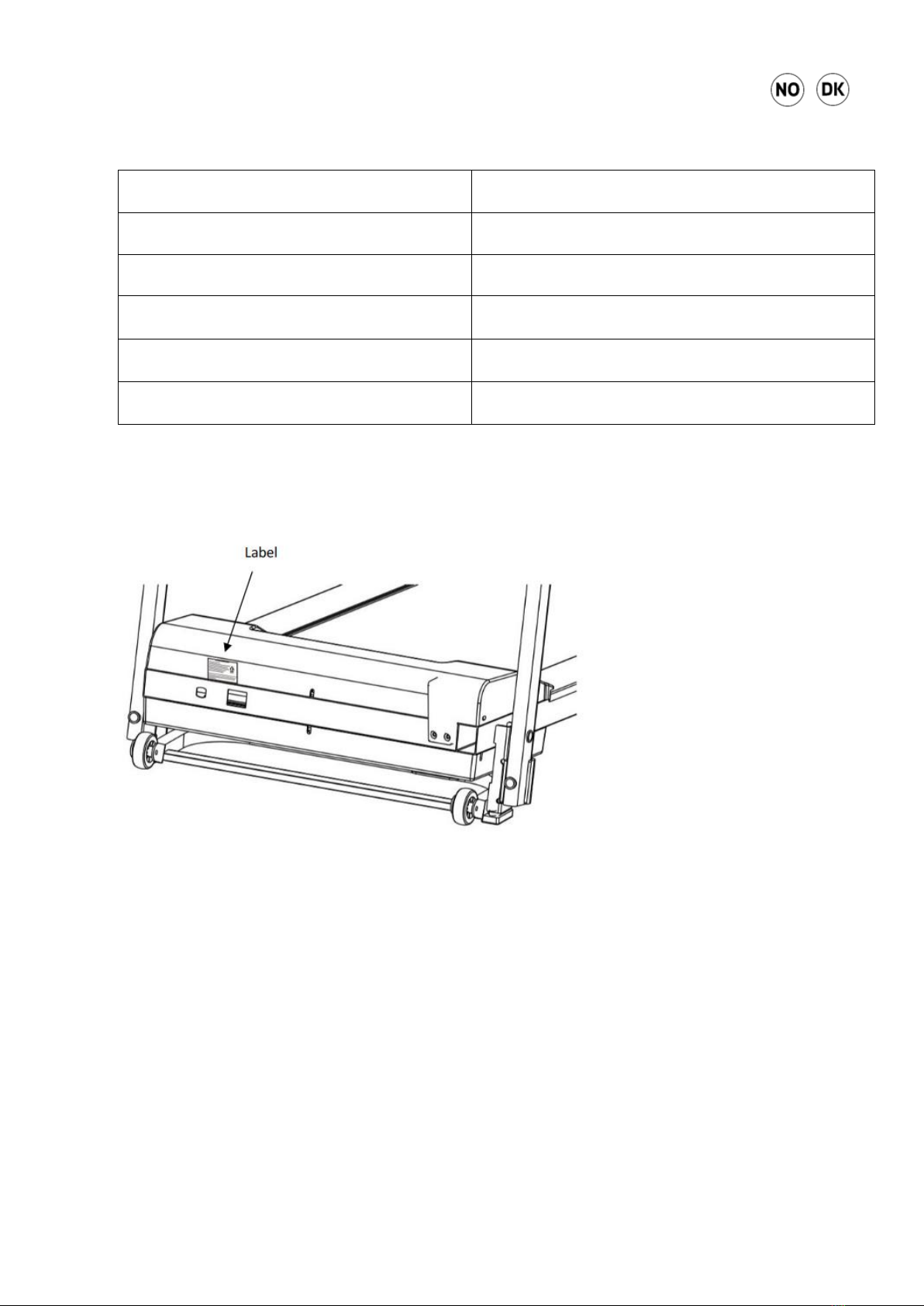

TEKNISKE PARAMETRE
13

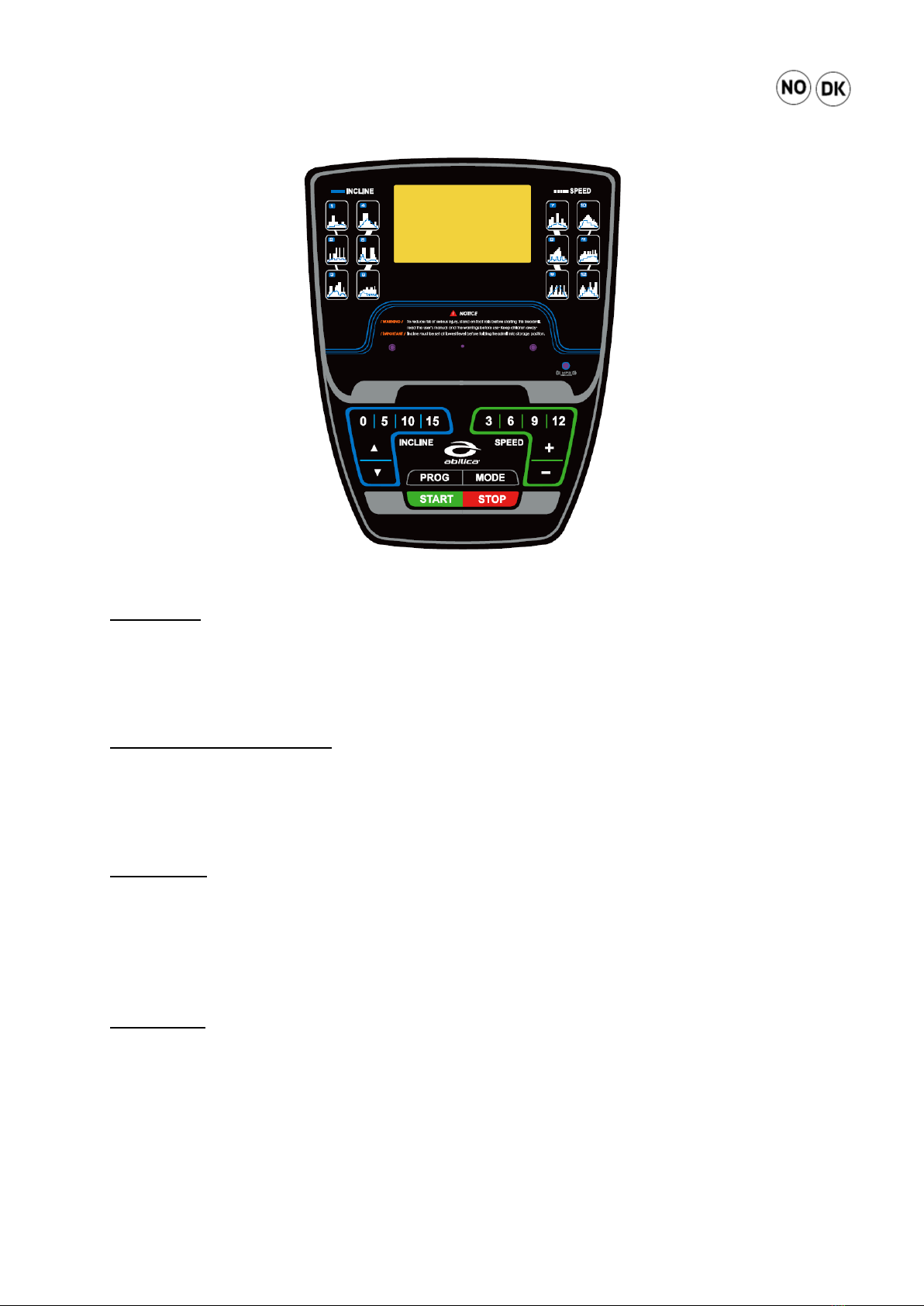

BETJENING AV COMPUTER
14
VEDLIKEHOLD
18
KONTAKTINFORMASJON
24
VIKTIG INFORMATION
25
TEKNISKA PARAMETRAR
27
DATOR INSTRUKTIONER
28
UNDERHÅLL
32
KONTAKTINFORMATION
37
IMPORTANT INFORMATION
38
TECHNICAL PARAMETERS
40
COMPUTER INSTRUCTIONS
41
MAINTENANCE
45
CONTACT INFORMATION
50
TÄRKEITÄ OHJEITA
51
TEKNISET PARAMETRIT
53
TIETOKONEED HUOLTO
54
HULTO
58
YHTEYSTIEDOT
63
WICHTIGE INFORMATIONEN
64
TECHNISCHE PARAMETER
66
BEDIENUNG DES COMPUTERS
67
INSTANDHALTUNG
71
INFORMATIONEN ZUN SERVICE
77
ERROR CODE AND TROUBLESHOOTING
78

3

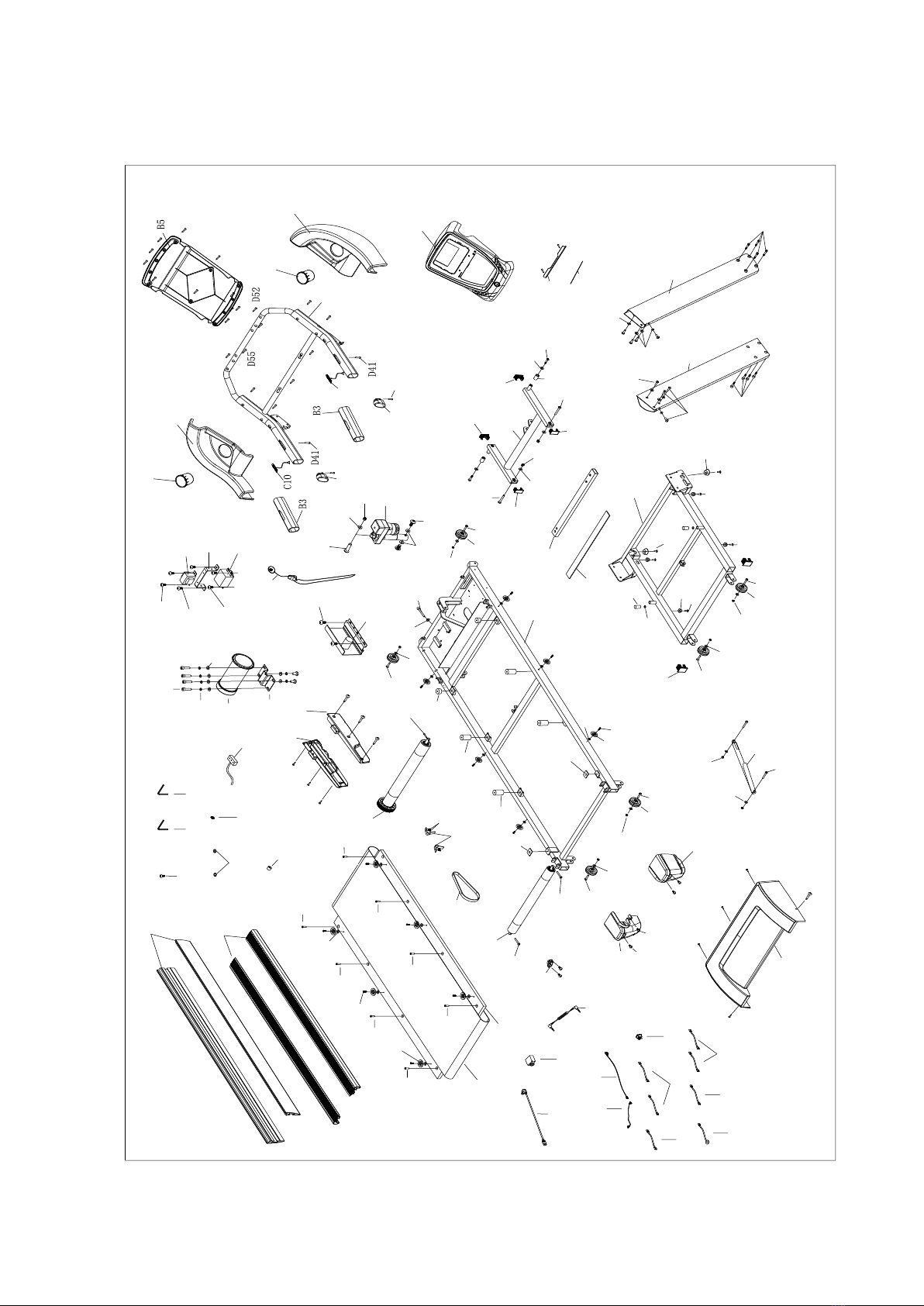

DELETEGNING/SPRÄNGSKISS/PARTS DRAWING
D44
A1
A5
B26
B17
B13
B21
B20
C12
C3
C7
C2
C5
C13
C15
C8
C23
C32
C16 C17
B15
D10
D10
D21 D18
D36
D34
D34
D5
D11
D50
D50
D2
D15
D15
C19
C33
B8
D46
D46
B27
B31
A7
B27
C34
D28
D58
D18
D20
D21
D23
D23
C20
D21
D62
B44
D52
D26
D23
C31
C14 C27
B21
B21
B21
B31
D36
D36
D36
D39
D39
D39
D39
D45
D45
D45
D24
C6
D20
D23
D16
D14
B16L
B16R
D45
D45
D48
D48
B52
D26 D52
D23
D48
D48
D48
D48
D48
D48
B22 B23
C9
D51
C4
D33
D46
D46
B9
B17 D15
D15
D20
D23
B17 D15
D15
D20
D23
B10
D23
D114
D105 A3L
D21
A3R
D114
A2
D115
D21
D92
B53
D31
D25
D23
C1
A11
C28
B4
B4
A4
C11
B65L
B65R
D52
D52
B49
B49
D58
D52
B1-5
B34
B1
C21
C22
A6
D42
D51
D51
A13
D52
D21
D105

4
DELELISTE/DELLISTA/PARTSLIST
A. Welding parts
No.
Description
Qty
No.
Description
Qty
A1
Maine Frame
1
A5
Incline frame
1
A2
Base frame
1
A6
Filter supporting frame
1
A3L
Left upright
1
A7
Running board tube
1
A3R
Right upright
1
A11
Motor bracket
1
A4
Handrail bracket
1
A13
Belt Guide
2
B. Plastic parts
No.
Description
Qty
No.
Description
Qty
B1
Console set
1
B18
Silicon Oil
1
B1-1
Overlay
1
B20
Round plug
1
B1-3
Console panel
1
B21
Inner plug (20*40)
4
B1-5
I-Pad holder
1
B22
Motor left cover
1
B3
Handrail Foam
2
B23
Motor right cover
1
B4
Handrail plug
2
B26
Treadmill cushion
2
B5
Console bottom cover
1
B27
New cushion
4
B8
Flat foot pad
4
B31
Rubber pad
2
B9
U-shaped foot pad
2
B34
EVA pad(I-Pad holder)
1
B10
Limit cushion
2
B44
EVA seat
1
B13
Motor upper cover
1
B49
Water bottle
2
B15
Side rail
2
B52
Solid Side Rail
2
B16L
Left end cap
1
B53
Square Plug (38*38)
2
B16R
Right end cap
1
B65L
Console left cover
1
B17
Adjustment wheel
6
B65R
Console right cover
1
C. Electric and drive parts
No.
Description
Qty
No.
Description
Qty
C1
DC motor
1
C16
Console upper wire
1
C2
Running belt
1
C17
Console lower wire
1
C3
Rear roller
1
C19
MP3 line
1
C4
Front roller
1
C20
Magnetic ring
1

5
C5
Running board
1
C21
Inductor
1
C6
Cylinder
1
C22
Filter
1
C7
Motor belt
1
C23
Overload protector
1
C8
Power switch
1
C27
Single cord (blue) 300
2
C9
Controller
1
C28
Speed Sensor
1
C10
Handle pulse left keyboard
1
C31
Single line (brown) 150
2
C11
Handle pulse right keyboard
1
C32
Single branch (blue) 150
1
C12
Incline motor
1
C33
Single ground wire
1
C13
Safety key
1
C34
Outlet
1
C14
Single branch(brown) 300
1
C15
Power cable
1
D. Hardware parts
No.
Description
Qty
No.
Description
Qty
D2
Allen wrench T6
1
D39
Cross head bolt M6*40
4
D5
Round head hex bolt M8*100
1
D41
Cross self-tapping bolt
ST4.2*70
2
D10
Round head hex bolt M10*45
2
D42
Cross head bolt M4*10,
washer
2
D11
Round head hex bolt M10*50
1
D44
Cross head bolt M5*12,
washer
1
D14
Round head hex bolt M8*30
1
D45
Cross head bolt M5*15,
washer
5
D15
Round head hex bolt M8*40
6
D46
Cross head bolt M5*20,
washer
6
D16
Round head hex bolt M8*45
1
D48
Cross self-tapping bolt
ST4.2*19
8
D18
Nylon nut M10
3
D50
Cross self-tapping bolt
ST4.2*25
2
D20
Nylon nut M8
8
D51
Cross head bolt M5*8
6
D21
Flat washer M10
15
D52
Cross self-tapping bolt
ST4.2*16
37
D23
Flat washer M8
27
D55
Cross self-tapping bolt
ST4.*45
2
D24
Spring washer M5
2
D58
Cross self-tapping bolt
ST3.5*16
4
D25
Spring washer M8
4
D62
Incline Shaft
2
D26
Bowl washer
12
D92
Allen Wrench T8
1
D28
Hex round head bolt M10*20
2
D105
Round head hex bolt M10*20
8
D31
Hex round head bolt M8*60
4
D114
Hex round head bolt M10*45
8

6
D33
Hex round head bolt M8*55
1
D115
Hex round head bolt M10*55
2
D34
Hex round head bolt M8*60
2
D36
Cross head bolt M6*25
4

7
MONTERING/ASSEMBLY

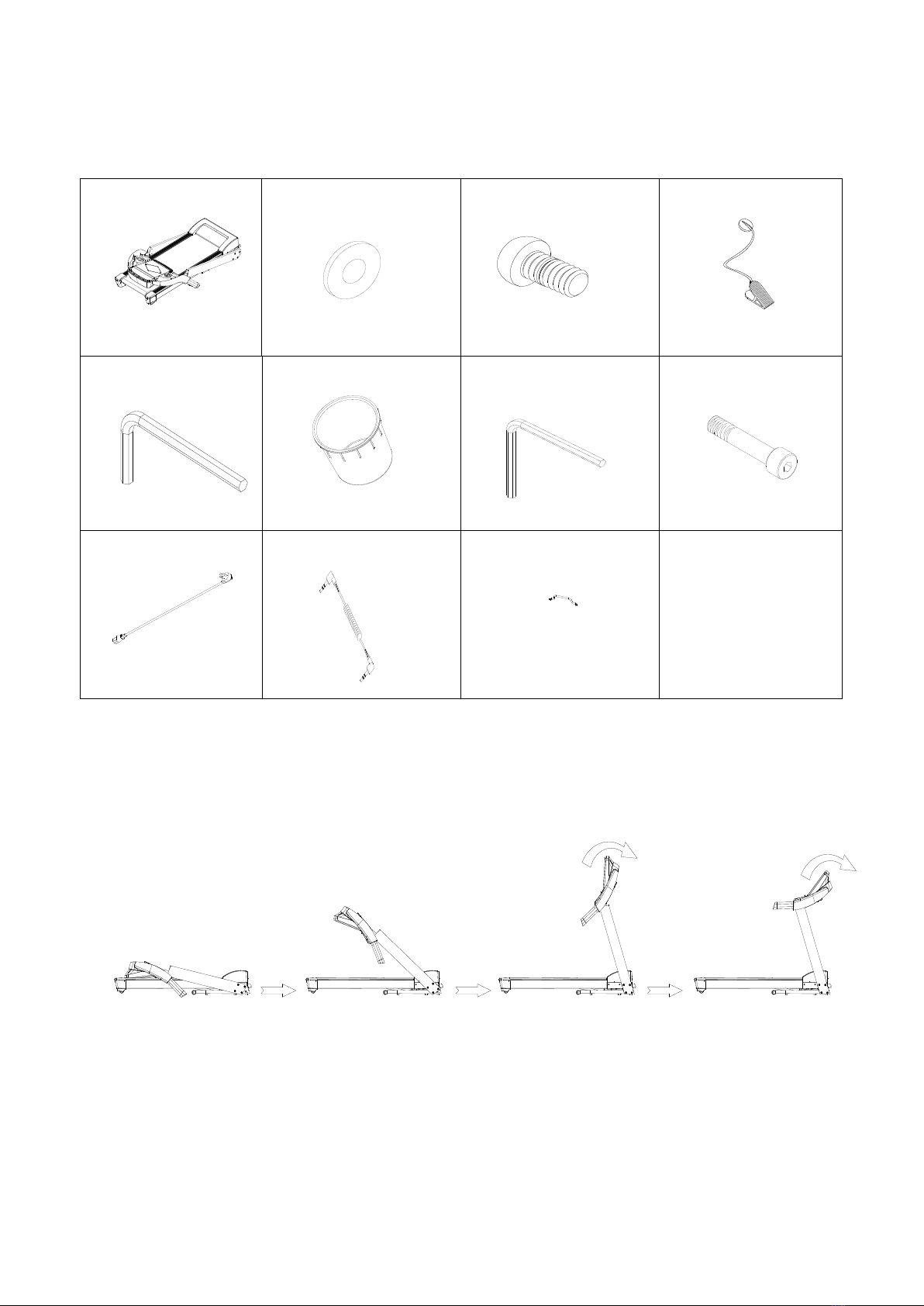

Følgende deler følger med i pakningen (engelsk):
Main frame 1set
D21 Inner washer M10
6 pcs
D105 Round head hex
bolt M10*20 6pcs
C13 Safety Key 1set
D2 Allen wrench
6MM,1 pc
B49 Bottle holder 2 pcs
D92 Allen Wrench
8mm, 1 Pc
D114 Round head
hex bolt M10*45 6pcs
C15 Power Cord
1 pcs
C19 MP3 line 1 pc
B18 Silicon Oil
Step 1

8
Step 2
Step 3
D114
D105 D21
D114
A3L A3R
D105
D21

9

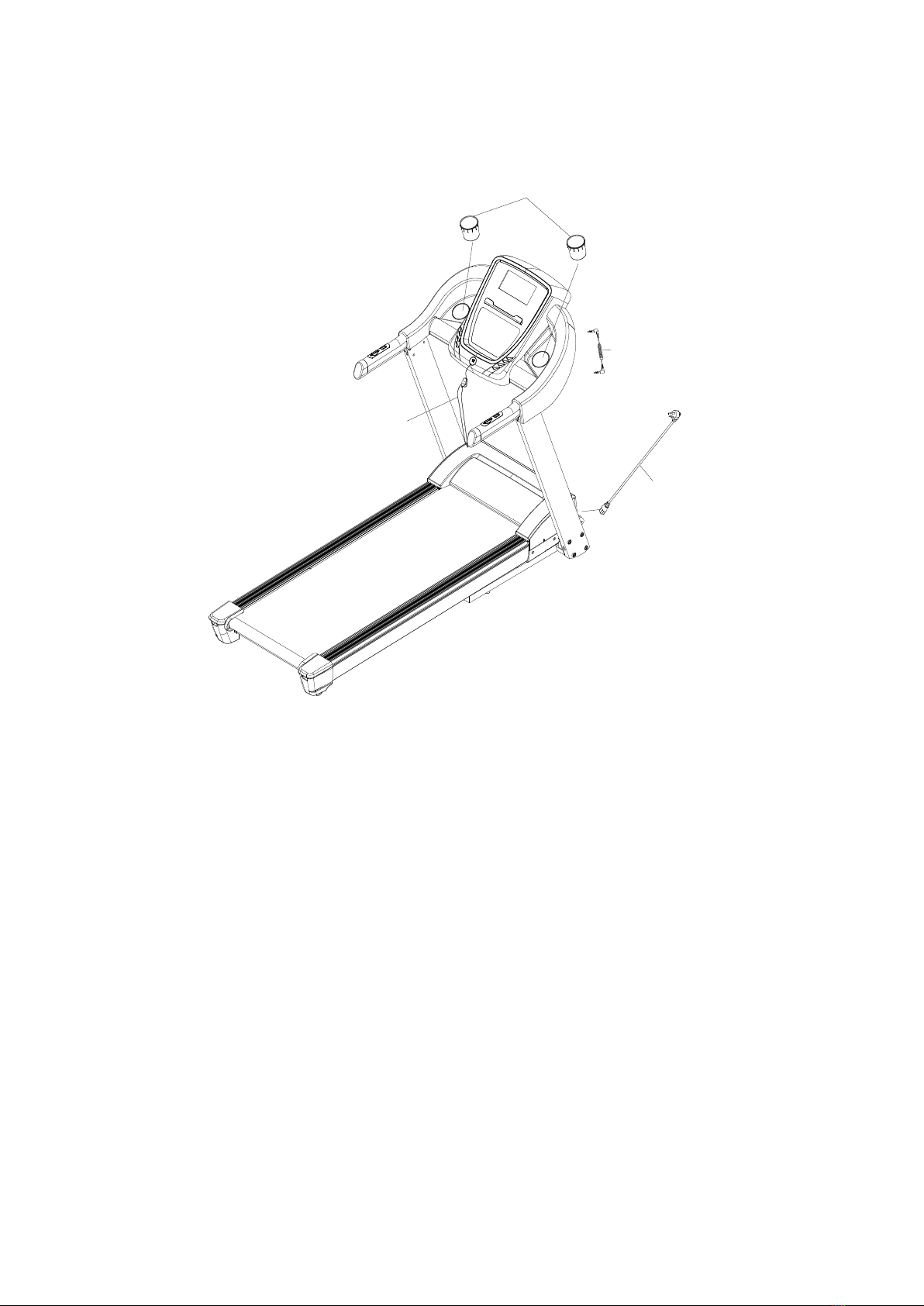

Step 4
C19
C15
B49
C13

10

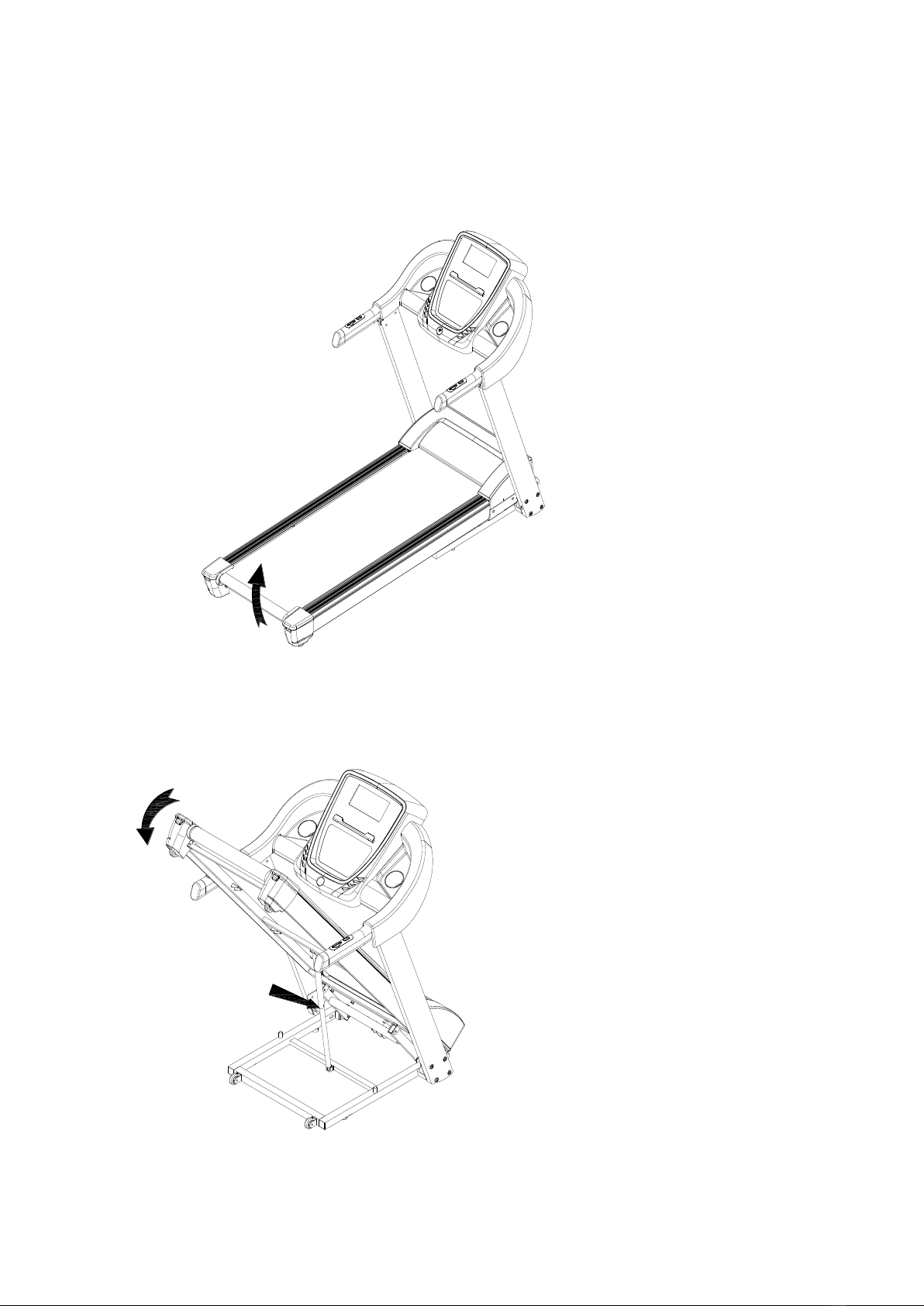

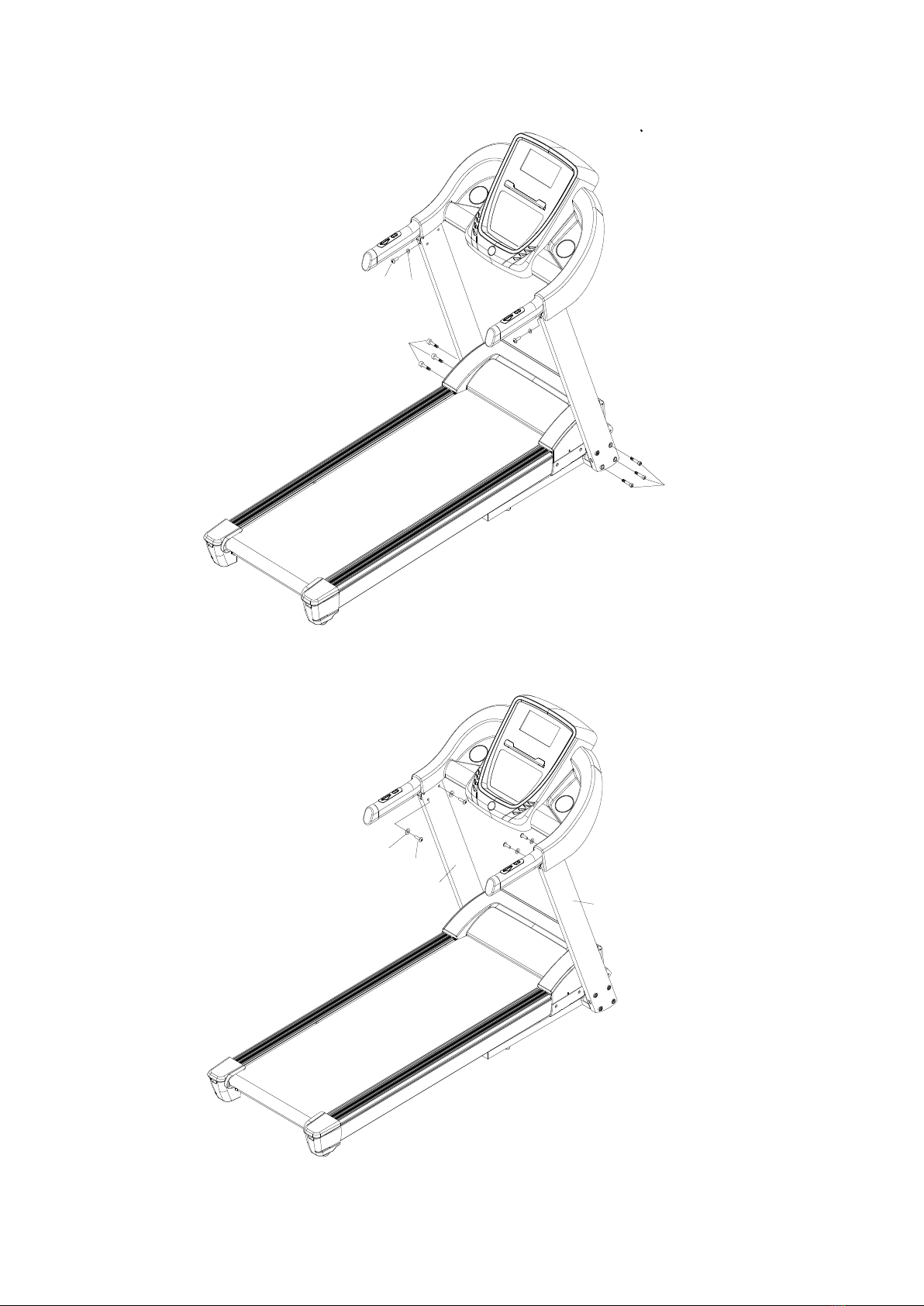

Folding Instruction
Unfolding Instruction
