myvu solo plus edition User manual

1

2
Congratulations on your purchase of
the myvu®personal media viewer,
solo plus edition.
You are about to engage in a new, dynamic viewing
experience. The myvu personal media viewer takes
portable media to an unprecedented level.
Prepare to be captivated by sharp color images and
built-in stereo sound as you watch your favorite music
videos, movies, sports or other downloaded
entertainment.
The viewer is one of the world’s most comfortable and
fashionable portable video displays. Within this manual,
you will find guidelines for product operation, care and
safety. More information can be found at
www.myvu.com.
Please register your myvu personal media viewer
online at www.myvu.com/registration.
NOTICE
The information in this manual is subject to change
without notice. Myvu Corporation shall not be liable for
technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages
resulting from the furnishing or use of this material.
©2007 Myvu Corporation. All rights reserved. “myvu”
and “SolidOptex” are trademarks of Myvu Corporation.
This product is protected by U.S. Patents 5715377,
5886822, 6023372, 6091546, 6204974B1, 6349001B1,
6356392B2, 6384982B1, 6879443B2, and other U.S.
and International Patents issued and pending.
contents
IMPORTANT SAFETY & HANDLING INSTRUCTIONS
........................................................................... 2
Handling your myvu personal media viewer. 2
Surface cleaning ........................................... 3
Proper handling & disposal of batteries........ 3
Introduction ........................................................ 3
Included system components ............................ 3
Getting started ................................................... 3
Tips for comfortable viewing.............................. 3
Nose pads..................................................... 3
Changing the nose pad................................. 4
Earbuds and earbud pads ............................ 4
Picture Control………………………………….4
Using the pendant controls................................ 4
About charging the battery ................................ 4
Watching video .................................................. 4
myvu set-up 1: Watching video with an iPod..4
myvu set-up 2: Watching video with an iPod
Touch………………………………………..…5
Myvu set-up 3: Watching video with an
iPhone…………………………………………..5
Troubleshooting ................................................. 5
No video and no audio.................................. 5
Video image is not bright enough ................. 5
Video image is fuzzy or out of focus............. 5
(contents continued on next page)
The video is clipped or black bars appear on top
and bottom of the image................................5
Weak or nonexistent audio............................5
Battery is not charging or is charging slowly.5
A note to individuals who wear prescription eyeglasses
............................................................................5
Technical support ...............................................5
Available accessories.........................................6
Specifications .....................................................6
Limited warranty .................................................6
Limitation of liability………………………………..6
Regulatory agency requirements .......................7
important safety & handling
instructions
WARNING:
The myvu personal media viewer must not be used
in any circumstances for which a complete field of
vision is necessary for reasons of safety. Nor should
the viewer be used in any situation in which
undistracted viewing, hearing or mental
concentration is necessary. The viewer should never
be worn while operating equipment or vehicles,
while handling sharp, hot or otherwise dangerous
objects, or used in other situations where your
undivided attention is needed to avoid danger to
yourself or to others. It is the responsibility of the
user of this product to employ common sense with
regard to appropriate product usage.
This product is not recommended for children under 10
years of age, nor for people with atypical visual or
neurological conditions. Consult a physician if you have
concerns about your specific condition and the use of
this product.
Even though the viewer permits users to maintain most
of their natural vision, some people may still experience
motion sickness, perceptual after effects, disorientation,
instability and loss of balance, and eyestrain. If you
experience any of these effects, discontinue use of the
product.
Hearing loss can result when listening to audio at
excessively high levels or for prolonged periods of time.
Always set the volume level on your source device to a
safe level before placing the earbuds in your ears.
Handling your myvu personal media viewer
WARNING: Please use care when handling the cables.
Avoid kinks and knotting of the cables as careless
handling can result in permanent damage to the cables.
Do not use the cables as lanyards or for other purposes.
The myvu personal media viewer is durable, but not
indestructible. Handle with care as you would other
portable electronics. Do not place the viewer on or near
hot surfaces such as heaters, stove top or electrical
components. Do not leave this product inside an

3
automobile on a hot or cold day. Do not immerse the
viewer in liquids.
Do not disassemble or attempt to repair or modify this
product.
Surface Cleaning
The viewer may be wiped with a clean, soft cotton cloth,
lens cloth or the microfiber protective sleeve supplied
with this product.
WARNING: Do not use alcohol or other solvents to
clean the viewer.
Proper Handling & Disposal of Batteries
Batteries contain toxic materials and therefore should be
kept out of the reach of children. Batteries should not be
punctured, burned, disassembled or damaged.
Batteries may be recyclable. Obey your local laws and
regulations when disposing of Li-Polymer batteries.
introduction
Your myvu personal media viewer allows you to enjoy
video entertainment anywhere you go. Its sleek profile
permits you to maintain most of your natural field of
vision by seeing over or under the viewer. The bright,
full-sized image is daylight-viewable for hands-free
viewing whether you are indoors or outside. In
combination with a fully-charged iPod, a fully charged
myvu battery provides up to 4 hours of video viewing.
included system components
•The myvu personal media viewer system
including viewer with in-ear noise reducing
earbuds and pendant with battery and controls
•Two additional nose pads offering different
heights to provide a custom fit
•Two additional pairs of differently sized earbud
pads
•One USB cable to charge your myvu battery
•One iPod connection cable
•Microfiber protective sleeve to store your viewer;
also functions as a lens cloth

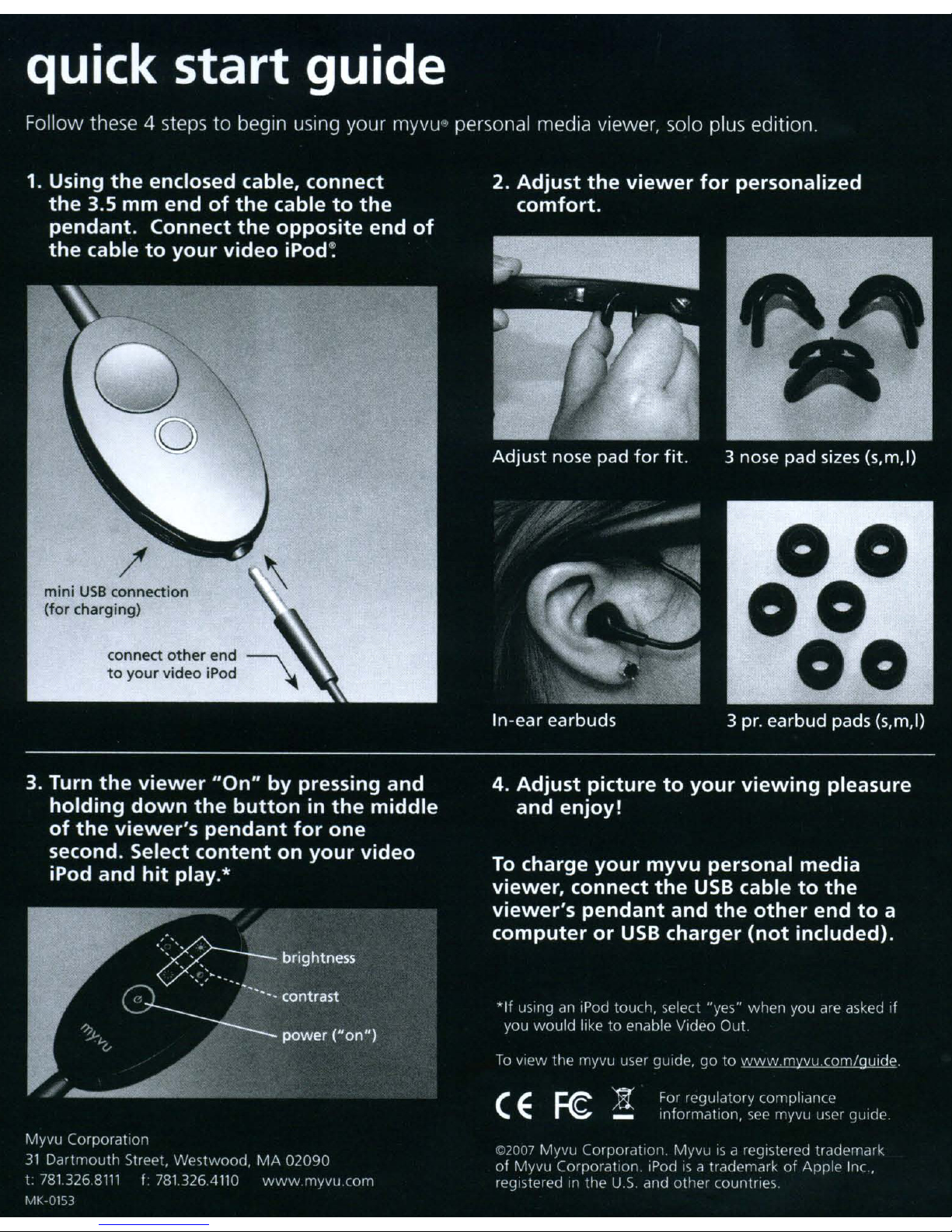

•quick start guide
getting started
Follow these 3 steps to begin using your myvu personal
media viewer.
1. Using the enclosed cable, connect the 3.5mm end
of the cable to the pendant. Connect the opposite
end of the cable to your video iPod.
2. Charge your myvu personal media viewer.
Using the USB charger, insert the mini USB connector
into its port on the pendant (see figure 1.). Connect
the other end to a computer or USB wall charger.
Note: You can use the viewer and your iPod while
your viewer is charging if charging through a Made for
iPod USB wall charger.
(figure 1)
3. Turn the viewer “On” by pressing and holding
down the button in the middle of the viewer’s
pendant. Select content on your iPod and enjoy!
(figure 2)
tips for comfortable viewing
While wearing the viewer, adjust its position until you
can see the entire video image clearly. The position and
angle of the viewer relative to your eyes are important
for proper viewing. When the viewer is properly
positioned, the video image should be in full view.
Nose pads
You can make adjustments to the viewer’s position by
widening or narrowing the nose pad using gentle
squeezing (see figure 3.). Three different sized nose
pads (small, medium and large) are provided which
allow for further height adjustments in order to obtain a
personalized, more comfortable fit (see figure 4, also
see “Changing the nose pad”). The viewer is shipped
with the medium-sized nose pad installed.
(figure 3) (figure 4)
Power
USB Port

4
Changing the nose pad
Hold the viewer with the front pointing away from you.
Place both of your thumbs on top of nose pad and
support the bottom of the viewer with your fingers (see
figure 5.). Using your thumbs, press the nose pad
straight down firmly to disengage it from the viewer.
(figure 5) (figure 6)
To reinstall a nose pad, support the viewer with one
hand (see figure 6.). Using the index finger of your other
hand, align the nose pad with the slot in the viewer.
Press the nose pad up into the slot until it snaps into
place.
Earbuds and earbud pads
Cover the earbuds with the protective earbud pads.
Three different size earbud pads (small, medium and
large) are provided (see figure 7.). Choose a pad size
that fits comfortably in your ear. Be sure to adjust the
volume to a safe level before inserting the earbuds into
your ears (see figure 8.). The viewer ships with medium-
sized earbuds attached.
(figure 7) (figure 8)
Picture control
Due to the nature of this product, picture settings may
need to change to suit your viewing preference. Use the
brightness and picture controls featured on the pendant to
adjust myvu’s picture to suit your viewing pleasure.
Further instructions on adjusting the picture and
brightness are listed below.
using the pendant controls
You can power myvu “On” by using the power button on
the pendant. The pendant also allows you to control
image contrast and brightness by holding down the
appropriate button on the pendant. You can return the
brightness and contrast settings to the factory default
settings at any time by pressing the power and
brightness down buttons simultaneously while the viewer
is on. Figure 9 shows the button functions and layout on
the pendant.
(figure 9)
about charging the battery
In order to get the longest possible video experience,
fully charge your myvu and your iPod before each use.
You can still watch video or listen to music while the
battery is being charged. The LED on the pendant
indicates the charging state of your myvu:
Solid Blue: On and detected video signal
Blinking Blue: On but no signal detected (check video
sources and A/V cable connections)
Blinking Orange: Low charge/Less than approximately 3
minutes of battery life remaining OR Charging
Blinking Purple: Low battery and no signal detected
Solid Purple: Battery fully charged
Charging time
The battery is designed to charge from many different
power sources. When using a high capacity charging
adaptor, such as a USB wall adaptor, full charge can be
achieved in approximately two hours. When charging off
of a computer, slow charge mode is in effect, which will
take approximately three hours to achieve full charge.
watching video
myvu set-up 1:
Watching video with the viewer and your iPod
Classic, nano or iPod 5th generation (video) model
Plug the 3.5mm end of the iPod connector cable to the
pendant. Connect the other end of the cable to your
iPod. Turn the viewer “On” by pressing the button in
the middle of the viewer’s pendant. Choose your
favorite video and enjoy.
myvu set-up 2:
Watching video with the viewer and your iPod
Touch
Plug the 3.5mm end of the ipod connector cable to the
pendant. Connect the other end of the cable to your
Increase
Brightness*
Increase
Contrast
Decrease
Contrast
Decrease
Brightness
Power*
*Reset factory
settings by
depressing
these buttons
simultaneously

5
iPod Touch. Turn the viewer “On” by pressing the
button in the middle of the viewer’s pendant. Choose
your favorite video. Select “Yes” when your iPod
Touch asks you if you want to enable “Video Out”.
Enjoy!
myvu set-up 3:
Watching video with the viewer and your iPhone
Plug the 3.5mm end of the iPod connector cable to
your pendant. Connect the other end of the cable to
your iPhone. Make sure your iPhone is in “Airplane”
mode. Choose your favorite video. Select “Yes” when
your iPhone asks you if you want to enable “Video
Out.” Enjoy!
troubleshooting
No video and no audio
1. Make sure that the viewer’s battery and your iPod are
fully charged. If the viewer’s LED is Orange, use the
USB cable to charge the battery.
2. Make sure the viewer in turned “On.” If the LED on
the pendant is not lit up, press the button to power it on.
3 If the LED is blinking Blue or Purple, there is no video
signal getting to the viewer. Make sure the connectors
are seated properly into the pendant connector ports
located at the bottom of the pendant and at the bottom of
your iPod.
Video image is not bright enough
1. Make sure that the viewer is properly connected to
your iPod.
2. Make sure that the viewer is fully charged or that it is
powered using the USB cable.
3. Adjust the brightness level by pressing and releasing
the Brightness Up button on the pendant repeatedly until
you achieve the desired viewing mode. The image
contrast can also be adjusted (see “Using the pendant
controls”). Press Brightness Down and Power
simultaneously to reset adjustments to factory settings.
Video image is fuzzy or out of focus
The viewer has a focal distance that is preset at the
factory. There is no focus adjustment. If you cannot see
the video image clearly, you may need to wear a
corrective lens with your viewer. This is likely if you
normally have to wear prescription glasses when using a
laptop computer or watching television. A clip-on
prescription lens, the myvu clip-on, is available for the
viewer (visit www.myvu.com/clipon).
The video is clipped or black bars appear on top and
bottom of the image
The viewer is designed to display a video image with a
4:3 aspect ratio in order to match the standard TV
image. If you’re viewing Widescreen content and your
portable media player allows you to turn Widescreen
viewing off, your image will appear clipped. If you’re
viewing Widescreen content and your portable media
player allows you to turn Widescreen On, the image will
appear in a letterbox format, with black bars appearing
on the top and bottom of the image.
Weak or nonexistent audio
Verify that all connectors are properly attached. Adjust
the volume on your iPod.
Battery is not charging or is charging slowly
Verify that the USB cable and all connectors are
securely attached. For the fastest charging time, it is
recommended that you use the USB cable with a USB
wall charger to charge your myvu. Charging your myvu
with the USB cable connected to a computer is possible,
but might result in slower charging times.
If you continue to experience technical problems, please
contact Myvu Corporation technical support. (See
contact information below.)
a note to individuals who wear
prescription eyeglasses
The myvu personal media viewer has been designed to
be light weight and elegant. Accordingly, it will not fit
over larger sizes of eyeglasses. Whether or not you will
need to use your eyeglasses with the myvu system
depends on the degree of correction that you require.
For those who cannot fit the myvu system over their
current eyewear yet desire ophthalmic correction, a clip-
on lens is available. The myvu clip-on lens is
manufactured to suit your vision needs and attaches
easily to the viewer (see figure 10.). This lens can be
ordered at www.myvu.com/clipon.
(figure 10)
technical support
For technical support and additional information, contact:
Myvu Corporation
31 Dartmouth Street
Westwood, MA 02090
telephone: [phone]
fax: [phone]
e-mail: [e-mail]
www.myvu.com

6
available accessories
The following accessories are available from your myvu
retailer or via the web at myvu.com.
•myvu clip-on lens
(For more information or to order, please visit
myvu.com/clipon.)
•myvu connection kit for universal
•Premium travel case
specifications
Display format . 320 x 240, 24-bit color, 50–60 Hz frame rate
Optics…………Dual-color LCDs SolidOptex™Optical System
Video input .Auto sense and switch between NTSC and PAL
PowerLi-Polymer rechargeable battery…. 3.7V, 320mAh
Operating temperature:…………..32 to 104ºF (0 to 40ºC)
Storage temperature:…………...-4 to 140ºF (-20 to 60ºC)
Weight………………………………………....Viewer: 75g (2.6oz)
limited warranty
Myvu Corporation (“Myvu”) warrants this product against
defects in material or workmanship as follows:
PRODUCT: Myvu will repair this product with new or
refurbished parts, free of charge, for a period of one (1)
year from the date of original purchase in the event of a
defect in materials or workmanship.
REPAIRS: Myvu will repair or replace defective parts
used in the repair or replacement of this product with
new or refurbished parts, free of charge, for a period
equal to the remainder of the original limited warranty
period on the original product, or for 60 days after the
date of the repair or replacement, whichever is longer.
This warranty is extended only to the original purchaser.
Proof of purchase in the form of a bill of sale or receipted
invoice, which is evidence that the unit is within the
warranty period, must be presented to obtain warranty
service. To obtain warranty service, you must take this
product, or deliver the product freight prepaid, in either
its original packaging or packaging affording an equal
degree of protection, to Myvu Corporation. See below for
additional information.
This warranty only covers failures due to defects in
materials and workmanship, which occur during normal
use. The warranty does not cover damages which
occurred in shipment, cosmetic damage, damage that is
attributable to acts of God, failures which are caused by
products not supplied by the warrantor, or failures which
result from accident, misuse, abuse, neglect,
mishandling, faulty installation, misapplication, improper
installation, operation or maintenance, alteration,
modification, introduction of sand, humidity or liquids,
line power surge, improper voltage supply, lightning
damage, or subjecting the product to
operating/environmental conditions in excess of the
maximum values or below the minimum values set forth
in the applicable specifications, or products serviced by
anyone other than Myvu. This warranty is invalid if the
factory-applied serial number has been altered or
removed from the product. This warranty does not cover
products sold AS IS or WITH ALL FAULTS. This
warranty excludes consumable parts such as batteries
and power supplies.
This warranty is valid only in the United States.
THERE ARE NO EXPRESS WARRANTIES EXCEPT
AS LISTED ABOVE. REPAIR OR REPLACEMENT AS
PROVIDED UNDER THIS WARRANTY IS THE
EXCLUSIVE REMEDY OF THE PURCHASER. MYVU
SHALL NOT BE LIABLE FOR LOST PROFITS, LOST
SALES, LOSS OF USE OF THE PRODUCT, OR
OTHER INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY. ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND TITLE, ARE LIMITED TO THE
APPLICABLE WARRANTY PERIOD SET FORTH
ABOVE.
limitation of liability
SELLER SHALL HAVE NO LIABILITY FOR ANY
CLAIM, LOSS, DAMAGE OR EXPENSE OF ANY KIND,
INCLUDING FOR LOST PROFITS, SPECIAL,
INDIRECT, CONSEQUENTIAL, EXEMPLARY OR
INCIDENTAL DAMAGES, WITH RESPECT TO THE
SELECTION, QUALITY, CONDITION,
MERCHANTABILITY, SUITABILITY, FITNESS,
OPERATION, PERFORMANCE, OR THE USE,
MAINTENANCE OR REPAIR OF THE PRODUCTS
EVEN IF SELLER OR BUYER HAS BEEN ADVISED OF
THE POSSIBILITY THEREOF. THE PRICE STATED
HEREIN WAS ARRIVED AT IN CONSIDERATION FOR
LIMITING SELLERS WARRANTIES AND LIABILITY AS
PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or allow limitations
on how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you.
This warranty gives you specific legal rights and you
may also have other rights, which vary from state to
state.
If a problem with this product develops during or after
the warranty period, please contact: Myvu Corporation,
31 Dartmouth Street, Westwood, MA 02090.

7
regulatory agency requirements
Federal Communications Commission Notice
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide protection against harmful interference in a
residential installation.
Cables
Connections to this device must be made with shielded
cables in order to maintain compliance with FCC rules
and regulations.
Declaration of Conformity for products marked with
the FCC logo
(US Only)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the conditions: 1) this device may
not cause harmful interference and 2) this device must
accept any interference received, including interference
that may cause undesired operation.
European Union Notice
This product, by bearing the CE marking, complies with
the EMC Directive (89/336/EEC) and the Low Voltage
Directive (73/23/EEC) issued by the Commission of the
European Community. Compliance with these directives
implies conformity with the following European
harmonized standards:
•EN55013 Radio Disturbance
•EN55020 Electromagnetic Immunity
This product may be used in all EU countries.
Please Recycle
In accordance with EU directive 2002/96/EC, please be
a friend to the environment by recycling your used
electronic products.
