SERVICE MANUAL
CI 940 MULTI-CHANNEL AMPLIFIER
CI 940
MULTI-CHANNEL
AMPLIFIER

TABLE OF CONTENTS
DESCRIPTION P A G E
SERVICE CAUTION…………………………………………………………..3-4
SPECIFICATIONS…………………………………………………………...5
WIRING DIAGRAM……………………………………………………………...6

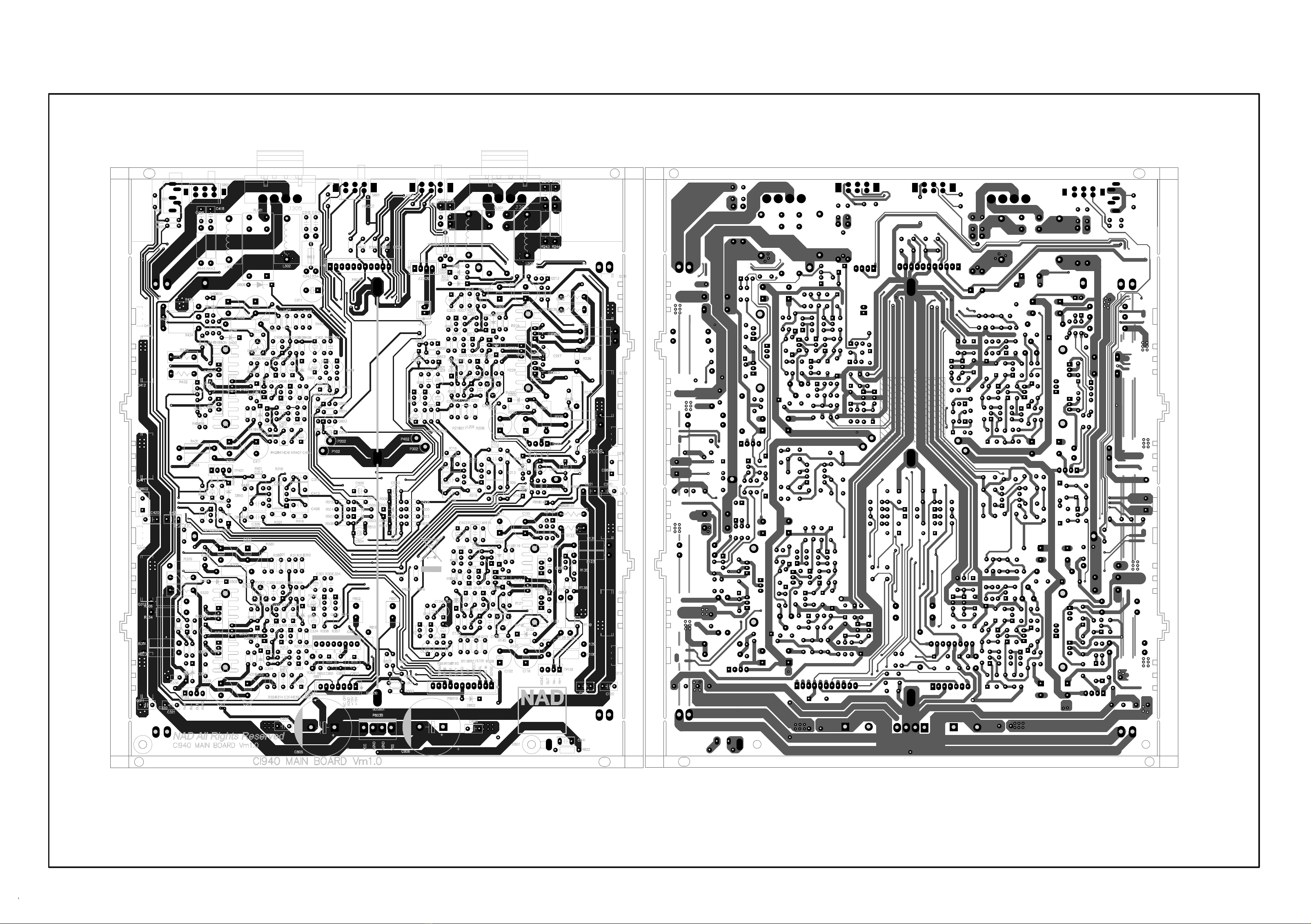

PCB LAYOUT………………………………………………………………..17-20
EXPLODED VIEW PARTS LIST……………………………………………....37
CIRCUIT DIAGRAMS.....
TROUBLE SHOOTING GUIDE…………………..........................................10
EXPLODED VIEW ......................................................................................36
..………………................................................11-16
ELECTRICAL VIEW PARTS LIST…………………………………...…....21-35
BLOCK DIAGRAM…………………………………………………………....7-9

PRODUCT SAFETY SERVICING GUIDELINES
CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN
ANY WAY. NEVER PERFORM CUSTOMIZED INSTALLATIONS
WITHOUT MANUFACTURER’S APPROVAL. UNAUTHORIZED
MODIFICATIONS WILL NOT ONLY VOID THE WARRANTY, BUT
MAY LEAD TO YOUR BEING LIABLE FOR ANY RESULTING
PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU
ARE THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING
SAFETY CHECKS AND SERVICING GUIDELINES. TO DO
OTHERWISE, INCREASES THE RISK OF POTENTIAL HAZARDS
AND INJURY TO THE USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR
PROTECTION FROM AC LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN
CORRECTED. A CHECK SHOULD BE MADE OF THE
FOLLOWING.
SUBJECT : FIRE & SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN
SUCH A WAY AS TO AVOID POSSIBILITY OF ADJACENT
COMPONENT SHORTS. THIS IS ESPECIALLY IMPORTANT
ON THOSE MODULES WHICH ARE TRANSPORTED TO AND
FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE
DEVICES SUCH AS INSULATORS, BARRIERS, COVERS,
SHIELDS, STRAIN RELIEFS, POWER SUPPLY CORDS, AND
OTHER HARDWARE HAVE BEEN REINSTALLED PER
ORIGINAL DESIGN. BE SURE THAT THE SAFETY PURPOSE
OF THE POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE
COLD SOLDER JOINTS, SOLDER SPLASHES OR SHARP
SOLDER POINTS. BE CERTAIN TO REMOVE ALL LOOSE
FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR
DETERIORATION TO PARTS AND COMPONENTS. FOR
FRAYED LEADS, DAMAGED INSULATION (INCLUDING AC
CORD). AND REPLACE IF NECESSARY FOLLOW ORIGINAL
LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECEIVING
TUBE OR A RESISTOR RATED AT 1 WATT OR MORE. LEAD
TENSION AROUND PROTRUDING METAL SURFACES MUST
BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES,
FLAMEPROOF RESISTORS, CAPACITORS, ETC. MUST BE
REPLACED WITH EXACT FACTORY TYPES, DO NOT USE
REPLACEMENT COMPONENTS OTHER THAN THOSE
SPECIFIED OR MAKE UNRECOMMENDED CIRCUIT
MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN
AC LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF
THE CABINET, (THE CHANNEL SELECTOR KNOB, ANTENNA
TERMINALS. HANDLE AND SCREWS) TO BE SURE THE SET
IS SAFET TO OPERATE WITHOUT DANGER OF ELECTRICAL
SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER
DURING THIS TEST USE AN AC VOLTMETER, HAVING 5000
OHMS PER VOLT OR MORE SENSITIVITY, IN THE

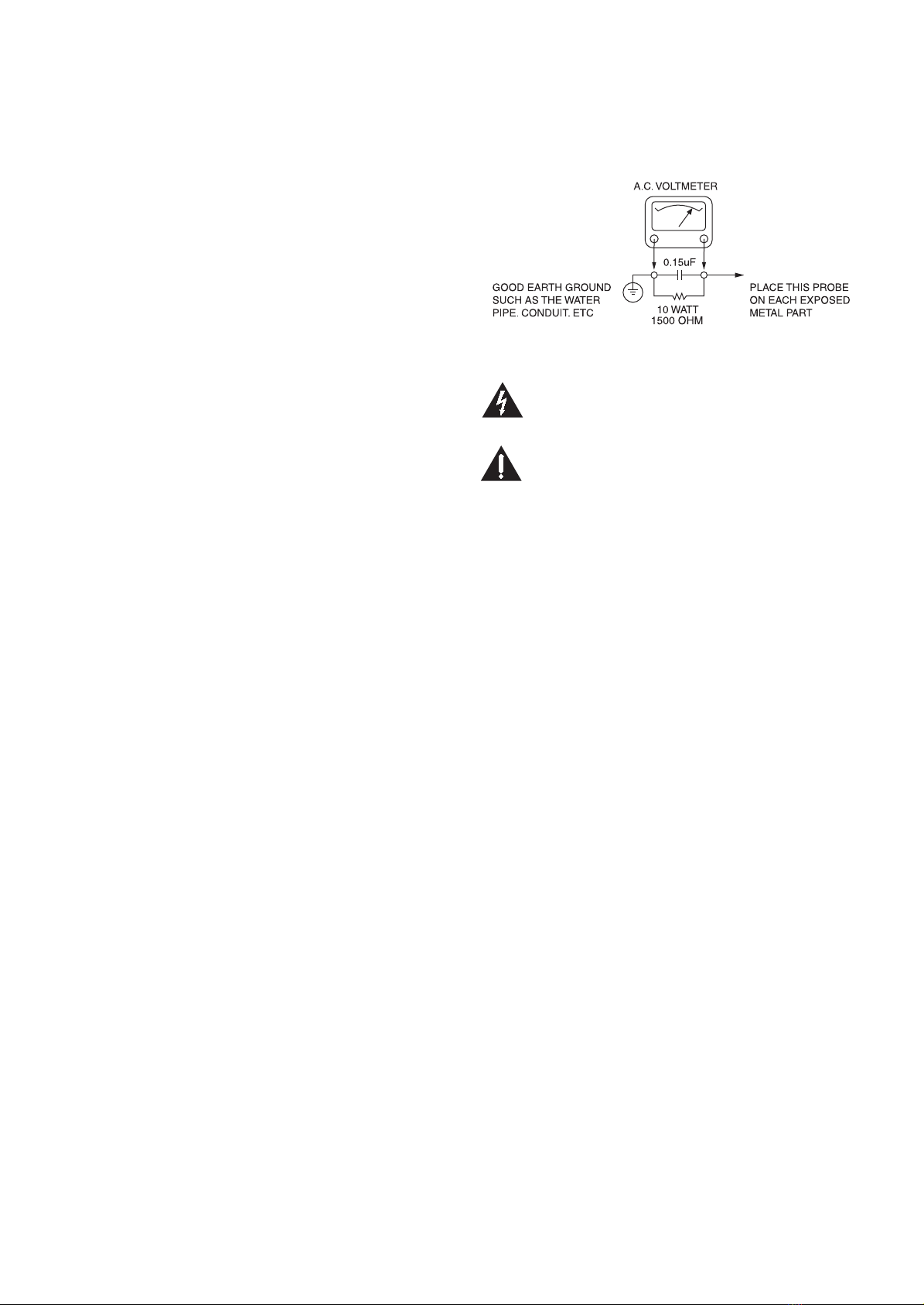

FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT
RESISTOR, PARALLELED BY A .15 MFD, 150V AC TYPE
CAPACITOR BETWEEN A KNOWN GOOD EARTH GROUND
(WATER PIPE, CONDUIT, ETC.) AND THE EXPOSED
METALLIC PARTS, ONE AT A TIME.
MEASURE THE AC VOLTAGE ACROSS THE COMBINATION
OF 1500 OHM RESISTOR AND .15 MFD CAPACITOR.
REVERSE THE AC PLUG AND REPEAT AC VOLTAGE
MEASUREMENTS FOR EACH EXPOSED METALLIC PART.
VOLTAGE MEASURE MUST NOT EXCEED 75 VOLTS R.M.S.
THIS CORRESPONDS TO 0.5 MILLIAMP AC ANY VALUE
EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED IMMEDIATELY.
SUBJECT : GRAPHIC SYMBOLS
SUBJECT : TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS,
CUBBYHOLE OR CLOSELY FITTING SHELF SPACE. OVER
OR CLOSE TO HEAT DUCT, OR IN THE PATH OF HEATED
AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS:
OUTDOOR PATIO INSTALLATIONS WHERE DEW IS A
FACTOR, NEAR STEAM RADIATORS WHERE STEAM
LEAKAGE IS A FACTOR, ETC.
3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT
REAR VENTING. THE CUSTOMER SHOULD ALSO AVOID THE
USE OF DECORATIVE SCARVES OR OTHER COVERINGS
WHICH MIGHT OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A
COMMERCAL MOUNTING KIT MUST FOLLOW THE FACTORY
APPROVED MOUNTING INSTRUCTIONS A PRODUCT
MOUNTED TO A SHELF OR PLATFORM MUST RETAIN ITS
ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN
SPACERS) TO PROVIDE ADEQUATE AIR FLOW ACROSS
THE BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS
MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM
LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A
PRODUCT ON SLOPING SHELF OR A TILTED POSITION,
UNLESS THE PRODUCT IS PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE
ON ITS MOUNTING TO THE CART. CAUTION THE
CUSTOMER ON THE HAZARDS OF TRYING TO ROLL A CART
WITH SMALL CASTERS ACROSS THRESHOLDS OR DEEP
PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR
STAND WHICH HAS NOT BEEN LISTED BY UNDERWRITERS
LABORATORIES, INC. FOR USE WITH THEIR SPECIFIC
MODEL OF TELEVISION RECEIVER OR GENERICALLY
APPROVED FOR USE WITH T.V.’S OF THE SAME OR
LARGER SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION
CORDS, EXPLAIN THAT A FOREST OF EXTENSIONS
SPROUTING FROM A SINGLE OUTLET CAN LEAD TO
DISASTROUS CONSEQUENCES TO HOME AND FAMILY.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN
EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE
PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS
INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
3

SERVICING PRECAUTIONS
CAUTION : Before servicing the poweramplifier covered by this
service data and its supplements and addends, read and follow the
SAFETY PRECAUTIONS. NOTE : if unforeseen circumstances
create conflict between the following servicing precautions and any
of the safety precautions in this publication, always follow the safety
precautions.
Remember Safety First:
General Servicing Precautions
1. Always unplug the poweramplifier AC power cord from the AC
power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnecting or reconnecting any internal electrical plug or
other electrical connection.
(3) Connecting a test substitute in parallel with an electrolytic
capacitor.
Caution : A wrong part substitution or incorrect polarity installation
of electrolytic capacitors may result in an explosion hazard.
2. Do not spray chemicals on or near this poweramplifier or any of its
assemblies.
3. Unless specified otherwise in this service data, clean electrical
contacts by applying an appropriate contact cleaning solution to
the contacts with a pipe cleaner, cottontipped swab, or
comparable soft applicator.
Unless specified otherwise in this service data, lubrication of
contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with which
instruments covered by this service manual might be equipped.
5. Do not apply AC power to this poweramplifier and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
6. Always connect test instrument ground lead to the appropriate
ground before connecting the test instrument positive lead. Always
remove the test instrument ground lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn the
power on. Connect an insulation resistance meter(500V) to the
blades of the attachment plug. The insulation resistance between
each blade of the attachment plug and accessible conductive parts
(Note 1) should be more than 1M-ohm.
Note 1 : Accessible Conductive Parts including Metal panels, Input
terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by
static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical Es
devices are integrated circuits and some field effect transistors and
semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed for
potential shock reasons prior to applying power to the unit under
test.
2. After removing an electrical assembly equipped with ES devices,
place the assembly on a conductive surface such as aluminum
foil, to prevent electrostatic charge buildup or exposure of the
assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an antistatic solder removal device. Some solder
removal devices not classified a “anti-static” can generate
electrical charges sufficient to damage ES devices.
5. Do not use freonpropelled chemicals. These can generate
electrical charge sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically
shorted together by conductive foam, aluminum foil, or
comparable conductive material).
7. lmmediately before removing the protective material from the
leads of a replacement ES device, touch the protective material to
the chassis or circuit assembly into which the device will be
installed.
Caution : Be sure no power is applied to the chassis or circuit, and
observe all other safety precautions.
8. Minimize bodily motions when handing unpackaged replacement
ES devices. (Normally harmless motion such as the brushing
together of your clothes fabric or the lifting of your foot from a
carpeted floor can generate static electricity sufficient to damage
an ES device.)
4

SPECIFICATIONS
ENGLISHFRANÇAISESPAÑOLDEUTSCHNEDERLANDSSVENSKAРУССКИЙ
5
CI 940
Continuous Output Power 8 Ohms/4 Ohms
8 Ohms in Bridge Mode 4 x 35W (ref. rated THD, 20Hz-20kHz, all channels driven)
2 x 70W
Rated THD (250mW to rated power, CCIF IMD, DIM 100) ≤0.03% (ref. 20Hz-20kHz)
IHF Dynamic Power
8 ohms
4 ohms
2 ohms
55W
85W
95W
Damping Factor >180 (ref. 8 ohms, 50Hz and 1kHz)
Input Sensitivity 270mV (ref. rated power)
Voltage Gain 35dB
Frequency Response ±0.2dB (ref. 20Hz-20kHz)
-3dB at 3Hz and 100kHz
Signal/Noise Ratio, A-Weighted >95dBA (ref. 1W)
>110dB (ref. 35W)
Trigger 5-30V In (AC/DC)
-52dBV, 12V Out
Time to Automatic Standby (without signal at input sense mode) <10 minutes
GENERAL
Rated Power 270W (120V 60Hz, 230V 50Hz)
Idle Power <55W
Standby power <0.5W
Unit Dimension (WxHxD) - Gross **
(includes knobs, terminals, feet and mounting brackets) 483 x 105 x 323mm
19 1/16 x 4 3/16 x 12 3/4”
Net weight 6.96kg (15.35lb)
Shipping weight 8.4kg (18.5lb)

6

7
Input L
Input R
Output L
Output R
Cascade
Cascade
TRIGGER IN
12V
Relay

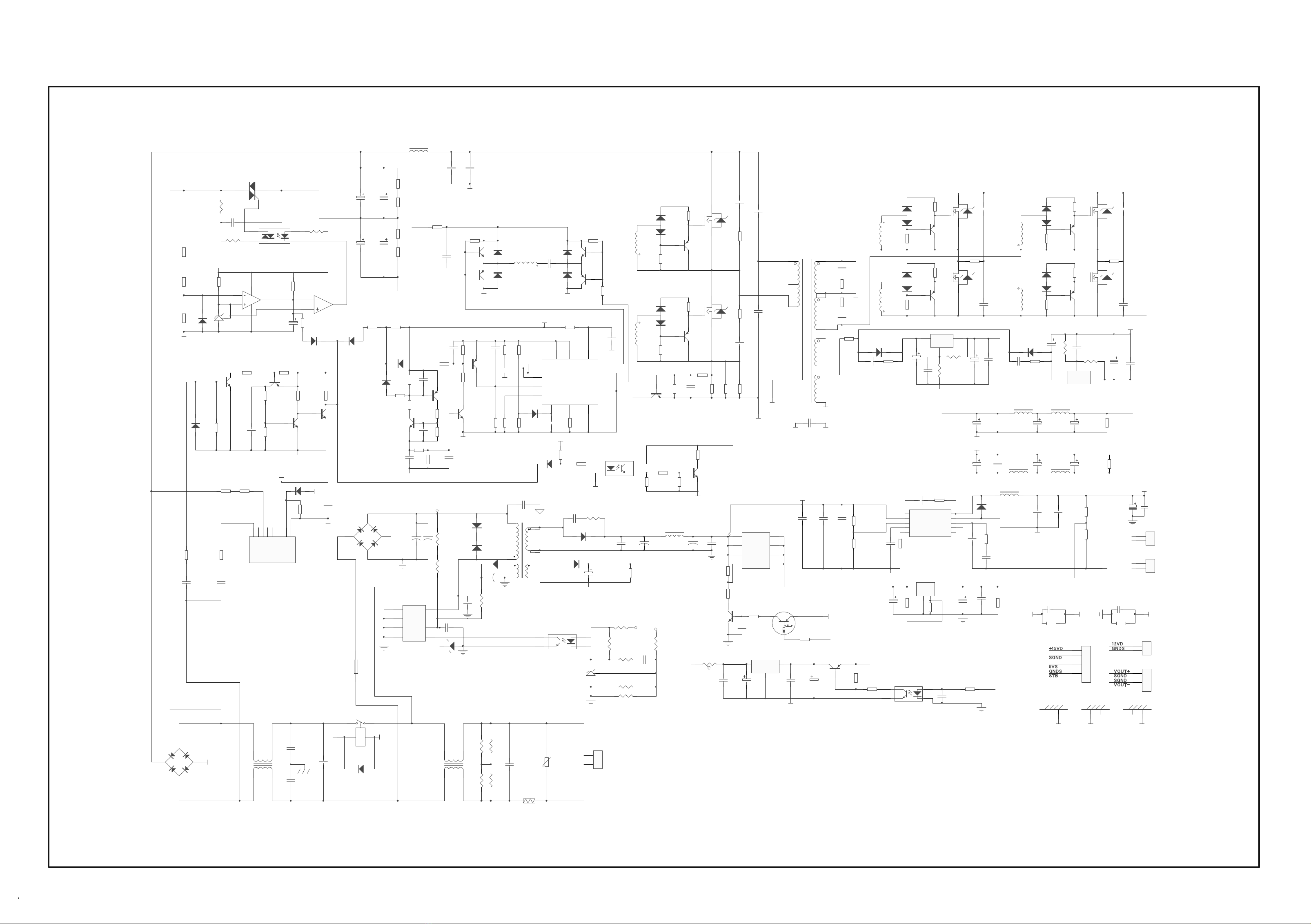

Power Supply Board(SMPS)
AC PLUG IN
5V/1A Standy circuit
meet 0.5W requirement
MCU
To MCU
LEDs Control circuit
Input L
Input R
Output L
Output R
Cascade
Cascade
Zone 1 IN
Zone 1 OUT
Zone 2 OUT
Zone 2 IN
FOUR CHANNELS SEPERATED POWER AMPLIFIERS
Audio sense circuit
Protection circuit
Zone 1 L
Zone 1 LR Zone 2 R Zone 2 L
Fan Contril Circuit
Heatsink 1 Heatsink 2
+
-
+
-
ZONE 2
ZONE 2
RIGHT
LEFT
BRIDGE
+
-
+
-
ZONE 1
ZONE 1
RIGHT
LEFT
BRIDGE
+45V/4A -45V/4A
5VS
Relay
To MCU
NAD CI940BLOCK DIAGRAM
VERSION:V1.0
Drafted by: BEN
Data:2014-2-25
BLOCK DIAGRAM
S2
STB FROM MCU

TROUBLESHOOTING GUIDE
Connect AC Cord from CI940
IS THE AMBER LED LIGHTED? NO
YES
IS IT RED?
CHECK THE 5V SUPPLYCIRCUIT
CHECK THE LED CONTROL CIRCUIT
,AND PROTECET CIRCUIT
YES
THE UNIT WORK NORMALLY?
CAN PRESSING STB KEYMAKENO IS POWER MODE RIGHT? CHECK THE 5V SUPPLYCIRCUIT
NO
YES
IS THE ABMER LED AMBER
AMBER
IS THE STANDBYSINGAL LOW CHECK THE PROTECT CIRUIT
CHECK THE STANDBYCONTROL
YES
NO
YES
CHECK MCU CONTROL CIRCUIT
YES
IS THE SPK OUT NORMAL? NO IS THE OUTPUT DC LEVEL NORMAL? CHECK POWERAMP CIRCUIT
IS THERE SIGNAL OUTPUT?
YES
YES
NO
CHECK INPUT BOARD CIRCUIT
IS INPUT BOARD OUT NORMAL?
NO
YES
NORMAL?
CHECK THE MUTE CONTROL
IS THE MUTE SIGNAL OFF?YES
CHECH NJW1194 AND PREAMP
IS PROTECT CIRCUIT NORMAL
CIRCUIT
NO
YES
IS THE THD HIGH OR ABNORMAL YES
WAVEFORM? OPEN THE UNIT FOR OVERALL
CHECK
NO
NO AMP CIRCUIT
IS 12V TRIGGER NORMAL? CHECK12V OUT CONTROL CIRCUIT
IS BRIDGE MODE NORMAL? CHECK PHONE CIRCUIT
OR CONNECTION
OK
NO
NO
YES
YES
POWER ON BY POWER SWITCH OF REAR PANEL
RED
CHECK POWERAMP CIRCUIT
OR CHANGE AUTO ON MODE TO
TO TRY AGAIN
OR RED?NO
IS AUDIO SENSE CIRCUIT NORMAL? CHECK AUDIO SENSE CIRCUIT
NO
YES
10

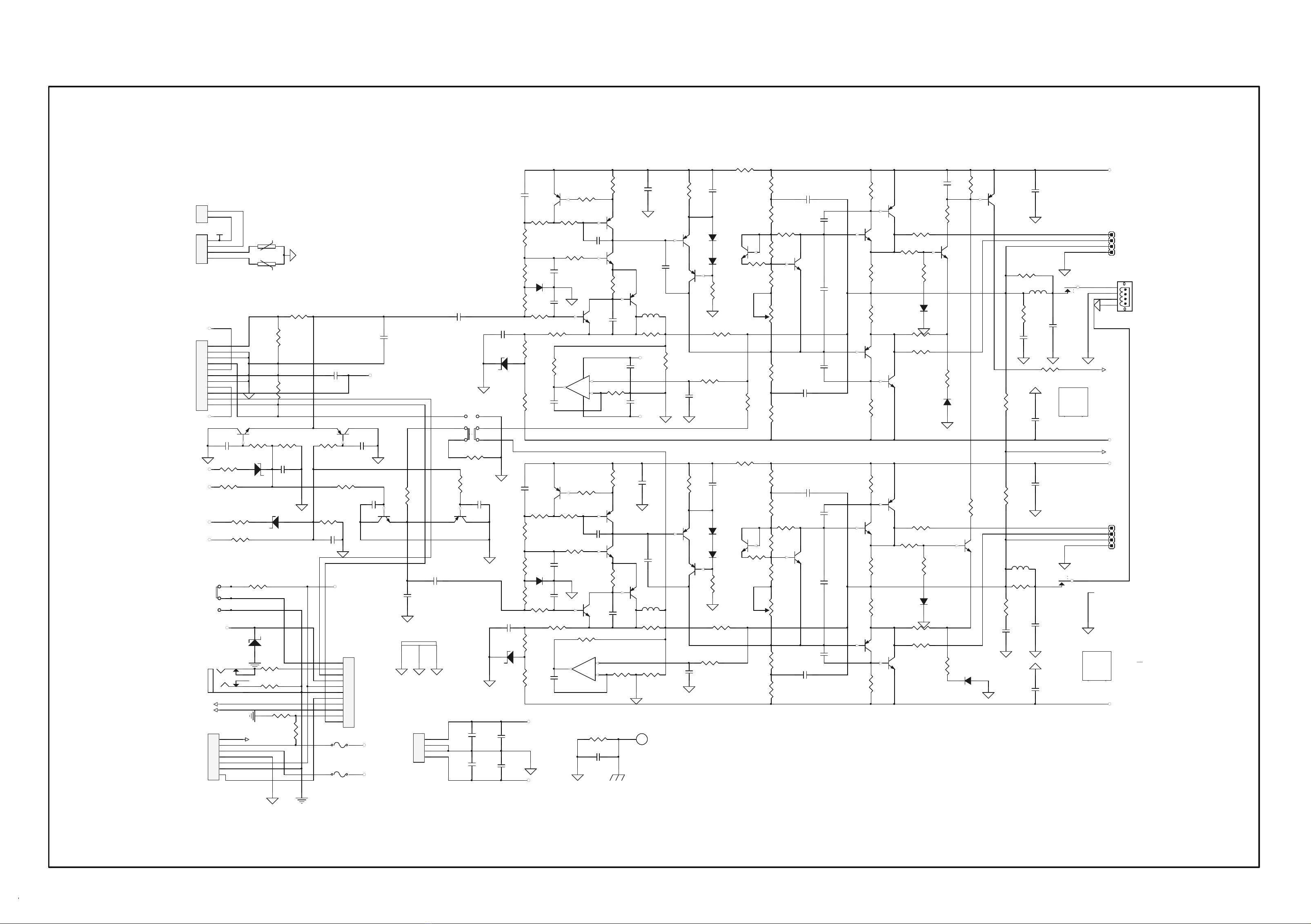

1.MAIN BOARD (1/2)
11
O/C
DC Fault
O/C
DC Fault
D402
4.7V
D810
4.7V
R336
1K
D807
1N4148
R331
51
+
C802
680uF
C423
120pF
R458
N.I.
R405
470
R429
1K
R439
1K
R441
22K
Q303
2SA970
R436
1K
Q801
2SC1815
R417
100
R337
22K
R323
47
Q414
N.I.
Q402
2SA970
R516
N.I.
1
2
RL601C
JQX-115F024-2HS4AF
CW
1
3
2
RV401
200
C418
22nF
D303
1N4148
R428
1K
C305
100pF
R513
N.I.
R407
10K
D404
1N4148
R357
N.I.
Q304
2SA970
R416
1meg
C319
100nF
+
C335
N.I.
R514
N.I.
D808
24V
D306
1N4148
R302
10K
R309
2.2K
R318
180
R603
4.7K
Q301
2SC2240
R327
866
R444
10
+C317
10uF
R313
1K
R300
100K
+
-
3
2
1
IC601A
TL082CP
R312
100
R443
3.3
Q404
2SA970
R445
8.2K
R341
22K
+
C809
1uF
C323
120pF
C414
47nF
R440
22K
Q410
2SB649A
Q313
2N5551
D803
4.7V
R305
470
R311
390
R338
1K
R425
4.7K
L402
1uH
+
-
5
6
7
84
IC601B
TL082CP
+
C302
220uF
R426
1.2K
R315
1K
R820
100K
C313
1uF
Q405
2SC2240
+C404
10uF
C412
47pF
R611
10
Q3 10
2SB649A
R435
1K
R811
22K
R404
22K
R303
22K
R433
0.068
+
C315
47uF
R307
10K
R419
82
R328
1K
C803
220nF
C421
100nF
Q308
KSC2690
C324
470pF
R427
866
Q408
KSC2690
Cannot open
file
E:\CI940\C2
45\Imported
C245BEE
POWERAM
P
VM1.0.PRJP
CB\Image.b
mp
HS301
HEATSINK
R813
47K
R403
22K
Q316
2SD669A
+C810
1uF
R823
22K
C406
1uF
Q411
2SA2121
R519
N.I.
C321
100nF
R321
1meg
R326
1.2K
R418
180
Q302
2SA970
Q804
2SA1015
C309
100nF
D403
1N4148
R330
27
C420
100nF
R437
22K
R306
3.3K
1
3
2
4
TP301
CON2.54X4
+
C402
220uF
R819
22K
R343
3.3
+
C434
N.I.
R423
47
+
C416
220uF
D806
24V
R413
1K
R402
10K
C405
100pF
+C417
10uF
C424
470pF
+
C605
4.7uF
Q305
2SC2240
L401
100uH
L302
1uH
R438
1K
C312
47pF
C413
1uF
L301
100uH
R612
4.3K
R457
N.I.
C308
10pF R317
100
R324
4.7K
R308
100
R816
10K
+
C435
N.I.
Q602
2N5401
R316
1meg
R339
1K
R358
N.I.
R334
51
Q409
2SD669A
Q413
2N5551
Q416
2SD669A
D505
N.I.
R320
4.3K
R411
390
C408
10pF
R442
56K
Q307
2SA1360
R430
27
C419
100nF
Q315
N.I.
5
6
RL601B
JQX-115F024-2HS4AF
+C801
47uF
R344
10
Q314
N.I.
+
C415
47uF
R515
N.I.
R817
10K
R821
22K
D305
1N4148
R431
51
R310
2.2K
+
C506
N.I.
R422
100K
R332
0.068
Q407
2SA1360
R818
270
R322
100K
R434
51
C318
22nF
C307
47pF
R421
1meg
5
6
4 1
2
3
S601
SK-22F03-G6
C407
47pF
R301
470
34
RL601A
JQX-115F024-2HS4AF
D301
1N4148
R412
100
Q306
2SA1015
R409
2.2K
Q309
2SD669A
Q412
2SC5949
+
C303
10uF
R342
56K
Q415
N.I.
R812
N.I.
R319
82
1
3
2
4
TP401
CON2.54X4
Q3 12
2SC5949
+
C507
N.I.
D406
1N4148
D302
4.7V
R408
100
+
C403
10uF
R314
330
1 2
CB801
90DEG
12
34
5
6
7
8
IC801
HS1237
D304
1N4148
C306
1uF
+
C301
10uF
C314
47nF
1
2
RL501C
JQX-115F024-2HS4AF
R304
22K
R424
4.7K
D809
1N4148
Q803
2SC1815
R345
10K
R518
N.I.
+
C334
N.I.
R432
0.068
Q311
2SA2121
R335
1K
R410
2.2K
D405
1N4148
+
C316
220uF
Cannot open
file
E:\CI940\C2
45\Imported
C245BEE
POWERAM
P
VM1.0.PRJP
CB\Image.b
mp
HS401
HEATSINK
C422
120pF
D401
1N4148
+
C401
10uF
R400
100K
R414
330
R325
4.7K R340
22K
Q406
2SA1015
R420
4.3K
R604
10K
C322
120pF
D506
N.I.
+C304
10uF
12
CB802
90DEG
R333
0.068
Q802
2SA1015
R329
1K
R824
22K
Q401
2SC2240
C320
100nF
R401
470
Q403
2SA970
R406
3.3K
+C311
220uF
C310
100nF
CW
13
2RV301
200
+C411
220uF
R415
1K
-15V
VCC
VCC
VSS
V SS
+15V
-15V
VCC
+15V
VSS
VCC
VCC
DCFault
O/C
DCFault
O/C
Protect
ACOFF
SP A
SP B
CH 3
CH 4
/1W
/1W
/63V
/1%
/1/4W/1%
/1W
/1/2W
/1W
/63V
/1%
/1/4W/1%
/1/2W
/16V
/16V
TEST POINT
/1KV
/1KV
/1KV
/63V
/1KV
/3W
/3W
/1/2W
TEST POINT
BRIDGE
STEREOPOSITION
/1KV
/1KV
/1KV
/63V
/1/4W/1%
/1KV
/3W
/3W
/1/2W
FOR Q308/Q309/Q310
FOR Q408/Q409/Q410
/25V
/16V
/1W
/1W
/1KV
/1KV
/1W
/1W
/1W
/1W
/2W
/2W
/1W
/6.3V
/1KV
/1KV
/1KV
/1KV
1
2
3
4
JA03
4PIN/5MM
R827 27K
CIRCUIT DIAGRAMS

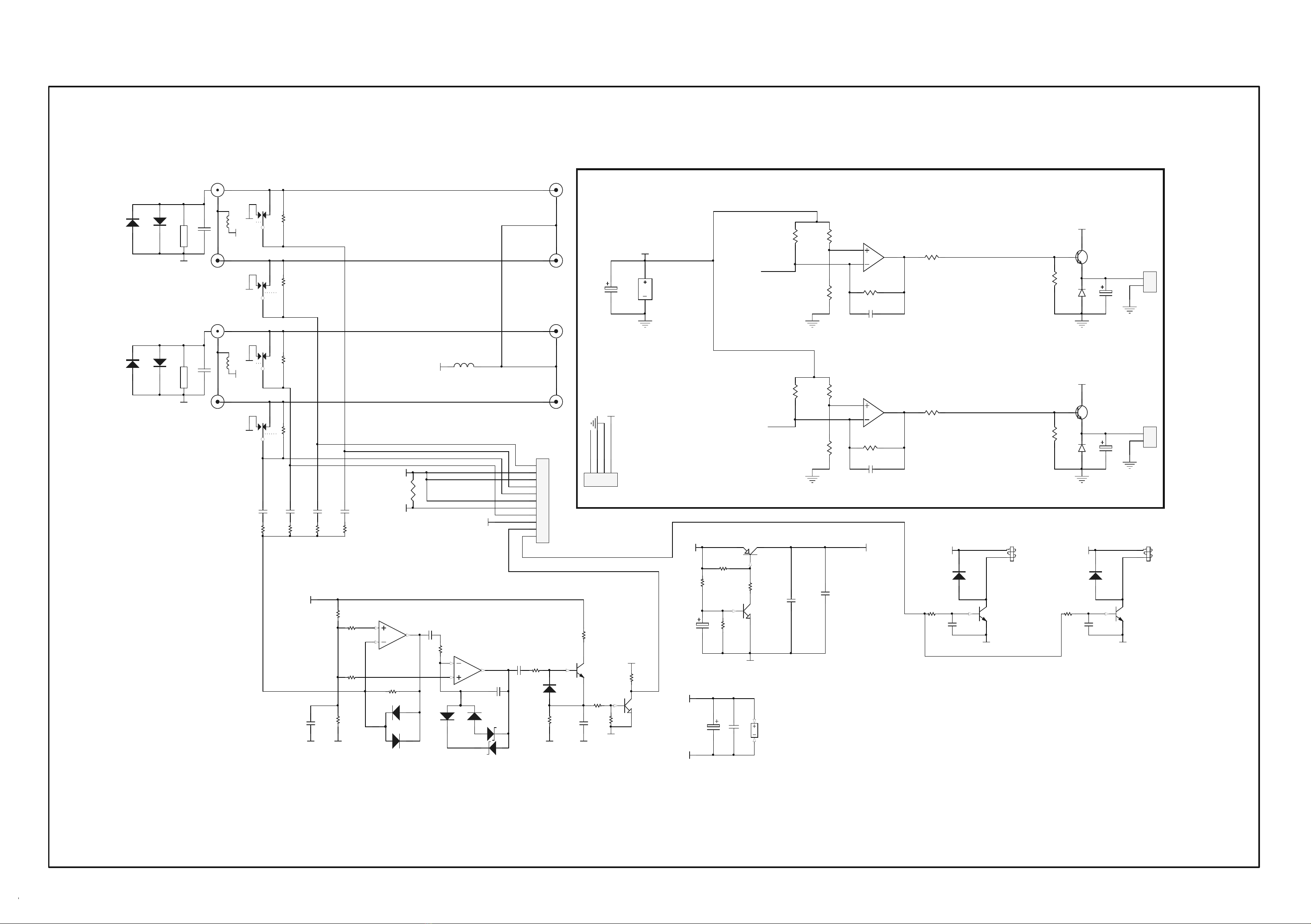

1.MAIN BOARD (2/2)
12
O/C
DC Fault
CH 2
STBY
CH 1
R243
3.3
R215
1K
R511
10
R101
470
Q215
N.I.
R128
1K
Q110
2SB649A
R222
100K
R213
1K
R510
N.I.
C122
120pF
C114
47nF
R244
10
C223
120pF
D202
4.7V
Q107
2SA1360
Q114
N.I.
Q108
KSC2690
R138
1K
Q115
N.I.
Q205
2SC2240
R240
22K
R115
1K
1
2
3
S801A
SK-22F03-G6
R205
470
R117
100
D105
1N4148
1
2
3
4
5
6
7
P802B
8PIN2.54-C
Q211
2SA2121
4
5
6
S801 B
SK-22F03-G6
C107
47pF
R119
82
C124
470pF
L102
1uH
R230
39
R125
4.7K
C808
100nF
Q113
2N5551
Q102
2SA970
R139
1K
C118
22nF
R130
39
R245
10K
C109
100nF
C841
100nF
+
C102
220uF
R207
10K
+C111
220uF
Cannotopen
file
E:\CI940\C245\
Imported
C245BEE
PO W ERA M P
V M 1.0.PR JPC B
1
2
3
BUS801
COPPER STRIPS
+C204
10uF
R210
2.2K
R127
866
D106
1N4148
C106
1uF
F801
MF-R075/90U-0-99
R133
0.068
C205
100pF
D502
N.I.
R242
56K
+
C134
N.I.
R226
1.2K
Cannot open
fi le
E:\CI9 40\C2
45\Imp orted
C245BEE
PO W ERA M
P
V M 1.0.PR JP
CB\Image.b
mp
HS101
HEATSINK
+
C235
N.I.
R141
22K
Q105
2SC2240
L202
1uH
+
C215
47uF
R131
51
+
C201
10uF
CW
13
2RV101
200
R104
22K
R203
22K
R140
22K
Q216
2SD669A
+
C116
220uF
+
C115
47uF
R100
100K
C110
100nF
C123
120pF
C213
1uF
R103
22K
R503
4.7K
R239
1K
R257
N.I.
R129
1K
Q502
2N5401
L101
100uH
R509
N.I.
R109
2.2K
5
6
4 1
2
3
S501
SK-22F03-G6
Q106
2SA1015
+
-
3
2
1
IC501A
TL082CP
C221
100nF
L201
100uH
R801
10K
Q204
2SA970
D203
1N4148
R200
100K
R134
51
R236
1K
C120
100nF
R224
4.7K
C121
100nF
R122
100K
R214
330
R132
0.068
C807
100nF
C212
47pF
Q103
2SA970
R114
330
+C211
220uF
Q207
2SA1360
R123
47
R202
10K
R126
1.2K
R507
N.I.
Q112
2SC5949
+
C216
220uF
R228
1K
R204
22K
R144
10
R212
100
R505
N.I.
R107
10K
R206
3.3K
D101
1N4148
1
3
2
4
TP201
CON2.54X4
R231
51
+
C103
10uF
D503
N.I.
Cannot open
fi le
E:\CI9 40\C2
45\Imp orted
C245BEE
PO W ERA M
P
V M 1.0.PR JP
CB\Imag e.b
mp
HS201
HEATSINK
C219
100nF
Q208
KSC2690
1
2
4
3
P803B
4PIN3.96-C
+
-
5
6
7
8
4
IC501B
TL082CP
+
C135
N.I.
CW
1
3
2RV201
200
+C217
10uF
R217
100
Q201
2SC2240
R157
N.I.
Q203
2SA970
C207
47pF
+
C234
N.I.
34
RL501A
JQX-115F024-2HS4AF
Q202
2SA970
C214
47nF
R508
N.I.
R121
1meg
R802
10K
R235
1K
R221
1meg
R238
1K
R120
4.3K
R225
4.7K
R124
4.7K
Q104
2SA970
5
6
RL501B
JQX-115F024-2HS4AF
R218
180
R142
56K
R229
1K
R137
22K
R822
100
R237
22K
R219
82
+
C203
10uF
D802
4.7V
C105
100pF
D102
4.7V
R118
180
R227
866
+C505
4.7uF
Q109
2SD669A
R108
100
R233
0.068
R106
3.3K
R223
47
+
C101
10uF
D201
1N4148
+C104
10uF
+C117
10uF
1
G8G1
GROUND SOLDER TAP
R512
4.3K
+C805
4700uF
C206
1uF
R232
0.068
Q210
2SB649A
R135
1K
1
2
3
4
5
6
7
8
9
10
11
P801B
10PIN2.54-C
1
2
3
4
5
J801
PHONEJACK STEREO SW
R208
100
R136
1K
R116
1meg
D206
1N4148
R113
1K
R111
390
Q101
2SC2240
R506
N.I.
R158
N.I.
D204
1N4148
Q209
2SD669A
Q116
2SD669A
C108
10pF
D103
1N4148
+C806
4700uF
F802
MF-R075/90U-0-99
D205
1N4148
R211
390
R258
N.I.
Q111
2SA2121
R110
2.2K
C208
10pF
R241
22K
R201
470
R102
10K
R145
8.2K
D104
1N4148
C113
1uF
R216
1meg
R220
4.3K
C218
22nF
1
3
2
4
TP101
CON2.54X4
R209
2.2K
C220
100nF
Q206
2SA1015
Q214
N.I.
+
C503
N.I.
+
C202
220uF
C222
120pF
R234
51
C112
47pF
R105
470
Q213
2N5551
C224
470pF
C119
100nF
R143
3.3
R805
10K
R112
100
Q212
2SC5949
+
C504
N.I.
R504
10K
VCC
VSS
-15V
+15V
VCC
VSS
+15V
VSS
-15V
VCC
+5V
VCC
VSS
+15V
-15V
O/C
DCFault
Protect
SPB
SPA
ACOFF
CH 3
CH 4
/1KV
/1/2W
/63V
/63V
/3W
/1KV
/1/2W
/1KV
/1KV
/1W
/1W
/1/4W/1%
/3W
/1%
/16V
TEST POINT
/1W
/1W
/63V
/1%
/1/4W/1%
/1/2W
/16V
TEST POINT
/1KV
/1KV
/1KV
/63V
/1KV
/3W
/3W
/1/2W
/1/4W/1%
BRIDGE
STEREO POSITION
All Poly ester capacitors are 63V unless noted.
All Elec. capacitors are 50V unless noted.
All Zener diodes are 1/2W unless noted.
All Resistor are 1/6W unless noted.
FOR Q108/Q109/Q110
FOR Q208/Q209/Q210
+12VTRIGIN
SENSEDEFEAT
/1KV
/1KV
/1W
/1W
/1W
/1W
/2W
/2W
FROM POWER BOARD P706A
FROM POWER BOARD P705A
FROM DISPLAY BOARD P901A
/6.3V
FROM INPUT BOARD PA01A
/1KV
/1KV
/1KV
/1KV
1
2
3
4
5
6
7
8
9
10
11
P804B
10PIN 2.54-C
+
C811
1000uF /10
+5V
SENSE
1
2
3
4
JA04
4PIN/5MM
R82510K
Input Mute
1
2
4
3
J2005
4PIN3.96-C
12V D R2008
NTC
R2000
NTC
1
2
J307
CO N 2
R826
10K

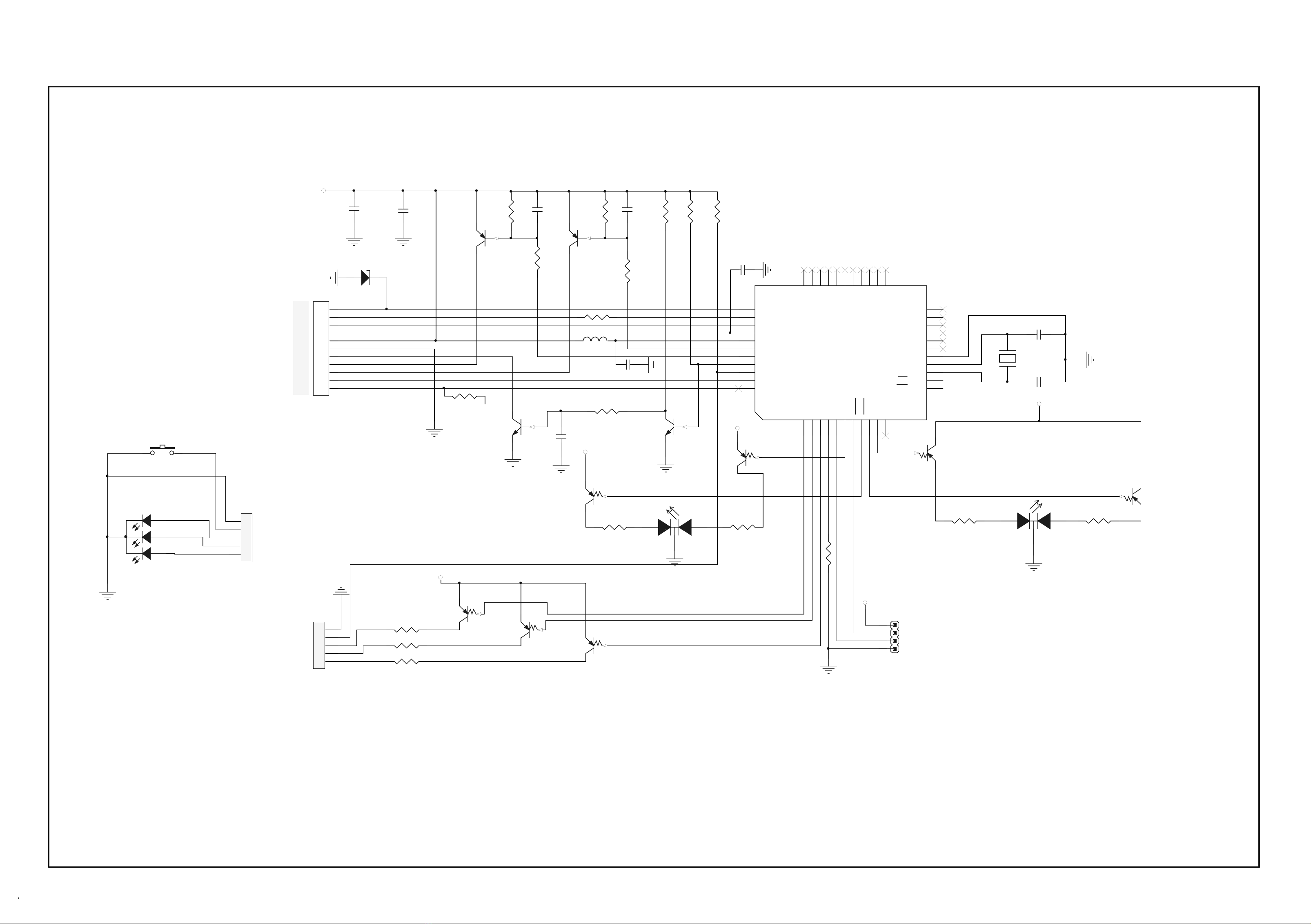

2.DISPLAY & POWERKEY BOARD
13
PROT
BGND
TRIG
SEN DEFEAT
SIG
+5VD
SPA
SPB
STANDBY
Thermal Protect
1
2
3
4
5
6
7
8
9
10
11
P901A
11PIN2.54-A200B
12
S901
PUSHBUTTON
R901
10K
2
1
3
4
D902
BL-BUBJFB52C4V-1
C902
100nF
+C901
1000uF
+5VD
POWER
/10V
TO MAIN BOARD P801B
MOSI/P1.5
1
MISO/P1.6
2
SCLK /P1.7
3
P4.7/RST
4
RX D/P3.0
5
SCLK /CCP1/P4.3
6
TX D/P3.1
7
INT0/P3.2
8
INT1/P3.3
9
CLK OUT0/TO/P3.4
10
CLK OUT1/T1/P3.5
1
1
WR/P3.6
12
RD/P3.7
13
XTAL2
14
XTAL1
15
GND
16
SS/P4.0
17
A8/P2.0
18
A9/P2.1
19
A10/P2.2
20
A11/P2.3
21
A12/P2.4
22
A13/P2.5
23
A14/P2.6
24
A15/P2.7
25
NA/P4.4
26
AL E/P4.5
27
P4.1/ECI/MOSI
28
EX_LV D/P4.6/RST2
29
AD7/P0.7
30
AD6/P0.6
31
AD5/P0.5
32
AD4/P0.4
33
AD3/P0.3
34
AD2/P0.2
35
AD1/P0.1
36
AD0/AD0
37
VCC
38
P4.2/CCP0/MISO
39
P1.0/CLKOUT2
40
P1.1
41
P1.2/ECI
42
P1.3/CCP0
43
P1.4/CCP1/SS
44
IC901
STC12C5A 16S2-35C-LQ FP44
B
EC
Q901
C1015
+C905
10uF
R902
10K
B
EC
Q902
C1015
R903
10K
+
C906
10uF
R904
10K
R905
4.7K R906 4.7K R907 10K
R913 1K
B
EC
Q904
C1815
R908 1K
+C907
10uF
B
E C
Q903
C1815 +5VD
I
G
O
Q908
DTA114EKA
R915 1K
C
G R
D903
DUAL LED
I
G
O
Q909
DTA114EKA
+5VD
R909 510
R910 510
R911 510
I
G
O
Q905
DTA114EKA
I
GO
Q906
DTA114EKA I
G
O
Q907
DTA114EKA
+5VD
R912 1K
1
3
2
4
J901
CON4
DGND
RXD
TXD
+5VD
RST
I
G O
Q911
DTA114EKA
R916 1K
C
GR D904
DUAL LED
I
GO
Q910
DTA114EKA
R917 1K
+5 V D
1
2
X901
11.0592MHZ
C903 22pF
C904 22pF
FIRMWARE UPDATE
1
2
3
4
5
JA20
5pin/2.54
1
2
3
4
5
JA21
5pin/2.54
Powerkey board
R914
1K
D409
4V7
In put M ute
R918 4.7K
+5VD
L901
742792662
C909
0.1uF
C908
0.1uF

3.INPUT BOARD
14
4
6
JA02C
4 HOLES
5
6
JA01D
4 HOLES
LA01
10uH
2
3
JA02B
4HOLES
5
6
JA02D
4 HOLES
4
6
JA01C
4 HOLES
2
3
JA01B
4HOLES
TO MAIN BOARD P804B
1
2
3
4
5
6
7
8
9
10
11
PA01A
11PIN 2.54-A60B
DGND
+5VD
RA22
N.I.
AGND
SIG1
Sense
RA10
22K
RA11
10K
RA05
100K
RA08
100K
CA01
0.1uF
DA01
BAV99
RA12
1M
RA15
10K
CA08
100nF
RA06
1K
RA14
100K
RA01
220K
RA13
2.2K
RA09
220K
CA09
2.2uF
QA02
C1815
RA07
1K
CA06
100nF
CA05
10uF
DGNDDGND
+5V AS
DGND DGND
CA07
20pF
DA02
BAV99
A
AKK
DA03
2V
DA04
2V
QA01
2SC1815
DGND
+5V AS
+5V AS+5VD
CA10
100uF/10V
DGND
CA12
100nF
RA18
10K
RA17
100K
QA04
BC846BW
Q A 06
BC856BW
RA16
10K
RA19
100K
CA11
10U/10V
67
8
RL102B
HFD4/5-SR
34
5
RL102A
HFD4/5-SR
1
2
RL101C
HFD4/5-SR
QA03
C1815
+5VD
RA20
2K2 CA13
1uF
DGND
1
2
RL102C
HFD4/5-SR
QA05
C1815
+5VD
RA21
2K2 CA14
1uF
DGND
67
8
RL101B
HFD4/5-SR
34
5
RL101A
HFD4/5-SR
AGND
AGND
AGND
AGND
AGND
AGND
SIG2
CA02
0.1uF
RA02
220K
SIG3
CA03
0.1uF
RA03
220K
SIG4
CA04
0.1uF
RA04
220K
AGND
2
31
U2000A
TL082
6
5
7
U2000B
TL082
4 8
U2000C
TL082
R2003
34.8K
R2002
22K
R2004
8.2K R2005 12K
C2001 10N
R2015 220R
R2007
100K
2 1
D2002
BAV21W
Q3
KTC4373-Y
R2010
34.8K
R2009
22K
R2011
8.2K R2012 12K
C2004 10N
R2013 220R
R2014
100K
2 1
D2005
BAV21W
Q4
KTC4373-Y
1
2J2003
1
2J2004
FAN1+
FAN2+

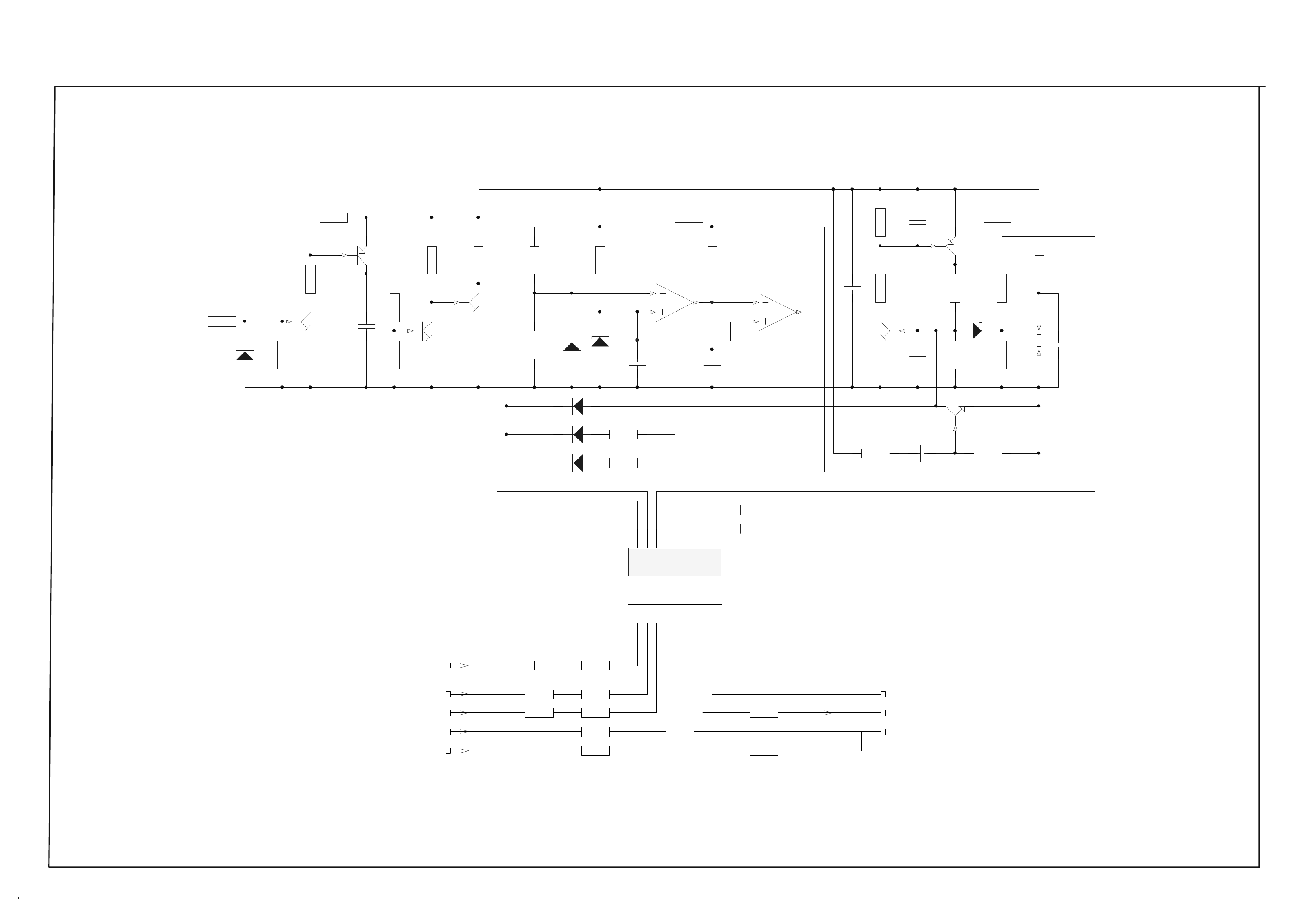

Temperature Detect and Fan SCH
NTC1
NTC2
NTC1
NTC2
1 2
3
4
J2010
4PIN/2.54
C2002
220U/25V
C2003
220U/25V
DA05
1SS352
DA06
1SS352 DA07 1SS352
1
3
0
JA01A
4Holes
CA15
N.I.
RA24
N.I.
AGND
A K
DA08
N.I.
DA09
N.I.
LA 02
0
1
3
0
JA02A
4Holes
CA16
N.I.
RA23
N.I.
AGND
DA11
N.I.
DA10
N.I.
LA03
0
2
31
IC01A
TL082C 6
57
IC01B
TL082C
84 IC01C
TL082C
+5V AS
CA18
100nF
DGND
CA17
10uF/16V
Input_mute
RA25
N.I.
RA26
N.I.
RA27
N.I.
RA28
N.I.
RA29
1K
+12VD
+12VD
+12VD
+12VD
C2000
100uF/25V

4.PSU & DCDC BOARD
15
NTC901
SCK200710LSY
C927
1nF
R959
2.2K
R921
100K
R906
47K
C921
220nF/25V
R976
0R33 R977
0R33
GNDP
R946
3K
R908
1.8K
Q913
FDP18N50
Q912
FDP18N50
Q906
BC807-25
R929
10R
GNDP
C919
1.2nF/200V
R952
12R/1206
C920
1.2nF/200V
R953
12R/1206
SGND
2
1
3
4
BR901
15A/1000V
C910
1UF
C916
150P/200V
R978
22R
0 1
S903
GNDP
AC120V/230v±10%
C911
150P/200V
R951
22R
MAIN IN
ZV901
10D471
CX902
470nF/275VAC
R909
10K
C945
10nF/1000V
CX901
470nF/275VACR999
2M
R998
2M
R997
2M
1 2 4 3
L910
20mH
1 2 4 3
L909
20mH
0 1
S901
C902
200V/680UF
C903
200V/680UF
R918
100K
R919
100K
R920
100K
R917
100K
GNDP
L901
22uH/6A
C917
470nF/275VAC
C918
470nF/275VAC
Q923
BC846BW
D907
BAS316
Q918
BC846BW
Q921
BC846BW
OC
C908
10nF/1KV C909
10nF/1KV
D909
BAS316
D910
BAS316
D911
BAS316
Q927
BC856BW
Q926
BC856BW
R963
10K
R922
100K
R973
4K7
R964
47K
R915
1M
R914
1M
R926
100K
R923
100K
R924
100K
R913
220K
R925
100KR962
47K
Q922
BC846BW
Q919
BC846BW
Q920
BC846BW
GNDP
GNDP
1IN+
11IN-
2
2IN-
15 2IN+
16
FB
3DTC
4
CT
5
RT
6
GND
7
C1 8
E1 9
E2 10
C2 11
VCC12
OPCTL13
REF 14
U904
TL494
Q928
BC856BW
R967
47K
R907
10K
R960
2.2K
R974
1.2K
R966
47K
R944
1K
R965
47K
C924
1n/50V
C926
470P
C925
2.2uF/25V
R975
18K
GNDP
GNDP
R928
2.2R
R943
1K
C907
1u/25V
GNDP
R935
10R
Q903
BC807-16
E2
C
3
B
1Q902
BC807-16
E
2C3
B
1Q904
BC817
D901
BAT54J
D902
BAT54JD904
BAT54J
R936
1K
GNDP GNDP
Q905
BC817
D903
BAT54J
R937
1K
C904
1U/25V
GNDP
R938
1K
CY901
1nF
R989
2k
R991
13K
R970 3K
C953
104
R990
10k
2 3
1
U911
TL431
D918
UF4006
D919
1N4148
R988
1k
R985
22k
C949
10uF/50V
X1 NC
C956
104
C952
104
C951
1nF/200V
C954
1000uF/25V
C955
330uF/25V
L904 3.3UH +13VS
+13VR
R98782R
HV
2
1
3
4
BD901
0.8A600V
C947
104
BP 2
S
5
S
6D4
UV 1
S
7
S
8
U908
TNY280
R983
2M
R984
2M
C946
10uF/400V
+13VR
R904
10K
R903
10K
R901
390K
R912
1M
R902
390K
C922
22uF/25V
D905
BAT54J
D906
BAT54J
2 3
1
IC901
TL431
VCC
1
2
3
48
U901A
LM393
GNDP
5
67
U901B
LM393
R905
10K
11 2
2
33 4
4
K901
HF36F
VCC
D922
M7A
GNDP
Q901
BT139X-600E
R911
150R
R910
150R
C901
10nF 500V
R916
1K
GNDP
VCC
VCC
VCC
12
T901B
TR
C906
1u/25V
C923
104
C905
1u/25V
OC
D908
BAS316
R972
10K
C961
100nF
STB
C963
100uF/35V
C960
100nF R993
1K R994
5.6K
VCC
C962
100uF/25V
C959
100nF
GNDP
C950
100UF/35V
D920
MURS120
VCC1
GNDP
T902
BAW56W
Q911
BC807-25
R930
10R
R945
1K
T903
BAW56W
Q914
AOT412
Q907
BC807-25
R931
10R
R939
1K
T904
BAW56WQ916
AOT412
Q909
BC807-25
R933
10R
R941
1K
T906
BAW56W
Q915
AOT412
Q908
BC807-25
R932
10R
R940
1K
T905
BAW56WQ917
AOT412
Q910
BC807-25
R934
10R
R942
1K
T907
BAW56W
C913
150P/200V
R957
22R
C912
150P/200V
C915
150P/200V
R958
22R
C914
150P/200V
D921
MBRS3100T
V+
V-
1
2
3
J903
CON3-3.96
12VD
A1
K2
6
6
4
4
U902
MOC3043
U910PC817
U909PC817
67
T901C
TR
4 5
T901A
TR
14 13
T901D
TR
910
T901E
TR
11 12
T901G
TR
10 8
T901F
TR
4
3
5
6 2
1
8
9
7
10
T909
EE19
F901
1.25AL250Vac
R981
10R
C976
1uF/25V
D912
P6KE200
+13VS
C948
100pF/1kV
SGND
GNDP
GNDP CY902
1nF
C936
1000UF/35V
D914
MURA220T3
R979
0.1R/1206
C933
1nF/200V
R954
12R/1206C938
330UF/25V
SGND
C942
104
+15VD C940
1000UF/35V
D916
MURA220T3
C935
1nF/200V
R956
12R/1206
C941
330UF/25V
SGND
C944
104
-15VD
C965
50V/560UF C970
100nF/200VC968
50V/560UF
C966
50V/560UF
L906
65R7A L907
65R7A
C964
50V/560UF C971
100nF/200VC969
50V/560UF
C967
50V/560UF
L905
65R7A L908
65R7A
SGND
SGND
VOUT-
VOUT+
V+
V-
1
2
3
4
J902
CON4
1
2
3
4
5
6
7
J901
CON7
-15VD
C977
200V/680UF
C978
200V/680UF
SGND
D923
18V3W
1
2
316
14
15
8
10
12
11
9
13
T908
EC42
R949
2M
R961
30K
R968
30K
CY903
1nF
CY904
1nF
TH901
90
X4
*
D917
BAS316
R982
10K
VCC
R986
10K
U903
PC817
GNDP
R980
NC
Q924
NC
-15VD
AC Detect
R900
NC
R992
5.6K X2
NC
AC Detect
0 1
S902
SGND
R947
2.7K
R948
249R
C928
4.7uF
R927
2.7K
C939
4.7UF
R950
249R
OUT 2
IN
3
ADJ
1
U905 LM317
OUT 3
IN
2
ADJ1
U907
LM337
Q930
DTA114EKA
C937
330UF/25V
C943
100N
12VD
R969
10k
R995
10k
R996
4.7k
C957
10uF/400V
SGND
X3
NC
SGND
C932
10n
R801
10R
EARTH1
C934
10n
R802
10R
EARTH2
5VS
R971
47K
VCC1
IN 1
2
OUT
3
GND
U906L7812Q931
2SB647-D
1
2
J904
CON2
S
1
S
2
S
3
G
4D5
D6
D7
D8
Q932
AO4423
R955
220R
C930
100P
Q933
2SC3326
Vi
1Vo 2
g
3
Vd
4
U912 KA78R12
R898
10k
R899
1k
C972
330UF/25V
1 2 3 4 5 6 7 8 9
AC-L AC-N HV-DC AC-DEC AC-SW TBD VCC DC-DET GND
MOD901
MAC
R810
390K
R811
390K
VCC
OC
C973
100N50V
R813
10K
D913
BAT54J
GNDP
R99
30K
R98
10K
C974
10nF/1000V
5VS
C929
470uF/10V
C931
100n
C811
2.2uF
C810
2.2uF R826
332k
R827
62KC813
12nF
C814
100N
D803
B340A-13-F
L804
10uH
C819
100uF
GNDs
C816
5.6pF
C817
2700pF
R828
90.9K
C821
100uF
R830
1R
BOOT
1
VIN
2
EN
3
SS/TR
4
RT/CLK
5PWRGD6
VSNS 7
COMP 8
GND 9
PH 10
U801
TPS54140
C812
100nF
R831
80.6k
R834
52.3K
R868
10K
VD
5VS
GNDs
1
2
J888
CON2
GNDs
GNDs VD
GNDs 1
2
J801
CON2

5.DUAL VOLTAGE BOARD
16
1
2
3 4 5
6
7 8
9
J950
TOINT BOARD
R965
1K
R966
2K7
D952
BAS316
R953
100K
R968
100K
C952
220nF/25V
R956
470K
R960
180K
6
57
U950B
LM393
84
U950C
LM393
2
31
U950A
LM393
D951
BAT54J
R967
10K
R957
10K
C955
1nF/25V
R958
10K
C956
22U/10V(C3216X5R1A226M T)
R959
100K
D954
BAT54J
D955
BAT54J
Q950
BC856BW Q951
BC856BW
C954
100N
R952
100K
R961
100K
R962
100K
R969
100K
C950
100N
R970
47K
R963
10K
D953
BAT54J
R954
10R
C953
100N
GND
R950
100R
VCC
VCC
GND
R951
909K
C951
220nF/25V
U951
TL431
D950
12V
Q953
BC846BW Q955
BC846BW
Q952
BC846BW Q954
BC846BW
9K1
10N1000V
AC--L
AC--N 383K390K
390K390K HV--DC
TBD AC-DET
TBD AC-SW TBD
ACautoswitchdelaytimeadjust
TBD
VCC12V
DCDETECT output 11V 5mA when HV>230VDC
GND
9PIN2.0MM
R964
180K
R955
180K
R972
1K
R971
10K
Q956
BC817-40
R973
470KR974 220K
C957
4U7

1.MAIN BOARD
17

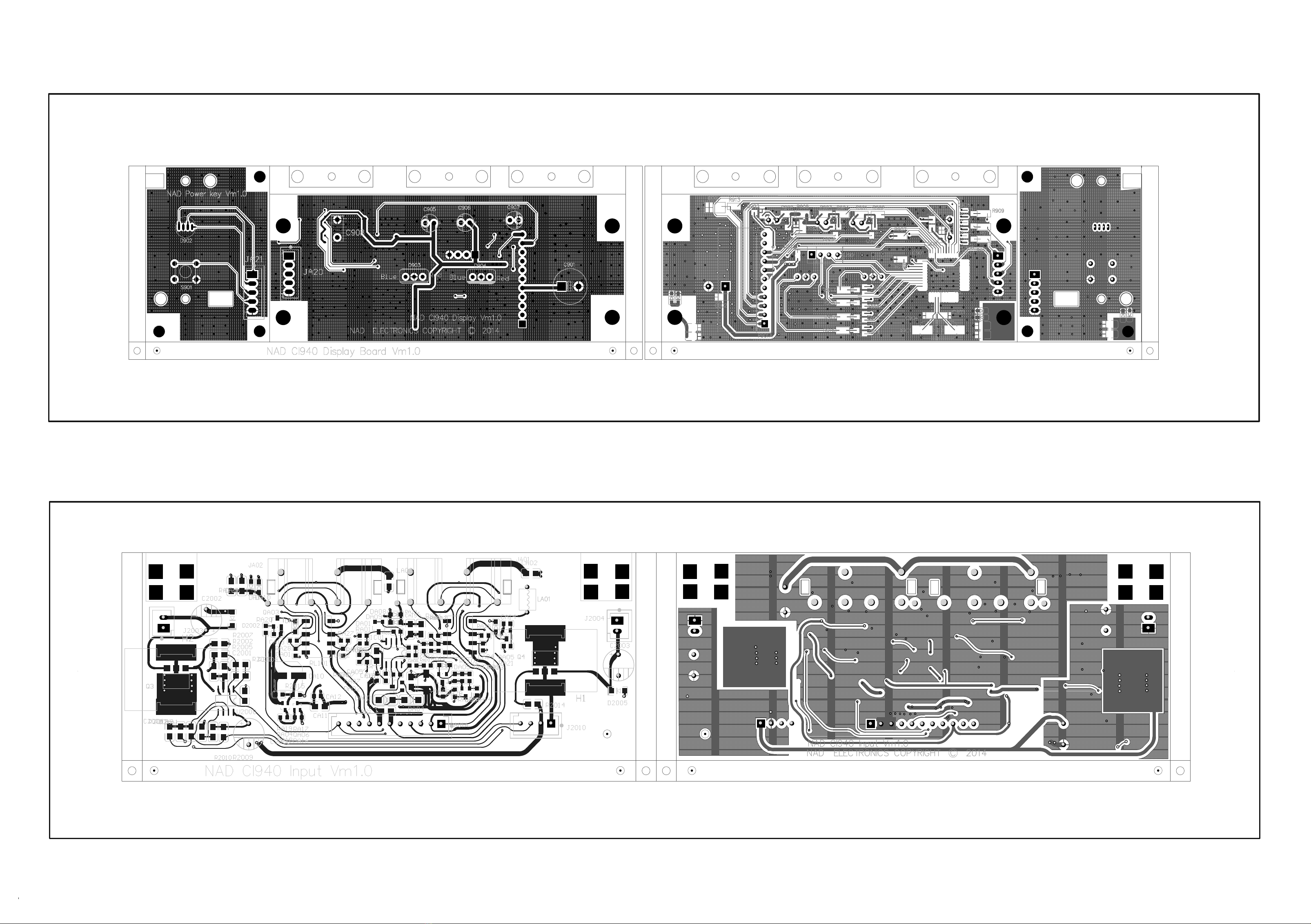

PCB LAYOUT
Top Layout Bottom Layout

2.DISPLAY BOARD AND POWERKEY BOARD
18
Top Layout Bottom Layout
3.INPUT BOARD
Top Layout Bottom Layout

4.PSU & DCDC BOARD
19
Top Layout Bottom Layout

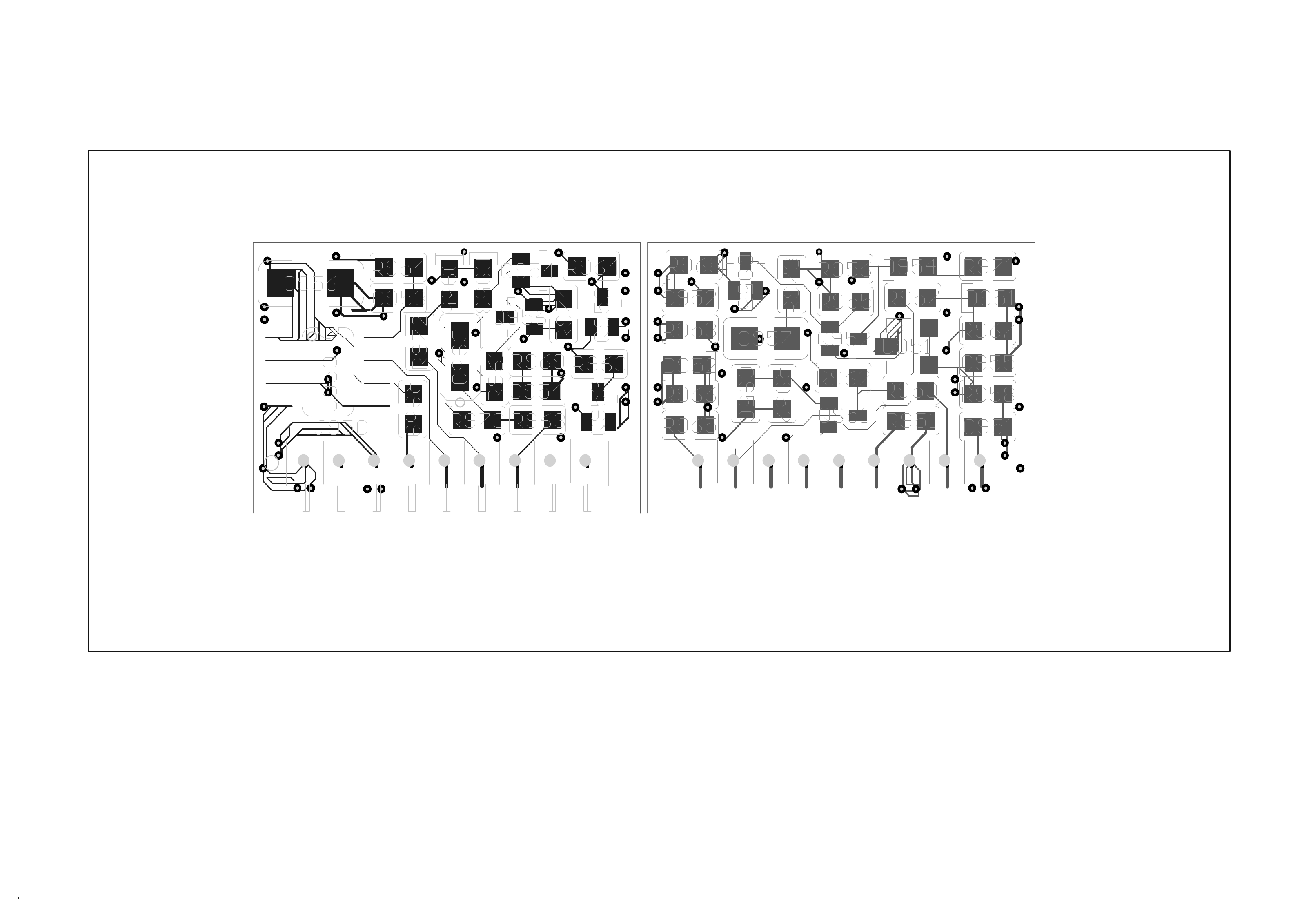

5. PSU DUAL VOLTAGE BOARD
20
Top Layout Bottom Layout

ELECTRICAL PARTS LIST
PCB-1:MAIN BOARD
NOITPIRCSED.ONTRAP
PCB INFO
01-94001-20 Main Board
02-94001-01 Main Board
A16-94001-22 Main Board PCB VM1.1 FR- 4,1.6mm,2Layers,1Oz,TG130,231
×260mm
DIODE
D101, D103, D104, D105, D106, D201,
D203, D204, D205, D206, D301, D303,
D304, D305, D306, D401, D403, D404,
D405, D406, D807, D809
33-44148-00 Switch Diode 1N4148
D102, D202, D302, D402, D802, D803,
D810 33-14709-00 Zener Diode 4.7V, 1/2W
14-ODW1V42edoiDreneZ01-00421-33808D,608D
TRANSISTOR
1045N2rotsisnarT30-10450-13206Q,205Q
Q113, Q213, Q313 31-05551-02 Transistor 2N5551
Q102, Q103, Q104, Q202, Q203, Q204,
Q302, Q303, Q304, Q402, Q403, Q404 31-00970-00 Transistor 2SA970-GR(TPE2,F) TO-92
Q102, Q103, Q104, Q202, Q203, Q204,
Q302, Q303, Q304, Q402, Q403, Q404 or 31-01268-00 Transistor KTA1268-GR, TO-92
RG-5101ArotsisnarT40-51010-13408Q
RG-5181CrotsisnarT40-51810-13308Q,108Q
Q105, Q205, Q305, Q405 31-02240-00 Transistor 2SC2240-GR(TPE2,F) TO-92
Q105, Q205, Q305, Q405 or 31-03200-00 Transistor KTC3200-GR，TO-92
RESISTOR
01rotsiseRmliFlateM05-00102-70116R,115R Ω, 1/6W, ±5%
R118, R218, R318, R418 07-21800-50 Metal Film Resistor 180Ω,1/6W,±1%
R130, R230, R330, R430 07-22709-50 Metal Film Resistor 27Ω, 1/6W, ±1%
R119, R219, R319, R419 07-20820-50 Metal Film Resistor 82Ω, 1/6W, ±5%
R108, R112, R117, R208, R212, R217,
R308, R312, R317, R408, R412, R417 07-20101-50 Metal Film Resistor 100Ω, 1/6W, ±5%
R114, R214, R314, R414 07-20331-50 Metal Film Resistor 330Ω, 1/6W, ±5%
R111, R211, R311, R411 07-20391-50 Metal Film Resistor 390Ω, 1/6W, ±5%
R101, R105, R201, R205, R301, R305,
R401, R405 07-20471-50 Metal Film Resistor 470Ω, 1/6W, ±5%
R127, R227, R327, R427 07-28660-50 Metal Film Resistor RJ13 866Ω, 1/6W, ±1%
R113, R115, R135, R136, R138, R139,
R213, R215, R235, R236, R238, R239,
R313, R315, R335, R336, R338, R339,
R413, R415, R435, R436, R438, R439
07-20102-50 Metal Film Resistor 1KΩ, 1/6W, ±5%
R126, R226, R326, R426 07-20122-50 Metal Film Resistor 1K2Ω, 1/6W, ±5%
R109, R209, R309, R409 07-22201-50 Metal Film Resistor 2K2Ω, 1/6W, ±1%
R110, R210, R310, R410 07-20222-50 Metal Film Resistor 2K2Ω, 1/6W, ±5%
2K8r
otsiseRmliFlateM05-10282-70544R,541R Ω, 1/6W, ±5%
R124, R125, R224, R225, R503, R324,
R325, R424, R425, R603 07-20472-50 Metal Film Resistor 4K7Ω, 1/6W, ±5%
R102, R107, R202, R207, R245, R504,
R302, R307, R345, R402, R407, R604,
R801, R802, R805, R816, R817, R825 07-20103-50 Metal Film Resistor 10KΩ, 1/6W, ±5%
21

R103, R104, R137, R140, R141, R203,
R204, R237, R240, R241, R303, R304,
R337, R340, R341, R403, R404, R437,
R440, R441, R819, R821, R823, R824
07-20223-50 Metal Film Resistor 22KΩ, 1/6W, ±5%
R826 07-22202-50 Metal Film Resistor 22kΩ,1/6W,±1%
R827 07-22702-50 Metal Film Resistor 27KΩ,1/6W,±1%
R813 07-20473-50 Metal Film Resistor 47KΩ, 1/6W, ±5%
R142, R242, R342, R442 07-20563-50 Metal Film Resistor 56KΩ, 1/6W, ±5%
R100, R122, R200, R222, R300, R322,
R400, R422, R820 07-20104-50 Metal Film Resistor 100KΩ, 1/6W, ±5%
R116, R121, R216, R221, R316, R321,
R416, R421 07-20105-50 Metal Film Resistor 1MΩ,1/6W,±5%
R120, R220, R512, R320, R420, R612 07-22431-51 Metal Film Resistor RJ14,2.43KΩ,1/4W,±1%
R822 07-20101-50 Metal Film Resistor 100Ω, 1/6W, ±5%
R143, R243, R343, R443 07-20339-20 Metal Film Resistor 3.3Ω, 1/2W, ±5%
R123, R223, R323, R423 07-20470-20 Metal Film Resistor 47Ω, 1/2W, ±5%
R106, R206, R306, R406 07-20332-51 Metal Film Resistor 3K3Ω, 1/4W, ±5%
R131, R134, R231, R234, R331, R334,
R431, R434 07-30510-01 Metal Oxide Film Resistor 51Ω, 1W, ±5%
R128, R129, R228, R229, R328, R329,
R428, R429, 07-30102-05 Metal Oxide Film Resistor 1KΩ, 1W, ±5%
R144, R244, R344, R444 07-30100-12 Metal Oxide Film Resistor 10Ω, 2W, ±5%
R818 07-30271-01 Metal Oxide Film Resistor 270Ω, 1W, ±5%
R811 07-30332-01 Metal Oxide Film Resistor 3.3KΩ, 1W, ±5%, Pitch=5mm
R132, R133, R232, R233, R332, R333,
R432, R433 07-40687-03 Cement Resistor 0.068Ω, 3W, ±5%
CAPACTIOR
C108, C208, C308, C408 05-10013-01 Ceramic Capacitor 10pF, ±5%, 1KV
C112, C212, C312, C412 05-47013-01 Ceramic Capacitor 47pF, ±5%, 1KV
C105, C205, C305, C405 05-10113-04 Ceramic Capacitor 100pF, ±5%, 1KV
C122, C123, C222, C223, C322, C323,
C422, C423 05-22113-01 Ceramic Capacitor 220pF, 10%, 1KV
C124, C224, C324, C424 05-47113-02 Ceramic Capacitor 470pF, ±5%, 1KV
C318 25-22361-05 Polyester capacitor 22nF, ±5%, 63V
C114, C214, C314, C414 25-47361-01 Polyester capacitor 47nF, ±5%, 63V
C109, C110, C119, C120, C121, C219,
C220, C221, C309, C310, C320, C321,
C419, C420, C421, C807, C808 25-10461-07 Polyester capacitor 100nF, ±5%, 63V
C113, C206, C313, C406 25-10561-02 Polyester capacitor 1uF, ±5%, 63V
C505, C605 06-47951-05 ALU Electrolytic Capacitor 4.7uF/50V, ±20%
C101, C103, C104, C117, C201, C203,
C204, C217, C301, C303, C304, C317,
C401, C403, C404, C417 06-10051-01 ALU Electrolytic Capacitor 10uF/50V, ±20%
C801 06-47021-01 ALU Electrolytic Capacitor 47uF/25V, ±20%
C115, C215, C315, C415 06-47061-03 ALU Electrolytic Capacitor CD263,47uF,63V,±20%,105℃,
F5.0
C102, C202, C302, C402 06-22111-05 ALU Electrolytic Capacitor 220uF/16V, ±20%
C111, C211, C311, C411 06-22151-01 ALU Electrolytic Capacitor 220uF/50V, ±20%
C116, C216, C316, C416 06-22161-01 ALU Electrolytic Capacitor 220uF/63V, ±20%
C802 06-68111-00 Alu Electrolytic Capacitor CD110X,680uF,10V,±
20%,D=8mm
C811 06-10211-05 Alu Electrolytic Capacitor CD263X,1000uF,10V,±20%,105
℃,F5.0
C107, C207, C307, C407 05-47013-01 Ceramic Capacitor 47pF, ±5%, 1KV
C118, C218, C418 25-22361-05 Polyester capacitor 22nF, ±5%, 63V
C319, C841 25-10461-07 Polyester capacitor 100nF, ±5%, 63V
C803 25-22461-01 Polyester capacitor 220nF, 10%, 63V
22
