NAD T514C User manual

SERVICE MANUAL
SERVICE MANUAL
T514C
T524C
MODELS : T514C/T524CSERVICE MANUAL
© NAD 2005
NAD ELECTRONICS INTERNATIONAL
TORONTO
T514C/T524C
DVD VIDEO PLAYER
T514C/T524C
DVD VIDEO PLAYER
DVD VIDEO PLAYER

CONTENTS
SECTION 1 . . . .SUMMARY
SECTION 2 . . . .CABINET & MAIN CHASSIS
SECTION 3 . . . .ELECTRICAL
SECTION 4 . . . .MECHANISM
SECTION 5 . . . .REPLACEMENT PARTS LIST

SECTION 1
SUMMARY
CONTENTS
PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS ........................... 1-3
SERVICING PRECAUTIONS .................................................................................................. 1-4
• General Servicing Precautions
• Insulation Checking Prodedure
• Electrostatically Sensitive Devices
SPECIFICATIONS ...................................................................................................................... 1-5
1-2

1-3
CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY,
NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC-
TURER’S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY
VOID THE WARRANTY, BUT MAYLEADTO YOUR BEING LIABLE FORANY
RESULTING PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE
THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY
CHECKS AND SERVICING GUIDELINES. TO DO OTHERWISE,
INCREASES THE RISK OF POTENTIAL HAZARDS AND INJURY TO THE
USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTEC-
TION FROM A.C. LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRCTED. A
CHECK SHOULD BE MADE OF THE FOLLOWING.
SUBJECT : FIRE & SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY
AS TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS.
THIS IS ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE
TRANSPORTED TO AND FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES
SUCH AS INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN
RELIEFS, POWER SUPPLY CORDS, AND OTHER HARDWARE HAVE
BEEN REINSTALLED PER ORIGINAL DESIGN. BE SURE THAT THE
SAFETY PURPOSE OF THE POLARIZED LINE PLUG HAS NOT BEEN
DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD
SOLDER JOINTS, SOLDER SPLASHES OR SHARP SOLDER POINTS.
BE CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION
TO PARTS AND COMPONENTS. FOR FRAYED LEADS, DAMAGED
INSULATION (INCLUDING A.C. CORD). AND REPLACE IF NECESSARY
FOLLOW ORIGINAL LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECIVING TUBE OR
A RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND
PROTRUNING METAL SURFACES MUST BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF
RESISTORS, CAPACITORS, ETC. MUST BE REPLACED WITH EXACT
FACTORY TYPES, DO NOT USE REPLACEMENT COMPONENTS
OTHER THAN THOSE SPECIFIED OR MAKE UNRECOMMENDED CIR-
CUIT MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN A.C.
LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF THE CABI-
NET, (THE CHANNEL SELECTOR KNOB, ANTENNA TERMINALS. HAN-
DLE AND SCREWS) TO BE SURE THE SET IS SAFE TO OPERATE
WITHOUT DANGER OF ELECTRICAL SHOCK. DO NOT USE A LINE
ISOLATION TRANSFORMER DURING THIS TEST USE AN A.C. VOLT-
METER, HAVING 5000 OHMS PER VOLT OR MORE SENSITIVITY, IN
THE FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT RESIS-
TOR, PARALLELED BY A .15 MFD. 150.V A.C TYPE CAPACITOR
BETWEEN A KNOWN GOOD EARTH GROUND (WATER PIPE, CON-
DUIT, ETC.) AND THE EXPOSED METALLIC PARTS, ONE AT A TIME.
MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500
OHM RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG
AND REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED
METALLIC PART. VOLTAGE MEASURED MUST NOT EXCEED 75
VOLTS R.M.S. THIS CORRESPONDS TO 0.5 MILLIAMP A.C ANY
VALUE EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL SHOCK
HAZARD AND MUST BE CORRECTED IMMEDIATELY.
SUBJECT: GRAPHIC SYMBOLS
THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN
AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE
SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE”THAT MAY BE OF SUFFICIENT MAG-
NITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIAN-
GLE IS INTENDED TO ALERT THE SERVICE PERSONNEL TO
THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN
SERVICE LITERATURE.
SUBJECT : X-RADIATION
1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PER-
SONNEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTEN-
TIAL SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PIC-
TURE TUBE. HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN
THE HIGH VOLTAGE IS AT THE FACTORY SPECIFIED LEVEL. THE
PROPER VALUE IS GIVEN IN THE APPLICABLE SCHEMATIC. OPERA-
TION AT HIGHER VOLTAGES MAY CAUSE A FAILURE OF THE PIC-
TURE TUBE OR HIGH VOLTAGE SUPPLY AND, UNDER CERTAIN CIR-
CUMSTANCES, MAY PRODUCE RADIATION IN EXCESS OF DESIR-
ABLE LEVELS.
2. ONLY FACTORY SPECIFIED C.R.T. ANODE CONNECTORS MUST BE
USED. DEGAUSSING SHIELDS ALSO SERVE AS X-RAY SHIELD IN
COLOR SETS, ALWAYS RE-INSTALL THEM.
3. IT IS ESSNTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN
ACCURATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRA
TION OF THE METER SHOULD BE CHECKED PERIODICALLY
AGAINST A REFERENCE STANDARD, SUCH AS THE ONE AVAILABLE
AT YOUR DISTRIBUTOR.
4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY
THERE IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY
TIME A COLOR CHASSIS IS SERVICED. THE BRIGHTNESS SHOULD
BE RUN UP AND DOWN WHILE MONITORING THE HIGH VOLTAGE
WITH A METER TO BE CERTAIN THAT THE HIGH VOLTAGE DOES
NOT EXCEED THE SPECIFIED VALUE AND THAT IT IS REGULATING
CORRECTLY, WE SUGGEST THAT YOU AND YOUR SERVICE ORGA-
NIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE REGU-
LATION IS ALWAYS CHECKED AS A STANDARD SERVICING PROCE-
DURE. AND THAT THE HIGH VOLTAGE READING BE RECORDER ON
EACH CUSTOMER’S INVOICE.
5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN
A PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE,
AVOID BEING UNNECESSARILY CLOSE TO THE PICTURE TUBE AND
THE HIGH VOLTAGE SUPPLY. DO NOT OPERATE THE PRODUCT
LONGER THAN IS NECESSARY TO LOCATE THE CAUSE OF EXCES
SIVE VOLTAGE.
6. REFER TO HV. B+ AND SHUTDOWN ADJUSTMENT PROCEDURES
DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS
(WHERE USED).
SUBJECT: IMPLOSION
1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTE
GRAL IMPLOSION PROTECTION SYSTEM, BUT CARE SHOULD BE
TAKEN TO AVOID DAMAGE DURING INSTALLATION, AVOID
SCRATCHING THE TUBE. IF SCRATCHED REPLACE IT.
2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.
SUBJECT : TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBY-
HOLE OR CLOSELY FITTING SHELF SPACE. OVER OR CLOSE TO
HEAT DUCT, OR IN THE PATH OF HEATED AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO
INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIA-
TORS WHERE STEAM LEAKAGE IS A FACTOR, ETC.
3. AVOID PALCEMENT WHERE DRAPERIES MAY OBSTRUCT REAR
VENTING. THE CUSTOMER SHOULD ALSO AVOID THE USE OF DEC-
ORATIVE SCARVES OR OTHER COVERINGS WHICH MIGHT
OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMER-
CIAL MOUNTING KIT. MUST FOLLOW THE FACTORY APPROVED
MOUNTING INSTRUCTIONS A PRODUCT MOUNTED TO A SHELF OR
PLATFORM MUST RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT
THICKNESS IN SPACERS) TO PROVIDE ADEQUATE AIR FLOW
ACROSS THE BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS
MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM LEAKAGE
TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OFAPRODUCT ON
SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS
PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS
MOUNTING TO THE CART. CAUTION THE CUSTOMER ON THE HAZ-
ARDS OF TRYING TO ROLL A CART WITH SMALL CASTERS ACROSS
THRESHOLDS OR DEEP PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND
WHICH HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES,
INC. FOR USE WITH THEIR SPECIFIC MODEL OF TELEVISION
RECEIVER OR GENERICALLY APPROVED FOR USE WITH T.V.’S OF
THE SAME OR LARGER SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS,
EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SIN-
GLE OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO
HOME AND FAMILY.
PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS
A.C. VOLTMETER
GOOD EARTH GROUND
SUCH AS THE WATER
PIPE. CONDUIT. ETC
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART

1-4
SERVICING PRECAUTIONS
CAUTION : Before servicing the DVD covered by this service
data and its supplements and addends, read and follow the
SAFETY PRECAUTIONS. NOTE : if unforeseen circum-
stances create conflict between the following servicing pre-
cautions and any of the safety precautions in this publica-
tions, always follow the safety precautions.
Remembers Safety First:
General Servicing Precautions
1. Always unplug the DVD AC power cord from the AC
power source before:
(1)Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2)Disconnection or reconnecting any internal electrical
plug or other electrical connection.
(3)Connecting a test substitute in parallel with an elec-
trolytic capacitor.
Caution : A wrong part substitution or incorrect
polarity installation of electrolytic capacitors may result
in an explosion hazard.
2. Do not spray chemicals on or near this DVD or any of
its assemblies.
3. Unless specified otherwise in this service data, clean
electrical contacts by applying an appropriate contact
cleaning solution to the contacts with a pipe cleaner,
cotton-tipped swab, or comparable soft applicator.
Unless specified otherwise in this service data, lubrication
of contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with
whitch instruments covered by this service manual might
be equipped.
5. Do not apply AC power to this DVD and/or any of its
electrical assemblies unless all solid-state device heat
sinks are cerrectly installed.
6. Always connect test instrument ground lead to the
appropriate ground before connection the test instrument
positive lead. Always remove the test instrument ground
lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn
the power on. Connect an insulation resistance meter(500V)
to the blades of the attachment plug. The insulation resis-
tance between each blade of the attachment plug and acces-
sible conductive parts (Note 1) should be more than 1M-
ohm.
Note 1 : Accessible Conductive Parts including Metal pan-
els, Input terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field
effect transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor compo-
nent or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known
earth ground. Alternatively, obtain and wear a commer-
cially available discharging wrist strap device, which
should be removed for potential shock reasons prior to
applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such
as aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grouned-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static solder removal device. Some
solder removal devices not classified a “anti-static”can
generate electrical charges sufficient to damage ES
devices.
5. Do not use freon-propelled chemicals. These can
generate electrical charge sufficient to damage ES
devices.
6. Do not remove a replacement ES device from its protec
tive package until immediately before you are ready to
install it. (Most replacement ES devices are packaged with
leads electrically shorted together by conductive foam,
aluminum foil, or comparable conductive material).
7. Immediately before removing the protective material from
the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
Caution : Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Normally harmless motion such
as the brushing together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static elec-
tricity sufficient to damage an ES device.)

1-5
SPECIFICATIONS
•GENERAL
Power requirements: AC 110-240 V , 50/60 Hz
Power consumption: 12W
Dimensions (Approx.): 430 x 39 x 242 mm (W x H x D) without foot
Weight (Approx.): 2.2 kg
Operating temperature: 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity: 5 % to 90 %
•System
Laser: Semiconductor laser, wavelength 650 nm
Signal system: PAL / NTSC
Frequency response: DVD (PCM 96 kHz): 8 Hz to 44 kHz
DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
Signal-to-noise ratio: More than 100 dB (ANALOG OUT connectors only)
Harmonic distortion: Less than 0.008%
Dynamic range: More than 90 dB (DVD/CD)
•OUTPUTS
VIDEO OUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1 /SCART (TO TV)
S-VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.3 V (p-p) 75 Ω
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
(Cb/Pb)/(Cr/Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
AUDIO OUT 2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) x 1 /
SCART (TO TV)
DIGITAL OUT (COAXIAL) 0.5 V (p-p), 75 Ω, RCA jack x 1
DIGITAL OUT (OPTICAL) 3 V (p-p), 75 Ω, Optical Connector x 1

2-1
SECTION 2
CABINET & MAIN CHASSIS
CONTENTS
1. EXPLODED VIEWS ................................................................................................................2-2
1. Cabinet and Main Frame Section...........................................................................................2-2
2. Packing Accessory Section....................................................................................................2-3

2-2
EXPLODED VIEWS

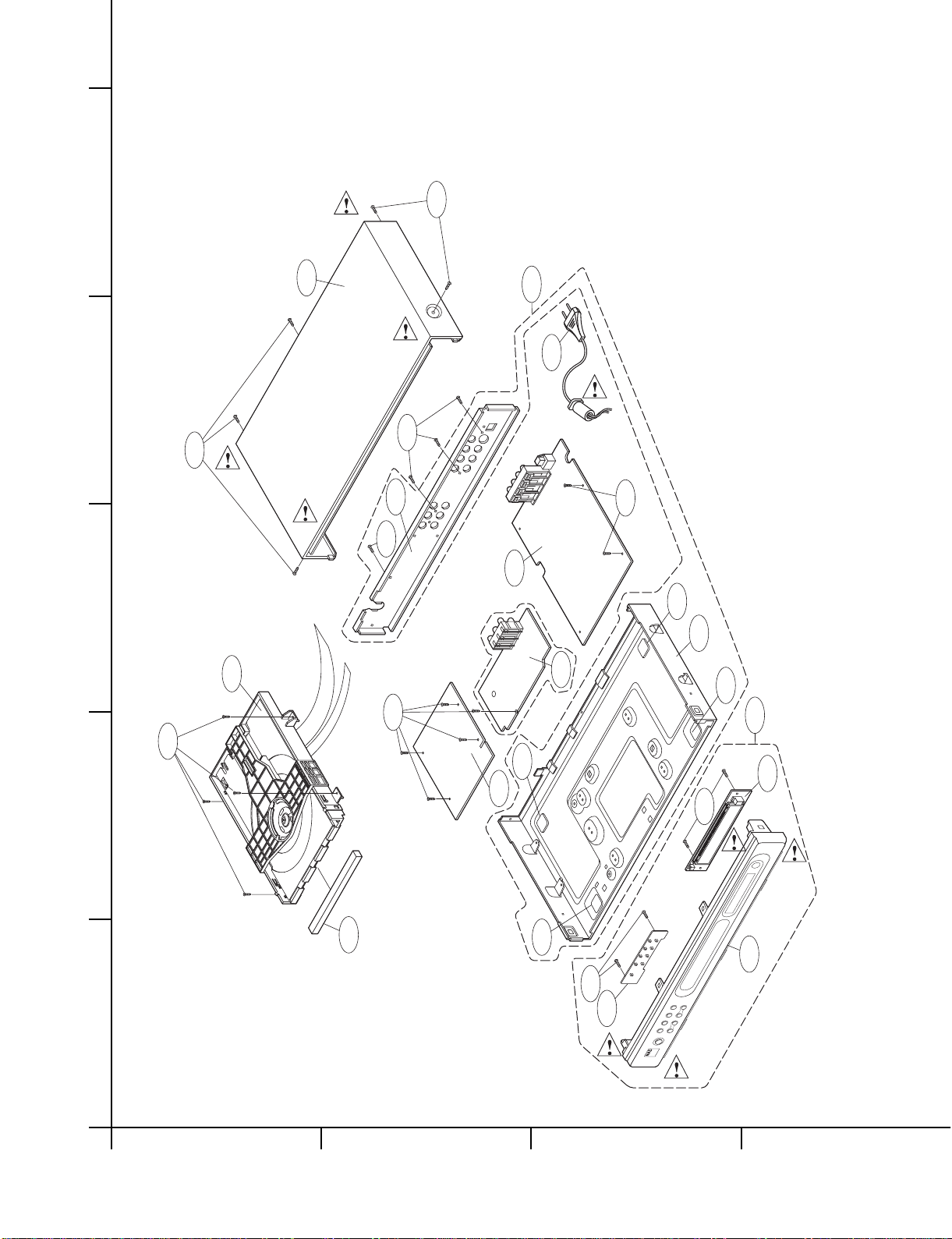

1. Cabinet and Main Frame Section
463
A00
283
A47261
261
261
261
260
A49 A43
A44
A42
280
A48
A46
467 320
463
463
300
452
452
465
463
463
250
SCART, 5.1CH
MODEL
ONLY
A
5
4
3
2
1
BCD

2-3

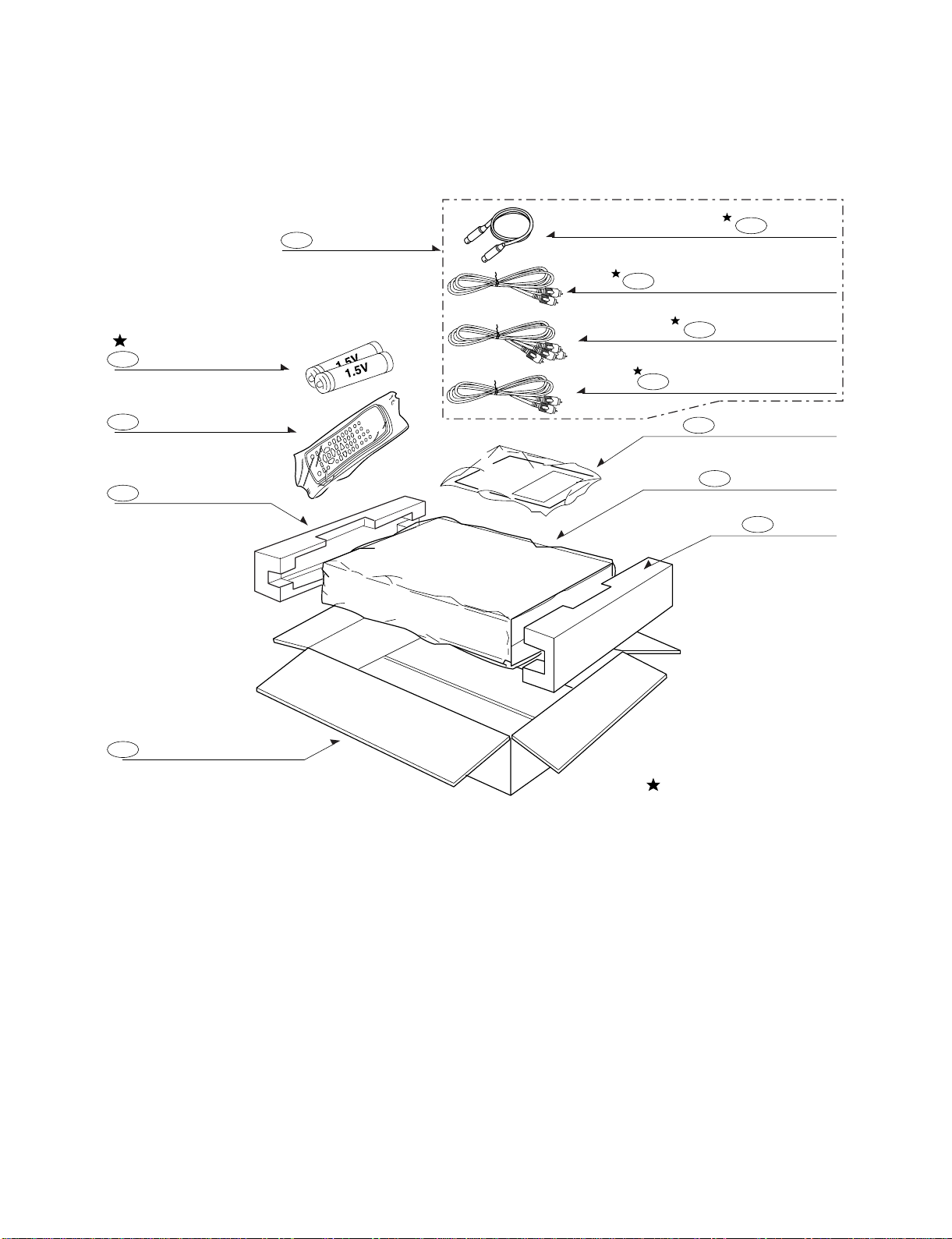

2. Packing Accessory Section
BATTERY
808
PACKING SHEET
804
PACKING
OPTIONAL PARTS
803
806
820
OWNER'S MANUAL
RF CABLE
810 CABLE SETASS'Y
801
REMOCON
900
BOX CARTON
802
PACKING
803
811
812
PLUG ASS'Y 1WAY(YELLOW)
PLUG ASS'Y 1WAY(BLACK)
PLUG ASS'Y 2WAY

3-1
SECTION 3
ELECTRICAL
CONTENTS
ELECTRICAL TROUBLESHOOTING GUIDE......................................................................3-2
1. Power check flow.....................................................................................................................3-2
2. System operation flow ............................................................................................................3-3
3. Test & debug flow....................................................................................................................3-4
DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING....................3-10
1. SYSTEM 27MHz CLOCK, RESET, FLASH R/W SIGNAL.....................................................3-10
2. SDRAM CLOCK......................................................................................................................3-12
3. TRAY OPEN/CLOSE SIGNAL................................................................................................3-12
4. SLED CONTROL RELATED SIGNAL(NO DISC CONDITION) .............................................3-13
5. LENS CONTROL RELATED SIGNAL(NO DISC CONDITION) .............................................3-13
6. LASER POWER CONTROL RELATED SIGNAL(NO DISC CONDITION)............................3-14
7. DISC TYPE JUDGEMENT WAVEFORM................................................................................3-14
8. FOCUS ON WAVEFORM........................................................................................................3-16
9. SPINDLE CONTROL WAVEFORM(NO DISC CONDITION...................................................3-17
10. TRACKING CONTROL RELATED SIGNAL(System checking).........................................3-18
11. MT1389 AUDIO OPTICAL AND COAXIAL OUTPUT (SPDIF).............................................3-19
12. MT1389 VIDEO OUTPUT WAVEFORM................................................................................3-19
13. MT1389 AUDIO OUTPUT TO AUDIO DAC..........................................................................3-20
14. AUDIO OUTPUT FROM AUDIO DAC ..................................................................................3-21
BLOCK DIAGRAMS..................................................................................................................3-22
1. Overall Block Diagram ..........................................................................................................3-22
2. Power(SMPS) Block Diagram...............................................................................................3-23
3. SERVO Block Diagram..........................................................................................................3-24
4. MPEG & MEMORY Block Diagram.......................................................................................3-25
5. VIDEO & AUDIO Block Diagram...........................................................................................3-26
CIRCUIT DIAGRAMS................................................................................................................3-27
1. Power(SMPS) Circuit DIAGRAM...........................................................................................3-27
2. AV/JACK Circuit DIAGRAM...................................................................................................3-29
3. SYSTEM Circuit DIAGRAM ...................................................................................................3-31
4. DRIVER Circuit DIAGRAM.....................................................................................................3-33
5. TIMER Circuit DIAGRAM.......................................................................................................3-35
6. 5.1CH Circuit DIAGRAM........................................................................................................3-37
•CIRCUIT VOLTAGE CHART ....................................................................................................3-39
PRINTED CIRCUIT DIAGRAMS............................................................................................3-41
1. MAIN P.C.BOARD...................................................................................................................3-41
2. KEY P.C.BOARD.....................................................................................................................3-43
3. TIMER P.C.BOARD.................................................................................................................3-44
4. JACK & 5.1CH I/O P.C.BOARD(OPTIONAL PART)..............................................................3-45
5. SMPS P.C.BOARD..................................................................................................................3-46

3-2
ELECTRICAL TROUBLESHOOTING GUIDE
No 5V_A
No 5.2VA
Is 5.2VA section working?
Is 5.2V present at emitter
of Q107?
Replace Q107.
Is there a DC voltage At
(+) terminal of BD101?
Is there a DC voltage at
R101?
Replace IC101.
Check F101
1. Power check flow
No VF+
Is 5.2VA section working?
Replace D102.
Check F102
NO
NO
YES
YES YES
YES
Replace R101.
YES
Replace BD101.
YES
YES
A. B.
NO
NO
NO
NO

3-3
2. System operation flow
Power On
1.8032initializesSERVO,DSP&RISCregisters
2.WriteRISCcodetoSDRAM
3.ResetRISC
Show LOGO
Tray Closed?
Tray Close to Closed position
NO
SLED at Inner
Side ?
SLED Moves to Inner Positi on
NO
Y
ES
YES
Reci eve
OPEN/CLOSE
Key?
1. Execute Pressed Key & IR Key
2. System operation Routine Loop
NO
1. Stop Playback & Open Tray
2. Display tray open message & LOGO
Receive
CLOSE Key?
NO
YES
YES
1. Judge whether have disc and disc type
2. Jump to related disc reading procedure

3-4
3. Test & debug flow
TEST
Check the AC Voltage
Power PCBA(110V or 220V) NO Replace power PCBA or
AC transformer.
YES
Switch on the Power PCBA
Is the DC Voltage
outputs OK?
(5V,1.8V,3.3V,8V,12V) Repair or Replace Power PCBA
NO
Make sure the main PCBA don't
short on VCCs and switch it on.
YES
Is 3.3V and 1.8V DC
outputs normal on main
PCBA?
Check the regulators or related diodes.
NO
YES
Connect to PC RS232 Cable and
update the FLASH memory code.
Update FLASH
successfully?
A
YES
NO
1. Check 27MHz system clock.
2. Check system reset circuit.
3. Check FLASH R/W enable signal PRD,RWR.
4. Check RS232 SIGNALS.
5. Check FLASH Memory related circuit.

3-5
A
RESET or Power On.
NO NO
YES
NO
YES
NO
YES
YES
B
NO
NO
NO
YES
YES
NO
NO
YESYES
YES
Show LOGO? Flash Memory operates
properly? Check connection lines between FLASH
& MT1389 and the FLASH access time
whether is suitable or not.
SDRAM works properly? Check connection lines between
SDRAM & MT1389 and the SDRAM
is damaged.
MT1389 VIDEO outputs
properly? Check the related circuit of MT1389.
Have TV signal output? Check the filtering and amp circuit of
TV signal.
Check AV cable connection
to TV set.
Does Tray move
inside when it is not
at closed position? Normal TROUT &
TRIN signals? Check the load OPEN & CLOSE switch
Normal TRCLOSE &
TROPEN signal?
Normal LOAD+ &
LOADsignal?
Check the cable connection
between main PCBA and loader.
Check the Tray control IO pins on
MT1389 & IP4504.
Check the Tray control amplifying
circuit on Motor driver.

3-6
B
NO NO
NO
NO
NO NO
NO
YES YES
YES
YES
YESYES
YES
Does
the SLED move
to inner side when it is at
outter position?
Motor Driver STBY
Pin is High? Check the connection line of
STBY signal.
Is FMSO DC Level higher
than 1.4V? Check the related circuit of FMSO.
SL+ and SL- output
properly? Check the amp circuit on motor
driver.
Check the cable connection with
MECHA.
Do not put in disc and tray
close.
C
Optical Lens has
movements for searching
Focus?
Proper FOSO outputs
to motor driver? Check FOSO connection on
MT1389 and motor dirver.
Proper F+ & F- outputs? Check the amp circuit on motor
dirver.
Check cable connect on with
pick-up head.

3-7
D
C
YES
NO
YES
YES
NO NO
Does spindle rotate? Proper DMSO signal on
MT1389 Check DMSO related
circuit on MT1389.
SP+ & SP- output
properly? Check the spindle control
amp circuit of motor
driver.
Check the cable connection
between spindle and main PCBA.
YES
YES
NO NO
Laser turns on when
reading disc? NO NO
YES
NO
YES
YES
NO
LD01 or LD02 output
properly? Check the laser power circuit
on MT1336 and connecting to
power transistor.
Collector voltage of
power transistor is OK? Check the related circuit on
laser power transistor
Check cable connection between
transistor ouput and pick-up
head.
Put disc in? Laser off
Disc ID is correct? Proper RFL signal
on MT1389? Check the related circuit
on MT1389 RFL signal.
Check LDO1 & LDO2 signal
YES

3-8
YES
NO
YES
YES
D
NO NO
NO
YES
NO
E
YES
Normal TEO Signal on
MT1389? Check the related
circuit on MT1389
Track On OK?
Properly TRSO signal
on MT1389?
T+ & T- output
properly?
Check the TRSO
connection on MT1389
and motor dirver.
Check the tracking control
amp circuit on motor
driver.
Check cable connection on
pick-up head.
Disc is play ? Check RFO & RFLVL signal waveform.
NO NO
YES
YES
YES
Focus ON OK? Proper signals on
A,B,C,D of MT1389 Check connections between
MT1389 and pick-up head.
Check FEO signal
on MT1389
Check FOSO signal on MT1389
Check the FOSO connection on
MT1389 and motor driver.
YES
NO

3-9
Normal IR.VFD & Front
pannel key functions? Communications between
IR.VFDFrontpannelkey &MT1389
is normally? Check communication lines on
MT1389.
NO
YES
Check the cable connection on
Front pannel.
TEST END
YES
Normal Audio output
when disc playback? Audio DAC received correct data stream? Check connection between MT1379 & Audio DAC.
Normal Audio DAC
out? Check the related circuit of Audio DAC.
Check Audio filter,amplify,mute
circuit.
NO NO
NO
YES
YES
YES
E
NO

3-10
DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING

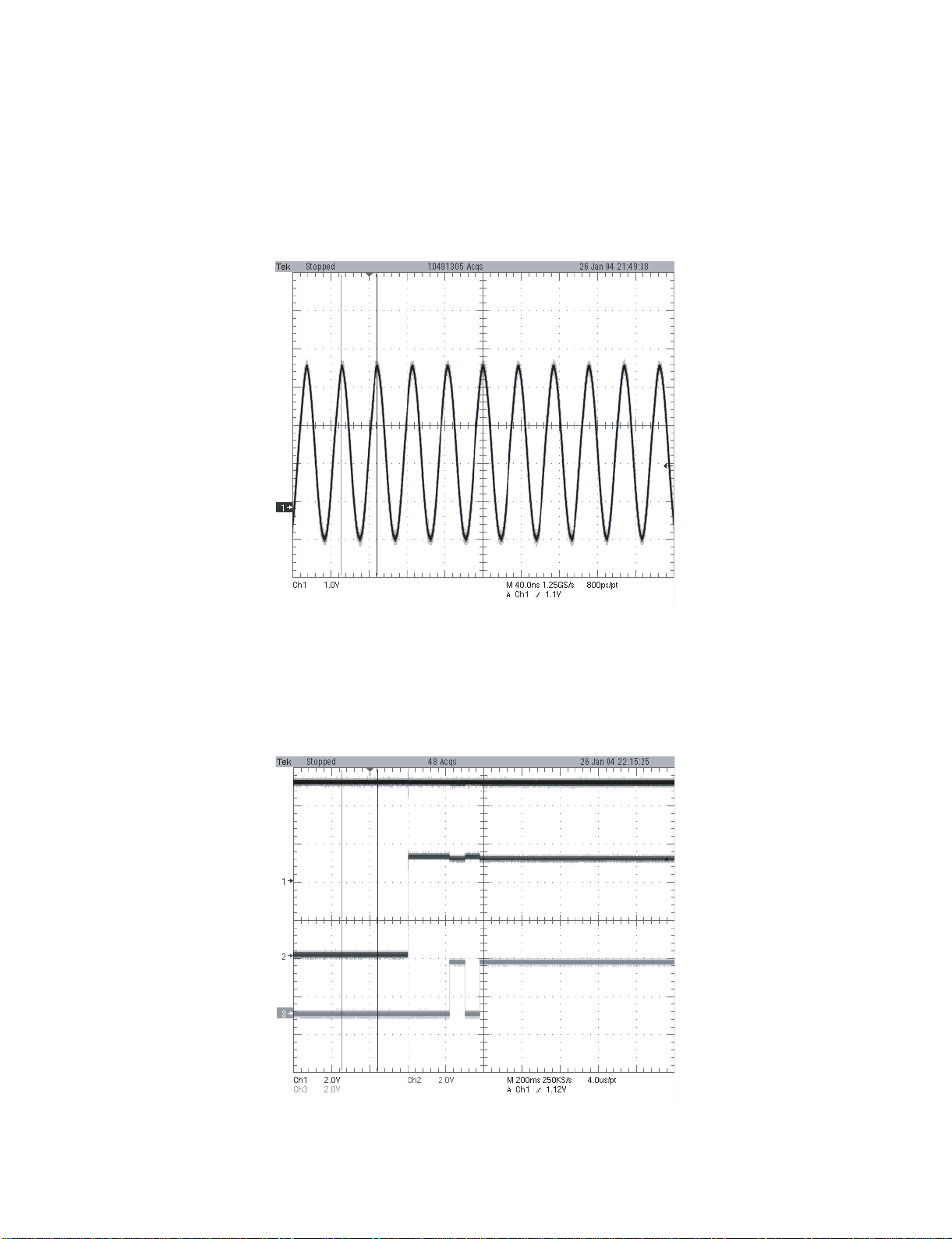

1. SYSTEM 27MHz CLOCK, RESET, FLASH R/W SIGNAL.
1) MT1389 main clock is at 27MHz(X501)
FIG 1-1
2) MT1389 reset is low active.
FIG 1-2

3-11
3) RS232 waveform during procedure(Downloading)
FIG 1-3
4) Flash R/W enable signal during download(Downloading)
FIG 1-4
