NAD VISO FIVE User manual
,!5.!-%#)62%3
$6$3URROUND3OUND2ECEIVER
6)3/&)6%
$6$3URROUND3OUND2ECEIVER
6)3/&)6%
Before SN A99VISOFIVE04701
1-3
SECTION 1
SUMMARY
CONTENTS
PRODUCT SAFETY SERVICING GUIDELINES.......................................................................................... 1-4
SERVICING PRECAUTIONS ....................................................................................................................... 1-5
* General Servicing Precautions
* Insulation checking prodedure
* Electrostatically Sensitive Devices
SPECIFICATIONS ......................................................................................................................................... 1-6

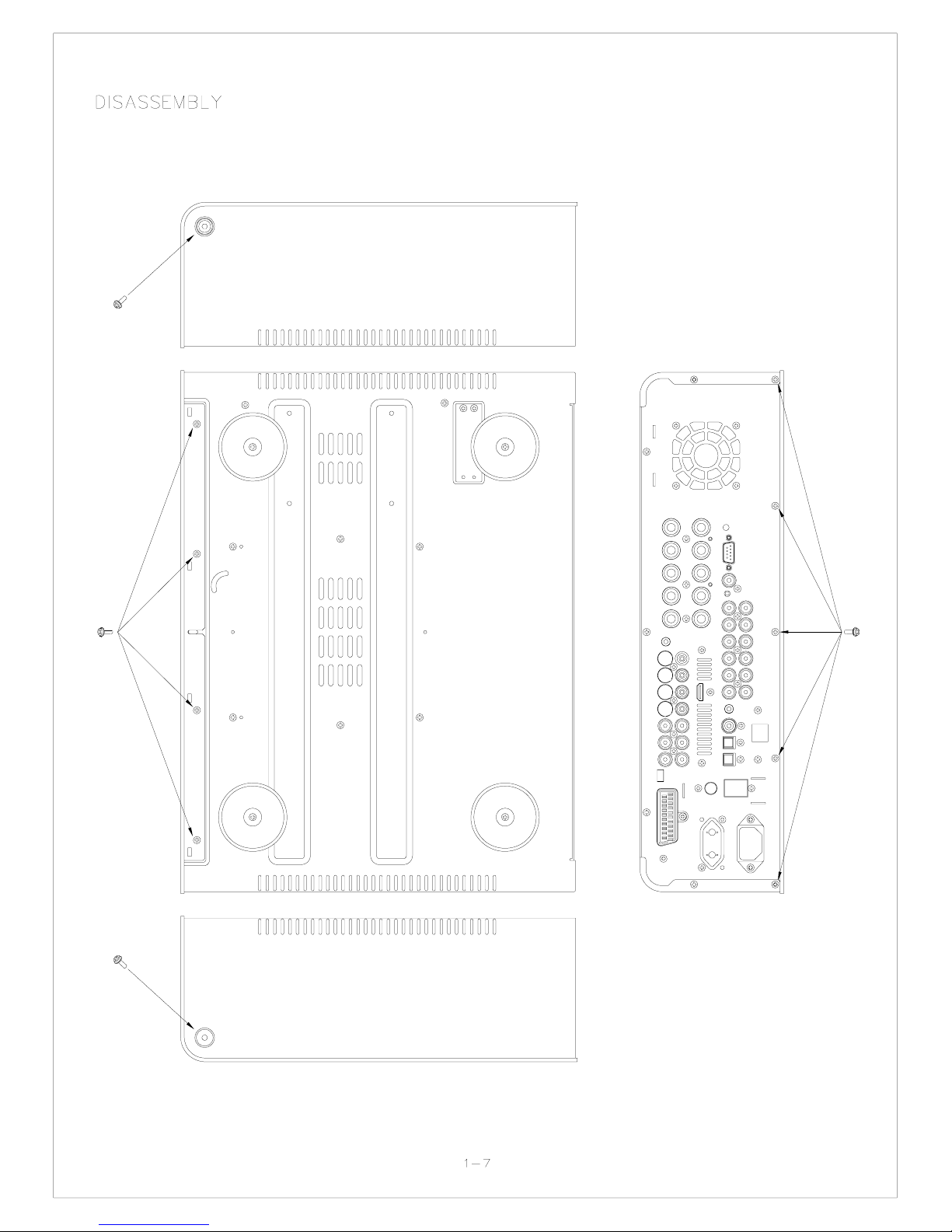

DISASSEMBLY .............................................................................................................................................. 1-7

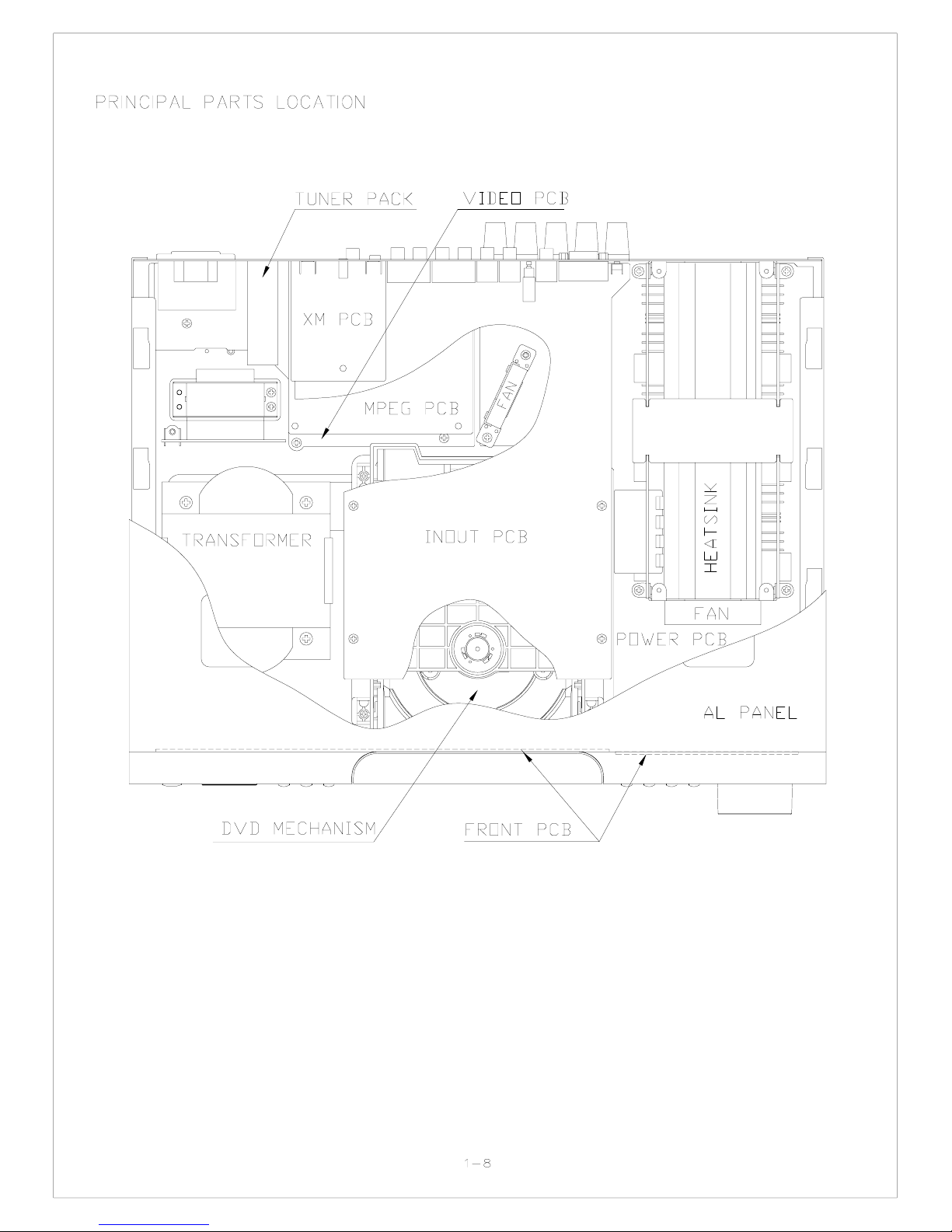

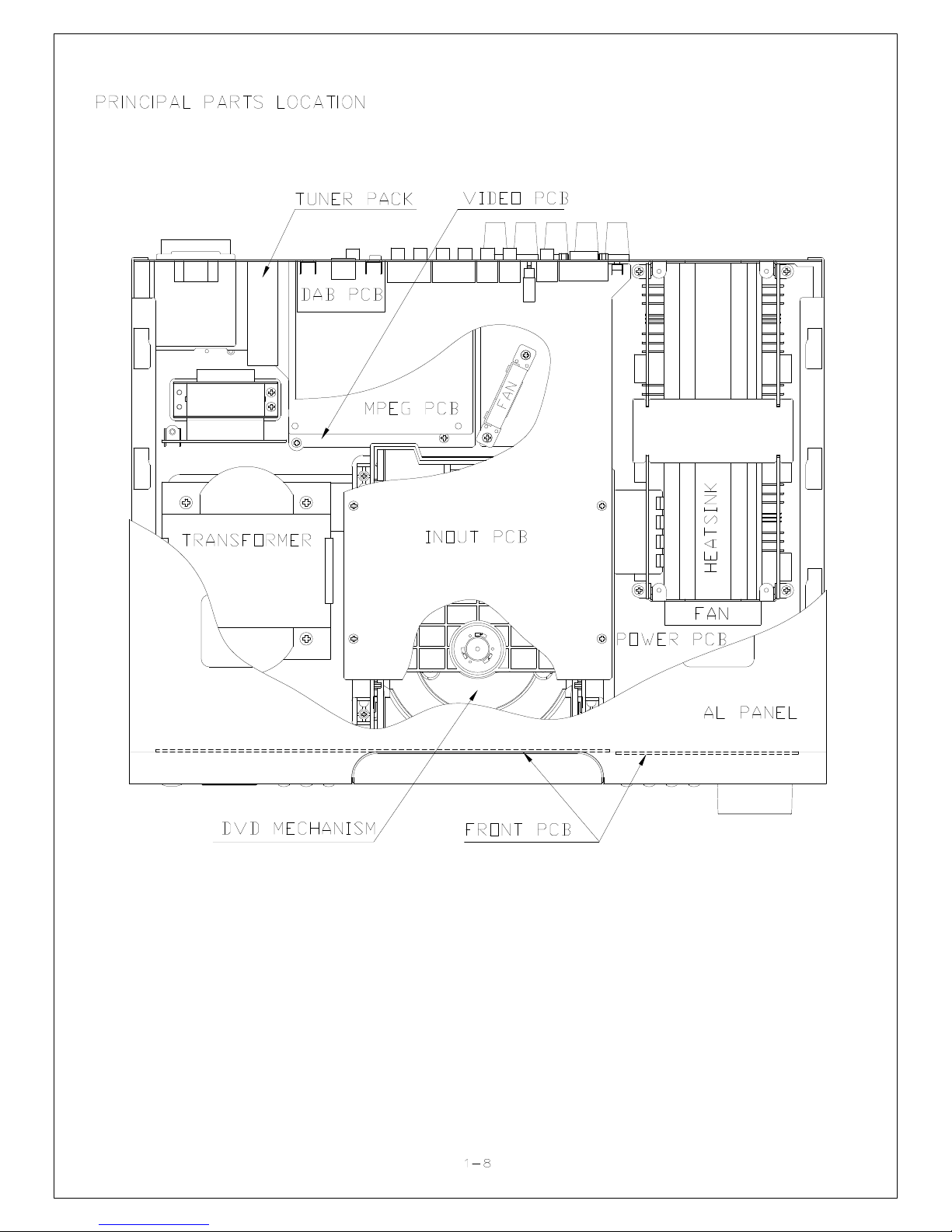

PRINCIPAL PART LOCATION ...................................................................................................................... 1-8

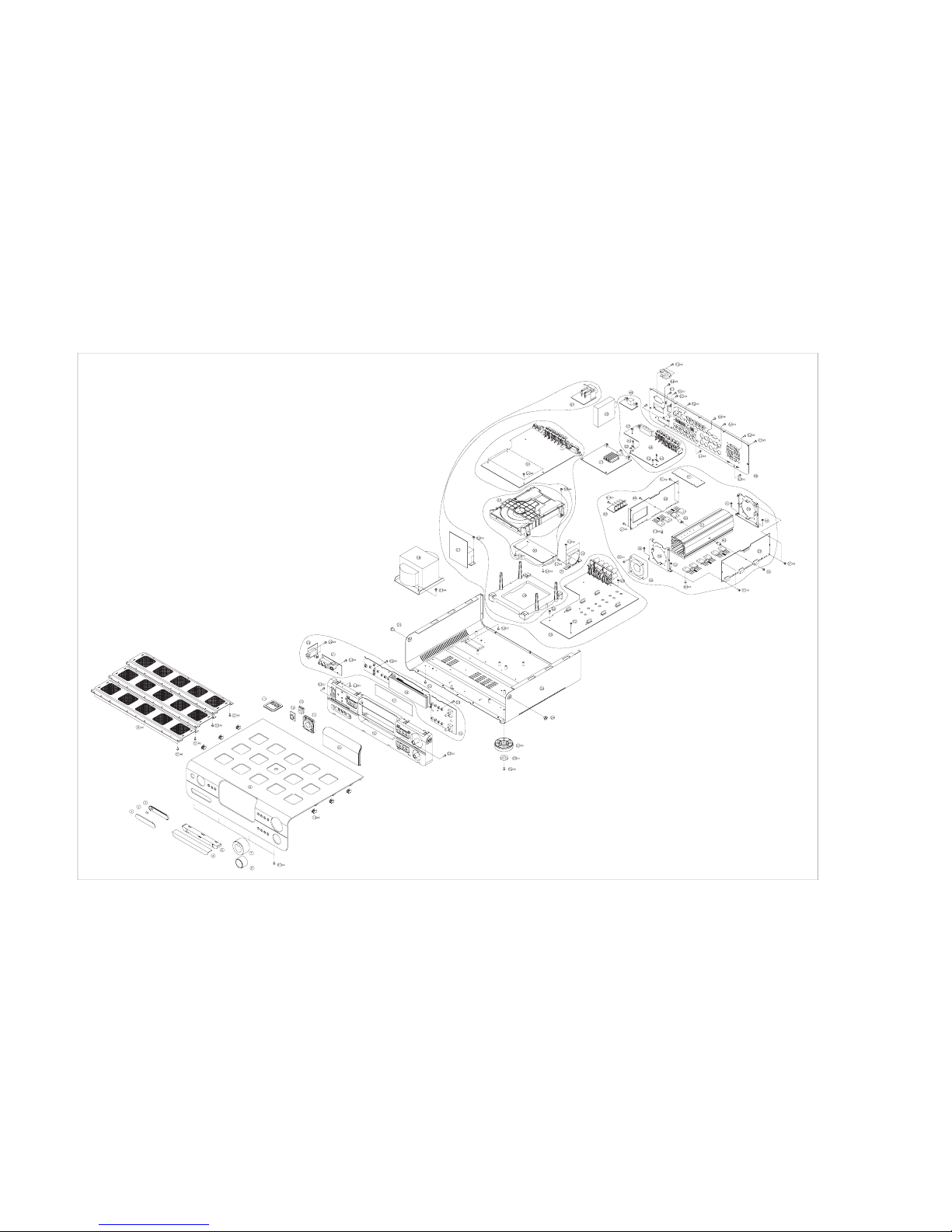

EXPLODED VIEW ......................................................................................................................................... 1-9
1-4
PRODUCT SAFETY SERVICING GUIDELINES
CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN
ANY WAY. NEVER PERFORM CUSTOMIZED INSTALLATIONS
WITHOUT MANUFACTURER’S APPROVAL. UNAUTHORIZED
MODIFICATIONS WILL NOT ONLY VOID THE WARRANTY, BUT
MAY LEAD TO YOUR BEING LIABLE FOR ANY RESULTING
PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU
ARE THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING
SAFETY CHECKS AND SERVICING GUIDELINES. TO DO
OTHERWISE, INCREASES THE RISK OF POTENTIAL HAZARDS
AND INJURY TO THE USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR
PROTECTION FROM AC LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN
CORRECTED. A CHECK SHOULD BE MADE OF THE
FOLLOWING.
SUBJECT : FIRE & SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN
SUCH A WAY AS TO AVOID POSSIBILITY OF ADJACENT
COMPONENT SHORTS. THIS IS ESPECIALLY IMPORTANT
ON THOSE MODULES WHICH ARE TRANSPORTED TO AND
FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE
DEVICES SUCH AS INSULATORS, BARRIERS, COVERS,
SHIELDS, STRAIN RELIEFS, POWER SUPPLY CORDS, AND
OTHER HARDWARE HAVE BEEN REINSTALLED PER
ORIGINAL DESIGN. BE SURE THAT THE SAFETY PURPOSE
OF THE POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE
COLD SOLDER JOINTS, SOLDER SPLASHES OR SHARP
SOLDER POINTS. BE CERTAIN TO REMOVE ALL LOOSE
FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR
DETERIORATION TO PARTS AND COMPONENTS. FOR
FRAYED LEADS, DAMAGED INSULATION (INCLUDING AC
CORD). AND REPLACE IF NECESSARY FOLLOW ORIGINAL
LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECEIVING
TUBE OR A RESISTOR RATED AT 1 WATT OR MORE. LEAD
TENSION AROUND PROTRUDING METAL SURFACES MUST
BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES,
FLAMEPROOF RESISTORS, CAPACITORS, ETC. MUST BE
REPLACED WITH EXACT FACTORY TYPES, DO NOT USE
REPLACEMENT COMPONENTS OTHER THAN THOSE
SPECIFIED OR MAKE UNRECOMMENDED CIRCUIT
MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN
AC LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF
THE CABINET, (THE CHANNEL SELECTOR KNOB, ANTENNA
TERMINALS. HANDLE AND SCREWS) TO BE SURE THE SET
IS SAFET TO OPERATE WITHOUT DANGER OF ELECTRICAL
SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER
DURING THIS TEST USE AN AC VOLTMETER, HAVING 5000
OHMS PER VOLT OR MORE SENSITIVITY, IN THE
FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT
RESISTOR, PARALLELED BY A .15 MFD, 150V AC TYPE
CAPACITOR BETWEEN A KNOWN GOOD EARTH GROUND
(WATER PIPE, CONDUIT, ETC.) AND THE EXPOSED
METALLIC PARTS, ONE AT A TIME.
MEASURE THE AC VOLTAGE ACROSS THE COMBINATION
OF 1500 OHM RESISTOR AND .15 MFD CAPACITOR.
REVERSE THE AC PLUG AND REPEAT AC VOLTAGE
MEASUREMENTS FOR EACH EXPOSED METALLIC PART.
VOLTAGE MEASURE MUST NOT EXCEED 75 VOLTS R.M.S.
THIS CORRESPONDS TO 0.5 MILLIAMP AC ANY VALUE
EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED IMMEDIATELY.
SUBJECT : GRAPHIC SYMBOLS
SUBJECT : TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS,
CUBBYHOLE OR CLOSELY FITTING SHELF SPACE. OVER
OR CLOSE TO HEAT DUCT, OR IN THE PATH OF HEATED
AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS:
OUTDOOR PATIO INSTALLATIONS WHERE DEW IS A
FACTOR, NEAR STEAM RADIATORS WHERE STEAM
LEAKAGE IS A FACTOR, ETC.
3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT
REAR VENTING. THE CUSTOMER SHOULD ALSO AVOID THE
USE OF DECORATIVE SCARVES OR OTHER COVERINGS
WHICH MIGHT OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A
COMMERCAL MOUNTING KIT MUST FOLLOW THE FACTORY
APPROVED MOUNTING INSTRUCTIONS A PRODUCT
MOUNTED TO A SHELF OR PLATFORM MUST RETAIN ITS
ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN
SPACERS) TO PROVIDE ADEQUATE AIR FLOW ACROSS
THE BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS
MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM
LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A
PRODUCT ON SLOPING SHELF OR A TILTED POSITION,
UNLESS THE PRODUCT IS PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE
ON ITS MOUNTING TO THE CART. CAUTION THE
CUSTOMER ON THE HAZARDS OF TRYING TO ROLL A CART
WITH SMALL CASTERS ACROSS THRESHOLDS OR DEEP
PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR
STAND WHICH HAS NOT BEEN LISTED BY UNDERWRITERS
LABORATORIES, INC. FOR USE WITH THEIR SPECIFIC
MODEL OF TELEVISION RECEIVER OR GENERICALLY
APPROVED FOR USE WITH T.V.’S OF THE SAME OR
LARGER SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION
CORDS, EXPLAIN THAT A FOREST OF EXTENSIONS
SPROUTING FROM A SINGLE OUTLET CAN LEAD TO
DISASTROUS CONSEQUENCES TO HOME AND FAMILY.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN
EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE
PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS
INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
1-5
SERVICING PRECAUTIONS
CAUTION : Before servicing the A/V Receiver covered by this
service data and its supplements and addends, read and follow the
SAFETY PRECAUTIONS. NOTE : if unforeseen circumstances
create conflict between the following servicing precautions and any
of the safety precautions in this publication, always follow the safety
precautions.
Remember Safety First:
General Servicing Precautions
1. Always unplug the A/V Receiver AC power cord from the AC
power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnecting or reconnecting any internal electrical plug or
other electrical connection.
(3) Connecting a test substitute in parallel with an electrolytic
capacitor.
Caution : A wrong part substitution or incorrect polarity installation
of electrolytic capacitors may result in an explosion hazard.
2. Do not spray chemicals on or near this A/V Receiver or any of its
assemblies.
3. Unless specified otherwise in this service data, clean electrical
contacts by applying an appropriate contact cleaning solution to
the contacts with a pipe cleaner, cottontipped swab, or
comparable soft applicator.
Unless specified otherwise in this service data, lubrication of
contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with which
instruments covered by this service manual might be equipped.
5. Do not apply AC power to this A/V Receiver and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
6. Always connect test instrument ground lead to the appropriate
ground before connecting the test instrument positive lead. Always
remove the test instrument ground lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn the
power on. Connect an insulation resistance meter(500V) to the
blades of the attachment plug. The insulation resistance between
each blade of the attachment plug and accessible conductive parts
(Note 1) should be more than 1M-ohm.
Note 1 : Accessible Conductive Parts including Metal panels, Input
terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by
static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical Es
devices are integrated circuits and some field effect transistors and
semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed for
potential shock reasons prior to applying power to the unit under
test.
2. After removing an electrical assembly equipped with ES devices,
place the assembly on a conductive surface such as aluminum
foil, to prevent electrostatic charge buildup or exposure of the
assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an antistatic solder removal device. Some solder
removal devices not classified a “anti-static” can generate
electrical charges sufficient to damage ES devices.
5. Do not use freonpropelled chemicals. These can generate
electrical charge sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically
shorted together by conductive foam, aluminum foil, or
comparable conductive material).
7. lmmediately before removing the protective material from the
leads of a replacement ES device, touch the protective material to
the chassis or circuit assembly into which the device will be
installed.
Caution : Be sure no power is applied to the chassis or circuit, and
observe all other safety precautions.
8. Minimize bodily motions when handing unpackaged replacement
ES devices. (Normally harmless motion such as the brushing
together of your clothes fabric or the lifting of your foot from a
carpeted floor can generate static electricity sufficient to damage
an ES device.)
1-6
SPECIFICATIONS
Amplifier Section
Output Power (Front) :
F.T.C Rating:
60 watts RMS per channel minimum, both channels
driven into 8 ohms from 20 Hz to 20kHz with no
more than 0.09% total harmonic distortion
Surround Output Power (0.5% THD, 1 kHz, 8 ohms) :
50 + 50 Watt (Front)
50 Watt (Center)
50 + 50 Watt (Rear)
Total Harmonic Distortion (Front) :
0.05 % (at 30 watts, 1 kHz)
Delay Time :
DOLBY DIGITAL : REAR : 0 - 15 ms
CENTER : 0 - 5 ms
DOLBY PRO LOGIC : REAR : 15 - 30 ms
Audio Input Sensitivity/Impedance :
*LINE : 320 mV/47 k ohms
Output Level / Impedance :
VCR REC : 300 mV/2.2 k ohms
Frequency Response :
*LINE : 10 Hz - 60 kHz, +1/ -3 dB
Signal-to-Noise Ratio : 1 Watt
*LINE : 70 dB (IHF-A)
Tone Control :
BASS : ±10 dB at 100 Hz
TREBLE : ±10 dB at 10 kHz
Digital Audio Section
Sampling Frequency :
32 kHz, 44.1 kHz, 48 kHz, 96 kHz
DIGITAL Input Level/Impedance
COAXIAL : 0.5 Vp-p/75 ohms
OPTICAL : -15 dBm ~ -21 dBm
Video Section
Input Sensitivity /Impedance : 1.0 Vp-p/75 ohms
Output Level /Impedance : 1.0 Vp-p/75 ohms
*LINE means CAB/SAT , VCR(IPOD) , FRONT
•Improvements may result in specifications and features
changing without notice.
•lllustrations may differ slightly from production models.
FM Tuner Section
(Without notes 100.1 MHz, 65 dBf)
Tuning Range :
87.5 MHz - 108.0 MHz C: 50 kHz steps
AH: 100 kHz steps
AM Suppression Ratio: C: 50 dB
AH: 60 dB
Total Harmonic Distortion (1 kHz) :
Mono : 0.4%
Stereo : 0.5%
Frequency Respones : 20 Hz - 15 kHz, +1/ -1. 5 dB
Stereo Separation (1 kHz) : C: 40 dB
AH: 35 dB
Signal-to-Noise Ratio :
Mono : 70 dB
Stereo : 65 dB
AM Tuner Section
Tuning Range:
C : 522 kHz - 1,620 kHz (9 kHz steps)
AH : 520 kHz - 1,710 kHz (10 kHz steps)
Usable Sensitivity : 55 dB/m
Total Harmonic Distortion : 0.1% at 85 dB/m
Signal-to-Noise Ratio : 40 dB at 85 dB/m
General
Power Requirements :
C : 230V AC, 50Hz
AH : 120V AC, 60Hz
Power Consumption : C: 1.3A
AH: 2.5A
AC Outlets : unswitched x 1, Total 100 W max. (1A)
Dimensions (W x H x D) : 435 x 133 x 375
Weight (net) : 11.8kg
a
b

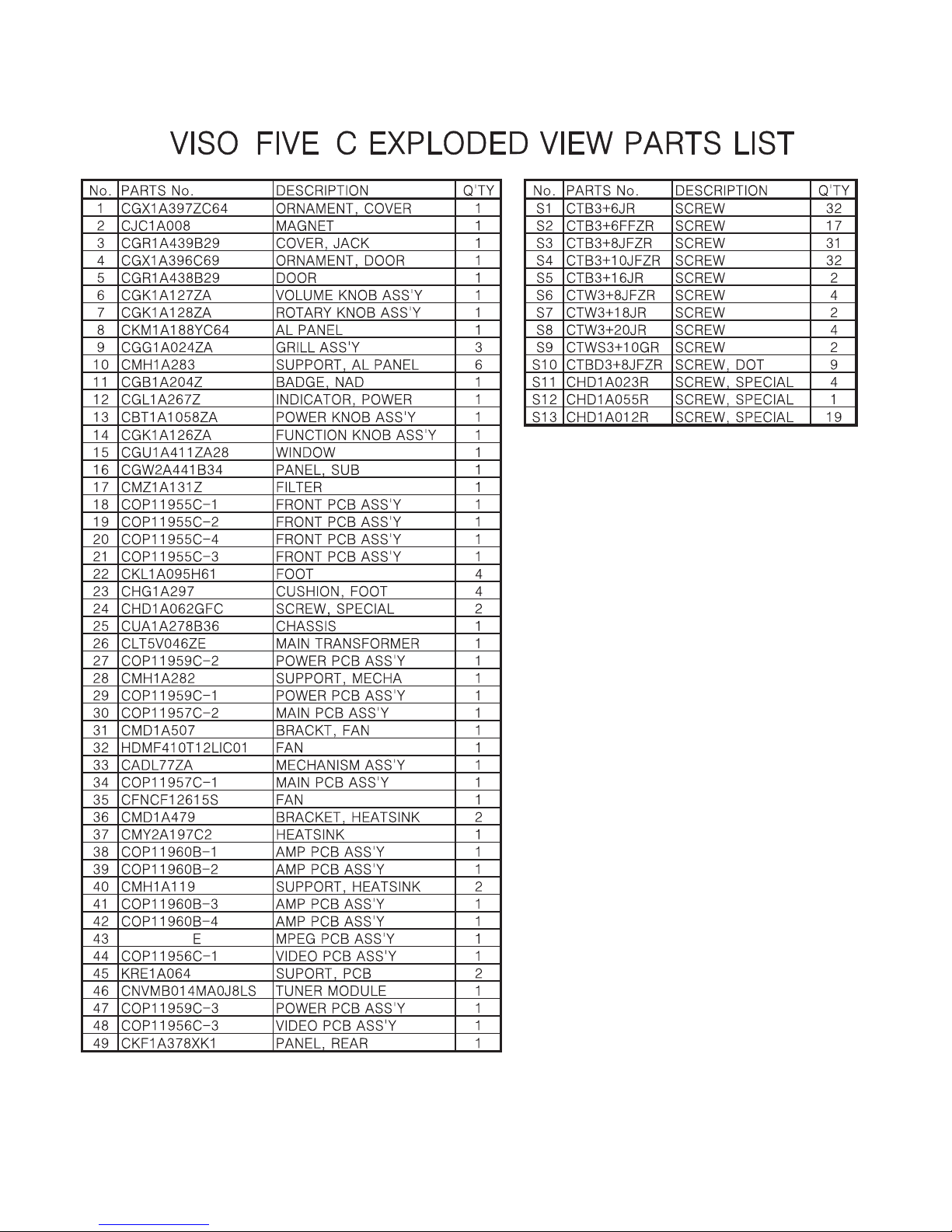

EXPLODED VIEW (AH VERSION)
1-9 1-10
CMYL77
CIP11958CSMD
1-11
New Part Numbers Non-1W Versions
COP11955B-A
VISO FIVE FRONT AUTO PCB assembly NON-1W version
COP11957B
VISO FIVE MAIN AUDIO & MICOM PCB
AUTO assembly NON-1W version AH
COP11957C-A
VISO FIVE MAIN AUDIO & MICOM PCB
AUTO assembly NON-1W version C
COP11959C-A
VISO FIVE POWER PCB AUTO NON-1W version C
EXPLODED VIEW (C VERSION)
1-12 1-13
CMYL77
CIP11958ESMD
1-14
New Part Numbers Non-1W Versions
COP11955B-A
VISO FIVE FRONT AUTO PCB assembly NON-1W version
COP11957B
VISO FIVE MAIN AUDIO & MICOM
PCB AUTO assembly NON-1W version AH
COP11957C-A
VISO FIVE MAIN AUDIO & MICOM
PCB AUTO assembly NON-1W version C
COP11959B-A
VISO FIVE POWER PCB AUTO assembly NON-1W version AH
COP11959C-A
VISO FIVE POWER PCB AUTO NON-1W version C
2-1
-/" ÊÓ
/,Ê" / /-
" / /-
IC BLOCK DIAGRAMS & PIN DESCRIPTION .......................................................................................... 2-2
DIAGRAM.................................................................................................................................................... 2-45
1. BLOCK DIAGRAM ................................................................................................................................ 2-45
2. WIRING DIAGRAM .............................................................................................................................. 2-47
3. SCHEMATIC DIAGRAM ...................................................................................................................... 2-49
•FRONT PART ............................................................................................................................. 2-49
•POWER PART............................................................................................................................ 2-51
•MPEG PART............................................................................................................................... 2-53
•VIDEO & XM & DAB PART ........................................................................................................2-55
•AMP PART................................................................................................................................... 2-59
4. PRINTED CIRCUIT BOARDS ............................................................................................................. 2-61
•FRONT PART ............................................................................................................................. 2-61
•POWER PART............................................................................................................................ 2-63
•MPEG PART............................................................................................................................... 2-65
•MAIN PART................................................................................................................................. 2-67
•VIDEO PART .............................................................................................................................. 2-71
•AMP PART .................................................................................................................................. 2-75
TROUBLESHOOTING ................................................................................................................................ 2-43

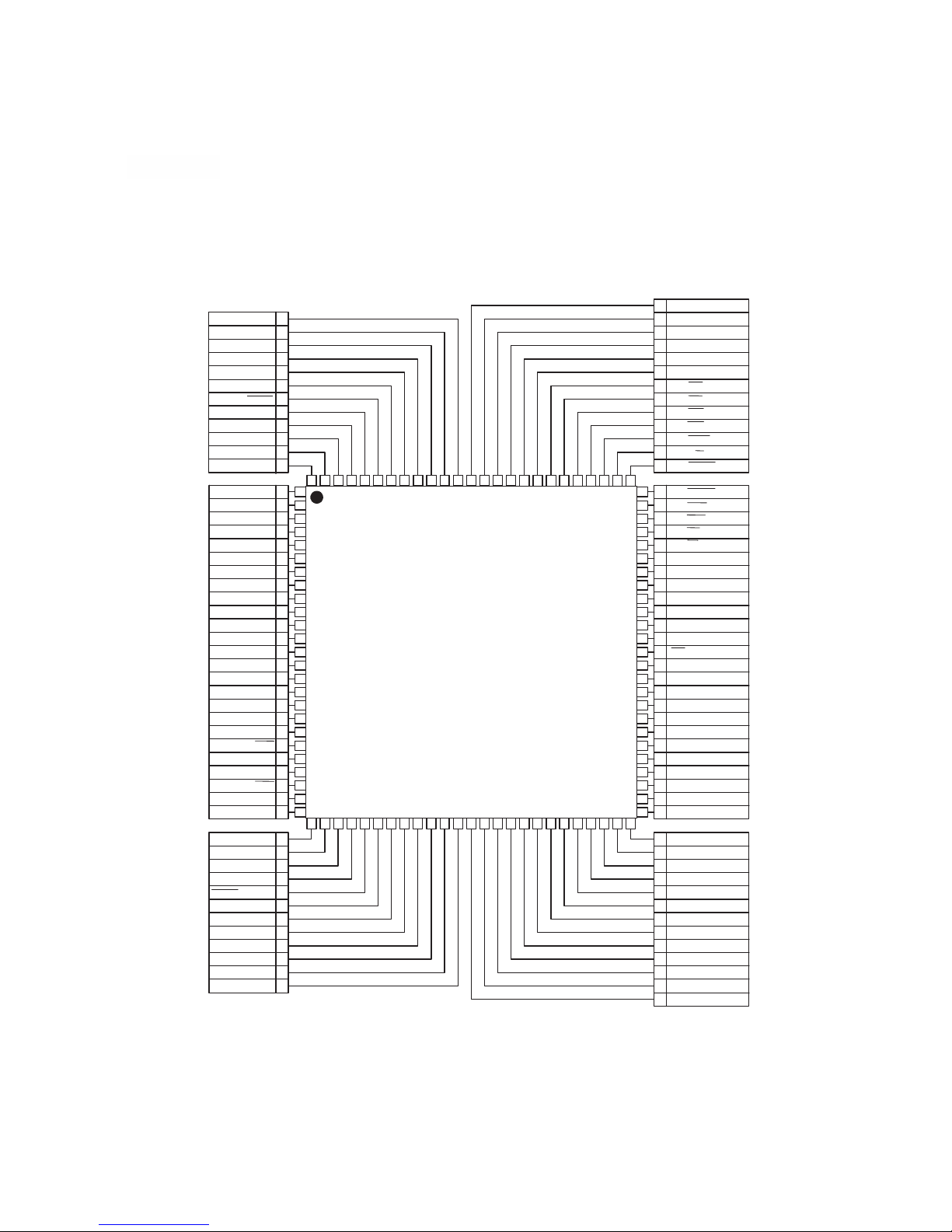

Pin Assignment and Pin Functions
The assignment of input/output pins for the T5CC1, their names and functions are as follows:
DVSS 91
P66 90
85 P62/SI/SCL
86 P63/INT0
87 P64/SCOUT
88 P65
DVCC 89
P52/AN2 94
P51/AN1 93
P50/AN0 92
P55/AN5 97
P54/AN4 96
P53/AN3/ADTRG 95
VREFH 100
P57/AN7 99
P56/AN6 98
AVCC 3
AVSS 2
Top view
QFP100
VREFL 1
P72/TA3OUT 6
P71/TA1OUT 5
P70/TA0IN 4
P75/TA7OUT 9
P74/TA5OUT 8
P73/TA4IN 7
P82/TB0OUT0 12
P81/TB0IN1/INT6 11
P80/TB0IN0/INT5 10
P85/TB1IN1/INT8 15
P84/TB1IN0/INT7 14
P83/TB0OUT1 13
P90/TXD0 18
P87/TB1OUT1 17
P86/TB1OUT0 16
P93/TXD1 21
P92/SCLK0/CTS0 20
P91/RXD0 19
DVCC 25
AM0 24
P95/SCLK1/CTS1 23
P94/RXD1 22
X2 26
AM1 29
X1 28
DVSS 27
P97/XT2 32
P96/XT1 31
RESET 30
PA2/INT3 37
PA1/INT2 36
PA0/INT1 35
EMU1 34
EMU0 33
81 P42/CS2
82 P43/CS3
83 P60/SCK
84 P61/SO/SDA
80 P41/CS1
76 P35/BUSAK
77 P36/R/W
78 P37/BOOT
79 P40/CS0
72 P31/WR
73 P32/HWR
74 P33/WAIT
75 P34/BUSRQ
68 P25/A5/A21
69 P26/A6/A22
70 P27/A7/A23
71 P30/RD
64 DVCC
65 P22/A2/A18
66 P23/A3/A19
67 P24/A4/A20
60 P20/A0/A16
61 P21/A1/A17
62 DVSS
63 NMI
58 P16/AD14/A14
59 P17/AD15/A15
54 P12/AD10/A10
55 P13/AD11/A11
56 P14/AD12/A12
57 P15/AD13/A13
49 P05/AD5
48 P04/AD4
50 P06/AD6
51 P07/AD7
52 P10/AD8/A8
53 P11/AD9/A9
46 P02/AD2
45 P01/AD1
47 P03/AD3
43 ALE
42 PA7
44 P00/AD0
40 PA5
38 PA3/INT4
39 PA4
41 PA6
wpu hzzpnutlu{
2-2

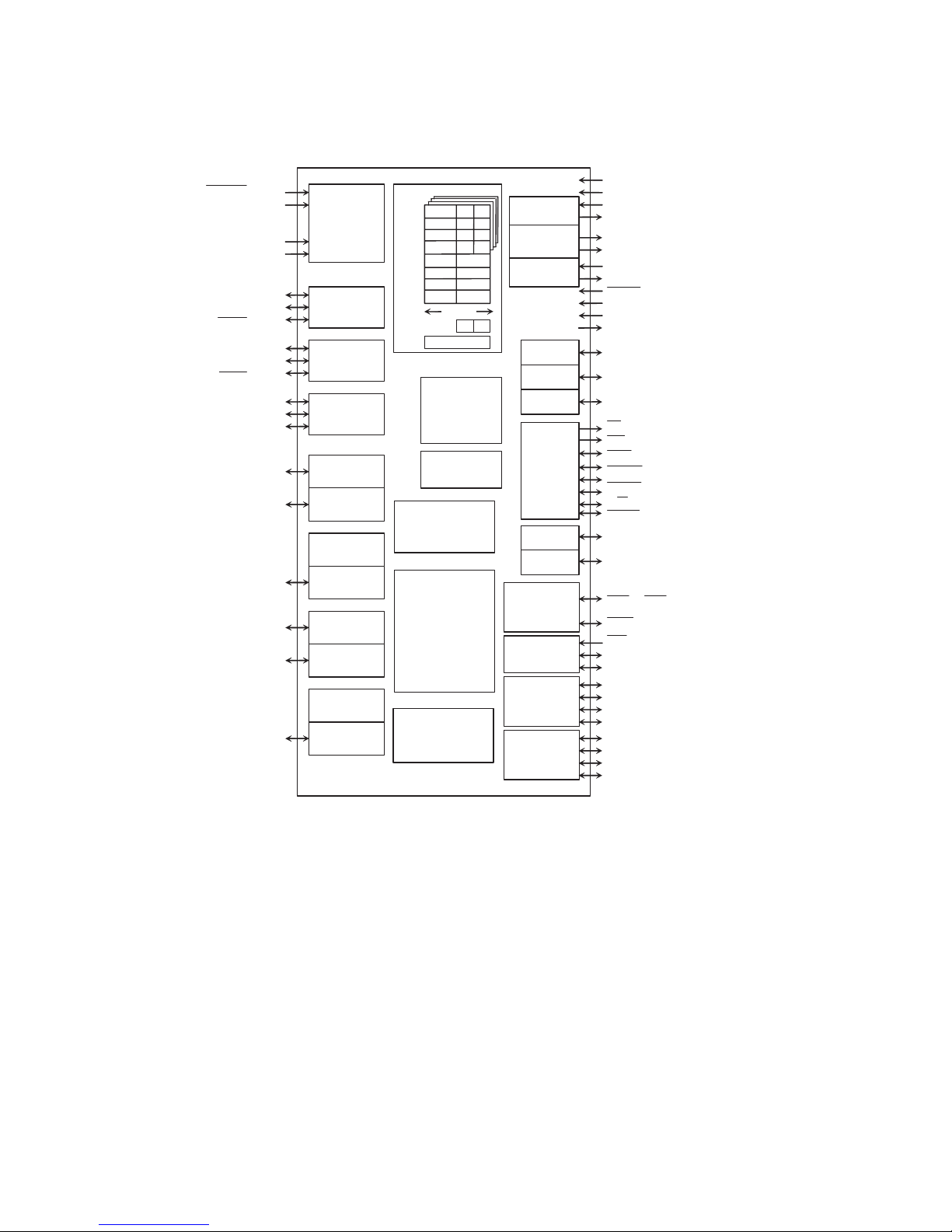

IC BLOCK DIAGRAMS & PIN DESCRIPTION
MCU(T5CC1) : IC81
isvjrGkphnyht
16-KB RAM
256-KB FLASH
E2PROM
CPU (TLCS-900/L1)
PC
10-Bit 8CH
AD
Converter
H-OSC
SIO/UART/IrDA
(SIO0)
8-Bit Timer
(TMRA0)
Port 0
32 bits
FSR
XWA
XBC
XDE
XHL
XIX
XIY
XIZ
XSP
W A
IX
IY
IZ
SP
TXD0 (P90)
RXD0 (P91)
TXD1 (P93)
RXD1 (P94)
TA0IN (P70)
DVCC [3]
DVSS [3]
X1
X2
(P00 to P07)
AD0 to AD7
(P10 to P17)
AD8/A8 to AD15/A15
(P20 to P27)
A0/A16 to A7/A23
AN0 to AN7
(P50 to P57)
AVCC, AVSS
VREFH, VREFL
XT1 (P96)
XT2 (P97)
RESET
AM0
AM1
ALE
Watchdog
Timer (WDT)
Clock Gear
Clock doubler
SIO/UART
(SIO1)
Serial Bus
Interface
(SBI)
SCK (P60)
SO/SDA (P61)
SI / SCL (P62) RD (P30)
WR (P31)
HWR (P32)
BUSRQ (P34)
BUSAK (P35)
WR/ (P36)
BOOT (P37)
L-OSC
EMU0
EMU1
Port 3
SCOUT(P64), P65, P66
PA4 to PA7
CS/WAIT
Controller
(4-BLOCK)
Port 1
Port 2
Port 6
Port A
Special timer
for CLOCK
WAIT (P33)
CS0 to CS3
Interrupt
Controller INT0 (P64)
INT1 to INT4
(PA0 to PA3)
16-Bit Timer
(TMRB0)
TB0IN0/INT5 (P80)
TB0IN1/INT6 (P81)
TB0OUT0 (P82)
TB0OUT1 (P83)
16-Bit Timer
(TMRB1)
TB1IN0/INT7 (P84)
TB1IN1/INT8 (P85)
TB1OUT0 (P86)
TB1OUT1 (P87)
8-Bit Timer
(TMRA1)
TA1OUT (P71)
8-Bit Timer
(TMRA2)
8-Bit Timer
(TMRA3)
TA3OUT (P72)
8-Bit Timer
(TMRA4)
TA4IN (P73)
8-Bit Timer
(TMRA5)
TA5OUT (P74)
8-Bit Timer
(TMRA6)
8-Bit Timer
(TMRA7)
TA7OUT (P75)
( ): Initial function after reset
B C
D E
H L
ADTRG (P53)
SCLK0/ 0CTS (P92)
SCLK1/ CTS1 (P95)
(P40 to P43)
NMI
4-KB BOOT ROM
2-3
ࣜ ࣜࣽ ࣫ ࣿ
࣭ ࣩ
࣮ ࣽࣜ ࣩ
࣯ ࣽࣿࣿ ࣩ ࣜࣜ
ࣰ ࣜࣜࣜࣜ
ࣱ ࣿ ࣜࣜࣿࣜࣜ
ࣲ ࣾ ࣜࣜࣾࣜࣜ
ࣳ ࣿ ࣜࣜࣿࣜࣜ
ࣴ ࣜ ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣵ ࣿ ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭࣬ ࣭ࣽ ࣽࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭࣭ ࣮ࣽ ࣽࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭࣮ ࣿ ࣿࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭࣯ ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣰ࣭ ࣾ ࣾࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣱ࣭ ࣿࣜࣤࣿࣾࣥ ࣜࣿࣜࣜ
ࣲ࣭ ࣿ ࣿࣜࣜࣜࣜࣤࣽࣜࣞࣞࣥࣜ
࣭ࣳ ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭ࣴ ࣜࣜࣽࣾ ࣜࣜࣽࣾࣜࣜࣜࣜ
࣭ࣵ ࣜࣜࣽࣾ ࣜࣜࣽࣾࣜࣜࣜࣜ
࣮࣬ ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣮࣭ ࣮࣯࣮ ࣮࣯࣮ࣜࣜࣜࣜ
࣮࣮ ࣮࣯࣮ ࣮࣯࣮ࣜࣜࣜࣜ
࣮࣯ ࣾࣿ ࣾࣜࣿࣜࣿࣜࣜ
ࣰ࣮ ࣿࣿ ࣩ ࣜࣜ
ࣱ࣮ ࣿࣿ ࣩ ࣜࣜ
ࣲ࣮ ࣿ ࣮ࣳࣜࣿࣜࣜ
࣮ࣳ ࣩ
࣮ࣴ ࣿ ࣮ࣳࣜࣿࣜࣜ
࣮ࣵ ࣿࣿ ࣩ ࣜࣜ
࣯࣬ ࣜ
࣯࣭ ࣿ ࣲ࣯࣮࣪ࣳࣴࣜࣿࣜࣜ
࣯࣮ ࣿ ࣲ࣯࣮࣪ࣳࣴࣜࣿࣜࣜ
࣯࣯ ࣜ ࣩ ࣜ
ࣰ࣯ ࣜ ࣩ ࣜ
ࣱ࣯ ࣜࣜࣜࣜ
ࣲ࣯ ࣽࣽ ࣜࣜ
࣯ࣳ ࣿ ࣜࣿࣜ
࣯ࣴ ࣩࣾࣽࣿࣜ ࣾࣜࣜ
࣯ࣵ ࣿ ࣜࣿࣜࣜ
ࣰ࣬ ࣽࣽ ࣜࣜࣜ
ࣰ࣭ ࣿ ࣜࣿࣜ
ࣰ࣮ ࣜࣜࣜ
ࣰ࣯ ࣜ ࣩ ࣜ
ࣰࣰ ࣜࣜࣜࣿࣜ
ࣰࣱ ࣜ ࣜࣜࣜࣿࣜ
ࣰࣲ ࣿࣜ ࣜࣜࣤࣽࣜࣞࣞࣥ
ࣰࣳ ࣱࣶࣶ࣭ࣜࣜࣤࣜࣜࣜ࣬ࣜࣨࣜࣜࣜ࣬࣬ࣜࣥ
ࣰࣴ ࣶࣶ࣭ࣜࣜࣤࣜࣜࣽࣜࣵࣜࣨࣜࣜࣽࣜ࣬ࣜࣥ
ࣰࣵ ࣽࣽ ࣜࣽࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣱࣩࣶ࣭࣪ࣿࣜࣜࣿࣜࣤࣿࣜࣜࣨࣜࣽࣜࣿࣜࣜࣿࣿࣥ
2-4
ࣱ࣬ ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣱ࣭ ࣭ࣽࣽࣴ ࣜࣿࣜࣿࣜ
ࣱ࣮ ࣾࣿ ࣾࣜࣿࣜࣿࣜ
ࣱ࣯ ࣽ ࣫ ࣜࣜ
ࣰࣱ ࣿ ࣜࣿࣜ
ࣱࣱ ࣽࣾ ࣜࣜࣜ
ࣱࣲ ࣽࣾࣿࣜࣜࣜࣜࣜࣜࣜ ࣜࣽࣾࣜࣿࣜࣜ
ࣱࣳ ࣫ࣿࣿ ࣫ࣿࣿࣜࣜࣜ
ࣱࣴ ࣫ࣿࣿࣿ ࣫ࣿࣿࣜࣿࣜ
ࣱࣵ ࣫ࣿࣿࣽࣽ ࣫ࣿࣿࣜࣜࣜ
ࣲ࣬ ࣜࣿࣜࣜࣜࣜ ࣜࣜࣜ
ࣲ࣭ ࣜࣜ
ࣲ࣮ ࣩ
ࣲ࣯ ࣿࣿ ࣩ ࣜࣜ
ࣰࣲ ࣿࣿ ࣩ ࣜࣜ
ࣱࣲ ࣿࣿࣿ ࣿࣿࣜࣿࣜࣜ
ࣲࣲ ࣿࣿ ࣿࣿࣜࣜ
ࣲࣳ ࣿࣿ ࣜࣿࣜࣜ
ࣲࣴ ࣽࣿ ࣜࣽࣿࣜࣜ
ࣲࣵ ࣽࣿ ࣜࣜࣜ
ࣳ࣬ ࣜࣜ
࣭ࣳ ࣿ ࣜࣿࣜ
࣮ࣳ ࣽࣽ ࣜࣜ
࣯ࣳ ࣜࣤࣥ ࣜࣜ
ࣰࣳ ࣜࣜ
ࣱࣳ ࣽࣽ ࣜࣿࣜࣜ
ࣲࣳ ࣭ࣿ ࣜࣿࣜࣿࣜࣜ
ࣳࣳ ࣿ ࣜࣿࣜ
ࣳࣴ ࣾࣜ ࣾࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣳࣵ ࣜࣤࣜࣥ ࣜࣜ
ࣴ࣬ ࣜ ࣜ
࣭ࣴ ࣽࣽ ࣜࣽࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣮ࣴ ࣽ ࣩࣽࣜࣜ
࣯ࣴ ࣿࣜࣤࣿࣿࣥ ࣜࣿࣜ
ࣰࣴ ࣜࣤࣿࣥ ࣜࣜࣜ
ࣱࣴ ࣽࣽࣜࣤࣿࣥ ࣜࣜࣜ
ࣲࣴ ࣽ ࣜࣿࣜࣜ
ࣴࣳ ࣜࣜ
ࣴࣴ ࣾࣽࣽ ࣾࣜࣿࣜࣜࣜ
ࣴࣵ ࣿࣿ ࣩ ࣜࣜ
ࣵ࣬ ࣾࣽࣽ ࣾࣜࣿࣜࣜࣜ
࣭ࣵ ࣩ
࣮ࣵ ࣯ࣜ ࣜࣜࣜ
࣯ࣵ ࣮ ࣜࣜࣜ
ࣰࣵ ࣭ ࣜࣜࣜ
ࣱࣵ ࣮ࣩࣜࣽࣜࣤࣥ ࣜࣽࣜࣿࣜ
ࣲࣵ ࣮ࣩࣜࣽࣜࣤࣥ ࣜࣾࣜࣿࣜ
ࣵࣳ ࣭ࣩࣜࣽࣜࣤࣥ ࣜࣜࣜ
ࣵࣴ ࣭ࣩࣜࣽࣜࣤࣥ ࣜࣜࣜ
ࣵࣵ ࣾ ࣾࣜࣿࣜࣜࣜ
࣭࣬࣬ ࣿࣿ ࣜࣜ
2-5
2-6
PIN No PIN Name I/O
1 UHS0 O
2 HUS1 O
3 INTREQ,ABODY O
4 FA1,FSCDIN I
5 GPIO20 O
6 FA0,FSCCLK I
7 FHS2,FSCDIO O
8 GPIO21 O
9 FDAT7 I
10 VDD6
11 VSS6
12 FWR,FDS I
13 FRD,FR/W O
14 FDAT6 I
15 FCS I
16 FINTREQ O
17 FDBCK I
18 FDAT5 I
19 FDAT4 I
20 VDD7
21 VSS7
22 FDAT3 I
23 FDBDA I
24 FDAT2 I
25 DBDA I
26 DBCK I
27 FDAT1 I
28 TEST I
29 FDAT0 I
30 NV_WE O
31 NV_OE O
32 NV_CS O
33 SD_WE O
34 SD_DATA0 O
35 SD_DATA1 O
36 SD_DATA2 O
37 SD_DATA3 O
38 SD_DATA4 O
39 SD_DQM0 O
40 SD_DATA5 O
41 VSSSD4
42 VDDSD4
43 SD_DATA6 O
44 SD_DATA7 O
45 SD_DQM1 O
46 SD_DATA15 O
I.C PIN DESCRIPTIONS (IC45 : AUDIO DSP : CS494003)
Function
DSP C Control Mode Select BIT 0
DSP C Control Mode Select BIT 0
Open-drain interrupt-request output
Host Address Bit One or SPI Serial Control data input
General Purpose output
Host parallel Address Bit Zero or Serial Control Port Clock
DSP AB Control port mode select bit2
General Purpose output
DSP AB Bidirectional data bus
2.5V Supply Voltage
2.5V Ground
Host write Strobe or Host data strobe
Host Parallel Output Enable or
DSP AB Bidirectional data bus
Host Parallel Chip Select , Host Serial SPI Chip Select
Open-drain interrupt-request output
Reserved
DSP AB Bidirectional data bus
DSP AB Bidirectional data bus
2.5V Supply Voltage
2.5V Ground
DSP AB Bidirectional data bus
Reserved
DSP AB Bidirectional data bus
Debug Data
Debug Clock
DSP AB Bidirectional data bus
Reserved
DSP AB Bidirectional data bus
SRAM Write Enable
SRAM Output Enable
SRAM Chip Select
SDRAM Write Enable
SDRAM Data Bus 0
SDRAM Data Bus 1
SDRAM Data Bus 2
SDRAM Data Bus 3
SDRAM Data Bus 4
SDRAM Data Mask 0
SDRAM Data Bus 5
SDRAM Ground
SDRAM Power Supply
SDRAM Data Bus 6
SDRAM Data Bus 7
SDRAM Data Mask 1
SDRAM Data Bus 15
2-7
PIN No PIN Name I/O
47 SD_DATA14 O
48 NC5
49 SD_DATA13 O
50 VSSSD3
51 VDDSD3
52 SD_DATA12 O
53 SD_DATA11 O
54 SD_DATA10 O
55 SD_DATA9 O
56 SD_DATA8 O
57 VSSSD2
58 VDDSD2
59 SD_CLK_OUT O
60 SD_ADR9 O
61 SD_CLK_IN I
62 SD_ADR8 O
63 SD_ADR7 O
64 SD_CLK_EN I
65 SD_ADR6 O
66 SD_ADR5 O
67 SD_ADR4 O
68 SD_CS I
69 VSSSD1
70 VDDSD1
71 SD_BA O
72 SD_ADR10 O
73 SD_ADR0 O
74 SD_ADR1 O
75 SD_ADR2 O
76 SD_ADR3 O
77 SD_RAS O
78 SD_CAS O
79 SDATAN3 I
80 SDATAN2 I
81 SDATAN1 I
82 SDATAN0 I
83 NC4
84 NC3
85 LRCLKN I
86 SCLKN I
87 LRCLK1 O
88 NC2
89 NC1
90 VDD1
91 VSS1
92 XMT958,AUDATA7 O
93 AUDATA6 O
94 AUDATA5 O
95 HDATA7 O
Function
SDRAM Data Bus 14
No Connect (Ground)
SDRAM Data Bus 13
SDRAM Ground
SDRAM Power Supply
SDRAM Data Bus 12
SDRAM Data Bus 11
PCM Audio input Data 0
SDRAM Data Bus 10
SDRAM Data Bus 9
SDRAM Data Bus 8
PCM Audio input Data 1
SDRAM Ground
SDRAM Power Supply
SDRAM CLOCK DATA OUT
SDRAM Address Bus
SDRAM CLOCK DATA IN
SDRAM Address Bus 8
SDRAM Address Bus 7
SDRAM Ground
SDRAM Address Bus 6
SDRAM Address Bus 5
SDRAM Address Bus 4
SDRAM Chip Select
SDRAM Ground
SDRAM Power Supply
SDRAM Bank Address Select
SDRAM Address Bus 10
SDRAM Address Bus 0
SDRAM Address Bus 1
SDRAM Address Bus 2
SDRAM Address Bus 3
SDRAM Row Address Strobe
SDRAM Column Address Strobe
PCM Audio input Data 3
PCM Audio input Data 2
Audio Output Sample Rate Clock
2.5V Supply Voltage
PCM audio input sample rate clock
PCM audio input bit clock
2.5V Ground
Digital Audio Output 7 , S/PDIF Transmitter
Digital Audio Output 6
Digital Audio Output 5
DSP C Bidirectional data bus 7
No Connect (Ground)
No Connect (Ground)
2-8
PIN No PIN Name I/O
96 HDATA6 O
97 HDATA5 O
98 SCLK1 O
99 MCLK I
100 VDD2
101 VSS2
102 AUDATA4 O
103 HDATA4 O
104 SCLK0 O
105 HDATA3 O
106 AUDATA3 O
107 AUDATA2 O
108 LRCLK0 O
109 AUDATA1 O
110 AUDATA0 O
111 CMPCLK,SCLKN2 I
112 HDATA2 O
113 VSS3
114 VDD3
115 HDATA1 O
116 HDATA0 O
117 CMPREQ,FLRCLK2 I
118 CMPDAT,FSDATA2 I
119 FLRCLKN1 I
120 WR,DS I
121 RD,R/W I
122 PLLVSS
123 FILT2
124 FILT1
125 PLLVDD
126 XTALO O
127 XTAL,1CLKIN I
128 CLKSEL I
129 CS O
130 A0 O
131 FSDATAN1 I
132 VDD4
133 VSS4
134 FSCLKN1,STCLK2 I
135 SCS I
136 SCDIN I
137 VSS5
138 VDD5
139 A1 O
140 SCDOUT O
141 HNBSY I
142 SCCLK O
143 UHS2,CS_OUT O
144 RESET I
Function
DSP C Bidirectional data bus 6
DSP C Bidirectional data bus 5
Audio output bit clock
Audio Master clock
2.5V Supply Voltage
2.5V Ground
Digital Audio Output 4
DSP C Bidirectional data bus 4
Audio output bit clock
DSP C Bidirectional data bus 3
Digital Audio Output 3
Digital Audio Output 2
Audio Output Sample Rate Clock
Digital Audio Output 1
Digital Audio Output 0
PCM audio input bit clock
DSP C Bidirectional data bus 2
2.5V Ground
2.5V Supply Voltage
DSP C Bidirectional data bus 1
DSP C Bidirectional data bus 0
PCM Audio Data input bit clock
PCM Audio data input Number two
PCM audio data input one
DSP AB Control port mode select bit 0
DSP AB Control port mode select bit 1
PLL Ground voltage
Phase-Locked Loop Filter
Phase-Locked Loop Filter
PLL supply voltage
Crystal OSC Output
External Clock input/Crystal OSC input
DSP Clock select
Host parallel Chip Select
Host Parallel Address bit 0
SPI Serial control data input
2.5V Ground
2.5V Supply Voltage
PCM Audio Data input one
2.5V Supply Voltage
2.5V Ground
PCM audio input bit clock
DSP C Control Mode Select BIT 2
Master Reset Input
Host Address bit 1
Serial control port data
Input Host Message status
Serial control port clock
Host Serial SPI Chip Select (Active "L")
Other manuals for VISO FIVE
2
Table of contents
Languages:
Other NAD Receiver manuals
