SECTION 1
SUMMARY
CONTENTS
PRODUCT SAFETY SERVICING GUIDELINES.......................................................................................... 1-4
SERVICING PRECAUTIONS ....................................................................................................................... 1-5
* General Servicing Precautions
* Insulation checking prodedure
* Electrostatically Sensitive Devices
SPECIFICATIONS ......................................................................................................................................... 1-6
DISASSEMBLY .............................................................................................................................................. 1-7
PRINCIPAL PART LOCATION ...................................................................................................................... 1-8

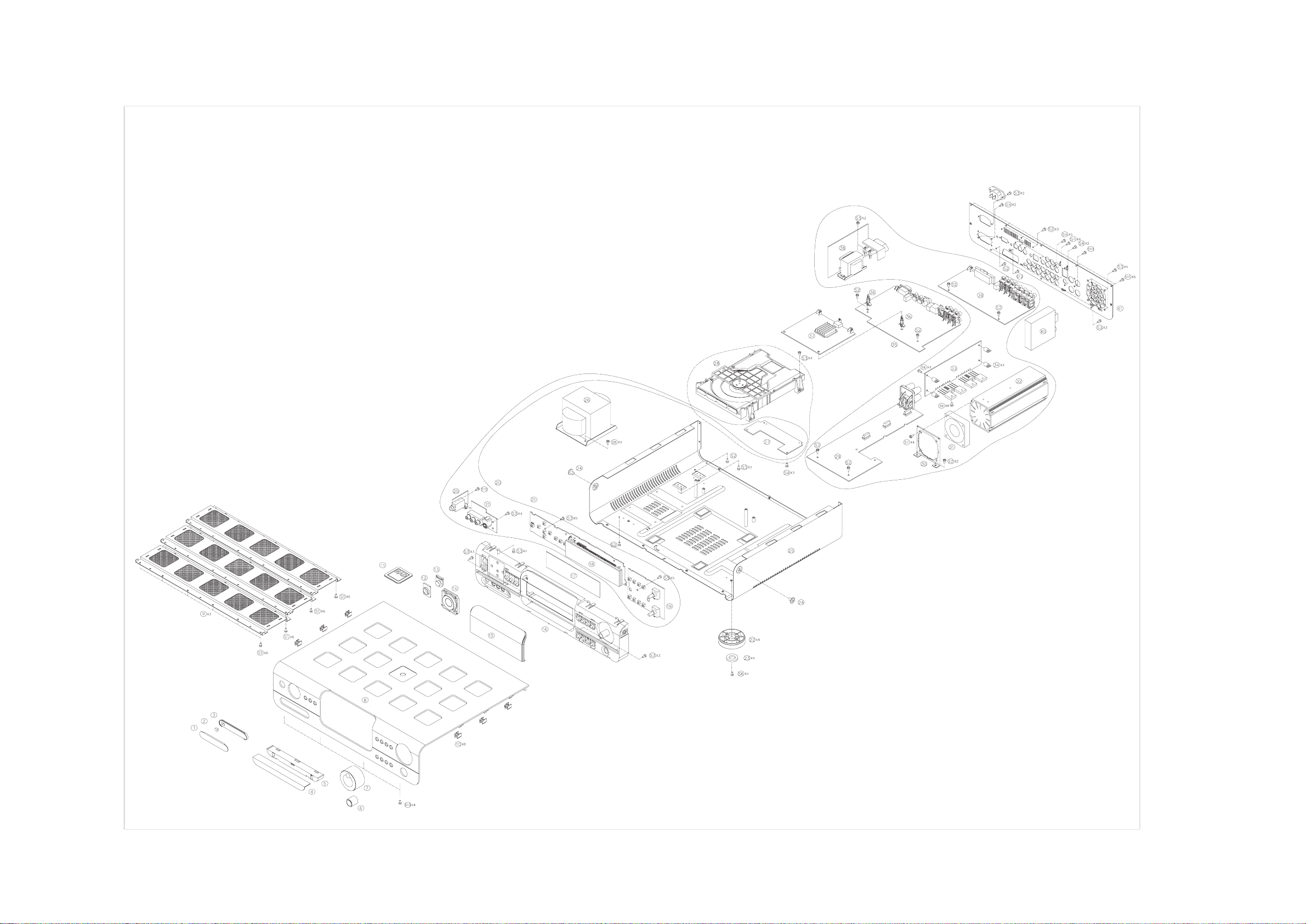

EXPLODED VIEW ......................................................................................................................................... 1-9

1-4
PRODUCT SAFETY SERVICING GUIDELINES
CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN
ANY WAY. NEVER PERFORM CUSTOMIZED INSTALLATIONS
WITHOUT MANUFACTURER’S APPROVAL. UNAUTHORIZED
MODIFICATIONS WILL NOT ONLY VOID THE WARRANTY, BUT
MAY LEAD TO YOUR BEING LIABLE FOR ANY RESULTING
PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU
ARE THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING
SAFETY CHECKS AND SERVICING GUIDELINES. TO DO
OTHERWISE, INCREASES THE RISK OF POTENTIAL HAZARDS
AND INJURY TO THE USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR
PROTECTION FROM AC LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN
CORRECTED. A CHECK SHOULD BE MADE OF THE
FOLLOWING.
SUBJECT : FIRE & SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN
SUCH A WAY AS TO AVOID POSSIBILITY OF ADJACENT
COMPONENT SHORTS. THIS IS ESPECIALLY IMPORTANT
ON THOSE MODULES WHICH ARE TRANSPORTED TO AND
FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE
DEVICES SUCH AS INSULATORS, BARRIERS, COVERS,
SHIELDS, STRAIN RELIEFS, POWER SUPPLY CORDS, AND
OTHER HARDWARE HAVE BEEN REINSTALLED PER
ORIGINAL DESIGN. BE SURE THAT THE SAFETY PURPOSE
OF THE POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE
COLD SOLDER JOINTS, SOLDER SPLASHES OR SHARP
SOLDER POINTS. BE CERTAIN TO REMOVE ALL LOOSE
FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR
DETERIORATION TO PARTS AND COMPONENTS. FOR
FRAYED LEADS, DAMAGED INSULATION (INCLUDING AC
CORD). AND REPLACE IF NECESSARY FOLLOW ORIGINAL
LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECEIVING
TUBE OR A RESISTOR RATED AT 1 WATT OR MORE. LEAD
TENSION AROUND PROTRUDING METAL SURFACES MUST
BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES,
FLAMEPROOF RESISTORS, CAPACITORS, ETC. MUST BE
REPLACED WITH EXACT FACTORY TYPES, DO NOT USE
REPLACEMENT COMPONENTS OTHER THAN THOSE
SPECIFIED OR MAKE UNRECOMMENDED CIRCUIT
MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN
AC LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF
THE CABINET, (THE CHANNEL SELECTOR KNOB, ANTENNA
TERMINALS. HANDLE AND SCREWS) TO BE SURE THE SET
IS SAFET TO OPERATE WITHOUT DANGER OF ELECTRICAL

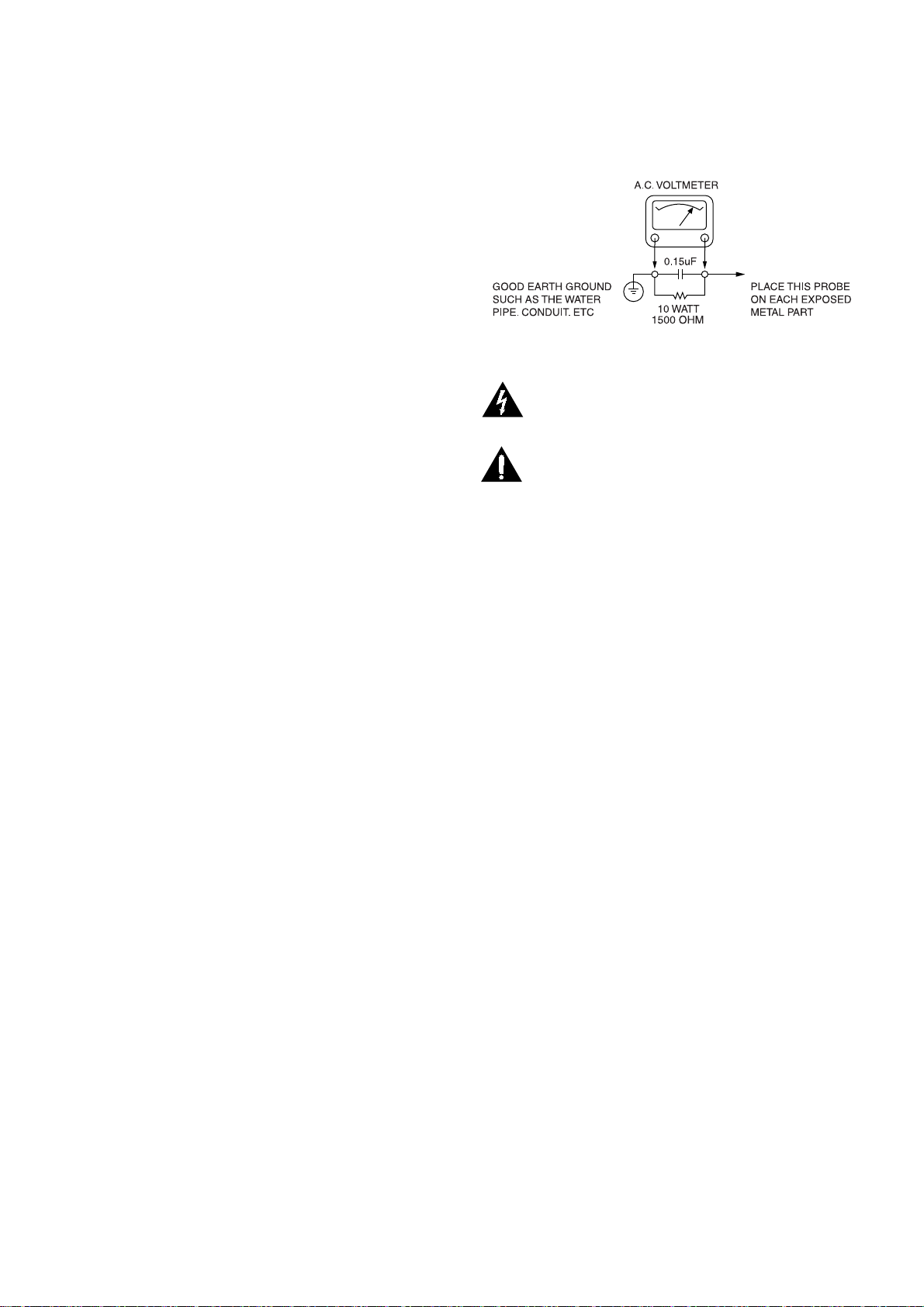

SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER
DURING THIS TEST USE AN AC VOLTMETER, HAVING 5000
OHMS PER VOLT OR MORE SENSITIVITY, IN THE
FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT
RESISTOR, PARALLELED BY A .15 MFD, 150V AC TYPE
CAPACITOR BETWEEN A KNOWN GOOD EARTH GROUND
(WATER PIPE, CONDUIT, ETC.) AND THE EXPOSED
METALLIC PARTS, ONE AT A TIME.
MEASURE THE AC VOLTAGE ACROSS THE COMBINATION
OF 1500 OHM RESISTOR AND .15 MFD CAPACITOR.
REVERSE THE AC PLUG AND REPEAT AC VOLTAGE
MEASUREMENTS FOR EACH EXPOSED METALLIC PART.
VOLTAGE MEASURE MUST NOT EXCEED 75 VOLTS R.M.S.
THIS CORRESPONDS TO 0.5 MILLIAMP AC ANY VALUE
EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED IMMEDIATELY.
SUBJECT : GRAPHIC SYMBOLS
SUBJECT : TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS,
CUBBYHOLE OR CLOSELY FITTING SHELF SPACE. OVER
OR CLOSE TO HEAT DUCT, OR IN THE PATH OF HEATED
AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS:
OUTDOOR PATIO INSTALLATIONS WHERE DEW IS A
FACTOR, NEAR STEAM RADIATORS WHERE STEAM
LEAKAGE IS A FACTOR, ETC.
3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT
REAR VENTING. THE CUSTOMER SHOULD ALSO AVOID THE
USE OF DECORATIVE SCARVES OR OTHER COVERINGS
WHICH MIGHT OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A
COMMERCAL MOUNTING KIT MUST FOLLOW THE FACTORY
APPROVED MOUNTING INSTRUCTIONS A PRODUCT
MOUNTED TO A SHELF OR PLATFORM MUST RETAIN ITS
ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN
SPACERS) TO PROVIDE ADEQUATE AIR FLOW ACROSS
THE BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS
MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM
LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A
PRODUCT ON SLOPING SHELF OR A TILTED POSITION,
UNLESS THE PRODUCT IS PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE
ON ITS MOUNTING TO THE CART. CAUTION THE
CUSTOMER ON THE HAZARDS OF TRYING TO ROLL A CART
WITH SMALL CASTERS ACROSS THRESHOLDS OR DEEP
PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR
STAND WHICH HAS NOT BEEN LISTED BY UNDERWRITERS
LABORATORIES, INC. FOR USE WITH THEIR SPECIFIC
MODEL OF TELEVISION RECEIVER OR GENERICALLY
APPROVED FOR USE WITH T.V.’S OF THE SAME OR
LARGER SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION
CORDS, EXPLAIN THAT A FOREST OF EXTENSIONS
SPROUTING FROM A SINGLE OUTLET CAN LEAD TO
DISASTROUS CONSEQUENCES TO HOME AND FAMILY.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN
EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE
PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS
INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.

1-5
SERVICING PRECAUTIONS
CAUTION : Before servicing the A/V Receiver covered by this
service data and its supplements and addends, read and follow the
SAFETY PRECAUTIONS. NOTE : if unforeseen circumstances
create conflict between the following servicing precautions and any
of the safety precautions in this publication, always follow the safety
precautions.
Remember Safety First:
General Servicing Precautions
1. Always unplug the A/V Receiver AC power cord from the AC
power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnecting or reconnecting any internal electrical plug or
other electrical connection.
(3) Connecting a test substitute in parallel with an electrolytic
capacitor.
Caution : A wrong part substitution or incorrect polarity installation
of electrolytic capacitors may result in an explosion hazard.
2. Do not spray chemicals on or near this A/V Receiver or any of its
assemblies.
3. Unless specified otherwise in this service data, clean electrical
contacts by applying an appropriate contact cleaning solution to
the contacts with a pipe cleaner, cottontipped swab, or
comparable soft applicator.
Unless specified otherwise in this service data, lubrication of
contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with which
instruments covered by this service manual might be equipped.
5. Do not apply AC power to this A/V Receiver and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
6. Always connect test instrument ground lead to the appropriate
ground before connecting the test instrument positive lead. Always
remove the test instrument ground lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn the
power on. Connect an insulation resistance meter(500V) to the
blades of the attachment plug. The insulation resistance between
each blade of the attachment plug and accessible conductive parts
(Note 1) should be more than 1M-ohm.
Note 1 : Accessible Conductive Parts including Metal panels, Input
terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by
static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical Es
devices are integrated circuits and some field effect transistors and
semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed for
potential shock reasons prior to applying power to the unit under
test.
2. After removing an electrical assembly equipped with ES devices,
place the assembly on a conductive surface such as aluminum
foil, to prevent electrostatic charge buildup or exposure of the
assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an antistatic solder removal device. Some solder
removal devices not classified a “anti-static” can generate
electrical charges sufficient to damage ES devices.
5. Do not use freonpropelled chemicals. These can generate
electrical charge sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically
shorted together by conductive foam, aluminum foil, or
comparable conductive material).
7. lmmediately before removing the protective material from the
leads of a replacement ES device, touch the protective material to
the chassis or circuit assembly into which the device will be
installed.
Caution : Be sure no power is applied to the chassis or circuit, and
observe all other safety precautions.
8. Minimize bodily motions when handing unpackaged replacement
ES devices. (Normally harmless motion such as the brushing
together of your clothes fabric or the lifting of your foot from a
carpeted floor can generate static electricity sufficient to damage
an ES device.)

1-6
SPECIFICATIONS
㪘㪤㪧㪣㪠㪝㪠㪜㪩㩷㪪㪜㪚㪫㪠㪦㪥 㪛㪭㪛㩷㪪㪜㪚㪫㪠㪦㪥
㪧㫆㫎㪼㫉㩷㫆㫌㫋㫇㫌㫋㩷㪪㫋㪼㫉㪼㫆㩷㪤㫆㪻㪼㩷㪉㩷㫏㩷㪌㪇㪮 㪪㪰㪪㪫㪜㪤㩷㪪 㪾㫅㪸㫃㩷㫊㫐㫊㫋㪼㫄㩷㪧㪘㪣㪆㪥㪫㪪㪚㪆㪘㫌㫋㫆
㪠㪟㪝㩷㪻㫐㫅㪸㫄 㪺㩷㫇㫆㫎㪼㫉㪒㩷㪏㩷㱅㩷㪉㩷㫏㩷㪎㪇㪮 㪣㪸㫊㪼㫉㩷㪫㫎㫆㩷㫎㪸㫍㪼㫃㪼㫅㪾㫋㪿㩷㫃㪸㫊㪼㫉㩷㪻 㫆㪻㪼
㪠㪟㪝㩷㪻㫐㫅㪸㫄 㪺㩷㫇㫆㫎㪼㫉㪒㩷㪋㩷㱅㩷㪉㩷㫏㩷㪈㪇㪇㪮 㪚㪛㩷㪮㪸㫍㪼㫃㪼㫅㪾㫋㪿㩷㪎㪐㪇㫅㫄
㪫㫆㫋㪸㫃㩷㪿㪸㫉㫄㫆㫅 㪺㩷㪻 㫊㫋㫆㫉㫋 㫆㫅㩷㪸㫋㩷㫉㪸㫋㪼㪻㩷㫇㫆㫎㪼㫉㩷㪇㪅㪇㪏㩼 㪛㪭㪛㩷㪮㪸㫍㪼㫃㪼㫅㪾㫋㪿㩷㪍㪌㪇㫅㫄
㪠㪤㩷㪻 㫊㫋㫆㫉㫋 㫆㫅㩷㪸㫋㩷㫉㪸㫋㪼㪻㩷㫇㫆㫎㪼㫉㩷㪇㪅㪇㪏㩼 㪝㫉㪼㫈㫌㪼㫅㪺㫐㩷㫉㪼㫊㫇㫆㫅㫊㪼㩷㪉㪇㩷㫋㫆㩷㪉㪇㪃㪇㪇㪇㩷㪟㫑㩷㫧㩷㪇㪅㪌㪻㪙
㪛㪸㫄㫇 㫅㪾㩷㪽㪸㪺㫋㫆㫉㪃㩷㪏㩷㱅㩷㪕㪍㪇 㪪 㪾㫅㪸㫃㪄㫋㫆㪄㫅㫆 㫊㪼㩷㫉㪸㫋 㫆㩷㩿㪸㫌㪻 㫆㪀㩷㪈㪇㪇㪻㪙㩿㪘㪄㪮㪫㪛㪀
㪠㫅㫇㫌㫋㩷㫊㪼㫅㫊 㫋 㫍 㫋㫐㩷㪸㫅㪻㩷 㫄㫇㪼㪻㪸㫅㪺㪼㩷㪊㪇㪇㫄㪭㪆㪋㪎㫂㫆㪿㫄㫊 㪛㫐㫅㪸㫄 㪺㩷㫉㪸㫅㪾㪼㩷㩿㪸㫌㪻 㫆㪀㩷㪐㪌㪻㪙㩿㪘㪄㪮㪫㪛㪀
㪝㫉㪼㫈㫌㪼㫅㪺㫐㩷㫉㪼㫊㫇㫆㫅㫊㪼㩷㪉㪇㩷㫋㫆㩷㪉㪇㪃㪇㪇㪇㩷㪟㫑㩷㫧㩷㪇㪅㪌㪻㪙 㪫㫆㫋㪸㫃㩷㪟㪸㫉㫄㫆㫅 㪺㩷㪛 㫊㫋㫆㫉㫋 㫆㫅㩷㪇㪅㪇㪉㩼
㪪 㪾㫅㪸㫃㪆㫅㫆 㫊㪼㩷㫉㪸㫋 㫆㩷㪕㪈㪇㪇㪻㪙㩿㫉㪼㪽㩷㫉㪸㫋㪼㪻㩷㫇㫆㫎㪼㫉㩷㪆㩷㪏㫆㪿㫄㫊㩷㪘㪄㪮㪫㪛㪀 㪦㪬㪫㪧㪬㪫㩷㪭 㪻㪼㫆㩷㫆㫌㫋㩷㪈㪭㫇㪄㫇㪆㩷㪎㪌㫆㪿㫄㫊
㪪 㪾㫅㪸㫃㪆㫅㫆 㫊㪼㩷㫉㪸㫋 㫆㩷㪕㪏㪌㪻㪙㩿㫉㪼㪽㩷㪈㪮㩷㪆㩷㪏㫆㪿㫄㫊㩷㪘㪄㪮㪫㪛㪀 㪪㪄㫍 㪻㪼㫆㩷㩿㪰㩷㫊 㪾㫅㪸㫃㪀㩷㪈㪭㫇㪄㫇㪆㩷㪎㪌㫆㪿㫄㫊
㪫㪬㪥㪜㪩㩷㪪㪜㪚㪫㪠㪦㪥
㪪㪄㫍 㪻㪼㫆㩷㩿㪚㩷㫊 㪾㫅㪸㫃㪀㩷㪇㪅㪉㪏㪍㩷㪭㫇㪄㫇㪆㩷㪎㪌㫆㪿㫄㫊
㪘㪤㩷㪪㪜㪚㪫㪠㪦㪥㩷
㪚㫆㫄㫇㫆㫅㪼㫅㫋㩷㩿㪰㩷㫊 㪾㫅㪸㫃㪀㩷㪈㪭㫇㪄㫇㪆㩷㪎㪌㫆㪿㫄㫊
㪫㫌㫅 㫅㪾㩷㫉㪸㫅㪾㪼 㪚㫆㫄㫇㫆㫅㪼㫅㫋㩷㩿㪚㪹㪆㪚㫉㩷㫊 㪾㫅㪸㫃㪀㩷㪇㪅㪎㪭㫇㪄㫇㪆㩷㪎㪌㫆㪿㫄㫊
㩷㪌㪉㪉㫂㪟㫑㩷㪄㪈㪍㪉㪇㫂㪟㫑㩿㪜㫌㫉㫆㫇㪼㩷㫍㪼㫉㫊 㫆㫅㪃㩷㪐㫂㪟㫑㩷㫊㫋㪼㫇㫊㪀 㪪㪚㪘㪩㪫㩷㩿㪩㪞㪙㩷㫊 㪾㫅㪸㫃㪀㩷㪇㪅㪎㪭㫇㪄㫇㪆㩷㪎㪌㫆㪿㫄㫊
㩷㪌㪊㪇㫂㪟㫑㩷㪄㪈㪎㪈㪇㫂㪟㫑㩿㪥㫆㫉㫋㪿㩷㪘㫄㪼㫉 㪺㪸㩷㫍㪼㫉㫊 㫆㫅㪃㩷㪈㪇㫂㪟㫑㩷㫊㫋㪼㫇㫊㪀 㪟㪛㪤㪠㩷㪭 㪻㪼㫆㩷㪦㫌㫋㩷㪭㪼㫉㩷㪈㪅㪇㩷㫏㩷㪈
㪬㫊㪸㪹㫃㪼㩷㫊㪼㫅㫊 㫋 㫍 㫋㫐㩷㪍㪇㪻㪙㫌 㪛 㪾 㫋㪸㫃㩷㫆㫌㫋㩷㩿㪺㫆㪸㫏 㪸㫃㪀㩷㪚㫆㪸㫏 㪸㫃㩷㫏㩷㪈㩷㩿㪇㪅㪌㩷㪭㫇㪄㫇㪆㪎㪌㫆㪿㫄㫊㪀
㪪㪆㪥㩷㫉㪸㫋 㫆㩷㪋㪇㪻㪙 㪛 㪾 㫋㪸㫃㩷㫆㫌㫋㩷㩿㫆㫇㫋 㪺㪸㫃㪀㩷㪦㫇㫋 㪺㪸㫃㩷㫏㩷㪈㩷㩿㪄㪈㪌㪻㪙㫄㫕㪄㪉㪈㪻㪙㫄㪀
㪫㫆㫋㪸㫃㩷㪟㪸㫉㫄㫆㫅 㪺㩷㪛 㫊㫋㫆㫉㫋 㫆㫅㩷㪈㪅㪌㩼 㪛 㪾 㫋㪸㫃㩷㫆㫌㫋㩷㩿㪟㪛㪤㪠㪀㩷㪭㪼㫉㩷㪈㪅㪇㩷㫏㩷㪈
㪝㪤㩷㪪㪜㪚㪫㪠㪦㪥㩷
㪘㫌㪻 㫆㩷㪦㫌㫋㩷㪭 㪻㪼㫆㩷㫏㩷㪈㪃㩷㪤㫆㫅 㫋㫆㫉㩷㫏㩷㪈
㪫㫌㫅 㫅㪾㩷㫉㪸㫅㪾㪼㩷㪏㪎㪅㪌㪤㪟㫑㩷㫕㩷㪈㪇㪏㪤㪟㫑
㪧㪟㪰㪪㪠㪚㪘㪣㩷㪪㪧㪜㪚㪠㪝㪠㪚㪘㪫㪠㪦㪥㪪
㪬㫊㪸㪹㫃㪼㩷㫊㪼㫅㫊 㫋 㫍 㫋㫐㪃㩷㪤㪦㪥㪦㩷㪈㪇㪻㪙㫌 㪬㫅 㫋㩷㪛 㫄㪼㫅㫊 㫆㫅㫊㩷㩿㪮㩷㫏㩷㪟㩷㫏㩷㪛㪀㩷㪋㪊㪌㩷㫏㩷㪈㪈㪌㩷㫏㩷㪊㪎㪇㫄㫄
㪪㪆㪥㩷㪩㪸㫋 㫆㩷㪤㪦㪥㪦㩷㪎㪇㪻㪙 㪥㪼㫋㩷㪮㪼 㪾㪿㫋㩷㪐㪅㪐㪢㪾
㪪㪆㪥㩷㪩㪸㫋 㫆㩷㪪㪫㪜㪩㪜㪦㩷㪍㪌㪻㪙 㪪㪿 㫇㫇 㫅㪾㩷㪮㪼 㪾㪿㫋㩷㪈㪉㪅㪌㪢㪾
㪫㫆㫋㪸㫃㩷㪟㪸㫉㫄㫆㫅 㪺㩷㪛 㫊㫋㫆㫉㫋 㫆㫅㪃㩷㪤㪦㪥㪦㩷㪇㪅㪊㩼
㪫㫆㫋㪸㫃㩷㪟㪸㫉㫄㫆㫅 㪺㩷㪛 㫊㫋㫆㫉㫋 㫆㫅㪃㩷㪪㪫㪜㪩㪜㪦㩷㪇㪅㪊㩼
㪚㪿㪸㫅㫅㪼㫃㩷㪪㪼㫇㪸㫉㪸㫋 㫆㫅㩷㪌㪇㪻㪙
㪩㪛㪪㩷㪻㪼㪺㫆㪻㪼㩷㫊㪼㫅㫊 㫋 㫍 㫋㫐㩷㪇㪅㪉㩼

1-7
---9

1-8
*, *Ê*,/-Ê"/"

EXPLODED VIEW (AH VER.) before SN A9YVISOTWO06301
1-9 1-10

1-11
ͿΠ ΁Ͳ΃΅΄ͿΠ ͵Ͷ΄ʹ΃ͺ΁΅ͺ΀Ϳ ΂΅Ί ͿΠ ΁Ͳ΃΅΄ͿΠ ͵Ͷ΄ʹ΃ͺ΁΅ͺ΀Ϳ ΂΅Ί
 ʹ͸ΉͲ΋ʹ ΀΃ͿͲ;ͶͿ΅ʹ΀·Ͷ΃  ΄ ʹ΅ͳͻ΃ ΄ʹ΃ͶΈ 
 ʹͻʹͲ ;Ͳ͸ͿͶ΅  ΄ ʹ΅ͳͷͷ΋΃ ΄ʹ΃ͶΈ 
 ʹ͸΃Ͳͳ ʹ΀·Ͷ΃ͻͲʹͼ  ΄ ʹ΅ͳͻͷ΋΃ ΄ʹ΃ͶΈ 
 ʹ͸ΉͲʹ ΀΃ͿͲ;ͶͿ΅͵΀΀΃  ΄ ʹ΅ͳͻͷ΋΃ ΄ʹ΃ͶΈ 
 ʹ͸΃Ͳͳ ͵΀΀΃  ΄ ʹ΅Έͻͷ΋΃ ΄ʹ΃ͶΈ 
 ʹ͸ͼͲ΋Ͳ ·΀ͽΆ;ͶͼͿ΀ͳͲ΄΄Ί  ΄ ʹ΅Έͻ΃ ΄ʹ΃ͶΈ 
 ʹ͸ͼͲ΋Ͳ ΃΀΅Ͳ΃ΊͼͿ΀ͳͲ΄΄Ί  ΄ ʹ΅Έͻ΃ ΄ʹ΃ͶΈ 
 ʹͼ;Ͳ΋ʹ Ͳͽ΁ͲͿͶͽ  ΄ ʹ͹͵Ͳ΃ ΄ʹ΃ͶΈ΄΁ͶʹͺͲͽ 
 ʹ͸͸Ͳ΋Ͳ ͸΃ͺͽͽͲ΄΄Ί  ΄ ʹ͹͵Ͳ΃ ΄ʹ΃ͶΈ΄΁ͶʹͺͲͽ 
 ʹ;͹Ͳ ΄Ά΁΁΀΃΅Ͳͽ΁ͲͿͶͽ  ΄ ʹ΅Έ΄͸΃ ΄ʹ΃ͶΈ 
 ʹ͸ͳͲ΋ ͳͲ͵͸ͶͿͲ͵  ΄ ʹ΅ͳ͵ͻͷ΋΃ ΄ʹ΃ͶΈ͵΀΅ 
 ʹ͸ͽͲ΋ ͺͿ͵ͺʹͲ΅΀΃΁΀ΈͶ΃ 
 ʹͳ΅Ͳ΋Ͳ ΁΀ΈͶ΃ͼͿ΀ͳͲ΄΄Ί  ͿΠ ΁Ͳ΃΅΄ͿΠ ͵Ͷ΄ʹ΃ͺ΁΅ͺ΀Ϳ ΂΅Ί
 ʹ͸ͼͲ΋Ͳ ͷΆͿʹ΅ͺ΀ͿͼͿ΀ͳͲ΄΄Ί  ͷ΃΀Ϳ΅΁ʹͳͲ΄΄Ί 
 ʹ͸ΆͲΆͲ ΈͺͿ͵΀Έ   ʹΆ΁ ͷͺ΁ͳ΀Ͳ΃͵
 ʹ͸ΈͲͳ ΁ͲͿͶͽ΄Άͳ   ʹΆ΁ ͶͿʹ΀͵Ͷ΃ͳ΀Ͳ΃͵
 ʹ;΋Ͳ΋ ͷͺͽ΅Ͷ΃   ʹΆ΁ ͹ͶͲ͵΁͹΀ͿͶͳ΀Ͳ΃͵
 ʹΆ΁ ͷͺ΁ͳ΀Ͳ΃͵  ʹΆ΁ ͺͿ΁Ά΅ͳ΀Ͳ΃͵
 ʹΆ΁ ͶͿʹ΀͵Ͷ΃ͳ΀Ͳ΃͵  ʹΆ΁ ʹ΀ͿͿͶʹ΅ͳ΀Ͳ΃͵
 ʹΆ΁ ͹ͶͲ͵΁͹΀ͿͶͳ΀Ͳ΃͵
 ʹΆ΁ ͺͿ΁Ά΅ͳ΀Ͳ΃͵  ʹ΀΁ʹ-A ;ʹΆ΁ʹͳͲ΄΄Ί 
 ʹͼͽͲ͹ ͷ΀΀΅ 
 ʹ͹͸Ͳ ʹΆ΄͹ͺ΀Ϳͷ΀΀΅  Ͳ;΁΁ʹͳͲ΄΄Ί 
 ʹ͹͵Ͳ͸ͷʹ ΄ʹ΃ͶΈ΄΁ͶʹͺͲͽ   ʹΆ΁ ΁΀ΈͶ΃ͳ΀Ͳ΃͵
 ʹΆͲͲͳ ʹ͹Ͳ΄΄ͺ΄   ʹΆ΁ Ͳ;΁ͳ΀Ͳ΃͵
 ʹͽ΅΃΋Ά ΅΃ͿͲ΄΁΀ΈͶ΃   ʹΆ΁ ·ͺ͵Ͷ΀ͳ΀Ͳ΃͵
 ʹΆ΁ ʹ΀ͿͿͶʹ΅ͳ΀Ͳ΃͵  ʹΆ΁ ΄Άͳ΅΃ͲͿ΄ͳ΀Ͳ΃͵
 ʹͲ͵ͽ΋Ͳ ;Ͷʹ͹ͲͿͺ΄;Ͳ΄΄Ί 
 ʹΆ΁ ΁΀ΈͶ΃ͳ΀Ͳ΃͵  ʹ΀΁͵Ͳ ;΁Ͷ͸΁ʹͳͲ΄΄Ί 
 ʹ;͵Ͳ ͳ΃ͲʹͼͶ΅ͷͲͿ 
 ʹͷͿʹͷ΄ ͵ʹͷͲͿ 
 ʹ;ΊͲ ͹ͶͲ΅΄ͺͿͼ 
 ʹΆ΁ Ͳ;΁ͳ΀Ͳ΃͵
 ʹ;͹Ͳ ΄Ά΁΁΀΃΅͹ͶͲ΅΄ͺͿͼ 
 ʹΆ΁ ·ͺ͵Ͷ΀ͳ΀Ͳ΃͵
 ʹ΃ͶͲ ΄Ά΁΁΀΃΅΁ʹͳ 
 ʹ΀΁͵Ͳ ;΁Ͷ͸΁ʹͳͲ΄΄Ί
 ʹΆ΁ ΄Άͳ΅΃ͲͿ΄ͳ΀Ͳ΃͵
 ʹ΀΁ʹ ;ʹΆ΁ʹͳͲ΄΄Ί 
 ʹͿ·;ͳ;Ͳͻͽ΄ ΅ΆͿͶ΃;΀͵ΆͽͶ 
 ʹͼͷͲΊͼ ΁ͲͿͶͽ΃ͶͲ΃ 
·ͺ΄΀΅Έ΀Ͳ͹ͶΉ΁ͽ΀͵Ͷ͵·ͺͶΈ΁Ͳ΃΅΄ͽͺ΄΅
ʹ΀΁ʹA
ʹ΀΁ʹA
New Part Numbers Non-1W Versions
COP12046B-A
VISO TWO FRONT PCB ASSY C version NON-1W with the TIMER button
COP12046C
VISO TWO FRONT PCB ASSY AH version NON-1W with the TIMER button
COP12047B-A
VISO TWO INPUT PCB ASSY C version NON-1W
COP12047C
VISO TWO INPUT PCB ASSY AH version NON-1W
COP12048B-A
VISO TWO AMP & VIDEO & POWER PCB ASSY C version NON-1W will ship with standby supply
COP12048C
VISO TWO AMP & VIDEO & POWER PCB ASSY AH version NON-1W will ship with standby supply

EXPLODED VIEW (C VER.) before SN A9YVISOTWO06301
1-12 1-13

1-14
ͿΠ ΁Ͳ΃΅΄ͿΠ ͵Ͷ΄ʹ΃ͺ΁΅ͺ΀Ϳ ΂΅Ί ͿΠ ΁Ͳ΃΅΄ͿΠ ͵Ͷ΄ʹ΃ͺ΁΅ͺ΀Ϳ ΂΅Ί
 ʹ͸ΉͲ΋ʹ ΀΃ͿͲ;ͶͿ΅ʹ΀·Ͷ΃  ΄ ʹ΅ͳͻ΃ ΄ʹ΃ͶΈ 
 ʹͻʹͲ ;Ͳ͸ͿͶ΅  ΄ ʹ΅ͳͷͷ΋΃ ΄ʹ΃ͶΈ 
 ʹ͸΃Ͳͳ ʹ΀·Ͷ΃ͻͲʹͼ  ΄ ʹ΅ͳͻͷ΋΃ ΄ʹ΃ͶΈ 
 ʹ͸ΉͲʹ ΀΃ͿͲ;ͶͿ΅͵΀΀΃  ΄ ʹ΅ͳͻͷ΋΃ ΄ʹ΃ͶΈ 
 ʹ͸΃Ͳͳ ͵΀΀΃  ΄ ʹ΅Έͻͷ΋΃ ΄ʹ΃ͶΈ 
 ʹ͸ͼͲ΋Ͳ ·΀ͽΆ;ͶͼͿ΀ͳͲ΄΄Ί  ΄ ʹ΅Έͻ΃ ΄ʹ΃ͶΈ 
 ʹ͸ͼͲ΋Ͳ ΃΀΅Ͳ΃ΊͼͿ΀ͳͲ΄΄Ί  ΄ ʹ΅Έͻ΃ ΄ʹ΃ͶΈ 
 ʹͼ;Ͳ΋ʹ Ͳͽ΁ͲͿͶͽ  ΄ ʹ͹͵Ͳ΃ ΄ʹ΃ͶΈ΄΁ͶʹͺͲͽ 
 ʹ͸͸Ͳ΋Ͳ ͸΃ͺͽͽͲ΄΄Ί  ΄ ʹ͹͵Ͳ΃ ΄ʹ΃ͶΈ΄΁ͶʹͺͲͽ 
 ʹ;͹Ͳ ΄Ά΁΁΀΃΅Ͳͽ΁ͲͿͶͽ  ΄ ʹ΅Έ΄͸΃ ΄ʹ΃ͶΈ 
 ʹ͸ͳͲ΋ ͳͲ͵͸ͶͿͲ͵  ΄ ʹ΅ͳ͵ͻͷ΋΃ ΄ʹ΃ͶΈ͵΀΅ 
 ʹ͸ͽͲ΋ ͺͿ͵ͺʹͲ΅΀΃΁΀ΈͶ΃  ΄ ʹ͹͵Ͳ΃ ΄ʹ΃ͶΈ΄΁ͶʹͺͲͽ 
 ʹͳ΅Ͳ΋Ͳ ΁΀ΈͶ΃ͼͿ΀ͳͲ΄΄Ί 
 ʹ͸ͼͲ΋Ͳ ͷΆͿʹ΅ͺ΀ͿͼͿ΀ͳͲ΄΄Ί  ͿΠ ΁Ͳ΃΅΄ͿΠ ͵Ͷ΄ʹ΃ͺ΁΅ͺ΀Ϳ ΂΅Ί
 ʹ͸ΆͲ·Ͳ ΈͺͿ͵΀Έ  ͷ΃΀Ϳ΅΁ʹͳͲ΄΄Ί 
 ʹ͸ΈͲͳ ΁ͲͿͶͽ΄Άͳ   ʹΆ΁ ͷͺ΁ͳ΀Ͳ΃͵
 ʹ;΋Ͳ΋ ͷͺͽ΅Ͷ΃   ʹΆ΁ ͶͿʹ΀͵Ͷ΃ͳ΀Ͳ΃͵
 ʹΆ΁ ͷͺ΁ͳ΀Ͳ΃͵  ʹΆ΁ ͹ͶͲ͵΁͹΀ͿͶͳ΀Ͳ΃͵
 ʹΆ΁ ͶͿʹ΀͵Ͷ΃ͳ΀Ͳ΃͵  ʹΆ΁ ͺͿ΁Ά΅ͳ΀Ͳ΃͵
 ʹΆ΁ ͹ͶͲ͵΁͹΀ͿͶͳ΀Ͳ΃͵  ʹΆ΁ ʹ΀ͿͿͶʹ΅ͳ΀Ͳ΃͵
 ʹΆ΁ ͺͿ΁Ά΅ͳ΀Ͳ΃͵
 ʹͼͽͲ͹ ͷ΀΀΅   ʹ΀΁B-A MʹΆ΁ʹͳͲ΄΄Ί 
 ʹ͹͸Ͳ ʹΆ΄͹ͺ΀Ϳͷ΀΀΅ 
 ʹ͹͵Ͳ͸ͷʹ ΄ʹ΃ͶΈ΄΁ͶʹͺͲͽ  Ͳ;΁΁ʹͳͲ΄΄Ί 
 ʹΆͲͲͳ ʹ͹Ͳ΄΄ͺ΄   ʹΆ΁ ΁΀ΈͶ΃ͳ΀Ͳ΃͵
 ʹͽ΅΃΋Ͷ ΅΃ͲͿ΄΁΀ΈͶ΃   ʹΆ΁ Ͳ;΁ͳ΀Ͳ΃͵
 ʹΆ΁ ʹ΀ͿͿͶʹ΅ͳ΀Ͳ΃͵  ʹΆ΁ ·ͺ͵Ͷ΀ͳ΀Ͳ΃͵
 ʹͲ͵ͽ΋Ͳ ;Ͷʹ͹ͲͿͺ΄;Ͳ΄΄Ί   ʹΆ΁ ΄Άͳ΅΃ͲͿ΄ͳ΀Ͳ΃͵
 ʹΆ΁ ΁΀ΈͶ΃ͳ΀Ͳ΃͵
 ʹ;͵Ͳ ͳ΃ͲʹͼͶ΅ͷͲͿ   ʹ΀΁͵ʹ ;΁Ͷ͸΁ʹͳͲ΄΄Ί 
 ʹͷͿʹͷ΄ ͵ʹͷͲͿ 
 ʹ;ΊͲ ͹ͶͲ΅΄ͺͿͼ 
 ʹΆ΁ Ͳ;΁ͳ΀Ͳ΃͵
 ʹ;͹Ͳ ΄Ά΁΁΀΃΅͹ͶͲ΅΄ͺͿͼ 
 ʹΆ΁ ·ͺ͵Ͷ΀ͳ΀Ͳ΃͵
 ʹ΃ͶͲ ΄Ά΁΁΀΃΅΁ʹͳ 
 ʹ΀΁͵ʹ ;΁Ͷ͸΁ʹͳͲ΄΄Ί 
 ʹΆ΁ ΄Άͳ΅΃ͲͿ΄ͳ΀Ͳ΃͵
 ʹ΀΁ͳ ;ʹΆ΁ʹͳͲ΄΄Ί 
 ʹͿ·;ͳ;Ͳͻͽ ΅ΆͿͶ΃;΀͵ΆͽͶ 
 ʹͼͷͲ΋ͼ ΁ͲͿͶͽ΃ͶͲ΃ 
·ͺ΄΀΅Έ΀ʹͶΉ΁ͽ΀͵Ͷ͵·ͺͶΈ΁Ͳ΃΅΄ͽͺ΄΅
ʹ΀΁ͳA
ʹ΀΁ͳA
New Part Numbers Non-1W Versions
COP12046B-A
VISO TWO FRONT PCB ASSY C version NON-1W with the TIMER button
COP12046C
VISO TWO FRONT PCB ASSY AH version NON-1W with the TIMER button
COP12047B-A
VISO TWO INPUT PCB ASSY C version NON-1W
COP12047C
VISO TWO INPUT PCB ASSY AH version NON-1W
COP12048B-A
VISO TWO AMP & VIDEO & POWER PCB ASSY C version NON-1W will ship with standby supply
COP12048C
VISO TWO AMP & VIDEO & POWER PCB ASSY AH version NON-1W will ship with standby supply

-/" ÊÓ
/,Ê" / /-
" / /-
IC BLOCK DIAGRAMS & PIN DESCRIPTION .......................................................................................... 2-2
DIAGRAM.................................................................................................................................................... 2-47
1. BLOCK DIAGRAM ................................................................................................................................ 2-47
2. WIRING DIAGRAM .............................................................................................................................. 2-49
3. SCHEMATIC DIAGRAM ...................................................................................................................... 2-51
•FRONT PART ............................................................................................................................. 2-51
•MCU & INPUT PART.................................................................................................................. 2-53
•DSP & CODEC PART................................................................................................................. 2-55
•POWER PART............................................................................................................................ 2-57
•AMP PART................................................................................................................................... 2-59
•VIDEO PART................................................................................................................................... 2-61
•XM & SUB-POWER PART......................................................................................................... 2-63
•MPEG PART............................................................................................................................... 2-65
4. PRINTED CIRCUIT BOARDS ............................................................................................................. 2-67
•FRONT BOARD.......................................................................................................................... 2-67
•INPUT BOARD............................................................................................................................ 2-69
•AMP & VIDEO BOARD............................................................................................................... 2-73
•MPEG BOARD............................................................................................................................ 2-77
TROUBLESHOOTING ................................................................................................................................ 2-44
SPECIAL FUNTION KEY............................................................................................................................ 2-43

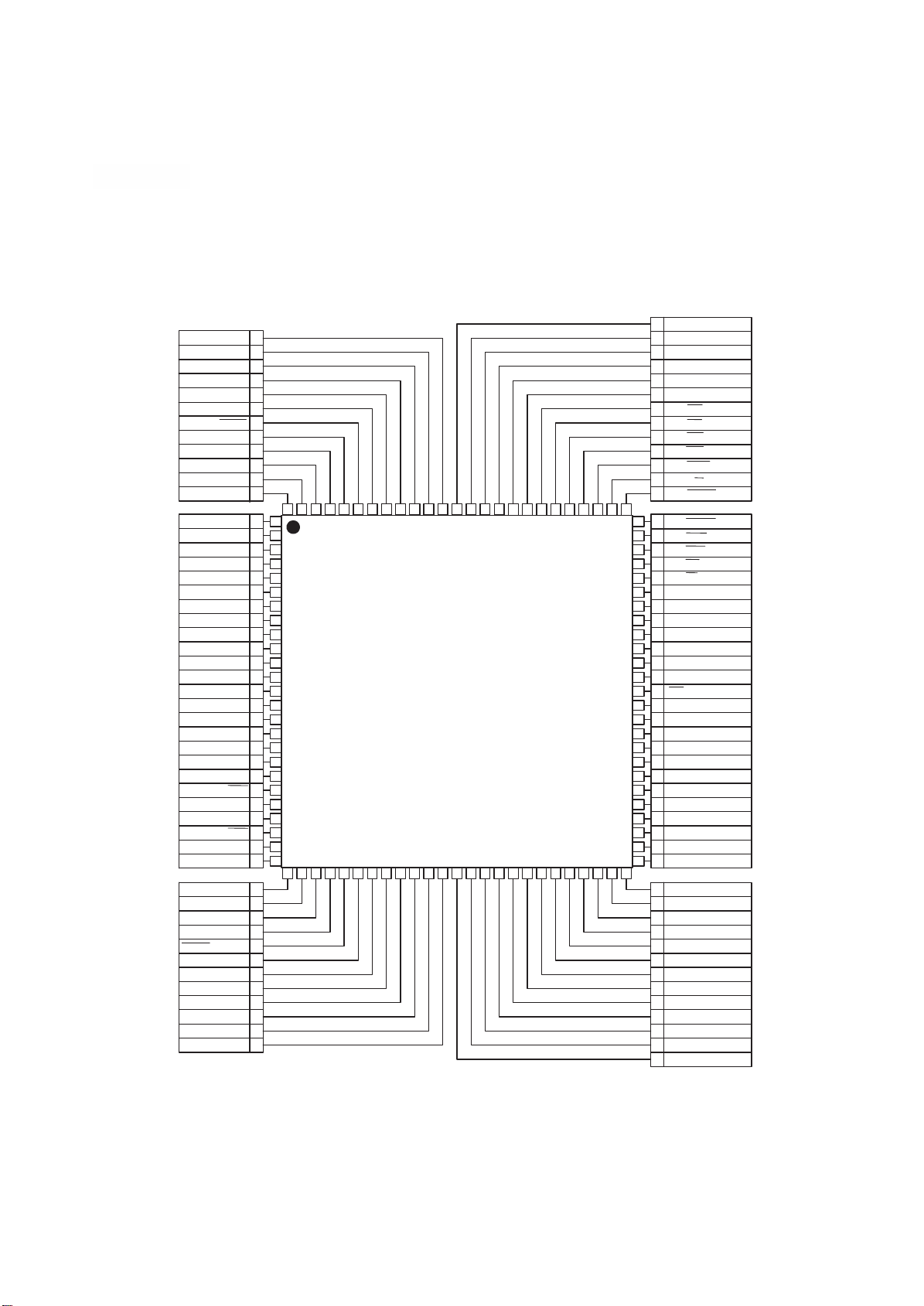

Pin Assignment and Pin Functions
The assignment of input/output pins for the T5CC1, their names and functions are as follows:
DVSS 91
P66 90
85 P62/SI/SCL
86 P63/INT0
87 P64/SCOUT
88 P65
DVCC 89
P52/AN2 94
P51/AN1 93
P50/AN0 92
P55/AN5 97
P54/AN4 96
P53/AN3/ADTRG 95
VREFH 100
P57/AN7 99
P56/AN6 98
AVCC 3
AVSS 2
Top view
QFP100
VREFL 1
P72/TA3OUT 6
P71/TA1OUT 5
P70/TA0IN 4
P75/TA7OUT 9
P74/TA5OUT 8
P73/TA4IN 7
P82/TB0OUT0 12
P81/TB0IN1/INT6 11
P80/TB0IN0/INT5 10
P85/TB1IN1/INT8 15
P84/TB1IN0/INT7 14
P83/TB0OUT1 13
P90/TXD0 18
P87/TB1OUT1 17
P86/TB1OUT0 16
P93/TXD1 21
P92/SCLK0/CTS0 20
P91/RXD0 19
DVCC 25
AM0 24
P95/SCLK1/CTS1 23
P94/RXD1 22
X2 26
AM1 29
X1 28
DVSS 27
P97/XT2 32
P96/XT1 31
RESET 30
PA2/INT3 37
PA1/INT2 36
PA0/INT1 35
EMU1 34
EMU0 33
81 P42/CS2
82 P43/CS3
83 P60/SCK
84 P61/SO/SDA
80 P41/CS1
76 P35/BUSAK
77 P36/R/W
78 P37/BOOT
79 P40/CS0
72 P31/WR
73 P32/HWR
74 P33/WAIT
75 P34/BUSRQ
68 P25/A5/A21
69 P26/A6/A22
70 P27/A7/A23
71 P30/RD
64 DVCC
65 P22/A2/A18
66 P23/A3/A19
67 P24/A4/A20
60 P20/A0/A16
61 P21/A1/A17
62 DVSS
63 NMI
58 P16/AD14/A14
59 P17/AD15/A15
54 P12/AD10/A10
55 P13/AD11/A11
56 P14/AD12/A12
57 P15/AD13/A13
49 P05/AD5
48 P04/AD4
50 P06/AD6
51 P07/AD7
52 P10/AD8/A8
53 P11/AD9/A9
46 P02/AD2
45 P01/AD1
47 P03/AD3
43 ALE
42 PA7
44 P00/AD0
40 PA5
38 PA3/INT4
39 PA4
41 PA6
wpu hzzpnutlu{
2-2
IC BLOCK DIAGRAMS & PIN DESCRIPTION

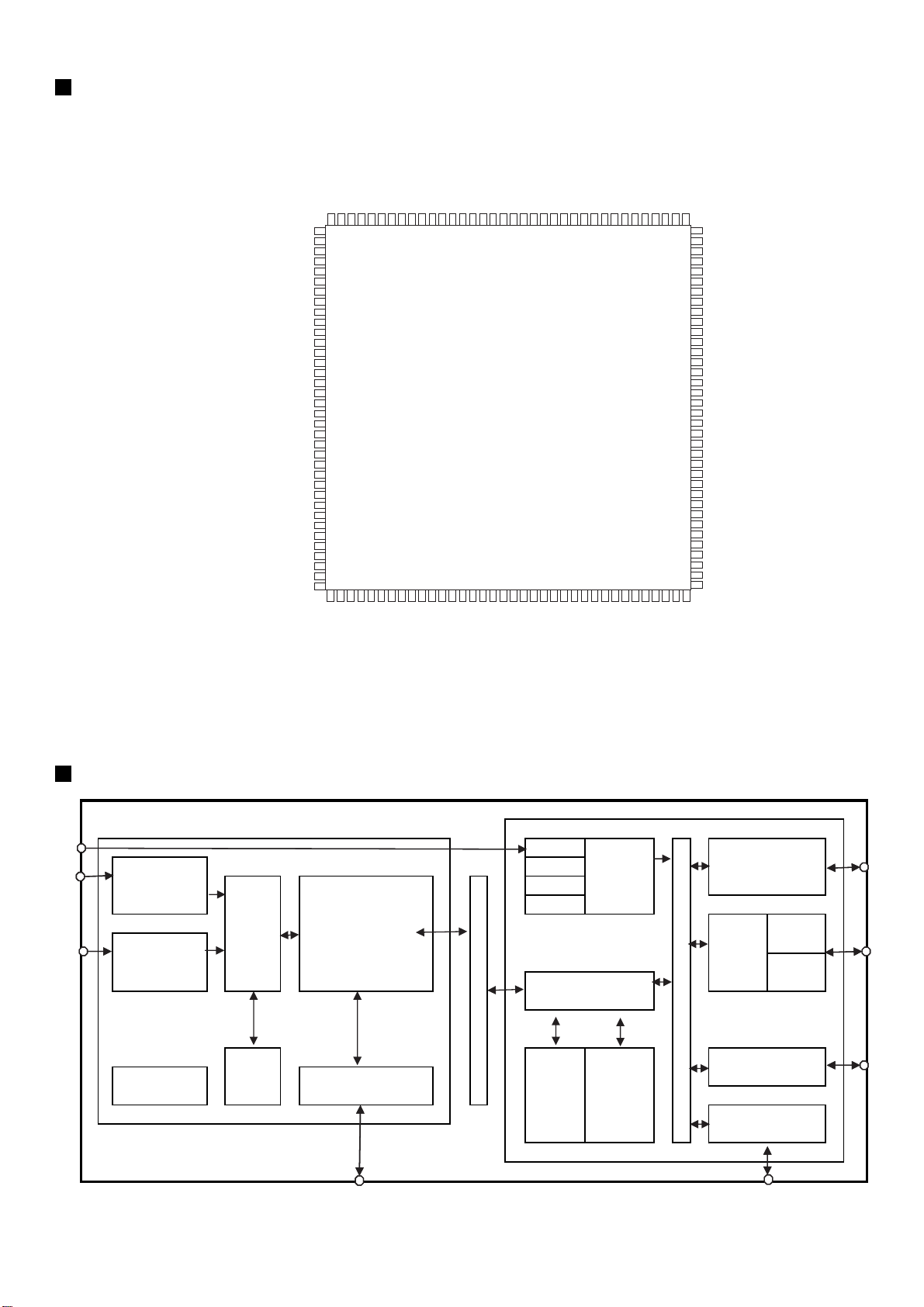

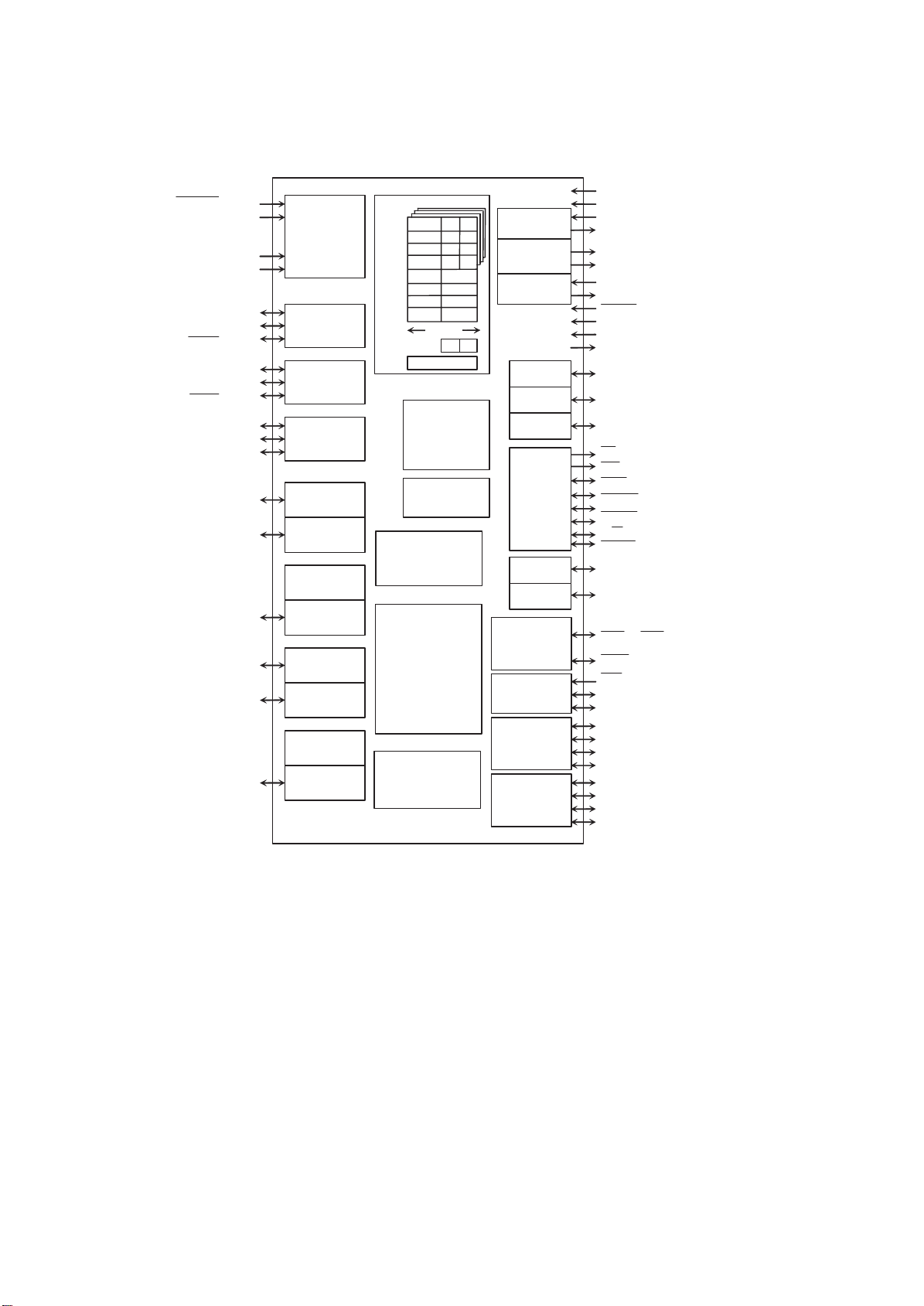

MCU(T5CC1) : IC21



isvjrGkphnyht
16-KB RAM

256-KB FLASH
E2PROM
CPU (TLCS-900/L1)
PC
10-Bit 8CH
AD
Converter
H-OSC
SIO/UART/IrDA
(SIO0)
8-Bit Timer
(TMRA0)
Port 0
32 bits
FSR
XWA
XBC
XDE
XHL
XIX
XIY
XIZ
XSP
W A
IX
IY
IZ
SP
TXD0 (P90)
RXD0 (P91)
TXD1 (P93)
RXD1 (P94)
TA0IN (P70)
DVCC [3]
DVSS [3]
X1
X2
(P00 to P07)
AD0 to AD7
(P10 to P17)
AD8/A8 to AD15/A15
(P20 to P27)
A0/A16 to A7/A23
AN0 to AN7
(P50 to P57)
AVCC, AVSS
VREFH, VREFL
XT1 (P96)
XT2 (P97)
RESET
AM0
AM1
ALE
Watchdog
Timer (WDT)
Clock Gear
Clock doubler
SIO/UART
(SIO1)
Serial Bus
Interface
(SBI)
SCK (P60)
SO/SDA (P61)
SI / SCL (P62) RD (P30)
WR (P31)
HWR (P32)
BUSRQ (P34)
BUSAK (P35)
WR/ (P36)
BOOT (P37)
L-OSC
EMU0
EMU1

Port 3
SCOUT(P64), P65, P66
PA4 to PA7
CS/WAIT
Controller
(4-BLOCK)
Port 1
Port 2
Port 6
Port A
Special timer
for CLOCK
WAIT (P33)
CS0 to CS3
Interrupt
Controller INT0 (P64)
INT1 to INT4
(PA0 to PA3)
16-Bit Timer
(TMRB0)
TB0IN0/INT5 (P80)
TB0IN1/INT6 (P81)
TB0OUT0 (P82)
TB0OUT1 (P83)
16-Bit Timer
(TMRB1)
TB1IN0/INT7 (P84)
TB1IN1/INT8 (P85)
TB1OUT0 (P86)
TB1OUT1 (P87)
8-Bit Timer
(TMRA1)
TA1OUT (P71)
8-Bit Timer
(TMRA2)
8-Bit Timer
(TMRA3)
TA3OUT (P72)
8-Bit Timer
(TMRA4)
TA4IN (P73)
8-Bit Timer
(TMRA5)
TA5OUT (P74)
8-Bit Timer
(TMRA6)
8-Bit Timer
(TMRA7)
TA7OUT (P75)
( ): Initial function after reset
B C
D E
H L
ADTRG (P53)
SCLK0/ 0CTS (P92)
SCLK1/ CTS1 (P95)
(P40 to P43)
NMI
4-KB BOOT ROM
2-3

ࣜ ࣜࣽ ࣫ ࣿ
࣭  ࣩ 
࣮ ࣽࣜ ࣩ 
࣯ ࣽࣿࣿ ࣩ ࣜࣜ
ࣰ   ࣜࣜࣜࣜ
ࣱ ࣿ  ࣜࣜࣿࣜࣜ
ࣲ ࣾ  ࣜࣜࣾࣜࣜ
ࣳ ࣿ  ࣜࣜࣿࣜࣜ
ࣴ ࣜ  ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣵ ࣿ  ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭࣬ ࣽ࣭  ࣽࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭࣭ ࣽ࣮  ࣽࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭࣮ ࣿ  ࣿࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭࣯   ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣰ࣭ ࣾ  ࣾࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣱ࣭ ࣿࣜࣤࣿࣾࣥ  ࣜࣿࣜࣜ
ࣲ࣭ ࣿ  ࣿࣜࣜࣜࣜࣤࣽࣜࣞࣞࣥࣜ
࣭ࣳ   ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣭ࣴ ࣜ࣢ࣜࣽࣾ  ࣜ࣢ࣜࣽࣾࣜࣜࣜࣜ
࣭ࣵ ࣜ࣢ࣜࣽࣾ  ࣜ࣢ࣜࣽࣾࣜࣜࣜࣜ
࣮࣬   ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣮࣭ ࣮࣯࣮  ࣮࣯࣮ࣜࣜࣜࣜ
࣮࣮ ࣮࣯࣮  ࣮࣯࣮ࣜࣜࣜࣜ
࣮࣯ ࣾࣿ  ࣾࣜࣿࣜࣿࣜࣜ
ࣰ࣮ ࣿࣿ ࣩ ࣜࣜ
ࣱ࣮ ࣿࣿ ࣩ ࣜࣜ
ࣲ࣮ ࣿ  ࣮ࣳࣜࣿࣜࣜ
࣮ࣳ  ࣩ 
࣮ࣴ ࣿ  ࣮ࣳࣜࣿࣜࣜ
࣮ࣵ ࣿࣿ ࣩ ࣜࣜ
࣯࣬   ࣜ
࣯࣭ ࣿ  ࣲ࣯࣮࣪ࣳࣴࣜࣿࣜࣜ
࣯࣮ ࣿ  ࣲ࣯࣮࣪ࣳࣴࣜࣿࣜࣜ
࣯࣯ ࣜ ࣩ ࣜ
ࣰ࣯ ࣜ ࣩ ࣜ
ࣱ࣯   ࣜࣜࣜࣜ
ࣲ࣯ ࣽࣽ  ࣜࣜ
࣯ࣳ ࣿ  ࣜࣿࣜ
࣯ࣴ ࣾࣽࣿࣩࣜ  ࣾࣜࣜ
࣯ࣵ ࣿ  ࣜࣿࣜࣜ
ࣰ࣬ ࣽࣽ  ࣜࣜࣜ
ࣰ࣭ ࣿ  ࣜࣿࣜ
ࣰ࣮   ࣜࣜࣜ
ࣰ࣯ ࣜ ࣩ ࣜ
ࣰࣰ   ࣜࣜࣜࣿࣜ
ࣰࣱ ࣜ  ࣜࣜࣜࣿࣜ
ࣰࣲ ࣿࣜ  ࣜࣜࣤࣽࣜࣞࣞࣥ
ࣰࣳ   ࣜࣜࣤࣶࣜࣜࣱࣜ࣬ࣜࣨࣶࣜࣜ࣭ࣜ࣬࣬ࣜࣥ
ࣰࣴ   ࣜࣜࣤࣶࣜࣜࣽࣜࣵࣜࣨࣶࣜࣜࣽ࣭ࣜ࣬ࣜࣥ
ࣰࣵ ࣽࣽ  ࣜࣽࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣪ࣿࣜࣜࣿࣜࣤࣿࣜࣜࣨࣜࣽࣩࣜࣿࣶࣜࣜࣱ࣭ࣿࣿࣥ
2-4

ࣱ࣬   ࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣱ࣭ ࣽࣽ࣭ࣴ  ࣜࣿࣜࣿࣜ
ࣱ࣮ ࣾࣿ  ࣾࣜࣿࣜࣿࣜ
ࣱ࣯ ࣽ ࣫ ࣜࣜ
ࣰࣱ ࣿ  ࣜࣿࣜ
ࣱࣱ ࣽࣾ  ࣜࣜࣜ
ࣱࣲ ࣽࣾࣿࣜࣜࣜࣜࣜࣜࣜ  ࣜࣽࣾࣜࣿࣜࣜ
ࣱࣳ ࣫ࣿࣿ  ࣫ࣿࣿࣜࣜࣜ
ࣱࣴ ࣫ࣿࣿࣿ  ࣫ࣿࣿࣜࣿࣜ
ࣱࣵ ࣫ࣿࣿࣽࣽ  ࣫ࣿࣿࣜࣜࣜ
ࣲ࣬ ࣜࣿࣜࣜࣜࣜ  ࣜࣜࣜ
ࣲ࣭   ࣜࣜ
ࣲ࣮  ࣩ 
ࣲ࣯ ࣿࣿ ࣩ ࣜࣜ
ࣰࣲ ࣿࣿ ࣩ ࣜࣜ
ࣱࣲ ࣿࣿࣿ  ࣿࣿࣜࣿࣜࣜ
ࣲࣲ ࣿࣿ  ࣿࣿࣜࣜ
ࣲࣳ ࣿࣿ  ࣜࣿࣜࣜ
ࣲࣴ ࣽࣿ  ࣜࣽࣿࣜࣜ
ࣲࣵ ࣽࣿ  ࣜࣜࣜ
ࣳ࣬   ࣜࣜ
࣭ࣳ ࣿ  ࣜࣿࣜ
࣮ࣳ ࣽࣽ  ࣜࣜ
࣯ࣳ ࣜࣤࣥ  ࣜࣜ
ࣰࣳ   ࣜࣜ
ࣱࣳ ࣽࣽ  ࣜࣿࣜࣜ
ࣲࣳ ࣿ࣭  ࣜࣿࣜࣿࣜࣜ
ࣳࣳ ࣿ  ࣜࣿࣜ
ࣳࣴ ࣾࣜ  ࣾࣜࣜࣜࣤࣽࣜࣞࣞࣥ
ࣳࣵ ࣜࣤࣜࣥ  ࣜࣜ
ࣴ࣬ ࣜ  ࣜ
࣭ࣴ ࣽࣽ  ࣜࣽࣜࣜࣜࣤࣽࣜࣞࣞࣥ
࣮ࣴ ࣽ  ࣩࣽࣜࣜ
࣯ࣴ ࣿࣜࣤࣿࣿࣥ  ࣜࣿࣜ
ࣰࣴ ࣜࣤࣿࣥ  ࣜࣜࣜ
ࣱࣴ ࣽࣽࣜࣤࣿࣥ  ࣜࣜࣜ
ࣲࣴ ࣽ  ࣜࣿࣜࣜ
ࣴࣳ   ࣜࣜ
ࣴࣴ ࣾࣽࣽ  ࣾࣜࣿࣜࣜࣜ
ࣴࣵ ࣿࣿ ࣩ ࣜࣜ
ࣵ࣬ ࣾࣽࣽ  ࣾࣜࣿࣜࣜࣜ
࣭ࣵ  ࣩ 
࣮ࣵ ࣜ࣯  ࣜࣜࣜ
࣯ࣵ ࣮  ࣜࣜࣜ
ࣰࣵ ࣭  ࣜࣜࣜ
ࣱࣵ ࣮ࣜࣽࣜࣤࣩࣥ  ࣜࣽࣜࣿࣜ
ࣲࣵ ࣮ࣜࣽࣜࣤࣩࣥ  ࣜࣾࣜࣿࣜ
ࣵࣳ ࣭ࣜࣽࣜࣤࣩࣥ  ࣜࣜࣜ
ࣵࣴ ࣭ࣜࣽࣜࣤࣩࣥ  ࣜࣜࣜ
ࣵࣵ ࣾ  ࣾࣜࣿࣜࣜࣜ
࣭࣬࣬ ࣿࣿ  ࣜࣜ
2-5

2-6
PIN No PIN Name I/O
1 UHS0 O
2 HUS1 O
3 INTREQ,ABODY O
4 FA1,FSCDIN I
5 GPIO20 O
6 FA0,FSCCLK I
7 FHS2,FSCDIO O
8 GPIO21 O
9 FDAT7 I
10 VDD6
11 VSS6
12 FWR,FDS I
13 FRD,FR/W O
14 FDAT6 I
15 FCS I
16 FINTREQ O
17 FDBCK I
18 FDAT5 I
19 FDAT4 I
20 VDD7
21 VSS7
22 FDAT3 I
23 FDBDA I
24 FDAT2 I
25 DBDA I
26 DBCK I
27 FDAT1 I
28 TEST I
29 FDAT0 I
30 NV_WE O
31 NV_OE O
32 NV_CS O
33 SD_WE O
34 SD_DATA0 O
35 SD_DATA1 O
36 SD_DATA2 O
37 SD_DATA3 O
38 SD_DATA4 O
39 SD_DQM0 O
40 SD_DATA5 O
41 VSSSD4
42 VDDSD4
43 SD_DATA6 O
44 SD_DATA7 O
45 SD_DQM1 O
46 SD_DATA15 O
I.C PIN DESCRIPTIONS (IC45 : AUDIO DSP : CS494003)
Function
DSP C Control Mode Select BIT 0
DSP C Control Mode Select BIT 0
Open-drain interrupt-request output
Host Address Bit One or SPI Serial Control data input
General Purpose output
Host parallel Address Bit Zero or Serial Control Port Clock
DSP AB Control port mode select bit2
General Purpose output
DSP AB Bidirectional data bus
2.5V Supply Voltage
2.5V Ground
Host write Strobe or Host data strobe
Host Parallel Output Enable or
DSP AB Bidirectional data bus
Host Parallel Chip Select , Host Serial SPI Chip Select
Open-drain interrupt-request output
Reserved
DSP AB Bidirectional data bus
DSP AB Bidirectional data bus
2.5V Supply Voltage
2.5V Ground
DSP AB Bidirectional data bus
Reserved
DSP AB Bidirectional data bus
Debug Data
Debug Clock
DSP AB Bidirectional data bus
Reserved
DSP AB Bidirectional data bus
SRAM Write Enable
SRAM Output Enable
SRAM Chip Select
SDRAM Write Enable
SDRAM Data Bus 0
SDRAM Data Bus 1
SDRAM Data Bus 2
SDRAM Data Bus 3
SDRAM Data Bus 4
SDRAM Data Mask 0
SDRAM Data Bus 5
SDRAM Ground
SDRAM Power Supply
SDRAM Data Bus 6
SDRAM Data Bus 7
SDRAM Data Mask 1
SDRAM Data Bus 15

2-7
PIN No PIN Name I/O
47 SD_DATA14 O
48 NC5
49 SD_DATA13 O
50 VSSSD3
51 VDDSD3
52 SD_DATA12 O
53 SD_DATA11 O
54 SD_DATA10 O
55 SD_DATA9 O
56 SD_DATA8 O
57 VSSSD2
58 VDDSD2
59 SD_CLK_OUT O
60 SD_ADR9 O
61 SD_CLK_IN I
62 SD_ADR8 O
63 SD_ADR7 O
64 SD_CLK_EN I
65 SD_ADR6 O
66 SD_ADR5 O
67 SD_ADR4 O
68 SD_CS I
69 VSSSD1
70 VDDSD1
71 SD_BA O
72 SD_ADR10 O
73 SD_ADR0 O
74 SD_ADR1 O
75 SD_ADR2 O
76 SD_ADR3 O
77 SD_RAS O
78 SD_CAS O
79 SDATAN3 I
80 SDATAN2 I
81 SDATAN1 I
82 SDATAN0 I
83 NC4
84 NC3
85 LRCLKN I
86 SCLKN I
87 LRCLK1 O
88 NC2
89 NC1
90 VDD1
91 VSS1
92 XMT958,AUDATA7 O
93 AUDATA6 O
94 AUDATA5 O
95 HDATA7 O
Function
SDRAM Data Bus 14
No Connect (Ground)
SDRAM Data Bus 13
SDRAM Ground
SDRAM Power Supply
SDRAM Data Bus 12
SDRAM Data Bus 11
PCM Audio input Data 0
SDRAM Data Bus 10
SDRAM Data Bus 9
SDRAM Data Bus 8
PCM Audio input Data 1
SDRAM Ground
SDRAM Power Supply
SDRAM CLOCK DATA OUT
SDRAM Address Bus
SDRAM CLOCK DATA IN
SDRAM Address Bus 8
SDRAM Address Bus 7
SDRAM Ground
SDRAM Address Bus 6
SDRAM Address Bus 5
SDRAM Address Bus 4
SDRAM Chip Select
SDRAM Ground
SDRAM Power Supply
SDRAM Bank Address Select
SDRAM Address Bus 10
SDRAM Address Bus 0
SDRAM Address Bus 1
SDRAM Address Bus 2
SDRAM Address Bus 3
SDRAM Row Address Strobe
SDRAM Column Address Strobe
PCM Audio input Data 3
PCM Audio input Data 2
Audio Output Sample Rate Clock
2.5V Supply Voltage
PCM audio input sample rate clock
PCM audio input bit clock
2.5V Ground
Digital Audio Output 7 , S/PDIF Transmitter
Digital Audio Output 6
Digital Audio Output 5
DSP C Bidirectional data bus 7
No Connect (Ground)
No Connect (Ground)

2-8
PIN No PIN Name I/O
96 HDATA6 O
97 HDATA5 O
98 SCLK1 O
99 MCLK I
100 VDD2
101 VSS2
102 AUDATA4 O
103 HDATA4 O
104 SCLK0 O
105 HDATA3 O
106 AUDATA3 O
107 AUDATA2 O
108 LRCLK0 O
109 AUDATA1 O
110 AUDATA0 O
111 CMPCLK,SCLKN2 I
112 HDATA2 O
113 VSS3
114 VDD3
115 HDATA1 O
116 HDATA0 O
117 CMPREQ,FLRCLK2 I
118 CMPDAT,FSDATA2 I
119 FLRCLKN1 I
120 WR,DS I
121 RD,R/W I
122 PLLVSS
123 FILT2
124 FILT1
125 PLLVDD
126 XTALO O
127 XTAL,1CLKIN I
128 CLKSEL I
129 CS O
130 A0 O
131 FSDATAN1 I
132 VDD4
133 VSS4
134 FSCLKN1,STCLK2 I
135 SCS I
136 SCDIN I
137 VSS5
138 VDD5
139 A1 O
140 SCDOUT O
141 HNBSY I
142 SCCLK O
143 UHS2,CS_OUT O
144 RESET I
Function
DSP C Bidirectional data bus 6
DSP C Bidirectional data bus 5
Audio output bit clock
Audio Master clock
2.5V Supply Voltage
2.5V Ground
Digital Audio Output 4
DSP C Bidirectional data bus 4
Audio output bit clock
DSP C Bidirectional data bus 3
Digital Audio Output 3
Digital Audio Output 2
Audio Output Sample Rate Clock
Digital Audio Output 1
Digital Audio Output 0
PCM audio input bit clock
DSP C Bidirectional data bus 2
2.5V Ground
2.5V Supply Voltage
DSP C Bidirectional data bus 1
DSP C Bidirectional data bus 0
PCM Audio Data input bit clock
PCM Audio data input Number two
PCM audio data input one
DSP AB Control port mode select bit 0
DSP AB Control port mode select bit 1
PLL Ground voltage
Phase-Locked Loop Filter
Phase-Locked Loop Filter
PLL supply voltage
Crystal OSC Output
External Clock input/Crystal OSC input
DSP Clock select
Host parallel Chip Select
Host Parallel Address bit 0
SPI Serial control data input
2.5V Ground
2.5V Supply Voltage
PCM Audio Data input one
2.5V Supply Voltage
2.5V Ground
PCM audio input bit clock
DSP C Control Mode Select BIT 2
Master Reset Input
Host Address bit 1
Serial control port data
Input Host Message status
Serial control port clock
Host Serial SPI Chip Select (Active "L")

2-9
7TADF
6TADF
5TADF
4
TADF
3
T
ADF
2TADF
1TADF
0TADF
KLCCSF,OAF
NIDCSF,1AF
,1SHFDRF/RF,W
,0SH
FRWF,SDF
SCF
TUODCSF,OI
D
C
SF,2SHF
QERTNIF
FSCLKN1, STCCLK2
FLRCLKN1
FSDATAN1
CMPCLK, FSCLKN2
CMPDAT, FSDATAN2
KCBDF
A
DBD
F
PLLVDD
PLLVSS
RESET
TSET
KLCM
0KL
CS
1KLCS
0KLCRL
1
KLC
RL
AUDATA0
AUDATA1
2ATADUA
A859TMX,3ATADUA
TADUA82OIPG,4A
92OI
PG,5ATADUA
03OIPG,6ATADUA
13OIPG,B859TMX,7ATADUA
KCBD
ADBD
2
2
OIPG,NKLCS
32OIPG,NKLCRL
TADS4
2OIPG,0N
A
52
OIP
G,1NATADS
62OIPG,2NATADS
2OIPG,3NATADS7
SCS
SCCLK
SCDIN
SCDOUT, SCDIO
QER
TNI,TOOB
A
7OIPG,7ATADH
6OIPG,6ATADH
5OIPG
,5ATADH
4OIPG,4ATAD
H
3OIPG,3ATADH
HDATA2, GPIO2
HDATA1, GPIO1
HDATA0, GPIO0
A0, GPIO13
A1, GPIO12
SD_ADDR8, EXTA8
SD_ADDR7, EXTA7
SD_ADDR6, EXTA6
SD_ADDR5, EXTA5
SD_ADDR4, EXTA4
TXE
,3RDDA_DS 3A
2ATXE,
2RDDA
_DS
1ATXE,1R
DD
A_DS
0ATXE,0RDDA_DS
SD_CLK_OUT
SD_CLK_IN
SD_DATA8, EXTA11
SD_DATA7, EXTD7
SD_DATA6, EXTD6
SD_DATA5, EXTD5
SD_DATA4, EXTD4
SD_DATA3, EXTD3
2DT
XE,2ATA
D_DS
1DTX
E,1ATAD_DS
0DTXE,0ATAD_DS
SD_ADDR10, EXTA10
SD_ADDR9, EXTA9
RD, R/W, GPIO11
WR, DS, GPIO10
CS, GPIO9
HINBSY, GPIO8
SD_DATA15, EXTA18
SD_DATA14, EXTA17
SD_DATA13, EXTA16
SD_DATA12, EXTA15
SD_DATA11, EXTA14
SD_DATA10, EXTA13
SD_DATA9, EXTA12
UHS2, CS_OUT, GPIO17
81
O
IPG,0SHU
91OIPG,1SHU
02OIPG
12OIPG
VDD4
7DDV
1D
DV
VDD3
VSS4
SSV7
1SSV
VSS3
6DDV
2D
DV
VDD5
6SSV
2SSV
VSS5
VDDSD1
VDDSD2
VDDSD3
SD_CLK_EN
SD_BA, EXTA19
SD_CS
SA
R
_DS
S
AC_DS
EW_DS
SD_DQM1
SD_DQM0
SC_V
N41OIPG,
EO_VN 51OIPG,
W_
VNE 61OIPG,
VDDSD4
VSSSD1
VSSSD2
VSSSD3
VSSSD4
1CN
2CN
3
CN
4CN
NC5
CMPREQ, FLRCLKN2
1
5
01
51
02
52
03
40
45
50
55
60
65
70
57
08
58
09
59
001
501
115
110
120
125
130
135
140
144
53
y
SAI 0 Serial
I
N
T
E
R
N
A
L
B
U
S
External Memor
Compressed SAI 1 Audio Interface
Digital
S
H
A
R
E
D
M
E
M
O
R
Y
SAI 2 Interface
Interface SAI 3
Farme Multi-Standard DAO 0
Digital Shifter Audio Decoder
DSP C
Digital
Audio Audio DAO 1
Input Programmable Output
32-Bit DSP
DSP AB
Input GPIO and I/O
PLL Clock Buffer Parallel or Serial DSP DSP Controller
Manager RAM Host Interface RAM ROM
Parallel or Serial
Host Interface
PIN ASSIGNMENT(IC45: CS494003)
BLOCK DIAGRAM(IC45: CS494003)
CS494003
