NAD C 558 User manual

ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
®
Owner’s Manual
C 558
Turntable

PRECAUTIONS
Read the Operating Instructions carefully and completely before operating the unit. Be
sure to keep the Operating Instructions for future reference. All warnings and cautions
in the Operating Instructions and on the unit should be strictly followed, as well as the
safety suggestions below.
INSTALLATION
1 Water and Moisture - Do not use this unit near water, such as near a bathtub,
washbowl, swimming pool, or the like.
2 Heat - Do not use this unit near sources of heat, including heating vents,
stoves, or other appliances that generate heat. It also should not be placed in
temperatures less than 5°C (41°F) or greater than 35°C (95°F).
3 Mounting surface - Place the unit on a at, even surface.
4 Ventilation - The unit should be situated with adequate space around it so that
proper ventilation is assured. Allow 10 cm (4 inches) clearance from the rear and
the top of the unit, and 5 cm (2 inches) from each side. Do not place on a bed, rug,
or similar surface that may block the ventilation openings. Do not install the unit
in a bookcase cabinet, or airtight rack where ventilation may be impeded.
5 Objects and liquid entry - Take care that objects or liquids do not get inside the
unit through the ventilation openings.
6 Carts and stands - When placed or mounted on a stand or cart, the
unit should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the unit and cart to overturn or fall.
7 Wall or ceiling mounting - The unit should not be mounted on a wall or ceiling,
unless specied in the Operating Instructions.
WARNING!
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE
This product is manufactured to comply with the radio interference
requirements of EEC DIRECTIVE 89/68/EEC and 73/23/EEC
ELECTRIC POWER
1 Power Sources - Connect this unit only to power sources specied in the
Operating Instructions, and as marked on the unit.
2 Polarization - As a safety feature, some units are equipped with polarized AC
power plugs which can only be inserted one way into a power outlet. If it is
dicult or impossible to insert the AC power plug into an outlet, turn the plug
over and try again. If it still does not easily insert into the outlet, please call a
qualied service technician to service or replace the outlet. Avoid defeating the
safety feature of the polarized plug, do not force it into a power outlet.
3 AC power cord - When disconnecting the AC power cord, pull it out by the AC
power plug. Do not pull the cord itself. Never handle the AC power plug with wet
hands, as this could result in re or shock. Power cords should be routed to avoid
being severely bent, pinched, or walked upon. Pay particular attention to the cord
from the unit to the power socket. Avoid overloading AC outlets and extension
cords beyond their capacity, as this could result in re or shock.
4 Extension cord - To help prevent electric shock, do not use a polarized AC power
plug with an extension cord, receptacle, or other outlet unless the polarized plug
can be completely inserted to prevent exposure of the blades of the plug.
5 When not in use - The primary method of isolating the turntable from the mains
supply is to disconnect the mains plug. Ensure that the mains plug remains
accessible at all times. Unplug the AC power cord from the AC outlet if the unit
will not be used for several months or more.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning ash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
CAUTION
Modications or adjustments to this product, which are not expressly approved by the
manufacturer, may void the user’s right or authority to operate this product.
MAINTENANCE
Clean the unit only as recommended in the Operating Instructions.
DAMAGE REQUIRING SERVICE
Have the unit serviced by a qualied service technician if
• The AC power plug has been damaged.
• Foreign objects or liquid have got inside the unit.
• The unit has been exposed to rain or water.
• The unit does not seem to operate normally.
• The unit exhibits a marked change in performance.
• The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
NOTES ON ENVIRONMENTAL PROTECTION
At the end of its useful life, this product must not be disposed of with
regular household waste but must be returned to a collection point for
the recycling of electrical and electronic equipment. The symbol on the
product, user’s manual and packaging, point this out.
The materials can be reused in accordance with their markings.
Through re-use, recycling of raw materials or other forms of recycling of old products,
you are making an important contribution to the protection of our environment. Your
local administrative oce can advise you of the responsible waste disposal point.
INFORMATION ABOUT COLLECTION AND DISPOSAL OF WASTE BATTERIES
(DIRECTIVE 2006/66/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL
OF EUROPEAN UNION) (FOR EUROPEAN CUSTOMERS ONLY)
Batteries bearing any of these symbols indicate that they
should be treated as“separate collection”and not as
municipal waste. It is encouraged that necessary measures
are implemented to maximize the separate collection of
waste batteries and to minimize the disposal of batteries
as mixed municipal waste.
End-users are exhorted not to dispose waste batteries
as unsorted municipal waste. In order to achieve a high
level of recycling waste batteries, discard waste batteries
separately and properly through an accessible collection
point in your vicinity. For more information about collection and recycling of waste
batteries, please contact your local municipality, your waste disposal service or the
point of sale where you purchased the items.
By ensuring compliance and conformance to proper disposal of waste batteries,
potential hazardous eects on human health is prevented and the negative impact of
batteries and waste batteries on the environment is minimized, thus contributing to
the protection, preservation and quality improvement of the environment.
OWNER’S RECORD
For your convenience, record the model number and serial number in the space provided
below. Please refer to them when you contact your dealer in case of diculty.
Model No. : ......................................
Serial No. : ......................................
IMPORTANT SAFETY INSTRUCTIONS
23. Battery Disposal - When disposing of used batteries, please comply
with governmental regulations or environmental public instruction’s
rules that apply in your country or area. Batteries (battery pack or
batteries installed) must not be exposed to excessive heat such as
sunshine, re or the like.
24. Safety Check - Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
25. Wall or Ceiling Mounting - The product should be mounted to a wall
or ceiling only as recommended by the manufacturer.
WARNING
The lightning ash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sucient magnitude to constitute a risk of
electric shock to persons
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE
PLACED ON THIS APPARATUS.
CAUTION REGARDING PLACEMENT
To maintain proper ventilation, be sure to leave a space around the unit
(from the largest outer dimensions including projections) than is equal to,
or greater than shown below.
Left and Right Panels: 10 cm
Rear Panel: 10 cm
Top Panel: 50 cm
IMPORTANT INFORMATION TO UK CUSTOMERS
DO NOT cut o the mains plug from this equipment. If the plug tted is
not suitable for the power points in your home or the cable is too short
to reach a power point, then obtain an appropriate safety approved
extension lead or consult your dealer. If nonetheless, the mains plug is
cut o, REMOVE THE FUSE and dispose of the PLUG immediately, to avoid
possible shock hazard by inadvertent connection to the mains supply. If
this product is not provided with a mains plug, or one has to be tted, then
follow the instructions given below:
IMPORTANT
DO NOT make any connection to the larger terminal which is marked
with the letter ‘E’ or by the safety earth symbol or colored GREEN or GREEN
AND YELLOW. The wires in the mains lead on this product are colored in
accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
As these colors may not correspond with the colored markings identifying
the terminals in your plug, proceed as follows:
• The BLUE wire must be connected to the terminal marked with the
letter ‘N’ or colored BLACK.
• The BROWN wire must be connected to the terminal marked with the
letter ‘L’ or colored RED
• When replacing the fuse, only a correctly rated and approved type
should be used, and be sure to re-t the fuse cover.
IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN.
This product is manufactured to comply with the radio
interference requirements of EEC DIRECTIVE 2004/108/EC.
NOTES ON ENVIRONMENTAL PROTECTION
At the end of its useful life, this product must not be disposed
of with regular household waste but must be returned to a
collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user’s manual and
packaging point this out.
The materials can be reused in accordance with their markings. Through
re-use, recycling of raw materials, or other forms of recycling of old
products, you are making an important contribution to the protection of
our environment.
Your local administrative oce can advise you of the responsible waste
disposal point.
RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT)
The model and serial number of your new C 355BEE are located on the
back of the cabinet. For your future convenience, we suggest that you
record these numbers here:
Model number : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial number : ......................................
IMPORTANT SAFETY INSTRUCTIONS
NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited
Copyright 2008, NAD Electronics International, a division of Lenbrook Industries Limited
3
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
2
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

Dear Music Lover,
Congratulations and thank you for choosing NAD Products. Your NAD C558
turntable has been handcrafted and rigorously tested by skilled technicians
to give you years of enjoyable, trouble free service.
Please contact your dealer if you require additional assistance.
The C558 incorporates an array of features that contribute to its
audiophile performance:
1 Proprietary ultralow noise AC motor and high precision frequency DC-
driven AC generator for speed stability. The motor is xed on the main
chassis. The tonearm and platter are mounted on a separate suspended
MDF chassis.
2 The platter with TPE damping and felt mat sits on top of a belt-holding
sub- platter. The platter is constructed from an aluminum magnesium
alloy sitting on a brass bearing.
3 The tonearm construction is a combination of conical carbon bre
tube, sandwich aluminium headshell, cardan bearing in horizontal axle
with hardened tips sitting in zircon bowl and ABEC7 ballraces in vertical
axle. The counterweight is damped with thermo-plastic elastomer (TPE)
damping pad.
4 All key features for cartridge alignment and adjustability are available
on the tonearm - VTA/SRA, VTF, azimuth, anti-skate, and a slotted
aluminum headshell for overhang and oset angle.
5 The conical thermo-plastic elastomers (TPE) suspension system
dampens vibrations.
6 A low-prole sandwich oating chassis made of MDF is what gives this
table a “superat” silhouette.
IMPORTANT
Your turntable was shipped partially disassembled in order to avoid
damage to sensitive parts. Please check immediately to make sure that
neither the packaging nor the device was damaged in transit. If you
are missing parts or if the unit is damaged, please do not operate and
contact your dealer.
PLEASE DO YOUR PART TO HELP PROTECT THE ENVIRONMENT
DISPOSAL OF PACKAGING MATERIAL
NAD packaging is carefully designed to protect your component from
damage in transit and you are strongly urged to keep the original
packaging in order to safely ship or otherwise transport your
turntable in the future.
However, the packaging materials were chosen to be environmentally
friendly, so if you must discard the packaging, please recycle.
INTRODUCTION
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .........................2
INTRODUCTION
DISPOSAL OF PACKAGING MATERIAL.................................3
IDENTIFICATION OF CONTROLS
FEATURES AND CONNECTIONS ...................................4
SETUP
ASSEMBLY AND INSTALLATION...................................5
TRANSPORT SCREWS .................................................5
PLATTER, SUBPLATTER AND DRIVE BELT INSTALLATION .............5
ADJUSTING THE PULLEY HEIGHT .....................................5
TONEARM ASSEMBLY.................................................5
LEVELING THE TURNTABLE ...........................................8
USING THE CLAMP, STARTING THE MOTOR,...........................8
CHANGING THE SPEED ...............................................8
REFERENCE
TROUBLESHOOTING .............................................9
SERVICE ..............................................................9
WARRANTY...........................................................9
SPECIFICATIONS ................................................10
3
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

1 ON/OFF switch
2 Platter with felt mat
3 Floating sub-chassis
4 Tonearm counterweight
5 Tonearm lift lever
6 Tonearm rest and removable transport lock
7 Headshell with nger lift
8 Anti-skating mechanism
9 Motor with motor pulley
10 Drive belt
11 Sub-platter
12 Transport screws 3x
13 RCA output with earth connection
14 Damped adjustable feet
15 Power supply socket
16 Dustcover
17 Dustcover hinge
18 Dustcover hinge fasteners
19 Record clamp
IDENTIFICATION OF CONTROLS
FEATURES AND CONNECTIONS
4
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

SETUP
ASSEMBLY AND INSTALLATION
TRANSPORT SCREWS
Remove the three transport screws (12) from the top part of the chassis
before installing the sub-platter (11), the drive belt (10) and the platter (2).
NOTE
The transport screws are used to ensure safe shipping and transport,
and should be reinstalled prior to any future shipment or transportation
of the turntable.
PLATTER, SUB-PLATTER AND DRIVE BELT INSTALLATION
Remove the protective cover from the sub-platter (11).
Install the sub-platter (11) and the drive belt (13) as shown in the following
illustrations.
Install the platter (2) on the sub-platter (11) and screw the Record clamp
(19) with LP on the platter.
ADJUSTING THE PULLEY HEIGHT
In rare instances, you may have to adjust the pulley height if it taps against
the platter:
Carefully remove platter and drive belt from the turntable. Using a small
athead screwdriver, loosen the small screw and move the pulley to the
desired position.
Tighten the screw back and t the drive belt and the platter.
TONEARM ASSEMBLY
The tonearm includes a combination of cardan bearings in horizontal axle
and Japanese ball bearings in vertical axle.
See the next steps to set up your tonearm.
1 CARTRIDGE INSTALLATION
If you purchased this turntable in a package that included the cartridge,
this has already been done for you.
Install the cartridge into the aluminium headshell, using the
appropriate hardware included with your cartridge.
Connect the cartridge as indicated below:
• White left channel L+
• Red right channel R+
• Green right channel R-
• Blue left channel L-
For correct cartridge alignment, use the two-point cartridge alignment
protractor provided with your C-Sharp accessories. If unfamiliar with
two-point setup, please refer to your dealer.
2 COUNTERWEIGHT ASSEMBLY
The counterweight has two separate parts:
The rst part is the counterweight itself. The second part is an
additional insert that enables optimal balancing of heavier cartridges.
The counterweight without the additional insert can balance cartridges
from 5 to 9 g. (The weight of the counterweight itself is 110 g.)
The counterweight with the additional insert can balance cartridges
from 9 to 17 g. (The weight of the counterweight with the additional
insert is 148 g.)
5
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

SETUP
ASSEMBLY AND INSTALLATION

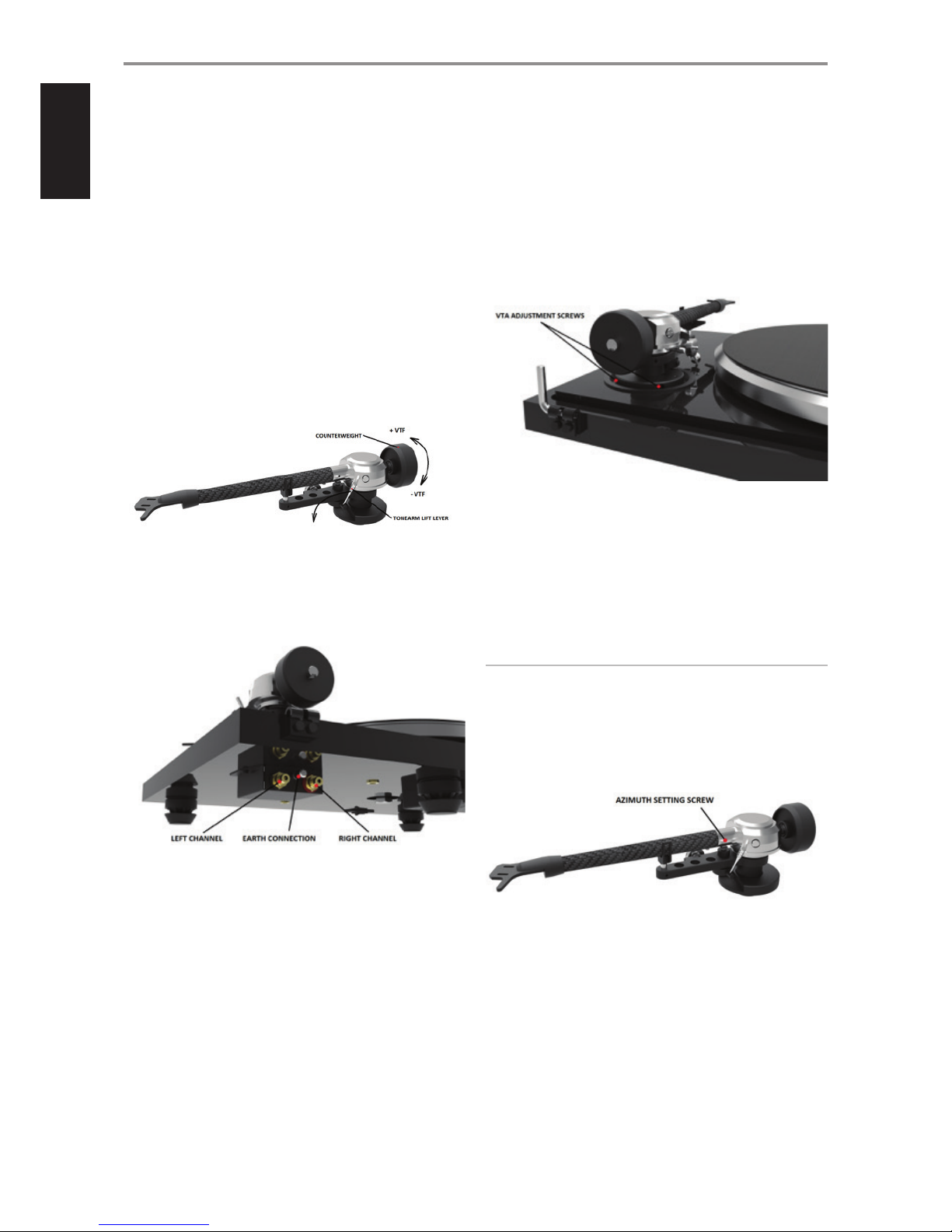

3VERTICAL TRACKING FORCE SETTING (VTF)
Before setting the Vertical Tracking Force, conrm the exact weight
of your cartridge. Depending on your cartridge weight, determine
whether to use the counterweight with or without the additional insert,
in accordance with the specications above.
Pushing carefully, turn the counterweight onto the rear end of the
counterweight support rod as shown in the illustration below. Place
the stylus pressure gauge (not supplied) onto the platter. To set the
required VTF, lower the tonearm lift lever as indicated in the illustration
and place the tip of the stylus on the pressure gauge.
As viewed from the headshell, turning the counterweight
counterclockwise (moving it in closer toward the tonearm) increases
the VTF, turning clockwise (away from the tonearm) reduces the
VTF. Turn the counterweight appropriately until the VTF shown on
the pressure gauge matches your cartridge’s recommended vertical
tracking force specications.
4 TONEARM OUTPUT CONNECTION
Connect the tonearm cable provided with the accessories to the RCA
tonearm output that is located at the rear of the turntable, behind the
tonearm. Connect the grounding cable on the earth connection screw.
5VERTICAL TRACKING ANGLE SETTING (VTA)
To set the Vertical Tracking Angle, rst put a record on the platter. When
the needle is lowered into the record groove, the tube of the tonearm
should be parallel to the surface of the record. If it is not, loosen both
hexagonal screws in the tonearm base just enough to allow vertical
movement of the arm pillar without force, and slide the arm up or
down until it is parallel.
Carefully and evenly retighten the hexagon screws without applying
excessive force (which could deform the arm pillar).
6AZIMUTH SETTING
The cartridge needle must be perpendicular to the record in order to
trace the groove wall modulations correctly.
The azimuth (angle) is precisely set by the factory. In the event that you
need to modify this setting, however, follow the instructions below.
Loosen the small AZIMUTH SET SCREW, again using the 1.5 mm
hexagonal key.
NOTE
DO NOT REMOVE THE AZIMUTH SET SCREW COMPLETELY!
Loosen the screw just enough to be able to gently rotate the arm tube
and set the azimuth to the correct position. The correct position can
be checked from the front view, preferably with the needle placed on a
mirror placed on the platter. Once the azimuth setting is correct, gently
re-tighten the AZIMUTH SETTING SCREW.
6
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

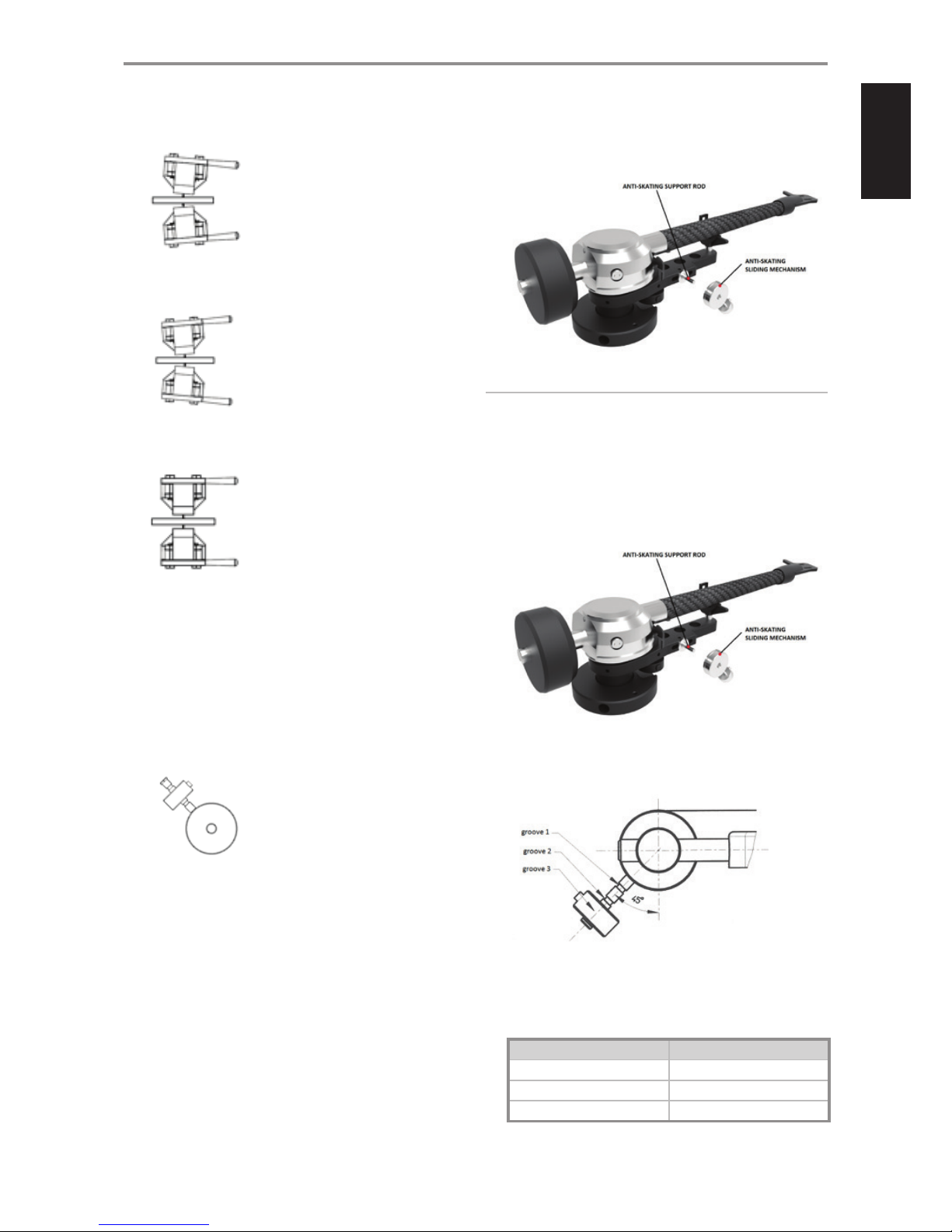

EXAMPLES OF INCORRECT AZIMUTH SETUP
Too much left angle
Too much right angle
The correct position is 100% perpendicular to the record.
7 ANTI-SKATING ASSEMBLY AND ADJUSTMENT
The anti-skating mechanism is shipped partially disassembled to avoid
damage during transport. For correct installation, please follow the
steps below.
Step 1
Prepare all parts supplied from the accessories bag:
• Anti-skating sliding mechanism with anti-skating weight and thread
for mounting on the tonearm
Step 2
Put the anti-skating sliding mechanism on the end of the anti-skating
support rod.
NOTE
Be careful when handing the anti-skating thread in order to avoid
damaging it.
Step 3
The anti-skating sliding mechanism is supplied with a pre-mounted
anti-skating weight and anti-skating thread. Put the eye of the anti-
skating thread around the hole for the HOOK SCREW and screw the
HOOK SCREW into the tonearm through the eye of the anti-skating
thread as shown in the illustration below.
Step 4
Anti-skating force adjustment:
Adjust the anti-skating force by positioning the weight on the
appropriate groove of the anti-skating sliding mechanism. Anti-skating
downforce should be adjusted in correspondence with the tonearm
downforce as follows:
Tonearm downforce Anti-skating groove
Lower than 13 mN or 1.3 grams 1st groove from bearing
13–18 mN or 1.3–1.8 grams 2nd groove from bearing
18–25 mN or 1.8–2.5 grams 3rd groove from bearing
SETUP
ASSEMBLY AND INSTALLATION
7
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

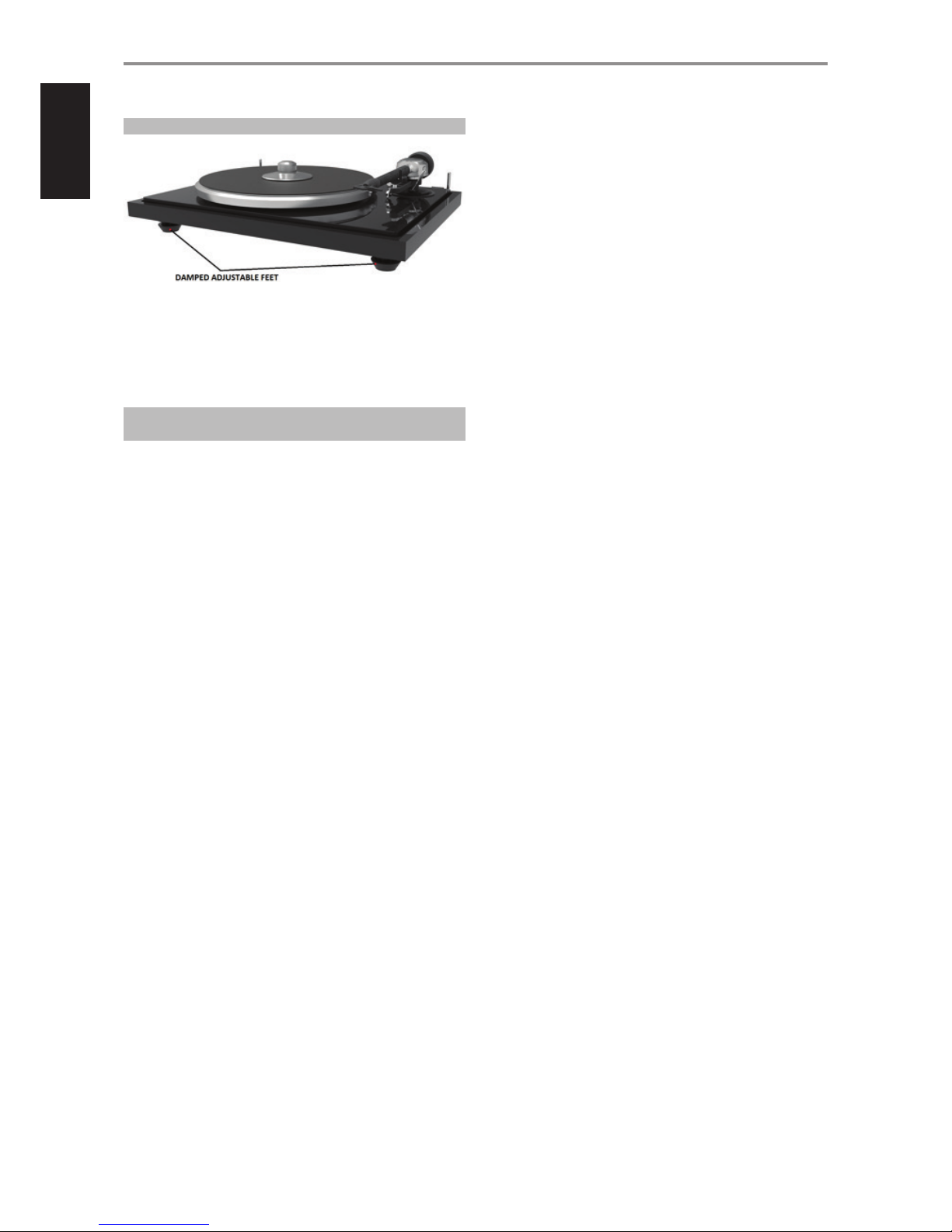

LEVELING THE TURNTABLE
Three precision adjustable damped feet are mounted under the turntable
for leveling the turntable. Once the turntable is in nal position, put the
supplied spirit level on the sub-chassis, and then level the turntable by
screwing or unscrewing the feet as needed. It is advisable to check level
from several positions on the subchassis.
USING THE CLAMP, STARTING THE MOTOR,
CHANGING THE SPEED
Using the clamp – after placing a record on the platter, place the record
clamp on the spindle and record. Do not screw the clamp for playback.
CONTROLING THE TURNTABLE
• To start rotation of the platter, press the button ON/OFF switch (1)
• To play 45 r.p.m., put the drive belt (13) over the larger diameter part
of the motor pulley using accessory toll provided. To revert to 33r.p.m.
repeat the proceedings using the smaller step on the pulley.
SETUP
ASSEMBLY AND INSTALLATION
8
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

CONDITION POSSIBLE CAUSES
The platter doesn’t turn although the unit
is switched on
• The unit is not connected to the mains power supply (the building’s electrical system).
• No mains power is being delivered at the socket.
• The drive belt is not tted properly or has slipped o.
No signal through one or both channels: • No signal contact from the cartridge to the internal tonearm wiring; or from that to the arm lead; or
from that to the phono box; or between that and the amplier. This could be due to a faulty plug,
broken wire or loose solder joint in the plug/socket connection.
• Phono input not selected at amplier.
• Amplier not switched on.
• Amplier or speakers are defective or muted.
• No connection to the loudspeakers.
Strong hum on phono input: • No ground connection from cartridge or arm or arm cable to amplier, or ground loop.
Distorted or inconsistent sound from one
or both channels:
• Turntable is connected to wrong input of amplier, or MM/MC switch is incorrectly set. Needle or
cantilever damaged. Wrong rpm; drive belt overstretched or dirty; platter bearing needs lubrication
or is dirty or damaged.
REFERENCE
TROUBLESHOOTING
SERVICE
Should you encounter a problem that you are not able to identify or
alleviate despite the above information, please contact your dealer for
further advice. Only when the problem cannot be resolved should the unit
be sent to the responsible distributor in your country.
Guarantee repairs will only be eected if the unit is returned in appropriate
packaging. For this reason we recommend keeping the original packaging.
Never return a turntable without making sure that is it properly
disassembled and correctly packaged in the original packaging according
to the supplied diagram. Please: Remove the feet, counterweight, platter,
cartridge and belt and pack them separately. Fit the cartridge protection
cap. Insert the transport lock for the tonearm prior to carefully packaging
the turntable.
WARRANTY
The manufacturer accepts no responsibility for damage caused by failing to
adhere to these instructions for use and/or by transportation without the
original packaging. Modication or change to any part of the product by
unauthorized persons releases the manufacturer from any liability over and
above the lawful rights of the customer.
9
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

MODEL NAD C558
Nominal speed 33/45 rpm, manual speed change (78 rpm possible with special pulley)
Speed variance 33rpm: ± < 0.50%, 45rpm: ± < 0.45%
Wow and utter 33rpm: ± < 0.15%, 45rpm: ± < 0.15%
Signal to noise S/N Ratio (mechanical noise): - 40 dB S/N Ration (electrical noise): -68 dB
Downforce range 0 - 30 mN
0 - 3.0 grams
Supplied counterweight system Counterweight (black) for cartridges 5 - 12 g
Eective tonearm mass 9.5 g
Eective tonearm length 230 mm
Overhang 18 mm
Power consumption 5 W max/ 0.3W standby
Voltage Universal swith mode power supply 15V DC/0,8 A, 100-240 V AC, 47 - 63Hz
Dimensions (W x H x D) 435 x 340 x 125mm
Weight (without box) 5,5 kg (turntable)
1,74 kg (platter)
Weight (with box) 8 kg
ORTOFON OM 10 CARTRIDGE TECHNICAL DATA
Frequency range 20-22.000Hz
Channel separation 22dB/1kHz
Output voltage 4mV
Recommended load impedance 47kohms/amplier connection – MM-input
Compliance/stylus type 20µm/mN – elliptical
Recommended tracking force 15mN
Weight 5g
REFERENCE
SPECIFICATIONS
10
