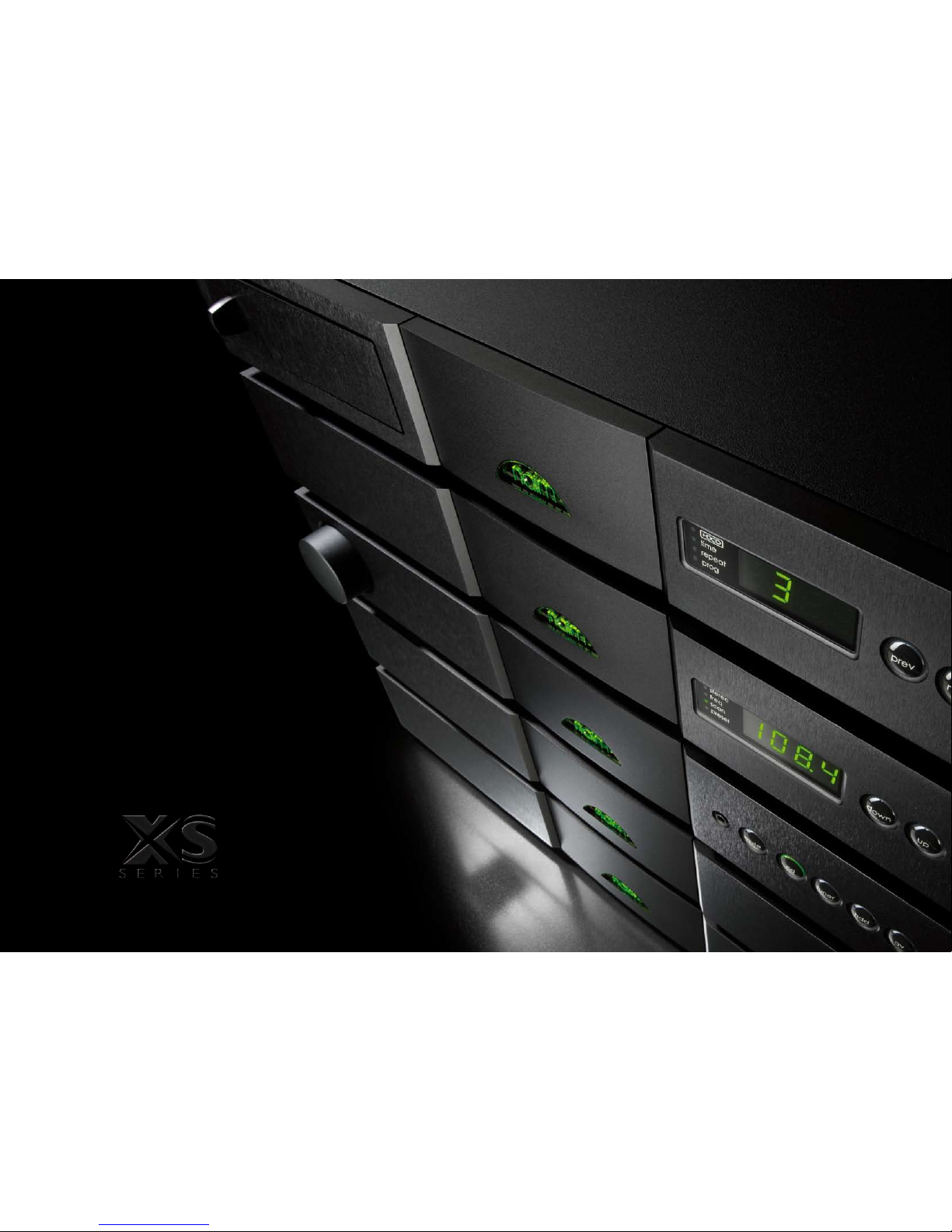

The XS Series represents so much more than evolution. Behind
their brushed and anodised aluminium fascias, XS Series products
embody radical and innovative audio engineering that builds on Naim’s
previous slimline X Series to take performance to yet greater heights.
The XS Series comprises a CD player, FM tuner, integrated amplifier,
preamplifier, power amplifier and power supply, each one refined and
polished to offer flawless system matching and matchless performance.

CD5 XS CD Player
The CD5 XS CD player has probably seen the most changes on the journey from its CD5x predecessor. Almost every
element, with the exception of the mains transformer and the disc mechanism, is new or significantly revised. Fundamental
elements including critical analogue circuitry have been updated to extract yet more music from every CD. Also new in the
CD5 XS is the inclusion, for the first time on a Naim CD player, of a transformer-coupled digital output that provides the
choice of digital or analogue signal output.
Improving on the award winning CD5x was a tough ask, but through scrutiny and refinement of every last engineering
detail, the class-leading Naim CD5 XS delivers newly dramatic and vibrant music.
NAT05 XS FM Tuner
Apart from the benchmark and matchless ALPS high performance tuner head, the NAT05 XS tuner is a completely new
design. The tuner head is compliantly mounted within the aluminium casework and feeds analogue circuitry that benefits
enormously from Naim analogue know-how. FM remains the medium for the highest quality radio transmissions and the
NAT05 XS is optimised to exploit FM like no other tuner. And if you want more, the NAT05 XS can be enhanced further
through the simple addition of an external FlatCap XS power supply.
NAP 155 XS Power Amplifier
The NAP 155 XS is the perfect companion to the NAC 152 XS preamplifier in an XS system. It features a very large mains
transformer – both physically and in terms of its power rating – and at the heart of its power supply uses the same reservoir
capacitors as the award-winning SUPERNAIT integrated amplifier. The NAP 155 XS employs similar construction techniques
to the NAIT XS integrated amplifier with a castellated heatsink and reduced earth reference routing to deliver enhanced
performance and more music. The NAP 155 XS is a power amplifier straight out of the classic Naim mould: fast, detailed,
dynamic and single-mindedly musical.
FlatCap XS Power Supply
The FlatCap XS is a dual-rail power supply that, either alone or in pairs, provides the most effective means to extract the
ultimate performance from an XS system. One FlatCap XS can be used to enhance the performance of a CD5 XS and a
NAT05 XS, while a second could be deployed to supercharge the performance of the NAC 152 XS preamplifier. The vital role
played by the power supply in any hi-fi system is a long held Naim conviction and it has no better demonstration than the
increased musical fluency that the FlatCap XS brings to a system.
System Configurations
CD5 XS
NAT05 XS
NAIT XS
FlatCap XS
The CD5 XS, NAT05 XS and NAIT XS deliver
the finest CD and radio sound you will
experience from a compact system, albeit one
that effectively represents the first rung on the
ladder towards super-performance separates.
The capabilities of this potent trio can easily
be enhanced with the addition of a FlatCap XS
power supply, and extended further by moving
into the separates systems featured below,
with the NAP 155 XS power amplifier and
NAC 152 XS preamplifier combination.
Integrated System
Core System Upgrade Path
Bring together a NAC 152 XS
preamplifier, a NAP 155 XS power
amplifier and a CD5 XS CD player for a
stunning CD replay system. Make it even
better with a FlatCap XS powering the
CD player and the preamplifier.
CD5 XS
NAT05 XS
NAC 152 XS
NAP 155 XS
FlatCap XS
CD Separates System Core System Upgrade Path
A NAT05 XS with a NAC 152 XS and NAP
155 XS is the ultimate FM radio. Add a
FlatCap XS for the preamplifier and the
tuner, and radio has never sounded better.
CD5 XS
NAT05 XS
NAC 152 XS
NAP 155 XS
FlatCap XS
Tuner Separates System Core System Upgrade Path
CD5 XS
NAT05 XS
NAC 152 XS
NAP 155 XS
FlatCap XS
The complete XS system of CD5 XS and
NAT05 XS, NAC 152 XS and NAP 155 XS
defines brilliant music making. Adding a
single FlatCap XS, which can power one
or two components, upgrades the internal
power supplies of the CD player, the tuner or
the preamplifier, making your system shine
even brighter. The system’s performance
can be further enhanced with the addition of
a second or even a third FlatCap XS, each
powering one component.
Complete Separates System
Core System Upgrade Path
NAC 152 XS Preamplifier
When a separate preamplifier/power amplifier approach is preferred, the NAC 152 XS provides the perfect option. It was
conceived around a completely new motherboard design that incorporates advances of both analogue electronics and
mechanical decoupling, and its performance is detailed, refined and utterly musical. Versatility is a NAC 152 XS forté too. Its
six analogue inputs all offer DIN or phono connection options and it incorporates a front-mounted, auto-switching input socket
for convenient MP3 player use. Power output for a Naim phono preamplifier is also included and a two-stage power supply
upgrade regime brings true high-end preamplifier performance easily within reach.
NAIT XS Integrated Amplifier
The NAIT XS takes the DNA of our best ever integrated amplifier, the SUPERNAIT, and, like a sports car stripped back to
essentials for the track, delivers musical performance that truly inspires. The 60 watts per channel power amplifier section is a
dynamic, fast acting musical muscle with an uncanny talent for bringing speakers to life. And the preamplifier section provides
all the musical clarity and detail you could wish for. The NAIT XS is versatile thanks to six analogue line inputs on a mix of DIN
and phono sockets, a phono preamplifier power supply output, and a front panel mounted auto-switching mini-jack. Like the
rest of the XS Series, the NAIT XS is genuine high-end hi-fi brought within reach.

Specifications
AUDIO OUTPUTS
Audio Outputs: Analogue via DIN & RCA. S/PDIF Digital via 75ΩBNC
Line Output Fixed: 2.1V rms at 1kHz
Maximum Load Impedance: Infinite
Minimum Load Impedance: 10kΩ
Frequency Response: 10Hz – 20kHz + 0.1dB – 0.5 dB
Digital Outputs: S/PDIF via 75ΩBNC
THD: <0.1% 10Hz – 18kHz at full level
Signal to Noise Ratio: >80dB
Phase Response: Absolute phase correct
CONTROL
Remote Input: 3.5mm rear panel jack (modulated/demodulated
RC5 system)
RS232: Optional Naim RS232 board
IR Remote (handheld): NARCOM 4
FORMATS
CD Formats: Red Book
Disc Compatibility: CD, CD-R
POWER
Supply Voltage: 100-120V, 220-240V, 50 to 60Hz
Power Consumption: 30VA
PHYSICAL
Dimensions (mm): 432 x 301 x 70 (W x D x H)
Weight: 6kg
Shipping Weight: 8.4kg
Shipping Dimensions (mm): 580 x 500 x 200 (W x D x H)
Colour: Black
Finish: Anodised fascia, painted cover
CD5 XS
AUDIO OUTPUTS
DC Outputs: 2 x 24V Dual Rail
POWER
Mains Supply: 100-120V, 220-240V, 50 to 60Hz
PHYSICAL
Dimensions (mm): 432 x 301 x 70 (W x D x H)
Weight: 5.5kg
Shipping Weight: 7.5kg
Shipping Dimensions (mm): 580 x 500 x 200 (W x D x H)
Colour: Black
Finish: Anodised fascia, painted cover
FlatCap XS
AUDIO OUTPUTS
Audio Outputs: Analogue via DIN and RCA
Line Output Fixed: 600mV at 100% modulation
Maximum Load Impedance: Infinite
Minimum Load Impedance: 10kΩ
Frequency Response: -0.5dB at 12Hz, -3dB at 15kHz
THD: <0.8%
Signal to Noise Ratio: 67dB at 1mV RF input level
CONTROL
Remote Input: 3.5mm rear panel jack (modulated/demodulated
RC5 system)
IR Remote (handheld): NARCOM 4
POWER
Supply Voltage: 100-120V, 220-240V, 50 to 60Hz
Power Consumption: 15VA
PHYSICAL
Dimensions (mm): 432 x 301 x 70 (W x D x H)
Weight: 5.5kg
Shipping Weight: 7.85kg
Shipping Dimensions (mm): 580 x 500 x 200 (W x D x H)
Colour: Black
Finish: Anodised fascia, painted cover
NAT05 XS
AUDIO OUTPUTS
Audio Outputs: Preamp, line level and variable level sub
Maximum Load Impedance: Infinite
Minimum Load Impedance: 10kΩ
Frequency Response: 4Hz – 40kHz
THD: 0.042% THD+N @1kHz, 2Vin, 0.775V out
Signal to Noise Ratio: 67dB @ 0.775V
Phase Response: Absolute phase correct
Preamp Output: 0.775V, <50Ω
Line Output: 130mV, 600Ω
Sub Output: 0.775V, <150Ω
CONTROL
Remote Input: 3.5mm rear panel jack (modulated/demodulated
RC5 system)
RS232: Optional Naim RS232 board
IR Remote (handheld): NARCOM 4
POWER
Supply Voltage: +24V
PHYSICAL
Dimensions (mm): 432 x 301 x 70 (W x D x H)
Weight: 3.8kg
Shipping Weight: 6.4kg
Shipping Dimensions (mm): 580 x 500 x 200 (W x D x H)
Colour: Black
Finish: Anodised fascia, painted cover
NAC 152 XS
NAP 155 XS
AUDIO OUTPUTS
Audio Outputs: Speakers
Power Output: 60W per channel into 8Ω, 90W per channel into 4Ω
Voltage Gain: +29dB
Minimum Load Impedance: 2Ω
Frequency Response: 4Hz – 75kHz
THD: 0.013%
Signal to Noise Ratio: 100dB
Phase Response: Absolute phase correct
POWER
Supply Voltage: 100-120V, 220-240V, 50 to 60Hz
Power Consumption: Max 330VA
Quiescent Power Consumption: 16VA
PHYSICAL
Dimensions (mm): 432 x 301 x 70 (W x D x H)
Weight: 7.9kg
Shipping Weight: 10.5kg
Shipping Dimensions (mm): 580 x 500 x 200 (W x D x H)
Colour: Black
Finish: Anodised fascia, painted cover
NAIT XS
AUDIO OUTPUTS
Audio Outputs: Speakers, preamp and variable sub
Power Output: 60W per channel into 8Ω, 90W per channel into 4Ω
Tape Output Level: 130mV at 600Ω
INPUTS
Analogue Inputs: 6 DIN and RCA on rear plus 3.5mm jack on front
Input Overload: 34dB
Input Sensitivity: 130mV at 47kΩ
CONTROL
Remote Input: 3.5mm rear panel jack (modulated/demodulated
RC5 system)
RS232: Optional Naim RS232 board
IR Remote (handheld): NARCOM 4
POWER
Supply Voltage: 100-120V, 220-240V, 50 to 60Hz
Power Consumption: Max 290VA
Quiescent Power Consumption: 20VA
PHYSICAL
Dimensions (mm): 432 x 301 x 70 (W x D x H)
Weight: 8.6kg
Shipping Weight: 11.4kg
Shipping Dimensions (mm): 580 x 500 x 200 (W x D x H)
Colour: Black
Finish: Anodised fascia, painted cover
