Nakamichi NA1610s User manual

NA1610s
AV Media Receiver
User Manual
Enjoy the Lifestyle of In-Car Entertainment
All manuals and user guides at all-guides.com
all-guides.com

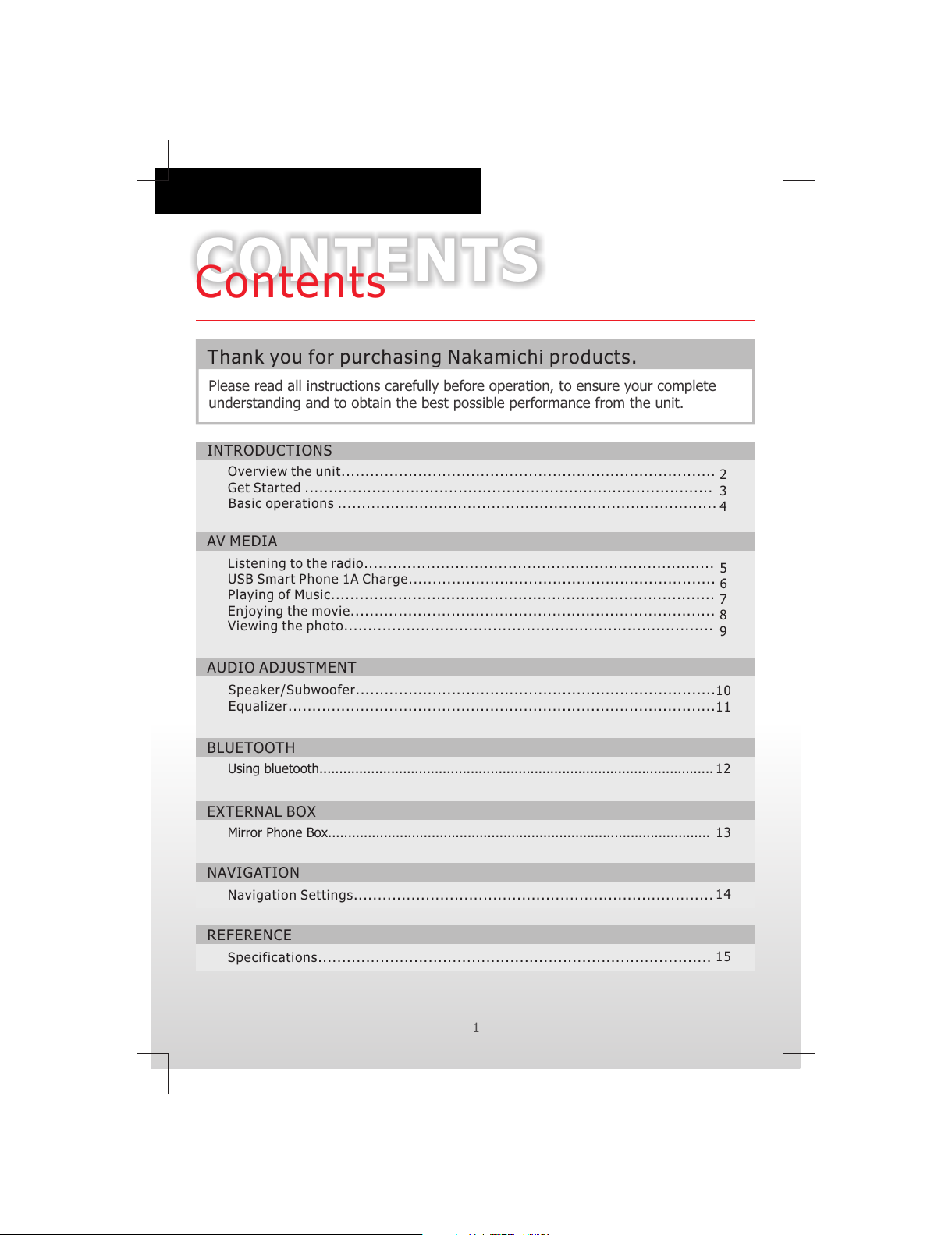

CONTENTS
Please read all instructions carefully before operation, to ensure your complete
understanding and to obtain the best possible performance from the unit.
1
Thank you for purchasing Nakamichi products.
INTRODUCTIONS
..............................................................................
.....................................................................................
Overview the unit
Get Started 2
3
4
AV MEDIA
Listening to the radio.........................................................................
USB Smart Phone 1A Charge................................................................
Playing of Music................................................................................
Enjoying the movie............................................................................ 7
8
9
AUDIO ADJUSTMENT
Speaker/Subwoofer .
Equalizer.........................................................................................
..........................................................................
Mirror Phone Box.................................................................. ..............................
EXTERNAL BOX
NAVIGATION
REFERENCE
Navigation Settings...........................................................................
Specifications..................................................................................
10
11
13
14
15
Basic operations ...............................................................................
Viewing the photo.............................................................................
BLUETOOTH
Using bluetooth................................................................................................... 12
5
6
Contents
All manuals and user guides at all-guides.com

Power
Mute
Dimmer
List browser
Home
Confirm
Up/Down
Tune for radio station
Skip/search for track
Fast backward/forward playback
Adjust the function
Volume level
Return/Exit
Setting menu
EQ mode
iX-BASS (booster function)
Dynamic bass boost sound
DVD playback control
Radio band
play/Pause
2
INTRODUCTIONS
Overview the unit
Increase
Volume
Decrease
Volume
Eject
Reset
Reset
USB
Socket
Aux In
Socket
Power
Navigation
Hold:
Hold:
Mute
Home
Press:
Press:
Mic
GPS Map
Card
Socket
All manuals and user guides at all-guides.com

INTRODUCTIONS
Get started
Please select the suitable Language & country/region for this unit,
otherwirse the unit can not work properly.
Initial Se ttings
Radio Area Latin
Europe
USA
Russia
OK
2. Tap to select suitable a language
1. Press this button to power On the unit, The available OSD are displayed.
3. Tap to select suitable a country
/region
4. Tap OK button to confirm
Initial Se ttings
Radio Area Latin
Europe
USA
Russia
OK
3
All manuals and user guides at all-guides.com

INTRODUCTIONS
Basic operations
4
Access to Setup Menu Access to system settings Access to General settings
Adjust the dimmer level Audio Control
PM
02 34
PM
2013 FEB 23
Access to CLOCK
B A S SB A S S
EQ
Access to HOME
GPS
Tap to MUTE
All manuals and user guides at all-guides.com

AV MEDIA

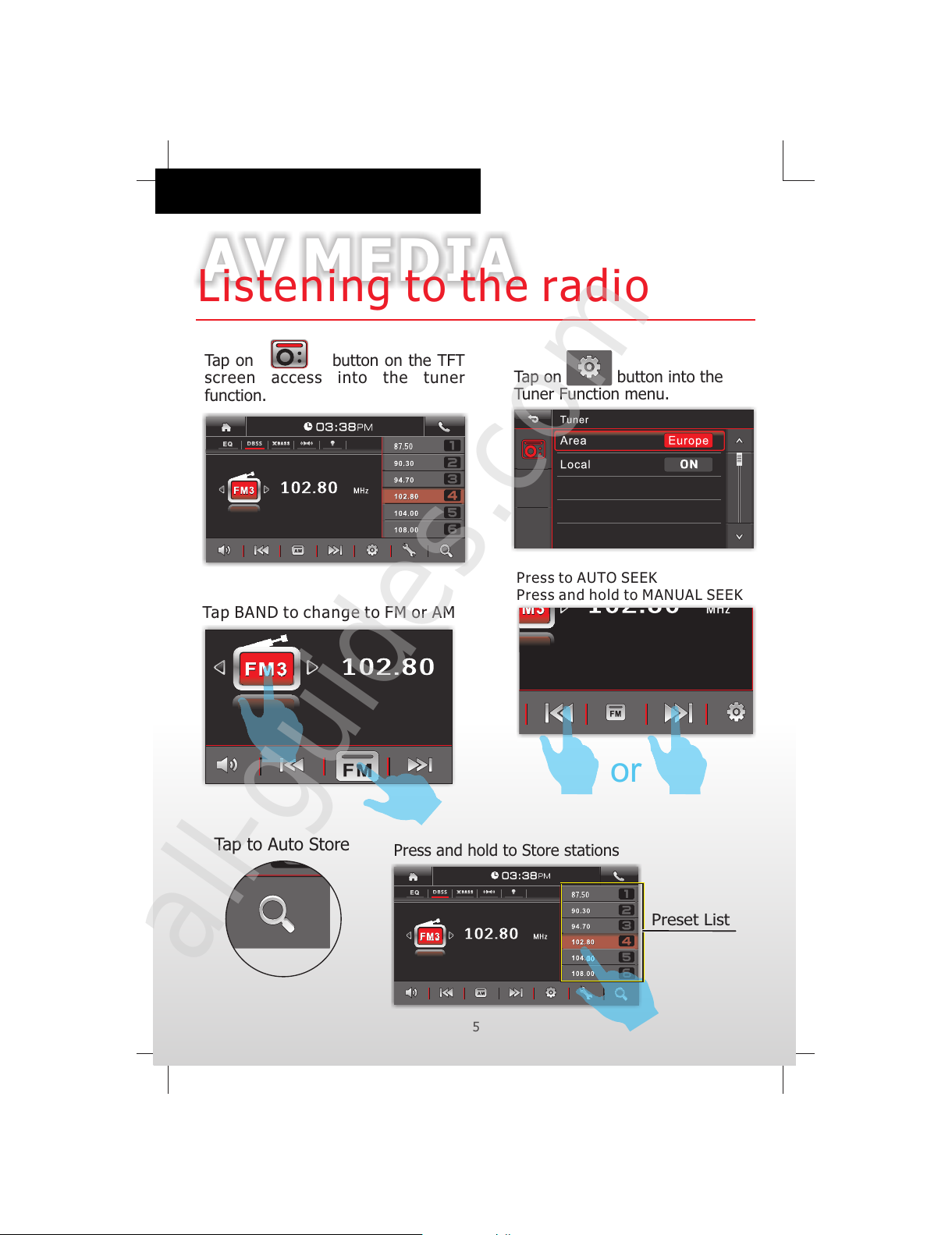

Listening to the radio
Tap BAND to change to FM or AM
Tap on button on the TFT
screen access into the tuner
function.
Tap on button into the
Tuner Function menu.
or
Press and hold to MANUAL SEEK
Press to AUTO SEEK
Tap to Auto Store Press and hold to Store stations
Preset List
5
All manuals and user guides at all-guides.com
all-guides.com

Adjust the different REPEAT mode
AV MEDIA

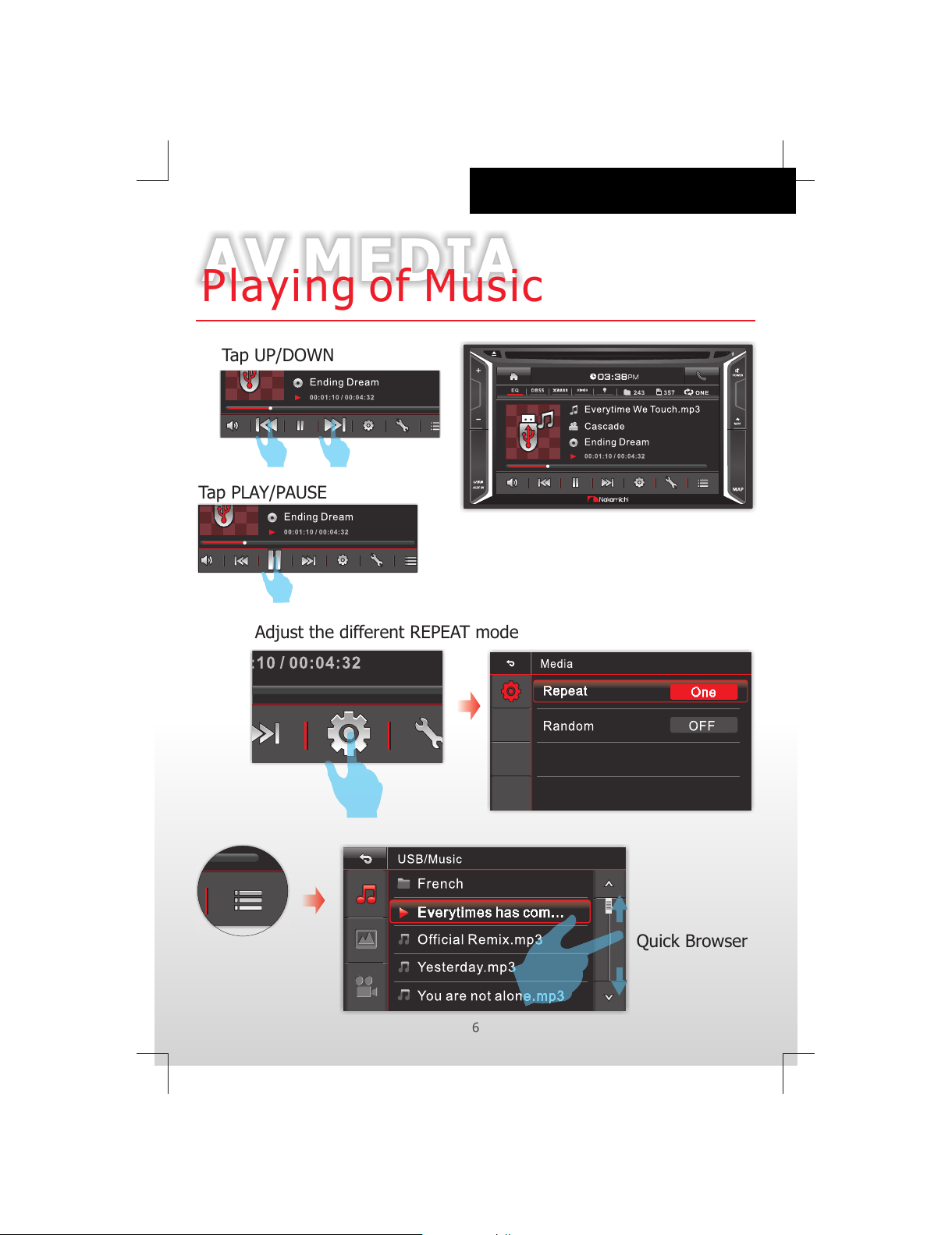

Playing of Music
6
Quick Browser
Tap UP/DOWN
Tap PLAY/PAUSE
All manuals and user guides at all-guides.com

9
AV MEDIA
USB Smart Phone 1A Charge
This unit can support USB Samrt Phone 1A Charge.
Open the USB Socket cover to left.
Insert the iPhone or Smart Phone device into the USB socket.
Once is recognized, the iPhone or Smart Phone begins to charge.
TIPS 1. The device only can charge Phones, but cannot play or
decode music files stores inside the Smart Phones.
2. Connect the desire playback device USB to the USB
socket, access to the HOME, then tap the to start
playback mode.
7
USB Cable (Not included)
Andriod iPhone
USB Cable (Not included)
All manuals and user guides at all-guides.com

AV MEDIA
Enjoying the movie
Change function bar
8
Select the audio type. (For DVD-VR: the audio channel)Select
Top Menu or Browser
Previous, Pause / Next Play,
DVD
1/2
Pause
T:2/5 C:1/20
00:01:10 / 00:04:32
Media function menu.
access to system menu
GOTOGOTO Access into the search mode (DVD only).
Repeat playback mode
Up/Down/Left/Right
Zoom the video & photo
Select aspect ratio
Home menu
All manuals and user guides at all-guides.com

AV MEDIA
9
Viewing the photo
Move left the zooming frame
Move up the zooming frame
Move down the zooming frame
Move right the zooming frame
2/2
1/20
1/2
1/20
Change function bar
Top Menu or Browser
Zoom the photo
All manuals and user guides at all-guides.com

AUDIO ADJUSTMENT

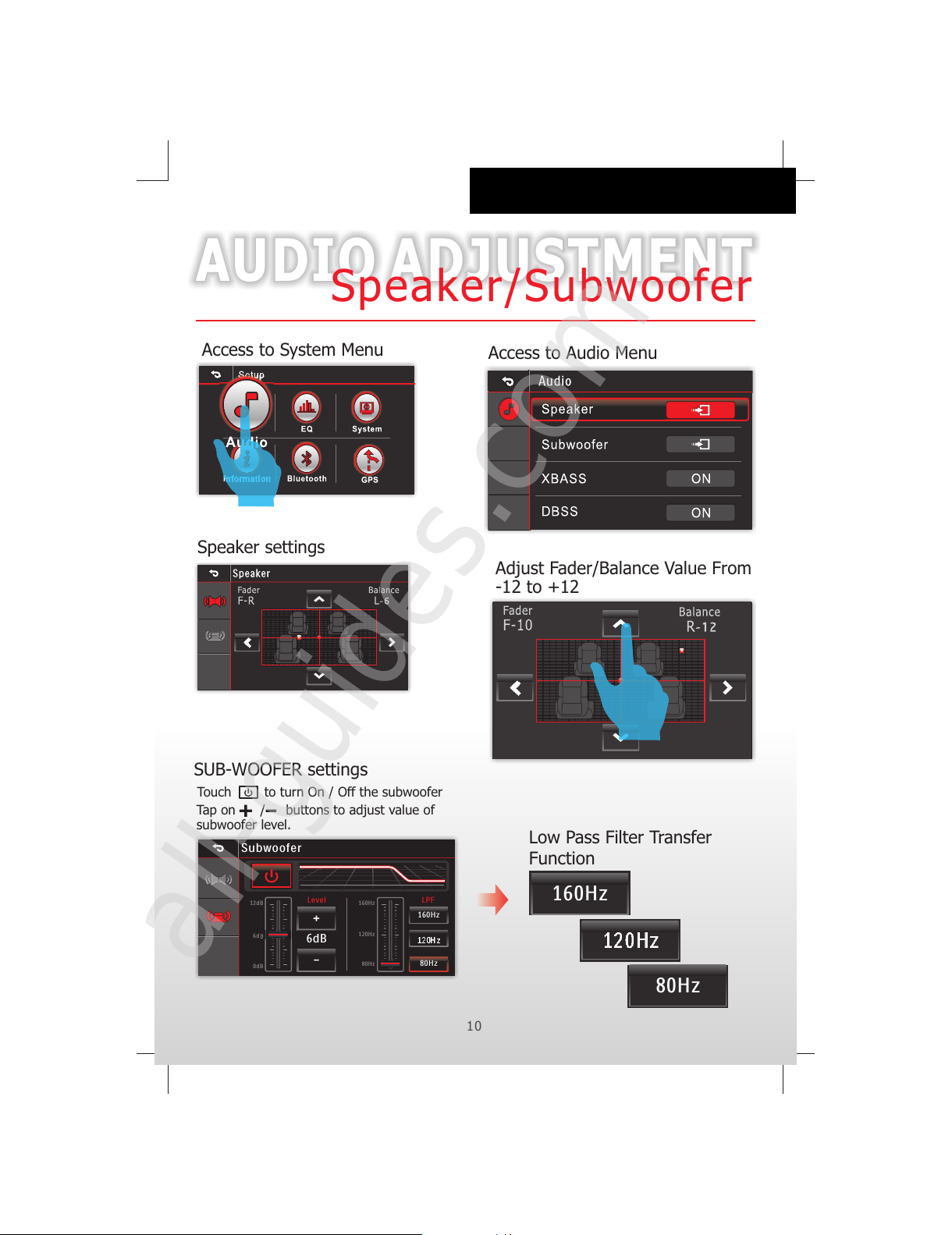

Speaker/Subwoofer
Speaker settings
Adjust Fader/Balance Value From
-12 to +12
Access to Audio Menu
Access to System Menu
10
80Hz
Touch to turn On / Off the subwoofer
Tap on / buttons to adjust value of
subwoofer level.
SUB-WOOFER settings
Low Pass Filter Transfer
Function
160Hz
120Hz
0dB 80Hz
80Hz
Subwoofer
Level
6dB
12dB LPF
160Hz
160Hz
120Hz
120Hz
6dB
All manuals and user guides at all-guides.com
all-guides.com

11
6 Preset EQUALIZER
AUDIO ADJUSTMENT

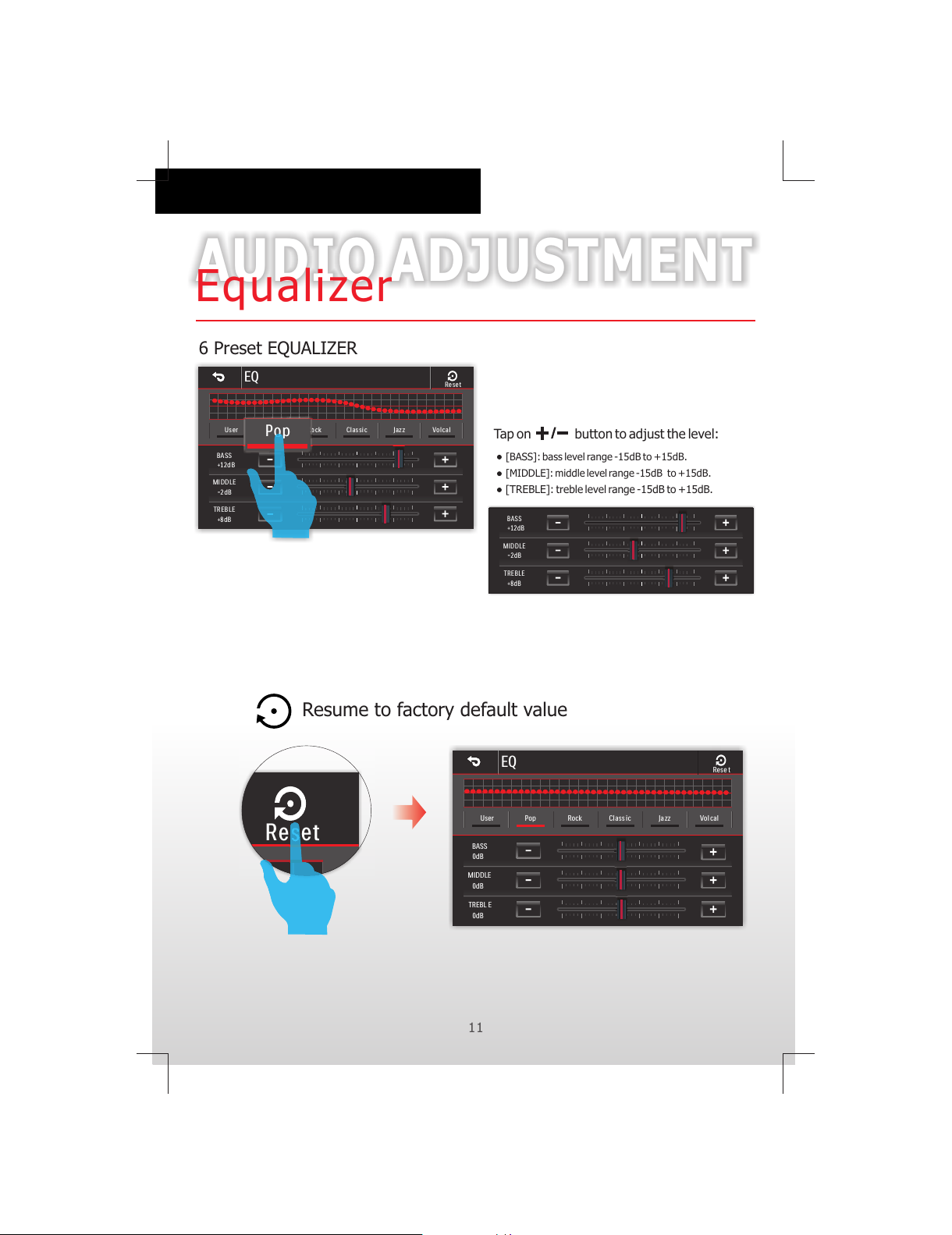

Equalizer
Resume to factory default value
Tap on button to adjust the level:
[BASS]: bass level range -15dB to +15dB.
[MIDDLE]: middle level range -15dB to +15dB.
[TREBLE]: treble level range -15dB to +15dB.
Reset
BASS
+12dB
MID DLE
-2dB
TREBLE
+8dB
EQ
BASS
0dB
MIDDLE
0dB
TREBL E
0dB
User Pop Rock Cl ass ic Ja zz Vol cal
Rese t
EQ
BASS
+12dB
MIDDLE
-2dB
TREBLE
+8dB
User Pop Ro ck Cl assic Jaz z Volcal
Reset
Pop
All manuals and user guides at all-guides.com

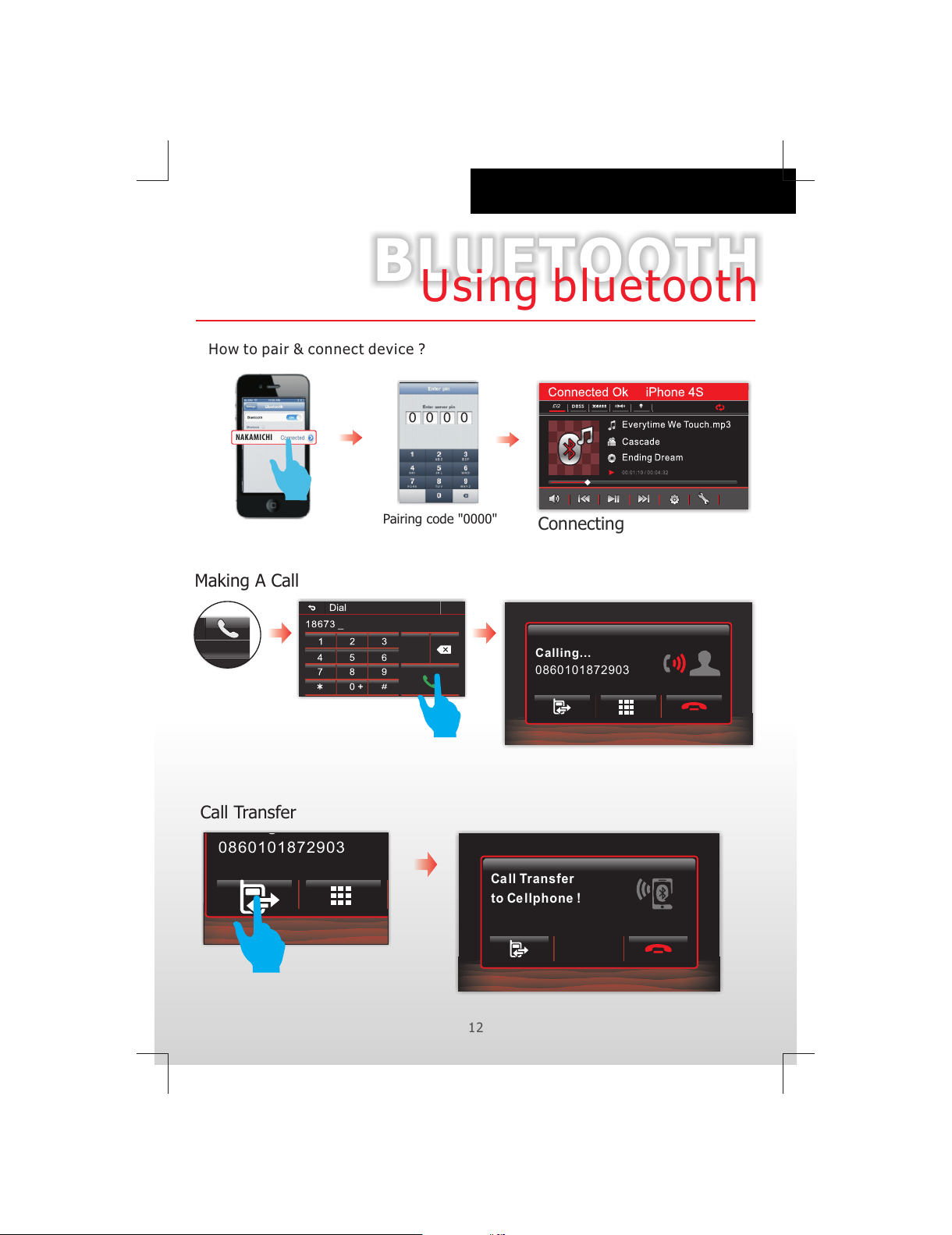

BLUETOOTH
12
Using bluetooth
Pairing code "0000"
How to pair & connect device ?
Making A Call
NAKAMICHI
Call Transfer
to Cellphone !
Call Transfer
Connecting
Calling...
0860101872903
0 0 0 0
Calling...
0860101872903
All manuals and user guides at all-guides.com

External Box
Mirror Phone Box
13
This model supports MIRROR PHONE BOX function, It can mirror your smart phone screen
to CarMirror-AV system instantly.
It can also support 2-way control between your smart phone & CarMirror-AV system after
the free CarMirror app is downloaded & installed.
Press the “ ” button on the smart phone, and the virtual control buttons for the
Car-AV system will pop up automatically.
Virtual Buttons:
Mirroring 2-Way Control
After installing the free app of CarMirror
from Google Play Store, you can
and vice versa.
operate your
Smart Phone directly on the CarMirror-AV
system screen
As long as the Box is connected,
it can project your smart phone
screen to the display panel of the CarMirror-
AV system smoothly.
Mirror Phone
or "MIRROR"
Smart phone “Menu” button
Smart phone “Home” button
Smart phone “Return” button
EXT
BOX
Mirror
13
TIPS
1. Access to HOME, tap to active the Mirror Phone Box function.
2.
This only available when an external mirror box(not supplied) is
connected with the system.
3. 1-way control for some smart phones are not using Android system.
(eg: iPhone，Blackberry etc.)
function
EXT
BOX
All manuals and user guides at all-guides.com

GPS GPS
NAVIGATION
14

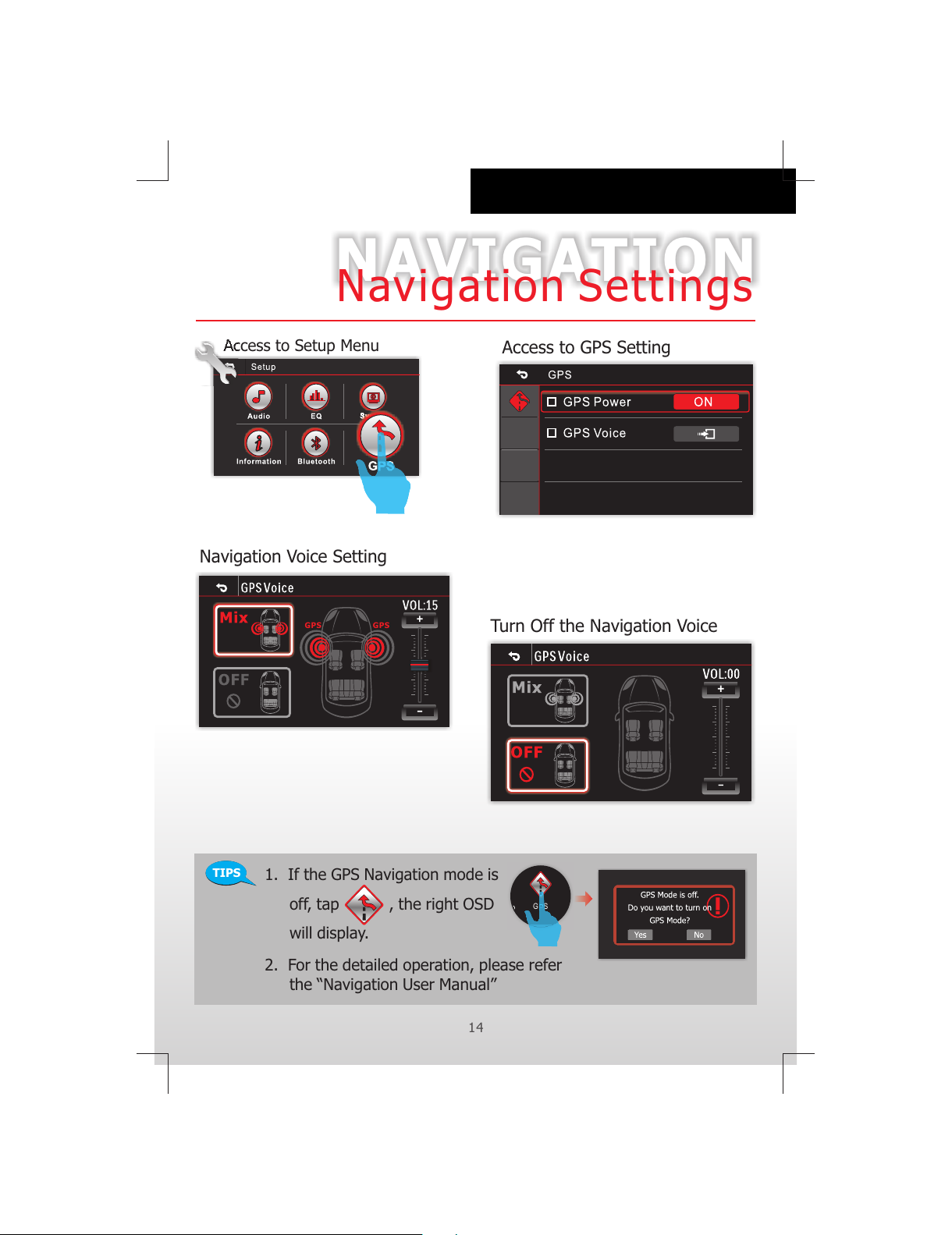

Navigation Settings
TIPS 1. If the GPS Navigation mode is
off, tap , the right OSD
will display.
GPS
Access to Setup Menu Access to GPS Setting
Navigation Voice Setting
Turn Off the Navigation Voice
2.
the “Navigation User Manual”
For the detailed operation, please refer
All manuals and user guides at all-guides.com

15
REFERENCE

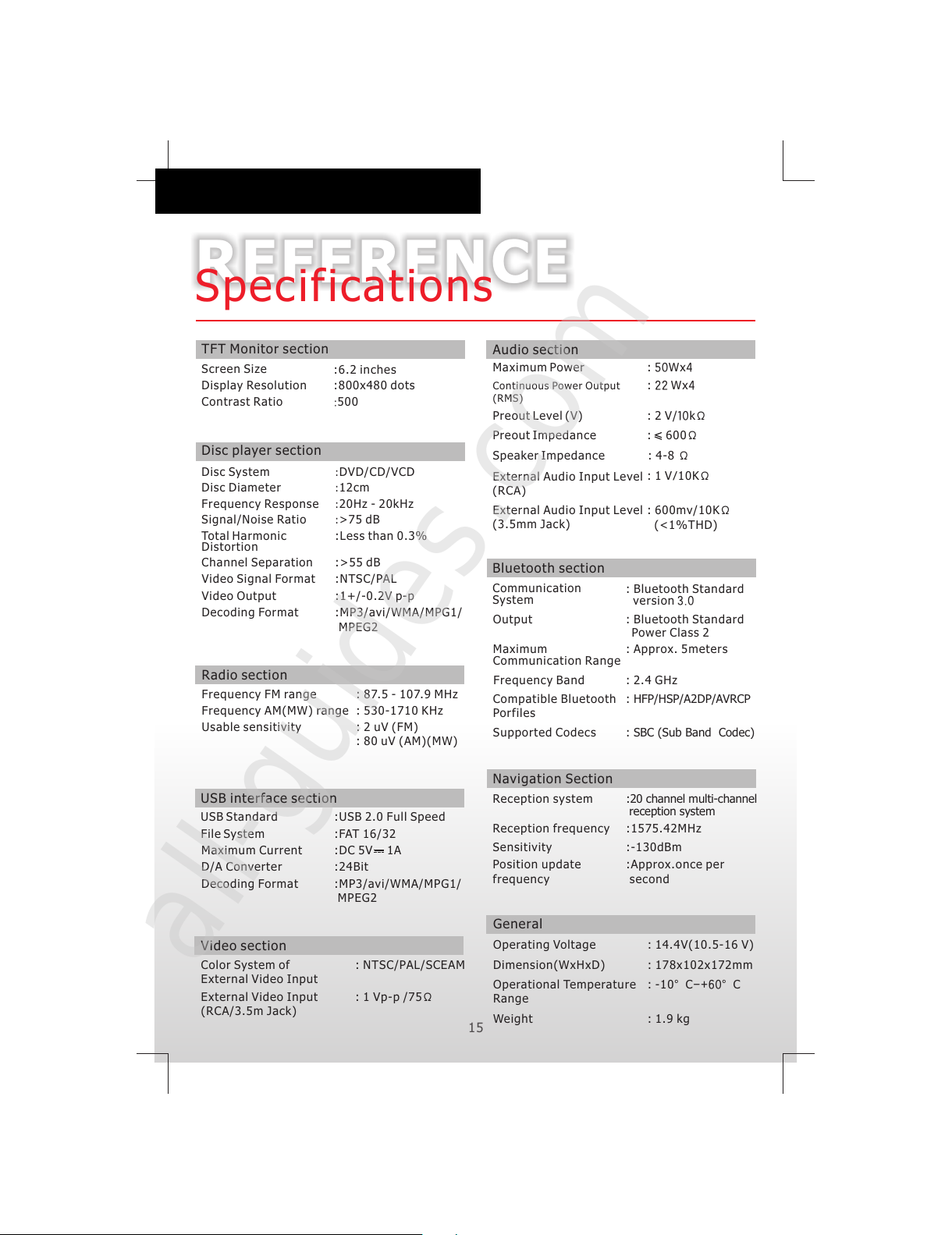

Specifications
TFT Monitor section
Screen Size
Display Resolution :800x480 dots
Contrast Ratio :500
Disc System :DVD/CD/VCD
Disc Diameter :12cm
Frequency Response :20Hz - 20kHz
Signal/Noise Ratio :>75 dB
:Less than 0.3%Total Harmonic
Distortion
Channel Separation :>55 dB
Video Signal Format :NTSC/PAL
Video Output
Decoding Format
:1+/-0.2V p-p
:
MPEG2
MP3/avi/WMA/MPG1/
USB interface section
USB Standard :USB 2.0 Full Speed
File System :FAT 16/32
Maximum
Current :DC 5V 1A
D/A Converter :24Bit
Navigation Section
Reception system
Reception frequency
Bluetooth section
: Bluetooth Standard
version 3.0
Communication
System
Output : Bluetooth Standard
Power Class 2
: Approx. 5meters
Maximum
Communication Range
Frequency Band : 2.4 GHz
: HFP/HSP/A2DP/AVRCP
Compatible
Porfiles
Bluetooth
: SBC (Sub Band Codec) Supported Codecs
Radio section
Frequency FM range : 87.5 - 107.9 MHz
Frequency AM(MW) range : 530-1710 KHz
Usable sensitivity : 2 uV ( )FM
: 80 uV (AM)(MW)
Video section
Color System of
External Video Input
: NTSC/PAL/SCEAM
External Video Input
(RCA/3.5m Jack)
: 1 Vp-p /75Ω
External Audio Input Level
(RCA)
: 1 V/10KΩ
Audio section
Maximum Power : 50Wx4
Continuous Power Output
(RMS)
: 22 Wx4
Preout Level (V) : 2 V/10kΩ
Preout Impedance : 600Ω
Speaker Impedance : 4-8 Ω
General
Operating Voltage : 14.4V(10.5-16 V)
Dimension(WxHxD) : 178x102x172mm
Operational Temperature
Range
: -10°C-+60°C
Weight : 1.9 kg
Disc player section
:6.2 inches
:20 channel multi-channel
reception system
:1575.42MHz
:
(<1%THD)
600mv/10KΩExternal Audio Input Level
(3.5mm Jack)
Sensitivity :-130dBm
Decoding Format :
MPEG2
MP3/avi/WMA/MPG1/
Position update
frequency
:
second
Approx.once per
All manuals and user guides at all-guides.com
all-guides.com

C2015 Nakamichi
Design and specifications are subject to change
without notice
www.nakamichicaraudio.com
All manuals and user guides at all-guides.com

NA1610s
Receptor de Multimedia
de Audio/Vídeo
Manual del Usuario
Disfrute del estilo de vida de Entretenimiento en su vehículo
All manuals and user guides at all-guides.com

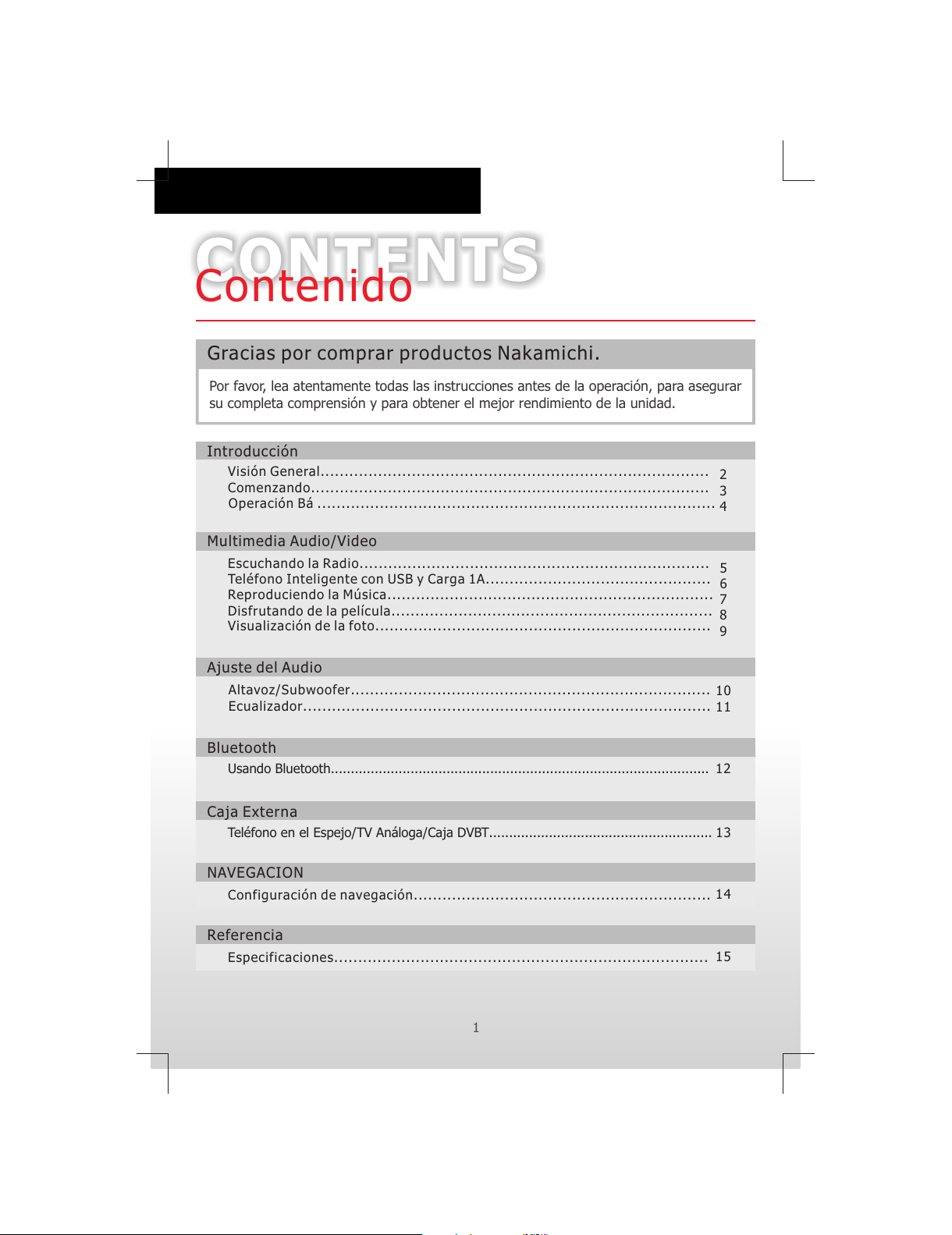

CONTENTS
Contenido
Por favor, lea atentamente todas las instrucciones antes de la operación, para asegurar
su completa comprensión y para obtener el mejor rendimiento de la unidad.
1
Gracias por comprar productos Nakamichi.
Introducción
.................................................................................
Comenzando...................................................................................
Visión General 2
3
4
Multimedia Audio/Video
Escuchando la Radio
Teléfono Inteligente con USB y Carga 1A...............................................
Reproduciendo la Música....................................................................
Disfrutando de la película...................................................................
.........................................................................
7
8
9
Ajuste del Audio
Altavoz/Subwoofer...........................................................................
Ecualizador.....................................................................................
Teléfono en el Espejo/TV Análoga/Caja DVBT........................................................
Caja Externa
NAVEGACION
Referencia
Configuración de navegación ..............................................................
Especificaciones ..............................................................................
10
11
13
14
15
Operación Bá ...................................................................................
Visualización de la foto......................................................................
Bluetooth
Usando Bluetooth ............................................................................................... 12
5
6
All manuals and user guides at all-guides.com

Potencia
Silencio
Atenuador
Lista del Navegador
Home
Cofirmar
Arriba/Abajo
Sintonizando una Estación de Radio
Ajuste de la función
Nivel de Volumen
Retroceder/Salir
Configuración del Menú
Modo de EQ
iX-BASS (función de refuerzo)
Sonido dinámico del Refuerzo de
graves
Control de la reproducción de DVD
Banda de Radio
Reproducir/Pausa
2

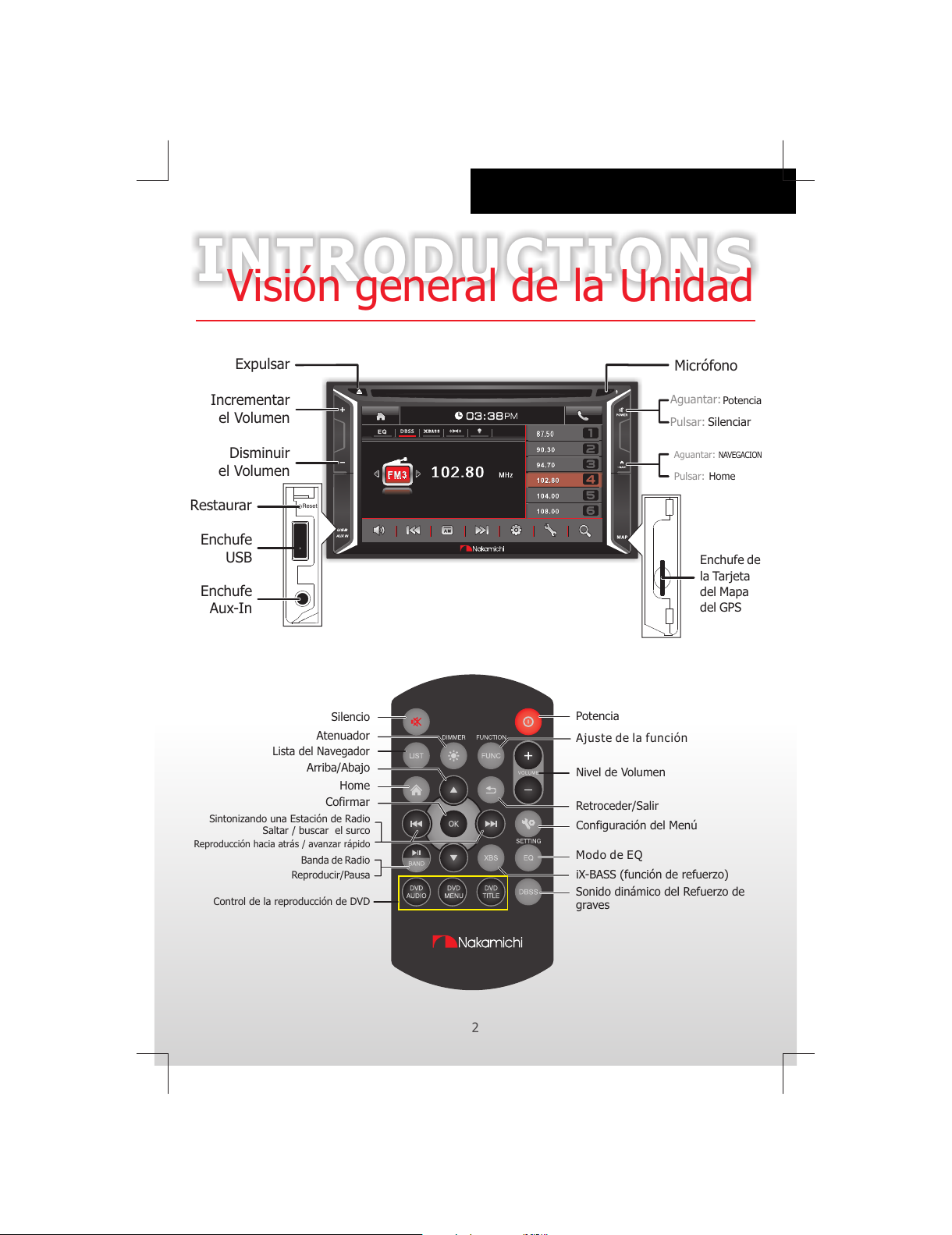

INTRODUCTIONS
Visión general de la Unidad
Incrementar
el Volumen
Disminuir
el Volumen
Expulsar
Reset
Restaurar
Enchufe
USB
Enchufe
Aux-In
Potencia
NAVEGACION
Aguantar:
Aguantar:
Silenciar
Pulsar:
Home
Pulsar:
Micrófono
Enchufe de
la Tarjeta
del Mapa
del GPS
Saltar / buscar el surco
Reproducción hacia atrás / avanzar rápido
All manuals and user guides at all-guides.com
