Please read all instructions carefully before operation, to ensure your
complete understanding and to obtain the best possible performance
from the unit.
1
Thank you for purchasing a Nakamichi products.
INTRODUCTIONS
View demo before first use..................................................................
Overview the unit..............................................................................
Basic operations................................................................................
2
3
4
AV MEDIA
Listening to the radio.........................................................................
Playing the music..............................................................................
Enjoying the movie............................................................................
Viewing the photo..............................................................................
Sharing your iPod/iPhone....................................................................
5
6
7
8
9
BLUETOOTH
Using bluetooth............................................................................... 10

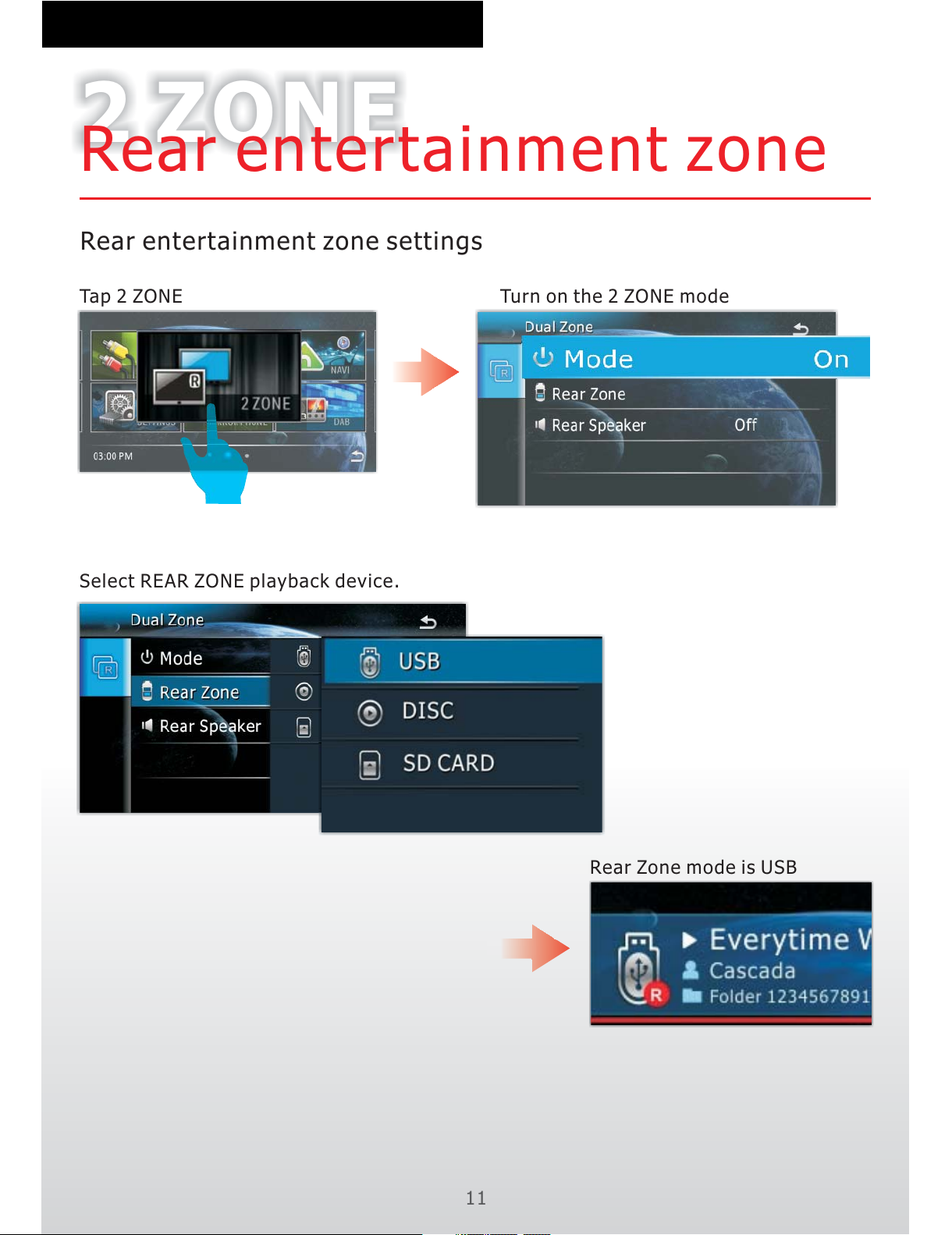

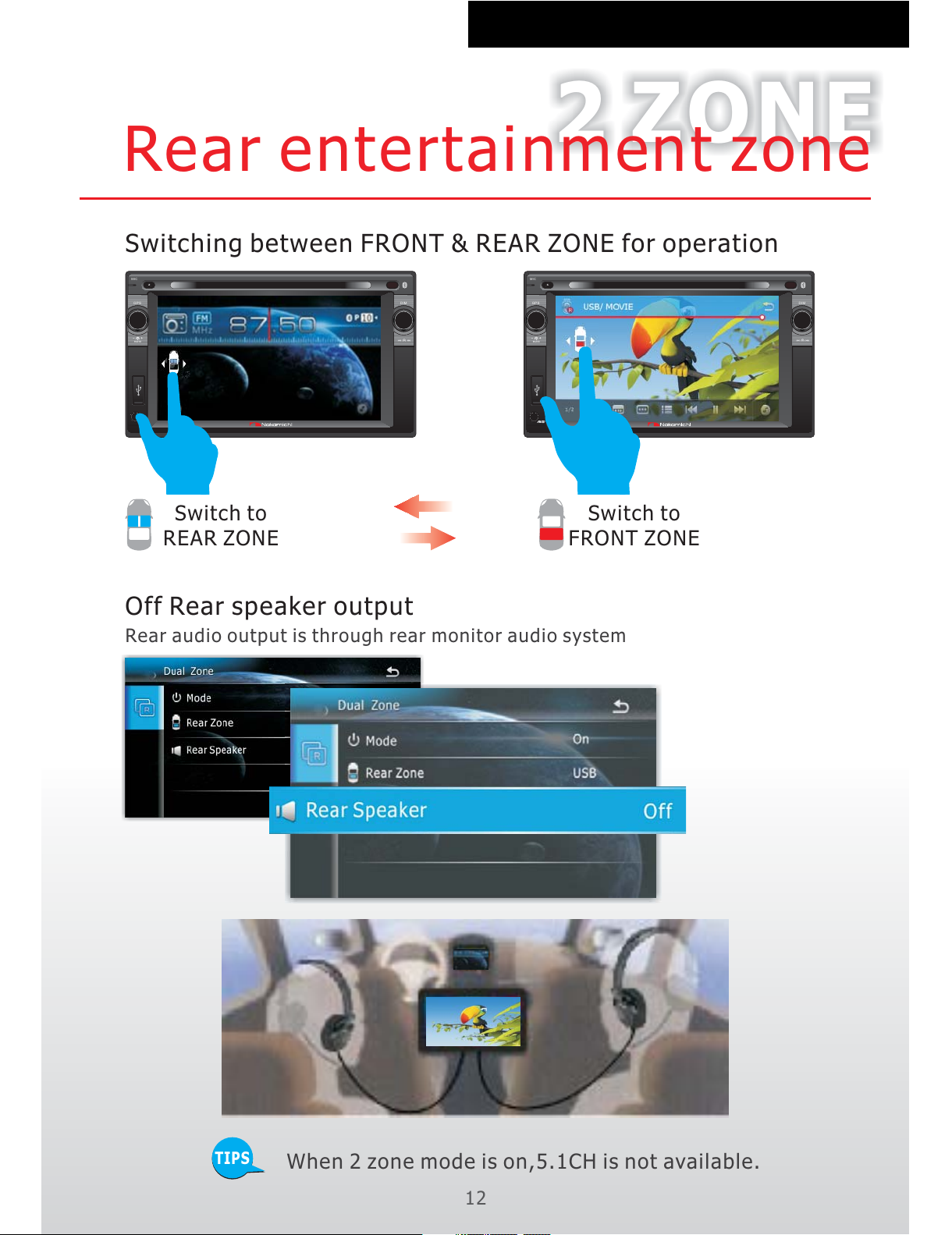

2 ZONE
Rear entertainment zone................................................................... 11
AUDIO ADJUSTMENT
Equalizer........................................................................................
Subwoofer......................................................................................
Speaker..........................................................................................
5.1 Audio playback...........................................................................
Audio zone...................................................................................................
Time alignment.............................................................................................
Fader/Balance..............................................................................................
Navigation settings..........................................................................
NAVIGATION
REFERENCE
Specifications..................................................................................
13
14
15
15
15
15
16
17
18
All manuals and user guides at all-guides.com

INTRODUCTIONS
View demo before first use
Please preview those advance features of this unit through the
DEMO mode on this unit.
2
2. Turn on the demo mode.
3. Press & hold this button to power off the unit, demo will be play automatically.
MIC
GPS
MUTE
4. Tap to stop
1. Access to general settings.
DEMO PLAY
Demo Settings
Power
On Demo Off Cancel
All manuals and user guides at all-guides.com

3
REAR
ZONE TONE
AUDIO
ZONE
PRO
EQ
X-BASS
BAND
Source
Switch
Front & Rear
Zone switch
Media Playback
Control
Audio
Control
INTRODUCTIONS
Overview the unit
MIC
GPS
MUTE
DIM
Eject
Mic
GPS/Navi
switch
Power
Hold:
Mute
Press:
Volume
Rotate:
USB Socket
AV in Jack
Remote sensor
Up/down
Media SD Card
Socket
GPS Map Card
Socket
Reset
SD
MAP
TFT Dimmer
Hold:
Press:
TFT Off
All manuals and user guides at all-guides.com

4
Direct to PLAYBACK TIME
Swipe left/right for UP/DOWN Swipe for DRAG TO
Rotate for VOLUME adjust Tap center to MUTE
Access to HOME
Access to CLOCK / WIDGETS
INTRODUCTIONS
Basic operations
MIC
GPS
MUTE
DIM
Pop up the AUDIO CONTROL
All manuals and user guides at all-guides.com

AV MEDIA
Listening to the radio
5
Swipe left/right AUTO SEEK
or
Tap MANUAL SEEK
Tap BAND to change to FM or AM
PRESET LIST/
TUNER FUNCTION
AM
All manuals and user guides at all-guides.com
all-guides.com

AV MEDIA
Playing the music
6
Swipe UP/DOWN
QUICK BROWSER
Tap REPEAT / RANDOM
Swipe drag to
PLAYBACK TIME
Tap direct go to
PLAYBACK TIME
TIPS
1. Connect the ( ) to the USB or SD socket.
2. Access to HOME, then tap the desire playback device(USB/SD/iPod).
3. Playback starts.
desire playback device USB/SD/iPod
Operation steps:
Tap PLAY / PAUSE
All manuals and user guides at all-guides.com

AV MEDIA
Enjoying the movie
Change function bar
5.1CH & 4.1CH selection
7
Select the audio type. (For DVD-VR: the audio channel)Select
Subtitle type.
Top Menu or Browser
Previous, Pause / Next Play,
Audio Settings
Select aspect ratio
Brightness
Contrast
Saturation
Repeat playback mode
Zoom the video & photo
PBC on/off (VCD only)
All manuals and user guides at all-guides.com

AV MEDIA
8
Viewing the photo
Rotate function only can support
for original size photo.
When zoom x2,x4,x8 will pop up the
arrow button to move the photo.
Rotate left
Rotate right
Move left the zooming frame
Move up the zooming frame
Move down the zooming frame
Move right the zooming frame
ZOOM X 2
USB/Photo/ 12/60
ZOOM X 2
All manuals and user guides at all-guides.com

AV MEDIA

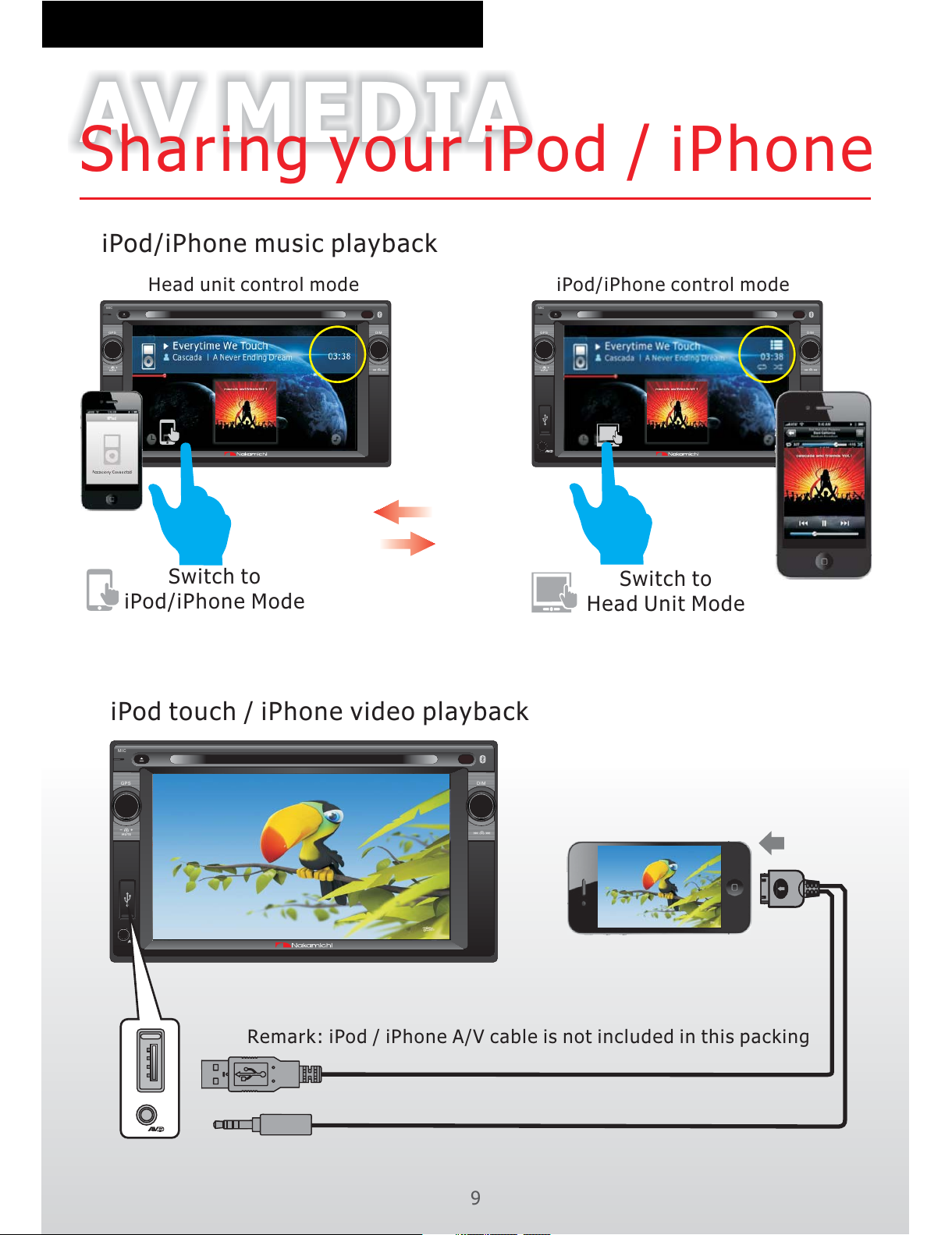

Sharing your iPod / iPhone
9
Switch to
Head Unit Mode
Switch to
iPod/iPhone Mode
iPod touch / iPhone video playback
iPod/iPhone music playback
Head unit control mode iPod/iPhone control mode
MIC
GPS
MUTE
DIM
MIC
GPS
MUTE
DIM
Remark: iPod / iPhone A/V cable is not included in this packing
MIC
GPS
MUTE
DIM
