NakiRadio Solo User manual

Instruction Manual

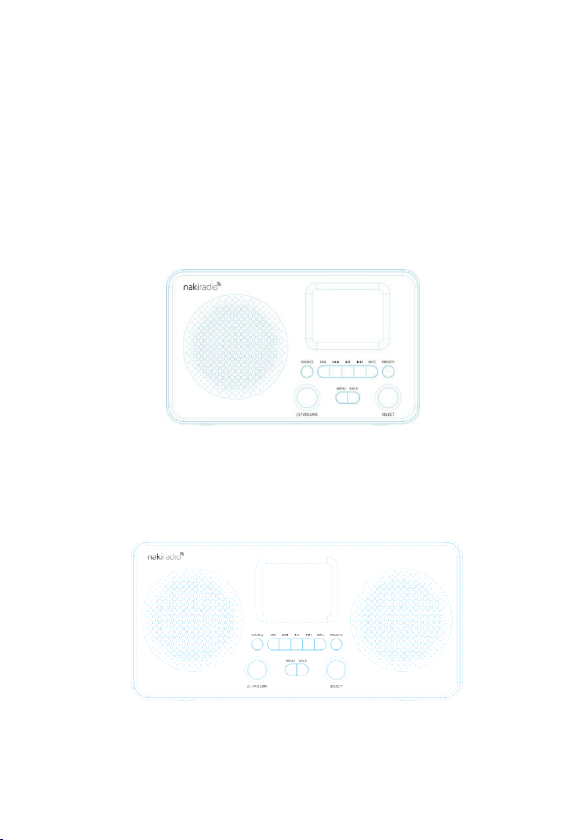

NakiRadio
®
Solo
MN300
NakiRadio
®
Duo
MN350

Table of Contents
Introduction
1 Quick Setup – Start Here!
1.1 Safety
1.2 Features
1.3 Carton contents
1.4 External resources
2 Controls, connectors and display
2.1 Main controls
2.2 Connectors
2.4 Screens
2.5 Operation
2.6 Menu Navigation
3 Startup and setup
3.1 Setup wizard
3.2 Other settings

4 Internet radio mode
4.1 Presets
4.2 Now playing information
5 Alarms and sleep
5.1 Alarms
5.2 Sleep
6 Software upgrade and factory reset
6.1 Software upgrade
6.2 Factory reset
7 Troubleshooting and error messages
7.1 Error messages
7.2 Troubleshooting

Introduction
Thank you for purchasing a NakiRadio. The
NakiRadio will provide you and your family with
hours of education and entertainment from
approved radio stations throughout the world. We
understand that in today’s media driven
environment, families need to filter and choose
the proper media they wish to be exposed to.
NakiRadio hopes that with Siyata D’shmaya we
can help you and your family limit your exposure
to inappropriate media and enjoy the rich world
radio has to offer to the discerning listener.
For more options and choices of content available
to hear on NakiRadio, be sure to visit the Portal at
nakiradio.com. Once you create an account and
connect it to your NakiRadio, you can add/remove
content, use parental controls to limit usage, and
more.
For more information, and for technical support,
please email [e-mail].

1. NakiRadio Quick Setup
Unbox, Wizard Setup & Listen
YOU MUST HAVE A WIFI NETWORK WITH INTERNET
ACCESS FOR THE NAKIRADIO TO ACCESS CONTENT
 Unbox your NakiRadio within range of a WiFi
Network
 Plug included power adapter into a 110/220v
power source.
 Press Power / Volume dial on the left side of
the unit to start the Setup Wizard, which will
display on the screen. Click through the
following settings and set to your choice:
 Select a time format. Click Select dial on the
unit’s right side to accept.
 Update from Network. Click Select dial to
accept.
 Scroll through Set Timezone. Locate timezone
of your location. Click Select dial to accept.
 Select setting for Daylight Savings. Click
Select Dial to accept.
 WLAN Region USA. Click Select dial to
accept.

 Locate & Select the WiFi SSID/network of your
choice, click Select dial to accept.
 If WPS Menu appears, recommended choice
is Skip WPS
 Enter your WiFi password/key by scrolling and
clicking on the Select dial.
Uppercase/lowercase letters, numbers and
symbols are located by scrolling your with the
Select dial. Press the INFO keypad button at
any time to BKSP [correct], cancel or accept
your entry. Click Select Dial to accept. If
successful, Setup Wizard will display a
completed message. Click Select Dial to exit
Wizard.
 Highlight Station List and click the Select dial.
Rotate the Seelct dial to highlight the station of
your choice, and click Select dial to select
listening.

Press and hold down Power dial for 2 seconds
to place the device in Standby Mode. If device
is connected to power supply, clock will
display.

1.1. Safety
Safety Instructions
Please store this instruction manual for future reference.
• WARNING: To reduce the risk of fire or electric shock, do not
expose this device to rain or moisture. The apparatus should not be
exposed to dripping or splashing. Objects filled with liquids, such as
vases, should not be placed on device.
• WARNING: The direct plug-in adapter is used to disconnect device
from power source, please assure the wall adapter remains
accessible at all times.
• The symbol is intended to alert the user to the presence of
non-insulated dangerous voltage within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock.
• Warning: To reduce the risk of electric shock, do not remove cover
(or back), as there are no user-serviceable parts inside. Refer
servicing to qualified personnel.
• The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the
appliance.
• Correct disposal of this product: This marking indicates that
this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources.
To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased.
They can take this product for environmentally safe recycling.

• No open flames, such as lighted candles, should be placed on the
apparatus.
• CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• WARNING: The battery (battery or batteries or battery pack) should
not be exposed to excessive heat such as sunshine, fire or the like.
• Do not use this product near water or moisture.
• Clean only with a dry cloth.
• Unplug this product from the wall outlet before cleaning.
• Place the unit on a solid surface.
• Do not put it in a closed bookcase or a cabinet that may keep air from
flowing through its ventilation openings.
• Do not install near any heat sources, such as radiators, heat registers,
stoves or other appliances that produce heat.
• Protect the power cord from being walked on or pinched, particularly
at plugs and at the point where it exits from the product.
• Servicing is required when the product has been damaged. Do not
attempt to service this product yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards.
• To prevent risk of fire or electric shock, avoid overloading wall outlets,
extension cords.
• Do not let objects or liquids enter the product.
• Use proper power sources. Plug the product into a proper power
source as described in the operating instructions or as marked on the
product.

FCC Warning
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation. Any
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment. This equipment has
been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.

1.2 Features
This manual describes how to use the NakiRadio Solo / Duo, an
advanced but easy-to-use Wi-Fi connected audio system with the
following modes:
• Internet Radio plays pre-approved radio stations from
around the world.
• Bluetooth
®
-In for external music sources, such as from
iPod/iPad or other media players.
NakiRadio Solo / Duo also provides the following features:
• TFT color display for easy control and clear information
display.
• Clock with auto-update capability and dual independent
alarms with Sleep/Snooze.
• Multiple network profiles for easy setup and portability.
• Multiple language options.
1.3 Carton contents
After you unpack the box, you will find the following items:
• 1 NakiRadio Solo or Duo unit
• 1 Micro-USB power adaptor
• 1 Owner’s Instruction Manual

1.4 External resources
To operate the NakiRadio Solo / Duo, the following external
resources are needed:
• A power source (100-240 V outlet).
• A wireless (Wi-Fi) internet network connection (provided
through a router) with appropriate permissions.
• Optional – external music source such as iPod or MP3 player.
2. Controls, connectors and display

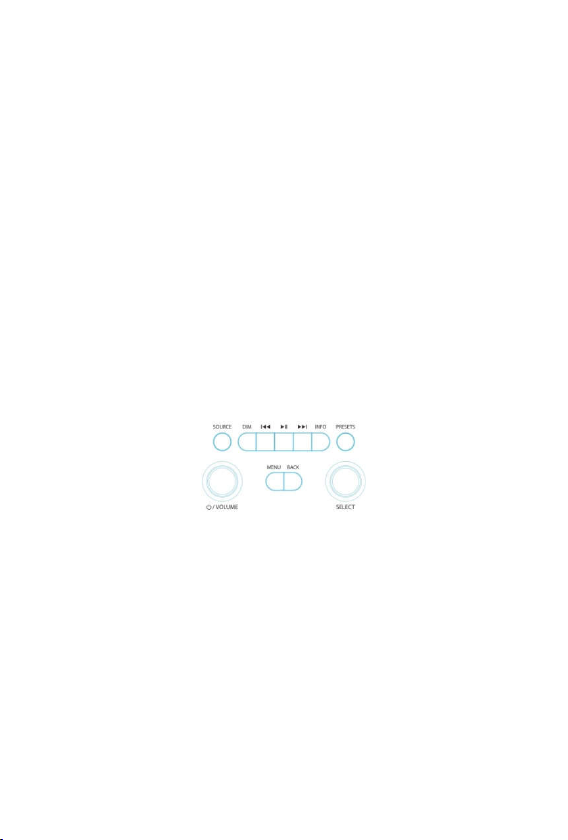

2.1 Main controls
a. POWER / VOLUME: Click dial to power on device.
Rotate dial to adjust the volume during playback, or
click to mute sound. Long press dial to power off device
/ set to standby.
b. SELECT: Turn to scroll through a menu or station list.
The chosen option is highlighted. Click to select. On
playback screen, click to magnify stow

c. SOURCE keypad button: Press to select different
modes, i.e. Internet Radio or Bluetooth
®
.
d. DIM: Click to turn the display on or off.
e.  / ：NEXT/PREVIOUS keys allow for
navigation within the podcast episode. Click to move
from track to track, long press to fast forward / rewind
within a track.
f. : Click to pause and resume during playback.
g. INFO: Click to view more information about the station
or track being played. Click again to cycle through
additional information screens. Click to return to the
Now Playing screen from elsewhere in the interface.
h. MENU Click to show the menu for the current mode.
Press again to show the Now Playing screen.
i. BACK: Click to return to the previous screen.
j. PRESET: Click to load Preset menu. During playback,
highlight a slot in the Preset menu and Long Press to
save preset to slot. To recall from Preset, click Preset
button to load preset menu, highlight a slot, and click
Select dial.

2.2 Connectors
As shown above, the device has the following connectors:
● Headphone jack
● Micro-USB
2.3 Screens
The screen shows various menus, dialogues and displays as
described below.
There are basically six types of screens:
• Standby (clock)
• Splash (mode)
• Now playing
• Dialogue
• Information
• Menu

Where there is more text than can fit onto a screen, the text
automatically scrolls right to left after a brief pause.
The standby screen shows the time, date and any active alarm
times.
A splash screen is displayed for each mode. Press source to
cycle through the listening modes.

Now playing screen shows information about the audio source
and track now playing, where available.
Dialogue screens are shown to allow the user to change settings.
They vary in complexity from simple Yes/No options up to the
scrollable network passphrase input screen.
The selected option is highlighted with a background. Dialogue
screens mark the currently saved setting with an asterisk (*).

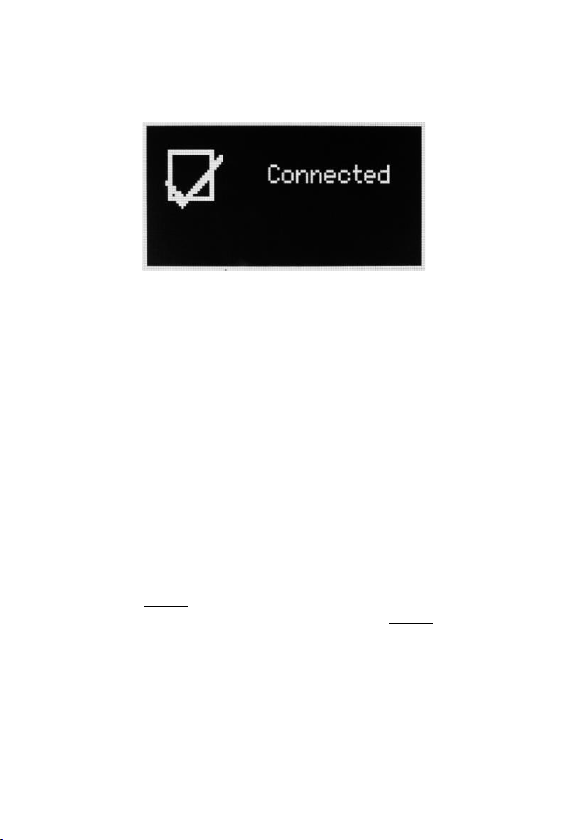

Information screens give specific messages for a few seconds,
then change automatically to the next screen.
Menu Screens – For details of menu screens, see Section 2.5
Menu.
2.4 Operation
After the initial setup, the NakiRadio is ready for operation .
To select a Mode, press the source keypad button until the desired
mode splash screen is displayed. After a brief moment, the
NakiRadio switches to that mode. See the relevant Mode section
for details on how to use each listening mode.
2.5 Menu navigation
The primary control for moving through menus and options is the
Select dial. Rotate the dial to move up or down inside a menu.
Once the desired option or value is highlighted, CLICK the Select
control. All menus and lists act as loops, such that turning the
control beyond the first or last entry in a menu or list takes you to
the opposite end of the menu or list, i.e. going upwards from the
first entry in a menu will take you to the last option in the menu,
etc.
A “>” appears on the right of the screen if there are more options

above or beyond those visible.
To enter the menu tree in a particular mode, press Menu. To move
backwards a menu level, press Back. To exit the menu system,
press Menu again. Each mode has a Mode menu, with options
specific to that mode.
The System settings menu displays all the adjustable system
settings available that allow the user to set up the unit. This
includes the Equalizer, Network, Time/Date, Language, Factory
Reset and Software Update settings.
3. Startup and setup
NakiRadio is easy to use.
For Internet-connected modes such as Internet radio, you will need
a broadband Internet connection.
3.1. Setup wizard

When the device is started for the first time, it runs through a setup
wizard to configure settings for date/time and network. Once this
has finished, the system is ready to use.
Note: To change these settings later, select Menu > System
settings >.
To run the setup wizard again, select Menu > System settings >
Setup wizard. Select Yes to start the setup wizard.
If you choose No, the next screen asks if you would like to run the
wizard next time device is started. The system then starts without
configuring time/date and network settings and enters the Main
Menu.
Note: If power is removed while the wizard is in progress, the
wizard will run again next time the NakiRadio is started.
3.1.1 12/24 Hour Display
To change between 12 and 24 hour display, select Set 12/24 hour
and then select your preference.
3.1.2 Set Time/Date (Wizard)
The date and time are displayed as mm-dd-yyyy and hh:mm
AM/PM with the first value, mm active (flashing).
Adjust each value with the Select control. As each value is set by
pressing the Select control, the next value becomes active and
ready for adjustment.

Auto-update
Auto-update works with data sent over the Internet.
Network uses a time signal sent from the Internet radio portal
when connected to the internet.
1. Select Update from Network or No Update.
2. If you are updating from the network, set your time zone.
3. If your country uses daylight saving, the automatically updated
time from the network may be incorrect by one hour. When daylight
savings are in effect (during the winter), turn on the Daylight
savings option to rectify this.
NakiRadio will auto-update from the selected source when time
information is available.
Manual set
If you set No Update, the wizard now prompts you to set the time
and date manually.
The date and time are displayed as mm-dd-yyyy and hh:mm

AM/PM with the first value, mm, active (flashing).
Adjust each value with the Select control.
As each value is set, the next value becomes active and flashes.
3.1.3 Network
NakiRadio is compatible with all common network protocols and
encryption methods, including Wi-Fi Protected Setup (WPS).
To connect the NakiRadio to your network, you need a Wi-Fi
wireless router, together with password key if set. Select WLAN
Region/Country>Wi-Fi network (SSID), and then select a network
from the list.
If the network is open (non-encrypted), NakiRadio connects and
no further details are required; see Completion below.
Standard encrypted network
To enter the network’s key (password), use the Select control to
highlight the next relevant character and press to select each
character in turn. As each character is selected, the key is built up
