Nanfone NF-688 User manual

Introduction……………………………………...34
Included………………………………………….34
Accessories List………………………………...35
Main Features…………………………………..35
Technical Information…………………………..37
Know the Radio………………………………...39
Preparation before using………………………40
Function Operations…………………………....46
Function Setting ………………………………..54
Maintenance…………………………………….58
Trouble Shooting ……………………………….59
Appendix: CTCSS and DCS chart…………….61
Contents
Contents
Professional Handheld FM Transceiver

Introduction
Included
Please unpack the transceiver carefully and check the
package again to make sure there is no listed items as
below inside before you discard it. Should any items have
been missed or damagedduring shipment, please file a
claim to the distributor immediately.
Thanks for purchasing NANFONE transceiver NF-688
(688plus). Please read this manual carefully to learn its
latest functions and operations before using. NF-668 is
with mini compact size, easy-to-use feature and stable
performance. It’s developedfor satisfying the customer’s
demand.
No matter you are in the countryside、forest area、
pastoral area or the sea, it still can have a high quality
conversation. Meanwhile, the fashion casingalso can
meet your personality.
34 User Manual

Accessories List:
Main Features
Descripti Unit Quan
Antenna pc 1
Belt clip pc 1
pc 1
Charger pc 1
Adaptor pc 1
3*6 screw pc 2
pc 1
pc 1
Lithium battery pack
QC passed card
User Manual
1、Frequency range: 400-470MHz
2、Voice reported function in both English and
Chinese (Optional)
3、High /Low power switchable: 5W
4、Wide/Narrow Bandwidth
5、CTCSS 50/ DCS 83 to avoid interference from
other radios
Professional Handheld FM Transceiver
35
Included

6、VOX function. Release your hands for convenient use
7、TOT Function. Avoid damage due to the long- term
transmit
8、BCL Function
9、Scan function. Scan and receive all the conversion
channel
10、FM Radio. Know more about the latest news。
11、Battery Save and Long Standby.
12、Built in Bluetooth(Optional).
All the above function can be programmed by PC.
The transceiver also has the below function:
1. Emergency alert. Keep you safe and comfort
2. Noises cancel function. Can clear up the noise after
conversation ended.
3. Channel locked function.
36 Main Features

Technical Information
GENERAL
Frequency range: 400MHz-470MHz
Number of channel: 16
Channel spacing: 12.5kHz/25kHz(Optional)
Modulation: Frequency Modulation (FM)
Operating temperature range: -20℃-- +55℃
Voltage: 7.4V
Standby Current: About 15mAh (Power Save)
Size: 100(H)×58(W)×36(D)
Weight: About 205g
TRANSMITTER:
Frequency Distortion: ±3ppm
Output power: ≤5W
Emission current: ≤1.5A
Maximum frequency deviation: ±5kHz
Audio frequency distortion: <10%
Adjacent frequency: <70dB
Residual radiation: <-60dB
37
Technical Information
Professional Handheld FM Transceiver

RECEIVER
Reference sensitivity: <-122dBm(12dB SINAD)
Squelch sensitivity: <-126dBm
RatedAudioPower: ≥500mW
Receiving current: ≤380mA
Audio frequency distortion: <10%
Adjacent- Channel Selectivity: ≥60dB
Intermediation Rejection: ≥60dB
38 Technical Information

Know the Radio
1. Antenna 2. Alarm/Bluetooth Multi function Key
3. Indicator 4.VOX 5. Channel 6.Ring Hole7 PTT
8.FM/Mnoitor/FM+ 9.FM-/Call 10.MIC
11.Battery snap 12.Battery 13.SP
14.MIC/SP Waterproof Cover 15.Belt Clip
Know the Radio 39
Professional Handheld FM Transceiver

Preparation for Using
Install the antenna
Install the antenna as picture and rotate it clockwise till tight
（The antenna in picture only for reference）
40
Note：Don’t hold the machine by antenna or hang the
keychain and earphone on it, since they will spoil the
antenna and reduce the performance of the machine.
Preparation for Using

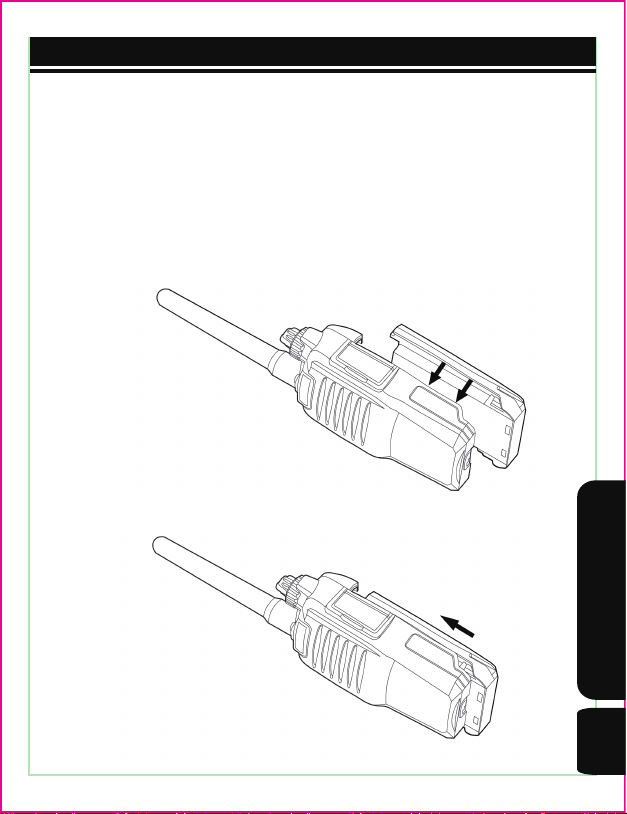

Install Lithium battery pack
Put the original Lithium battery pack into the transceiver
correctly as following picture shows：
Figure 1
Figure 2
Preparation for Using 41
Professional Handheld FM Transceiver

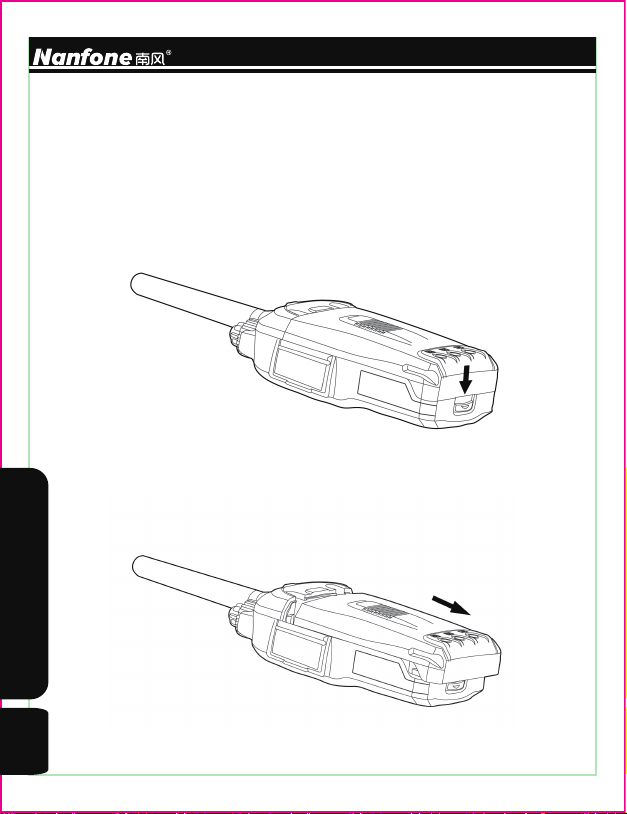

Unfold the Battery
Press the battery snap like picture shows and push up .
42
Figure 1
Figure 2
Preparation for Using

Install the belt clip
If necessary, installing the belt clip with 3*6 Screws to fix it.
Note:
1.When installing the belt clip , do not use any glue to fix
crew or it will be bad for casing.
2. Take off the belt clip first, then the battery pack.
43
Preparation for Using
Professional Handheld FM Transceiver

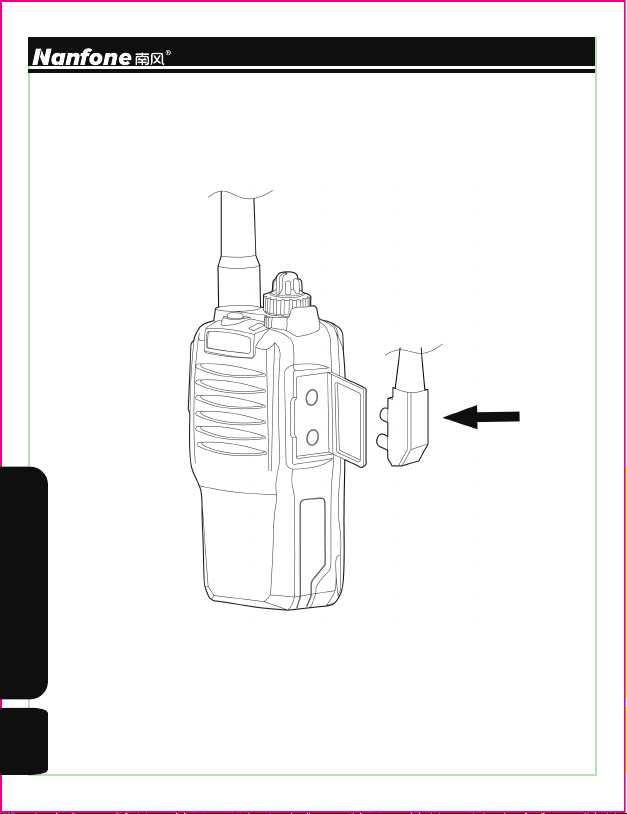

Install external microphone
Install the microphone as picture shows,
Charging
The battery pack is without power when finished, and
please charge it before using.
When used for the first time after purchased or Stored
over two months, the capacity of battery pack is less than
44 Preparation for Using

normal. However, it will return normal after charged and
discharged for five times. Charge in power-off mode, the
indicate red light is on, and it is off when finish charging.

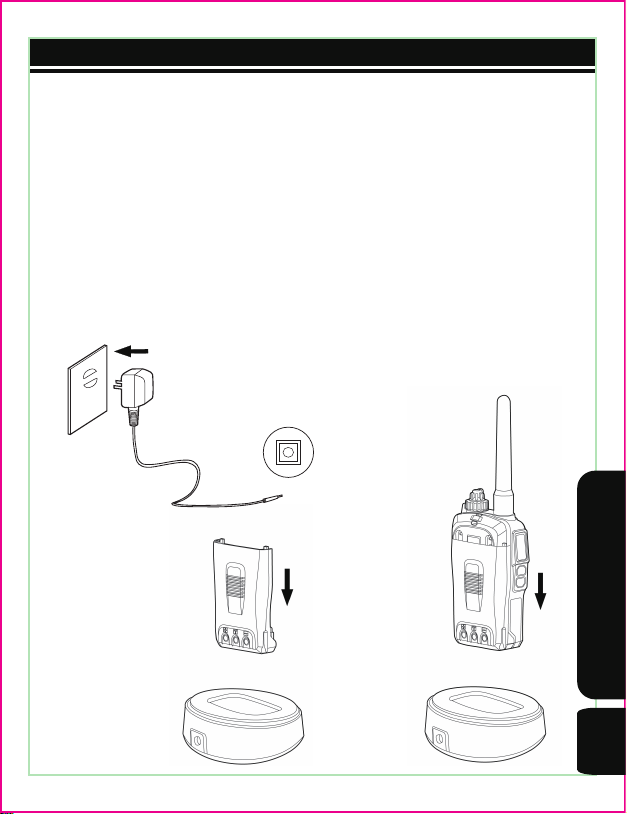

Charging steps below:
1. Insert the AC adaptor line to the charging hole of desk-top .
2. Connect the power with AC adaptor.
3. Put Nimh battery or Radio with battery on the desk top.
As following pictures showing .
Figure 1
Figure 2
Preparation for Using 45
Professional Handheld FM Transceiver
Figure 3

Note:
1.Please make sure battery charging is working
2. It will return normal after charged and discharged for five
times. Charge in power-off mode, the indicate red light is on,
and it is off when finish charging.
3. Do not short-circuit the battery terminals or dispose of
batteries in fire.
4.Do not unload the battery rear case.
5. It will cost 5.6 hours for complete charging.
Turn On
Turn on the radio by rotating Power/Vox Clockwise .
When hearing the sound “Di” ,it means the radio is on and
reporting the channel numbers.
Channel Exchange
Choose the channel you want .When meet the using one ,
you would hear the sound from the speaker.
VOX Adjust
Press [MONI] and rotating the Vox to adjust the suitable at
same time.
Transmitting
Functions Operations
46 Functions Operations

47
Functions Operations
How to pair the bluetooth headset with both 668P and Cell
Phone:
1.Pairing the Bluetooth headset with Cell Phone :
Turn on the bluetooth headset and make it in pairing state.
＊The indicator light on the blutooth headset flashes both
in blue and red quickly.
Turn on the bluetooth headset function on the cell phone,
and make it in pairing state.
＊The indicator light on the bluetooth headset flashes in
blue when successfully connecting.
Disconnect the bluetooth headset and turn it off.
Notes:The bluetooth headset should be able to connect
Bluetooth Function (Optional)
Press 【PTT】and Red Indicator flashes, then transmitting
the information and release.
Monitor
Short press (FM/Monitor/FM+) to turn on the Squelch ,
press gain to turn off.
Call Function
Press (PTT) and (FM/Monitor/FM+) simultaneously to call
and transmit , release (FM/Monitor/FM+) to quit .
Professional Handheld FM Transceiver

48 Functions Operations
both with 668P radio and the wireless remote
control PTT button.
2、
Pairing the Bluetooth headset with 668P Two Way Radio :
Be sure the built-in bluetooth headset of the radio is OFF.
Press and hold the Bluetooth headset Multi-function button
on the radio for about 6 seconds to enter pairing state.
＊.The indicator light on the radio shines in blue quickly.
The bluetooth headset and the radio will be paired after 30
seconds.
3、Connecting the Bluetooth headset with the Cell Phone as
well as
the Two Way Radio.(Optional)
Be sure the bluetooh headset is already connected with
668P radio.Turn on the cell phone and make it in pairing
state.The bluetooth headset will connect both with the cell
phone and the radio in 10 seconds.
Notes:The wireless remote control PTT button of 668P is
optional.
How to Transmit and Receive through the
Bluetooth headset in the Process of
Talking to Mobile Phones:
1. Transmitting while talking to a telephone:
Press and hold the PTT button on the bluetooth and transmit .
＊The call will be paused for the moment when transmitting.
＊The indicator light on the radio will shines in red steadily
when transmitting.

49
Functions Operations
Release the PTT button,the transmitting finishes,and the
talking continues.
＊The red light on the radio turns off.
2.Receiving while talking to a cell phone:
＊.The indicator light on the radio shines in green when
there is signal.
＊.The call will be paused for the moment and you will hear
the voice on the other end in the bluetooth headset.
(If you're listening to a radio through a professional FM
transceiver,the radio will be paused for the moment and you
will hear the voice on the other end in the bluetooth headset
when there is a signal.)
Notes:In order to ensure that using the bluetooth headset in a
most optimal state with the best sound quality ,we
recommended you put the radio and the bluetooth headset
on the same side without other obstacles.
3.To turn off the bluetooth headset function on the radio:
＊Press and hold the Bluetooth headset Muli-function
button for
4 seconds,with the blue light shines two times, release the
button,and then the function is turned off.
Professional Handheld FM Transceiver

50
FM Operation
1.Long press (FM/Monitor/FM+) for more than 2 seconds
and hear the sound “Di” ,turning on the FM .The radio can
scan automatically by short pressing the (FM/Monitor/FM+).
Stop scanning when get a signal If want to receive another
radios, short press (FM/Monitor/FM+) again.
2.Long press (FM/Monitor/FM+) for more than 2 seconds
and hear the sound” Di Di” means to quit the FM.
3.Closing the FM function can be programmed by PC .
Note: The radio can return automatically to be ready for
transmitting when receiving the same frequency signal .If
setting like this ,radio can return and go on receiving FM .
If not ,the radio can not return automatically .
Functions Operations

Emergency Call
668 Model:Long press Bluetooth button on the top of panel
for more than 2s ,then can active “Emergency Call”;
668Plus Model: Long press (FM-/Call) button on the side
panel for more than 2s ,then active the “Emergency Call”
Now:The red indicator of radio flashes and makes aloud
emergency call to the same frequency (channel one) radio.
Press the PTT to quit the emergency call.
After operation this function, the radio would stop on Channel
01 till you rotating the Channels. If not ,radio would flash
green to tip .
Scan Function
When active the scan function by PC program ,and turn to the
Channel 16 ,then radio tips the sound of “scanning” . If report
“16” , it means turn off the scan function.
Turning on the scan function and being standby ,radio would
scan the signal one by one from the present channel.
When match with same signal ,LED light would flash green
and receive signals .Then you can transmit the information
by PTT .If there is no operation on the radio ,it would return
to scan .
Example: When active the scanning of Channel 3,5,7 ,
radio would scan automatically when get to Channel 16 .
Once receiving the signal from anyone of channel 3,5,7,16,
51
Functions Operations
Professional Handheld FM Transceiver

52 Functions Operations
scanning would stop and ready for transmitting .
Channel Lock Out
Radio with channel lock out function avoid not transmitting
by some improper operation on the radio at some specific
occasions.
Steps: Press (FM/Monitor/FM +) and (FM-) at same time to
turn the radio on ,and “Di” tip sound . It means change
present status.It is only allowed to use one channel and can
not be changed by Channel Selector when active Channel
lock out function .
Do again the above steps to turn to Channel 16.
Low Battery Alert
1、Working in Voltage higher 6.5 V (Battery shows 1-2 Grid)。
2、Transmit and receive working ,but red indicator flashes
when voltage lower than 6.5V ,but higher than 6.3V
(Battery shows 1 Grid)
3、Voltage higher than 6.1V but lower than 6.3V ( battery is
blank ) ,Receive working ,alarm “Di Di” by every 20 seconds ;
Transmit working ,but red indicator flashes.
Voltage lower than 6.1V ( battery is blank ) ,receive working ,
alarm every 2 0 seconds ,but can not transmitting。
Wired Cloning (Mutual clone between two transceivers)
1. Well connected the transmission lines to the both
transceivers, and then power on the subsidiary transceiver.
