Napa Carlyle DSD14 User manual

DSD14 1 Rev. 03/01/12
DSD14
Torque Range ...................................... 0.88-17.7 in.-lbs.
Accuracy*1 ................................CW : ±2.5% (CCW : ±3.5%)
Communication Port (Authorized service center use only).............. Yes
Operation Mode ....................................Peak hold / Track
Unit Selection .....................................cN-m, in-lb, kg-cm
Head Type .......................................Autolock bit holder
Button.........................................................5
Bright LED ................................... 2 LED (1 Red+1 Green)
Pre-setting ..................................................9 set
Battery ...................................................AAA x 1
Battery Life *2 (Continuous Operation) ...........................12 hrs.
Battery Life *2 (Standby) ......................................1 year
Operating Temperature ......................................-10˚~60˚
Storage Temperature ........................................-20˚~70˚
Humidity ..................................Up to 90% non-condensing
Drop Test ....................................................1 m
Vibration Test *3 ...............................................10G
Life Time *4 ........................................... 10000 cycle
Environmental Test *5.......................................... Pass
Electromagnetic Compatibility Test *6 ............................. Pass
SPECIFICATIONS
AlwAys reAd
instructions
before using
tools
AlwAys weAr
sAfety
goggles
not
wAterproof
DSD14
Digital Screwdriver with 1/4" Bit Head
WARNING

DSD14 2 Rev. 03/01/12
This insTrucTion Manual conTains iMporTanT safeTy inforMaTion.
read This insTrucTion Manual carefully and undersTand all inforMaTion Before
operaTing This Tool.
• Alwayswearimpact-resistanteyeandfaceprotectionwhenoperatingor
performing maintenance on this tool.
• Keepthetoolinefficientoperatingcondition.
• Keepbodyworkingstancebalancedandfirm.Donotoverreachwhen
operating the tool.
• Donotforcetoolbeyonditsratedcapacity.
• Donotremoveanylabels.Replacedamagedlabels.
• Communicationsportisforusebyauthorizedservice
center technicians only.
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY
WARNING - FOLLOW THESE RULES FOR SAFE OPERATION!
WARRANTY
SPECIFICATIONS
DIGITAL TORQUE WRENCH - LIMITED 12-MONTH WARRANTY
CarlyleProfessionalHandToolswarrantstotheoriginalpurchaserthatthecompany’sdigitaltorquewrenchesarefreefrom
defectsinmaterialorworkmanshipduringtheoneyearwarrantyperiod.Wewillrepairanydigitaltorquewrenchwhichfails
togivesatisfactoryserviceduetodefectiveworkmanshipormaterials(excludingcalibration)for12monthsfromthedate
oforiginalpurchase.(Calibrationisonlycoveredbythiswarrantyforeachnewunusedtorquewrenchoutofbox.)Products
mustbereturnedwithproofofpurchase,freightprepaid,tothewarrantyservicecenterlistedbelow..
This warranty excludes torque wrenches which have been subjected to abnormal use, accident, neglect, or lack of
maintenance.  Any modification, disassembly of this wrench or repair by an unauthorized service center will void the
warranty.Thiswarrantygivesyouspecificrights.Youmayalsohaveotherrightswhichvaryfromstatetostate.
TheforegoingobligationisCarlyleProfessionalHandToolssoleliabilityunderthisoranyimpliedwarrantyandunderno
circumstances shall Carlyle Professional Hand Tools be liable for any incidental or consequential damages.
Note:Somestatesdonotallowtheexclusionorlimitationofincidentalorconsequentialdamagessotheabovelimitation
orexclusionmaynotapplytoyou.
For Warranty Service and Recalibration/Certification Services, contact:
Torque Wrench Repair Facility
 315HawkinsRd.
Travelers Rest, SC 29690
Phone: [phone]
Fax: [phone]
Notes from Page 1:
*1: The accuracy of the readout is guaranteed from
20% to 100% of maximum range + /- 1
increment. The torque accuracy is a typical
value. Calibration point is in the center of rubber
 grip(withmarking).Forkeepingtheaccuracy,
 calibratethescrewdriverforaconstantperiod
time (1 year).
*2: Use one AAA batterry (Test condition:
Toshiba carbon-zinc battery)
*3: Horizontal and vertical test.
*4:Onecyclemeanstwistthescrewdriverfrom
0 cN-m to maximum range and back to 0 cN-m.
*5: Environmental test:
a. Dry heat
b. Cold
c. Damp heat
d. Change of temperature
e. Impact (shock)
f. Vibration
g. Drop
*6: Electromagnetic compatibility test:
a. Electrostatic discharge immunity (ESD)
b. Radiated susceptibility.
c. Radiated emission

DSD14 3 Rev. 03/01/12

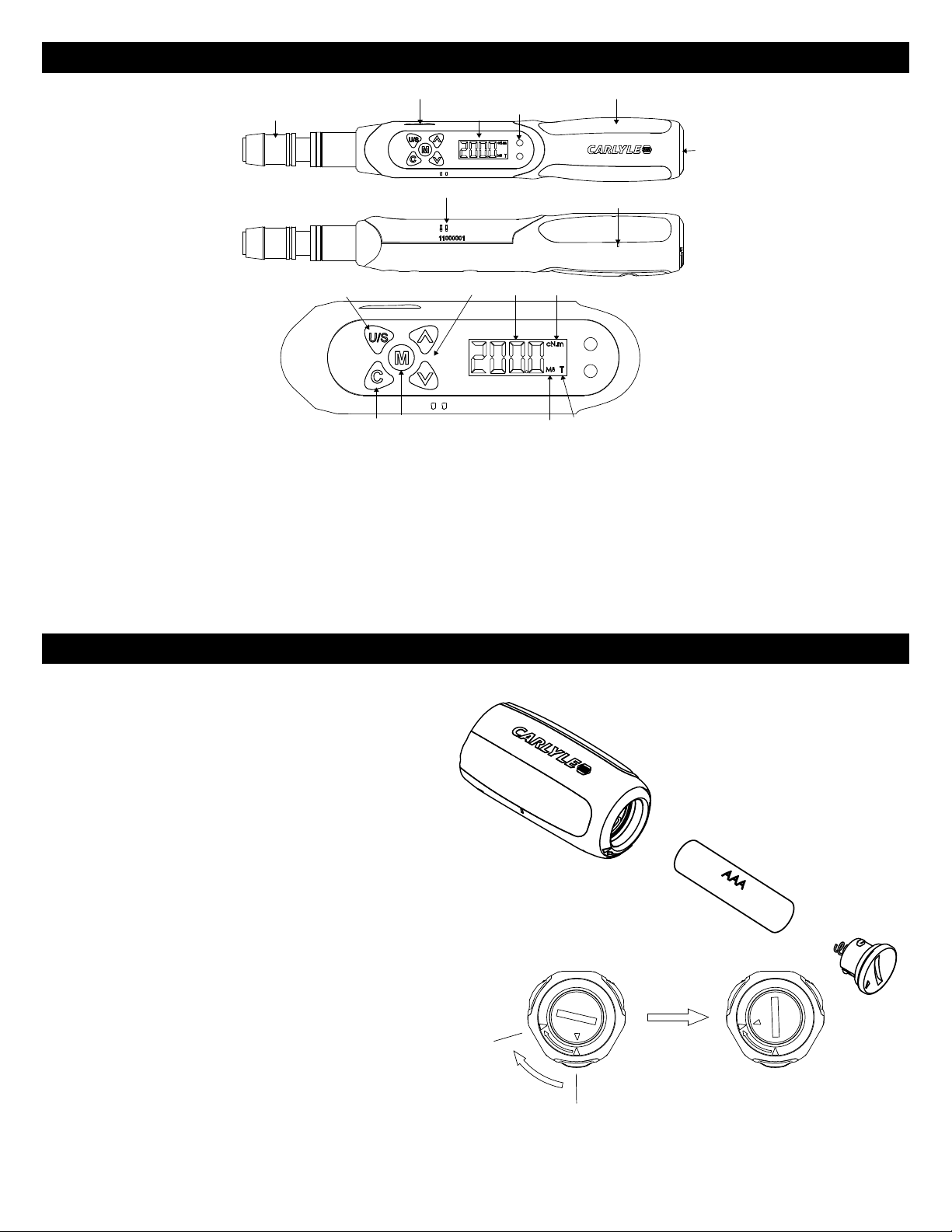

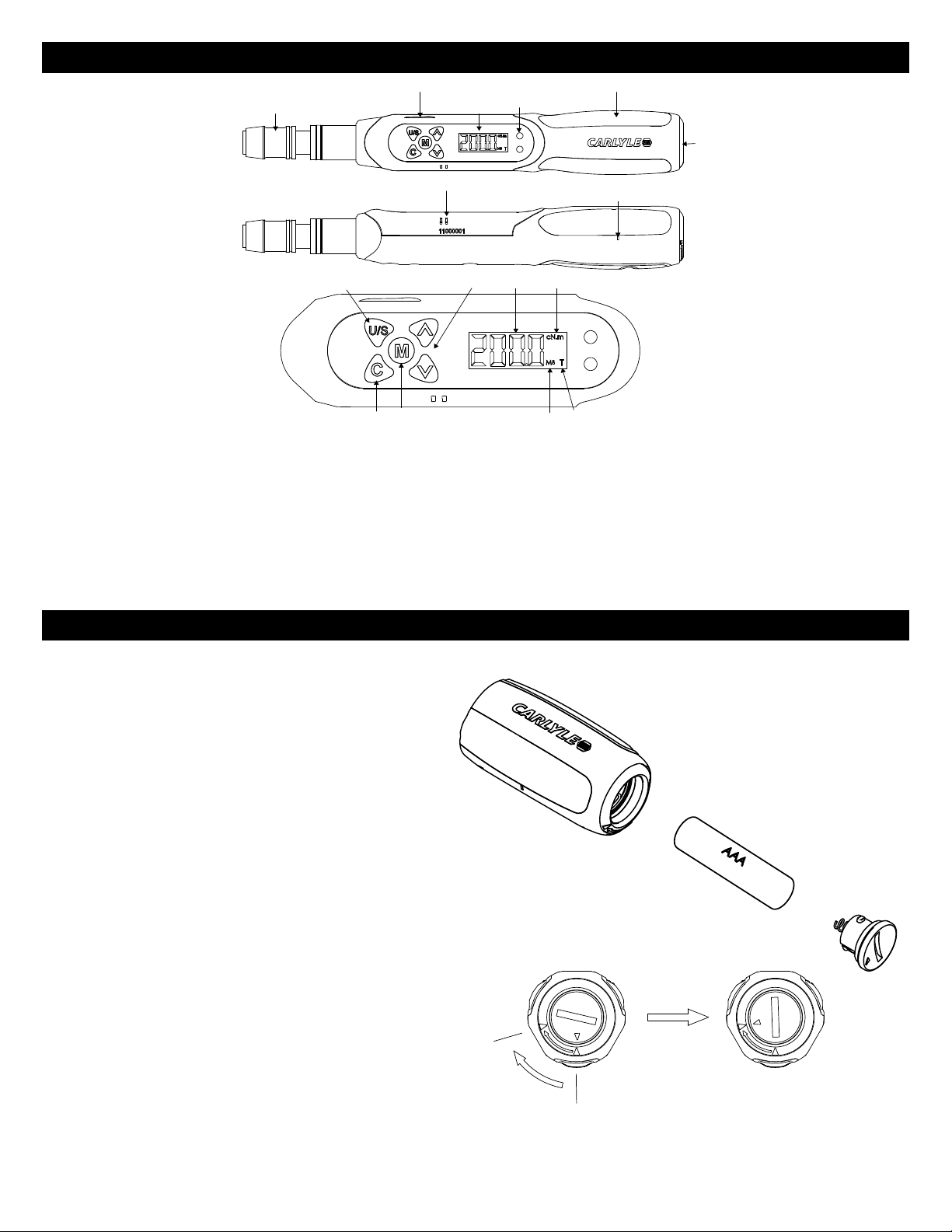

FEATURES AND FUNCTIONS
BATTERY INSTALLATION
• Removethebatterycap.
• InsertoneAAAbatteries(provided)matchingthe
-/+ polarities of the battery to the battery
compartment.
• Putonthebatterycapandrotateittightlyaccordingtothe
 followingfigures.
OPERATION
+
-
No other internal parts are available due to the sensitivity of this professional model.
Pleaseutilizetherepairfacilitylistedunderthewarrantystatementforallrepairsinandoutofwarranty.
REPLACEMENT PARTS AVAILABLE AS:
RSDSD14BC Battery Cap
RSDSD14CS BlowMoldCase
for DSD14
1
9 12
3
25
8
6
4
7
13
15
11
10 16
14
1. Autolock Bit Holder
2. Communication Port
(
Authorized service center use only)
3. LCD Readout
4. LED Indicator
5. Anti-slip Handle
6. Battery Cover
7. Buzzer
8. Calibration mark
9. Unit/Setting Button
10. PowerOn/ClearButton
11. Pre-setting Number Button
12. Up/DownButton
13. Torque Value
14. Units ( cN-m, in-lb, kg-cm)
15. Member Number
16. Peak/Track Mode

DSD14 4 Rev. 03/01/12
RESETTING THE SCREWDRIVER
• Ifthescrewdriverdoesnotfunctionnormally,loosenthe
battery cap, then tighten it to re-start.
AUTO POWER OFF

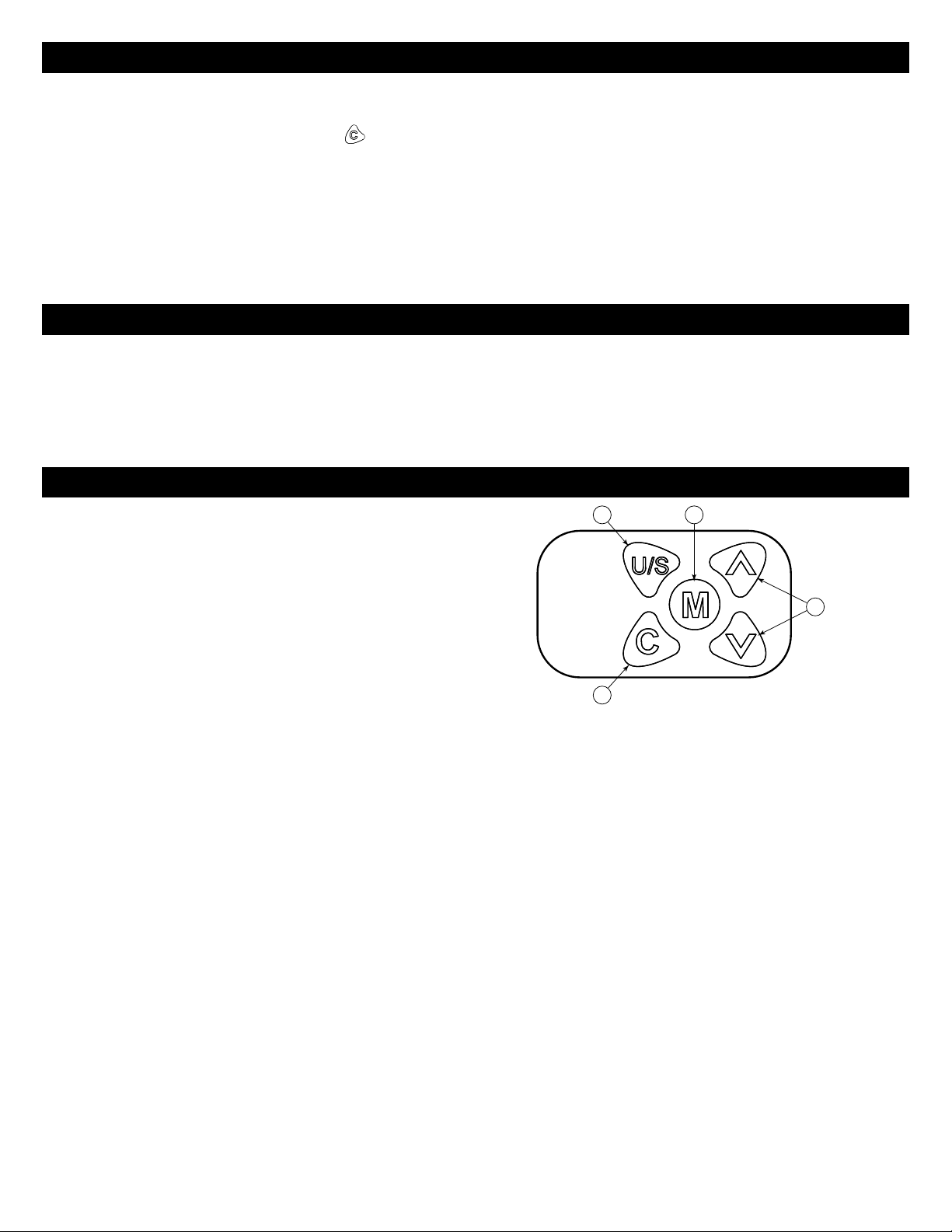

SETUP
1.PowerOn/ClearButton
2. Unit Selection/Setting Button
3. Pre-setting No. Button
4.AdjustTorqueValueButton
1
4
32
• Thescrewdriverwillautopoweroffafterabout
5minutesidleforpowersaving.Pressto
poweronthescrewdriveragain.

DSD14 5 Rev. 03/01/12

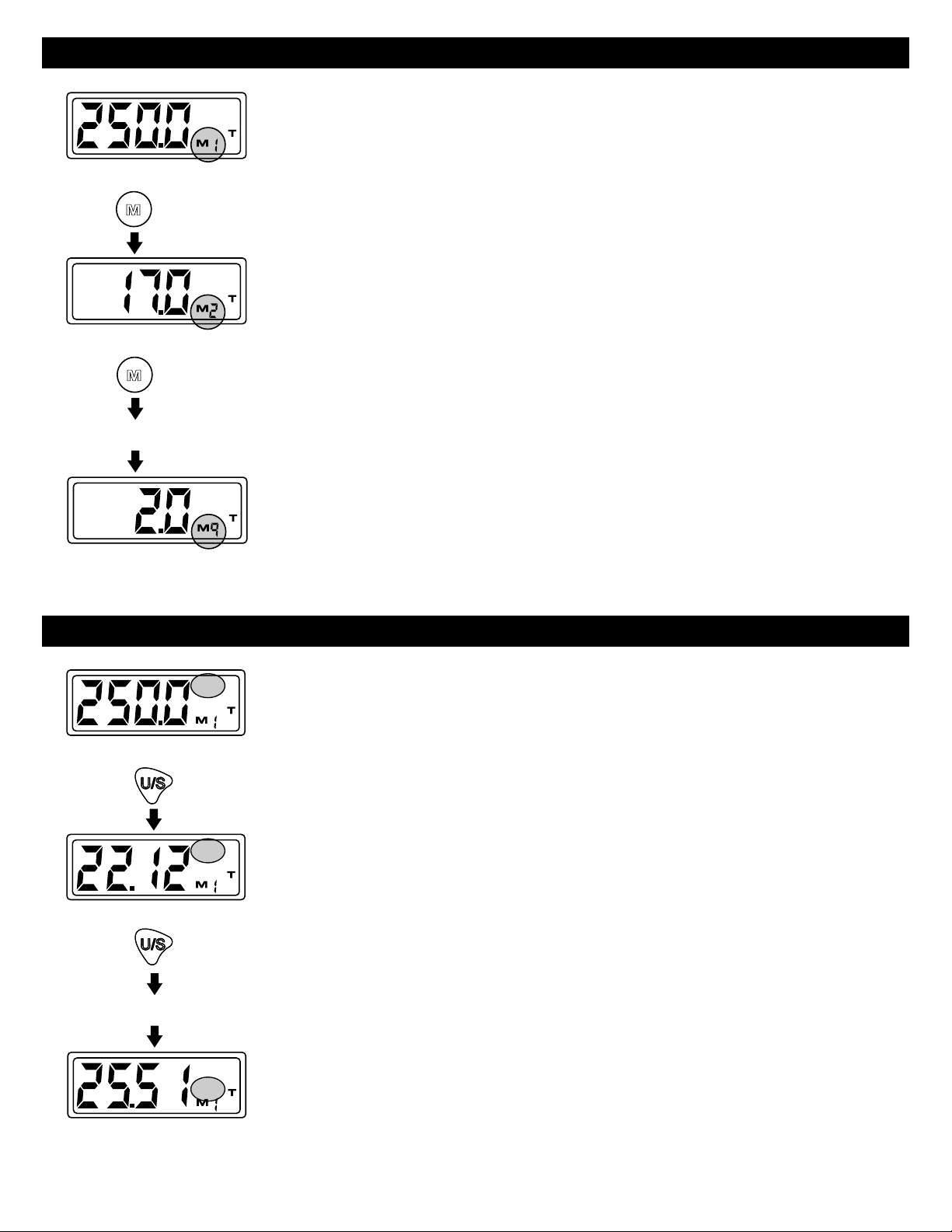

SETUP 1: PRE-SETTING NO.
SETUP 2: UNIT SELECTION
Pre-Set Memory Indicator: M1
Pre-Set Memory Indicator: M2
Pre-Set Memory Indicator: M3
Pre-Set Memory Indicator: M9
*Note 1,2,3
Press
Press
cN-m
In.lb.
kg.cm
Pre-Set Unit: cN-m
Unit Selection: in-lb
Pre-Set Memory Indicator: M3
Unit Selection: kg.cm
Oprima
Oprima
cN-m
In.lb.
kg.cm

DSD14 6 Rev. 03/01/12
SETUP 3: SET TARGET TORQUE
SETUP 4: PEAK HOLD/TRACK
MODE SELECTION
Note:
1. Please skip this procedure and continue
to the next step.
Note:
1. The “Unit Selection” is cyclic.
Pre-Set Target Torque
Increase Torque Value
Decrease Torque Value
Oprima
Oprima
cN-m
cN-m
cN-m
Track Mode
Long Press
cN-m
Set Peak mode
*Nota 1
*Nota 1
Set Track Mode
Press for Selection
Press
P
P
Record No.
Press
Clear Record
Peak Hold Mode
Press
cN-m

DSD14 7 Rev. 03/01/12

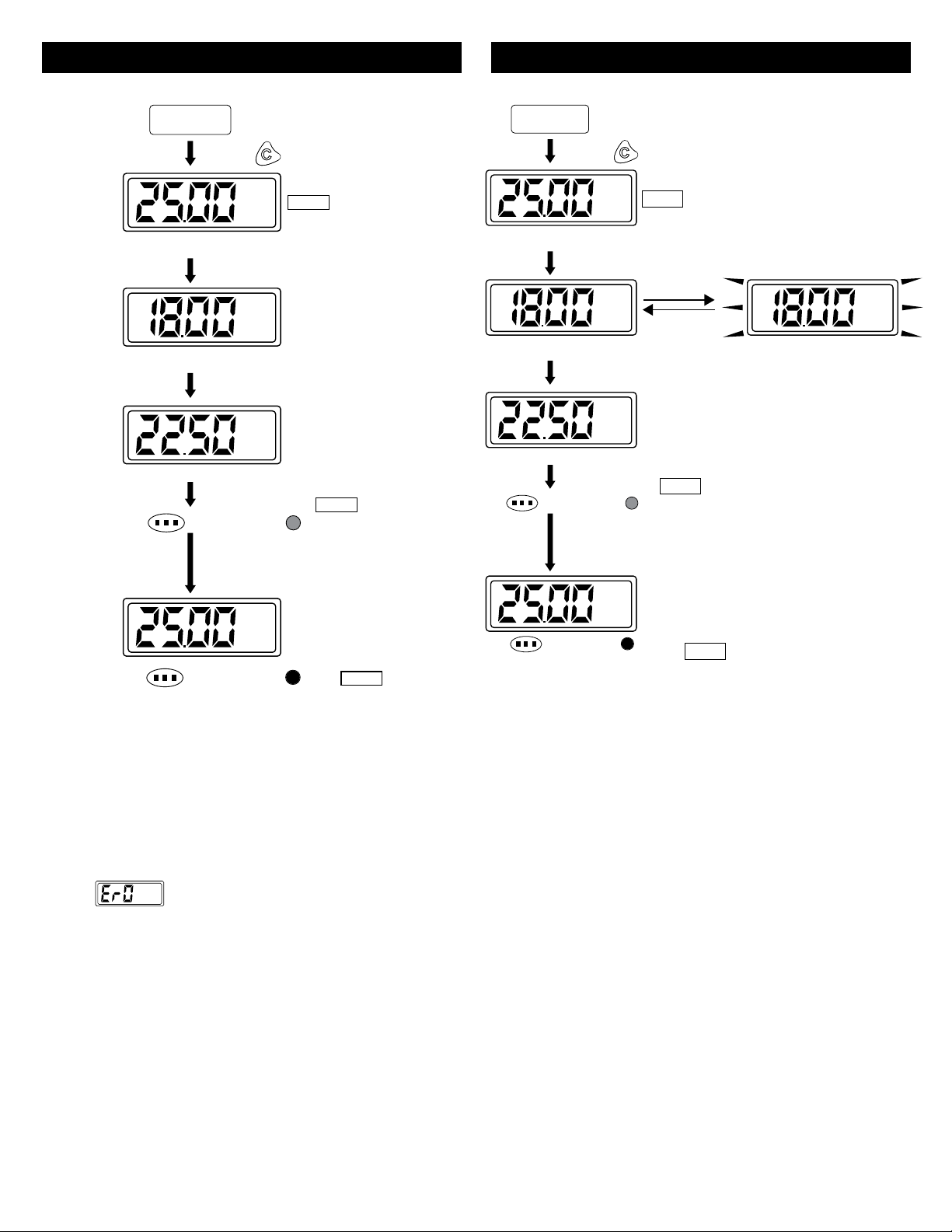

TRACK MODE OPERATION PEAK HOLD MODE OPERATION
Note:
1.Ifappears,itmeansthescrewdriverhas 
been torqued to more than 110% of maximum torque.
2.ThegreenLEDwillbeonfor90%oftargettorque.
3. When reaching the target torque, the green and red
 LEDwillbeonatthesametime.
N-m
N-m
M T
N-m
M P
N-m
M T
M T
(((((((())))))))((((((( )))))))
((…((… …))…)) ((…((… …)) …))
Setting Target Torque
Current Torque Value
Current Torque Value
(System initial)
START
Apply Torque
Buzzer Green LED
Reach 90% of
Target Torque
Buzzer Red LED
Reach Target Torque
Reach 90% of Target Torque
Reach Target Torque
*Note 1
*Note 3
*Note 2
N-m
N-m
M P
N-m
M P
N-m
M P
P
N-m
P
(((((((())))))))((((((( )))))))
((…((… …))…)) ((…((… …)) …))
Setting Target Torque
Current Max. Value (Peak Hold)
Current Torque Value
(System initial)
START
Apply Torque
Released
Apply Torque
Apply Torque
Buzzer Green LED
Reach 90% of
Target Torque
Buzzer Red LED
Reach Target Torque
Reach 90% of Target Torque
Reach Target Torque
*Note 1
*Note 3
*Note 2

DSD14 8 Rev. 03/01/12
PEAK HOLD MODE RECORDED VALUE REVIEW
Note:
1.Ifappears,itmeansthescrewdriverhas 
been torqued to more than 110% of maximum torque.
2.ThegreenLEDwillbeonfor90%oftargettorque.
3. When reaching the target torque, the green and red
 LEDwillbeonatthesametime.
cN-m
P
Peak Hold/Track Mode
Set Peak/Track Mode
Record No.
Clear Record
Record Value
(Exit)
Deleted
Peak Hold /Track Mode
No
(Give up)
Communication (service center only)
Long Press
Press
Press
Press
Auto
Change
*Note 1
*Note 3
*Note 2
cN-m
M
P
Yes (clean)
cN-m
M
P
*Note 4, 5, 6

DSD14 9 Rev. 03/01/12
Note:
1.The“PeakHold”moderecordedvaluereviewalsocan
be operated from “Track” mode operation.
2.Ifyouoperateinthe“PeakHold”mode,thedisplaywill
 show andpleasegotonextstep.
3.Iftherecordisempty,itwillshow.
4. This function is not supported on all type of models.
5. Communication mode is for uploading record data
to PC.
6. Communication mode is also for calibration of
 screwdriver.Pleasecontactyourlocaldealerfor 
information.
MAINTENANCE AND STORAGE
BATTERY MAINTENANCE
ATTENTION:
One-year periodic recalibration is necessary to
maintain accuracy.
Please contact your local dealer for calibration.
CAUTION
1. Over-torque (110% of Max. torque range)
could cause breakage or lose accuracy.
2. Donotshakeviolentlyordropwrench.
3. Donotusethiswrenchasahammer.
4. Donotleavethiswrenchinanyplaceexposedto 
excessive heat, humidity, or direct sunlight.
5. Donotusethisapparatusinwater.(not
 waterproof)
6. Ifthewrenchgetswet,wipeitwithadrytowel
 assoonaspossible.Thesaltinseawatercanbe 
especially damaging.
7. Do not use organic solvents, such as alcohol
 orpaintthinnerwhencleaningthewrench.
8. Keepthiswrenchawayfrommagnets.
9. Donotexposethiswrenchtodustorsandas 
this could cause serious damage.
10. Do not apply excessive force to the LCD panel.
11.Applytorqueslowlyandgraspthecenterofthe 
handle. Do not apply load to the end of handle
1. Whenthewrenchisnotusedforanextended 
period of time, remove the battery.
2. Keepasparebatteryonhandwhengoingona 
long trip or to cold areas.
3. Do not mix battery types or combine used
 batterieswithnewones.
4. Sweat,oilandwatercanpreventabattery’s 
terminal from making electrical contact. To avoid
 this,wipebothterminalsbeforeloadingabattery.
5. Dispose of batteries in a designated disposal area. Do
 notthrowbatteriesintoafire.

DSD14 10 Rev. 03/01/12
NOTES
Memory Prest
Location #
Newton meters
(N-m)
inch/pounds
(in - lb)
foot/pounds
(ft - lb)
kilogram/centimeters
(kg -cm)
angle
(degree º)
1
2
3
4
5
6
7
8
9
