Narita NP-2300 User manual

HIGH ALTITUDES CAUTION(5,OOO ft and higher)
This appliance may not shut-off property or from boiled to keep
warm position when used at high altitudes; Use EXTREME caution!
If unit does not shut off after 10 seconds of boiling.
Electric Hot Water Dispenser
NP-2300
NP-3800
INSTRUCTION MANUAL
www.naritausa.com

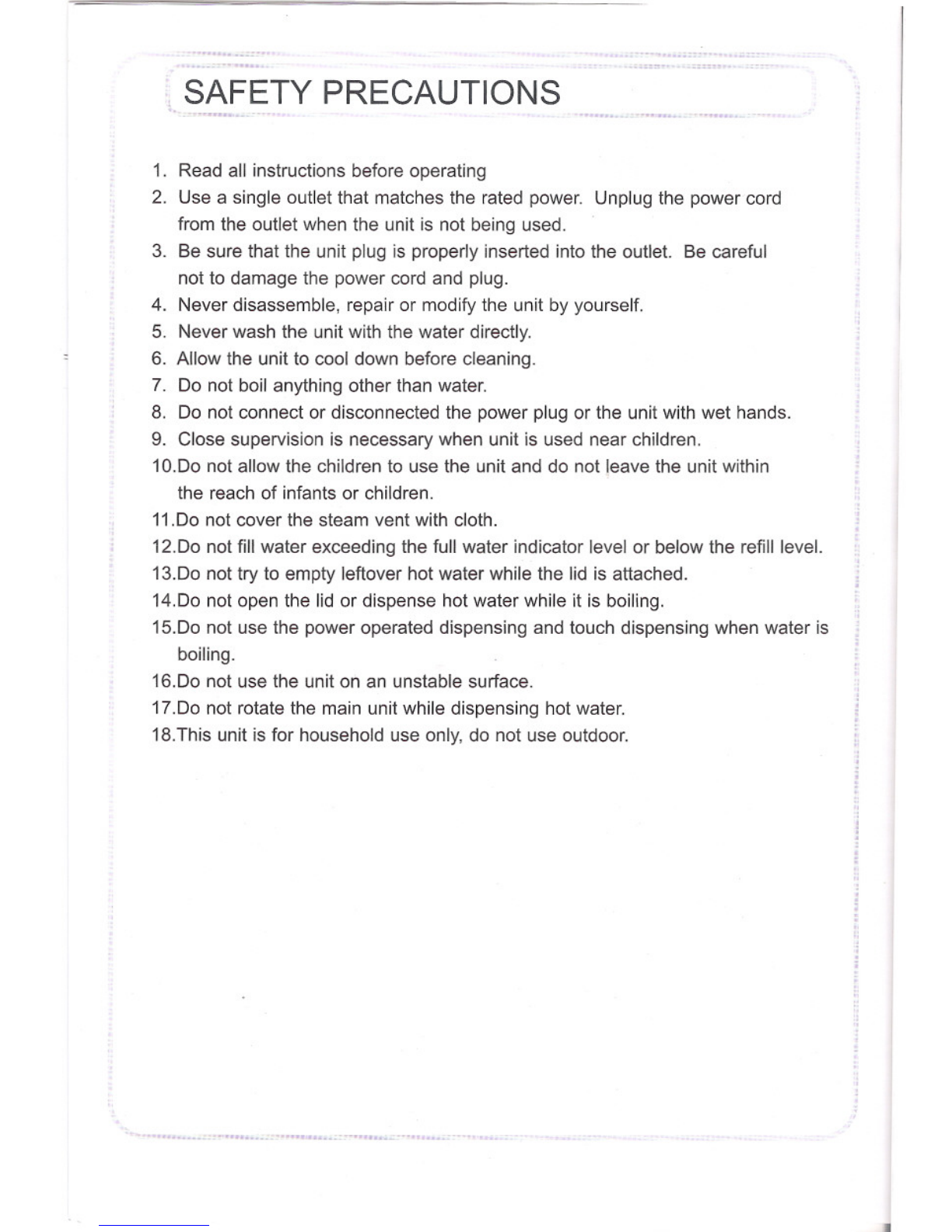

SAFETY PRECAUTIONS
1. Read all instructions before operating
2. Use a single outlet that matches the rated power. Unplug the power cord
from the outlet when the unit is not being used.
3. Be sure that the unit plug is properly inserted into the outlet. Be careful
not to damage the power cord and plug.
4. Never disassemble, repair or modify the unit by yourself.
5. Never wash the unit with the water directly.
6. Allow the unit to cool down before cleaning.
7. Do not boil anything other than water.
8. Do not connect or disconnected the power plug or the unit with wet hands.
9. Close supervision is necessary when unit is used near children.
10.00 not allow the children to use the unit and do not leave the unit within
the reach of infants or children.
11.00 not cover the steam vent with cloth.
12.00 not fill water exceeding the full water indicator level or below the refillleve!.
13.00 not try to empty leftover hot water while the lid is attached.
14.00 not open the lid or dispense hot water while it is boiling.
15.00 not use the power operated dispensing and touch dispensing when water is
boiling.
16.00 not use the unit on an unstable surface.
17.00 not rotate the main unit while dispensing hot water.
18.This unit is for household use only, do not use outdoor .
•••

Name of Comoonents
Air pump(manucl dispense)
Lid opening lever
Boil
Keep warm
Reboil
Discharge mouth
Low water level mark
Steam Vent
Lid hinge
Safety lock
Handle
Dispense
Unlock
Power plug
Power connector
Gasket
inner pot

Never allow water to fill over the "full" mark
or below the "REFILL" mark, otherwise it will
spill over or water will dry up during boiling aprocess. ~
f-0pe-r:-a f,ngin Strue tio--n·-···=~···--='··-··==····-~ .
~ •• _ --- _ •• 'Z ••••.••• .;:: •••••••••••.• ~ -. ~;;::!.-.".,,>:-::~1!.-' ,;;;:.::1!'!!I ••••• .;:=:::r'"_."'.

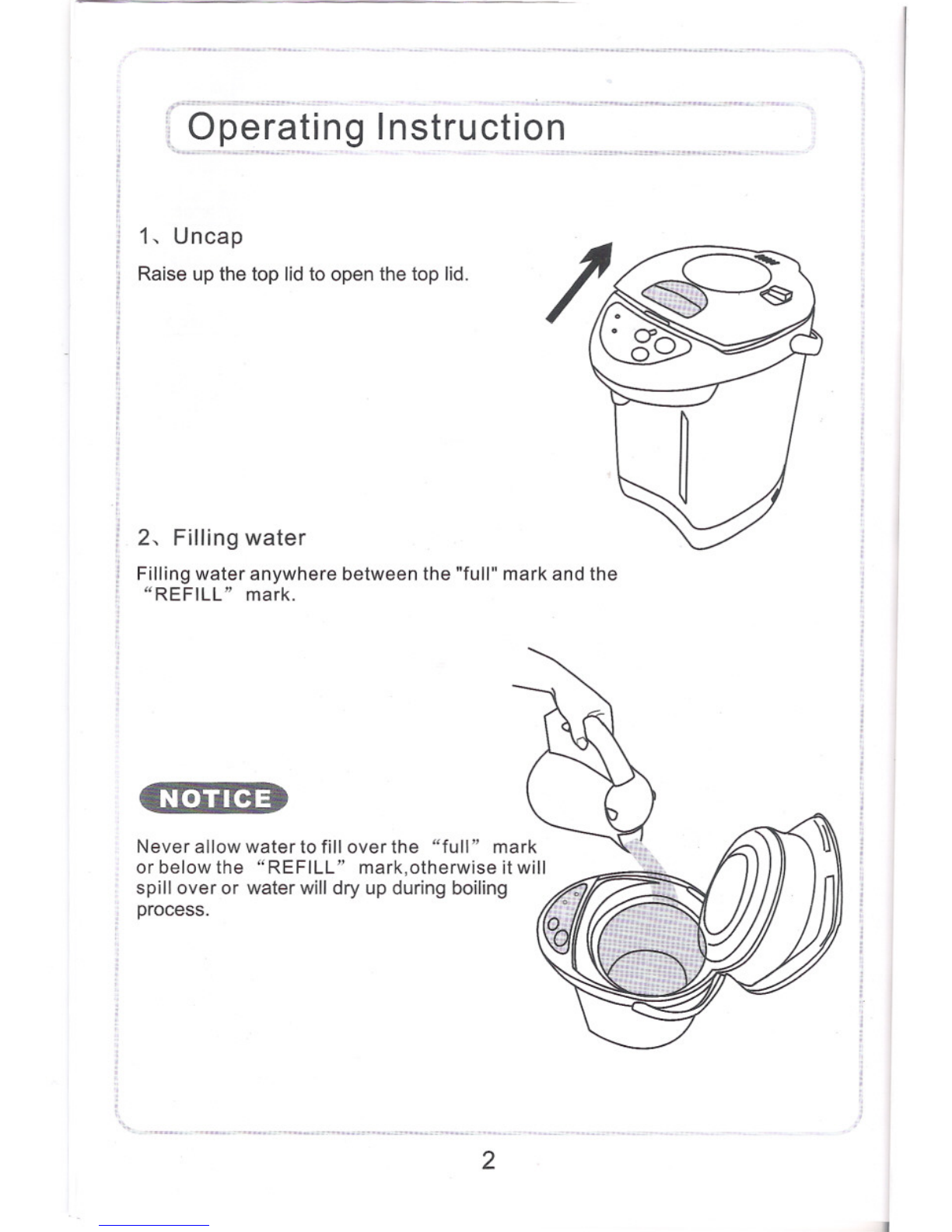

1, Uncap
Raise up the top lid to open the top lid.
2, Filling water
Filling water anywhere between the "full" mark and the
"REFILL" mark.
2
1

3, Electric outlet
Insert plug into the electric outlet.
the boil light will light up when boiling
begins.
Please ensure the plug and electric outlet
are dry before inserting the plug.
4, Boiling, keep warm
When the water is boiled,the dispenser will automatically
switch to keep-warm function.The boil light
will turn off and the keep-warm light will light up.
Boil Unlock
Re-boiling
Do not open the top lid when water is boiling to avoid steam burn by hot steam.
3

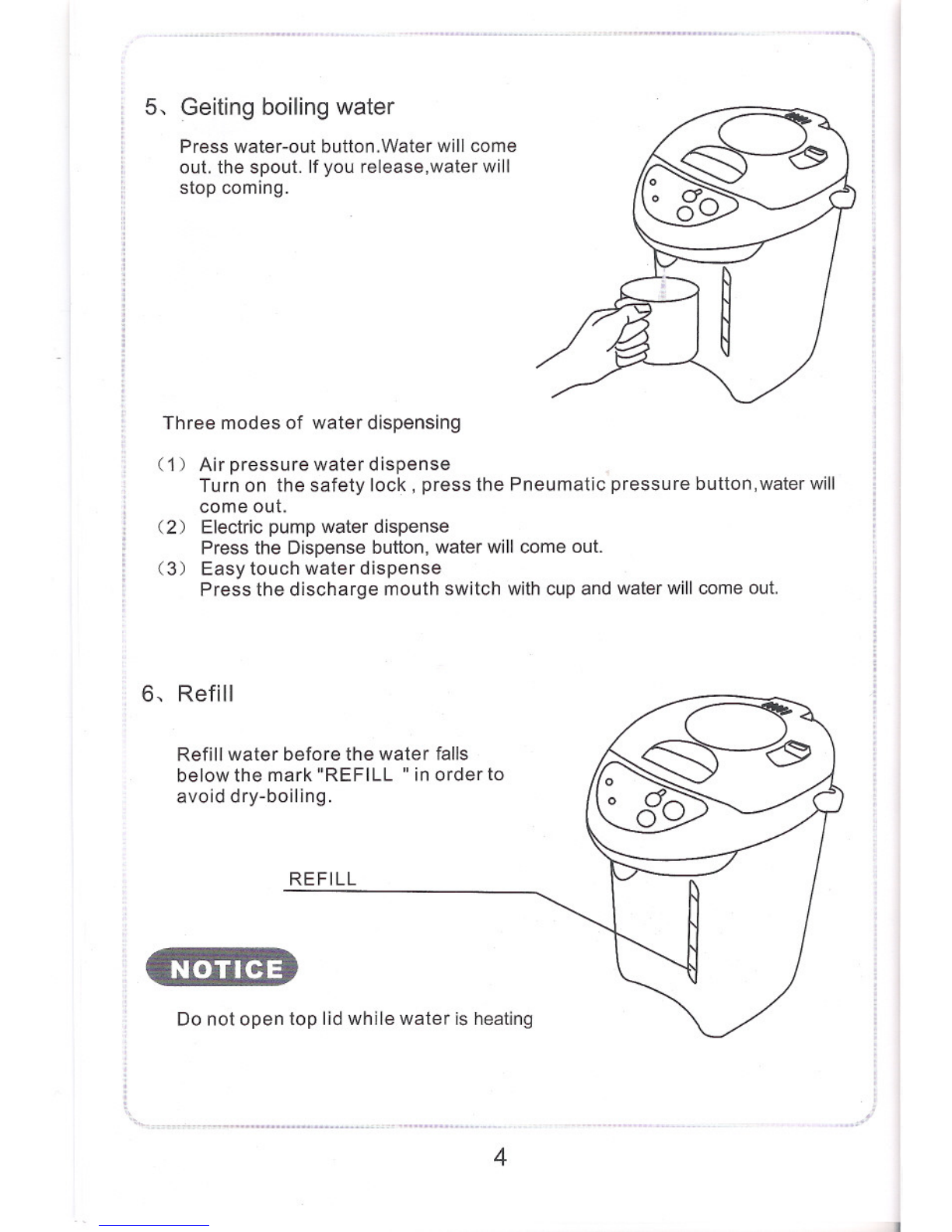

5, Geiting boiling water
Press water-out button.Water will come
out. the spout. If you release,water will
stop coming.
Three modes of water dispensing
(1) Air pressure water dispense
Turn on the safety lock, press the Pneumatic pressu re button, water will
come out.
(2) Electric pump water dispense
Press the Dispense button, water will come out.
(3) Easy touch water dispense
Press the discharge mouth switch with cup and water will come out.
6, Refill
Refill water before the water falls
below the mark "REFill" in order to
avoid dry-boiling.
REFill
Do not open top lid while water is heating
4

r
\\
Store
Disconnect the power cable ,move
top lid, pour out water, and then wipe
with dry cloth.
Be sure not to pour out water in the front of the"water flowing"
button or in the back of it.
\
l
Remove top lid
(1) Opening top lid.
(2) Press the Lid hinge.1ift lightly,
then is can be fake off.
5

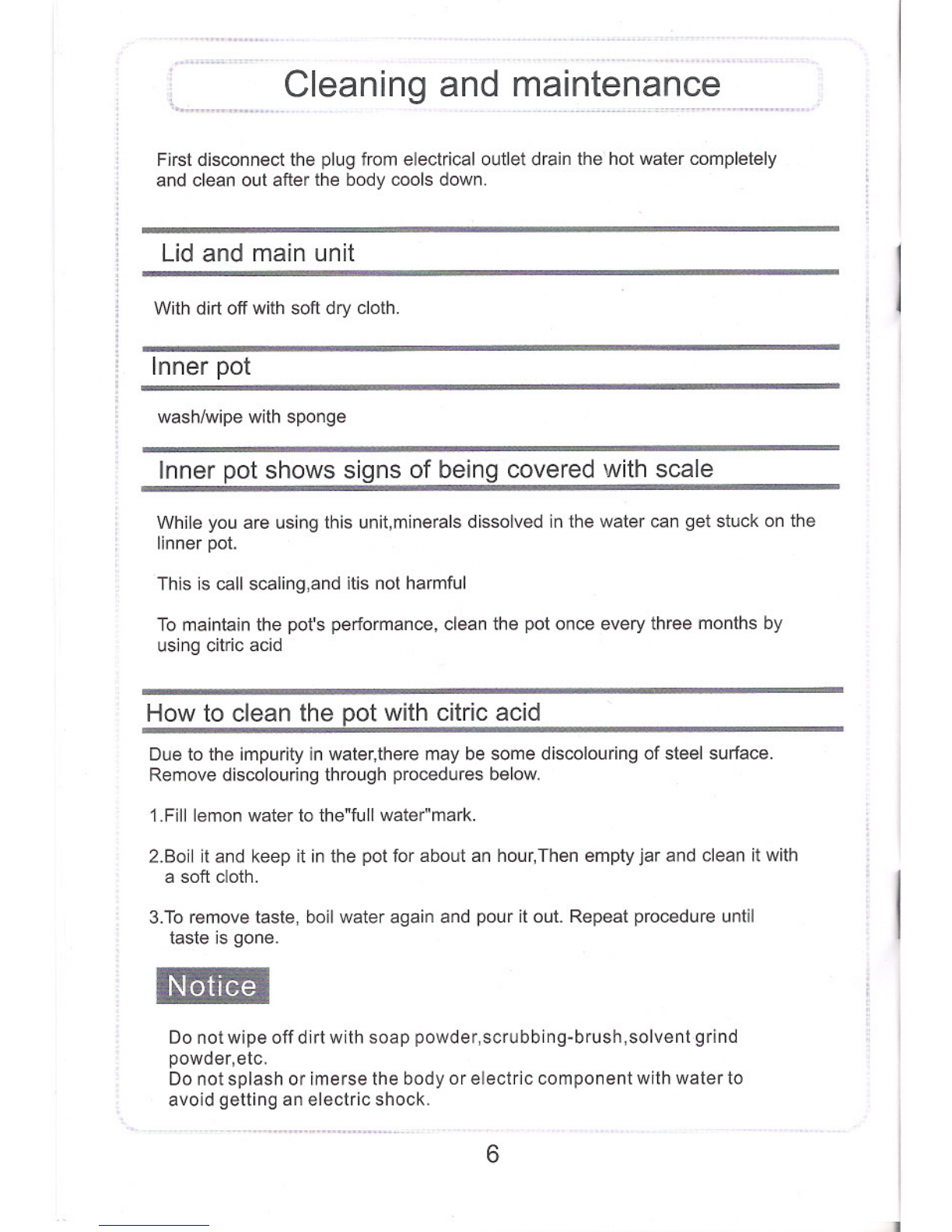

Cleaning and maintenance
First disconnect the plug from electrical outlet drain the hot water completely
and clean out after the body cools down.
Lid and main unit
With dirt off with soft dry cloth.
Inner
wash/wipe with sponge
Inner pot shows signs of being covered with scale
While you are using this unit,minerals dissolved in the water can get stuck on the
linner pot.
This is call scaling,and itis not harmful
To maintain the pot's performance, clean the pot once every three months by
using citric acid
How to clean the with citric acid
Due to the impurity in water, there may be some discolouring of steel surface.
Remove discolouring through procedures below.
i.Fill lemon water to the"full water"mark.
2.Boil it and keep it in the pot for about an hour,Then empty jar and clean it with
a soft cloth.
3.To remove taste, boil water again and pour it out. Repeat procedure until
taste is gone.
Do not wipe off dirt with soap powder,scrubbing-brush,solvent grind
powder, etc.
Do not splash or imerse the body or electric component with water to
avoid getting an electric shock.
6

Special electric component
Do not use any other type of cord. Use only the original power cord
provided.
To prevent scalding
Be careful of steam from the steam Vent, hot steam can cause scalding steam burns
and are very dangerous.
Ensure the cover is closed well
It is very dangerous when the cover is not closed well, hot steam
may escape and it may cause the lid to deform.
No dry-boiling(Boiling without water)
Dry-boiling will cause the container to deform.
Do not pour in any liquid except water
>.
i!Do not pour milk, tea, etc into dispenser
Suitable environment
Do not use it near fire keep it away from wall and furniture.
Insert plug completely into jack socket.
7

If the supply cord is damaged, it must be replaced Immediately by
the manufacturer or their service agent.
MODEL
NP-2300
NP-3800
...."";:;.:.':':.
H~;'TING
,POWER
.....,....-..
750W
::'~:~;;.;;. ::.
KEEP WARM
POWER
35W
35W
8
CAPACiTY
120V/60Hz
.,

This unit is warranted for defective materials or workmanship
for one year from the date of purchase. The warranty is valid for
any manufacturing defects only. This warranty covers operational
defects incurred in normal use and does not apply in the case of
damage, abuse, mishandling, accident, or failure to follow operation
instructions. Narita shall have no responsibility for any damages
incidental to equipment and its sole responsibility shall be for the
repair of replacement as indicated, except for shipping and handling
costs. There are no implies or expressed warranties of fitness or
merchantability which extend beyond the above warranty.
Note: Any unit for reimbursement or repairing should be sent
back with original complete box to the authorized service
representative.
