NASA Marine SUPERNOVA User manual
DESIGNED AND
MANUFACTURED
IN ENGLAND
RoHS
2002/95/EC
SUPER
NOVA
NASA MARINE Ltd.
BOULTON ROAD
STEVENAGE
HERTS SG1 4QG
ENGLAND
(01438) 354033
MARINE INSTRUMENTS

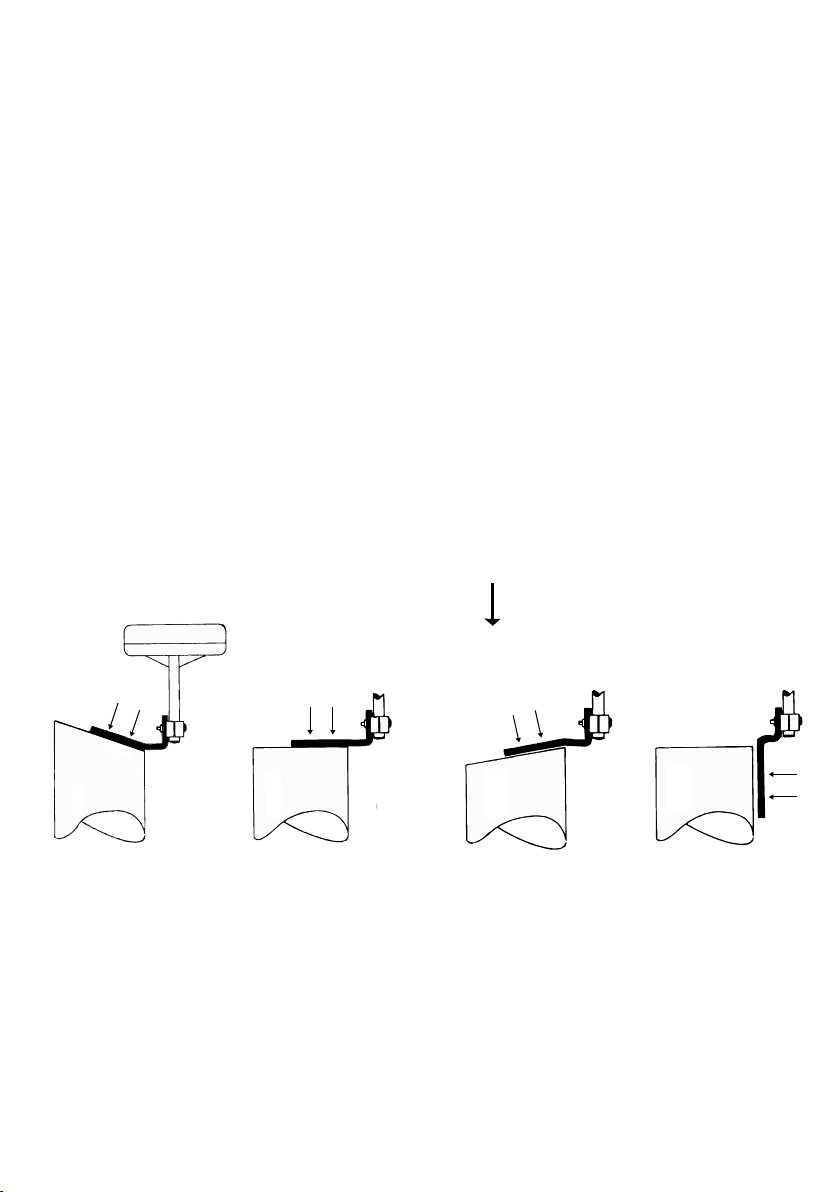

FITTING THE SUPERNOVA.
The SUPERNOVA is supplied with a universal mounting bracket
which can be bent along the row of slots to accommodate any
mounting angle. Figs 1 to 4 illustrate the various mounting options.
Bend the bracket to the required angle. Drill the bracket and fix to
the mast using self tapping screws. Make final adjustments to the
bracket to ensure the flange is vertical then bolt the SUPERNOVA to
the flange using the mounting blocks and stainless steel fasteners
provided. The anchor light has no preferred direction however the tri-
colour must have the arrow on the top pointing forward. The combi
must be mounted with the line dividing the green and red sectors
pointing forward.
INTRODUCTION.
The SUPERNOVA tri-colour, SUPERNOVA anchor and SUPERNOVA
combi lights are designed to comply with COLREG (rule 22) for
installation on vessels up to 12 metres in length.
They are visible, at night, at a distance in excess of 2nm even with 25
degrees of pitch or roll. The nominal supply voltage is 12 volts (10 to
20 volts) with a current at nominal voltage of 200mA.
The anchor light is white through 360 degrees. The tri-colour is white
through 135 degrees, red through 112.5 degrees and green through
112.5 degrees. The combi is a combined anchor and tricolour light.
SUPERNOVA
FITTING INSTRUCTIONS
MAST
MAST
MAST
MAST
OR OR OR
Fig. 1 Fig. 2 Fig. 3 Fig. 4
CAUTION.
* Do not exceed the rated supply voltage.
* Paint any scratches on the mounting bracket which result from drilling or bending.
* Do not fit to vessels over 12 metres.
* Do not try to bend the bracket using the SUPERNOVA as a lever.
* Ensure all electrical connections are properly made and are waterproof.
* Do not remove the cable tie as is prevents stress on the cable gland.
* Do not tamper with the Gore-Tex sealing grommet.
* Do not remove the top label.
* Do not attempt this installation if you are not competent to do so or if you do
not possess the proper equipment.
MOUNTING OPTIONS
= Drill for self-tapping screw
Fold along
row of slots

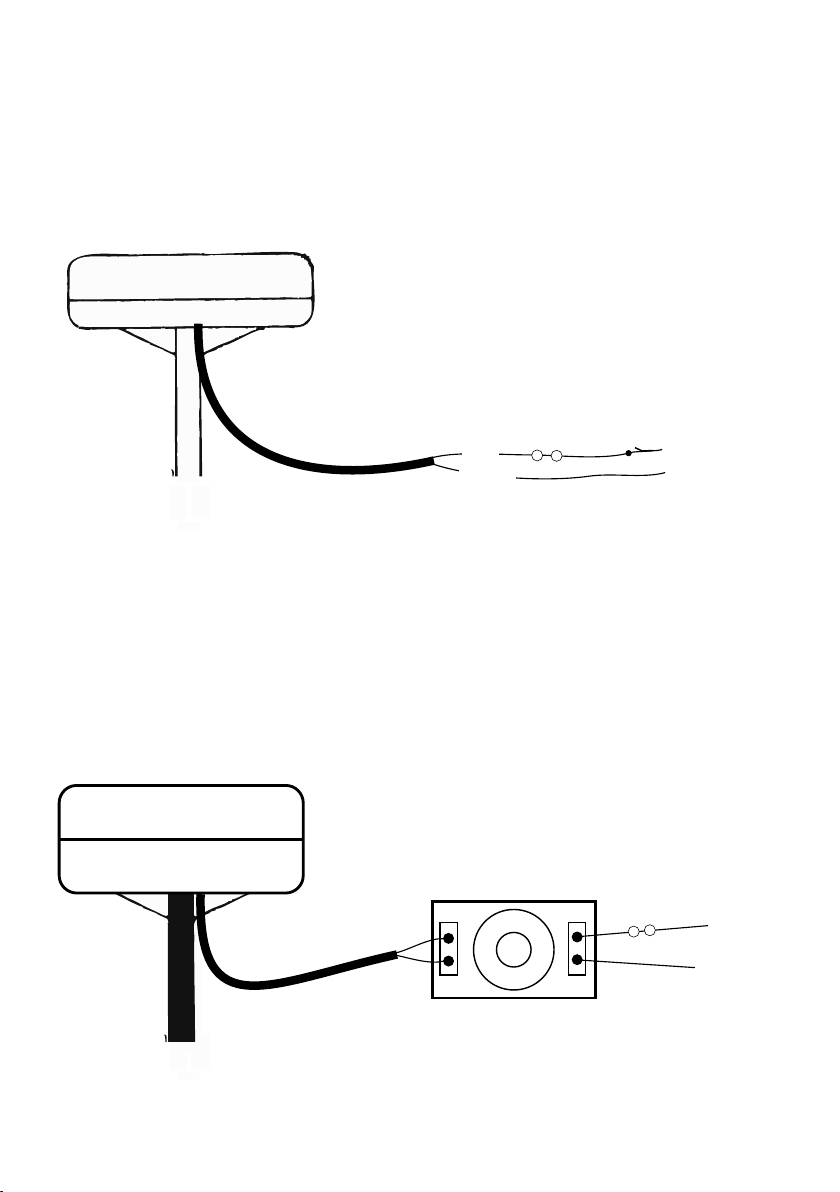

CONNECTING THE SUPERNOVA ANCHOR OR TRI-COLOUR.
Connect the power cable to the 12 volt supply (Red positive and
Black negative) through a 1 Amp fuse and a suitable switch. (Fig 5)
Fig. 5
RED
BLACK
+_
1 Amp Fuse Switch 12 volt
Supply
CONNECTING THE COMBI LIGHT.
Connecting the red wire to positive and the black wire to negative will
illuminate the tricolour light. Reversing the connections will illuminate
the anchor light. A toggle switch is supplied with the combo light to
facilitate the supply reversal. (Fig 6) In the central position both lights
are off. Switching clockwise or anticlockwise selects the required
lighting configuration.
Fig. 6
+
_
1 Amp Fuse 12 volt
Supply
Light
Power
If a toggle or rocker switch is preferred, to match existing switches,
then a centre off two pole changeover switch can be use wired as in
fig 7.
12 volt
Supply +
_
Fig. 7
1 Amp
Fuse
To Light
A typical switch wiring
IMPORTANT.
Supernova navigation lights are intended for use on vessels up to 12
metres in length.
They comply with CE generic EMC standards and are waterproof to
IP65 and IP67. There is no specific EU standard for LED navigation
lights. Supernova lights do not have any national approvals.
Declaration of Conformity
NASA Marine Ltd declare this product is in compliance with the essential requirements of
R&TTE directive 1995/5/EC.
THIS PRODUCT IS INTENDED FOR USE ONLY ON NON SOLAS VESSELS
IMPORTANT READ THIS BEFORE
UNPACKING INSTRUMENT
LIMITED WARRANTY
Prior to unpacking this instrument read and fully understand the installation instructions.
Only proceed with the installation if you are competent to do so. Nasa Marine Ltd. will
not accept any responsibility for injury or damage caused by, during or as a result of
the installation of this product. Any piece of equipment can fail due to a number of
causes. Do not install this equipment if it is the only source of information and its failure
could result in injury or death. Instead return the instrument to your retailer for full credit.
Remember this equipment is an aid to navigation and not a substitute for proper
seamanship. This instrument is used at your own risk, use it prudently and check its
operation from time to time against other data. Inspect the installation from time to time
and seek advice if any part thereof is not fully seaworthy.
Nasa Marine Ltd. warrants this instrument to be substantially free of defects in both
materials and workmanship for a period of one year from the date of purchase.
Nasa Marine Ltd. will at its discretion repair or replace any components which fail in
normal use within the warranty period. Such repairs or replacements will be made at
no charge to the customer for parts and labour. The customer is however responsible
for transport costs. This warranty excludes failures resulting from abuse, misuse,
accident or unauthorised modifications or repairs. In no event shall Nasa Marine Ltd.
be liable for incidental, special, indirect or consequential damages, whether resulting
from the use, misuse, the inability to correctly use the instrument or from defects in
the instrument. If any of the above terms are unacceptable to you then return the
instrument unopened and unused to your retailer for full credit.
Name
Address
Dealer Name
Address
Date of Purchase
Proof of purchase may be required for warranty claims.
Nasa Marine Ltd.
Boulton Road, Stevenage, Herts SG1 4QG England
