Nasacom MG9030 User manual

http://www.nasa-com.com
Page 1of 7
-A Short Range Magnetic Inductive Technology -
MG9030 includes the following Components:
A) Wireless Headset Unit / with Ni-MH Rechargeable Battery Pack (Fig.1 &
Fig.2)
Fig.1
Fig.2

http://www.nasa-com.com
Page 2of 7

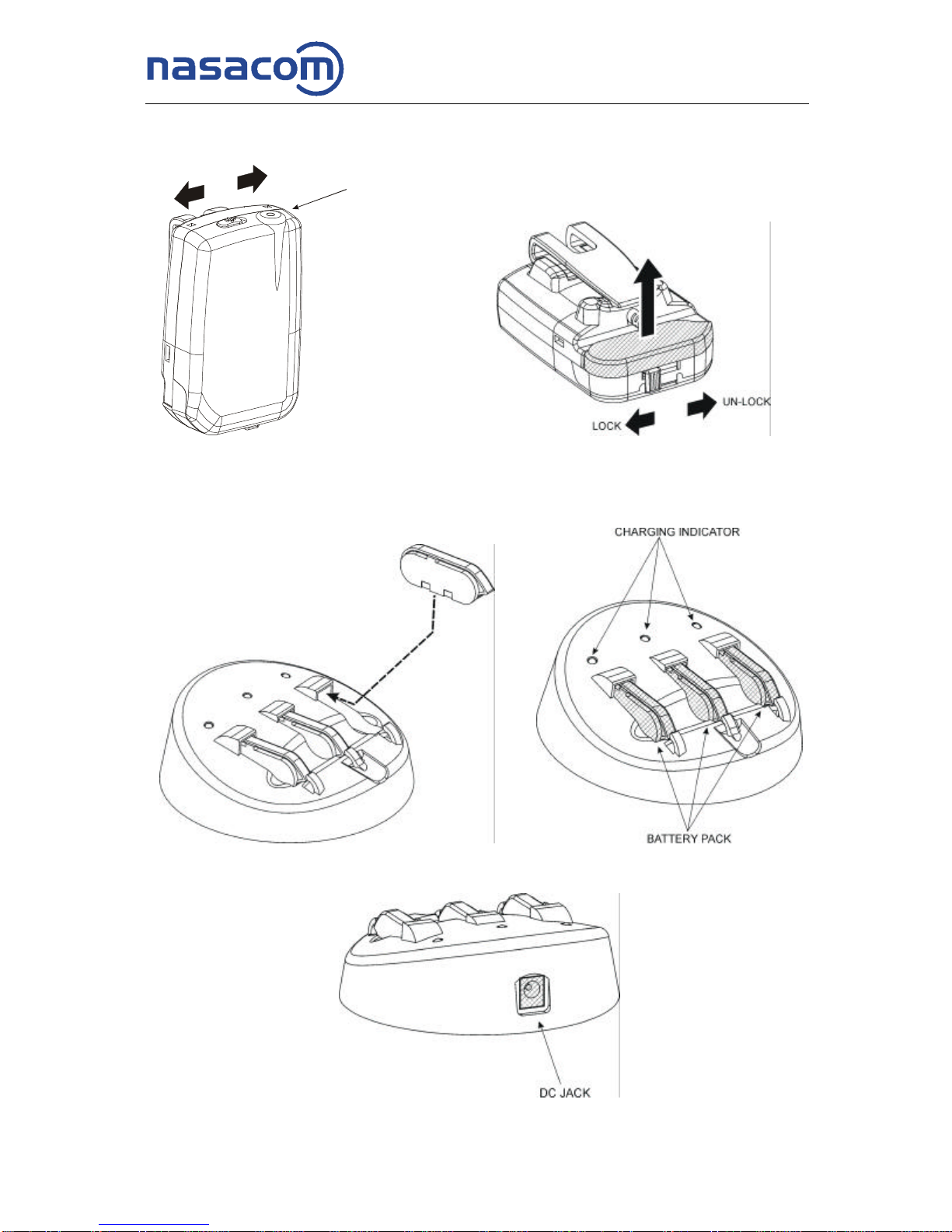

B) Base Unit / with Ni-MH Rechargeable Battery Pack (Fig.3 & Fig.4)
POWER INDICATOR
ON
OFF
Fig.3 Fig.4
C) Battery charger / with a AC to DC adaptor
Fig. 5 Fig. 6
Fig. 7

http://www.nasa-com.com
Page 3of 7
How to use:
Step 1) Insert the Battery Pack into the Base Unit to power it up.
Step 2) Connect Base Unit to the audio receptacle on your cellular phone by the
cable of the Base Unit. Adapter may be required for the connection.
Consult your local distributor the suitable adapter for your phone.
Step 3) Set your cellular phone to “auto receive” mode (provided that your
cellular phone has this feature) if you want to be totally hand free.
Step 4) Turn on the headset by the power switch as shown.
ON
POWER INDICATOR

http://www.nasa-com.com
Page 4of 7

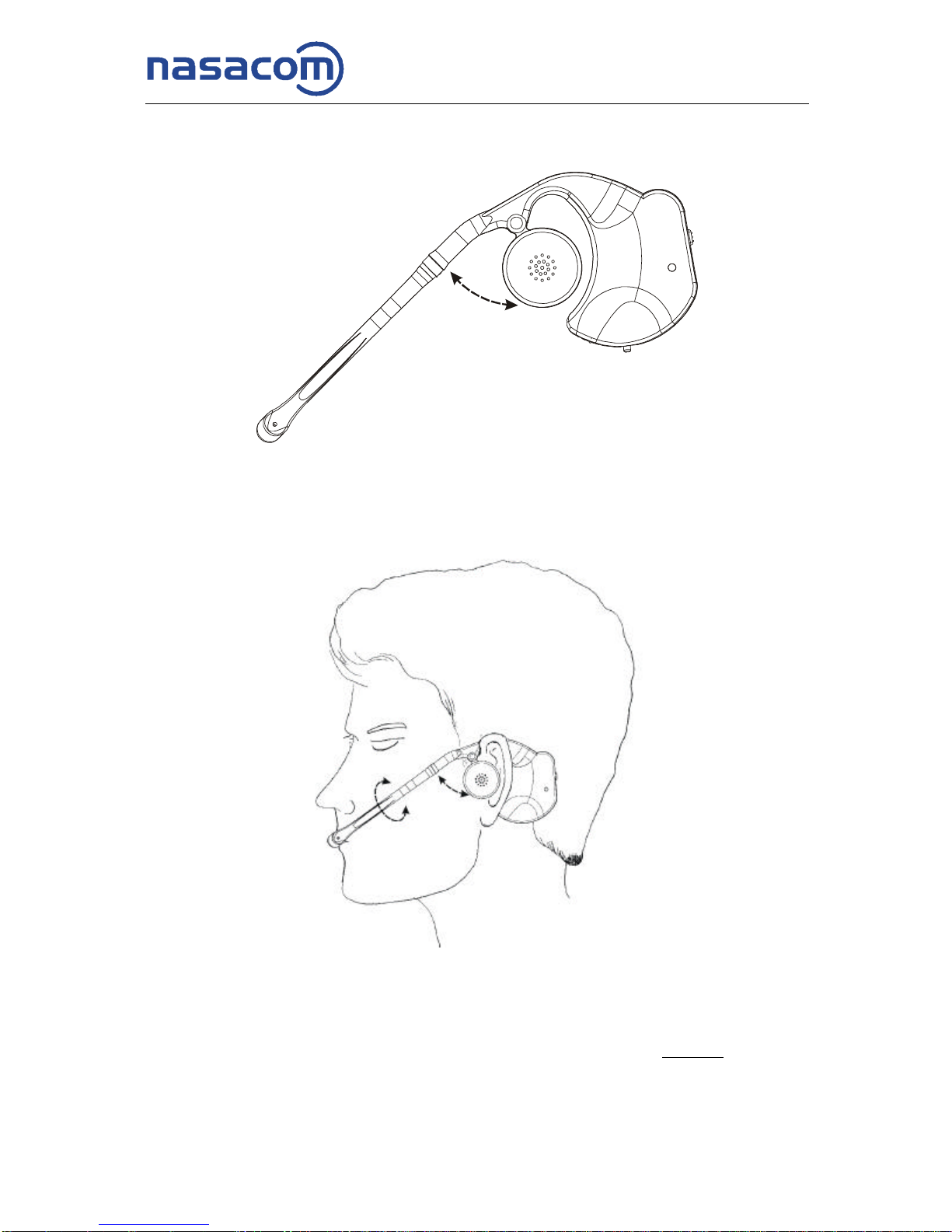

Step 5) Open the gap between the ear ride and the speaker and put the headset
on your ear. (This headset is designed for both left and right ears)
Step 6) Tighten the headset by moving the speaker back to the ear ride. Rotate
the microphone tip to make it as closer to your month as possible.
Step 7) Make a test call to a friend using your cellular phone. Dial tone should
present if the key tone has been activated on your cellular phone.
Step 8) Adjust the speaker volume by pushing the four-step volume button to
achieve the appropriate speaker volume. (You may need to adjust the
volume again if the Headset has been switched off)

http://www.nasa-com.com
Page 5of 7
Troubleshooting:
If you do not hear a dial tone when you try to make a phone call.
1. Make sure your Battery Pack is fully charged and inserted in your Headset
and Base Unit.
2. Confirm the Power Switches on both Base Unit and Headset are on the ON
position.
3. Be sure that the green LEDs is ON for both Base Unit and Headset when
you push the keypad.
4. Make sure that the cable is compatible with your cellular phones. For most
of the cellular phones, ”Headset" will display on the screen if the cable is
connected correctly.
5. Confirm the volume of your cellular phone is set to the maximum level.
6. Try pushing the volume button on the headset to increase the audio level.
Battery Charging:
Step 1) Plug the AC to DC adaptor into the electric socket. Then connect the
adaptor to the Battery Charger shown in Fig. 7.
Step 2) Insert the battery pack into the Charger (Fig.6). Three battery packs can
be charged at the same time independently.
Step 3) The red LED on the Charger will be ON (Fig. 6) when the battery is
being charged.
Step 4) After approximate 10 hours, the battery pack will be fully charged and
the red LED will be OFF.
Step 5) Remove the battery pack from the Charger and insert it to the Base Unit
or Headset for battery replacement. The charged battery will last for
around 2.5 hours talk time or 150 hours in standby mode. It is
recommended to put the discharged battery packs into the charger for
overnight charging.

http://www.nasa-com.com
Page 6of 7
Important Note:
1) Effective Transmission Distance is about 1.5 Meters (~ 5 feet). If you
exceed this distance, the Headset will mute the speaker output. If you
stay out of range for more than 32 seconds, the headset will automatically
switch to standby mode to save battery life. At that time, the LED on the
headset will be blinking and the red LED on the Base Unit will be on,
indicating the link is broken. To establish the link, simply move Headset
closer the Base Unit and both green LEDs on the Base Unit and the
Headset will be ON again.
2) When the Base Unit is off or in standby mode, the headset will also
automatically switch to standby after 32 seconds.
3) Make sure no obstacle between the Base Unit and Headset to receive
optimal sound quality.
4) Only need to turn off the Base Unit and Headset when you do not want
to use your cellular phone for a long time.
5) Do not attempt to put on your Headset or change the battery while
driving.
6) While the mobile phone network signal strength is very weak, your
mobile phone radiation power will automatically increase, resulting in
some “mosquito” noise at your headset. When this happens, try moving
the mobile phone further away from the Base Unit or changing the
orientation of your mobile phone to minimize the noise.
7) You may experience some interference from other electronic equipment
(such as computer monitor). In this case, you can change the frequencies
of the Base Unit and the Headset by the hidden switches as indicated
below from channel 1 to 2 (or vise versa). Make sure that both switches
are at the positions of same channel. If this does not help, try moving the
Base Unit away from the equipment.
CH 2
CH 1
CH 2
CH 1

http://www.nasa-com.com
Page 7of 7
These devices comply with part 15 of the FCC rules. Operation is subjected to
the following two conditions: 1) This device may not cause harmful interference
and 2) This device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the users authority to operate the equipment.
