National Instruments cRIO-9805 User manual

GETTING STARTED GUIDE
cRIO-9805
4-Port 802.1AS Ethernet Switch Expansion Module for CompactRIO
This document provides information to help you get started with the cRIO-9805, connecting
the module to power, connecting to Ethernet, and configuring the device and the network.

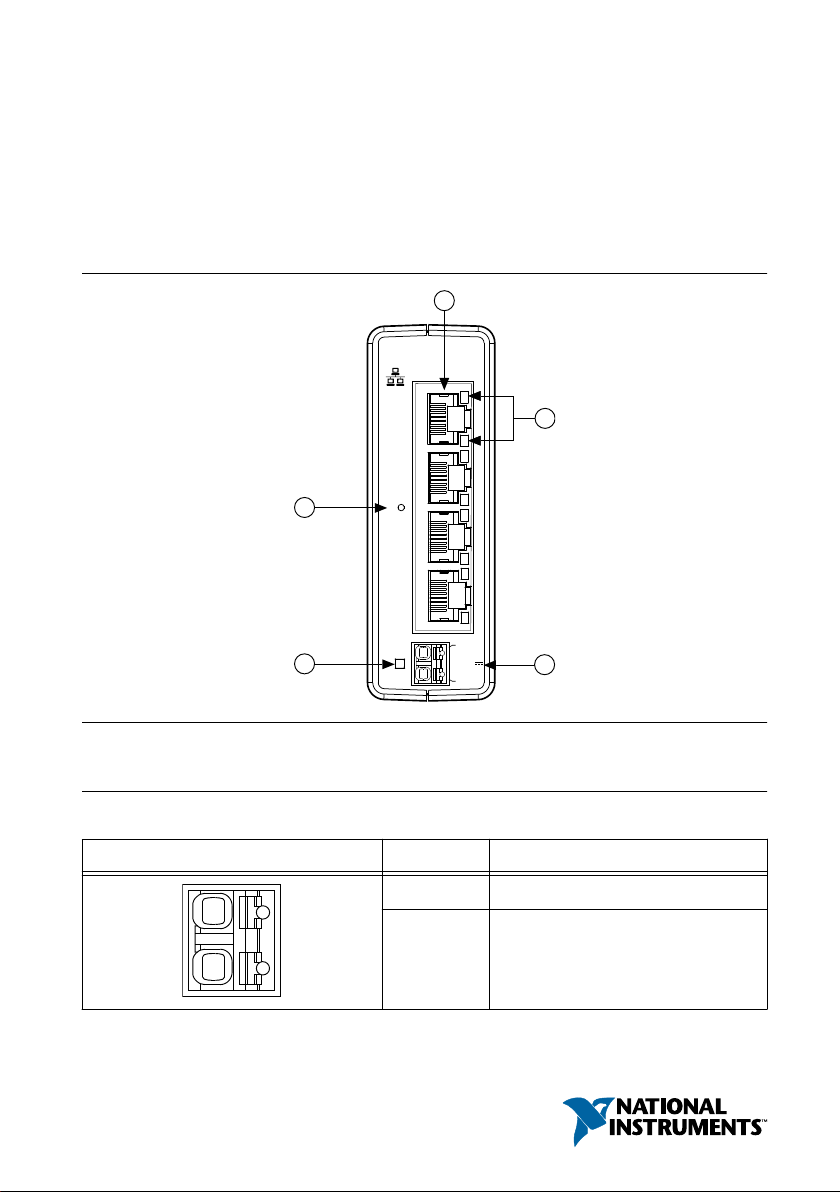

Figure 1. cRIO-9805 Front Panel
3
5
2
1
4
cRIO-9805
SYNC
0
1
3
2
RESET
POWER/
STATUS
V
C
INPUT
5 W MAX
9 to 30 V
1. Power/Status LED
2. Reset button
3. Ethernet ports 0 to 3
4. Ethernet LEDs
5. Power connector (9 V to 30 V)
Table 1. Power Connector Pinout
Pinout Pin Description
V
C
V Power input
C Common

Table 2. Power/Status LED Indicators
LED Color LED Pattern Indication
Blue Solid The cRIO-9805 is powered on.
Yellow
Solid The cRIO-9805 is booting.
Blinking The cRIO-9805 is in recovery mode.
Blue and Yellow Solid The cRIO-9805 is resetting.
— Off The cRIO-9805 is powered off.
Table 3. Ethernet Port Pinout
Fast Ethernet Signal Gigabit Ethernet Signal Pin Pinout
TX+ TX_A+ 1
1
2
3
4
5
6
7
8
TX- TX_A- 2
RX+ RX_B+ 3
No Connect TX_C+ 4
No Connect TX_C- 5
RX- RX_B- 6
No Connect RX_D+ 7
No Connect RX_D- 8
Table 4. Ethernet LED Indicators
LED LED Color LED Pattern Indication
ACT/LINK — Off LAN link not established
Green Solid LAN link established
Blinking Activity on LAN
10/100/1000 Yellow Solid 1,000 Mbit/s data rate selected
Green Solid 100 Mbit/s data rate selected
— Off 10 Mbit/s data rate selected
2| ni.com | cRIO-9805 Getting Started Guide

Unpacking the Kit
Notice To prevent electrostatic discharge (ESD) from damaging the device, ground
yourself using a grounding strap or by holding a grounded object, such as your
computer chassis.
1. Touch the antistatic package to a metal part of the computer chassis.
2. Remove the device from the package and inspect the device for loose components or any
other sign of damage.
Notice Never touch the exposed pins of connectors.
Note Do not install a device if it appears damaged in any way.
3. Unpack any other items and documentation from the kit.
Store the device in the antistatic package when the device is not in use.
What You Need to Get Started
Kit Contents
Verify that the following items are included in the cRIO-9805 kit.
13
2
1. cRIO-9805
2. Ethernet cable
3. Safety, Environmental, and Regulatory Information document
Required Components
• CompactRIO controller or host computer
• Power supply, 9 V to 30 V, 5 W maximum
Recommended Components
• Internet access
• Additional, required-length Ethernet cable(s), user provided
cRIO-9805 Getting Started Guide | © National Instruments | 3

Mounting the cRIO-9805
You can mount the cRIO-9805 with a CompactRIO chassis. For instructions and guidelines
about the various chassis mounting configurations, refer to the Expansion Module for
CompactRIO User Manual on ni.com/manuals.
You can also use the cRIO-9805 with a variety of hardware systems and configurations. For
more information about using the module with non-CompactRIO systems, contact NI.
Grounding the cRIO-9805
For information about grounding the cRIO-9805, refer to the Expansion Module for
CompactRIO User Manual on ni.com/manuals.
Connecting the cRIO-9805
Connecting the cRIO-9805 to an External Power
Supply
The cRIO-9805 requires a 9 V to 30 V power supply.
What to Use
• Power supply, 9 V to 30 V, 5 W maximum
• Wire, 1.3 mm2 to 0.2 mm2 (16 AWG to 24 AWG)
• Ferrules (recommended)
• Screwdriver, 2.54 mm (0.10 in.) flathead
What to Do
Complete the following steps to connect the cRIO-9805 to an external power supply.
4| ni.com | cRIO-9805 Getting Started Guide

Figure 2. Connecting the cRIO-9805 to an External Power Supply
cRIO-9805
0
1
2
3
POWER/
STATUS
Power Supply
N
L
Adjust
DC ok
1. Power off the power supply.
2. Connect a ferrule to the end of the power wires.
3. Push the ferruled wires directly into the power connector terminals on the cRIO-9805.
4. Power on the power supply.
5. Verify the Power/Status LED is on.
Connecting the cRIO-9805 to the Controller Power
Connector
The cRIO-9805 requires a 9 V to 30 V power supply. You can power both the module and a
CompactRIO or CompactDAQ controller from the same power supply.
What to Use
• Power supply, 9 V to 30 V, 5 W maximum (sufficient power for the cRIO-9805 and the
controller)
• Wire, 1.3 mm2 to 0.2 mm2 (16 AWG to 24 AWG)
• Ferrules (recommended)
• Screwdriver, 2.54 mm (0.10 in.) flathead
What to Do
Complete the following steps to connect the cRIO-9805 to a controller power connector.
cRIO-9805 Getting Started Guide | © National Instruments | 5

Figure 3. Connecting the cRIO-9805 to a Controller Power Connector
cRIO-904
1. Power off the power supply connected to the CompactRIO controller.
2. Remove the power connector from the CompactRIO controller.
3. Use a two-wire ferrule to insert the power supply wires and module power wires into the
CompactRIO controller power connector terminals.
4. Tighten the terminal screws on the power connector to 0.20 N · m to 0.25 N · m
(1.8 lb · in to 2.2 lb · in) of torque.
5. Install the power connector on the front panel of the CompactRIO controller.
6. Tighten the power connector screw flanges to 0.20 N · m to 0.25 N · m (1.8 lb · in to
2.2 lb · in) of torque.
7. Connect a ferrule to the other end of the power wires.
8. Push the ferruled wires directly into the power connector terminals on the cRIO-9805.
9. Power on the power supply.
10. Verify the cRIO-9805 Power/Status LED is on.
Disconnecting Power from the cRIO-9805
1. Power off the power supply connected to the cRIO-9805.
2. Use a small flathead screwdriver or similar tool to press the white release button on the
power connector.
3. Remove the ferruled wire from the power connector.
4. Repeat steps 2 and 3 to remove the second ferruled wire from the power connector.
6| ni.com | cRIO-9805 Getting Started Guide

Connecting the cRIO-9805 to a Network
What to Use
• cRIO-9805
• Ethernet cable, included in shipping kit
What to Do
Complete the following steps to connect the cRIO-9805 to a network.
Figure 4. Connecting the cRIO-9805 to a Controller
cRIO-904
cRIO-9805
0
1
2
3
Figure 5. Connecting the cRIO-9805 to a Host Computer
cRIO-9805
0
1
2
3
cRIO-9805 Getting Started Guide | © National Instruments | 7

1. Connect the Ethernet cable to any port on the cRIO-9805.
2. Connect the other end of the cable to the Ethernet port on the CompactRIO controller or
the network card on your computer.
3. Verify that the Act/Link LED on the cRIO-9805 is on.
Configuring Your System
The cRIO-9805 functions as an Ethernet switch for an out-of-the-box NI TSN system. The
following sections describe the most common topologies created with a cRIO-9805.
Note You can use other network devices as nodes in your Ethernet system, but the
system may not provide the advantages of an NI TSN system.
Host Can be a Windows computer or a real-time controller with the NI Linux Real-
Time operating system, such as the IC-317x, cRIO-9035/9039 Sync,
cRIO-904x, cRIO-905x, or cDAQ-913x for LabVIEW Real-Time.
Node Can be the cDAQ-9185, cDAQ-9189, or any FieldDAQ device.
cRIO-9805 Ethernet switch.
Note Network configuration and programming require careful consideration. Visit
ni.com/r/cdaqenet for information about exploiting link redundancy and
automatically improving reliability.
Creating a Basic Topology
The cRIO-9805 is configured to work in this topology out of the box. Most systems should
follow this topology. The host communicates directly with each node through the external
switch.
Figure 6. Basic Topology
Node
Node
Node
Host cRIO-9805
8| ni.com | cRIO-9805 Getting Started Guide

Expanding Your System
You can daisy-chain your system starting from each node connected to the switch. The host
communicates directly with all the nodes in one chain through one bus line. A standard
Ethernet device or switch can be added to the end of the chain if desired and used as normal.
Be aware that these devices will compete for network bandwidth with the controller. Reliable
system design requires awareness of the bandwidth consumed by each device during
operations. This topology offers no redundant links.
Figure 7. Expanded Topology
Node
Node
Node
Host
Node Node
Node Node
Node Node
cRIO-9805
Advantages:
• Simple and inexpensive installation, expansion, and troubleshooting.
• Ideal for low number of nodes. NI recommends a maximum of 15 nodes per chain.
• No additional switch needed.
• Can cover long distances.
Disadvantages:
• Any unpowered nodes and/or node failure disrupts network communication.
• Addition or removal of any node disrupts network communication.
• Failure of any Ethernet cable and/or improper cable termination disrupts network
communication.
• Network performance and synchronization affected when node count exceeds 15 per
chain.
Adding Redundancy
To add redundancy, you can connect an additional Ethernet cable to the last node of a daisy
chain and reconnect that cable back to the switch. In this topology, the host communicates
with all nodes through the most effective path. You must configure the network properly
before creating redundant links in the network.
cRIO-9805 Getting Started Guide | © National Instruments | 9

Figure 8. Adding Redundancy
Host
Networking
NodeNode Node
NodeNode Node
cRIO-9805
cRIO-9805
Advantages:
• Failure of any single Ethernet cable does not disrupt network communication.
• Additional nodes or heavier network traffic affects network performance less than the line
topology.
• Simple installation.
• Ideal for a local networking solution.
Disadvantages:
• Network traffic patterns can make troubleshooting difficult.
• Only allows one chain per switch. Requires more switches to configure larger systems.
More Options
Note For more information about designing Ethernet measurement systems, visit
ni.com/r/cdaqenet.
Note For more advanced network management needs, visit ni.com/r/
netconfig.
Locating the Security Label
The security label on the cRIO-9805 contains the following information necessary for setting
up and configuring your system:
• Model name
• Serial number
• Username
• Password
• MAC address
10 | ni.com | cRIO-9805 Getting Started Guide

Figure 9. Security Label Location
1
1. Security label
Resetting the Module
When you press the reset button for less than five seconds, the module reboots with the current
configuration.
What to Use
• Reset tool
What to Do
1. Press the Reset button.
2. Hold it for one second.
3. Confirm the Status LED behavior:
1. The LED lights both blue and yellow to indicate the module is resetting.
2. The LED lights solid yellow to indicate the module is booting.
3. The LED lights solid blue to indicate the module is powered on and running.
Resetting the Module to Factory Default
Configuration
If you press the reset button for five seconds or longer, the module reboots into factory default
mode, which returns the module user configuration to the factory-set defaults
cRIO-9805 Getting Started Guide | © National Instruments | 11

Table 5. cRIO-9805 Default Settings
Attribute Value
Hostname cRIO9805-<serial number>
IP DHCP or Link Local
Default login
User name: admin
Password: printed on security label
What to Use
• Reset tool
What to Do
Follow these steps to reset the firmware on the cRIO-9805 to default settings.
1. Press the Reset button.
2. Hold it for five seconds.
3. Confirm the Status LED behavior:
1. The LED lights both blue and yellow to indicate the module is resetting.
2. The LED lights solid yellow to indicate the module is booting.
3. The LED lights solid blue to indicate the module is powered on and running.
Worldwide Support and Services
The NI website is your complete resource for technical support. At ni.com/support, you have
access to everything from troubleshooting and application development self-help resources to
email and phone assistance from NI Application Engineers.
Visit ni.com/services for information about the services NI offers.
Visit ni.com/register to register your NI product. Product registration facilitates technical
support and ensures that you receive important information updates from NI.
NI corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas,
78759-3504. NI also has offices located around the world. For support in the United States,
create your service request at ni.com/support or dial 1 866 ASK MYNI (275 6964). For
support outside the United States, visit the Worldwide Offices section of ni.com/niglobal to
access the branch office websites, which provide up-to-date contact information.
12 | ni.com | cRIO-9805 Getting Started Guide

Information is subject to change without notice. Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for
information on NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their
respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your
software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents. You can find
information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer
to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance policy and how
to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS
TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S.
Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable
limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.
© 2020 National Instruments. All rights reserved.
377903A-01 March 6, 2020
