National EH8461 User manual

Power source AC110, 220, 230, 240V/50-60Hz
(Separately available)
Power consumption 3.....600W (110/230V)
550W (220V)
650W (240V)
2.....320W (110/220V)
350W (230V)
380W (240V)
1..... 50W (110V)
100W (220V)
110W (230V)
120W (240V)
0..... 0W
1 SCHEMATIC DIAGRAM 2
2 WIRING CONNECTION DIAGRAM 3
© 2000 Matsushita Electric Works Ltd. All rights
reserved. Unauthorized copying and distribution is a
violation of law.
EH8461/EH8463
/EH8465
A
ir Flow Temperature 120°C
(in case of room temperature
30°C)
A
ir Flow Volume 0.4±0.02m
3
/min
Cord Length 1. 70m (220-240V)
2. 00m (110V)
Weight Main Body 285g
(except attachment)
A
ttachments Tension Brush
Adjustable Roller Brush
Air Iron
Volume Lifter
Mini Diffuser
3 TROUBLESHOOTING GUIDE 4
4 EXPLODED VIEW & REPLACEMENT PARTS LIST 5
Hair Styler
SPECIFICATIONS
CONTENTS
Page Page
ORDER NO. PCD0004A62C3

1 SCHEMATIC DIAGRAM

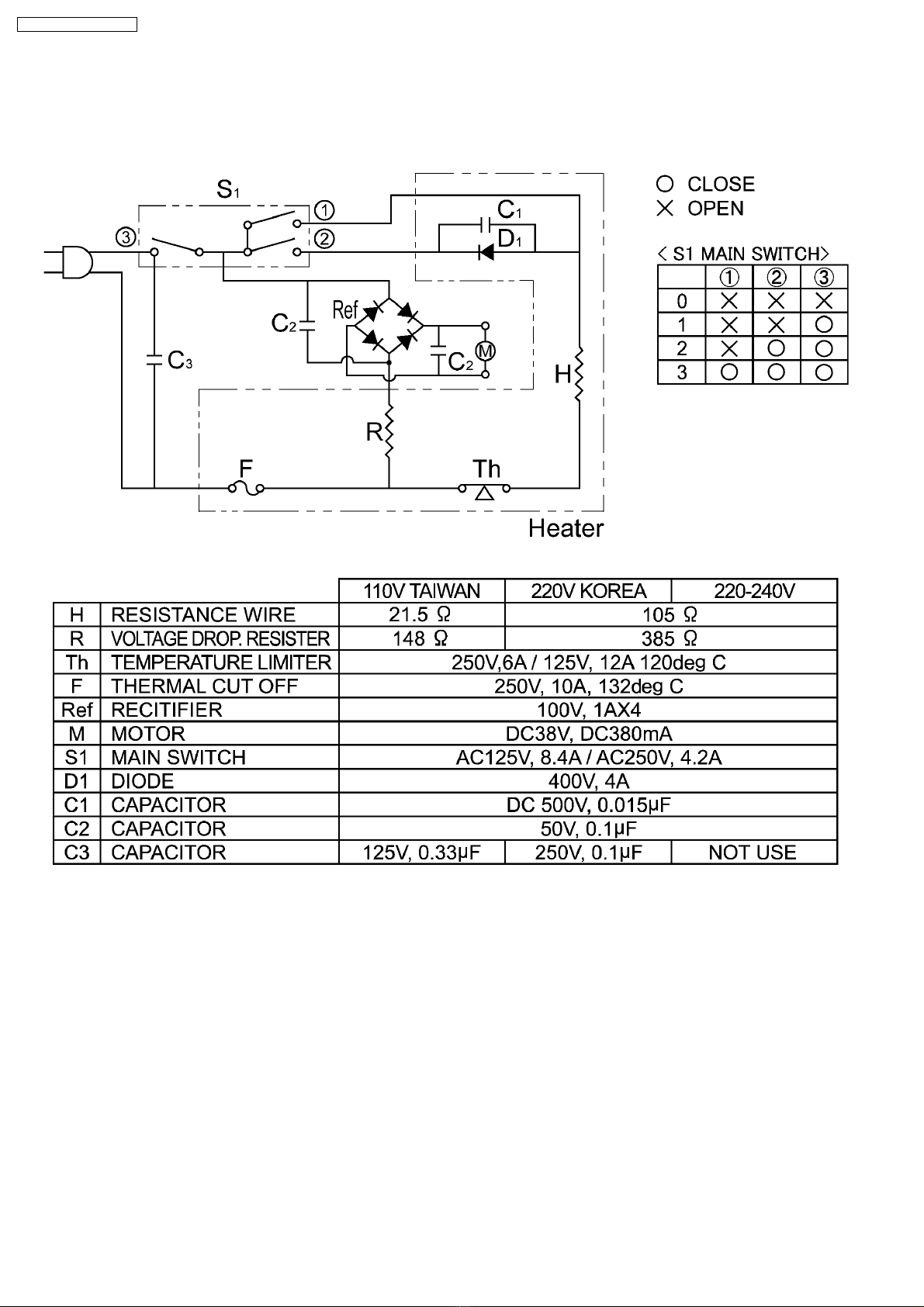

1.1. SCEMATIC DIAGRAM for EH8461/8463/8465
2
EH8461/EH8463 / /EH8465

2 WIRING CONNECTION DIAGRAM

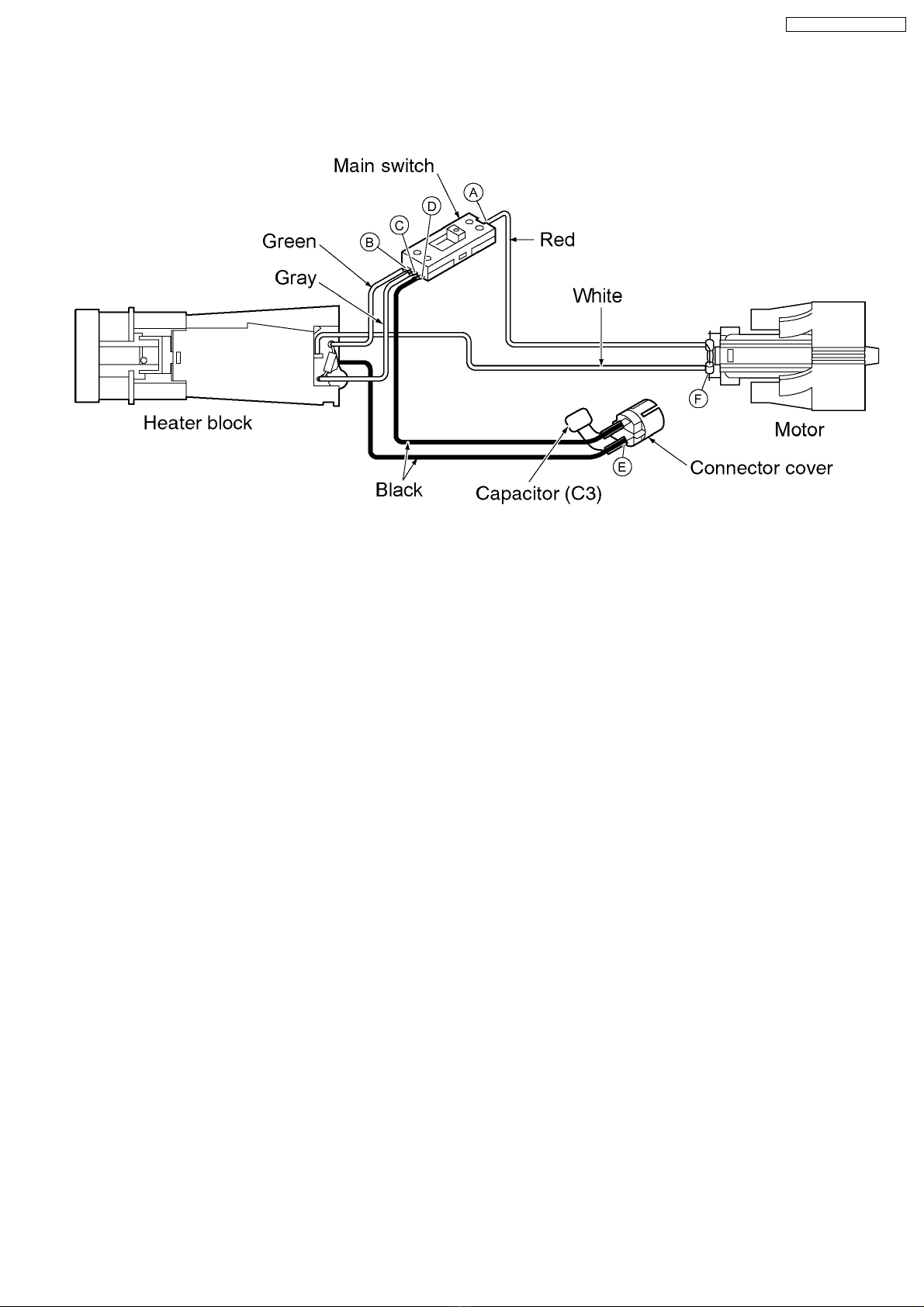

2.1. WIRING CONNECTION DIAGRAM for EH8461/8463/8465
3
EH8461/EH8463 / /EH8465

Refer to WIRING CONNECTION DIAGRAM

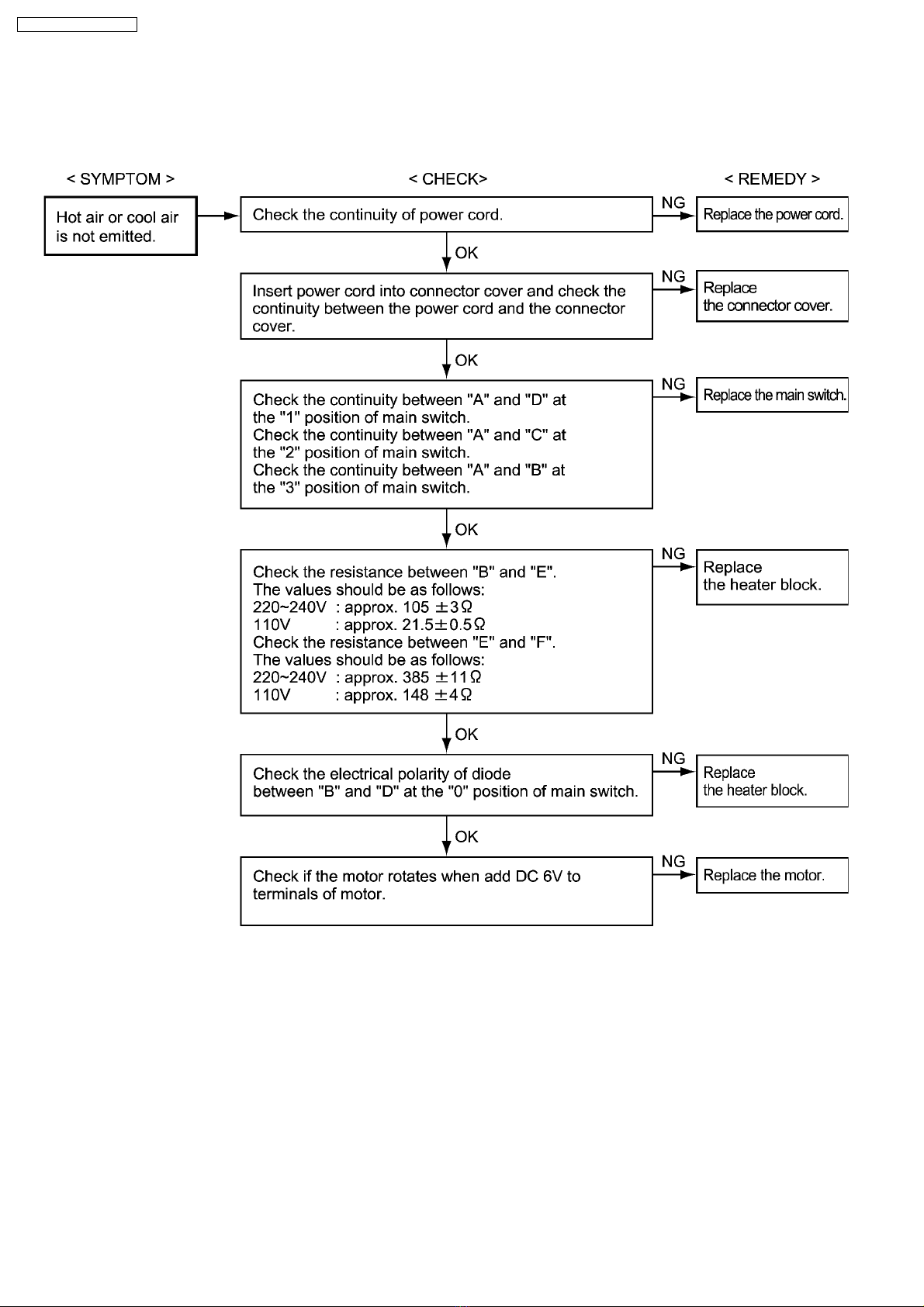

3 TROUBLESHOOTING GUIDE
3.1. TROUBLESHOOTING GUIDE for EH8461/8463/8465
4
EH8461/EH8463 / /EH8465

4 EXPLODED VIEW & REPLACEMENT PARTS LIST

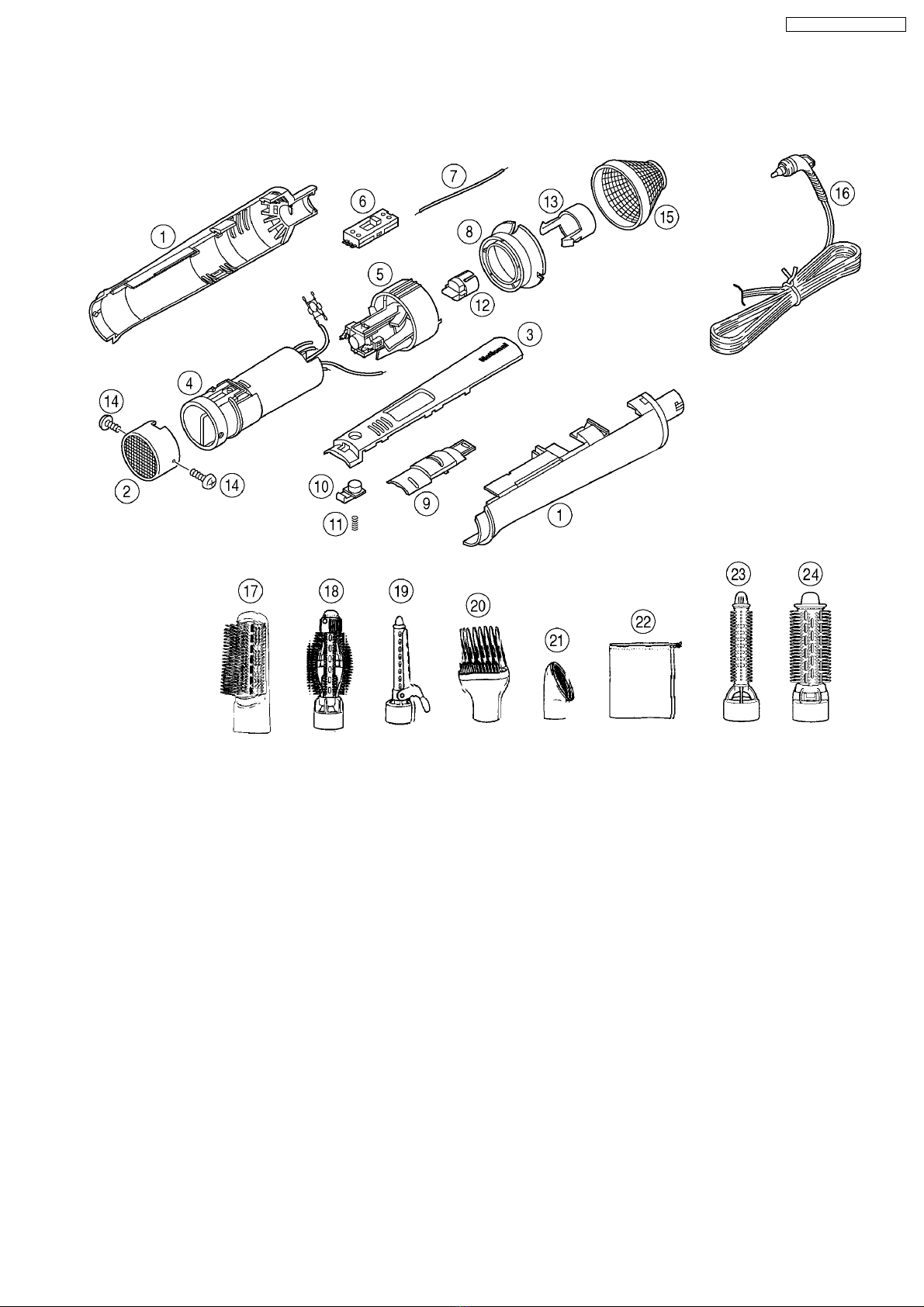

4.1. EXPLODED VIEW for EH8461
5
EH8461/EH8463 / /EH8465

4.2. REPLACEMENT PARTS LIST for EH8461
NOTES: All parts are supplied from MEW-Thailand through AMPC.
RMKS:
*1=Available individually
*2=Available as an optional accessory
*3=Only available separately
Ref. No. Part No. Part Name & Description Remarks Per Unit
1EH8461HSL11W HOUSING AB (BLUE) (110V) 1
1EH8461HSL22W HOUSING AB (BLUE) (220V) 1
1EH8461HSL23W HOUSING AB (BLUE) (230V) 1
1EH8461HSL24W HOUSING AB (BLUE) (240V) 1
2EH7881ESW ESCUTCHEON 1
3EH8461HVLW HOUSING COVER WITH PRINTING 1
4EH8461HI110W HEATER WITH INSULATOR ASS´Y(110V) 1
4EH8461HIW HEATER WITH INSULATOR ASS´Y(220V-240V) 1
5EH8461MMAW MOTOR ASS´Y 1
6EH817MSW MAIN SW.(SLS14-717-B) 1
7EH817LWBW LEAD WIRE (BLACK) 1
8EH8461ARHW AIR OUTLET RING (GRAY) 1
9EH8461MPW MAIN SW. PLATE 1
10 EH8461PBLW PUSH BUTTON (L/BLUE) 1
11 EH788CSW COIL SPRING (GRAY) 1
12 EH788CTBW CONNECTOR COVER BLOCK (BLACK) 1
13 EH867FRHW FIXING RING (GRAY) 1
14 EH84612604WW TAPPING SCREW (2.6X4) *1 2
15 EH8461FLLW FILTER (BLUE) 1
16 EH7971CBHA2W POWER CORD (A-2 PLUG) 1
16 EH7971CBHC2W POWER CORD (C-2 PLUG) 1
16 EH7971PCHB2W POWER CORD (B-2 PLUG) 1
16 EH8461PCHS3W POWER CORD (S-3 PLUG) 1
17 EH8461HTLW TENTION BRUSH (BLUE) 1
17 EH7003EH TENTION BRUSH (GRAY) *2 1
18 EH7014EH ADJUSTABLE ROLLER BRUSH (GRAY) *2 1
19 EH7021EH AIR IRON (GRAY) *2 1
20 EH7023EH VOLUME LIFTER (GRAY) *2 1
22 EH7995S25LW POUCH (BLUE) 1
23 EH7011EH SLIM ROLLER BRUSH *2.3 1
24 EH7013EH ROLLER BRUSH *2.3 1
-EH8461S09W FILLER FOR PACKAGE 1
-EH8461S03W INSTRUCTION BOOKLET 1
-EH8461S01LW INDIVIDUAL PACKAGE 1
6
EH8461/EH8463 / /EH8465

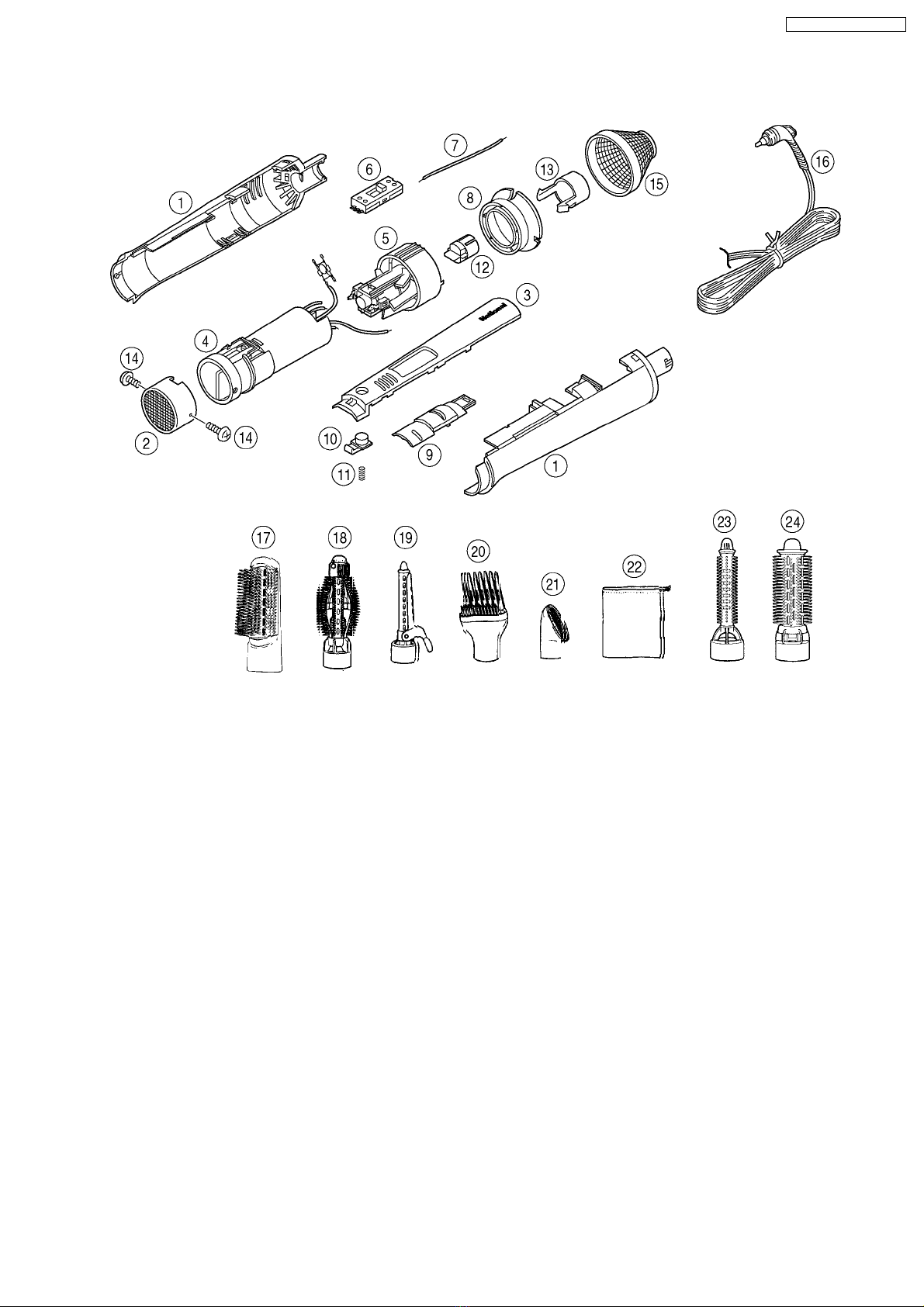

4.3. EXPLODED VIEW for EH8463
7
EH8461/EH8463 / /EH8465

4.4. REPLACEMENT PARTS LIST for EH8463
NOTES: All parts are supplied from MEW-Thailand through AMPC.
RMKS:
*1=Available individually
*2=Available as an optional accessory
*3=Only available separately
Ref. No. Part No. Part Name & Description Remarks Per Unit
1EH8461HSL22W HOUSING AB (BLUE) (220V) 1
1EH8461HSL23W HOUSING AB (BLUE) (230V) 1
1EH8461HSL24W HOUSING AB (BLUE) (240V) 1
2EH7881ESW ESCUTCHEON 1
3EH8461HVLW HOUSING COVER WITH PRINTING 1
4EH8461HI110W HEATER WITH INSULATOR ASS´Y(110V) 1
4EH8461HIW HEATER WITH INSULATOR ASS´Y(220V-240V) 1
5EH8461MMAW MOTOR ASS´Y 1
6EH817MSW MAIN SW.(SLS14-717-B) 1
7EH817LWBW LEAD WIRE (BLACK) 1
8EH8461ARHW AIR OUTLET RING (GRAY) 1
9EH8461MPW MAIN SW. PLATE 1
10 EH8461PBLW PUSH BUTTON (L/BLUE) 1
11 EH788CSW COIL SPRING (GRAY) 1
12 EH788CTBW CONNECTOR COVER BLOCK (BLACK) 1
13 EH867FRHW FIXING RING (GRAY) 1
14 EH84612604WW TAPPING SCREW (2.6X4) *1 2
15 EH8461FLLW FILTER (BLUE) 1
16 EH7971CBHA2W POWER CORD (A-2 PLUG) 1
16 EH7971CBHC2W POWER CORD (C-2 PLUG) 1
16 EH7971PCHB2W POWER CORD (B-2 PLUG) 1
16 EH8461PCHS3W POWER CORD (S-3 PLUG) 1
17 EH8461HTLW TENTION BRUSH (BLUE) 1
17 EH7003EH TENTION BRUSH (GRAY) *2 1
18 EH7993FELW ADJUSTABLE ROLLER BRUSH (BLUE) 1
18 EH7014EH ADJUSTABLE ROLLER BRUSH (GRAY) *2 1
19 EH7993AALW AIR IRON (BLUE) 1
19 EH7021EH AIR IRON (GRAY) *2 1
20 EH7023EH VOLUME LIFTER (GRAY) *2 1
22 EH7995S25LW POUCH (BLUE) 1
23 EH7011EH SLIM ROLLER BRUSH *2.3 1
24 EH7013EH ROLLER BRUSH *2.3 1
-EH8463S09W FILLER FOR PACKAGE 1
-EH8461S03W INSTRUCTION BOOKLET 1
-EH8463S01LW INDIVIDUAL PACKAGE 1
8
EH8461/EH8463 / /EH8465

4.5. EXPLODED VIEW for EH8465
9
EH8461/EH8463 / /EH8465

4.6. REPLACEMENT PARTS LIST for EH8465
NOTES: All parts are supplied from MEW-Thailand through AMPC.
RMKS:
*1=Available individually
*2=Available as an optional accessory
*3=Only available separately
Ref. No. Part No. Part Name & Description Remarks Per Unit
1EH8461HSL22W HOUSING AB (BLUE) (220V) 1
1EH8461HSL23W HOUSING AB (BLUE) (230V) 1
1EH8461HSL24W HOUSING AB (BLUE) (240V) 1
2EH7881ESW ESCUTCHEON 1
3EH8461HVLW HOUSING COVER WITH PRINTING 1
4EH8461HI110W HEATER WITH INSULATOR ASS´Y(110V) 1
4EH8461HIW HEATER WITH INSULATOR ASS´Y(220V-240V) 1
5EH8461MMAW MOTOR ASS´Y 1
6EH817MSW MAIN SW.(SLS14-717-B) 1
7EH817LWBW LEAD WIRE (BLACK) 1
8EH8461ARHW AIR OUTLET RING (GRAY) 1
9EH8461MPW MAIN SW. PLATE 1
10 EH8461PBLW PUSH BUTTON (L/BLUE) 1
11 EH788CSW COIL SPRING (GRAY) 1
12 EH788CTBW CONNECTOR COVER BLOCK (BLACK) 1
13 EH867FRHW FIXING RING (GRAY) 1
14 EH84612604WW TAPPING SCREW (2.6X4) *1 2
15 EH8461FLLW FILTER (BLUE) 1
16 EH7971CBHA2W POWER CORD (A-2 PLUG) 1
16 EH7971CBHC2W POWER CORD (C-2 PLUG) 1
16 EH7971PCHB2W POWER CORD (B-2 PLUG) 1
16 EH8461PCHS3W POWER CORD (S-3 PLUG) 1
17 EH8461HTLW TENTION BRUSH (BLUE) 1
17 EH7003EH TENTION BRUSH (GRAY) *2 1
18 EH7993FELW ADJUSTABLE ROLLER BRUSH (BLUE) 1
18 EH7014EH ADJUSTABLE ROLLER BRUSH (GRAY) *2 1
19 EH7993AALW AIR IRON (BLUE) 1
19 EH7021EH AIR IRON (GRAY) *2 1
20 EH7995FGLW VOLUME LIFTER (BLUE) 1
20 EH7023EH VOLUME LIFTER (GRAY) *2 1
21 EH817LWBW MINI DIFFUSER (BLUE) 1
22 EH7995S25LW POUCH (BLUE) 1
23 EH7011EH SLIM ROLLER BRUSH *2.3 1
24 EH7013EH ROLLER BRUSH *2.3 1
-EH8465S09W FILLER FOR PACKAGE 1
-EH8461S03W INSTRUCTION BOOKLET 1
-EH8465S01LW INDIVIDUAL PACKAGE 1
10
EH8461/EH8463 / /EH8465
Printed in JAPAN
