Nature Power 50042 User manual

VERSION 2.1
INSTALLATION MANUAL
MONOCRYSTALLINE MODELS
40 Watt – 50042 65 Watt – 50062 85 Watt – 50082 140 Watt - 50132 280 Watt - 50262

Nature Power Products
Nature Power Monocrystalline Solar Cells are manufactured in Germany by Bosch and Solar Panels are assembled in China.
Manual Printed in China
Please Read Instruction Manual before Operating
Thank you for purchasing your Nature Power Monocrystalline Solar Panel. This manual contains safety and
installation information for Nature Power Monocrystalline Solar Panels. Nature Power reserves the right to
make changes to the product, specifications and this manual without notice. Therefore, check the website for
manual updates as necessary. www.naturepowerproducts.com
Cautions
•Never touch the end of output cables with your bare hands when the modules are irradiated. Handle wires
with rubber gloved hands to avoid electric shock
•Do not wear metallic jewelry when working on electrical equipment
•Product should be installed and maintained by qualified personnel
•Do not drop tools or other items on the glass of the solar module
•Do not scratch the back film of the solar panel
•Avoid exposing solar panels to partial sunlight or shadows. Partial sunlight can cause hot spots on the panel
•Do not pour chemicals on module when cleaning. To clean use a damp cloth do not apply excessive
pressure to the cells
•Do not expose solar module to sunlight concentrated with mirrors, lenses or similar means
•Keep module away from children
Precautions when working with batteries
•Never smoke or allow a spark or flame near the batteries
•Batteries generate hydrogen and oxygen during charging resulting in evolution of explosive gas mixture.
Care should be taken to ventilate the battery area and follow the battery manufacturer’s recommendations
•Batteries contain very corrosive diluted acid as electrolyte. Precautions should be taken to prevent contact
with skin, eyes or clothing
•Use caution to reduce the risk of dropping a metal tool on the battery. It could spark or short circuit the
battery or other electrical parts and could cause an explosion
•Remove metal items like rings, bracelets and watches when working with batteries. The batteries can
produce a short circuit current high enough to weld a ring or the like to metal and thus cause a severe burn
•If you need to remove a battery, always remove the ground terminal from the battery first. Make sure that
all the accessories are off so that you do not cause a spark
•Only use rechargeable 12 Volt batteries, ie. Sealed Lead Acid, Deep Cycle, Gel Cell etc.
•Use properly insulated tools only when making battery connections
•When working with batteries please follow the battery’s manufacturer manual and precautions
Precautions when working with solar panels
With the incidence of sunlight or other light sources on all solar panels, a voltage appears at the output
terminals of the solar panel turning it into a source of electricity. Do not make contact with the terminals when
the panel is exposed to sunlight or other light sources. To avoid shock hazard make sure the solar panel is
either turned over so the cells are not exposed to light or cover the cells with an opaque (dark) material such as
paper/cloth during the installation process.

Nature Power Products
Nature Power Monocrystalline Solar Cells are manufactured in Germany by Bosch and Solar Panels are assembled in China.
Manual Printed in China
Precautions when working with Charge Controllers
If two or more solar panels are connected in series/parallel make sure that the sum of the short circuit current
ratings of all panel strings does not exceed 80% of the charge controller’s current rating i.e. 8 Amps or 28 Amps.

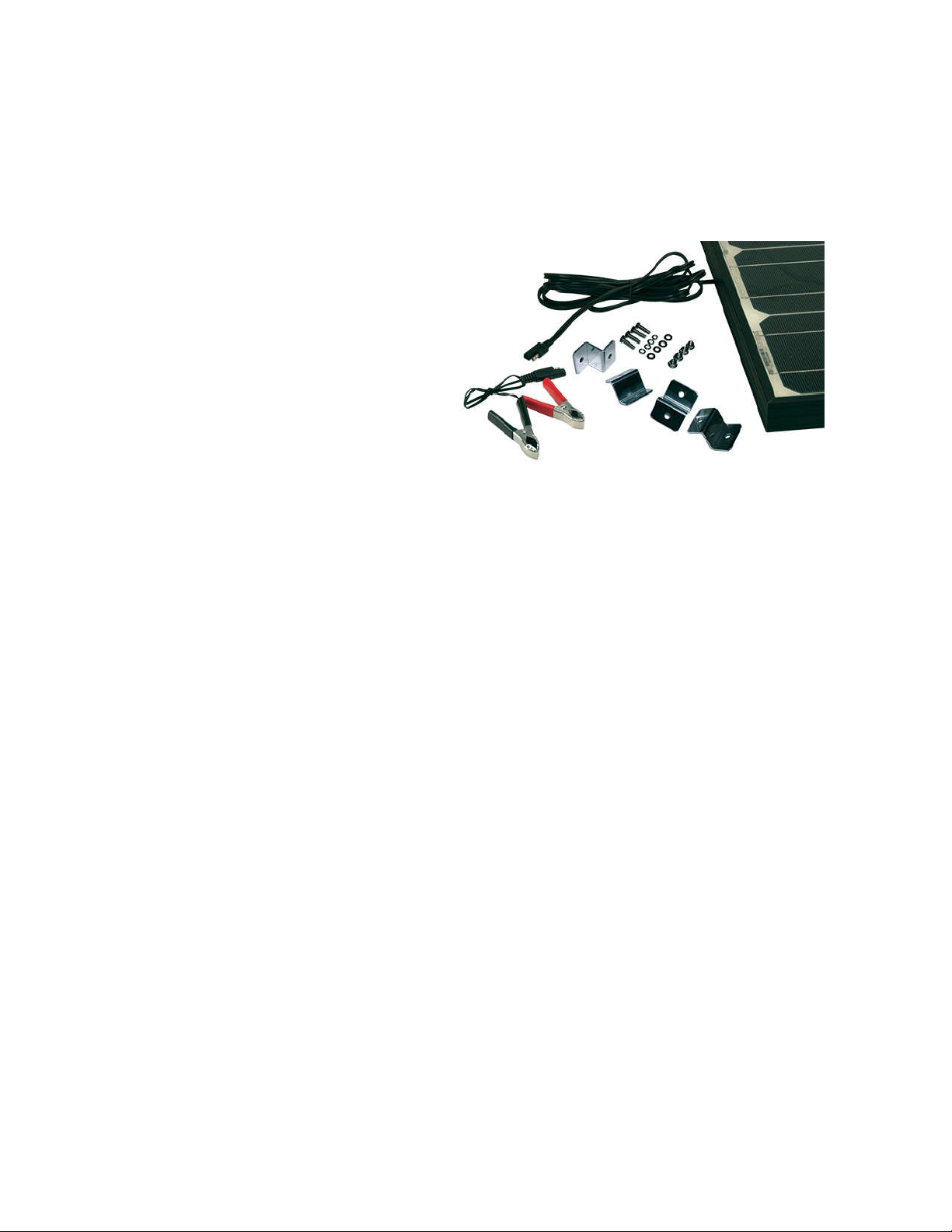

Package Contents:
•1x Solar panel with EZ connect wiring
•4x Mounting Z brackets
•4x Flange Bolts
•4x Lock Nuts
•4x Flat Washers
•1x Battery Clamps
**280 Watt Kit: Double all quantities
Required Tools (Not Included)
•Wrench
•Hand Drill
•Pliers
•Drill Bit
Installation Overview
•Open the packaging and check to make sure that all parts have been received.
•Arrange to have on hand the proper tools to carry out the mounting installation.
•Determine the mounting location of the solar panel(s).
•Mount the charge controller within 5 feet of battery or loss of current may occur.
•Wire the battery to the charge controller and then the solar panel to the charge controller to ensure that
the correct polarity is observed.
•Secure the solar panel to the desired location, solar panel must be within 20 feet of the battery, or loss of
current may occur.
Selecting the correct Charge Controller
Charge Controllers may be sold separately and are required for installations of solar systems arrays that are
rated 12 Watts and higher. Charge Controllers help to protect the battery(s) and solar panel(s) from harmful
reverse currents, battery over charging and high wattage surges, addition protections are found on larger
charge controllers. Nature Power Products offers an 8 Amp Easy to Connect Charge Controller (60008) and a 28
Amp Digital PWM Charge Controller (60028). You may also choose to use a non Nature Power charge
controller, however, please confirm that it is a 12 Volt DC charge controller. Also installations for non Nature
Power charge controllers may not be compatible with the EZ connect cables from the monocrystalline solar
panel.

Nature Power Products
Nature Power Monocrystalline Solar Cells are manufactured in Germany by Bosch and Solar Panels are assembled in China.
Manual Printed in China
Nature Power 8 Amp Charge Controller
is an easy to connect and easy to read charge controller with LED light indictors for battery
charging cut-in voltage 13V and battery full cut out voltage 14.2V. The 8 Amp Charge Controller
is compatible with solar system arrays rated up to 130 Watts.
Protections:
•Reverse Current
•Over Charge
•Low Voltage
•High Voltage surges
Nature Power 28 Amp igital PWM Charge Controller
With Pulse Width Modulation (PWM) technology this charge controller helps to maintain a
higher charging efficiency, thus maintaining a higher battery reserve and capacity than the
standard on off 8 Amp charge controller. The 28 Amp Digital PWM Charge Controller
features a digital LCD display and adjustable voltage settings.
Protections:
•Short Circuit
•Low Voltage
•Overloading
•Discharging
•Reverse Current
•Discharging
Selecting the correct Battery
Nature Power does offer batteries. However, please choose a 12 Volt rechargeable battery. Do not attempt to
recharge non rechargeable batteries. 6 Volt battery configurations may also be used if connected in series
(Negative to Positive). You may choose a Sealed Lead Acid battery, a Gel Cell or a Deep Cycle 12 Volt battery.
Batteries come in all different sizes, Please converse with your battery dealer for more information on which
type of battery you should use for your system. Note your solar panel amperage rating when selecting your
battery size.
Easy Electrical Installation
Please confirm that you have all parts to your system before
starting installation.
Figure 1 shows how to connect the solar panel to the 12 Volt
batteries
Step 1
Connect the charge controller to the solar panel
Step 2
Connect the battery clamps to the charge controller
Step 3
Connect the battery clamps to the battery in parallel.
(Parallel connections = Positive to Positive and Negative to
Negative)
FIGURE 1

Nature Power Products
Nature Power Monocrystalline Solar Cells are manufactured in Germany by Bosch and Solar Panels are assembled in China.
Manual Printed in China
Please note the installation shown is for connections to the Nature Power 8 Amp charge controller. To receive
information on connections with the 28 Amp Charge Controller please refer to the 28 Amp charge controller
manual.
When installing solar panels configuration and systems, please carefully observe correct cable connections and
polarity. The solar panels can be damaged by not observing the correct electrical installation and polarity; in
addition, this will void the warranty of your solar panel(s). Having a multi meter handy will help to confirm
correct polarities.
Extending the wiring
If you choose to mount your solar panel further away from the charge controller by extending the wiring we
recommend the following gauges at each specified distance. Use stranded wire instead of solid wire. Stranded
wire does not fatigue or loose connections over time.
Cable Length American Wire Gauge (size)
20-30 Feet #12
40-50 Feet #10
60 Feet or more #8
To prevent loss of current we suggest mounting the solar panel within 20 feet of the charge controller and the
charge controller should be installed within 5 feet of the battery.
Additional Solar Panels
You may choose to purchase additional solar panels for higher wattage and faster charging. Connecting more
panels is easy with the EZ connector cables.
Figure 2 shows an example of how to connect more panels together with the EZ connector cables. If needed EZ
3 in 1 or EZ 4 in 1 connector cables are available and can be purchased from Nature Power please contact our
Customer Service line to get more information on purchasing EZ connector cables.
Additional 12V C Batteries
Addition batteries may be desired for extra electrical storage.
For 12 Volt battery bank configurations; make sure your batteries are connected in parallel (Positive to Positive
and Negative to Negative)
1. From the charge controller attach the red battery clamp to the red terminal of the first battery in the
bank, matching the polarities, positive to positive.
To order refer to item
number:
90001 for the 3-in-1
connector
90004 for the 4-in-1
connector
FIGURE
2

Nature Power Products
Nature Power Monocrystalline Solar Cells are manufactured in Germany by Bosch and Solar Panels are assembled in China.
Manual Printed in China
2. Then connect the black alligator clamp to the black terminal of the second or late battery in the bank,
again matching polarities, negative to negative. This will ensure an equal charging across both or all
batteries.
Connecting an Inverter
An inverter can be used to converting the 12 Volt energy created to 120 Volt Electricity.
Inverter sizes and types vary depending on your power consumptions needs. Please discuss which inverter to
purchase with your Inverter dealer.
Monitoring your Solar System
To confirm that your solar panels are generating power we suggest purchasing a multi meter. Annual testing
and inspections are recommended to confirm all connections are secure and panels are functioning properly.
Open voltage testing of solar panels may range from 11 Volts up to 21.6 Volts depending on the intensity of the
sun, this is within normal range.
Upon annual inspections it is recommended to wipe all solar panels with a damp towel to remove dust and
debris covering the panels, as layers of dust can affect the solar panel voltage.
Routine Maintenance Check List
Check and replace damaged components if necessary
Clean with a damp towel or cloth remove all debris
Check and maintain the battery electrolyte levels are at regular intervals as per the battery
manufacturer’s recommendations if flooded wet cell lead acid batteries are used
Check solar panel open voltage range
Check solar panel close circuit range
Confirm all wiring connections are secure and tight
Confirm all mounting connections are secure and tight
Mounting
Recommendations
Choose a site for mounting the solar panels that is free from shade and located in an area that receives
maximum sunlight daily. For maximum solar power absorption throughout the day, a tilt mounting kit is
recommended. Nature Power offers a 40 degree tilt mounting kit that is sold separately. Contact Nature
Power for information about the tilt mounting kits.
The solar panels can be permanently installed level using the hardware included. If you choose not to use the
included Z brackets ensure that you create a ½ inch space between the mounting surface and the solar panel to
allow for proper airflow under the solar panel.
When making connections ensure polarity is maintained, reverse polarity may cause damage and will void the
warranty.
Measure the distance between the mounting site and the battery location. The charge controller should be
mounted in close proximity to the battery bank (within 5 feet). Refer to the DC electrical wire guide to choose
an appropriate gauge wire for the length of the wire.

Nature Power Products
Nature Power Monocrystalline Solar Cells are manufactured in Germany by Bosch and Solar Panels are assembled in China.
Manual Printed in China
If you choose to mount your Solar Panel to your RV, be sure you solidly mount your panels to the roof. If you
have a rubber roof over thin plywood you may want to use molly fasteners to get a better grip. If you have a
fiberglass roof, drill some pilot holes through the fiberglass to reach plywood below. This will prevent cracking
or damaging the fiberglass. If your RV is equipped with a metal roof you must mount the solar panel to the
joists supporting the roof.
Figure 3 shows an example of how the panel can be mounted with the z brackets included.
The wire from the solar panel can be routed to the interior of the RV through the roof top refrigerator vent. In
this kind of installation attempt to mount the panel near the refrigerator vent. See Figure 4.
Run Times
Please refer to the runtimes chart to choose how much solar power your desired system requires. Note that all
runtimes and ratings are approximate and may vary depending on your location and time of day and are based
on 7 Hours of full sunlight a day.
Rated ourly
(Maximum output) 40 Watt 65 Watt 85 Watt 140 Watt 280 Watt
2.29 Amp 4.86 Amp 3.71 Amp 8.0 Amp 16.0 Amp
Weekly Output 1960 Watts /
112.2 Amps
3185 Watts /
238 Amps
4165 Watts /
181 Amps
6860 Watts /
392 Amps
13720 Watts /
784 Amps
Weekly Run Times
FIGURE
3
FIGURE
4

Nature Power Products
Nature Power Monocrystalline Solar Cells are manufactured in Germany by Bosch and Solar Panels are assembled in China.
Manual Printed in China
Laptop (20-50 watts) 39 Ho rs 63 Ho rs 83 Ho rs 137 Ho rs 274 Ho rs
PC (80-150 watts) 13 Ho rs 21 Ho rs 27 Ho rs 45 Ho rs 90 Ho rs
Television 19" Color (70 watts) 28 Ho rs 45 Ho rs 59 Ho rs 98 Ho rs 196 Ho rs
CD Player - Radio (35 watts) 56 Ho rs 91 Ho rs 119 Ho rs 196 Ho rs 392 Ho rs
Fan (10-50 watts) 39 Ho rs 63 Ho rs 83 Ho rs 137 Ho rs 274 Ho rs
Halogen Light (100 watts) 19 Ho rs 31 Ho rs 41 Ho rs 68 Ho rs 136 Ho rs
Fl orescent Light (40 watts) 49 Ho rs 79 Ho rs 104 Ho rs 171 Ho rs 342 Ho rs
Coffee Maker (800 watts) 2 Ho rs 3 Ho rs 5 Ho rs 8 Ho rs 16 Ho rs
Portable Heater (1500 watts) 1 Ho r 2 Ho rs 2 Ho rs 4 Ho rs 8 Ho rs
Electrical Ratings
Rated electrical characteristics are within +10 percent of the indicated values of Isc, Voc, Pmax under Standard
Test Conditions (irradiance of 100 mW/cm², AM 1.5 spectrum, and a cell temperature of 25°C {77°F}).
The electrical characteristics are based on the results of outgoing test.
Under normal conditions, a photovoltaic module may experience conditions that produce more current and/or
voltage than reported at Standard Test Conditions. Modules should be multiplied by a factor of 1.25 when
determining component voltage ratings, conductor capacities, fuse sizes and size of controls connected to the
module output. Refer to Sec. 6908 of the National Electric Code for an additional multiplying factor of 125
percent (80 percent of rating) which may be applicable.
Please refer to Section 690 8 of the National Electrical Code for an additional multiplying factor of 1.25 which
may be applicable.
Return Policy
If you are experiencing any problems with your unit, please contact our customer service department at 1 800
588 0590 before returning product to retail store. After speaking to a customer service representative, if
products are deemed non working or malfunctioning, the product may be returned to the purchasing store
with 30 days of original purchase.
Pmax 40W 65W 85W 140W
280w
Voltage at Pmax (Vmp) 17.5V 17.5V 17.5V 17.5V
17.5v
Current at Pmax (Imp) 2.29A 3.71A 4.86A 8A
16A
Open
Circuit Voltage
(Voc) 21.6V 21.6V 21.6V 21.0V
21.0V
Short Circuit Current (Isc) 2.47A 4.01A 5.25A 8.64A
17.28A
Dimension
24x20x2.1” 26.5x25.1x1.2” 32.6x26.5x1.2” 50.9x26.5x1.3” 2x50.9x26.5x1.3”
Efficiency 18.4% 17.1% 18.2% 17.20%
17.2
%
Cell technology
Monocrystalline Monocrystalline Monocrystalline Monocrystalline Monocrystalline
Class A A A A
A
Weight 8.81lbs 18.9lbs 21.1lbs 25.3lbs
(2) 25.3lbs

Nature Power Products
Nature Power Monocrystalline Solar Cells are manufactured in Germany by Bosch and Solar Panels are assembled in China.
Manual Printed in China
If such a unit is returned more than 30 days but ess than the one year from the purchase date, the
manufacturer wi repair the unit or, at its discretion, rep ace it, free of charge. A unit may be rep aced with a
new unit of the same or comparab e design. The rep aced unit wi then be warranted under the terms of the
remainder of the warranty period. The customer is responsib e for the shipping charges on a returned items.
Limited Warranty
Proof of purchase required (Please keep receipts)
Monocrystalline Solar Panels
Covered by a 25 Year imited Power Warranty
The imited warranty on the power output, guarantees that your so ar unit wi produce a minimum of 80% of
the origina rating for the warranted period from the purchase date.
The imited warranty program app ies to the origina purchaser of the unit on y from a Nature Power authorized
dea er. The warranty does not extend to subsequent purchasers or users.
One Year imited Warranty
This warranty is imited to no other than those described herein. Any imp ied warranty of merchant abi ity of
fitness for a particu ar purpose on this unit is imited in duration to the duration of this warranty. The so ar
modu e is warranted, to be free of defects in materia s and workmanship for one year from the date of
purchase without additiona charge.
Nature Power wi not be responsib e for any amount of damage in excess of the retai purchase price of the
unit under any circumstances. Incidenta and consequentia damages are specifica y exc uded from coverage
under this warranty. The so ar pane is not intended for commercia use. This warranty does not app y to
damage to units from misuse or incorrect insta ation/connections. The warranty does not cover any modu es
connected to the so ar pane . The warranty does not app y to damage from hai , f oods, tornados, typhoons,
hurricanes or other excessive weather re ated damage. Pane s are weather resistant with tempered g ass;
however in extreme conditions precautions shou d be taken by the user to protect materia s. The warranty
does not cover misuse inc uding wiring or connecting to improper po arity power sources. The warranty does
not app y to damage to the accessories inc uding battery c amps and mounting equipment.
Customer Service: 1-800-588-0590
Email: [e-mail]
Website: www.naturepowerproducts.com
Scan me for more information
