Thank you for your purchase of a NAUTICAM housing.
At NAUTICAM, we pride ourselves in the ability to recogni e the requirements of professional as
well as amateur underwater photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by allowing stress-free installation
and easy operation of all important functions of the camera.
Each housing is individually inspected and water pressure tested to ensure optimum quality.
Please read this manual carefully before using the housing, this will maximi e its performance as
well as its lifetime.

3
T
ABLE OF
C
ONTENTS
Warranty …………………………………………………………………………………………………………….………………………… 4
Precautions ………………………………………………………………………………………………………………………………… 5
Package Contents ……………………………………………………………………………………………….……………………. 7
Specifications …………………………………………………………………………………………………….……………………... 8
Identification of Parts ………………………………………………………………………………………………………………. 9
Opening and Locking the Housing ………………………………………………………………………………………… 13
Preparation of the Housing ……………………………………………………………………………………………………… 15
Installing the Camera ……………………………………………………………………………………………………………….. 20
Switching between LCD and Viewfinder ………………………………………………………………………………. 25
Mounting the Port ……………………………………………………………………………………………………………………… 26
Changing the Viewfinder …………………………………………………………………………………………………….……. 29
Care and Maintenance …………………………………………………………………………………………………………….. 31
Optional Accessories ………………………………………………………………………………………….……………………. 32

4
W
ARRANTY
All NAUTICAM Products are warranted against any material and manufacturing defects for two
years from the date of purchase for consumer use. The warranty period is defined by the invoicing
or payment date by the customer. Alternatively, the warranty period would be assumed from the
day that the product is shipped from our facility. This warranty only applies to products purchased
from authori ed NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authori ed service center(s). Please
note that this warranty only applies when the product is purchased in the territory where the service
center is located.
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper
use and/or poor maintenance; it is the responsibility of the owner to carefully follow the instructions
in our manuals.
NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with
and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability to capture images
even if it is due to the malfunctioning of our products.
Unauthori ed modifications and/or repairs of our products will automatically invalidate the warranty.

5
P
RECAUTIONS
•A water-tight test without the camera inside the housing is highly recommended
when using the system for the first time and after the changing of port and O-ring(s).
•Do not use lubricants from other brands with the silicone rubber O-ring on this
housing, only use the lubricant provided by NAUTICAM.
•Discontinue use immediately should you notice any leakage.
•Store the housing in a robust, shock-proof container during transportation; avoid
transporting with any equipment, such as a camera, inside the housing.
•When travelling by air, do not close the housing as this may lead to a pressure
difference between the atmosphere and inside the housing.
•Care must be taken when opening the housing, as pressure may build up inside the
housing which increases the opening force.

6
•Do not open the product in a wet or sandy environment. Protect the interior from
moisture and debris in order to prevent malfunction or leakage.
•Do not store the product in an environment of high humidity.
•Do not leave the housing and the monitor in direct sunlight for prolonged periods.
•Keep out of reach of children, failure to do so could result in injury.
•Defective products should be shipped to our distributors for service, unauthori ed
disassembling and/or modifications could result in malfunction or leakage.
•Use only recommended battery with this product, do not mix different specifications
or old and new batteries.
•Do not place excessive stress on HDMI cable connector.
•Do not bend or twist HDMI cable.

7
•NA-α2020 Housing
•90120 Spare Silicone Rubber O-ring for Housing
•2x Optical Fiber Mount Caps (Pre-attached)
•2x Stainless Steel Handle Brackets
•2x Handles with Mounting Balls
•Housing Cap
•O-ring Remover
•CR2032 Battery (for vacuum system)
•Lubricant
•Set of Allen keys
•Manual Instruction Card
• Padded Travel Case
•Shoulder Strap
P
ACKAGE
C
ONTENTS

8
S
PECIFICATIONS
Construction
Housing Body: Aluminum Alloy
Surface Treatment: Hard Anodi ed
Display Window: Abrasion Resistant Polycarbonate
Dimensions
Width: 339mm
Height: 170mm
Depth: 123mm
Weight in Air Approx. 2.71kg
Weight in Water 0.63kg
Depth Rating 100 m
Port Mount N100
Compatible
Port Adaptor
37305 N100 to N120 35.5mm Port Adaptor II
(for NA-A7IV/ α2020)
Compatible
Cameras Sony A9II/A7RIV Camera
Flash Trigger
Mini flash trigger for Sony (compatible with NA
-
A7/A7II/A9/A7RIII/RIV/ α2020)
HDMI Support Nauticam HDMI 1.4 & 2.0 Systems

9
I
DENTIFICATION OF
P
ARTS
Lens Release Button
Port Lock Lever
Port Lock Safety Button
Optical Bulkhead
s
Front Dial
Zoom/Focus Knob
2x
Mounting Balls
Port Alignment Index
Shutter Release Lever

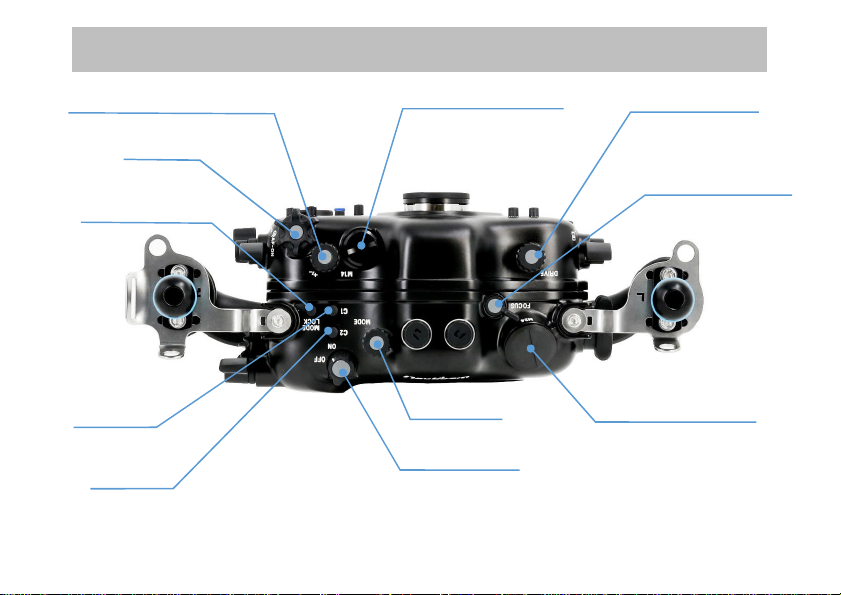

10
Rear
Dial
C1 Button
Exposure Compensation Dial
C2 Button
Mode Lock Button
M14 Accessory Port
Drive Mode Dial
Focus
Mode Lever
M24 Accessory Port
Mode Dial
On/Off Switch

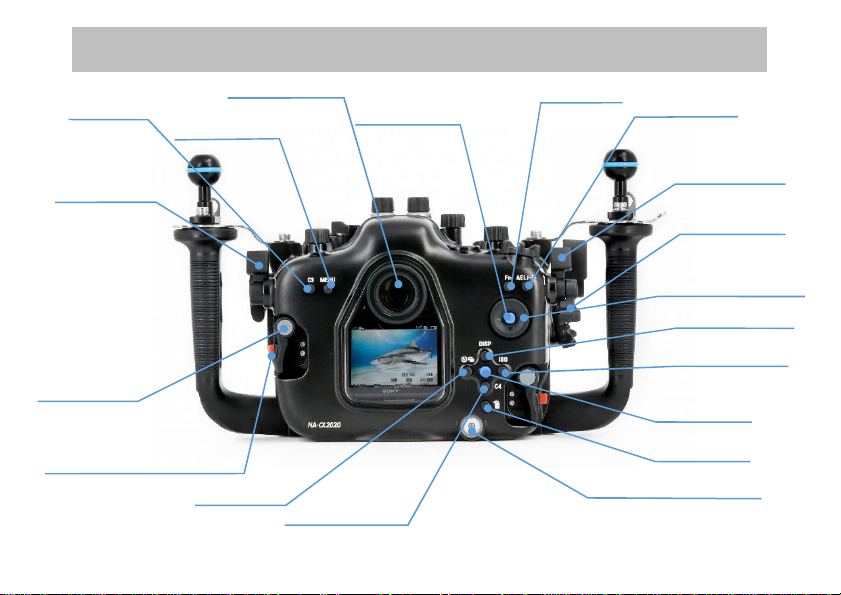

11
C3 Button
Center Button
AF
-
ON Lever
MENU Button
Fn Button
DISP/Up Button
Housing Lock
0.66x Viewfinder
AE
-
L Button
Movie Lever
ISO/Right
Button
Multi
-
Selector Pad
Center Button
Playback Lever
Housing Lock
Safety Button
Left Button
C4/Down Button
Delete
Button
Moisture Alarm Window

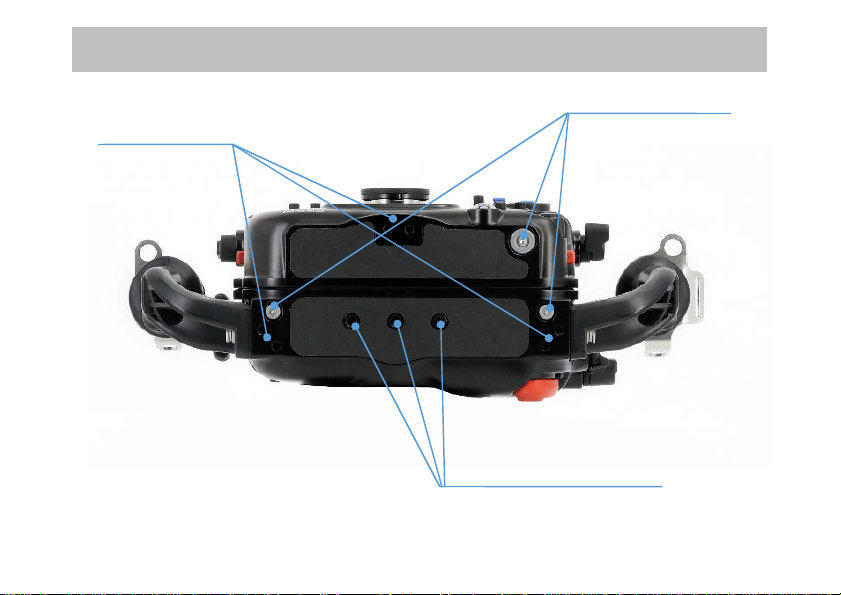

12
*The maximum length of screws that can be used with the tripod sockets is 4mm.
Sacrificial Zinc Anode
Attachment Point
for Mounting Balls
l
/4”
-
20UNC Tripod Socket x3*

13
O
PENING AND
L
OCKING THE
H
OUSING

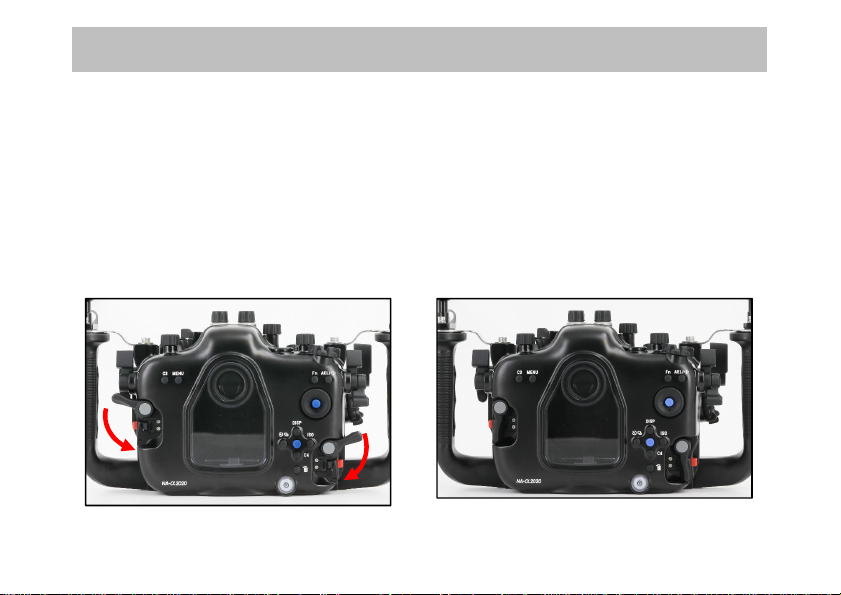

To open the housing:
To open the housing:To open the housing:
To open the housing:
Always open and close the housing with the front facing down, place the housing on a flat surface
or in your lap.
The housing can be opened and closed by operating the two housing locks; when opening, press
the safety buttons, then turn the locks outwards.

14
To lock the housing:
To lock the housing:To lock the housing:
To lock the housing:
When closing, make sure there is nothing caught between the closing surfaces of the two halves of
the housing.
To close, turn the locks towards the housing, and then make sure they are locked in place securely.

Prepar
15
P
REPARATION OF THE
H
OUSING
1.
1.1.
1. After verifying that the main O-ring is in
good condition, lightly coat it with the
lubricant provided.
2.
2.2.
2. Make sure the O-ring groove located in the
front part of the housing is free from any
foreign material; the groove can be cleaned
with the aid of a microfiber cloth.
3.
3.3.
3. Place the main O-ring into the groove, first
at the corners, then the whole perimeter.
4.
. .
. Setting up the moisture alarm:
1.
Ensure that remove an insulation film
before install a battery.
Then install the battery provided into
the battery compartment on the circuit
board inside the housing.

16
Battery Installation:
Insert the battery as shown above and
then press down the battery.
P
ress
To remove the battery, press the metal
plate as indicated and the battery will
pop out.
P
ress
*Use only recommended battery with this product

17
2.
Switch the alarm on. The LED light
will flash blue once and turn blue
for five seconds indicating the
battery is normal. Then it goes
into flashing blue light standby
mode.
3.
Test the alarm by connecting the
two wires near the bottom of the
housing with a damp cotton bud;
the alarm should start giving out a
repeating “beep” sound along with
a flashing red light. The “beep”
sound and the light should keep
on going for 5 seconds after the
removal of the damp cotton bud.

18
Optional
Optional Optional
Optional V
VV
Vacuum valve:
acuum valve:acuum valve:
acuum valve:
Vacuum valve can be attached to the housing via one of the accessory port for conducting a
vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation.
LED status identification:
LED status identification:LED status identification:
LED status identification:
On start up
LED indicator
LED indicatorLED indicator
LED indicator Status
StatusStatus
Status
Flash “Blue” light once
Indicates a 2nd generation PCB
Steady "Blue" light
Battery is normal,
goes into flashing "Blue" light
standby mode after 5 seconds.
"Blue" and "Red" lights
alternating
Battery low. Replace battery as soon as possible.
Goes into standby mode after 5 seconds.
Steady "Red" light
Battery empty, replace
battery.

19
LED indicator
LED indicatorLED indicator
LED indicator Status
StatusStatus
Status
Flashing "Blue" light
Standby mode. The moisture alarm is active, and the
system is ready for vacuum indication whenever a
vacuum is detected.
Flashing "Red" light
with
beeping sound Moisture is detected.
Flashing "Yellow" light
Some vacuum is detected, target vacuum level is not
reached.
Steady "Green" light Target vacuum level is reached.
Rapidly flash "Yellow" light
Vacuum is dropping. (Will occur only after
target
vacuum level is reached)
Rapidly flashing "Red" light
Vacuum is totally lost. Circuit stalled until switched
off. (Will occur only after target vacuum level is
reached)
After start up

20
It is required to reset the vacuum system when the vacuum level is dropped from target level to
totally lost. i.e. when opening the housing or changing port.
To reset hen changing port/lens:
To reset hen changing port/lens:To reset hen changing port/lens:
To reset hen changing port/lens:
1.
Release vacuum.
2. Remove the port and lens from the
housing and camera.
3. Press the BLUE button once to reset
the system. The LED light will turn
blue for five seconds then it goes into
flashing blue light standby mode.
