Nauticam M67 User manual

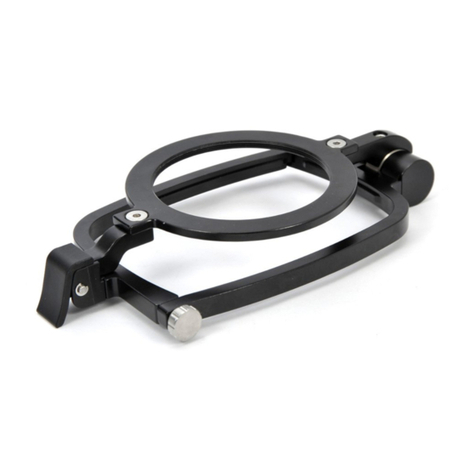

Please follow the instructions below to mount the flip diopter holder on Nauticam
6
7mm threaded ports.
1.
Press the lever
and flip the
diopter holder
to the
side then remove the locking ring from the flip
diopter holder.
2.
Align the two positioning
screw
s on the back of
the holder with the slots on the front of the port.
3.
The
position
of the flip diopter holder can be
changed by relocating the two screws in the
threaded holes around holder.
1
Press

4.
Fasten the holder by
screwing the locking ring
into the thread on the front of the port.
2
5.
To un
-
mount the flip diopter holder from the
port, reverse the above steps.
