Nauticam PL1260-F User manual

Current as of 2019-05-22
36068 N85 PL1260-F Focus Gear for
Panasonic LEICA DG VARIO-ELMARIT 12-
60mm F2.8-4.0 ASPH. POWER O.I.S.
Instruction Manual
FOREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
WARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorized
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.

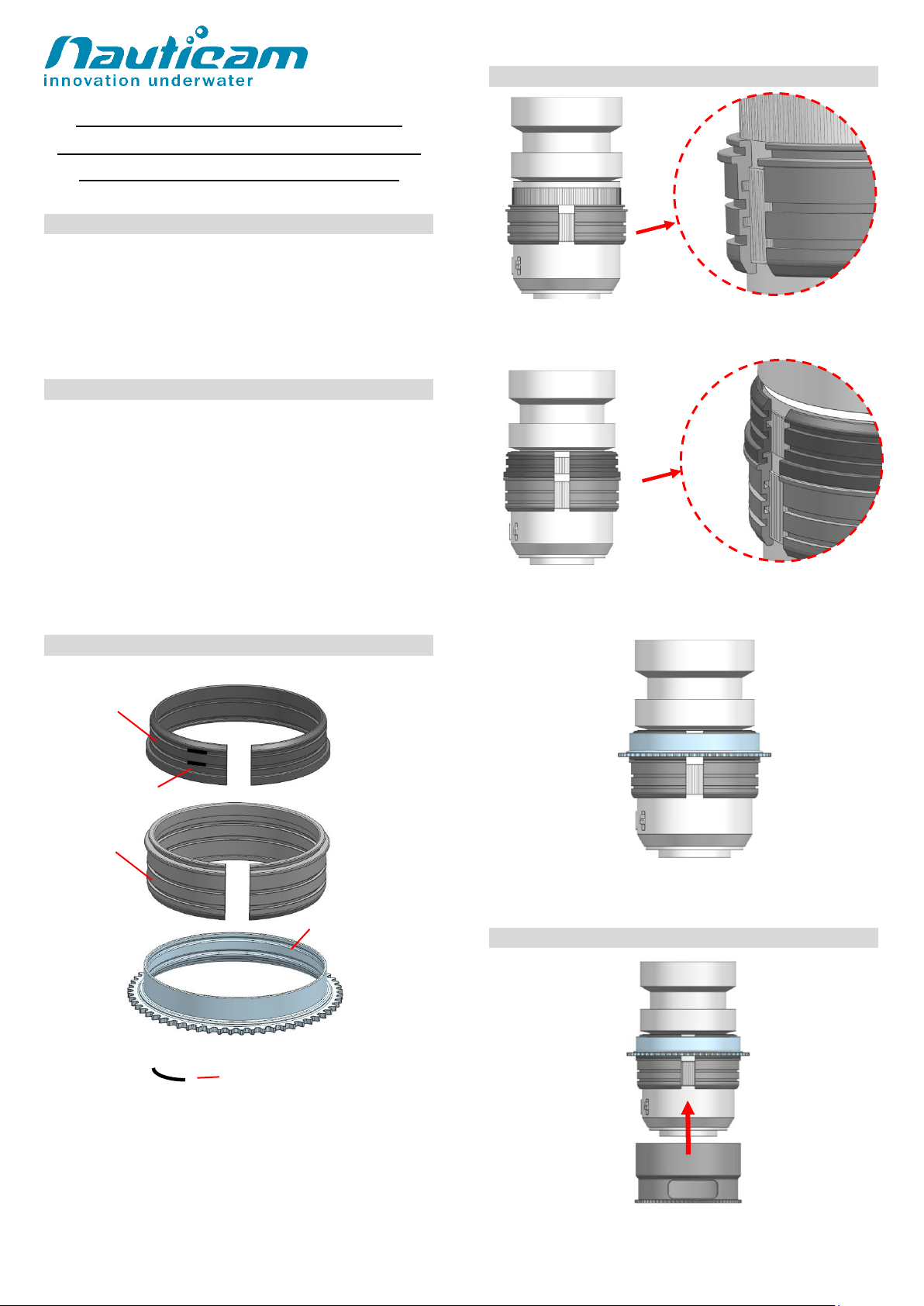

IDENTIFICATION OF PARTS
MOUNTING THE FOCUS GEAR ON A LENS
1. Insert the focus plastic C-ring as shown and place it over the
lens.
2. Insert zoom plastic C-ring as shown. Make sure the focus C-
ring and the zoom C-ring are engaged well.
3. Insert the PL1260-F Focus gear on the focus plastic C-ring until
it reaches the flange of the focus plastic C-ring
MOUNTING THE #36058 ZOOM GEAR ON THE LENS
1. Insert the PL1260-Z Zoom gear(#36058) on the zoom plastic
C-ring until it reaches the flange of the zoom plastic C-ring
Focus plastic
C-ring
PL1260-F Focus Gear
Rubber grip
Spare Rubber grips
6x
Zoom plastic
C-ring

Current as of 2019-05-22
2. To remove the gears, reverse the above steps.
The tightness between the PL1260-F Focus gear and the lens
can be adjusted by removing or adding rubber grips on either
sides of the plastic C-ring, spare rubber grips are included in
the package.
Remark: Nauticam supports only e-manuals. Please download corresponding
product manuals on Nauticam.com website, or contact us for e-manuals.
