Nautilus Be Strong. M-Series LCD Monitor Bracket User manual

Be Strong.™
Model:NV915
P/N: 001-1959 Rev C (08/13/2007)
Installation Manual
M-Series LCD Monitor Bracket

2
Table of Contents
FCC Information 3
Safety Precautions 4
Specifications Components &Tools Needed 5
Installation Procedure 6
Quick Reference Guide 17
Important Contact Information 18

3
Nautilus®LCD Installation
FCC Information
This equipment has been tested and found to comply with limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment can generate, uses, and radiates radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause unacceptable interference to radio and
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced Radio/TV technician for assistance.
• Any changes or modifications in construction of this device which are not expressly approved by the party responsible
for compliance could void the users authority to operate the equipment.
A T T E N T I O N
FCC Information

4
Important Safety Precautions
W A R N I N G
IMPORTANT! To reduce the risk of fire, electrical shock or
other injuries, follow these safety precautions
when installing, using and maintaining your
NV915 LCD TV Monitor.
• Any changes or modifications in construction of this device which are not expressly approved by the party responsible
for compliance could void the users authority to operate the equipment.
A T T E N T I O N
• Always disconnect the power before installing or servicing the equipment.
• Disconnect the power cable and signal cable when thunder or lightning is present.
• Do not touch the power cord with wet hands. Make sure the electrical connectors are clean and dry before use.
• Disconnect the power cord when not in use for extended periods of time.
• Do not use if power cord is damaged.
• Do not install LCD Monitor close to heating sources.
• Do not place heavy articles on, or step on the LCD Monitor.
• The product should be installed in a clean and dry place.
• If you detect any smoke, unusual noise or smell, disconnect the electric power and contact service.
• Avoid contact with liquids or beverages.
• Do not use or place any combustible or flammable substances close to the LCD Monitor.
• Do not place the power cord close to any heating devices/sources.
• Do not apply any twisting forces or excess pressure to the LCD Monitor.
• Do not attempt to disassemble, repair or modify the LCD Monitor. If the LCD Monitor needs repair or adjustment, refer
servicing to qualified service personnel.
• When cleaning, do not directly spray with water or use flammable substances.
• Do not allow liquids to penetrate the LCD Monitor.
• When cleaning the LCD Monitor, disconnect the power and use a clean soft cloth. Never use a wet cloth.
W A R N I N G
This symbol appearing throughout this manual means:
Pay Attention! Be Alert!Your Safety Is Involved!
Save these instructions
Read all instructions before using.

5
Nautilus®LCD Installation
Box 1 Contents
LCD Bracket
Part # 000-8082
Console Spacer
Part # 001-1894
Hardware Pack
Part # 001-1916
Box 2 Contents
LCD Monitor
Part # 001-1924 US (NTSC)
Part # 001-1992 (PAL)
Part # 002-3782 US (Digital)
Power Cord
Part # 001-1922 US
Part # 001-2015 Continental
Part # 001-2017 UK/Ireland
Part # 001-2019 Australia
Owners Manual CD
Part # 001-7167
Power Supply
Part # 000-8010
Part # 002-3787 (Digital)
Hardware Kit
Part # 001-1938
Wire Ties
International Coax
Adapter
Part # 001-1995
Tools Needed:
• 3/16” Allen wrench
• 6mm Allen Wrench
• Wire Cutter
• Phillips Head Screwdriver
Product Specifications, Contents &Tools Needed
M-Series Bracket
Gross Weight: 8.0 lbs/ 3.63 kg
Net Weight: 4.75 lb/ 2.15 kg
Product Dimensions: 49cm (L) x 17cm (W) x 43cm (H)
19.3” (L) x 6.7” (W) x 16.9” (H)
Product Specifications:

6
Installation Procedure
Step 1 Remove the Console
Tools Needed:
Phillips Head Screwdriver
1-1 Use a Phillips Head Screwdriver to remove the
four screws that secure the Console.
Tools Needed:
Wire cutter or similar

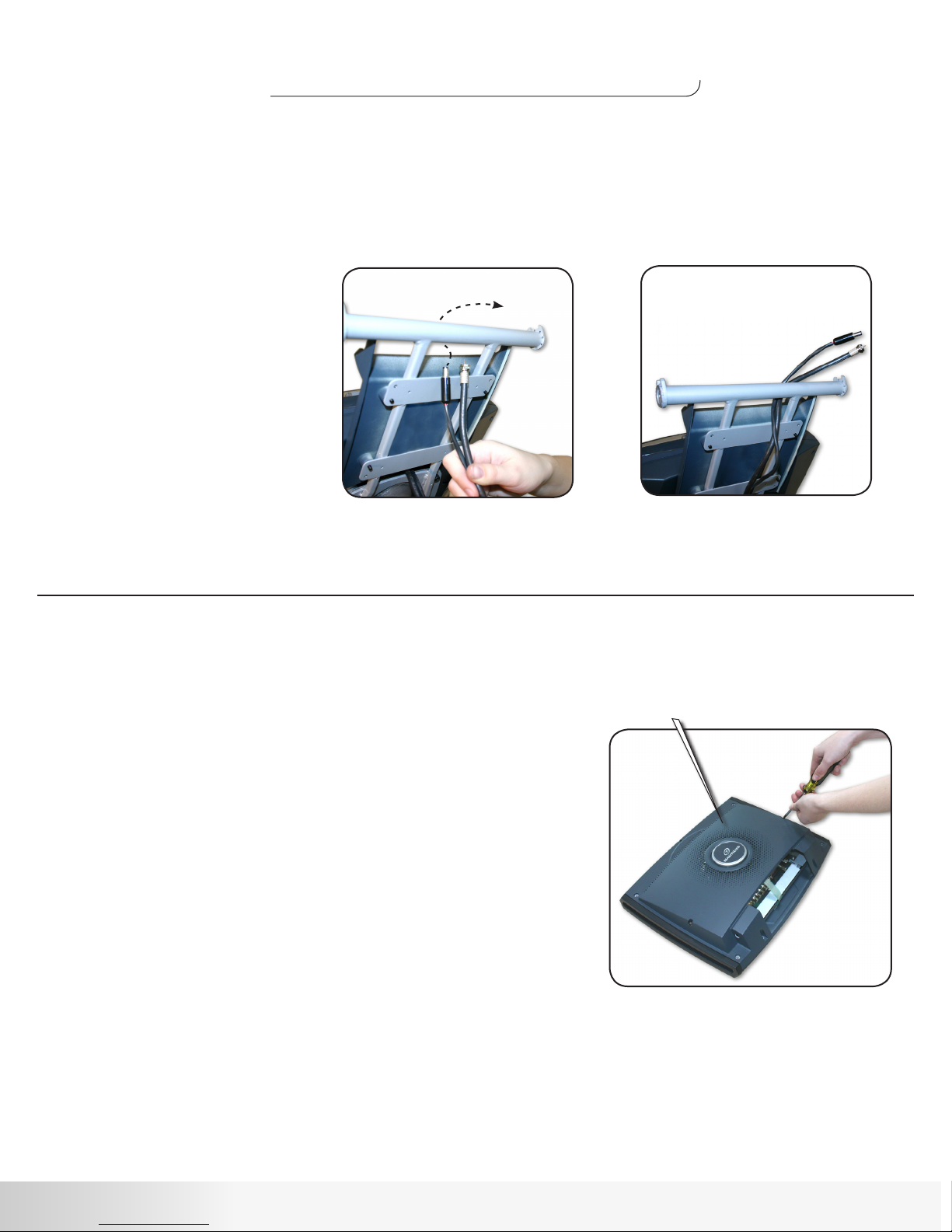

2-1 Locate the LCD wires inside the mast. (Figure A)
2-2Remove the wire tie. (Figure B)
2-3 Extend approximately 12” of the LCD wires.
(Figure C)
Step 2 Locate the LCD wires and remove the wire tie.
Phillips Head Screw
Figure A
Figure B Figure C
LCD Wires
Wire Tie
Extend 12” of Wire

7
Nautilus®LCD Installation
Installation Procedure
Step 3 Place Spacer between Console and Mast
Tools Needed:
Phillips Head Screwdriver

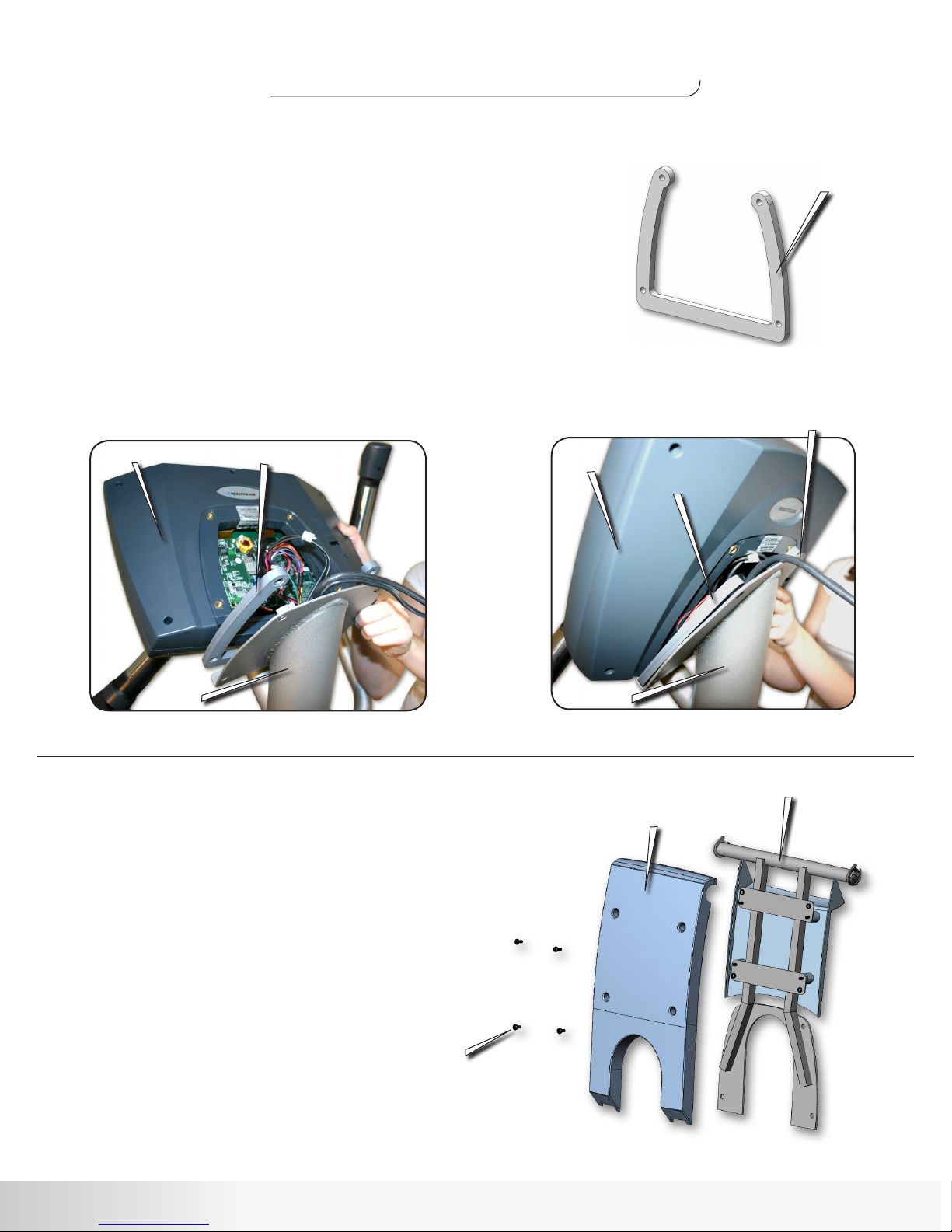

4-1 Use a Phillips Head Screwdriver to
remove the four screws and washers
securing the Back Cover to the Bracket.
Step 4 Remove the Back Cover of the LCD Bracket
3-1 Place the Spacer (Figure A) between the Console and
Mast as shown. (Figure B)
3-2Allow the LCD wires to extend through the gap
between the Spacer and the Console, and over
top of the Mast. (Figure C)
3-3 Leave the Console in place on the Mast but
do not install the hardware at this time.
Figure A
Spacer
Spacer
Console
Mast
Spacer
Console
Mast
LCD Wires
Figure B Figure C
Back Cover
Bracket
Phillips Head Screw

8
Installation Procedure
Step 5 Attach the LCD Bracket
Parts needed:
LCD Bracket
Four 1/4” x 1” Phillips Head Screws
Tools Needed:
Phillips Head Screwdriver
5-1 Pass the LCD wires through the Bracket between
the metal plate and the plastic cover as shown.
(Figure A)
5-2 Align the Bracket with the Console mounting
holes on the Mast. (Figure B)
5-3 Replace the original Console hardware with the
four 1/4” x 1” Phillips Screws provided.
5-4 Completely tighten the hardware. (Figure C)
LCD Wires
Plastic Cover
Metal Plate
Pass Wires through Bracket
LCD wires
Mast
1/4”x1” Phillips Screw
Figure A
Figure B Figure C

9
Nautilus®LCD Installation
Installation Procedure
Step 6 Prepare to install the LCD Monitor
NOTE: To keep the LCD Wires in place, it is helpful to pass them through the
Bracket as shown.
Tools Needed:
Phillips Head Screwdriver
6-1 Use a Phillips Head Screwdriver to remove
the Back Cover of the LCD monitor. (Figure A)
Figure A
Back Cover

10
Installation Procedure
Step 7 Attach the LCD Monitor
Tools Needed:
6mm Allen wrench

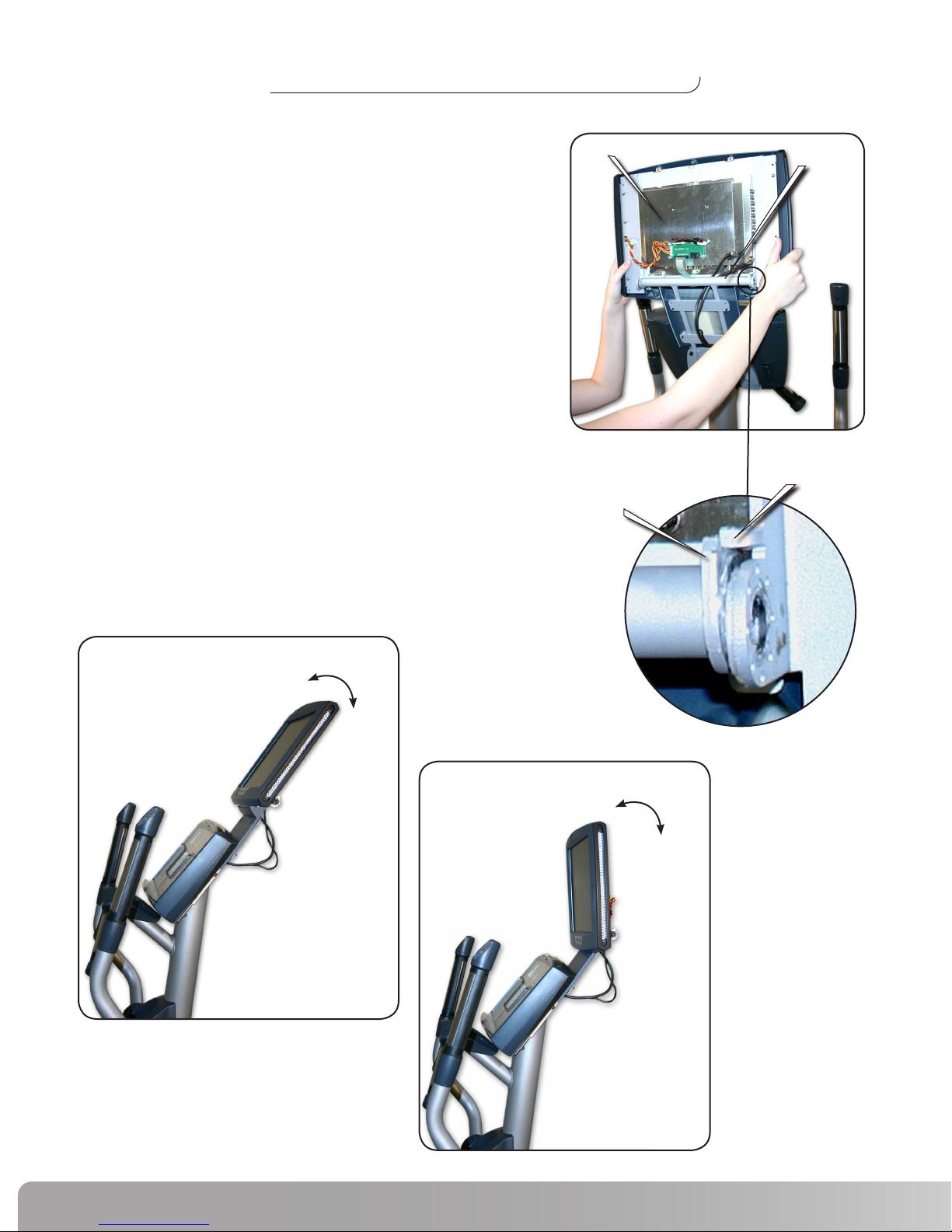

7-1 Position the LCD Monitor on the Bracket (Figure A)
with the MetalTabs resting between the upright
prongs discussed in Step 6. (Detail A)
7-2 Install the M10 Allen Bolts and Lock Washers.
(From Hardware Kit)
7-3 Position the LCD Monitor. (Figure B & C)
Note: The Monitor has a 30º range of
viewing angles. Position at your dis-
cretion (Figure B & C).
7-4 Completely tighten the M10 Allen Bolts.
Figure A
Detail A
LCD Monitor Bracket
Metal Tab
Prong
30º Range
30º Range
Figure B
Figure C

11
Nautilus®LCD Installation
Installation Procedure

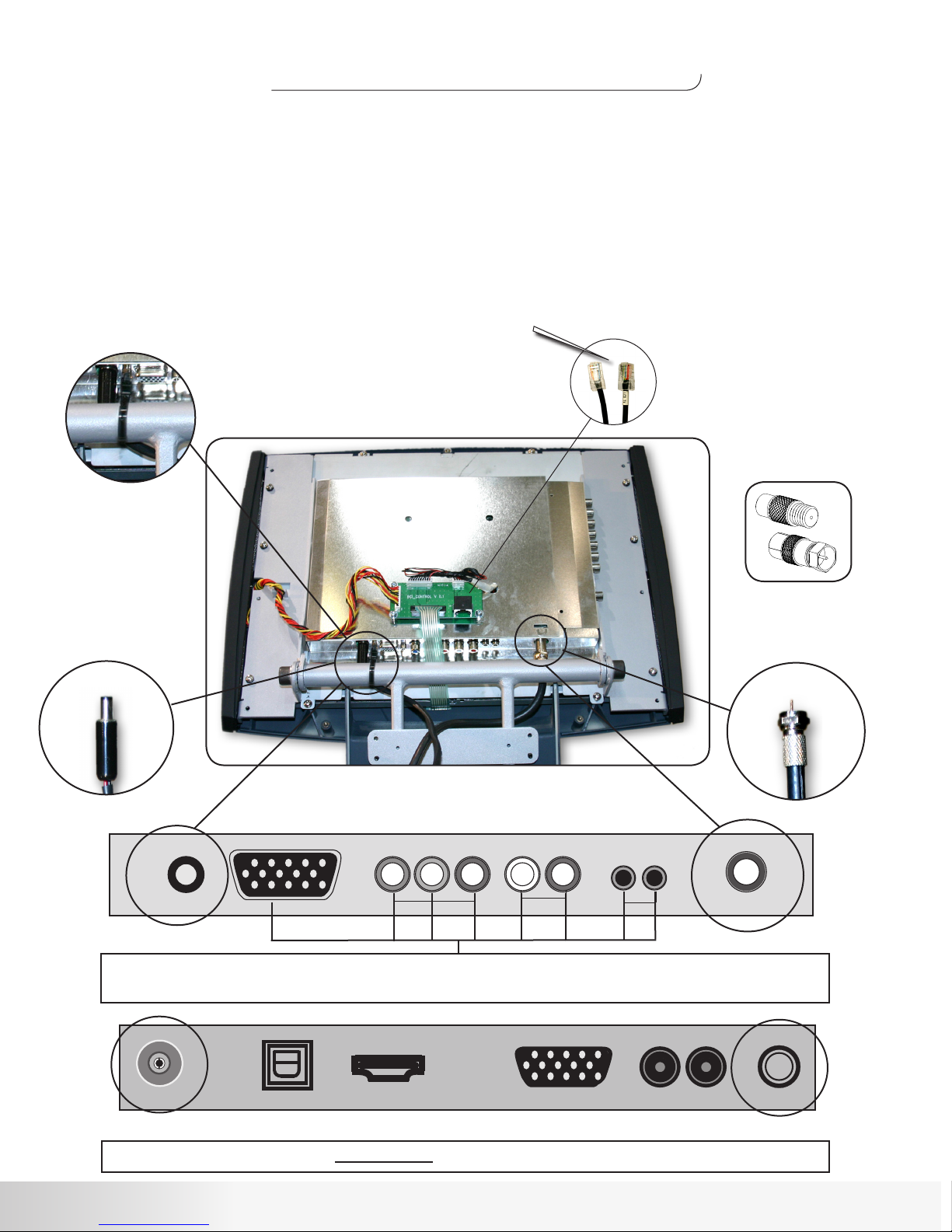

Step 8 Connect Wires to Monitor
The connections shown are for Pre Wired units with Coaxial and power connections only.
For alternative configurations please refer to the LCD Monitor owners manual.
IMPORTANT! You must wire tie the Power Wire to the LCD Bracket to avoid
accidental disconnection.
Power Antenna
Power
For alternative configurations please refer to the LCD Monitor owners manual.
These connections are not used in this configuration
Antenna
NOTE: International version
will require supplied
Coaxial Connection
Adapter.
International Coaxial Adapters
Wire Tie
NOTE: If you are using the optional Wired Remote, attach the end
labeled LCDTV at this time. Refer to Wired Remote Installation
Manual for more information.
Antenna Power
Connections are REVERSED for the NV915 LCD Digital Monitor.

12
Installation Procedure
Step 9 Replace the Back Covers
Tools Needed:
Phillips Head Screwdriver
9-1 Use the M4 Screws and Washers from the Hardware
Kit to replace the Back Cover of the Bracket (Figure A)
and the LCD Monitor. (Figure B)
NOTE: Use the two longer screws on the raised
portion of the LCD Monitor Back cover.
(Detail A)
Figure A
Bracket Back Cover
Use longer
screws here
Figure B
Detail A

13
Nautilus®LCD Installation
Commercial Bikes Installation Procedure
Mounting Plate
Secure the Power Brick to the Power Connector and the Coaxial Cable to the Coax Connector
on the Mounting Plate as shown.
TV Coax Connector
Power For Unit TV Power Connector
ATTENTION: After steps 1-9 of the M-Series installation manual, use this page to make
connections to EV916, E916, Commercial Bikes, and the future redesigns of the
stepper.
If you are installing the monitor on an elliptical unit, proceed to Step 10.
If you are installing the monitor on any product other than an elliptical,
installation is complete after making the connections shown below.

14
Step 10 Remove Right Shroud
Tools Needed:
Phillips Head Screwdriver
10-1 Use a Phillips Head Screwdriver to remove the
Right Shroud.
Installation Procedure
Right Shroud

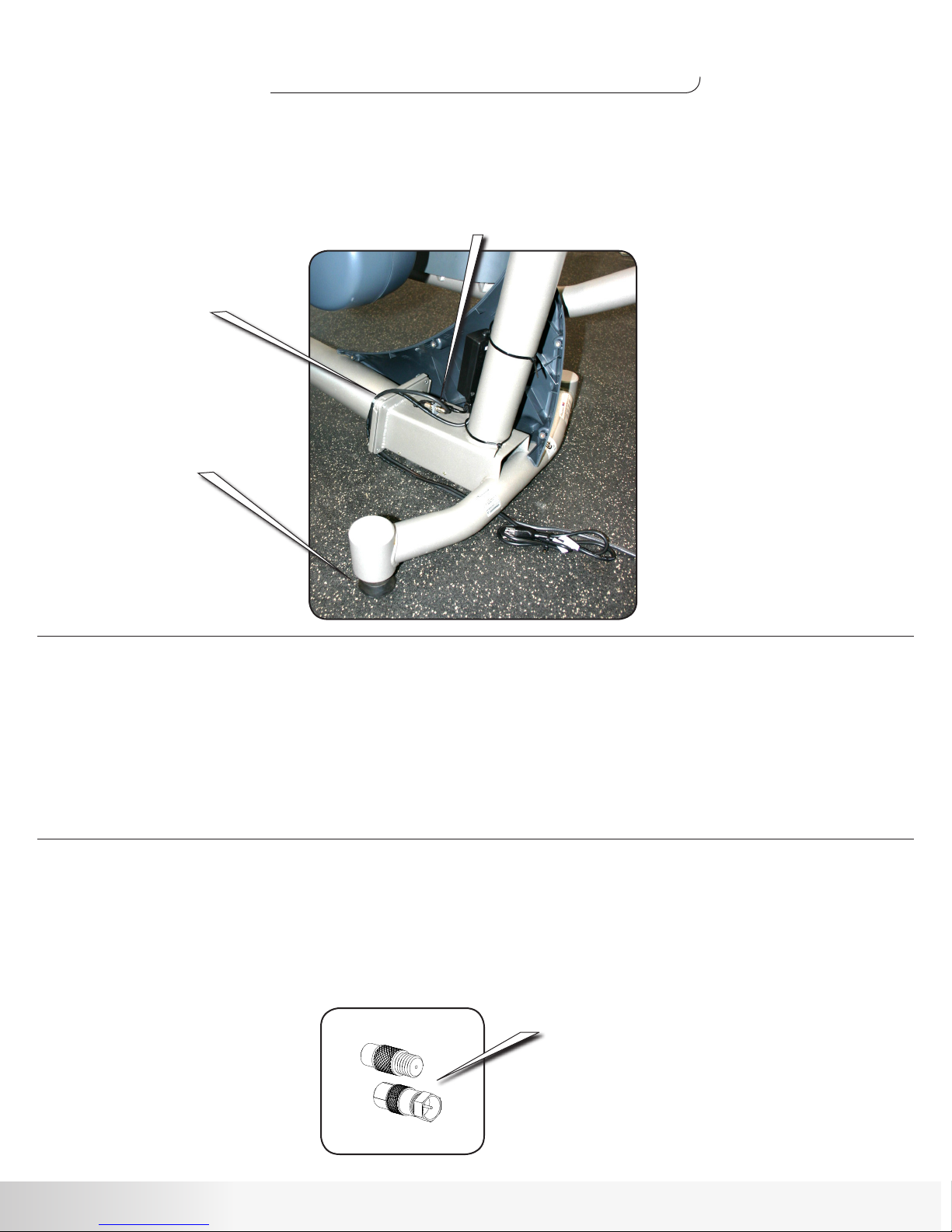

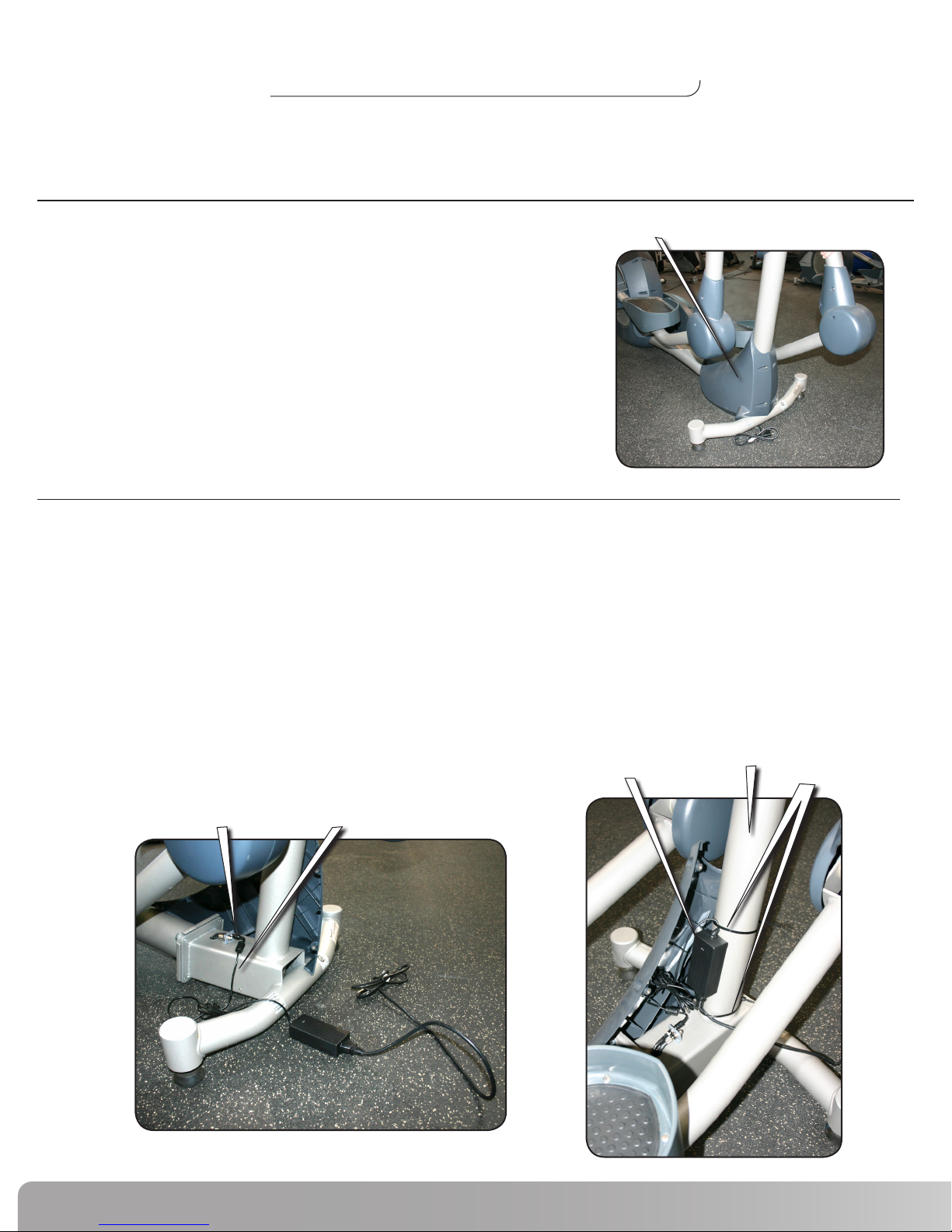

Step 11 Secure the Power “Brick” to the Frame
Tools Needed:
Two WireTies
11-1 Connect the Power Wire to the power connection on top of the Frame. (Figure A)
11-2 Secure the Power Brick to the Mast using two WireTies as shown. (Figure B)
Power Connection Power Wire
Wire Tie
Power Brick Mast
Figure A
Figure B
ATTENTION: The following steps apply to pre-wired Commercial Ellipticals only.
For non pre-wired instructions, refer to the appropriate LCD wiring
manual for the unit.

15
Nautilus®LCD Installation
Step 12 Route the LCD Wires
12-1 Connect the Coaxial Cable and route the LCD Wires over the top, behind and under the
Frame Junction as shown.
Installation Procedure
Coaxial Connection
Route Wires
Behind Frame Junction
Step 13 Replace Right Shroud
Tools Needed:
Phillips Head Screwdriver
13-1 Replace the Right Shroud removed in Step 10.
Step 14 Connect LCD Wires
14-1 Make appropriate Coax and Power connections where LCD Wires exit the unit.
NOTE: International versions will require supplied Coaxial Connection adapter.
(Figure C) International Coaxial Adapters
Note:
You may have to adjust the
leveler feet to allow enough
clearance for the LCD Wires.
Adjust the feet enough to
allow clearance without
crushing the wires under the
stabilizer.
Leveler Feet
Figure C

Installation Procedure
Installation is complete. For specific instructions on setup and use of the
LCD Monitor please refer to the LCD Monitor Users Manual
16

17
Nautilus®LCD Installation
Quick Reference Guide
1234 5 6
1
2
3
4
5
6
Power
Volume UP
Video Input Source (Video/S-Video, Antenna)
Volume Down
Mute
Channel Down
78
7Channel Up
8Numeric Channel Keys
Headphone Jack
Infrared (remote) Receiver
Power Light
For specific instructions on setup and use of the LCD Monitor please refer to the
LCD Monitor Users Manual.

18
IMPORTANT CONTACT NUMBERS
OFFICES IN THE UNITED STATES:
E-mail: [email protected]
• TECHNICAL/CUSTOMER SERVICE
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (800-628-8458)
Fax: [phone]
• CORPORATE HEADQUARTERS
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (800-628-8458)
If you need assistance, please have both the serial number of your machine and the date of purchase available when you
contact the appropriate Nautilus office listed below.
INTERNATIONAL OFFICES:
For technical assistance and a list of distributors in your area,
please call or fax one of the following numbers.
• INTERNATIONAL CUSTOMER SERVICE:
Nautilus International S.A.
Rue Jean Prouvé 6
1762 Givisiez / Switzerland
Tel: + 41-26-460-77-77
Fax: + 41-26-460-77-70
Email: [email protected]
INTERNATIONAL OFFICES:
• SWITZERLAND OFFICE
Nautilus Switzerland S.A.
Tel: + 41-26-460-77-66
Fax: + 41-26-460-77-60
• GERMANY and AUSTRIA OFFICE
Nautilus GmbH
Tel: [phone]
Fax: [phone]
• ITALY OFFICE
Nautilus Italy s.r.l.
Tel: [phone]
Fax: [phone]
• UNITED KINGDOM OFFICE
Nautilus UK Ltd.
Tel: [phone]
Fax: [phone]
• CHINA OFFICE
Nautilus Representative Office
Tel: [phone]
Fax: [phone]
18

Be Strong.™
For more information about our LCD TV Monitor or other Nautilus®
equipment , visit www.nautilusinc.com.
© 2007 Nautilus, Inc. All rights reserved. Nautilus, the Nautilus logo, and Be Strong are either registered trademarks or trademarks of Nautilus, Inc.
All other marks are either registered trademarks or trademarks of their respective companies.
Nautilus, Inc. World Headquarters, 16400 SE Nautilus Drive, Vancouver, Washington, USA 98683, 1-800-628-8458, www.Nautilus.com.
