NV 915
LCD TV Stand Assembly Manual

2
Table of Contents
Safety Precautions 3
Product Specifications 4
Components &Tools Needed 5
Assembly 6
Important Contact Information 17

3
LCD TV Stand Assembly Guide
Important Safety Precautions
W A R N I N G
IMPORTANT! To reduce the risk of fire, electrical shock or
other injuries, follow these safety precautions
when installing, using and maintaining your
NV915.
• Any changes or modifications in construction of this device which are not expressly approved by the party responsible
for compliance could void the users authority to operate the equipment.
A T T E N T I O N
• Always disconnect the power before installing or servicing the equipment.
• Disconnect the power cable and signal cable when thunder or lightning is present.
• Do not touch the power cord with wet hands. Make sure the electrical connectors are clean and dry before use.
• Disconnect the power cord when not in use for extended periods of time.
• Do not use if power cord is damaged.
• Do not install LCD Monitor close to heating sources.
• Do not place heavy articles on, or step on the LCD Monitor.
• The product should be installed in a clean and dry place.
• If you detect any smoke, unusual noise or smell, disconnect the electric power and contact service.
• Avoid contact with liquids or beverages.
• Do not use or place any combustible or flammable substances close to the LCD Monitor.
• Do not place the power cord close to any heating devices/sources.
• Do not apply any twisting forces or excess pressure to the LCD Monitor.
• Do not attempt to disassemble, repair or modify the LCD Monitor. If the LCD Monitor needs repair or adjustment, refer
servicing to qualified service personnel.
• When cleaning, do not directly spray with water or use flammable substances.
• Do not allow liquids to penetrate the LCD Monitor.
• When cleaning the LCD Monitor, disconnect the power and use a clean soft cloth. Never use a wet cloth.
W A R N I N G
This symbol appearing throughout this manual means:
Pay Attention! Be Alert! Your Safety Is Involved!
Save these instructions
Read all instructions before using.

4
NV915 Product Specifications
NV915 Stand
Gross Weight: 38.58 lbs/ 17.5 kg
Net Weight: 33.07 lb/ 15 kg
Product Dimensions: 139cm (L) x 36cm (W) x 22cm (H)
54.72” (L) x 14.17” (W) x 8.66” (H)
NV915 LCD TV Monitor
Gross Weight: 12.5 lbs/ 5.7 kg
Net Weight: 9.5 lb/ 4.3 kg
Product Dimensions: 49cm (L) x 17cm (W) x 43cm (H)
19.3” (L) x 6.7” (W) x 16.9” (H)
Power Requirements:
Adaptor Input: 100-240V AC, 50-60Hz
Adaptor Output” DC 12V, 3.33A
Regulatory Information:
FCC:
This device complies with Part 15 of the FCC and the Canadian ICES-003 regulations for Class A apparatus. Operations
is subject to the following two conditions:
(1).This device may not cause harmful Interferences and
(2).This device must accept any interference received, including interference
that may cause undesired operation.
The LCDTV Monitor NV915-000N Model bears the CSA Mark shown with adjacent
indicators ‘C’ and ‘US’
The LCDTV Monitor with PAL tuner bears the CE Mark and meets all safety and
EMC requirements required by the European Union and Australia / New Zealand.
For Customers in the European Union, Do not dispose of this product as refuse.
This product is to be recycled. For information on the proper method of disposal
contact a Nautilus Customer Service Representative. Contact information is available
in the Important Contact Numbers section in this manual.
The LCDTV Monitor with PAL tuner is RoHS compliant.

5
LCD TV Stand Assembly Guide
Tools Needed
• Phillips Head Screwdriver
• 6mm Allen Wrench
• 5mm Allen Wrench
Components & Tools
Please make sure the following items are included with your order.
If any items are missing, please contact Customer Service.
Upper Mast
001-1851
Lower Mast
001-1934
Upper Shroud
001-1860
Lower Shroud
001-1859
Hardware Kit
001-2035
Locking Collar
001- 1847
Base
001- 1935
Base Shroud
001- 1953
Wire Harness
001- 4874
Assy Manual
001- 2036
Base Foot A
001- 2049
Base Foot B
001- 2050

6
Assembly Procedure

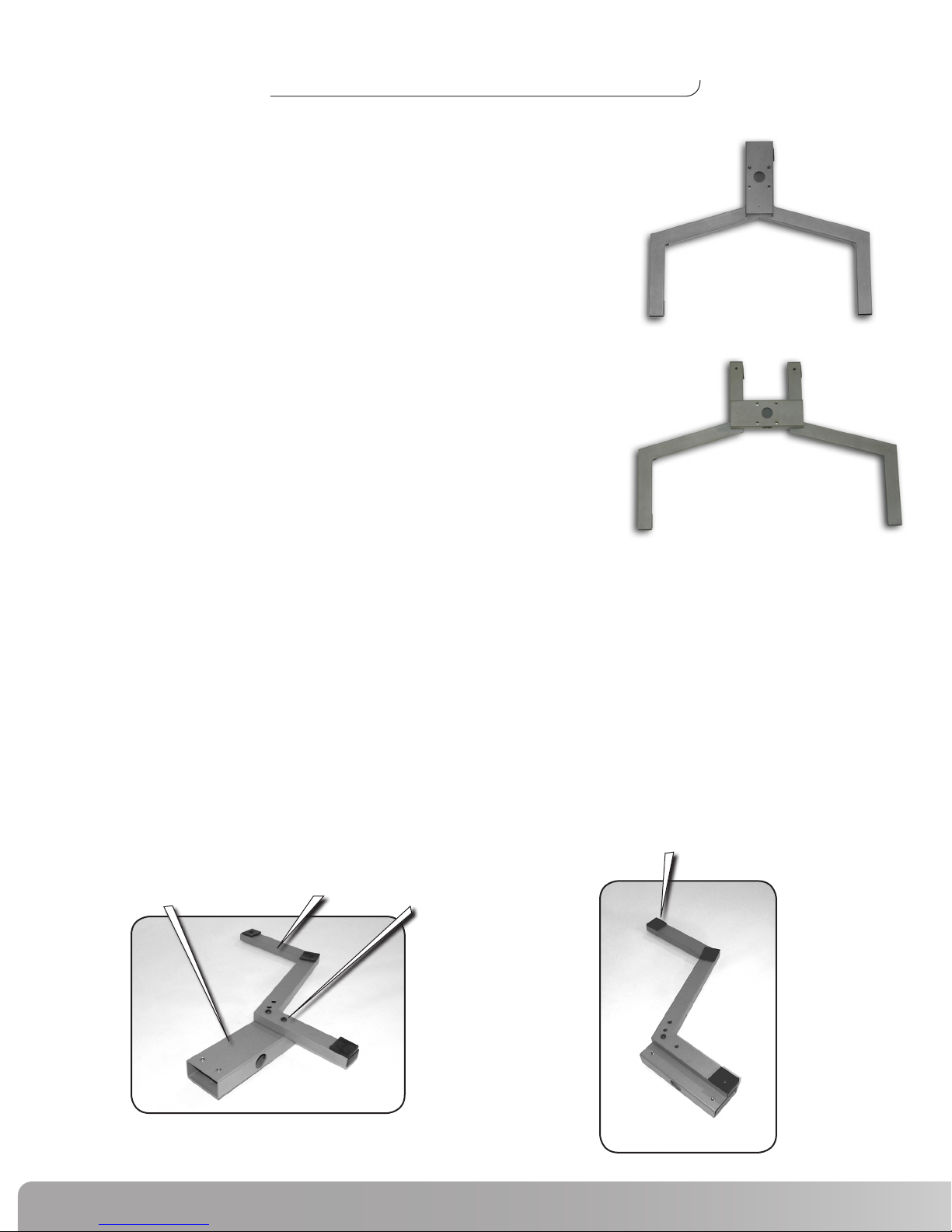

Step 1 Attach the Base Feet to the Base.
Tools Needed:
• 6mm Allen Wrench
Parts Needed:
• Base
• Base Foot A
• Base Foot B
NOTE:There are two possible assembly configurations for
theTV Stand.The narrower configuration (Figure A)
works best with Bikes and Ellipticals, while the the
wider configuration (Figure B) is best used with
Treadmills andTreadclimbers.
1-1 With the Rubber Pads facing away from the Base, Align the holes in the right or left Base Foot
with the holes in the Base.
Refer to Figure C for wide configuration.
Refer to Figure D for narrow configuration.
1-2 Secure the Base Foot with two M8 Allen Screws From the hardware kit.
1-3 Repeat the proceedure for the opposite Base Foot.
Base Base Foot
Figure A
Narrow Configuration
Figure B
Wide Configuration
Figure
Figure
M8 Allen Screw
Rubber Pad

7
LCD TV Stand Assembly Guide
Assembly Procedure

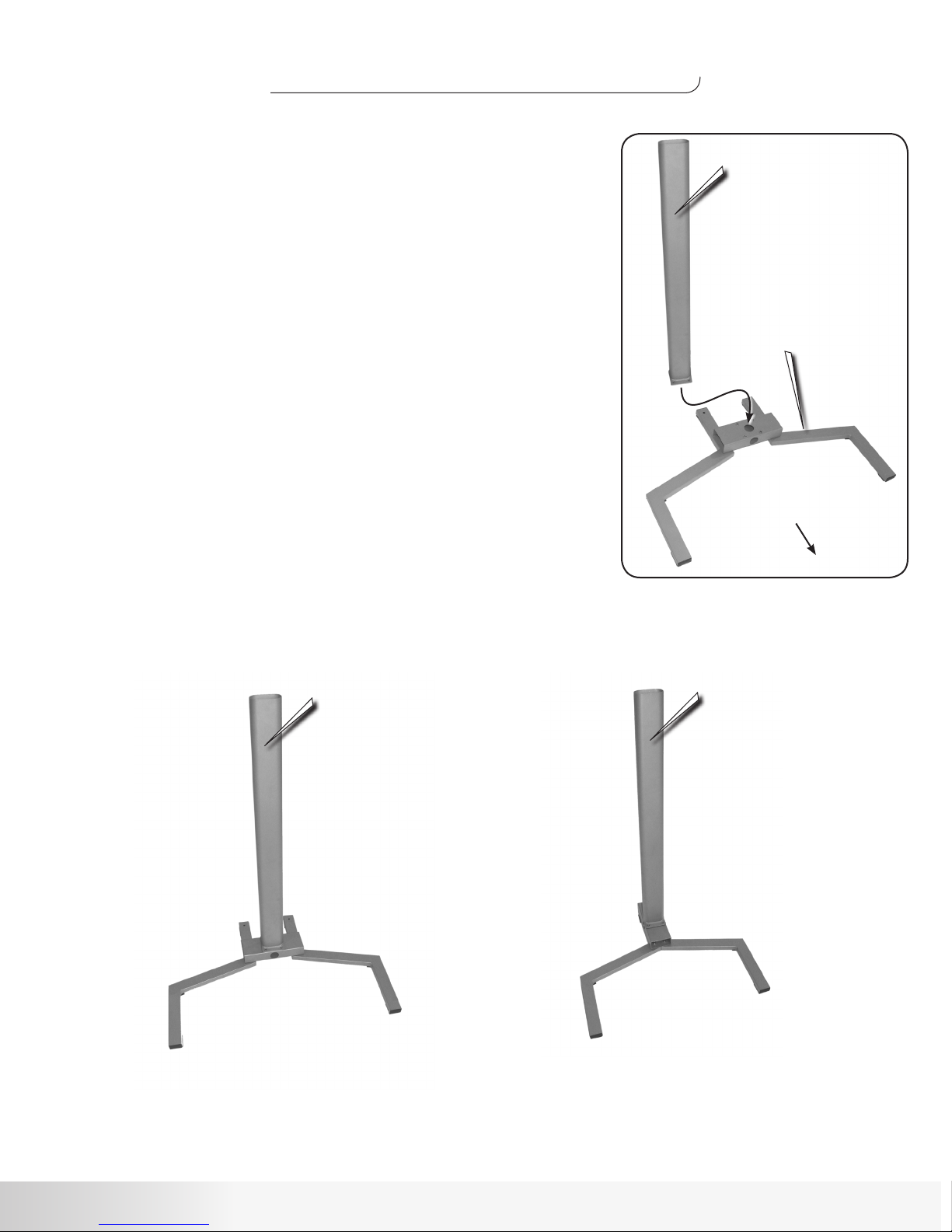

Step 2 Attach Lower Mast to Base Assembly
Tools Needed:
• 6mm Allen Wrench
Parts Needed:
• Lower Mast
2-1 Align the Lower Mast with the holes in the Base Assembly.
Make sure the wide flat side of the Upright is facing the front
of the Base Assembly.
Refer to Figure B for wide configuration.
Refer to Figure C for narrow configuration.
2-2 Secure the Lower Mast with four M8 Allen Screws From
the hardware kit.
Front
Figure C
Narrow Configuration
Figure B
Wide Configuration
Figure
Lower Mast
Flat Side Flat Side
Base Assembly

8
Step 4 Slide the Locking Collar onto the Upper Mast
Parts Needed:
• Locking Collar
• Upper Mast
4-1 Slide the Locking Collar onto the Upper Mast
(Figure A) with the clamp on the same side
as the warning sticker( Figure B) that is
applied to the Upper Mast.
Assembly Procedure
Locking Collar
Warning Sticker
Clamp
Upper Mast
Step 3 Slide Base Shroud onto the Lower Mast
Parts Needed:
• Base Shroud
3-1 Slide the Base Shroud onto the Lower Mast but do
not secure it to the Base at this time.
Lower Mast
This label should not be
visible when the stand is
setup. If label is visible,
stand height is set too
high and could tip over.
Figure A Figure B

9
LCD TV Stand Assembly Guide
Assembly Procedure
Step 5 Insert Upper Mast into Lower Mast
Tools Needed:
• 5mm Allen Wrench
Parts Needed:
• Upper Mast
5-1 Slide the Upper Mast and Locking Collar into the Lower Mast with the warning sticker on the
Upper Mast and the Locking Collar Clamp toward the back of the stand. (Figure A)
Note:The Locking Collar will fit very tightly into the Lower Mast.
Make sure the Locking Collar is fully inserted into the Lower Mast
5-2 With the Locking collar fully inserted, continue to insert the Upper Mast until the
Warning Sticker is no longer visible above the Locking Collar. (Figure B)
5-3 Insert the M6 Cap Head Allen Screw and M6 nut into the
Locking Collar. Adjust Upper mast to desired height and
completely tighten the hardware. (Figure C)
Back
Locking Collar
Upper Mast
Insert until warning sticker is
no longer visible
Figure
Figure
Figure

10
Assembly Procedure

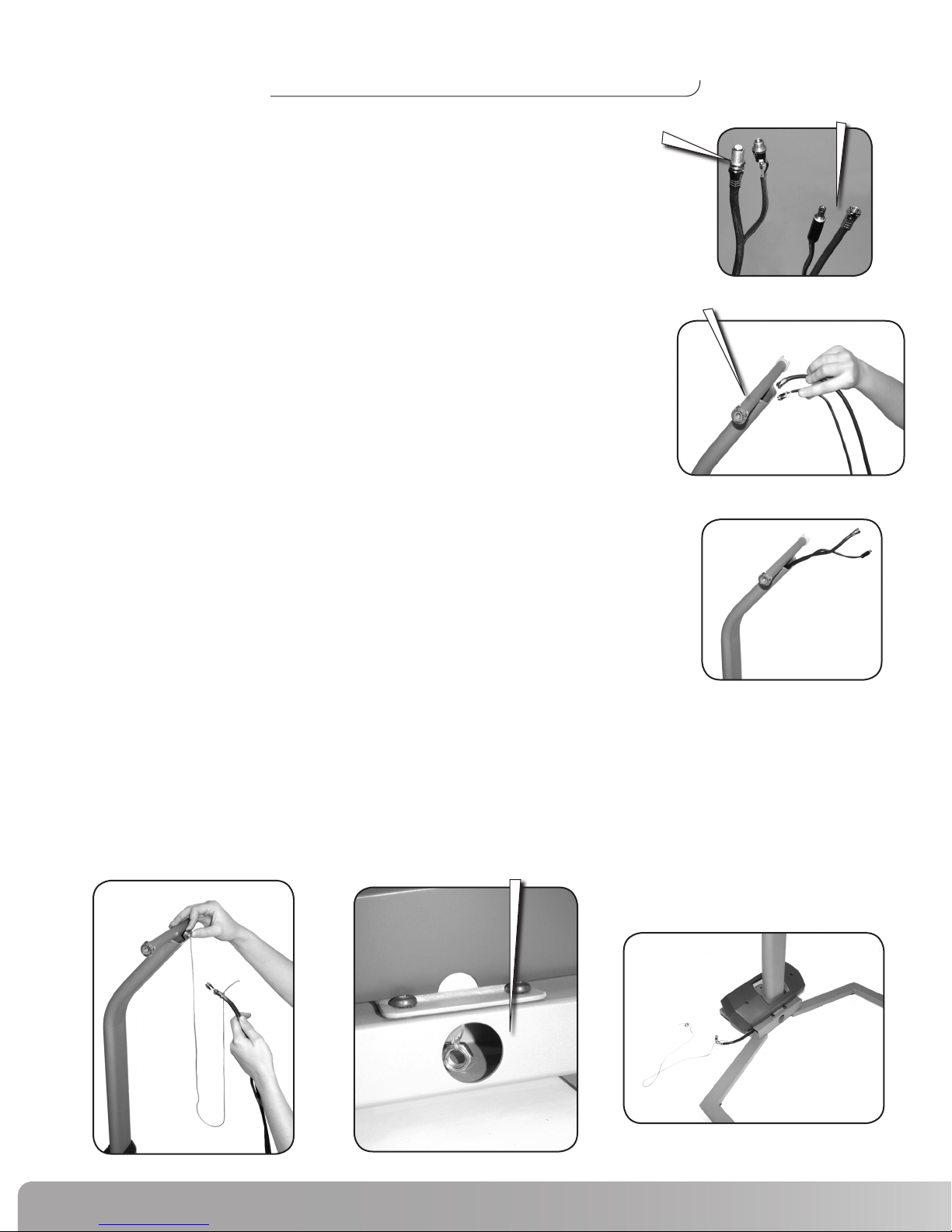

Step 6 Route the Wires through the Mast
Parts Needed:
• Wire Harness
Note: The Wires have different terminations at each end.
Make sure you insert end “A” (Figure A) into the mast.
End “A” has a female Coaxial termination.
6-1 Feed the “A” end of the Wire Harness into the Mast. (Figure B)
6-2 Feed the wires through until they exit the bottom of the Mast.
6-2 Locate the wires at the bottom of the Mast inside the Base and
continue to feed them out of the side of the Base. (Figure F)
Note: Leave about 12” of wires at the top of the Mast. (Figure C)
Optional Routing method:
1.Tie a hex nut or some other small weight to the “A” end of a 6 to 7 foot piece of string
and tie the other end to the LCD Wires.
2. Drop the weight down the Mast. (Figure D)
3. Locate the weight inside the hole in the Base. (Figure E)
4. Pull the string through the side of the Base until the wires exit. (Figure F)
Figure
End “A”
End “B”
Figure
Figure Figure E
Figure F
Mast
Base
Figure

11
LCD TV Stand Assembly Guide
Assembly Procedure
Step 7 Prepare to attach the LCD Monitor
Tools Needed:
• Phillips Head Screwdriver
7-1 Use a Phillips Head Screwdriver to remove the Back Cover of the LCD monitor.
Back Cover

12
Installation Procedure
Step 8 Attach LCD Monitor
Tools Needed:
• 6mm Allen Wrench
8-1 Position the LCD Monitor on the Mast (Figure A) with the MetalTabs resting between the
upright prongs. (Detail A)
8-2 Install the M10 Allen Bolts and Lock Washers from the hardware kit.
Note:The Monitor has a 30º range of viewing angles. Position at your discretion.
8-3 Completely tighten the hardware. (Figure B)
Figure
Figure
Detail A
Prong
Tab

13
LCD TV Stand Assembly Guide
Installation Procedure

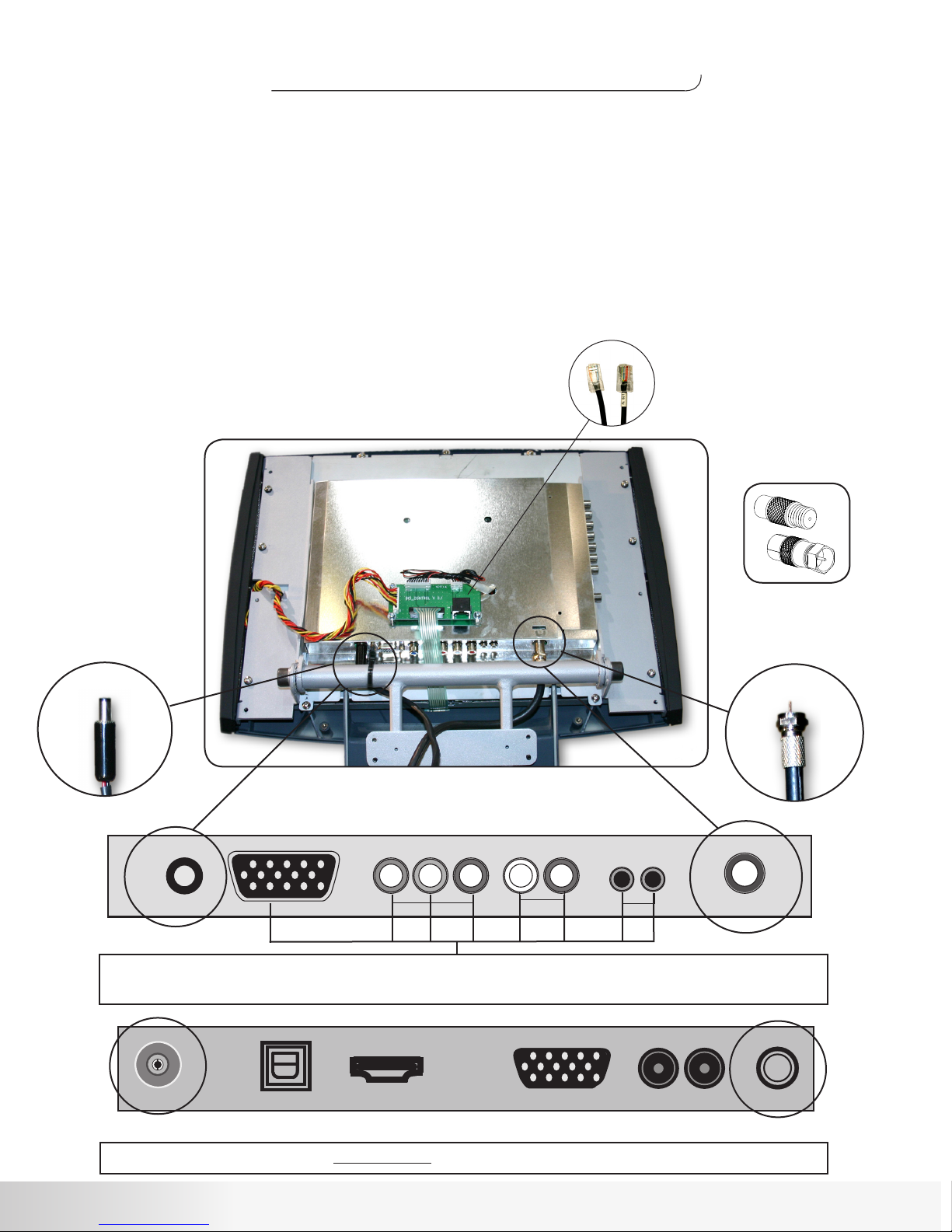

Step 9 Connect Wires to Monitor
The connections shown are for Pre Wired units with Coaxial and power connections only.
For alternative configurations please refer to the LCD Monitor owners manual.
IMPORTANT! You must wire tie the Power Wire to the LCD Bracket to avoid
accidental disconnection.
NOTE: If you are using the optional Wired Remote, attach the end
labeled LCDTV at this time. Refer to Wired Remote Installation
Manual for more information.
Power Antenna
Power
For alternative configurations please refer to the LCD Monitor owners manual.
These connections are not used in this configuration
Antenna
NOTE: International version
will require supplied
Coaxial Connection
Adapter.
International Coaxial Adapters
Antenna Power
Connections are REVERSED for the NV915 LCD Digital Monitor.

14
Installation Procedure
Step 10 Install Upper and lower Shroud
Tools Needed:
• Phillips Head Screwdriver
Parts Needed:
• Upper & Lower Shroud
10-1 Use two Phillips Head Screws, Washers and Lock Washers
from the hardware kit to attach the Lower Shroud to the Mast
just below the LCD Monitor. Allow the Remote Wire to exit the
bottom of the Shroud. (Figure A)
10-2 Use two Phillips Head Screws, Washers and Lock Washers
from the hardware kit to attach the Upper Shroud to the
Mast as shown. (Figure B)
Step 11 Install Upper and lower Shroud
Tools Needed:
• Phillips Head Screwdriver
11-1 Re-attach the Back Cover of the LCD Monitor.
Figure
Figure
Lower Shroud
Upper Shroud
Back Cover

15
LCD TV Stand Assembly Guide
Installation Procedure

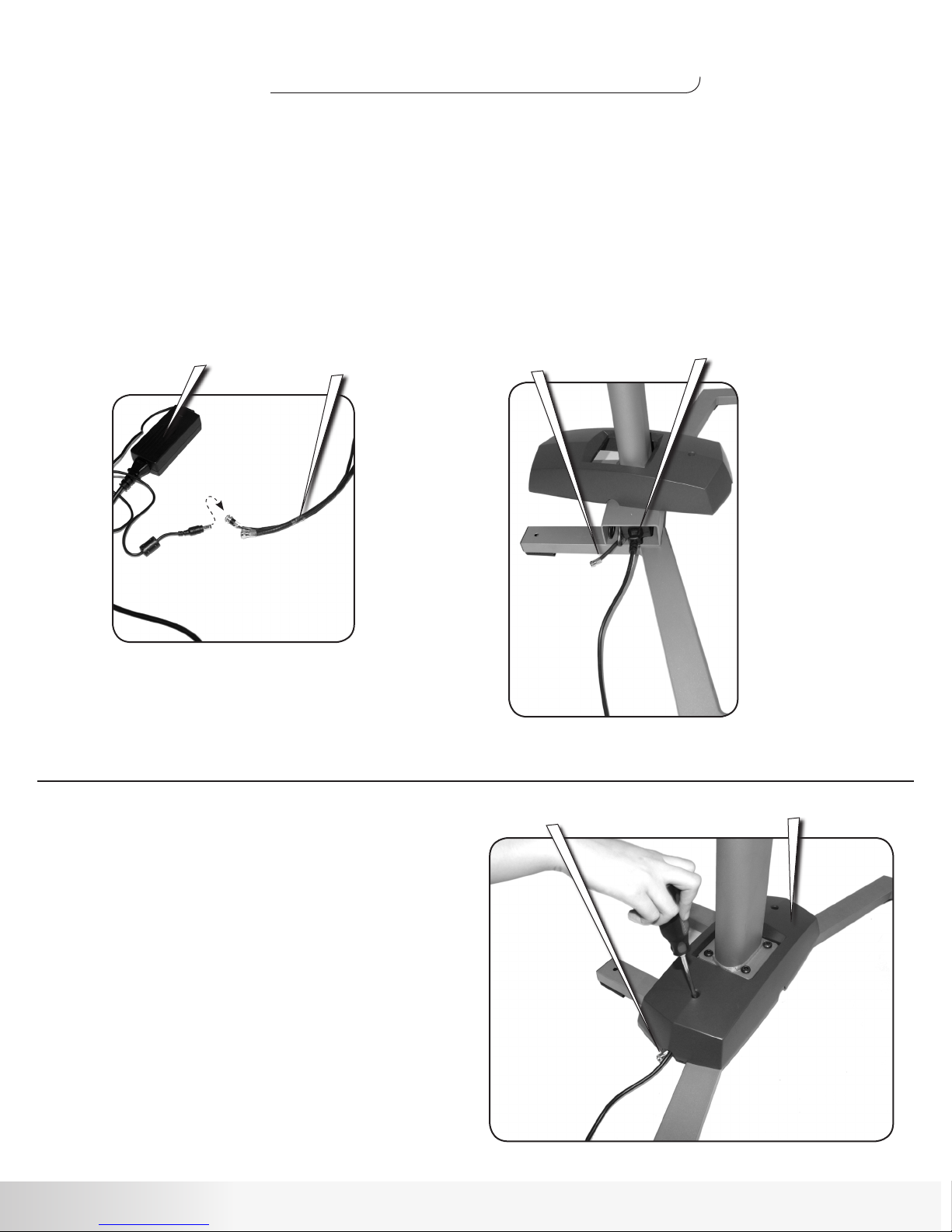

Step 12 Connect the Power Wire
Parts Needed:
• Power wire (from LCD Kit)
12-1 Connect the Power Wire to the Wire Harness.
12-2 Tuck the Wire Harness and Power Brick into the Base but leave about 6” of the Coaxial
Cable exposed.
Figure
Figure
Power Brick
Coaxial Cable
Power Brick Wire Harness
Step 13 Install Upper and Lower Shroud
Tools Needed:
• Phillips Head Screwdriver
13-1 Use two Phillips Head Screws, Washers and
Lock Washers from the hardware kit to
secure the Base Shroud.
Note: Make sure the Coaxial cable is accessible
after securing shroud.
Coaxial Cable Base Shroud

16
Installation Procedure
Step 14 Connect Wireless Remote
Parts Needed:
• Wireless Remote (from Wired Remote Kit)
14-1 Plug the free end of the Wired Remote wire into the
Wired Remote.
Note: The Wired Remote will be secured to the piece of
fitness equipment using two zip-ties after stand is
in place in front of the equipment .
Assembly of the TV Stand is complete.
For specific instructions on setup and use of the LCD Monitor please refer to the
LCD Monitor Users Manual

17
LCD TV Stand Assembly Guide
IMPORTANT CONTACT NUMBERS
OFFICES IN THE UNITED STATES:
E-mail: [email protected]
• TECHNICAL/CUSTOMER SERVICE
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (800-628-8458)
Fax: [phone]
• CORPORATE HEADQUARTERS
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (800-628-8458)
INTERNATIONAL OFFICES:
For technical assistance and a list of distributors in your area,
please call or fax one of the following numbers.
• INTERNATIONAL CUSTOMER SERVICE:
Nautilus International S.A.
Rue Jean Prouvé 6
1762 Givisiez / Switzerland
Tel: + 41-26-460-77-77
Fax: + 41-26-460-77-70
Email: [email protected]
INTERNATIONAL OFFICES:
• SWITZERLAND OFFICE
Nautilus Switzerland S.A.
Tel: + 41-26-460-77-66
Fax: + 41-26-460-77-60
• GERMANY and AUSTRIA OFFICE
Nautilus GmbH
Tel: [phone]
Fax: [phone]
• ITALY OFFICE
Nautilus Italy s.r.l.
Tel: [phone]
Fax: [phone]
• UNITED KINGDOM OFFICE
Nautilus UK Ltd.
Tel: [phone]
Fax: [phone]
• CHINA OFFICE
Nautilus Representative Office
Tel: [phone]
Fax: [phone]
If you need assistance, please have both the serial number of your machine and the date of purchase available when you
contact the appropriate Nautilus office listed below.

Be Strong.™
For more information about our LCD TV Monitor or other Nautilus®
equipment , visit www.nautilusinc.com.
© 2007 Nautilus, Inc. All rights reserved. Nautilus, the Nautilus logo, and Be Strong are either registered trademarks or trademarks of Nautilus, Inc.
All other marks are either registered trademarks or trademarks of their respective companies.
Nautilus, Inc. World Headquarters, 16400 SE Nautilus Drive, Vancouver, Washington, USA 98683, 1-800-628-8458, www.Nautilus.com.
