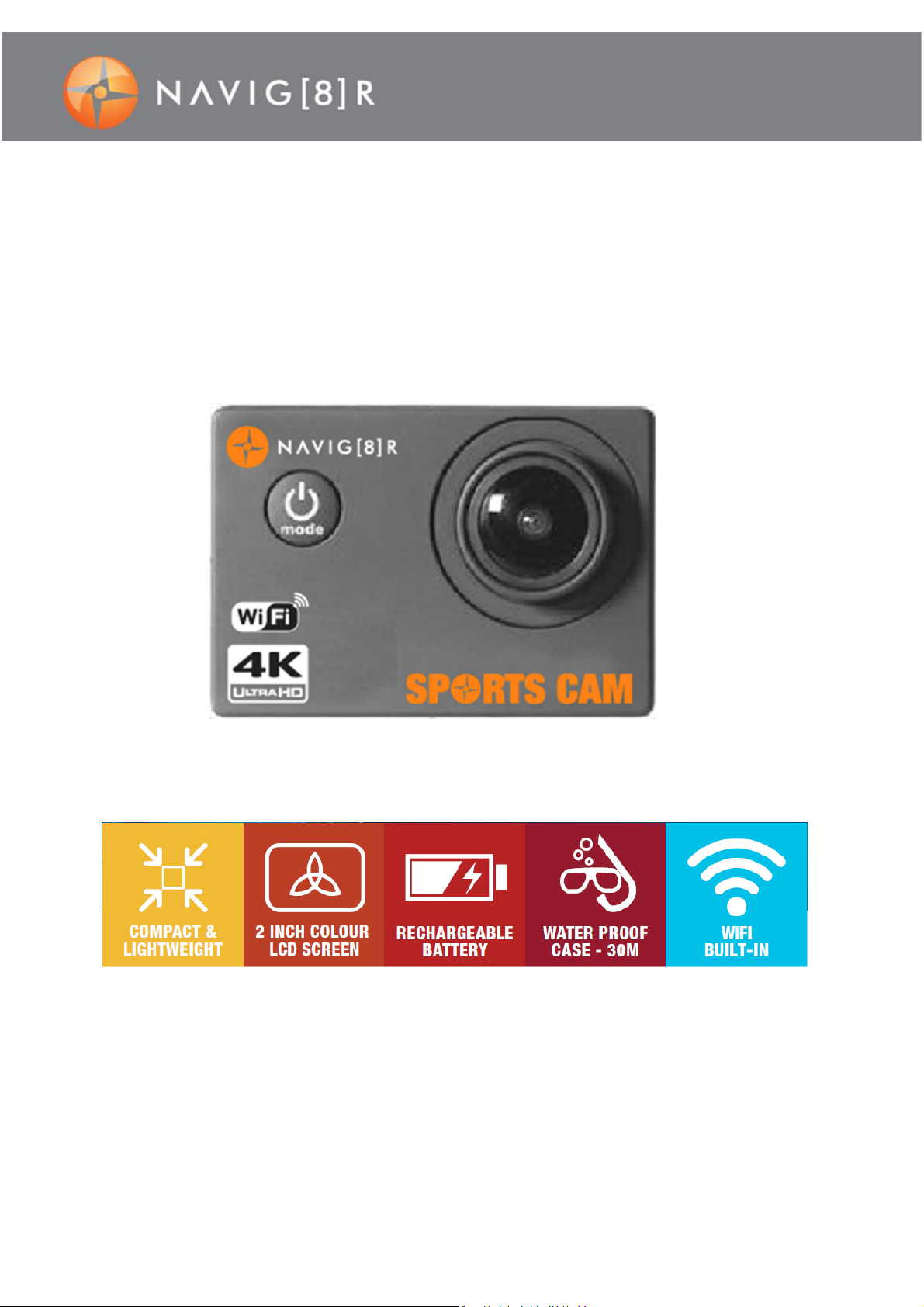

Navig8r NAVSPORT4KX2 User manual

1
NAVSPORT4KX2 USER GUIDE

2
IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS
Read all instructions carefully before use
Retain this productmanual for future reference.
Use this product only in the manner described.
Only use a water-dampened soft-cloth to clean the surface of the camera including the
lens. Removeparticulate such as dirtor grease before you do so otherwise you may
risk scratching the case.The camera is not waterproof when it is outside its waterproof
case
Be aware of environmentalconditions such extreme heat and cold, humidity, dusty,
saltyor sandy environments.In extremely cold weather and afterprolonged usage,
condensation may form inside the case which may cause the lens to fog up. We would
recommend to stop using the camera and letthe condensation evaporate (i.e.: don’t
try to wipe it off)
Do not expose to excessive heat such as sunshine, fire or the like. Do not leave unit in
the car during hot weather.
For first time use, it is recommended to charge overnight to ensure a full battery
charge. Subsequent charges can be as required. During charging, or extended use, the
productmay become warm.
There are no user serviceable parts in this product.
Un-authorized attempts to dismantle or repair this product willvoid your
productwarranty
Do not pointthe camera directly at the sun as this may damage the video sensor
Do not wipe the lens surface with your fingers. Instead use an appropriate lens cleaning cloth
or lens cleaningsolution.
Do not use this device outdoors without the waterproof case.
CAUTION
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

3
INDEX
4 ACCESSORIES IN THE BOX
5 PRODUCT CONNECTION AND BUTTONS:
8CHARGING THE BATTERY
8WATERPROOF CASE
9INSERTING THE MICRO SD CARD
9START-UP/SHUTDOWN
10 SWITCH BETWEEN VIDEO AND PHOTO MODES
10 START RECORDING / TAKE PHOTO
10 PLAYBACK MODE
10 PLAYBACK VIDEO: OPTIONS
10 PLAYBACK PHOTOS: OPTIONS
10 CONNECTING TO A COMPUTER
10 SETTINGS
12CONNECTING TO A HD TV
12FAQ
13TECHNICAL SPECIFICATIONS

4
ACCESSORIES IN THE BOX
Waterproof case
with mount
Tripod mount bracket
Handlebar mount
Clip on mount
Velcro and clasp straps
90 Degree s
hort adapter mount
Mount post (male)
USB Cable
Adhesive pads
Remote Control

5

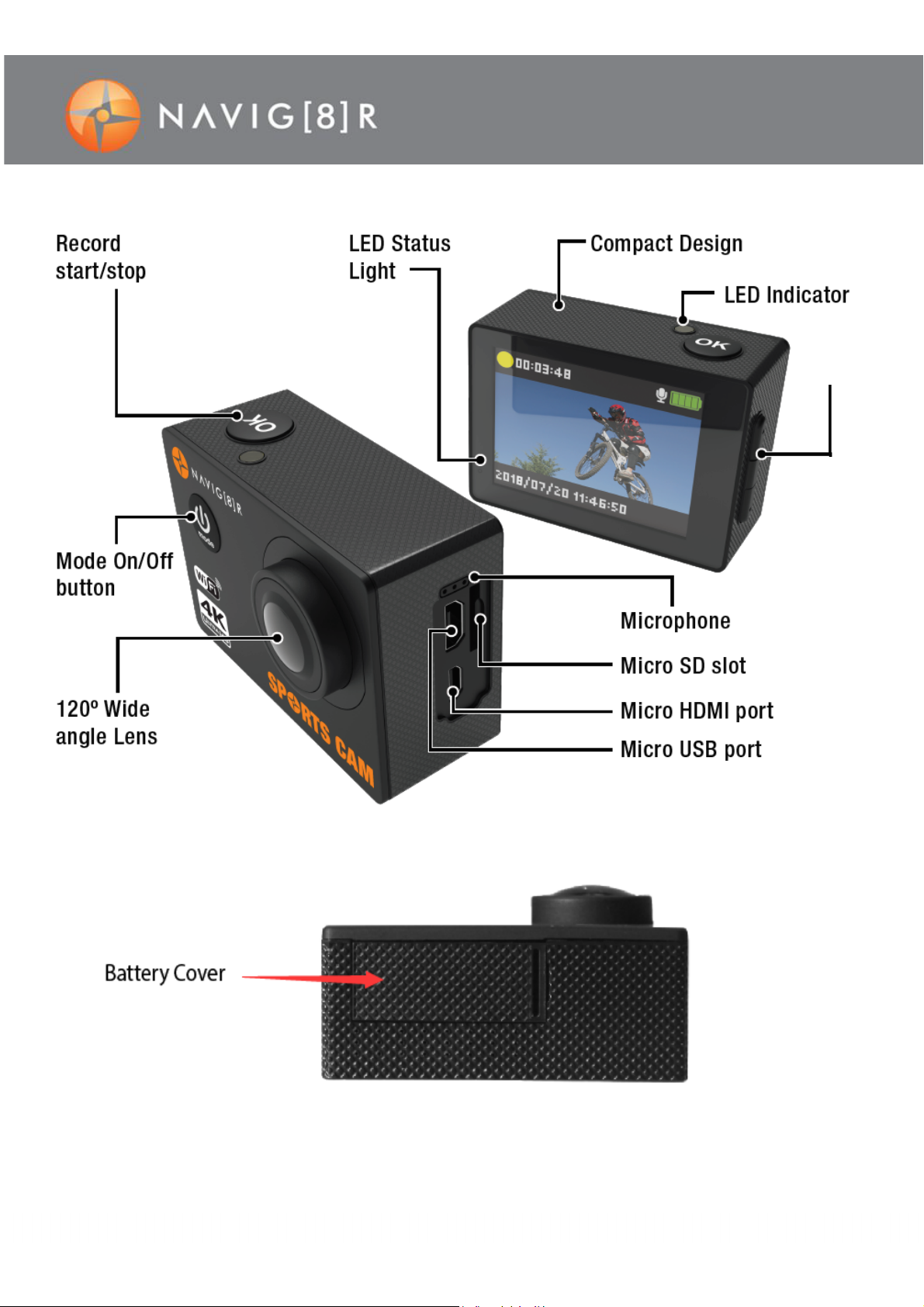

PRODUCT CONNECTION AND BUTTONS:
Wi-Fi On/Off

Download les
onto your
connected smart
device
Camera
preview
and
control
App – Android
ANDROID DEVICES
For Android devices, visit the Google Play Store and search for “Live DV”
and install the app.
Connect your Device and App via WiFi
The steps to conneng your smart device to your App are as follows:
1) Switch on the Wi-Fi feature on your Smart Device
2) Switch on your NAVSPORT4KX2 sport camera.
3) Search and wait for the Device named NAVSPORT4KX2- to appear.
4) Connect using the password “12345678”if required.
5) er a successful conneon, you can now view and save footage on “Live DV”.
ANDROID APP
NAVIGATION
Adjust
conguron
and sngs
6

Camera
preview
and
control
Download les
onto your
connected smart
device
App – Apple IOS
IOS DEVICES (APPLE)
For Apple IOS devices, visit the App Store and search for “LIVE DV”
and install the App.
Connect your Device and App via WiFi
The steps to conneng your smart device to your App are as follows:
1) Switch on the Wi-Fi feature on your Smart Device
2) Switch on your NAVSPORT4KX2 sport camera.
3) Search and wait for the Device named NAVSPORT4KX2- to appear.
4) Connect using the password “12345678” if required.
5) er a successful conneon, you can now view and save footage on the App
APPLE IOS APP NAVIGATION
Adjust
conguron
and sngs
7

8
CHARGING THE BATTERY
Turn the camera oand connect the USB cable to the camera and to your power source (i.e. in-car charger,
PC USB port or USB Mains Power Adaptor) The charging indicator light will turn RED. When the baery
charge is full, the light will turn OFF. A typical full charge takes up to 4 hours.
NOTE: The baery does not need to be removed under normal usage and charging condions. If
removed, please note the polarity of the baery when re-inserng. Take note of the input voltage and
current required by this device when connecng an external charger.
WATERPROOF CASE
1. Use your ngerp to gently pull the release lock and clamp, in the direcon of the arrow (on the
clamp)
2. Inspect the white rubber water seal gasket to ensure it is in good condion, and then insert the camera
in the correct orientaon.
Note 1: You can test the gasket by closing the case without the camera inside and submersing it completely
in a bowl of water for a few minutes. Remove the case from the water, dry offthe exterior with a towel, and
then open the case carefully. If the interior is dry, the camera and case will be safe for use under water.
Note 2: Only two buons are required for recording video and images: the Shuer Buon, and the On/Off
buon.
Note 3: Remember, when the unit is turned OFF and ON again, the unit will default to VIDEO modes and
the default resoluons.
Release clamp
On/OBuon
Case Hinge
Shuer
Buon

9
INSERTING THE MICRO SD CARD
Carefully push the memory card into the card slot, as shown in the diagram
below (using your ngernail). The Micro SD card will “click into place”. To take
the memory card out, gently press the end of the memory card inward using
your ngernail un a click is heard. An internal spring will then release the card.
Note: This camera has no built-in memory. A memory card is needed for operaon.
Note 2: High Definion and High Frame Rate video capture devices, place huge demands on memory cards.
Pending your user sengs, it is recommended that a CLASS 10 MICRO SD Card be used to avoid Read/Write
complicaons, which will appear as an error message on the screen during use. If you are not sure, please
test any lower class cards (Read/Write speed) in the device before use.
START-UP/SHUTDOWN
START-UP: Press and hold the power buon un the welcome screen is displayed.
2. SHUTDOWN: Press and hold the power buon un the Goodbye screen is displayed.
Note 1: The camera may automacally shut down aer 5 minutes of inacve use to conserve power.
Note 2: If there is not enough power the low power baery icon will flash. When power has been exhausted
the camera will shut down.

10
SWITCH BETWEEN VIDEO AND PHOTO MODES
Use the mode buon to change between modes. A dierent icon will appear each me at the top leof
screen.
Video mode: Record video
(To start recording press the shuer buon)
Picture mode: Digital Sll Camera operaon
(To take a single picture, press the shuer buon)
START RECORDING / TAKE PHOTO
When the camera is turned on, it will automacally enter video mode. Either select another mode or start
recording videos by simply pressing the shuer buon. To stop video recording, press the shuer buon
again. When the memory card is full or the baery is too low, the camera will also automacally stop
recording.
PLAYBACK MODE
Aer turning on the camera, press the mode buon to select playback mode. A e screen will then
appear with a preview thumbnail image. Use the UP and DOWN arrows to select your e and tap
the le name secon to begin playback. Note: During extended sessions of playback, the screen may
automacally turn offto conserve power. Press the display buon or the shuer to turn the screen
back on if required.
PLAYBACK VIDEO: OPTIONS
The opons available on playback are: PAUSE and PLAY.
Note: The UP and DOWN buons control volume.
PLAYBACK PHOTOS: OPTIONS
The opons available on playback are: PREVIOUS IMAGE and NEXT IMAGE.
CONNECTING TO A COMPUTER
Files can be played back directly from the Camera to a Windows ® Computer via a USB cable. The
camera will appear as a common removable disk under Window Explorer. (Drivers are not required)
Video mode
Photo mode
Playback mode
Sengs mode

11
VIDEO SETTINGS
PHOTO SETTINGS
GENERAL SETTINGS
Video Resolution
Change Resolution of recorded files (Note: Higher
Resolution files take up more storage space)
4K 30fps, 2.7K 30fps, 1080p 60fps,
1080p 30fps, 7 20p 120fps, 720p 60
Looping Video Select the length of each recorded file Off, 1 M in, 2 Min, 3 Min, 5 Min
Time-Lapse Video Take multiple videos with a delay in between Off, 1 ,2 ,5 ,10 ,30, 60 seconds
Slow Motion Play back video slower than it was recorded Off, 1080p 60fps, 720p 120fps
Audio Record Turn the microphone On or Off On ,Off
Photo Resolution
Change the Resolution of recorded files (Note:
Higher Resolution files take up more storage
space)
Time-Lapse Photo Take multiple photos with a delay in between Off, 2, 10 seconds
Burst Photo Take multiple photos by pressing shutter button
once Off, 3, 5 photos
Volume
Volume of device 1 ~ 10
Beep sound
Turn “beep” key sound On or Off when pressed On, Off
Exposure
Fill light according to different light source
Intensity in different environment.
+-2.0~0
White Balance Adjust image lighting in pre-set conditions
Auto/daylight/cloudy/fluoresc./fluores
c. 1/fluoresc. 2/Incandesc
ISO
Adjust image sensitivity for enhanced images and
less grain. High ISO is best for low light condition.
Auto/ISO100/ISO200/ISO400/ISO800
/ISO1600/ISO3200
Effect
Normal/Sepia/B&W/Negative
SYSTEM SETTINGS
Language
On screen display language English
Car mode
Loop recording for “event recorder” mode On, Off
Auto Power Off
if no buttions have been pressed and if no recording
is taking place, the unit can be shut off automatically
after set periods of time.
Off, 1, 3 minutes
Date & Time
Toggle through the fields to change Year, Month and
day
Set Day, Month, Year and Time
Date Format Format of date
None, YYYY MM DD, MM DD YYYY,
DD MM YYYY
Frequency
Adjust image in case of flickerfrom power supplies
or lighting
50 or 60Hz (50Hz typically for
Australia)
Upside down Rotate the screen 180 degrees for use upside down On, Off
Screen Saver
Turn screen off after a set period of time Off, 1, 3, 5 minutes
Format
Format SD card (Note: Permanently erases all data
on card. Note: the unit cannot be used until
formating is complete, which usually takes about 20
seconds depending on the size of your card.)
Execute, Cancel
Reset
Perform a factory reset OK, Cancel
FW Version
Display Firmware version [Display firmware version]
12M 4000x3000, 8M 32642x2448,
5M 2592x1944
EIS Electronic image stabilization minimizes blurring
On ,Off

12
CONNECTING TO A HD TV
Connect the camera to a high-denion TV (or HDMI equipped monitor) with a Micro HDMI to HDMI cable (as
shown above). The HDMI signal will carry Full HD video and 2 channel stereo audio.
FAQ
Windows media player cannot play the
recorded video les?
Try installing a CODEC pack, otherwise we nd most
customers have beer luck with VLC Player.
How many minutes of video can I record to
my SD card?
In 720p mode, each minute will record up to 50MB
of data. So a 4GB card will store up to 80 minutes
and a 16GB card up to 320 minutes.
How long does a full charge take and how
long will it last?
A full charge can take up to 4 hours and will record
up to 90 minutes of video, depending on your
sengs and situaon e.g. me of day and detail of
image.
How many meters deep can I use the
waterproof case in water?
The waterproof case can safely go down to 30
meters in depth.
REMOTE CONTROL
When your Navsport4kx2 is in Video or Photo mode, you can use remote
control to take videos or photos. Simply press red button for photo taking and
press white button for video taking.

13
TECHNICAL SPECIFICATIONS
sensor
8
MP (CMOS)
Funcons
Record Video
Take photos
Camera lens
F3.1 f=2.9mm
Shuer
Electronic
LCD display screen
2.0
-
inch
Image size
12M 4000x3000, 8M 32642x2448, 5M 2592x1944
Video resoluon
(Higher resoluon = beer image quality)
(Higher frame rate = smoother playback)
File formats
Image JPEG
Video MOV
Storage medium
Micro SD card (Up to 32GB). There is no built in
memory.
USB interface
High
-
speed USB
2.0 interface
Power Supply
Built
-
in 3.7V rechargeable lithium
Dimension (length × width × height)
59 x 41
x
29mm
Weight
72 grams
Warranty against Defects
Laser Corporaon Pty Ltd (“Laser”) warrants your new product to be free from defects in materials and
workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with
accompanying recommendaons or instrucons where provided. The benefit of this warranty is in addion to your
rights under the Australian Consumer Law and to other rights and remedies of the consumer under a law in
relaon to the goods or services to which the warranty relates. Through a network of retailers and resellers, Laser
will provide you with your choice of a refund, repair or exchange (where possible) for this product if it becomes
defecve within the warranty period. This warranty will no longer apply where the defect is a result of alteraon,
accident, misuse, abuse, normal wear and tear, neglect or improper storage. Please retain your receipt as proof of
purchase.
How to make a product warranty claim:
Step 1: Find your receipt which proves the date of purchase. Where the date of purchase cannot be verified, your
place of purchase or Laser will make an assessment based on the date of manufacture, the condion of the Laser
product and the type of defect. Step 2a): Contact your place of purchase. They will assess the nature of the fault
and refund or replace the product as per their store refund or warranty policy. Step 2b): If your place of purchase
cannot be contacted, then you can contact Laser Customer Service with details of your defecve Laser Product
Phone [phone]; or Email: [email protected]om.au or online www.laserco.com.au/warranty (click on “Apply
for an RA number”). Our business address is at 1/6-8 Byfield Street, North Ryde, NSW 2113 Step 3: Laser will
issue you with a Return Authorisaon (RA) number within 48 hours. When requested, send us the defecve
product and a copy of your receipt. Laser will cover the cost of the return delivery. Step 4: Wait for us to contact
you. Once we have received your defecve Laser product for inspec�on, we will inform you of our assessment of
your claim within 7 days. When we contact you, we will firstly let you know whether you have a valid claim under
this Warranty, and if so, we will inform you whether your defecve Laser product will be replaced or repaired,
together with the number of days you can expect to wait to receive your replaced or repaired Laser product.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entled to
a replacement or refund for a major failure and compensaon for any other reasonably foreseeable loss or
damage. You are also entled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
4K 30fps, 2.7K 30fps, 1080p 60fps,
1080p 30fps, 7 20p 120fps, 720p 60
