Naxa NAS-3072 User manual

Portable Sound System &
MP3 Player with Bluetooth®
NAS-3072
Instruction Manual
Please read carefully before use and keep for future reference.

Page 2 Naxa Electronics
Thank You
We know you have many choices when it comes to
technology; thank you for choosing us here at Naxa
Electronics. Established in 2001 in Los Angeles, Califor-
nia, we are dedicated to delivering products that en-
tertain and delight.
We trust that you will be happy with your purchase.
Please read this manual carefully and save it for refer-
ence. You may also nd the latest FAQ, documentation,
and other product material at our website. Come visit
us on the web at www.naxa.com and see all that we
have to offer!
In the Box
Please take a moment to make sure that you have ev-
erything in the list below. Although we make every ef-
fort to ensure that each Naxa device is securely packed
and sealed, we know a lot can happen in between us
and you. If anything is missing, check back with your
local retailer to get immediate assistance. If they can-
not help you, please contact our Naxa Support team at
www.naxa.com/naxa_support.
•NAS-3072
•AC power adapter
•AUX cable
•Charging cable
•Carrying strap

www.naxa.com Page 3
At a Glance
1 2 3 4 5 6
7 8 9 10 11
1 USB charge
port
Connect to a USB power source with the
included cable.
2 AUX
connector
AUX mode. 3.5mm stereo connection for
devices with 3.5mm line-out or headphone
output.
3 POWER Set the switch to the “ON” position to turn
the speaker on.
Set the switch to the “OFF” position to turn
the speaker off.
4Skip to the previous track during playback.
5 Pause or resume playback.
6Skip to the next track during playback.
7 USB port USB mode. Load USB memory sticks here.
8 VOL dial Turn the dial to adjust the volume level.
9 Status LED Lights up to indicate which mode the
speaker is in.
10 SD card
reader
CARD mode. Load memory cards here.
11 MODE Press to change the active mode (Blue-
tooth®, SD, USB, FM, and AUX).

Page 4 Naxa Electronics
Connecting Power
Your speaker has an integrated rechargeable battery.
Upon initial use, the battery should be charged fully to
ensure optimal performance and battery life.
Use the included USB charging cable to connect the
speaker to a USB power source to charge the battery.
•Connect the small end of the cable to the USB
charge port [1] of the unit.
•Connect the large end of the cable to a high-power
USB port of a computer. The computer should be
powered on.
⚠⚠The battery used in this device may pres-
ent a re or chemical burn if mistreated.
Do not disassemble, incinerate, or heat the
battery. Do not leave the battery in a place
subject to direct sunlight, or in a car with its
windows closed.
Do not connect the unit to a power source
other than that which is indicated here or on
the label as this may result in the risk of re
or electric shock.
The Status LED [9] will light a steady red when the bat-
tery is charging. When charging is complete, the Status
LED will darken.
⚠L It takes approximately 3 to 5 hours to
charge the unit fully when connected to a
standard USB port.
⚠⚠Do not charge the unit for more than 8
hours to optimize the lifetime performance
of the battery.

www.naxa.com Page 5
Using Bluetooth®Mode
Pairing a Device with Bluetooth®
A device must be paired with the speaker before using
them together for the rst time.
Make sure Bluetooth is enabled onyour device before
attempting to pair it.
When you turn on the speaker, it will automatically
search for a paired device. If it does not detect a paired
device, it will switch to Pairing mode (the Status LED
will [9] ash blue and the speaker will bee twice). Then:
1. Use your device to search for nearby Bluetooth
connections. (This function is usually in the Blue-
tooth settings menu; refer to your device’s instruc-
tion manual to learn more.)
2. The speaker will announce itself as NAXA NAS-
3072. Select it from the list of devices.
3. If your device asks for a passcode, use “0000” to
complete the pairing process.
When the speaker is paired and connected to a device,
the speaker will beep and the Status LED [9] will blink
blue slowly.
⚠L To enter pairing mode when the speaker
is already on, turn it off and then back on
again.
Bluetooth®Mode Controls
When the speaker is connected to a Bluetooth® device:
To do this... ...do this
Start, pause, or resume audio
playback
Press .
Skip to the previous track Press .
Skip to the next track Press .
Adjust the volume level Turn the Volume dial.
⚠L You may also use your device to control
playback. Some devices may not support
remote Bluetooth® controls.

Page 6 Naxa Electronics
Using USB & SD Mode
Install a USB drive or SD memory card and then press
MODE [11] to set the active mode to USB or SD.
Install a compatible USB drive or memory card with
music les on it.
•The speaker will automatically detect the drive or
card and the Status LED [9] will light blue.
•The speaker will automatically switch modes, and
attempt to play music from the drive or card.
⚠L Please refer to the Specications section to
learn more about compatibility.
To do this... ...do this
Start, pause, or resume playback. Press .
Skip to the next track. Press .
Skip to the previous track. Press .
Change the active mode (Bluetooth®,
SD, USB, FM, and AUX).
Press MODE.
Using FM Radio Mode
Press MODE [11] to set the active mode to FM.
⚠L You must connect the included AUX cable
to the AUX connector [2] in order to use
the FM radio. The AUX connector is also
used for FM radio reception.
To optimize reception, extend the connect-
ed AUX cable and adjust its position.
FM Radio Controls
To do this... ...do this
Tune to the next station Press .
Tune to the previous station. Press .
Scan for stations and auto save
them to preset memory
Press .

www.naxa.com Page 7
Automatic Station Scan
Use the station scan feature to nd stations within
broadcast reception range and save them to preset
memory.
1. Press [5] once. The sound bar will search for and
store stations automatically.
Using the AUX Input
Connector
Connect devices without Bluetooth®by using the AUX
connection. A 3.5mm stereo patch cable is required to
make this connection.
1. Press MODE [11] to switch the speaker to AUX mode.
2. Use the included AUX cable to connect the device’s
headphone or line-out jack to the AUX connector
[2] found on the side of the speaker.
3. Turn on the device and the speaker. Lower the vol-
ume on both.
4. Set the device volume to 80% of its maximum and
then start playback.
5. Turn the volume dial [8] to increase the volume
gradually to a comfortable level.
⚠L Use the connected AUX device to control
all functions in AUX mode. The speaker can
only be used to adjust the volume.

Page 8 Naxa Electronics

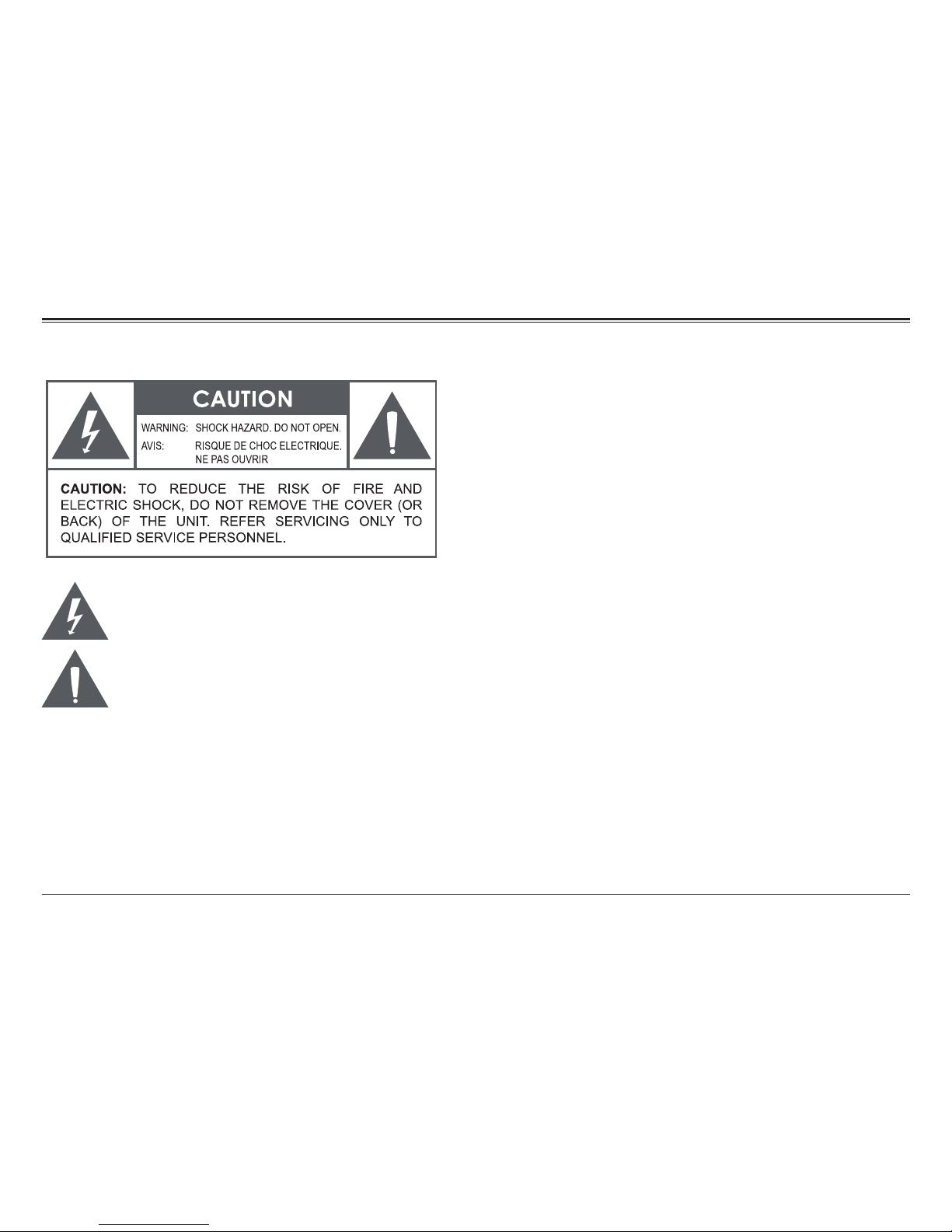

Warnings and Precautions
The lightning ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of unin-
sulated “dangerous voltage” within the product’s enclosure that
may be of signicant magnitude to constitute risk of electric
shock
The exclamation point within an equilateral triangle is intended
to alert the userto the presence of important operation and ser-
vicing instructions in the literature accompanying the appliance.
CAUTION
• Do not block the ventilation openings or holes.
• Do not place any naked ames (such as lighted candles) on the ap-
paratus.
• When discarding batteries, follow all local rules and laws governing the
disposal of batteries. Consider the environmental impact of your actions!
• To prevent re or shock hazard, do not expose this appliance to rain
or moisture.
Important Safety Information
1. Read Instructions: All the safety and operating instructions should be
read before the product is operated.
2. Retain Instructions: The safety and operating instruction should be
retained for future reference.
3. Heed Warnings: All warnings on the product and in the operating in-
structions should be adhered to.
4. Follow Instructions: All operating and usage instructions should be
followed.
5. Cleaning: Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments: Use only attachments recommended by the manufac-
turer. Use of other attachments may be hazardous.
7. Water and Moisture: Do not use this product near water (e.g., near a
bathtub, washbowl, kitchen sink, laundry tub, in wet basements, or
near a swimming pool and the like).
8. Accessories: Do not place this product on an unstable cart, stand, tri-
pod, bracket, or table. Use only with carts, stands, tripods, brackets,
or tables recommended by the manufacturer or sold with the product.
Any mounting of the product should follow the manufacturer’s in-
structions and should use a mounting accessory recommended by the
manufacturer. A product and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces may cause the
product and cart combination to overturn.
9. Ventilation: Slots and openings in the cabinet are provided for ven-
tilation to ensure reliable operation of the product and to protect it

www.naxa.com Page 9
from overheating. These openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer in-
structions have been adhered to.
10. Power Sources: This product should be operated only from the type of
power source indicated on the rating label. If you are not sure of the
type of power supply to your home, consult your product dealer or
local power company. For products intended to operate from battery
power or other sources, refer to the operating instructions.
11. Grounding or Polarization: This product may be equipped with a po-
larized alternating-current line plug that has one blade wider than
the other. This plug will only t into the power outlet in one direction.
This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the direction of the plug. If the plug should
still fail to t, contact an electrician to replace the obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
12. Power-Cord Protection: Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords at plugs, con-
venience receptacles, and at the point which they exit
from the product.
13. Protective Attachment Plug: The product may be
equipped with an attachment plug with overload
protection. This is a safety feature. See the operat-
ing instructions for replacement or directions to re-
set the protective device. If replacement of the plug is
required, be sure the service technician has used a replace-
ment plug that has the same overload protection as the original plug as
specied by the manufacturer.
14. Outdoor Antenna Grounding: If an outside antenna is connected to
the product, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANS/NFPA 70 provides in-
formation with regard to proper grounding of the mast and support-
ing structure,grounding of the lead-in wire to an antenna-discharge
unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the
grounding electrode (see gure).
15. Lightning: For added protection for this product, unplug it from the
wall outlet and disconnect the antenna or cable system during a
lightning storm or when it is left unattended and unused for long pe-
riods of time. This will prevent damage to the product due to lightning
or power-line surges.
16. Power Lines: An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power cir-
cuits, or where it can fall into such power lines or circuits. When in-

Page 10 Naxa Electronics
stalling an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits, as contact with them
might be fatal.
17. Overloading: Do not overload wall outlets, extension cords, or inte-
gral convenience receptacles as this can result in a risk of re or elec-
tric shock.
18. Object and Liquid Entry: Never push objects of any kind into this prod-
uct through openings as they may touch dangerous voltage points or
short-out parts that could result in a re or electric shock. Never spill
liquid of any kind on the product.
19. Servicing: Do not attempt to service this product yourself as open-
ing or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualied service personnel.
20. Damage Requiring Service: Unplug this product from the wall outlet
and refer servicing to qualied service personnel under the follow-
ing conditions: a) when the power-supply or plug is damaged; b) if
liquid has been spilled or if objects have fallen into the product; c) if
the product has been exposed to rain or water; d) if the product does
not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as
improper adjustment of other controls may result in damage and will
often require extensive work by a qualied technician to restore the
product to its normal operation; e) if the product has been dropped or
damaged in any way; f) when the product exhibits a distinct change in
performance—this indicates a need for service.
21. Replacement Parts: When replacement parts are required, be sure
that your service technician has used replacement parts specied
by the manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in re, electric shock, or
other hazards.
22. Safety Check: Upon completion of any service or repairs to this
product,ask the service technician to perform safety checks to ensure
that the product is in proper operating condition.
23. Wall or Ceiling Mounting: The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
24. Heat: The product should be situated away from heat sources such as
radiators,heat registers, stoves, or other products (including ampli-
ers) that produce heat.
WARNING:
This product contains lead, a chemical known to the State of California to
cause cancer and birth defects or other reproductive harm. Wash hands
after handling.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the lim-
its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

www.naxa.com Page 11
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION ON MODIFICATIONS
Any changes or modications not expressly approved by the grantee of
this device may void the authority granted by the FCC to operate the
equipment.
Trademark & Regulatory Statements
Bluetooth®is a registered trademark of Bluetooth SIG, Inc. Other trade-
marks and names are those of their respective owners.

Page 12 Naxa Electronics
Troubleshooting Guide
This guide lists common problems and their solutions.
Please refer to this guide before requesting service.
If you need further assistance, please contact Naxa
Technical Support (www.naxa.com/naxa_support/).
Symptom Possible Cause Possible Solution
There is no
power.
The battery is
exhausted.
Connect the unit to a
USB power source to
charge it.
The Power switch is
set to OFF.
Make sure that the
Power switch is set to
the ON position.
The device
is unable to
connect to the
speaker.
The speaker is not
in pairing mode.
Reset the speaker
(turn it off and then on
again.) Wait for the sta-
tus LED to ash quickly
blue.
Bluetooth may be
disabled on your
device.
Make sure Bluetooth is
enabled on your device.
Turn it on if it isn’t.
Symptom Possible Cause Possible Solution
The device is
connected but
there is no
sound.
The AUX connector
may be in use.
Disconnect all cables
from the AUX input
connector [7] on the
back of the speaker.
Your device may be
beyond the effec-
tive range of the
speaker.
Move closer to the
speaker. Range may
be affected adversely
by environmental
conditions.
Your device may
not be in playback
mode.
Ensure that your device
is operating correctly.
Start playback on your
device.

www.naxa.com Page 13
Specications
Speakers Twin 2" drivers + 3" subwoofer
Frequency
Response
100-20,000 Hz
Removable Memo-
ry Support
USB, SD, SDHC (max 32 GB)
Playable Media
Formats
MP3, WMA
Radio Tuner FM
Input Bluetooth®Version 2.1 + EDR with A2DP
3.5 mm AUX audio
Power Rechargeable lithium battery
AC 100-240V power adapter
Battery Life* Up to 2 hours
* Estimate based on playback with Bluetooth at 100% volume. Battery life
will vary depending on usage.
Note: Product are improved continuously. We reserve the right to modify
the product and specications without prior notice.
Support
If you have problems with your device, please consult
the instructions in this manual. Please also visit us
on the web at www.naxa.com to get up to the minute
news, alerts, and documentation for your device. For
additional assistance, please contact Naxa Technical
Support.
NAXA Technical Support
2320 East 49th St.
Vernon, CA 90058
http://www.naxa.com/naxa_support/
