NAYATI NGSCD 9-90 CE Manual

FRM-PDE-03-04 (NYT/R&D/20180523)
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
Installation, Operation
and Maintenance Instructions
Model :
NGSCD 9-90 CE
Two Gas Burners
Three Decks Chamber
Premix Burner
Safety Flame Sensor
Gas Steamer with 3 Decks Cabinet
Note: The picture is illustration only. We reserved the right to make technical changes in the interest in progress
without prior notice.

2
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
Dear customer,
Thank you for choosing our product as your trusted partner. We ensure you that we always give our best as we
produce this appliance by using the finest materials. NAYATI Gas Steamer with 3 Decks Cabinet is excellent choice
to cook. In order to obtain maximum benefits of this appliance, please read this manual instruction carefully. Please
notice the warnings and safety instructions to keep your safety. DO NOT use this appliance except its utility.
If you have any questions or difficulties in operating this appliance, please contact your dealer or NAYATI to acquire
mechanic assistance.
NAYATI TEAM
Preface
Preface

3
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
Page
Preface …………………………………………………………………………………………….…………
2
Table of Contents……………………………………………………………………….………….………..
3
1. General Information…………………………………………………………………..…………………
4
1.1
Information for the Reader…...……….…………………………………………………………
4
1.2
Warning, Signs and Symbols………………………………………….….…………... ……….
4
1.3
General Information of the Appliance. ...………………………………………………………
5
1.4
Procedure for Requesting Service and Warranty .…………………….……………………..
6
2. Safety Instruction….……………………………………………………………………………………
7
3. Technical Data .……..…………………………………………………………………………………..
8
3.1
Data Table …...………………………………………………………………………………….
8
3.2
Data Plate ……..…………………………………………………………………………………
8
3.3
Overall Dimension. ……………………………………………………………………………..
13
3.4
Components List ….…………………………………………………………………………….
14
4. Handling and Installing ………………….……………………………………..……….................…
15
4.1
Packaging and Transport …..…………………………………………….……………………
16
4.2
Handling and Lifting ….…………….……………………………………….………………….
16
4.3
Safety Devices and Accessories …………………………………………….……………….
16
4.4
Position and Fixing ...………………………………………………………….……………….
17
4.5
Gas Supply Connection ……………………………………………………………................
17
4.6
Electric Power Connection ..…………………………………………………..……...............
17
4.7
Water Supply Connection …………………………………………………….……................
18
4.8
Drainage Hose Connection ……………………………………………………..…................
18
5. Gas Conversion ……………………………………………………………………......….…..............
19
5.1
Gas Conversion ……………………………………………………………………..................
19
5.2
Changing Injector ……………………………………………………………….…..................
23
6. Use and Operation ……………………………………………………………………………..………
24
6.1
Warning …………………………………………………………………………………………
24
6.2
Control Panel Description ……………………………………………………………………..
24
6.3
Switch ON/OFF …………………………………………………………………………………
25
7. Routine Cleaning and Maintenance ..……………………………………………………………….
27
8. Trouble Shooting ..……………………………………………………………………………………..
28
9. CE Certificate ……………………………………………………………………………………………
29
10. General Exclusions …………………………………………………………………………………..
30
11. Addresses …………..………………………………………………………………………………….
31
12 Electric Wiring Diagram …..…………………….…………………………………………………….
On Appendix
Table of Contents
Table of Content

4
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
1.1 Information for the Reader
Please read this manual instruction carefully before operating this appliance.
To find the specific topics of interest to you quickly, refer to the index at the start of the manual. This manual is
written to:
All the information is instructed to general readers, i.e for users of the appliance.
All the information is instructed for special categories of reader, i.e. all skilled operators authorized
to handle, transport, install, service, repair and scrap the appliance
The skilled operators may also read the information for the general readers for a more complete picture of the
information provided if necessary.
1.2 Warning, Signs and Symbols
1.2.1 Warning
Warnings are indicated with a pictogram and a signal word.
The type and source of the risk as well as the consequences are described together with instructions for
avoiding the danger. The margins of the pictograms and signal words used are explained in section “Signs” and
“Symbols”
1.2.2 Signs
Electric Shock Hazard or High Voltage
Imminent danger
→ Non-observance leads to death or serious injury (caused by electric shock)
Hot Surface
Dangerous situation
→ Non-observance can lead to slight or semi-serious injury (caused by hot surface)
Warning
Damage
→ Non-observance can lead damage
Pace Maker (Especially for Induction)
Possible Danger
→ Non-observance can lead to death or serious injury
Injury Risk
Possible Danger
→Non-observance can lead to death or serious injury
1. General Information
General Information

5
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
PE
→ Connect wire to the earth
Important
→ non-observance can lead damage
Note
→ Note for special appliance
Attention
→ Non-observance can lead damage
User sign
→ information must be read by user
Technician sign
→ information must be read by technician
CE Certification
→ The appliance have a license of CE Certificate
1.2.3 Symbols
Symbols
Meaning
Explanation
1.
2.
Instruction, single step
Instruction must be followed in the
order given
Bullet points, such as
“•”, “_”, “ etc
Instruction, multiple steps
Instruction can be carried out in any
sequence
→
Instruction, multiple steps
An action is required here
1.3 General Information of the Appliance
Nayati Gas Steamer with 3 Decks Cabinet is an excellent cooking appliance made of stainless steel. Water
tank also made of stainless steel. There are three decks chamber and two blower. It consists of two gas
burners with 42 kW total power rate. This appliance is suitable for steaming. The burner is premix and supplied
by a mixture of liquid gas and air or natural gas and air. The Main Burner is equipped by Electric Gas Control. It
is very important to keep this instruction book together with the appliance for future consultation. If this
appliance sold or transferred elsewhere, make sure this book goes with it. Therefore, the new user can read
about its functions and other relevant information.

6
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
1.4 Procedure for Requesting Service and Warranty
1.4.1 Requesting Service
Contact one of the authorized service centers or NAYATI for all requirements. When requesting service, state
the data provide on the nameplate and provide a description of the fault.
1.4.2 Warranty
NAYATI gives 12 months guarantee with certain conditions. NAYATI will decline any claims of accidents
caused by improper use, disobey rules, and/ or disobey warnings. Below are cases, which invalidate the
guarantee:
1. Improper use by untrained person(s)
2. Disobey local regulation(s) related to installation and safety standards
3. Not doing routine maintenance
4. Replace certain parts with non-genuine spare part
5. Do not follow the manual instructions properly
If you have any doubts or questions related to our product, please call your nearest dealer or call NAYATI.

7
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
Read this manual instruction carefully before using NAYATI Gas Steamer with 3 Decks Cabinet. This appliance is for
food preparation only. Below are safety instructions that strictly conformed:
1. Improper installation, maintenance, cleaning, or modification to the appliance could lead to severe injury or
death and could damage the appliance.
2. The mechanics must instruct staff regularly to avoid accident and damage of the appliance.
3. NAYATI Gas Steamer with 3 Decks Cabinet may be used for skilled staff only.
4. DO NOT place the appliance in a toxic area or have a risk of explosion.
5. DO NOT place the appliance near flammable materials such gasoline, fat, clothes, liquid gas, paper, etc.
6. DO NOT place the appliance in wet or humid room or condition such in rain or near water leaks, etc.
7. DO NOT use the appliance for drying clothes, paper, or living animals.
8. DO NOT use the appliance to heat non-food products.
9. Put the appliance in a good ventilated room.
10. Before cleaning or maintaining the appliance, detach the gas line and allow it to cool.
11. DO NOT touch the area this sign means hot surface. Beware of severe burning injury.
12. DO NOT attempt to dismantle or repair the appliance. The authorized mechanics must do all jobs.
Important! Before installing, place the appliance on solid, flat, stable and horizontal surface and
connection availability.
INJURY RISK!
-Avoid Gas Steamer with 3 Decks Cabinet installation next to fat Fryer.
-Water could splash into the Fryer and may injure the user.
-It is recommended to keep a safe distance between Gas Steamer with 3
Decks Cabinet and other kitchen equipment like Fryer.
2. Safety Instruction
Safety Instruction

8
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
3.1 Data Table
3.1.1 Technical Specification of Gas Steamer with 3 Decks Cabinet
Table 1 :
Technical Specification
Model
NGSCD 9-90 CE
Overall Dimension (mm)
Width
Depth
Height
900
900
1900
Dimension of Top Chamber (mm)
900
900
220
Dimension of Middle Chamber (mm)
900
900
220
Dimension of Bottom Chamber (mm)
900
900
400
Connection Pipe
Drain (D1)
Drain (D2)
Gas Inlet (G)
Water Inlet (S)
R.¾”
Rp.1½”
R.1”
R.¾”
Electric Connection
230VAC/1Ph/0.34 A
Electric Consumption
80 W
Gas Consumption
2 x 21 kW= 42 kW (36,120 kCal/h)
Gas Connection Pressure
G30 / G31: 28-30 / 37 mbar
Direct Heat Emission (kW)
-
Latent Heat Emission (kW)
0.01
Steam Emission (Kg/h)
0.02
3.2 Data Plate
3.2.1 Technical plate reports the current gas setting.
3. Technical Data
Fig. 1
Technical Data

9
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
3.2.2 Gas Connection Pressure
Table 2 :
Countries
Category
Connection Pressure (mbar)
Natural Gas Type
Liquid Gas / LPG Type
AT
II2H3B/P
20
50
BE
II2E+3+
20/25
28-30/37
BG
II2H3B/P
20
28-30
CH
II2H3B/P
20
50
CY
II2H3B/P
20
28-30
CZ
II2H3B/P
20
50
DE
II2ELL3B/P
20
50
DK
II2H3B/P
20
28-30
EE
II2H3B/P
20
28-30
ES
II2H3+
20
28-30/37
FI
II2H3B/P
20
28-30
FR
II2E+3+
20/25
28-30/37
GB
II2H3+
20
28-30/37
GR
II2H3+
20
28-30/37
HR
II2H3B/P
20
28-30
HU
II2H3B/P
20
28-30
IE
II2H3+
20
28-30/37
IT
II2H3+
20
28-30/37
LT
II2H3B/P
20
28-30
LU
I2E
20
I3+
28-30/37
LV
II2H3B/P
20
28-30
MT
I3B/P
28-30
NL
I3B/P
28-30
NO
II2H3B/P
20
28-30
PL
II2E3B/P
20
50
PT
II2H3+
20
28-30/37
RO
II2H3B/P
20
28-30
SE
II2H3B/P
20
28-30
SI
II2H3B/P
20
28-30
SK
II2H3B/P
20
28-30
TR
II2H3B/P
20
28-30

10
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
3.2.3 Technical Plate reports warnings in European languages and destined languages.
Table 3 :
DE
“Dieses Great muB geltenden Vorschriften angeschlossen und nur in einem gut belufteten raum betrieben warden. Bitte beachten Sie
vor Inbetriebnahme des Gerates die Gebrauchs – und Wartungsanleitung.”
FR
“L’appareil doit être raccorde conformement aux norms en vigueur et il ne doit etre installé que dans locaux bien aérés. Faire attention
aux instruction relatives a l’utilisation et l’entretien de l’appareil avant de le mettre en marche.”
ES
“ El apparato debe ser conectado conforme a las normas vigentes y se tiene que instalar solo en locales bien aireados. Préstese
especial atención a las instrucciones para el luso y mantenimiento del apparato antes de panerlo en marcha.”
GB
“The appliance must be connected according to the standards in force and must be installed only in well aired premises. It is
recommended to follow the use and servicing instructions of the appliance before operating it.”
IT
“L’apparecchio deve essere allacciato conformemente ale norme in vigore e deve essere installato solo in locali ben aerate. Si presti
particolare attenzione alle istruzioni per l’usa manutenzione dell’apperecchio prima di metterlo in funzione.”
PT
“Este aparelho deve se instalado Segundo as normas em vigor e sópode se colocado em funcionamento em ambiente bem ventiladp.
Antes da instalação e da colocao em funcionamento, devem ler-se as respetivas instruções.”
IE
“The appliance must be connected according to the standards in force and must be installed only in well aired premises. It is
recommended to follow the use and servicing instructions of the appliance before operating it.”
GR
“αυτή η συσκευή πρέπει να εγκατασταθεί σύμφωνα με τους ισχύοντες κανονισμούς και μπορεί να λειτουργήσει μόνο σε καλά
αεριζόμενο περιβάλλον. Πριν από την εγκατάσταση και τη λειτουργία της συσκευής, βεβαιωθείτε ότι έχετε διαβάσει τις σχετικές
οδηγίες.”
LU
“šī ierīce jāuzstāda saskaņā ar spēkā esošajiem noteikumiem un to var darbināt tikai labi vēdinātā vidē. Pirms ierīces uzstādīšanas un
lietošanas pārliecinieties, ka esat izlasījis attiecīgos norādījumus.”
AT
“Dieses Great muB geltenden Vorschriften angeschlossen und nur in einem gut belufteten raum betrieben warden. Bitte beachten Sie
vor Inbetriebnahme des Gerates die Gebrauchs – und Wartungsanleitung.”
CH
“Dieses Great muB geltenden Vorschriften angeschlossen und nur in einem gut belufteten raum betrieben warden. Bitte beachten Sie
vor Inbetriebnahme des Gerates die Gebrauchs – und Wartungsanleitung.”
DK
”Dette apparat skal installeres i overensstemmelse med gældende regler og må kun betjenes i et godt ventileret miljø. Før du
installerer og betjener apparatet, skal du læse de relative instruktioner.”
SE
”Denna apparat måste installeras enligt gällande föreskrifter och får endast användas i väl ventilerad miljö. Innan du installerar och
använder apparaten måste du läsa de relativa instruktionerna.”
FI
”Tämä laite on asennettava voimassa olevien määräysten mukaisesti ja sitä voidaan käyttää vain hyvin ilmastoidussa ympäristössä.
Ennen laitteen asentamista ja käyttöä on syytä lukea suhteelliset ohjeet.”
BE
“L’appareil doit être raccorde conformement aux norms en vigueur et il ne doit etre installé que dans locaux bien aérés. Faire attention
aux instruction relatives a l’utilisation et l’entretien de l’appareil avant de le mettre en marche.”
NL
“Dit apparaat moet worden geïnstalleerd in overeenstemming met de geldende voorschriften en mag alleen in een goed geventileerde
omgeving worden gebruikt. Lees voordat u het apparaat installeert en gebruikt de relatieve instructies.”
NO
”Dette apparat skal installeres i overensstemmelse med gældende regler og må kun betjenes i et godt ventileret miljø. Før du
installerer og betjener apparatet, skal du læse de relative instruktioner.”

11
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
3.2.4 Technical plate reports warning and current setting on appliance packaging.
Table 4 :
GB
II2H3+
G20 ; 2H ; 20 mbar
G30/G31 ; 3+ ; 28-30/37 mbar
This appliance must be installed according to the regulations in force and used only in a well aired place.
Consult the instructions before installing and using this appliance. This package must be disposed according to
the regulations in force.
DE
II2ELL3B/P
G20 ; 2E ; 20 mbar
G25 ; 2LL ; 20 mbar
G30/G31 ; 3B/P ; 50 mbar
Dieses Gerät soil gemäss den geltenden Vorschriften installiert und nur in einemgut bëlufteten Raum benutzt
warden. Vor Installierung und Benutzung dieses Gerätes bitte die Bedienungsanweisungen durchlesen.
Dieses Paket muss gemäß den geltenden Vorschriften entsorgt werden.
FR
II2E+3+
G20/25 ; 2E+ ; 20/25 mbar
G30/G31 ; 3+ ; 28-30/37 mbar
Cet appereil doit être installè conformement aux règlements en vigueur et il doit être utilisè seulement dans
locaux bien aérés. Consulter les instructions avant de l’installation et de l’utilisation de cette appereil. Ce
paquet doit être éliminé conformément à la réglementation en vigueur.
ES
II2H3+
G20 ; 2H ; 20 mbar
G30/G31 ; 3+ ; 28-30/37 mbar
Esto aparato debe ser instalado conforme a las normas vigentes y setiene que utilizer solo en locales bien
aireados. Consultar las instrucciones antes de instalar y utilizer esto aparato. Este paquete debe eliminarse de
acuerdo con la normativa vigente.
IT
II2H3+
G20 ; 2H ; 20 mbar
G30/G31 ; 3+ ; 28-30/37 mbar
Questo apparecchio deve essere installato conformemente alle regolamentazioni in vigore e utilizzato soltanto
in un luogo ben aerato. Consultare le istruzioni prima di installare e di utilizzare questo apparecchio. Questo
pacco deve essere smaltito secondo le normative vigenti.
PT
II2H3+
G20 ; 2H ; 20 mbar
G30/G31 ; 3+ ; 28-30/37 mbar
Este aparelho deve se instalado Segundo as normas em vigor e sópode se colocado em funcionamento em
ambiente bem ventiladp. Antes da instalação e da colocao em funcionamento, devem ler-se as respetivas
instruções.
IE
II2H3+
G20 ; 2H ; 20 mbar
G30/G31 ; 3+ ; 28-30/37 mbar
This appliance must be installed according to the regulations in force and used only in a well aired place.
Consult the instructions before installing and using this appliance. This package must be disposed according to
the regulations in force.
GR
II2H3+
G20 ; 2H ; 20 mbar
G30/G31 ; 3+ ; 28-30/37 mbar
αυτή η συσκευή πρέπει να εγκατασταθεί σύμφωνα με τους ισχύοντες κανονισμούς και μπορεί να
λειτουργήσει μόνο σε καλά αεριζόμενο περιβάλλον. Πριν από την εγκατάσταση και τη λειτουργία της
συσκευής, βεβαιωθείτε ότι έχετε διαβάσει τις σχετικές οδηγίες.

12
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
LU
I2E
I3+
G20 ; 2E ; 20 mbar
G30/G31 ; 3+ ; 28-30/37 mbar
Šī ierīce jāuzstāda saskaņā ar spēkā esošajiem noteikumiem un to var darbināt tikai labi vēdinātā vidē. Pirms
ierīces uzstādīšanas un lietošanas pārliecinieties, ka esat izlasījis attiecīgos norādījumus.
AT
II2H3B/P
G20 ; 2H ; 20 mbar
G30/G31 ; 3B/P ; 50 mbar
Dieses Gerät soil gemäss den geltenden Vorschriften installiert und nur in einemgut bëlufteten Raum benutzt
warden. Vor Installierung und Benutzung dieses Gerätes bitte die Bedienungsanweisungen durchlesen.
Dieses Paket muss gemäß den geltenden Vorschriften entsorgt werden.
CH
II2H3B/P
G20 ; 2H ; 20 mbar
G30/G31 ; 3B/P ; 50 mbar
Dieses Gerät soil gemäss den geltenden Vorschriften installiert und nur in einemgut bëlufteten Raum benutzt
warden. Vor Installierung und Benutzung dieses Gerätes bitte die Bedienungsanweisungen durchlesen.
Dieses Paket muss gemäß den geltenden Vorschriften entsorgt werden.
DK
II2H3B/P
G20 ; 2H ; 20 mbar
G30/G31 ; 3B/P ; 28-30 mbar
Dette apparat skal installeres i overensstemmelse med gældende regler og må kun betjenes i et godt ventileret
miljø. Før du installerer og betjener apparatet, skal du læse de relative instruktioner.
SE
II2H3B/P
G20 ; 2H ; 20 mbar
G30/G31 ; 3B/P ; 28-30 mbar
Denna apparat måste installeras enligt gällande föreskrifter och får endast användas i väl ventilerad miljö.
Innan du installerar och använder apparaten måste du läsa de relativa instruktionerna.
FI
II2H3B/P
G20 ; 2H ; 20 mbar
G30/G31 ; 3B/P ; 28-30 mbar
Tämä laite on asennettava voimassa olevien määräysten mukaisesti ja sitä voidaan käyttää vain hyvin
ilmastoidussa ympäristössä. Ennen laitteen asentamista ja käyttöä on syytä lukea suhteelliset ohjeet.
BE
II2E+3+
G20/25 ; 2E+ ; 20/25 mbar
G30/G31 ; 3+ ; 28-30/37 mbar
L’appareil doit être raccorde conformement aux norms en vigueur et il ne doit etre installé que dans locaux
bien aérés. Faire attention aux instruction relatives a l’utilisation et l’entretien de l’appareil avant de le mettre
en marche.
NL
I3B/P
G25 ; 2L ; 25 mbar
G30/G31 ; 3B/P ; 28-30 mbar
Dit apparaat moet worden geïnstalleerd in overeenstemming met de geldende voorschriften en mag alleen in
een goed geventileerde omgeving worden gebruikt. Lees voordat u het apparaat installeert en gebruikt de
relatieve instructies.
NO
II2H3B/P
G20 ; 2H ; 20 mbar
G30/G31 ; 3B/P ; 28-30 mbar
Dette apparat skal installeres i overensstemmelse med gældende regler og må kun betjenes i et godt ventileret
miljø. Før du installerer og betjener apparatet, skal du læse de relative instruktioner.

13
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
3.3 Overall Dimension
NGSCD 9-90 CE
Fig. 2

14
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)

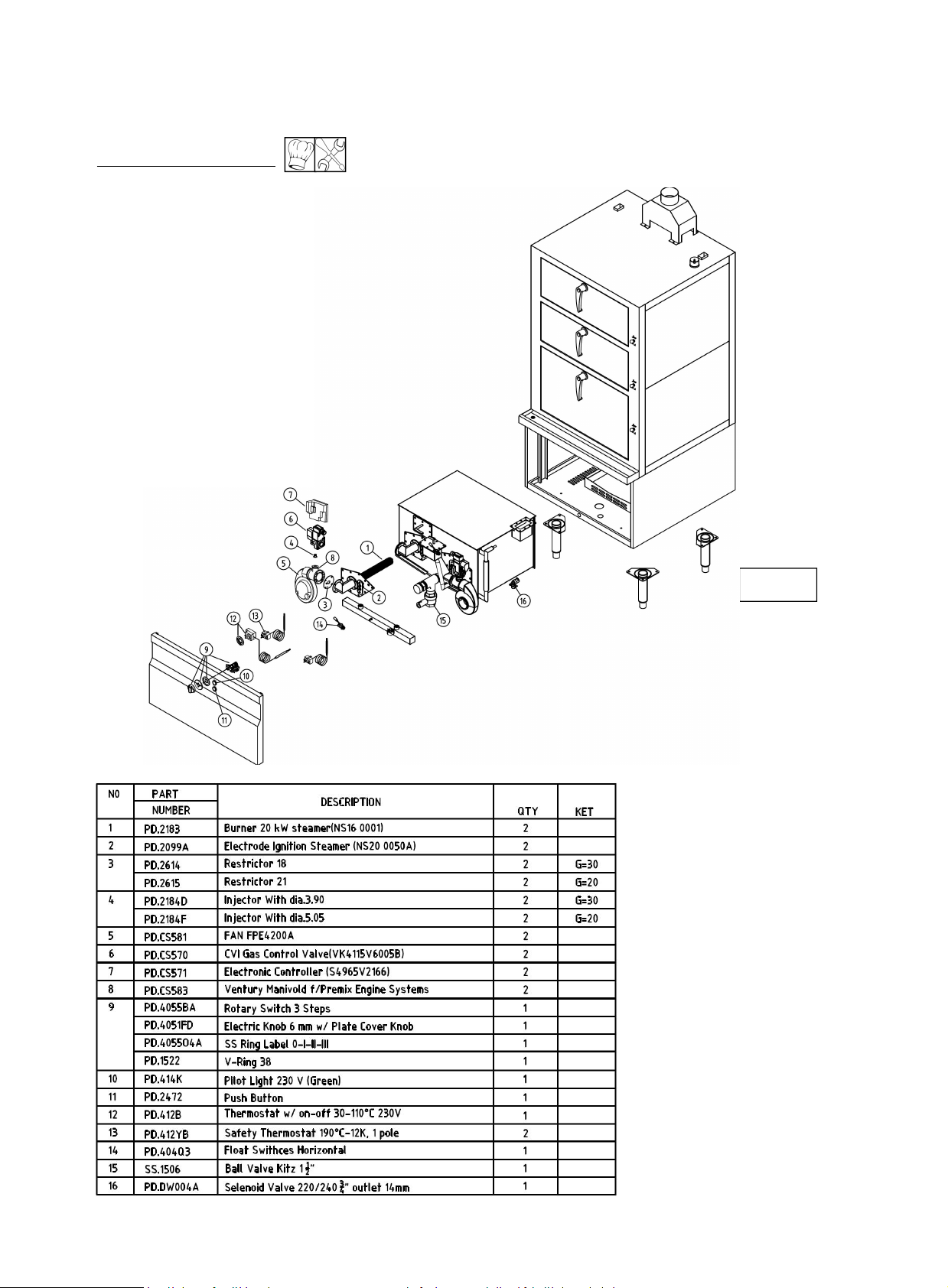

3.4 Component List
Table 5
Fig. 3

15
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
The following instructions are intended for authorized and qualified installer. Before doing installation, adjustment,
and maintenance operations, the installer must follow local and legal regulations. Cut the gas supply and electrical
power before doing any installation.
1. This appliance is using gas. Gas services should be installed according to:
a. Local and international standards
b. Local recommendation, such as building standards and recommendation concern with combustion
c. Directions and regulations from the gas and power supply companies
d. Regulation concern with prevention accident measures
2. This appliance is using electric power. Electric services should be installed according to:
a. Local and international standards
b. Local recommendations related to building standards and codes
c. Directions and regulations from power supply companies
d. Regulation concern with prevention accident measures
e. Fire prevention regulations
f. Applicable I.E.C (International Electro technical Commission) regulations
3. Remove all packaging material and protective coatings.
4. Ensure gas supply is sufficient to operate this appliance.
5. Install the appliance by using Qualified Gas Filter.
6. Before testing, put the appliance in a good ventilated room and keep all flammable material away.
7. Take a leakage test by using soapy water solution. Spread the soapy solution on joints and pipe fitting. A
leakage will be indicated by bubbles comes from the joints or pipefitting. Another way is by looking at the gas
counter. If there is no movement on the gas counter, it means no gas leakage.
8. Before cleaning or maintaining the appliance, please isolate gas supply to the safe place.
9. Install the appliance by following Safe International Gas Standards.
10. If the appliance has not preset to the gas availability, you must convert it into another gas type. Authorized
personnel must do this by referring to the technical data (nozzle table). Once this has been done, a new rating
data plate should be affixed to the new data by referring to the new gas type.
Important! Before installing, place the appliance on solid, flat, stable and horizontal surface and
connection availability.
WARNING!
Do not use free flame to find gas leak!
4. Handling and Installing
Handling and Installing

16
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
4.1 Packaging and Transport
4.1.1 Packaging
The packaging is designed to reduce space and as appropriate to the type of transport used. To simplify
transport, some components may be removed and suitably protected and packed for transport.
The packaging carries all information necessary for loading and unloading. When unpacking, check that all
components are present in the correct quantities and are undamaged. The packaging material must be properly
disposed of in accordance with legal requirements.
4.1.2 Transport
Different means of transport may be used, depending partly on the destination.
During transport, fix the packaging to the means of transport securely to prevent undesirable shifting.
4.2 Handling and Lifting
The appliance can be handled using fork-lift or hook equipment of suitable load-carrying capacity. Before lifting,
check the position of the load’s centre of gravity.
4.3 Safety Devices and Accessories
The appliance is provided with safety devices. The additional devices must be added if necessary to comply
with the relevant legal requirement during the installation.
The appliance is equipped with the included or optional accessories. There are three decks and wire grid as
included accessories
4.4 Position and Fixing
1. Authorized personnel must do the installation.
2. Install the appliance according to National Safety Standard about electric appliances.
3. Install the appliance under an extractor fan to remove the cooking fumes.
4. Make sure that any object around or under Gas Steamer with 3 Decks Cabinet does not obstruct air volume
required for combustion and air circulation.
5. Put away any flammable materials near Gas Steamer with 3 Decks Cabinet When the appliance is freestanding,
keep a distance at least 10 cm from side, and rear walls. Especially when the appliance close to wall and does
not protected with fire-resistant materials made.
6. Install the appliance separately or side by side with other appliance according to recommended range.
7. Put Gas Steamer with 3 Decks Cabinet on solid, flat, and horizontal surface.
8. Adjust the height of the four feet by using brackets.
Important! When engaging with the lifting equipment, watch out for the gas supply.
Important! Make the daily check that the safety devices are properly install and in good working order.

17
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
9. Before turn the appliance ON, remove the protective film.
10. Remove any adhesive with appropriate solvent. Eliminate all packaging material according to national laws.
4.5 Gas Supply Connection
1. Before installing and connecting Gas Steamer with 3 Decks Cabinet to gas supply, carefully control the fixed
part of gas system, which conformed to National Building Regulation.
2. Verify gas pipes sections to guarantee sufficient supply for all gas heated appliances. Install it in similar
condition to avoid excessive pressure drops.
3. The pipes must be made of steel (with junctions made using white cast iron, or galvanized steel fittings, or
autogenously welded joints) or copper pipes (with mechanical joints and couplings without seals or mastics or
brazed joints).
4. Control the gas bottle (if any) placed correctly and protected in dry area.
5. Check whether the gas pipes can easily inspected. If the pipes installed in floor and wall, make sure that this
work done according to professional standard with reference points that make it possible to find the pipes.
6. Before installing Gas Steamer with 3 Decks Cabinet, make sure that it is set for the gas and pressure (see
Technical Data Plates). Consult the paragraph “Gas Conversion”.
7. Connect Gas Steamer with 3 Decks Cabinet to gas supply using solid fittings or flexible steel pipes with suitable
sections related to nominal power and length.
8. Check whether the flexible pipes does not pass or near hot surfaces, put under stress and traction, contact with
sharp edges, or other things that could damage the pipe.
9. Install quick ON – OFF valve between the gas mains and each single appliance where easy to reach.
10. After install Gas Steamer with 3 Decks Cabinet safely, take a pressure test the whole gas circuit by using leak
finder spray or non-corrosive foams.
4.6 Electric Power Connection
1. Before connecting the appliance to the main supply, compare the electrical data in the rating plate (on the
appliance side panel) to the local electric energy supply. Make sure the main voltage correspond to the voltage
indicated on the nameplate of the appliance.
2. Registered installation companies must do the electric installation concerned with certain local and national
regulations. The companies are responsible for interpret all regulation and perform the installation and safety
instructions. The warning signs and nameplates must strictly conform.
3. The appliance equipped with a power cable and power socket.
4. DO NOT put the power cable near heat sources or water leakage area.
Important! On completion of the operation, make sure that there are no gas leaks or
malfunctions

18
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
5. Electric Input Connection — 80W 230V AC 50/60Hz 1N
4.7 Water Supply Connection
1. Connect the water supply hose (see dimension on the data table) to the water entrance.
2. Check for any leakage after assembling the water supply tube.
3. Leave enough space to keep the water supply tube from being jammed.
4. Make sure to keep piping vertical & horizontal.
5. The appliance should use new hose as supplied together with appliance
4.8 Drainage Hose Connection
1. Connect the drainage hose (see dimension on the data table) to the drainage hole on the appliance.
2. Connect the other end of the hose to the sewer.
WARNING!
To avoid electric shock, it is necessary to have earth connection. You can find the
earth connection at the terminal boards, identified with symbol to where earth
wire has to connect.

19
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
5.1 Gas Conversion
You are advised to follow closely all applicable rules, regulations, laws and standards
of your country for the installation of catering gas appliances.
Only authorized customer service people are entitled to install appliances, put them into operation, converting it to
another type of gas and perform maintenance work on them.
When setting up the premix boiling pan, always refer to the information on the rating plate
Important!
To ensure that the burner settings, made at the factory, conform with the actual installation conditions, the waste gas (CO, CO2) from
the gas premix boiling pan must be analyzed during commissioning.
The burner settings must be checked and if necessary adjusted by an authorized service in accordance with the commissioning
report for gas premix boiling pan.
Please note:
For correct sizing of the gas line, the following points must take into the consideration:
1. Total load of the kitchen appliances
2. Individual firing rates of each appliance being serviced by the gas line and meter.
3. The distance between the last appliance being serviced and the gas meter.
4. Last the number of fittings in the gas line for that distance.
The installation must be carried out in accordance with the manufacturer’s assembly instructions and in accordance with recognized
technical rules.
Before the power test is conducted, following points need to be observed:
All flexible gas-hoses, gas-burner and gas regulating valve must be checked and tested annually. This must also be conducted after any
faults which may appear.
5. Gas Conversion
Gas Conversion

20
GB-Gas Steamer with 3 Decks Cabinet
Chinese Pro - Gas-20180523
FRM-PDE-03-04 (NYT/R&D/20180523)
Visual check of the general functionality, material weakness, cracks and scratches, additionally hardening of the material must be
checked and controlled.
All pipes and hoses that show damages, reduced functionality or are not tighten need to be replaced.
The piping and all connections must be checked for tightness. It has to be done when the piping is under nominal gas pressure. After all
adjustments are done, start-up the premix boiling pan and check all security and control functions. After setting up, converting and repairing
gas consuming appliances, check all parts carrying gas for leaks.
Change the type of supplied gas
• Please refer to the installation manual on how to hook up the gas supply.
• Check and set the parameters according to the table with the connected gas type.
To adjust the density of carbon dioxide to the correct level and change the type of gas, please replace the nozzle/ injector with the appropriate
size table.
1. Parameter settings
Adjustment Parameter Table
